Solar Smart Charger

319166060_669798391506590_633241359595315407_n (1).png

Digital display DC voltage detection from Solar Cell 1-60 VDC, control the relay output.Use LCD GLCD5110 for tune Volt detect

Hardware & Circuit

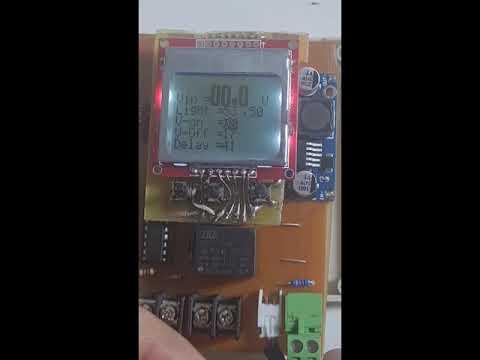

Solar Smart Charger EP1#Robot #Spot robot #Spot micro #Python #AI #IOT #Arduino #Gadgets #DIY

Use Microcontroller PIC24f16ka102 from microchip LCD Use GLCD5110

Volt controller from solar cell, with monitoring whether it's nighttime or not using LDR, and can adjust the volt and brightness, including setting the delay time. can work

Test

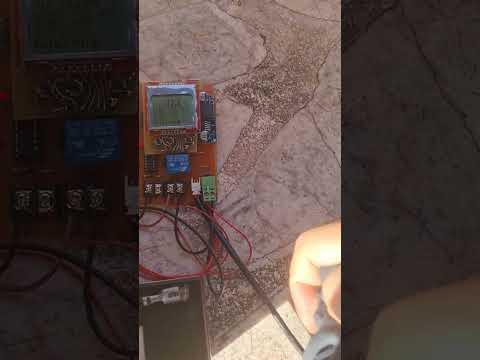

Test Solar Charge #Robot #Spot #shorts #short #AI #IOT #Arduino #Gadgets #DIY #shortvideo
