Solar Powered Square Light

Hey Guys what's up.

So here's something flashy and cool.

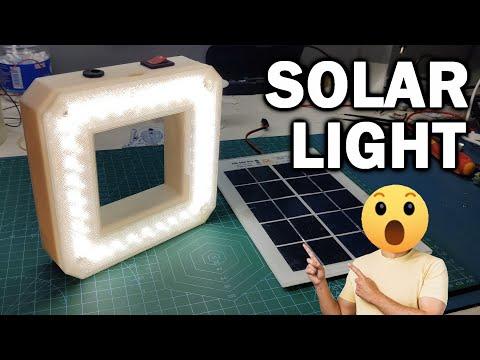

A Square shaped Solar Light which completely made from scratch.

The goal for making this was simple, I wanted to make an emergency light powerful enough for daily use. (To light up a certain area of my home during blackouts)

LEDs are all powered by a 2600mAh 3.7V Li-ion cell, I've also added a TP4056 Li-ion charging IC in this setup, and the LEDs are all driven by an AO4406 N channel Mosfet IC.

Also, this light contains a Dusk to Dawn feature which means when we plug the power IN for charging, the Main LED Light turns OFF and when we plug the charger out, it turns back ON.

this feature is essential for using this light outside with a solar panel connected, we dont have to turn ON/OFF this light daily, the solar panel will trigger this light during the day and night time automatically.

This Instructables is about the whole built process of this light setup, so let's get started!

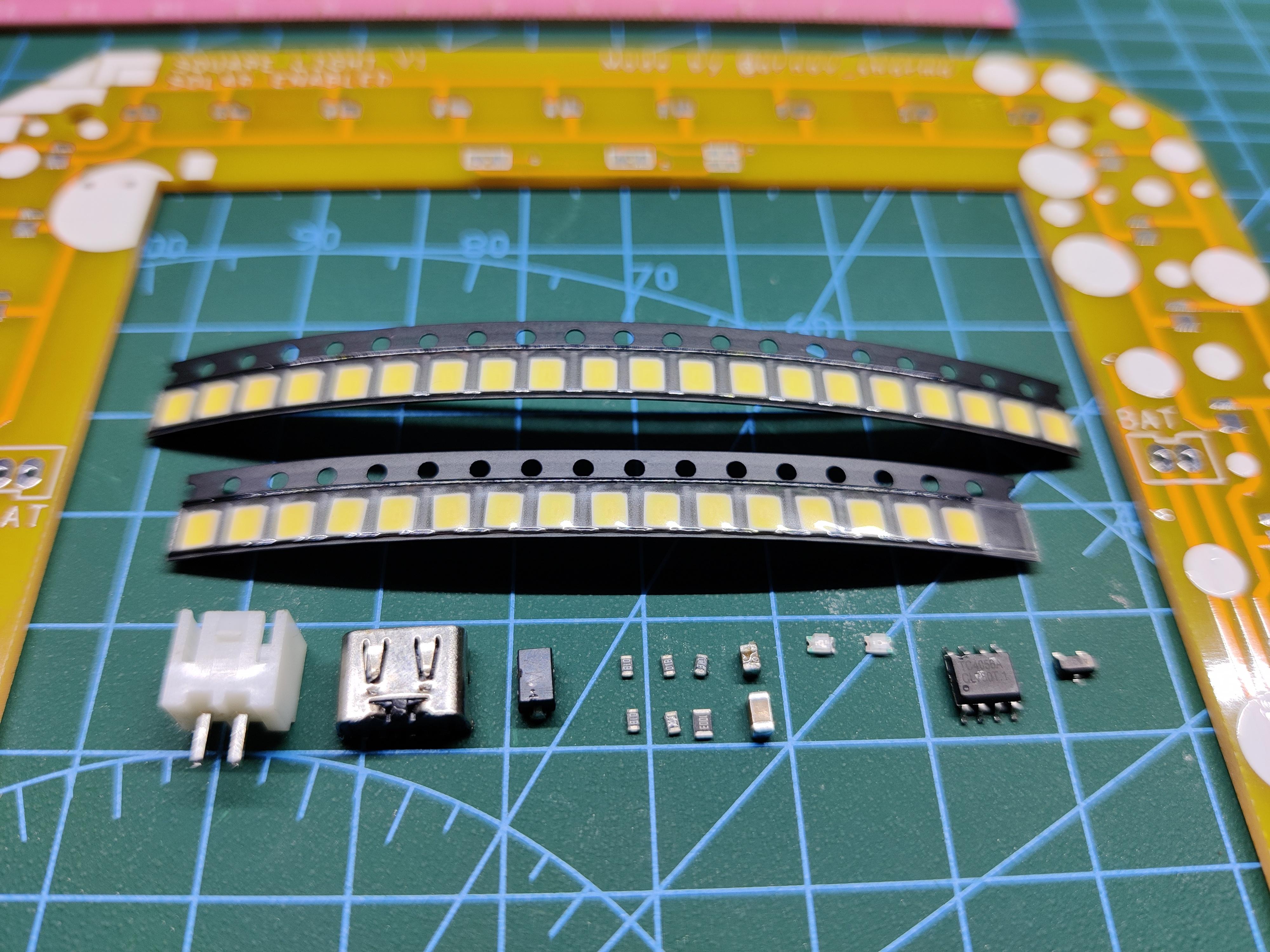

• Custom PCB
• 3V 1W LEDs 2835 Package
• TP4056 IC
• AO4406 Mosfet IC (N Channel)
• 1K Resistors
• 20K Resistor
• 100K Resistor
• AO3401 Mosfet (P Channel)
• Diode M7
• Type C Port
• Battery Li-ion 3.7V 2600mAh
• UC2515 Connectors
• 3D Printed Parts

So this is how everything started, I made an emergency light last year by using a few LED strips connected with a Li-ion cell and an LED Driver.

The goal was to prepare a functional Emergency light that can be used daily in order to counter power outages, the place where I live is infamous for daily power cuts for a couple of hours.

This light worked properly and had an overall backup of 5-6 hours which was pretty sweet however because the LED setup was completely makeshift, it didnt lasted long so I decided to make a proper light by preparing a square PCB that contains LEDs with a simple LED Driving Mosfet, the system will be powered by Li-ion Cell and for charging the Li-ion cell I've added a Li-ion Charging IC that controls the overcharge and indication for charging.

The body will be made from PLA.

Here's the schematic I prepared for the mainboard.

It contains mainly three parts, the LED Section, Mosfet Driver, and the TP4056 Li-ion Charging section.

Firstly there are a total of 36 LEDs that are all connected in parallel. each led is of 3V and 1W which means all these LEDs combined draw 36W of power but it's not ideal to provide these LEDs that much power all at once, they will burn up so Here's what I did, I added a Mosfet IC (AO4406) and used a 20K Resistor on the gate of this FET, this limited the current down to 2.7A. We can control this FET with a Microcontroller and drop more current by providing the Gate a PWM signal of 50% duty cycle. (instead of making this Pin HIGH, we can limit the current by providing it signal of 100 or even 50 by using the analogWrite function)

Then there's the TP4056 Section that consists of the TP4056 setup, 1K resistor is added with its Set Pin in order to configure the charging current to 1A, if we reduce the resistance value, the charging current will also decrease.

TP4056 also has an important feature that consists of two indication LEDs, During the battery charging, RED LED will glow but when the battery reached 4.2V, the RED LED will turn off and Blue LED will Glow.

USB Type C port is being used to power the TP4056 and charge the battery.

I've also added a P-channel mosfet between the battery and VCC of the system.

There's a resistor that keeps the mosfet ON as it is connected with GND, but I also added the Charging side positive terminal with the mosfet gate so when the charger plugs in, the mosfet gets OFF and the Load that is being powered by it shuts down, this feature is also known as DUSK to Dawn and its pretty commonly used in Solar based Lights and streetlights. when the solar panel stops getting power (night time) that triggers the mosfet and turns ON the power, when the sun comes up and solar power feeds power, the mosfet turns OFF and the light turns OFF as well.

I made this schematic by following the above things I mentioned and finalizing it.

I prepared the PCB by first preparing a Square outline and placing 9 LEDs on each side of the square shape.

I placed the TP4056 along with Mosfet IC AO4406 and AO3401 on one side and placed the indicator LED on the opposite side of Mosfet.

only the Type C port has been placed on the bottom side of the board.

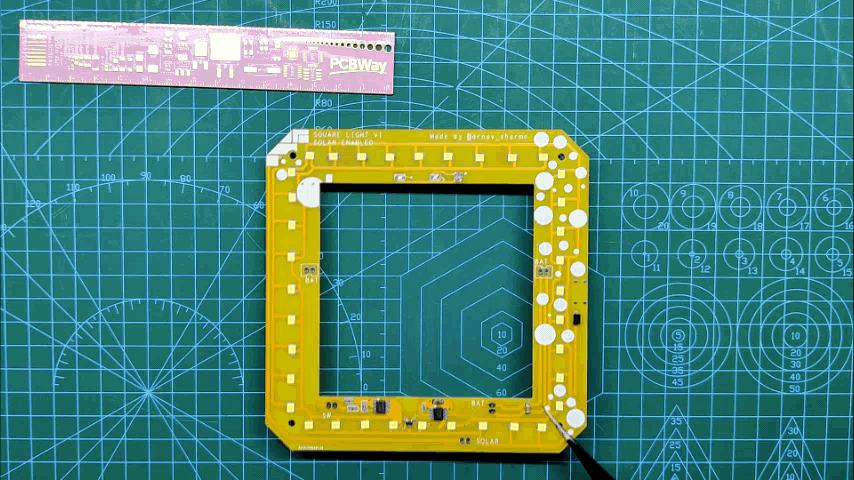

After completing the PCB Design, I exported its Gerber data and send that to PCBWAY for samples.

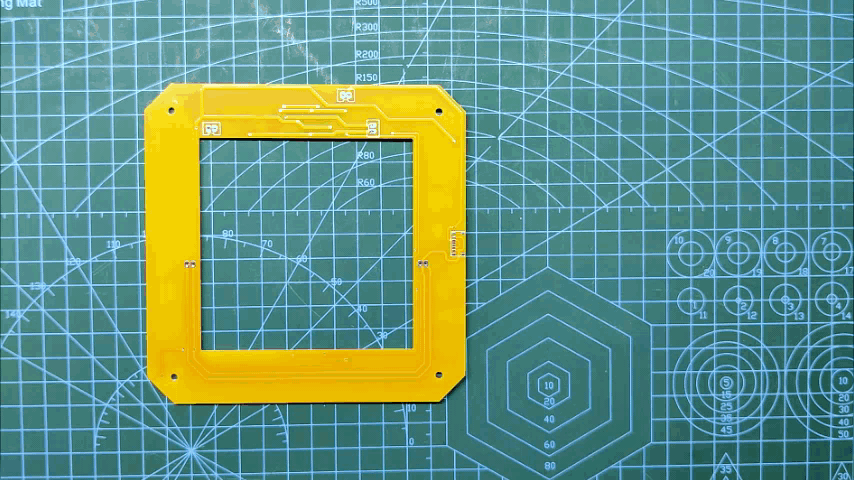

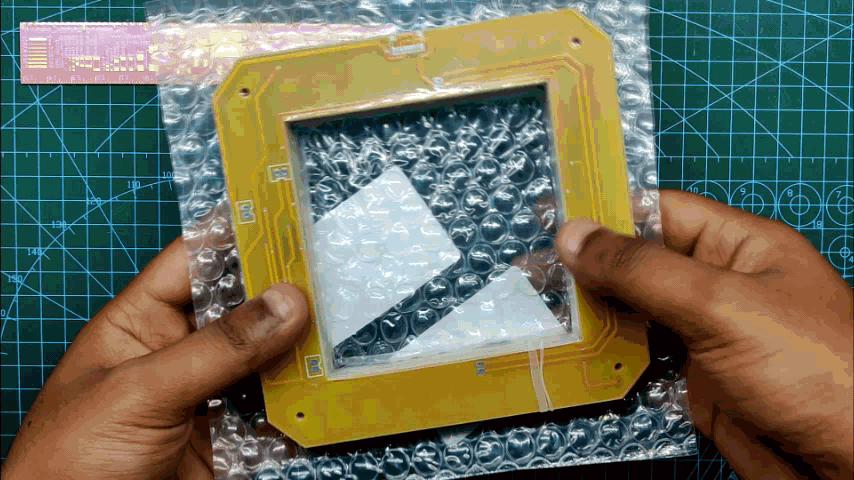

I received the PCBs in a week which was super fast.

As for the quality of the PCBs, I was really Blown away by how each board was top-notch and great with no errors whatsoever.

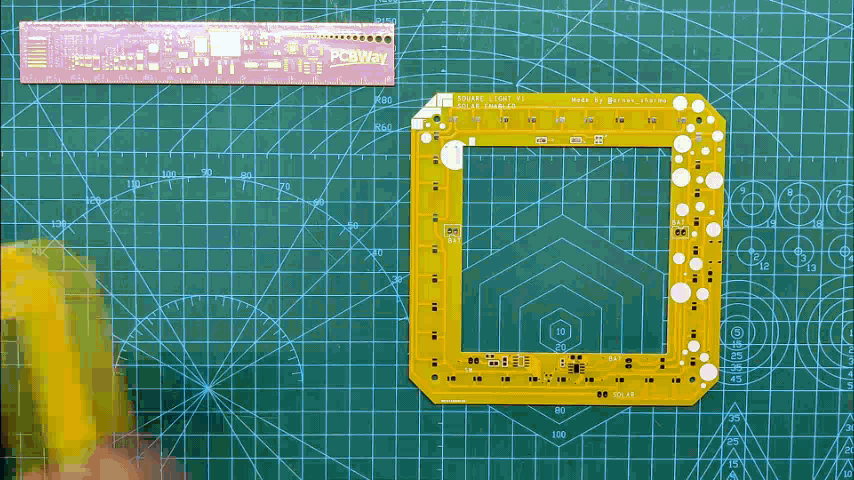

I ordered boards in Yellow Soldermask with white Silkscreen as that would look super cool.

Overall quality was super and I recommend you guys for checking them out if you need great PCB service for less cost.

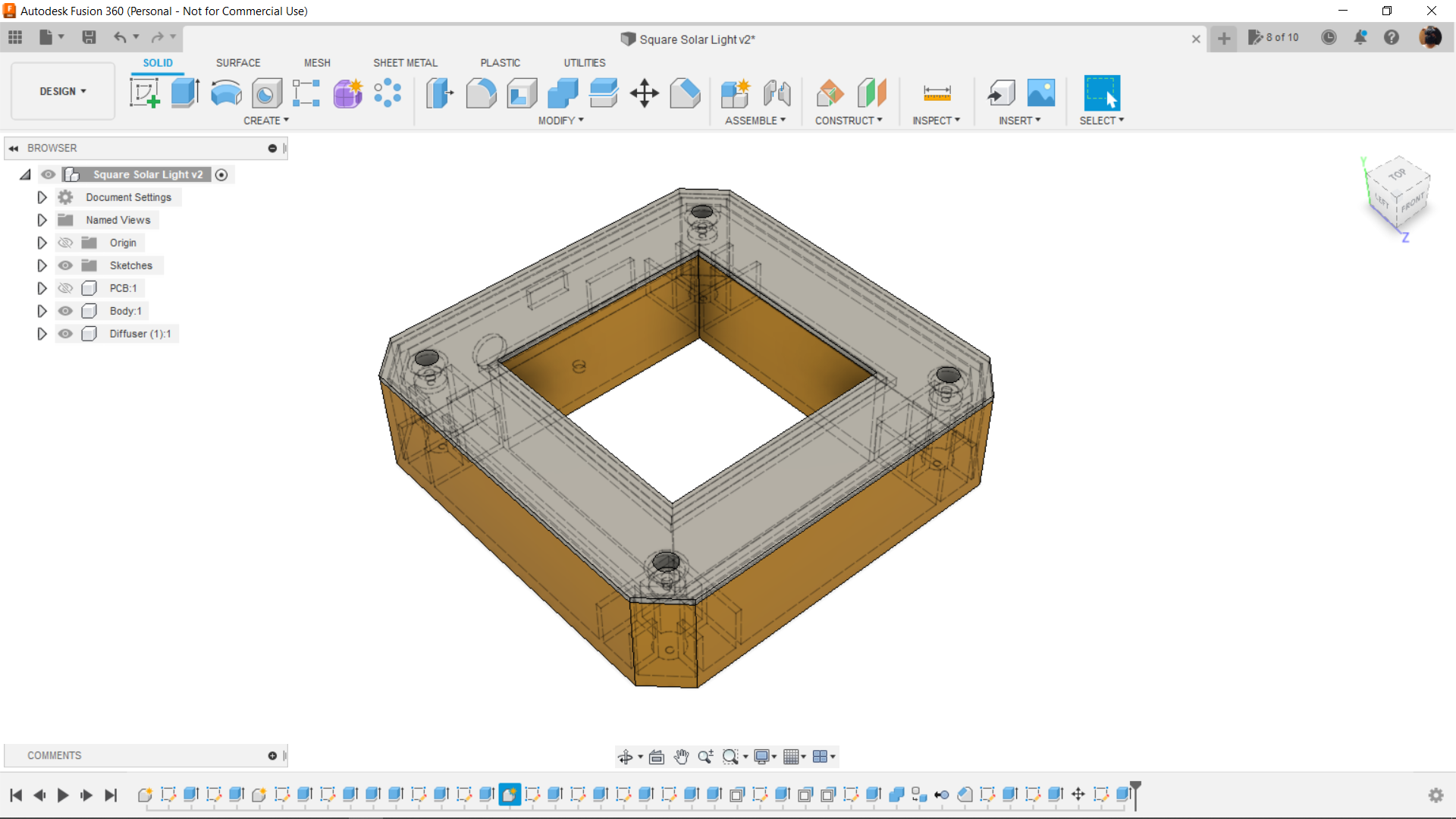

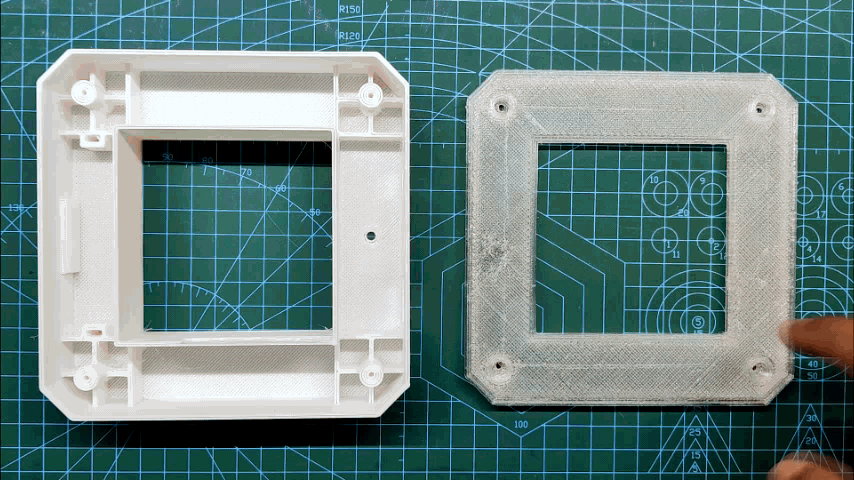

As for the 3D Printed body, my goal was to make a square-shaped box-like light so I modeled the casing for the PCB that consists of a base and lid, base will hold PCB and Lid will be the diffuser and we will use four screws to the tight lid from Topside.

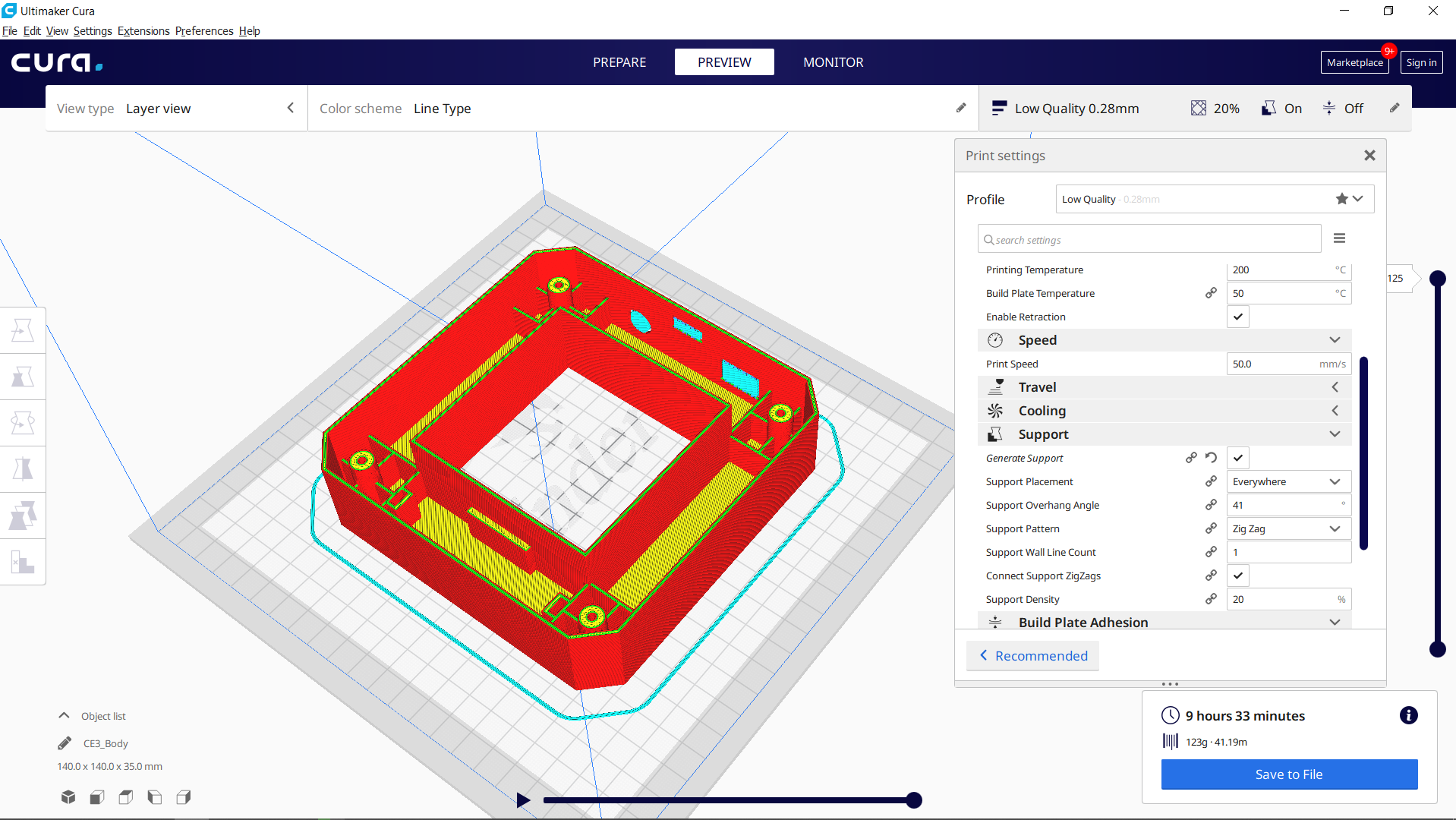

I modeled this in fusion360 and then exported the 3MF files for 3D Printing.

For preparing the base, I used a 1mm nozzle with white PLA and for the lid, I used transparent PLA with the same nozzle and same setting.

the PCB Assembly Process will have the following steps.

• Solder Paste Dispensing
• Pick & Place Process
• Hotplate Reflow
• Adding Type C Port
• THT Components

The first step is to apply solder paste to each component pad.

I used a normal Sn-Pb solder paste which has a melting temp from 140 to 270 °C.

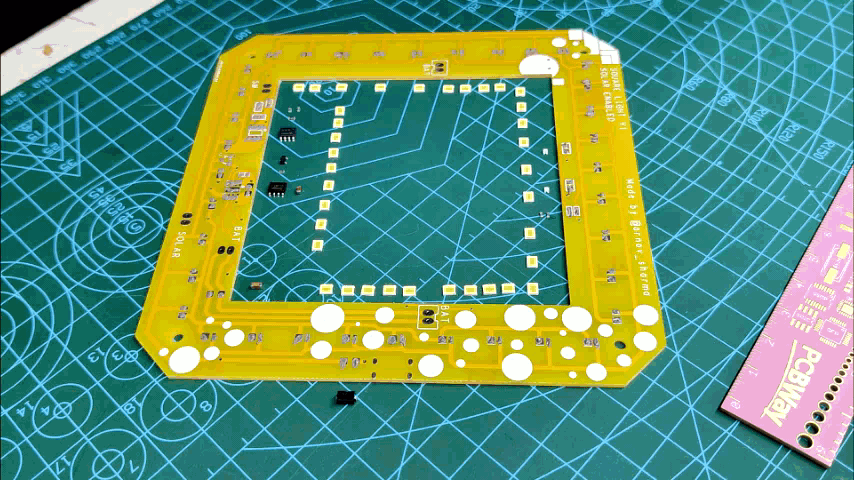

I then used an ESD Tweeaser to carefully pick and place each SMD component in their assigned place one by one which took like 30 Seconds tops but the result was a perfect PCB with all the components placed in their location.

After the "PICK & Place Process", I carefully lifted the whole circuit board and place it on my DIY SMT Hotplate which is also homemade just like this project.

After a Few mins when the hotplate reaches the Solderpaste melting TEMP, all the components will get soldered by this Hot Reflow process.

We then remove the PCB from the Hotplate to cool down all componenets and board surface.

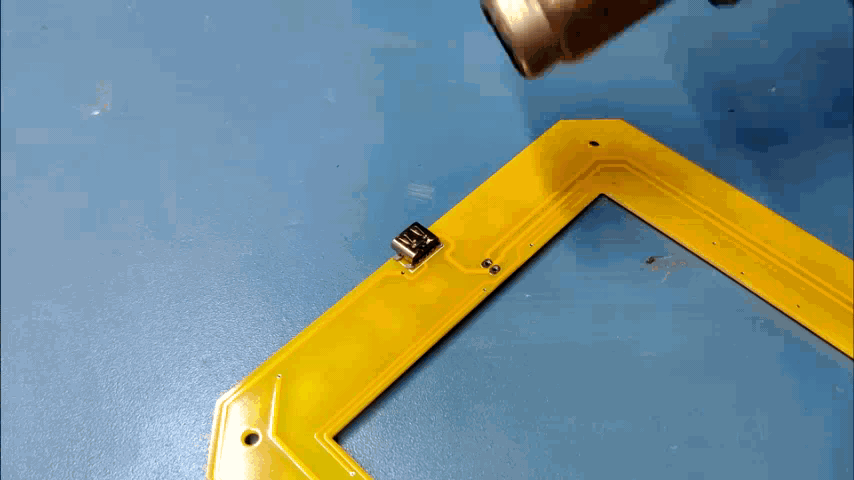

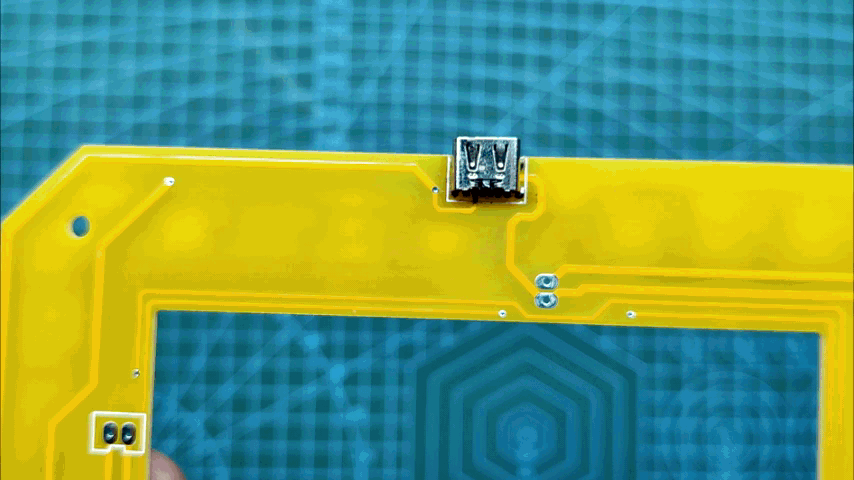

After the Hotplate reflow process of the TOP side, we add the Type C Port on the bottom side with a Reflow gun.

• First, add solder paste to the pad of the Type C port
• Then add Type C Port to its assigned location
• Use Reflow Gun to heat up the solder paste up to its melting temperature, after a few seconds, it will melt and hold down the Type C Port in its place.

In the end, we add THT Components to the PCB, two UC2515 Connectors for solar connection, and a battery.

After doing this, the Circuit is completed!

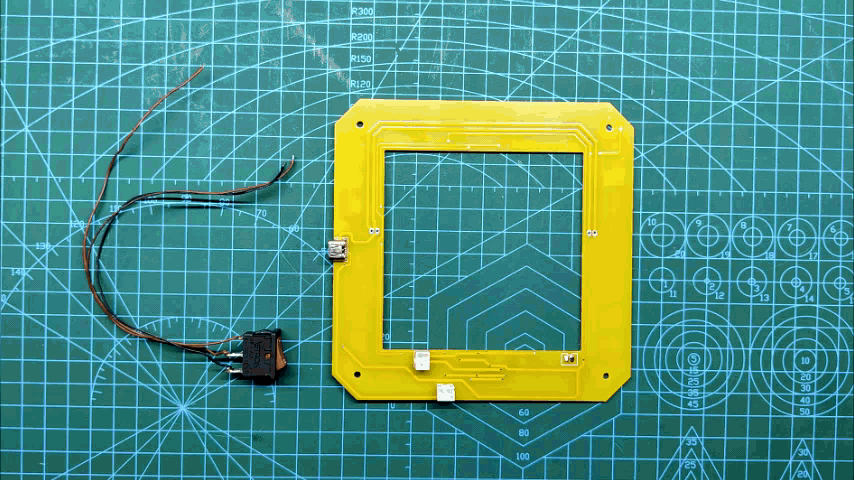

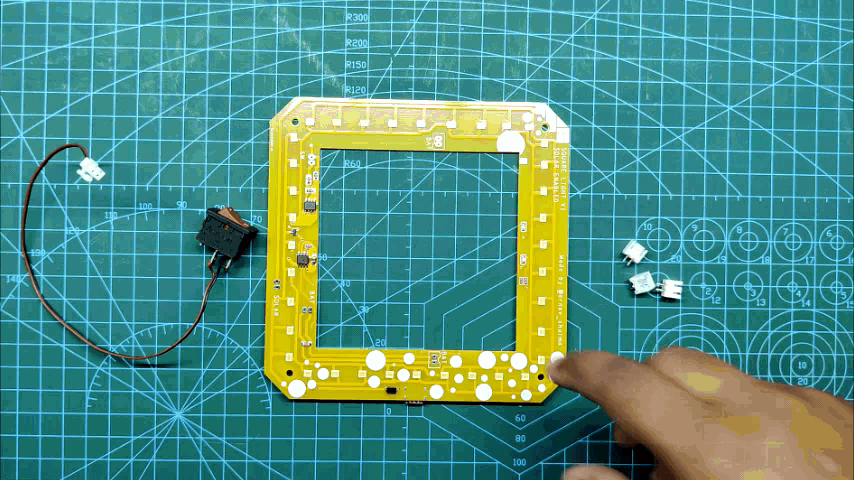

Next, I added an SPDT Rocker Switch on the circuit by soldering its middle terminal to the Gate of Mosfet, one side of the rocker switch to VCC, and another side to the ground.

By Toggling the switch Up, that connects the gate of mosfet with VCC, and by toggling it down, that connects the gate of mosfet to GND turns the whole setup OFF.

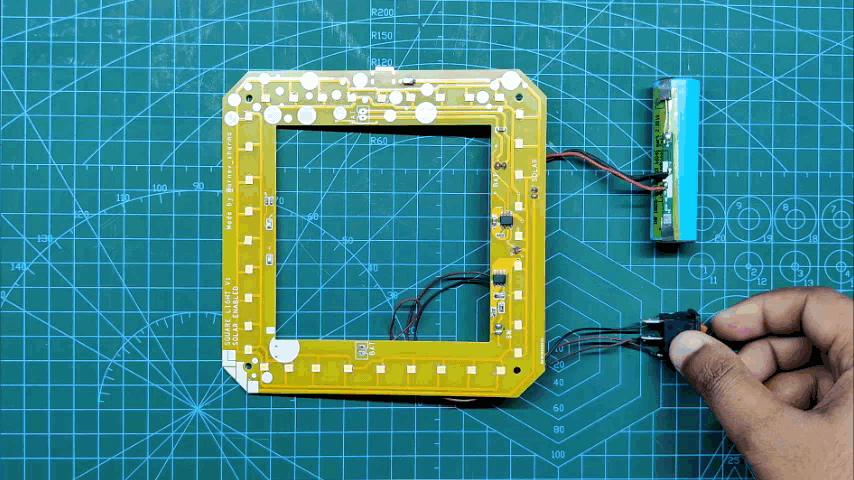

After adding Switch, I added a battery to this setup by putting the battery connector in its assigned UC2515 connector.

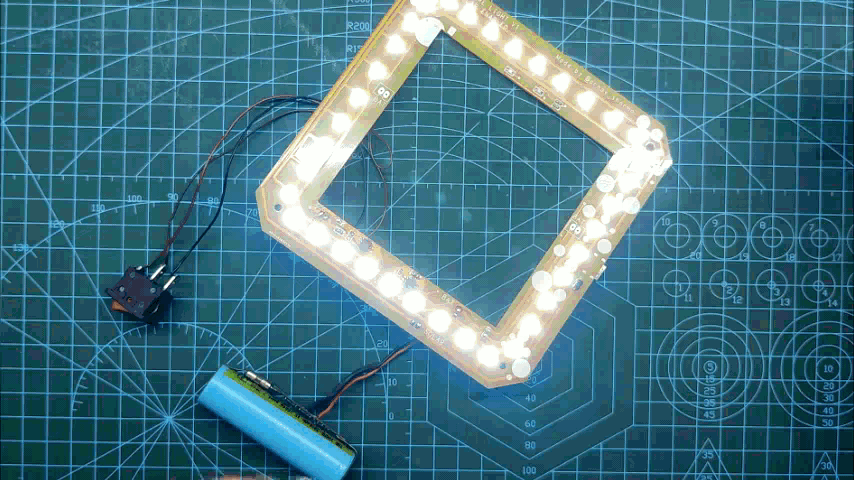

This was the result of the build so far, by toggling the switch up and down this light works.

I added a Dusk to dawn feature to this circuit which simply is an Automatic ON-OFF light system that turns OFF the LED when any power is plugged in through the charging side.

This feature is handy and super useful for making this light automatic, we add a solar panel to this setup and place it outside or inside, During day time the solar panel will provide power to this setup which will keep the setup OFF, at nighttime solar panel won't be providing any power for charging so this setup turns back ON.

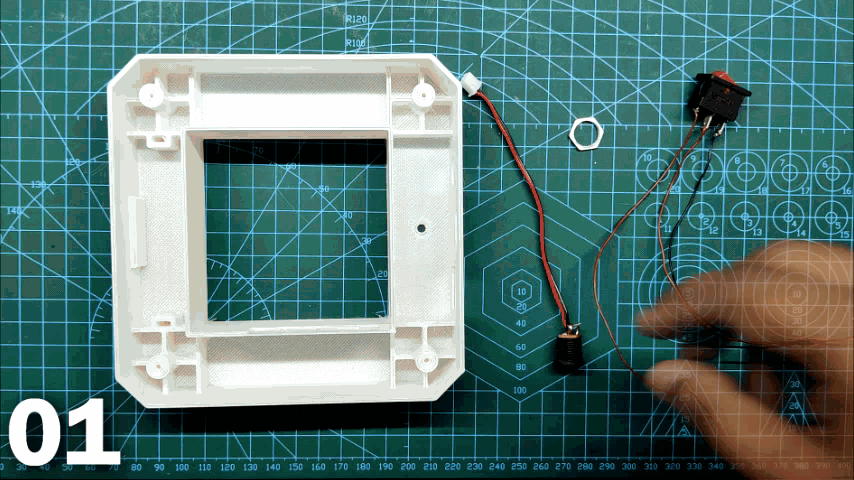

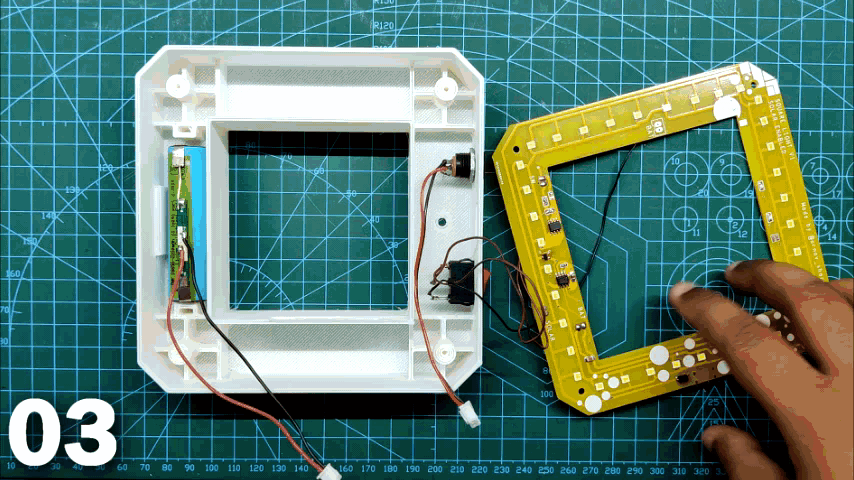

• First, we add the DC Barrel Jack and Switch in their place on the 3D Printed Base along with the lithium cell.
• Next, we add connect Switch's all three wires in their place with a soldering iron.
• Then we connect the battery's connector and DC Barrel jack connector to their assigned connectors.
• At last, we secure the circuit with the base body and diffuser by using four Screws from the top side.

Here's the final result

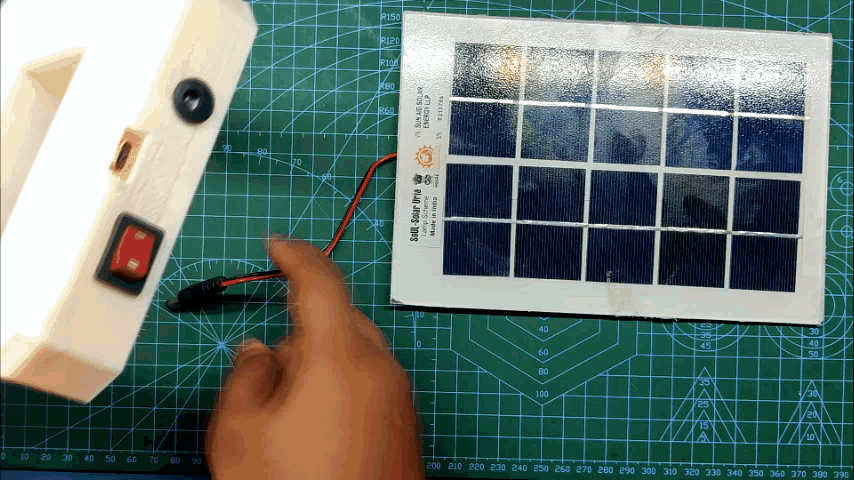

The testing process includes testing two main things, the dusk to dawn feature with a solar panel and testing the battery charging indication.

As for the backup, this light draws 2.3A at 3.3V which is around 8.9W.

The battery that I'm using is 3.7V 2600mAh so around 9.62Wh of energy it can provide, so we get a backup of 9.62/8.9 = 1.08 Hours of backup.

But because this light doesnt provide a constant current to the LEDs (as Battery voltage decreases, load current also gradually decreases) backup of this light is more than 1 hour and I've tested the backup and it's 1 hour 20 mins.

Backup can be increased by adding two more cells in parallel.

Here's a big con of this project, I forgot to add load resistors in this setup which could help step down the Power of the whole system from 9W to 5-6W, by reducing the power, the backup of the system increases.

Anyways, this was it for today folks. DM me or comment if you need any help with this project.

Also special thanks to PCBWAY for supporting this project.

DO checkout PCBWAY for getting great PCB service for less cost, and I'll be back with a new project pretty soon.

peace
