What i'm going to show you today is how to run your raspberry pi off the sun using solar power & Battery.
What You Need
![IMGP8011.JPG](/proxy/?url=https://content.instructables.com/FYN/M8PQ/H5R9ER0D/FYNM8PQH5R9ER0D.jpg&filename=IMGP8011.JPG)
![IMGP8014.JPG](/proxy/?url=https://content.instructables.com/F5J/WH70/H5ED8KH7/F5JWH70H5ED8KH7.jpg&filename=IMGP8014.JPG)
![IMGP8015.JPG](/proxy/?url=https://content.instructables.com/FVN/LAG2/H5EDUZDU/FVNLAG2H5EDUZDU.jpg&filename=IMGP8015.JPG)
![IMGP8016.JPG](/proxy/?url=https://content.instructables.com/FZX/O1Y5/H5TVAZN0/FZXO1Y5H5TVAZN0.jpg&filename=IMGP8016.JPG)
![IMGP8017.JPG](/proxy/?url=https://content.instructables.com/F0E/NYOA/H5TUA506/F0ENYOAH5TUA506.jpg&filename=IMGP8017.JPG)

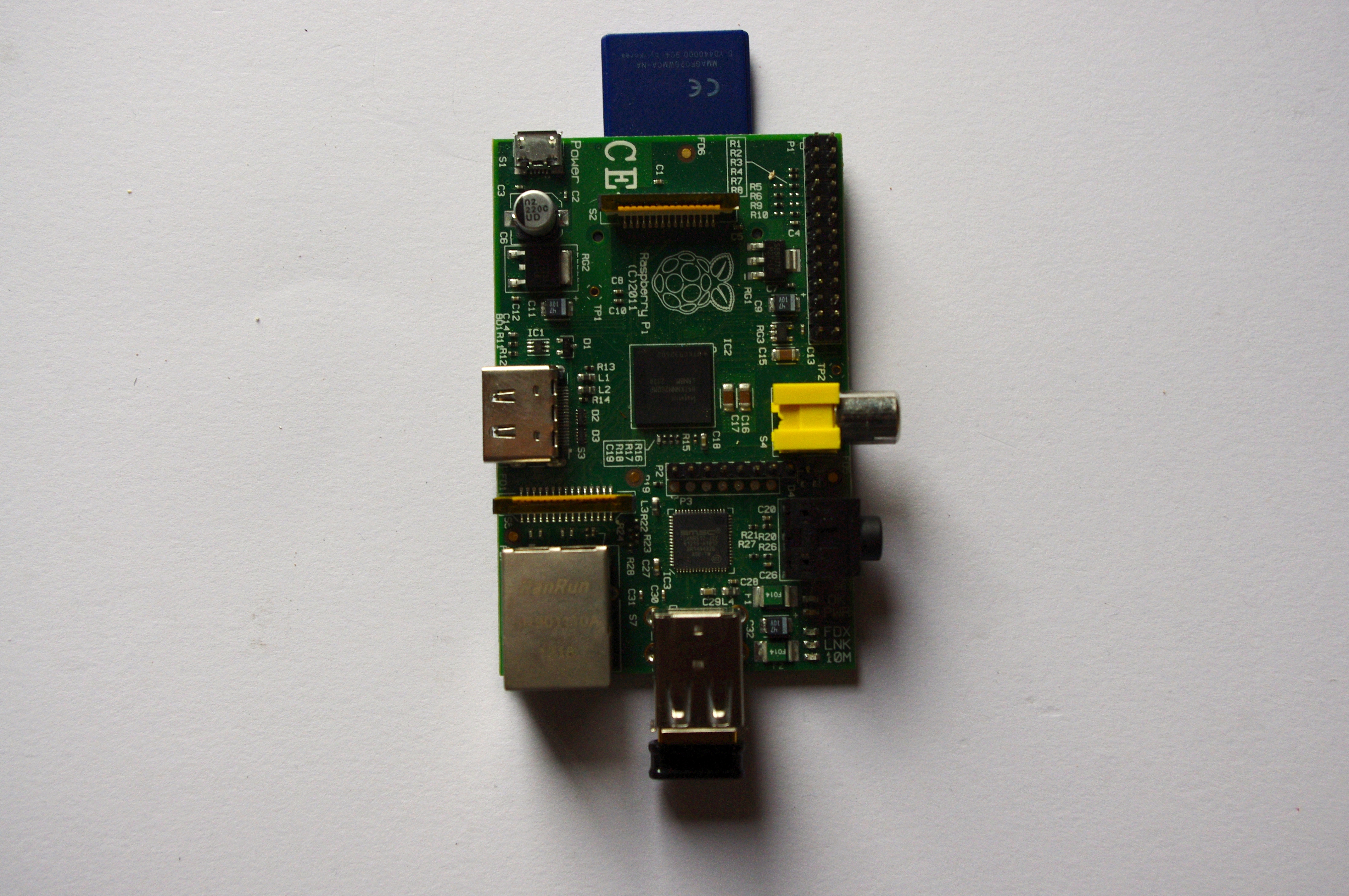

A raspberry pi
A solar panel (with built in charger controller or a Solar Charging Regulator)

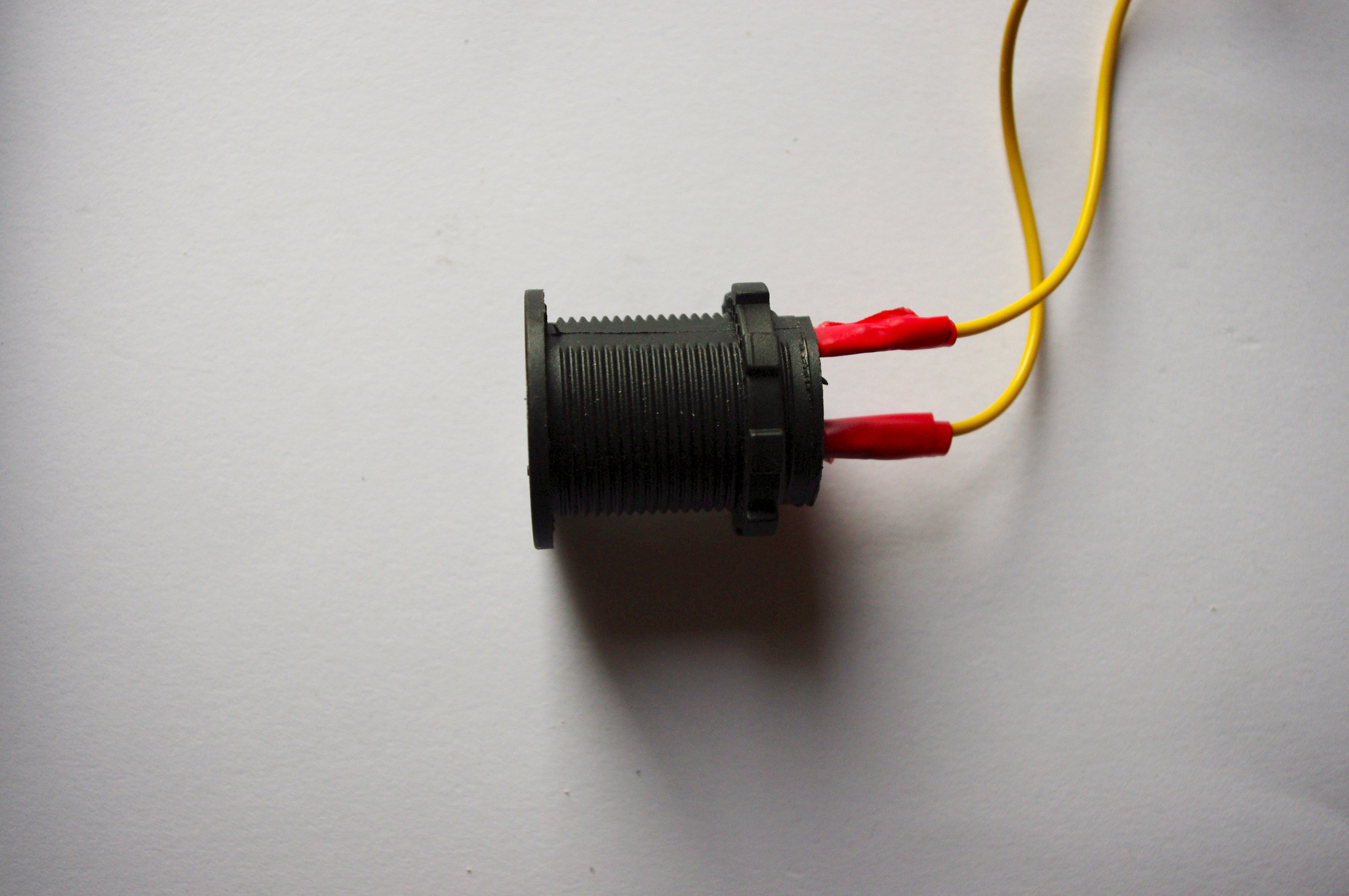

A car power socket
A usb car power adapter
A battery
and some wire
A solar panel (with built in charger controller or a Solar Charging Regulator)
A car power socket
A usb car power adapter
A battery
and some wire
Connecting the Battery
![IMGP8018.JPG](/proxy/?url=https://content.instructables.com/FBR/YQI9/H5EDUZE0/FBRYQI9H5EDUZE0.jpg&filename=IMGP8018.JPG)
![IMGP8013.JPG](/proxy/?url=https://content.instructables.com/FE8/7XFF/H5W8AAXW/FE87XFFH5W8AAXW.jpg&filename=IMGP8013.JPG)
First off we need to connect the wire to car power adapter then to the battery.
The battery is a 12V 1.3 ampHour battery The length of time the battery last very much depends on what you are doing with.
But here is quick calculation
If the raspberry pi uses 3 watts a hour then a 12v battery at 1.3 amp hours gives 15.6 watt hours
So 15.6 divide by 3 gives you 5.3 hours.
So the battery should last about 5 hours
If you want it to last long get a bigger batter or wire two up in parallel
The battery is a 12V 1.3 ampHour battery The length of time the battery last very much depends on what you are doing with.
But here is quick calculation
If the raspberry pi uses 3 watts a hour then a 12v battery at 1.3 amp hours gives 15.6 watt hours
So 15.6 divide by 3 gives you 5.3 hours.
So the battery should last about 5 hours
If you want it to last long get a bigger batter or wire two up in parallel
Connecting USB
![IMGP8019.JPG](/proxy/?url=https://content.instructables.com/FLK/8Z9M/H5R9ER0Q/FLK8Z9MH5R9ER0Q.jpg&filename=IMGP8019.JPG)
Next we need to plug in the usb power adapter.
I know it possible to make a power adapter from a 12v Battery to USB connection however this way is easier and almost as cheap.
If you would like to make your own adapter search on instructables
I know it possible to make a power adapter from a 12v Battery to USB connection however this way is easier and almost as cheap.
If you would like to make your own adapter search on instructables
Connect the Solar Panel
![IMGP8022.JPG](/proxy/?url=https://content.instructables.com/F16/IM6S/H5W8AAYA/F16IM6SH5W8AAYA.jpg&filename=IMGP8022.JPG)

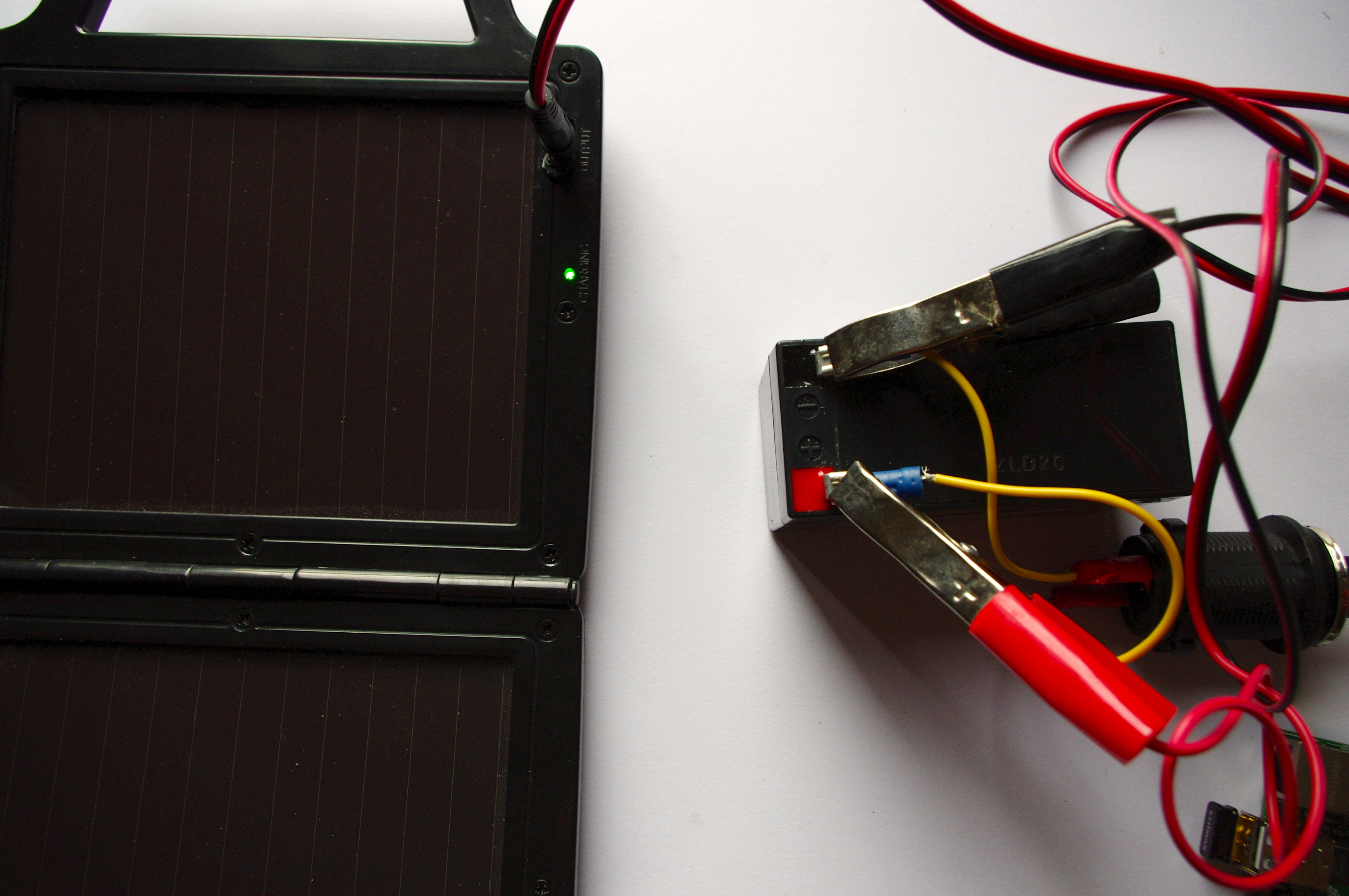

Connect the solar panel to the battery and point it at the sun.
And now all thats left to do is power up the pi
