hello everybody,
please suppport & share our mission; igg.me/at/smartplants
today i would like to share with you how I solar charge my smart plant pots. a smart plant pot looks just like a regular plant pot but it can email you when your plant needs attention (too hot/cold, thirsty, sleeping etc.)
and with the solar charge upgrade, it can alarm you forever !!
a self sufficient smart plant system..
.
we will need;
solar cells - http://www.ebay.com/itm/5V-0-8W-160mA-Mini-Solar-P...
zener diode - http://www.ebay.com/itm/Values-2V-47V-1-2W-0-5W-Ze...
female usb - http://www.ebay.com/itm/10Pcs-USB-Type-A-Female-4P...
battery pack - http://www.dx.com/p/universal-1-x-18650-battery-bo...
batteries - http://www.ebay.com/itm/2x-18650-3-7V-UltraFire-45...
-
chopsticks
foamboard
.
hot glue
solder
.
this instructable will teach you how to make a solar charger for your power bank. this scenario can easily be adapted to other projects that need re-charging.
Frame
![20150129_172750.jpg](/proxy/?url=https://content.instructables.com/FMW/S6ER/I5GNAAXX/FMWS6ERI5GNAAXX.jpg&filename=20150129_172750.jpg)
![20150129_171931.jpg](/proxy/?url=https://content.instructables.com/FX8/NOSL/I5GNAAST/FX8NOSLI5GNAAST.jpg&filename=20150129_171931.jpg)
![20150129_173856.jpg](/proxy/?url=https://content.instructables.com/FTN/YMZZ/I5GNAB1G/FTNYMZZI5GNAB1G.jpg&filename=20150129_173856.jpg)
![20150129_181708.jpg](/proxy/?url=https://content.instructables.com/FAN/Z8W1/I5GNABZY/FANZ8W1I5GNABZY.jpg&filename=20150129_181708.jpg)
get the hot glue gun ready.
-

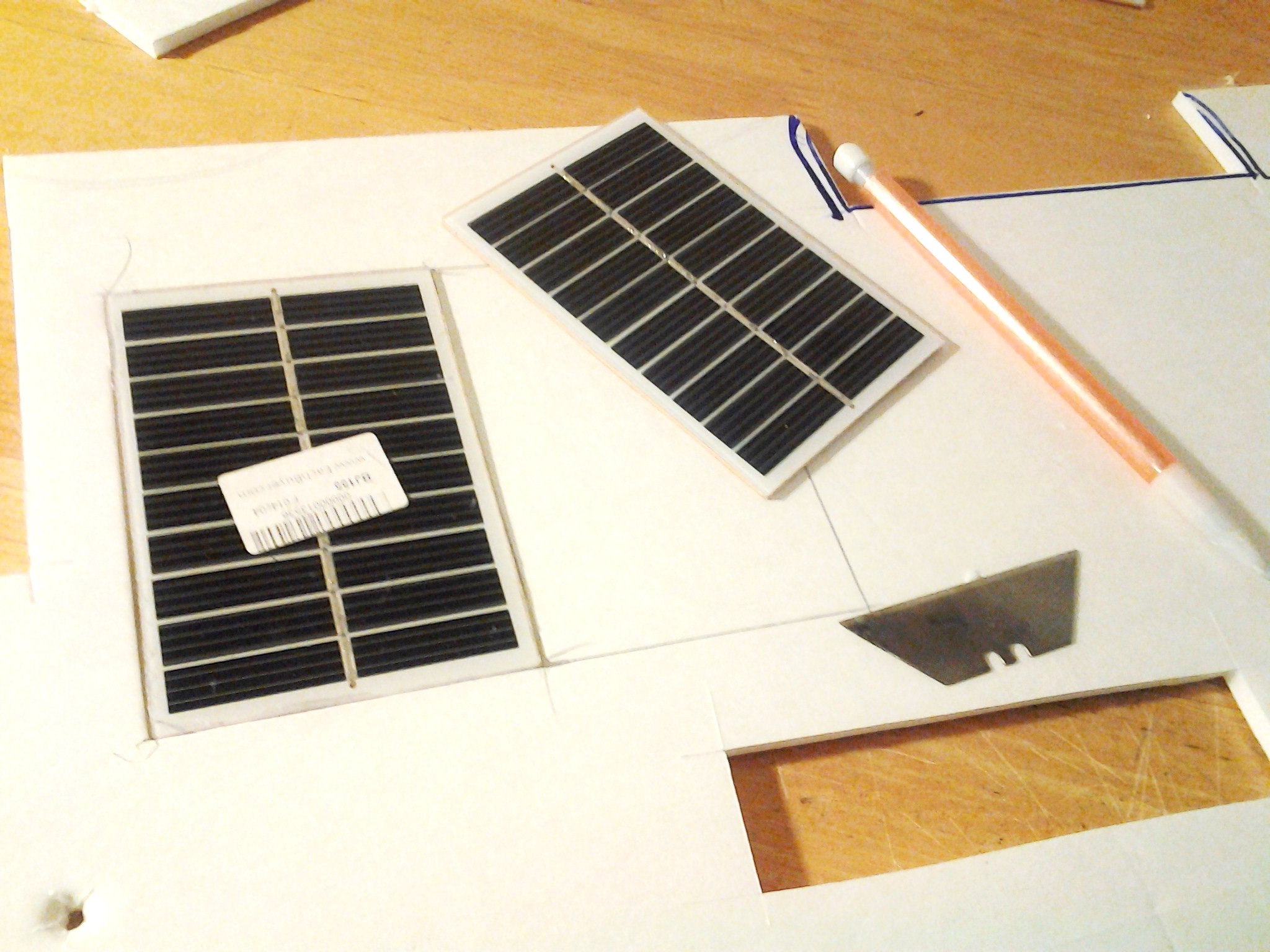

start by tracing 2 solar cells side by side on foamboard.
after tracing cut out the board, save the cut out and use it as the back wall.
-
hot glue the back wall to the sides, and cut and extra foam on sides.
Wires
![20150129_173937.jpg](/proxy/?url=https://content.instructables.com/FM1/T7FK/I5GNAB6I/FM1T7FKI5GNAB6I.jpg&filename=20150129_173937.jpg)
![20150129_174832.jpg](/proxy/?url=https://content.instructables.com/FNI/XGKJ/I5GNABBR/FNIXGKJI5GNABBR.jpg&filename=20150129_174832.jpg)
![20150129_175217.jpg](/proxy/?url=https://content.instructables.com/F6K/V8ZU/I5GNABE1/F6KV8ZUI5GNABE1.jpg&filename=20150129_175217.jpg)
![20150129_181734.jpg](/proxy/?url=https://content.instructables.com/F1G/1UY1/I5GNAC3K/F1G1UY1I5GNAC3K.jpg&filename=20150129_181734.jpg)
put your solar cells in to the frame and turn it around
.
figure out where the pins are located, draw and cut out some holes.
Legs
![20150129_180008.jpg](/proxy/?url=https://content.instructables.com/F95/FXFP/I5GNABJ8/F95FXFPI5GNABJ8.jpg&filename=20150129_180008.jpg)
![20150129_181452.jpg](/proxy/?url=https://content.instructables.com/FAW/32PB/I5GNABOD/FAW32PBI5GNABOD.jpg&filename=20150129_181452.jpg)
![20150129_181530.jpg](/proxy/?url=https://content.instructables.com/FWO/3NSO/I5GNABWC/FWO3NSOI5GNABWC.jpg&filename=20150129_181530.jpg)
find some chopsticks and glue them to each side of the frame as legs.
Solder
![20150129_211534.jpg](/proxy/?url=https://content.instructables.com/FX2/RW97/I5DT7DS1/FX2RW97I5DT7DS1.jpg&filename=20150129_211534.jpg)
![20150130_180158.jpg](/proxy/?url=https://content.instructables.com/FN9/9C9M/I5JHU3KY/FN99C9MI5JHU3KY.jpg&filename=20150130_180158.jpg)
![20150130_180956.jpg](/proxy/?url=https://content.instructables.com/FIR/P3UY/I5JHU3QT/FIRP3UYI5JHU3QT.jpg&filename=20150130_180956.jpg)
Test
![20150130_180522.jpg](/proxy/?url=https://content.instructables.com/FK7/CLRX/I5JHU3LC/FK7CLRXI5JHU3LC.jpg&filename=20150130_180522.jpg)
![20150130_180601.jpg](/proxy/?url=https://content.instructables.com/FC2/67DZ/I5JHU3NU/FC267DZI5JHU3NU.jpg&filename=20150130_180601.jpg)
![20150130_180855.jpg](/proxy/?url=https://content.instructables.com/FIZ/5K0Z/I5JHU3QP/FIZ5K0ZI5JHU3QP.jpg&filename=20150130_180855.jpg)
![20150202_103529.jpg](/proxy/?url=https://content.instructables.com/F8R/9GTY/I5MD4E7H/F8R9GTYI5MD4E7H.jpg&filename=20150202_103529.jpg)
![20150202_103544.jpg](/proxy/?url=https://content.instructables.com/FEF/DL7W/I5MD4EBQ/FEFDL7WI5MD4EBQ.jpg&filename=20150202_103544.jpg)
i was able to get upto 6.5V from a 23W CFL bulb and 5.85V in full sun.
.
here you can also see the cells charging the powerbank using CFL lighting once again.
.
More About the Circuit
![pot1 wiring.jpg](/proxy/?url=https://content.instructables.com/F0A/IN23/I5JHTBL2/F0AIN23I5JHTBL2.jpg&filename=pot1 wiring.jpg)
![akilli_saksi.jpg](/proxy/?url=https://content.instructables.com/F6W/YP8N/I5BRWUJ9/F6WYP8NI5BRWUJ9.jpg&filename=akilli_saksi.jpg)
![08.jpg](/proxy/?url=https://content.instructables.com/FMR/U7CR/I5JHTCJR/FMRU7CRI5JHTCJR.jpg&filename=08.jpg)
![20150202_102906.jpg](/proxy/?url=https://content.instructables.com/FF9/Y9ZO/I5MD4DWR/FF9Y9ZOI5MD4DWR.jpg&filename=20150202_102906.jpg)
![20150202_110820.jpg](/proxy/?url=https://content.instructables.com/FUU/543P/I5MD4EGG/FUU543PI5MD4EGG.jpg&filename=20150202_110820.jpg)

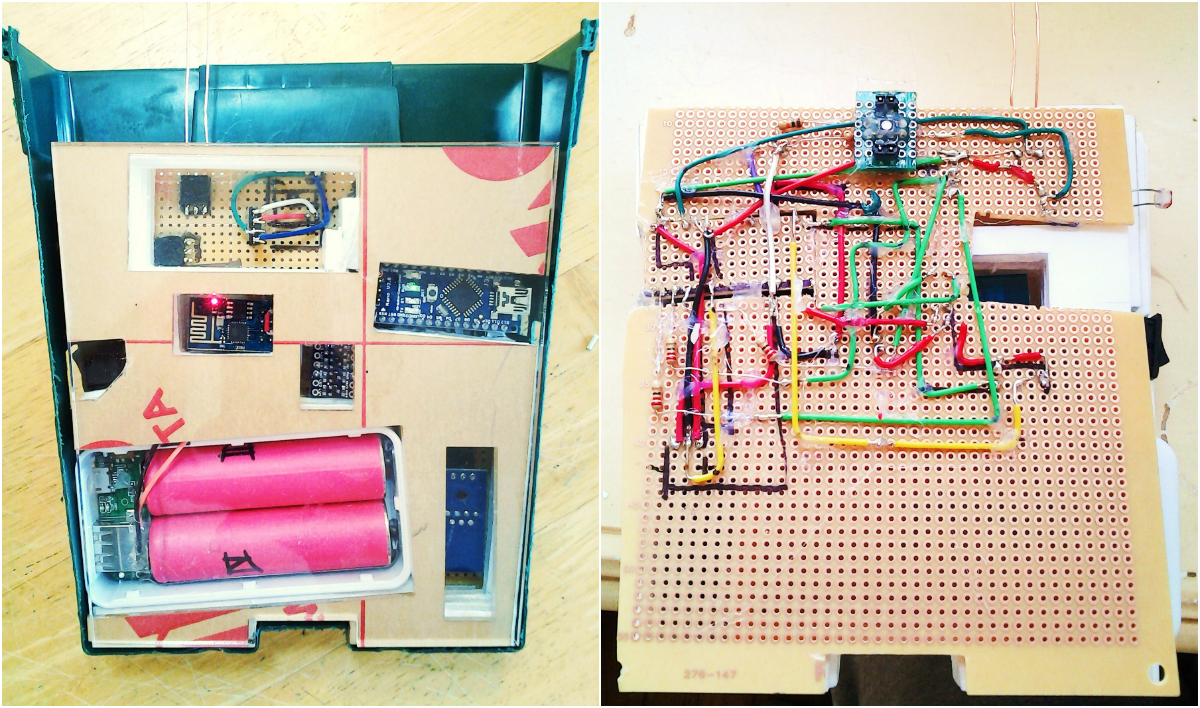

this instructable is about how to power the explained system below using solar energy.
.
power bank is the most crucial element of our system. it is a battery holder and a charger in a sleek protective case.
it accepts 5Vin to recharge and provides 5Vout to power things up.
.
connected to it, arduino nano is reading sensor data (water level, temperature, light level). the data is uploaded to thingspeak.com, where it gets plotted into graphs.
.
if the collected sensor data is above/below certain levels, the system alarms the user both in person by changing color, and also sends a tweet to your email account.
.
click here for more information on my smart plant systems.
Conclusion
![plant pot.png](/proxy/?url=https://content.instructables.com/FMP/BBNN/I376SSW6/FMPBBNNI376SSW6.png&filename=plant pot.png)
![FCTU9VNI49RU061.jpeg](/proxy/?url=https://content.instructables.com/F6L/8PRI/I49RVRYF/F6L8PRII49RVRYF.jpg&filename=FCTU9VNI49RU061.jpeg)
![20150202_105154.jpg](/proxy/?url=https://content.instructables.com/FUZ/33QH/I5MD4EEY/FUZ33QHI5MD4EEY.jpg&filename=20150202_105154.jpg)
![20141127_104721.jpg](/proxy/?url=https://content.instructables.com/FZ7/T6BS/I5GN9LZA/FZ7T6BSI5GN9LZA.jpg&filename=20141127_104721.jpg)
please vote for me in the Make Energy contest. I need a 3D printer to be able to finish my educational kits.
.
our kits teach how to program microcontrollers and build circuits. a solder-free electronics learning kit, suitable for any age group.
.
and after finished with the kit, the user will have a functional device that teaches them how to grow plants. no prior electrical/gardening experience required.
.
meet the Plant Doctor family.
