Solar-Bike-Taillight

Some month ago I made the mistake to park my bike at our local train station. After some hours I wanted to pick it up again and sadly found it without the saddle and the taillight.

I bought an new saddle but still the taillight was missing. Last week I found an damaged solar garden light and I was wondering if I could convert this into my new back light.

So I started my new project:

Materials

• 1 damaged (the electronics still worked) solar garden light
• 1 rear reflector
• 3D-printed parts
• hot glue
• solder
• zip tie

Tools

• caliper
• precision screwdriver
• wire cutter
• soldering iron
• 3d-printer
• pc with some CAD-software (I used RHINO 5)
• hot-melt gun
• file
• hammer
• cotter pin drive
• drill
• metal saw

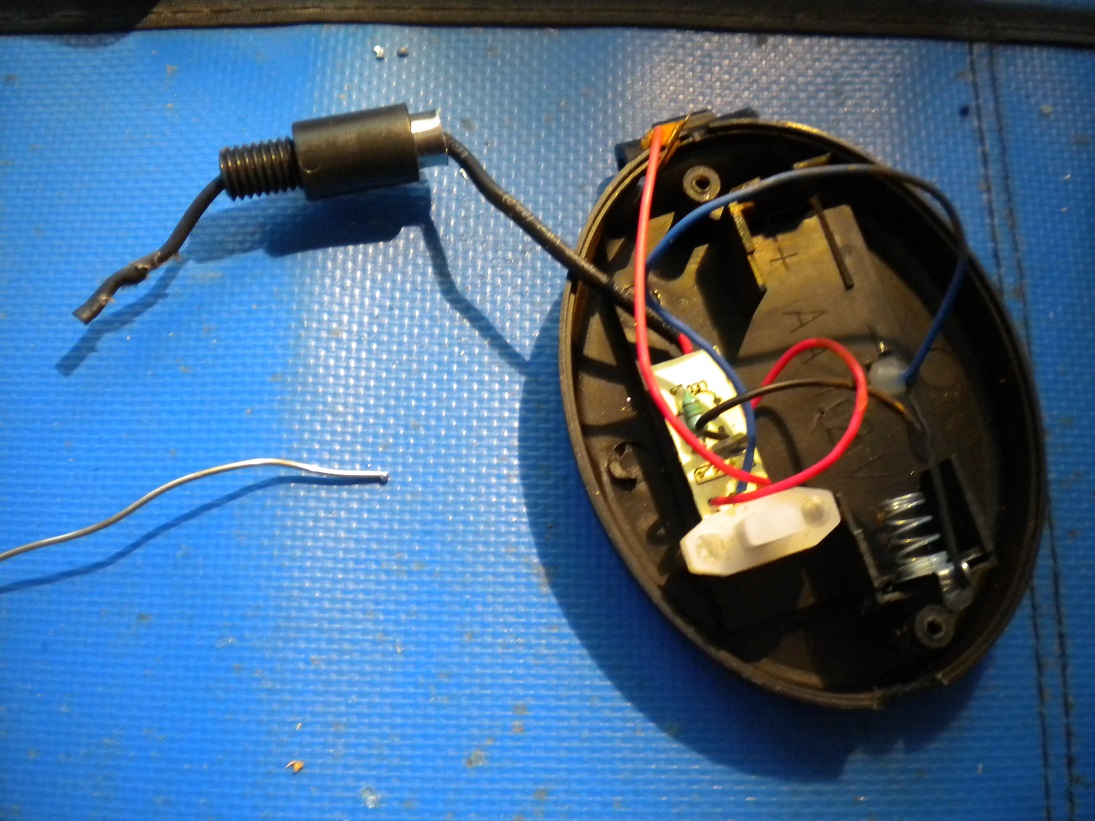

To dissemble the solar garden light was a little bit tricky because the main parts and the wires were glued together with hot glue, so I had to be very careful not to damage the elctronics and the wires.

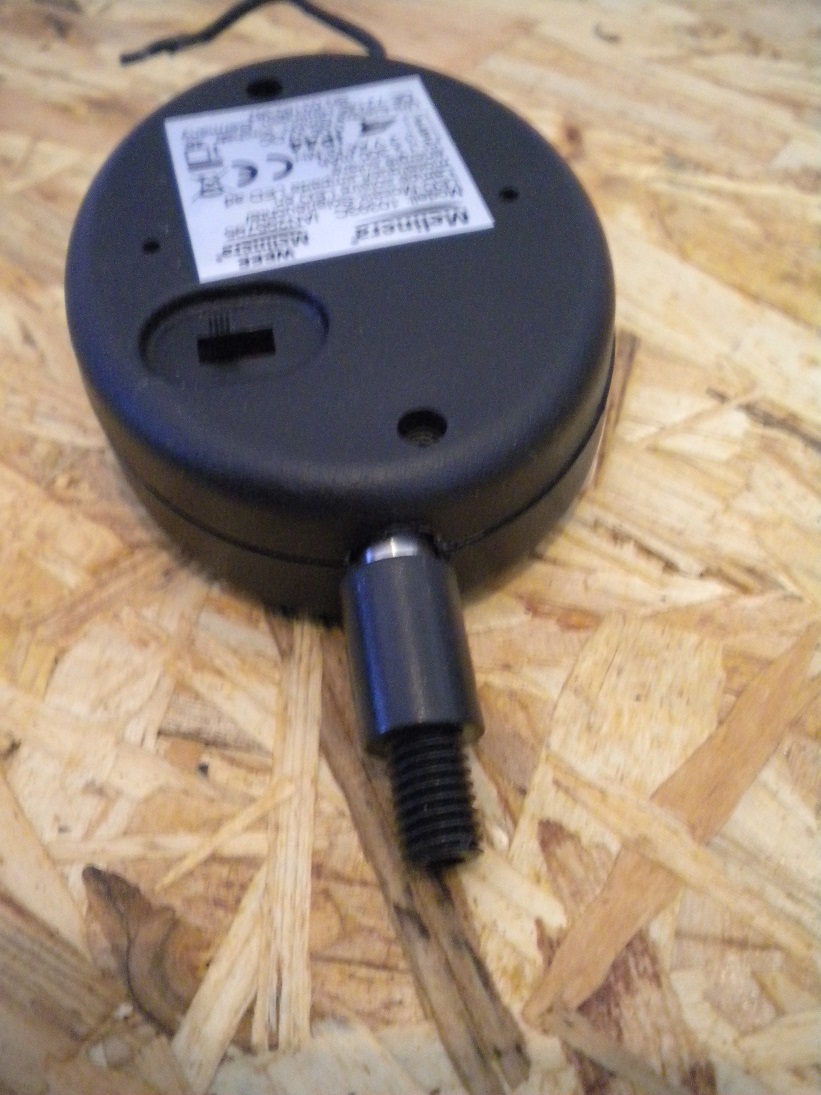

I tried to use the most of the available parts of the solar light and so I took the main housing with the solar cell, the elctronics and the storage battery and modified it to hold our new led socket.

I used an 8mm wood drill because of its top (you can better center up while you are drilling).

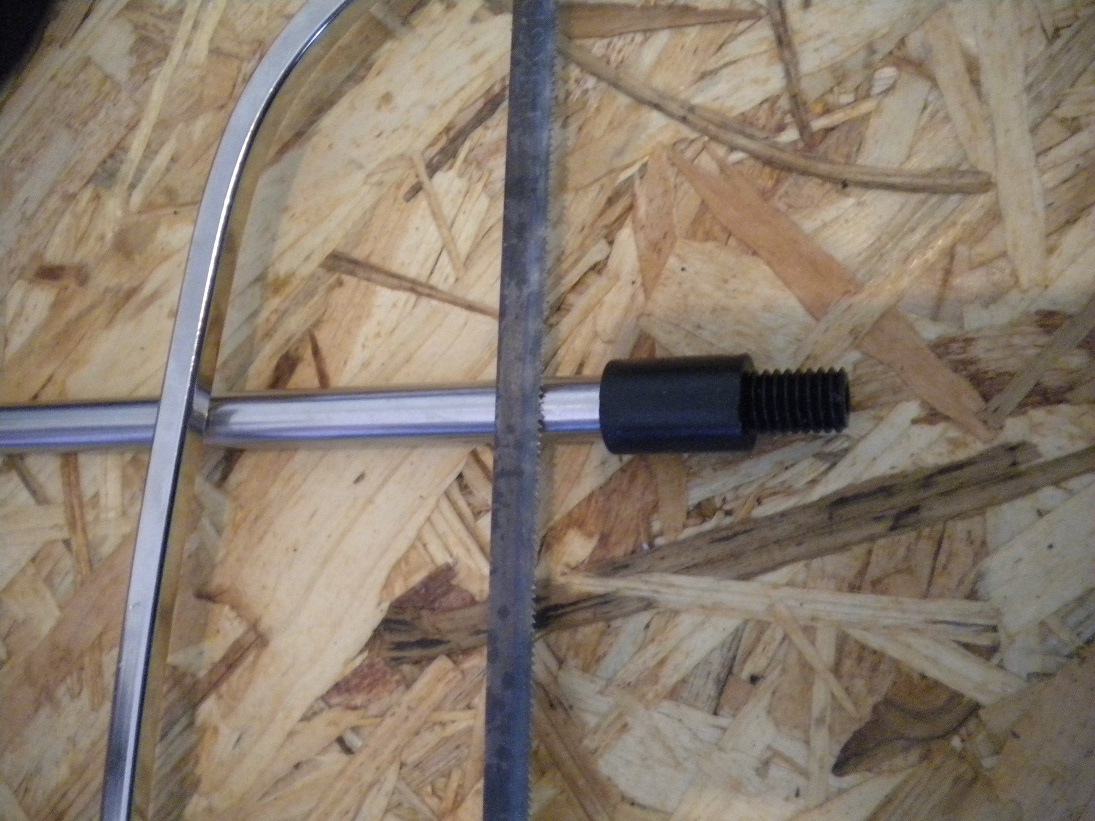

To built up our new led socket I just cut of the old one with a metal saw.

In this step I had to connect the shortend wires with the led by using my soldering iron. It's important that you wire the battery and the led in the right way (+ to +, - to -), otherwise you can damage the led. You also have to notice to put the heat shrink tube over the anode and the cathode of the led before you wire it.

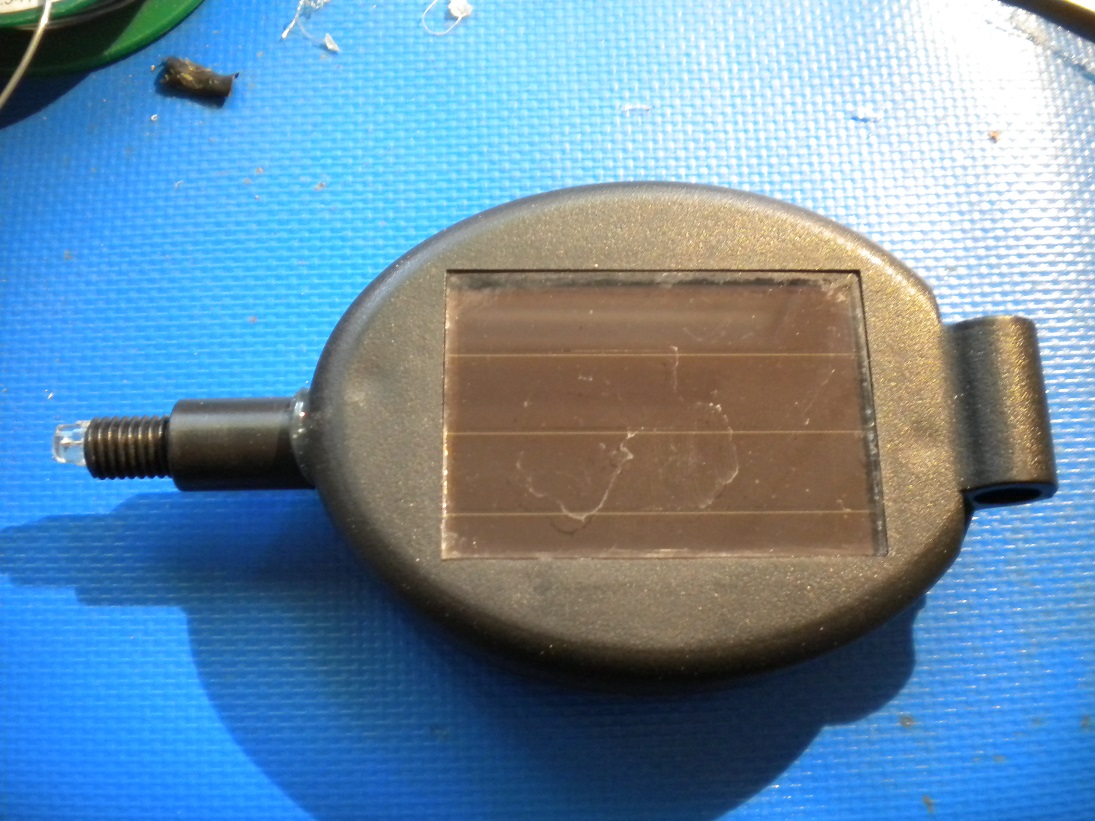

I used hot glue to combine the led socket with the main housing. I also had to use some hot glue to put the battery in the right position. The housing was a little bit damaged and I fixed it like that.

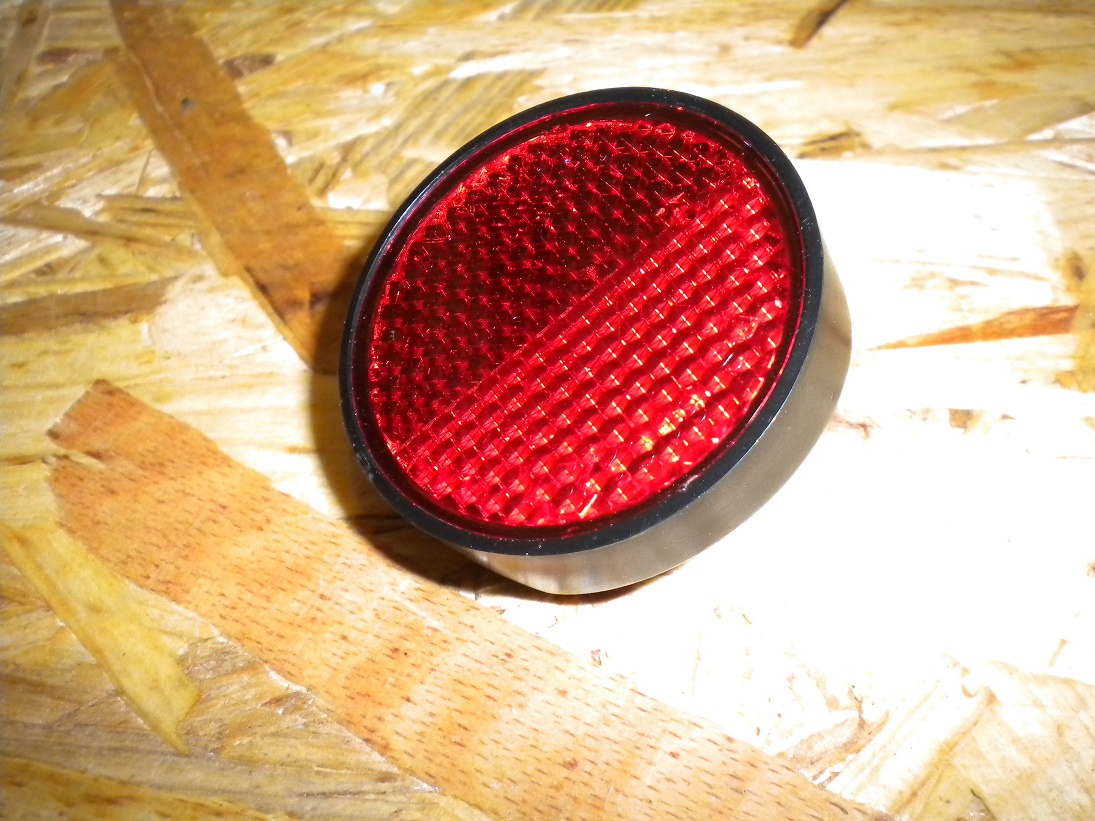

After I had assembled the main housing I had to brake the housing of rear reflector to get the round red reflector disc.

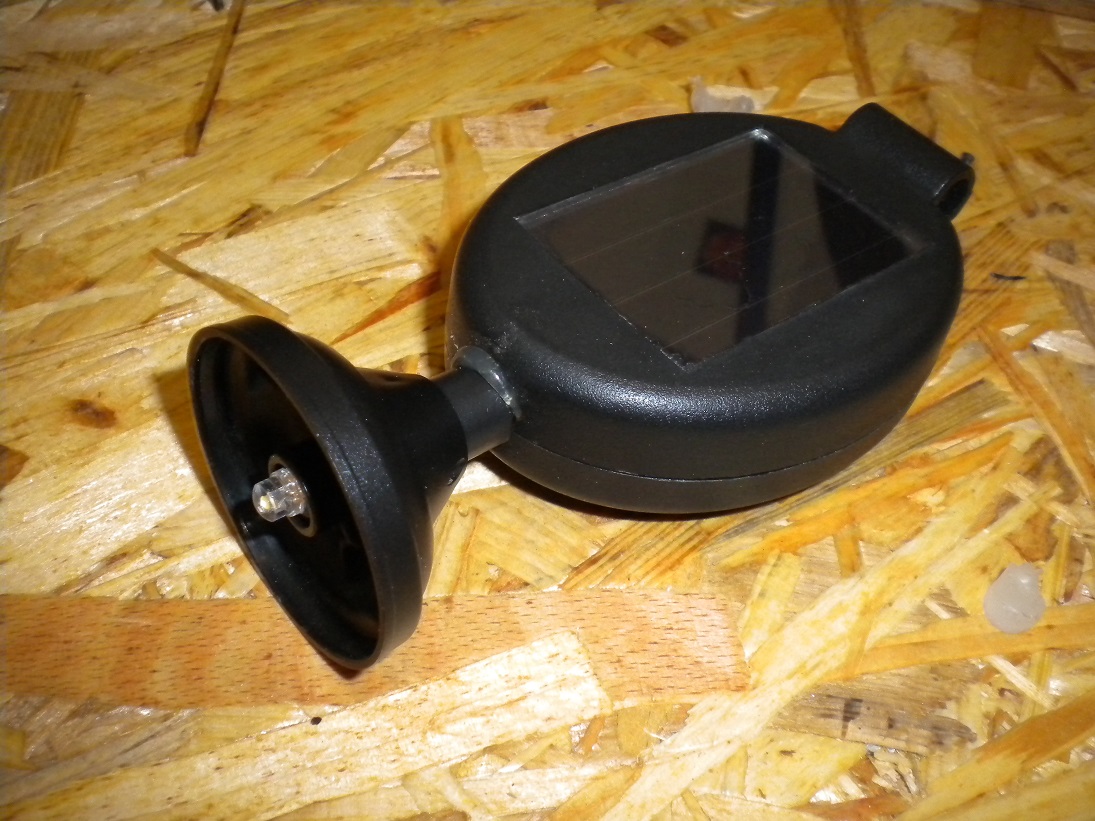

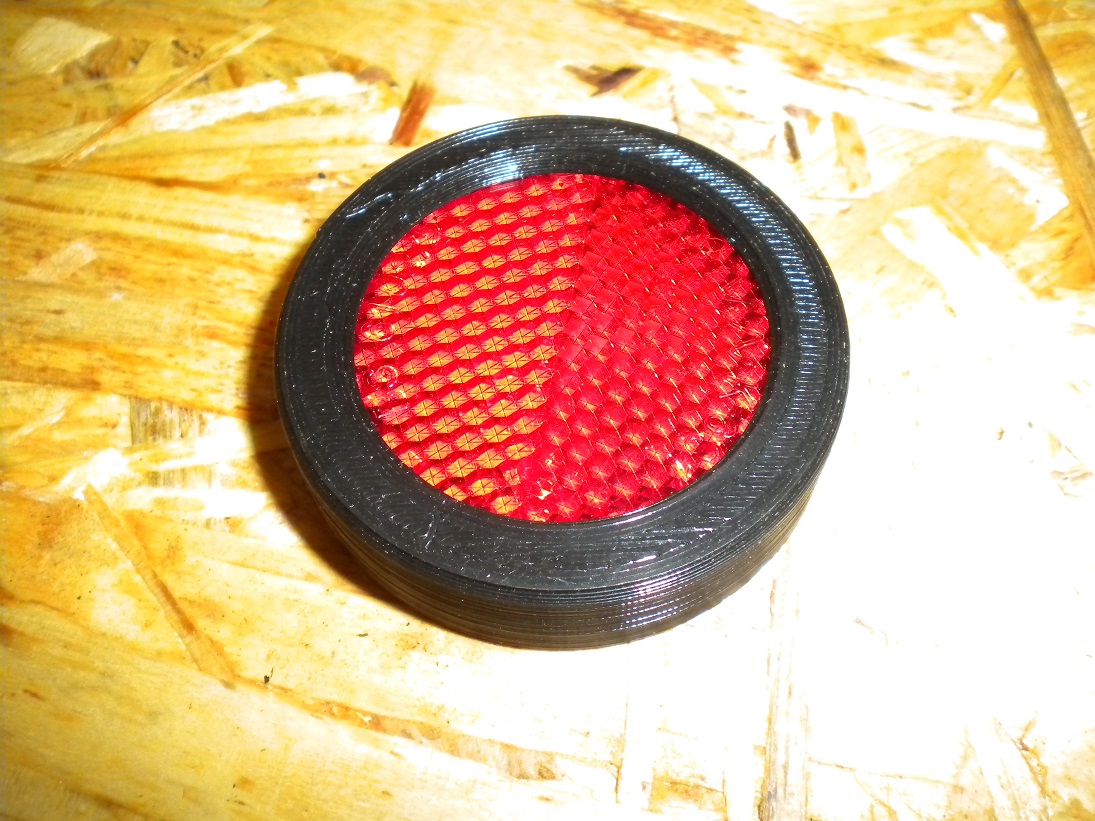

After measuring the dimensions of the reflector disc I created the new housing by using RHINO 5 and a 3D-printer. It consits of 2 parts which are pushed into each other to hold the disc in the right position.

After getting the dimensions of the main housing and the tube of my bike where the new back light should be positioned I also created an stl-file of the new frame connector and printed it with a 3D-printer.

When I finished assembling the main housing and the frame connector I realized that I had to modify the frame connector a little to put it in the correct later on position. For thís modification I used a small file.

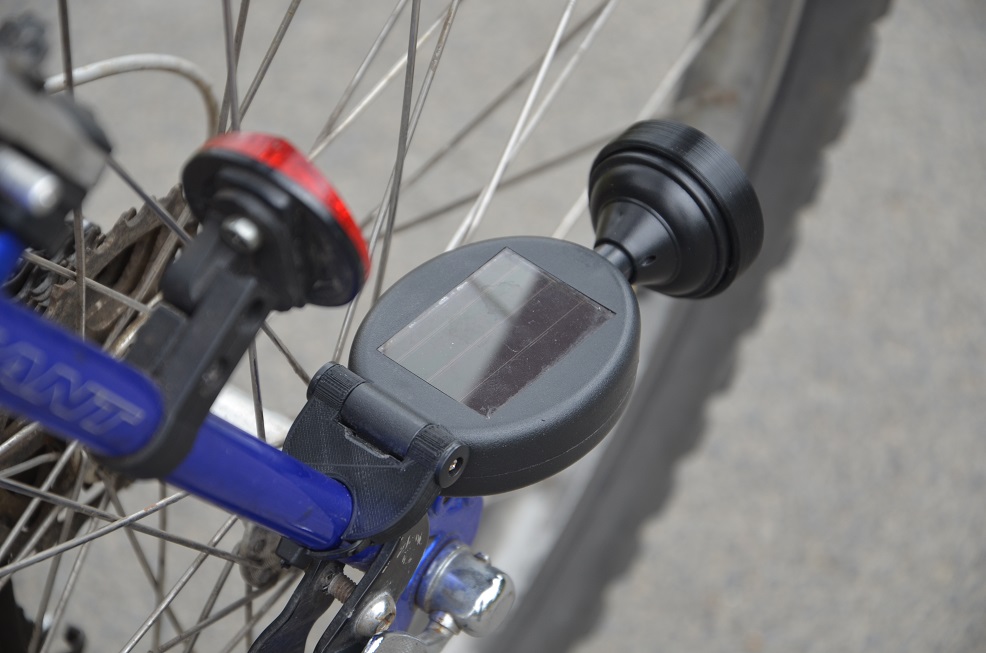

Here are some pics of my new back light. It was fun to built it and I learned a lot!

Thanks for reading and I hope you enjoyed my instructable!
