Socket Organizer for Tool Box | CNC Project
by davethewoodworker in Workshop > CNC
1250 Views, 12 Favorites, 0 Comments
Socket Organizer for Tool Box | CNC Project
![vlcsnap-2023-03-30-08h28m16s936.png](/proxy/?url=https://content.instructables.com/FNQ/RIHF/LFTZ77XS/FNQRIHFLFTZ77XS.png&filename=vlcsnap-2023-03-30-08h28m16s936.png)
![vlcsnap-2023-03-30-08h32m26s982.png](/proxy/?url=https://content.instructables.com/FZW/Z13F/LFTZ77XD/FZWZ13FLFTZ77XD.png&filename=vlcsnap-2023-03-30-08h32m26s982.png)
![Making a 3/8 Socket Set organizer on CNC](/proxy/?url=https://content.instructables.com/F8V/RFB6/LFV4LVIH/F8VRFB6LFV4LVIH.jpg&filename=Making a 3/8 Socket Set organizer on CNC)
Are you tired of opening your Toolbox and searching for hours to find the right socket, Maybe not that long. LOL
So I had a idea, you can buy these Foam insert organizers, but they ain't Cheap. Why not make my own, so I did.
Supplies
![vlcsnap-2023-03-30-08h17m35s505.png](/proxy/?url=https://content.instructables.com/FLE/S9G0/LFV4LQEN/FLES9G0LFV4LQEN.png&filename=vlcsnap-2023-03-30-08h17m35s505.png)
![Painters tape.JPG](/proxy/?url=https://content.instructables.com/FD7/FSC6/LFV4LVMH/FD7FSC6LFV4LVMH.jpg&filename=Painters tape.JPG)
![Box knife.JPG](/proxy/?url=https://content.instructables.com/FXH/K8C0/LFV4LVQV/FXHK8C0LFV4LVQV.jpg&filename=Box knife.JPG)
![vlcsnap-2023-03-30-08h19m36s397.png](/proxy/?url=https://content.instructables.com/F7O/JLLY/LFV4LVRM/F7OJLLYLFV4LVRM.png&filename=vlcsnap-2023-03-30-08h19m36s397.png)
![vlcsnap-2023-03-30-08h18m38s267.png](/proxy/?url=https://content.instructables.com/FFE/O7NK/LFV4LVSG/FFEO7NKLFV4LVSG.png&filename=vlcsnap-2023-03-30-08h18m38s267.png)
You will need:
CNC Cad Program
CNC Router
Harbor Freight Anti-Fatigue Mats
Wide Blue Painters Tape

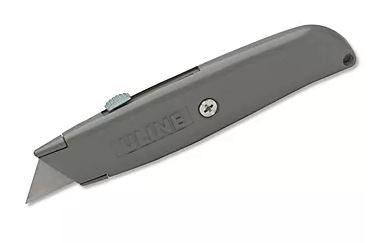

Utility Knife
Spray Adhesive
Piece of Melamine Board, at least 24" x 24"
1/4" Downcut or Compression CNC Bit
Your Socket set
![vlcsnap-2023-03-30-08h18m38s267.png](/proxy/?url=https://content.instructables.com/FBA/EI5H/LFV4LQGM/FBAEI5HLFV4LQGM.png&filename=vlcsnap-2023-03-30-08h18m38s267.png)
![vlcsnap-2023-03-30-08h18m55s824.png](/proxy/?url=https://content.instructables.com/FTL/40EJ/LFV4LQHM/FTL40EJLFV4LQHM.png&filename=vlcsnap-2023-03-30-08h18m55s824.png)
![vlcsnap-2023-03-30-08h19m06s304.png](/proxy/?url=https://content.instructables.com/FHJ/AFSN/LFV4LQH3/FHJAFSNLFV4LQH3.png&filename=vlcsnap-2023-03-30-08h19m06s304.png)
![vlcsnap-2023-03-30-08h19m19s506.png](/proxy/?url=https://content.instructables.com/F6N/FRIT/LFV4LQH1/F6NFRITLFV4LQH1.png&filename=vlcsnap-2023-03-30-08h19m19s506.png)
![vlcsnap-2023-03-30-08h19m36s397.png](/proxy/?url=https://content.instructables.com/FSN/1UPE/LFV4LQH0/FSN1UPELFV4LQH0.png&filename=vlcsnap-2023-03-30-08h19m36s397.png)
![vlcsnap-2023-03-30-08h20m20s500.png](/proxy/?url=https://content.instructables.com/FZN/ELW9/LFV4LQGX/FZNELW9LFV4LQGX.png&filename=vlcsnap-2023-03-30-08h20m20s500.png)
![vlcsnap-2023-03-30-08h20m34s123.png](/proxy/?url=https://content.instructables.com/F5Z/DFUI/LFV4LQGN/F5ZDFUILFV4LQGN.png&filename=vlcsnap-2023-03-30-08h20m34s123.png)

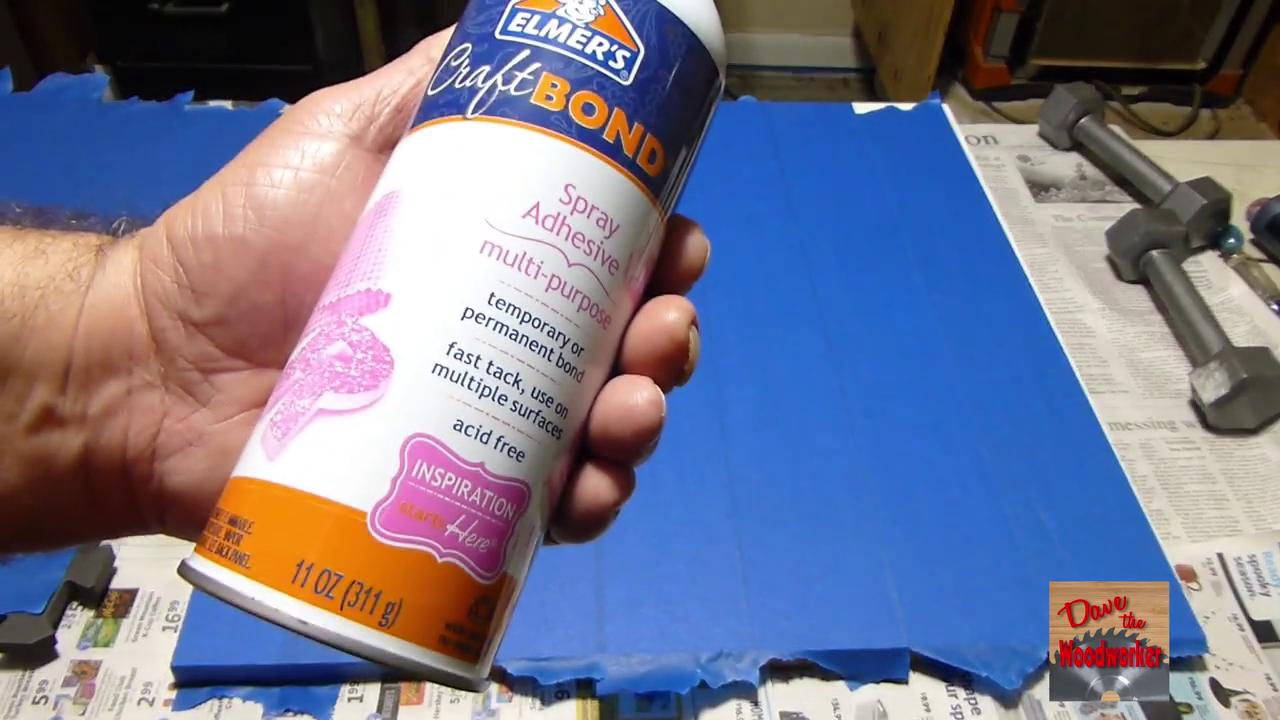

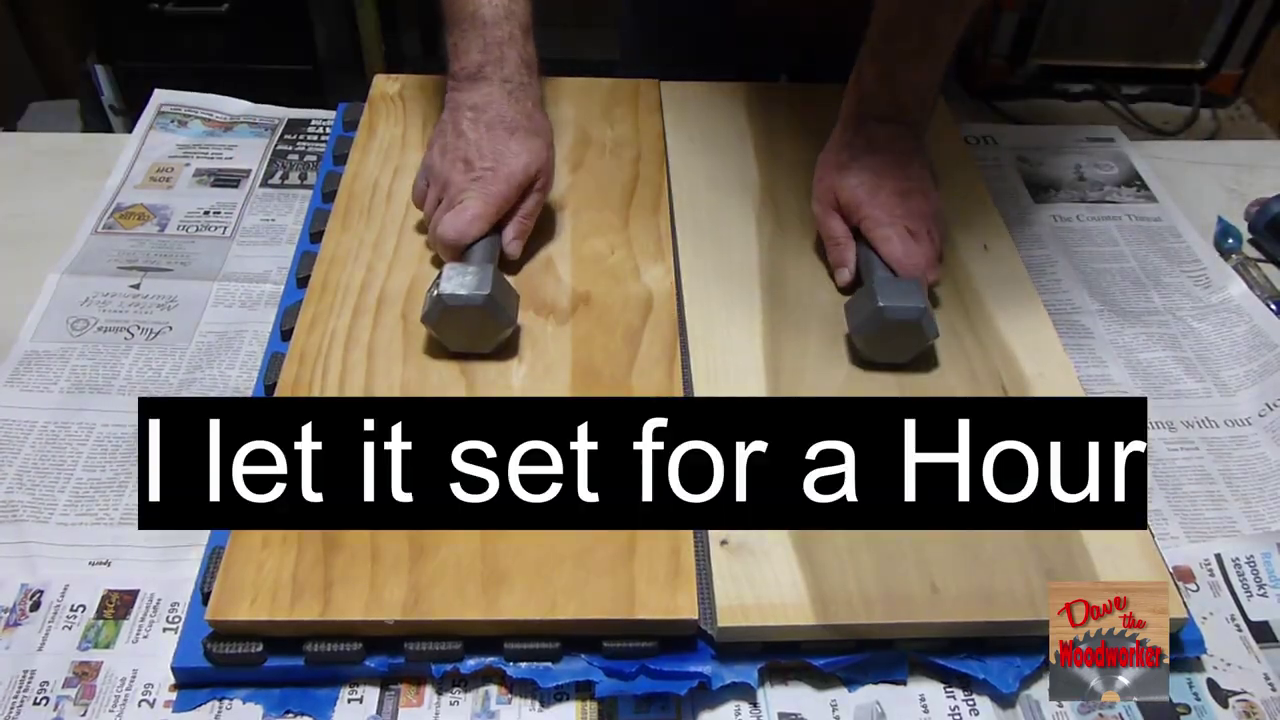

Apply the Blue painters tape to the Melamine board and bottom side of Foam mats. Spray a coat of Adhesive on both parts. Then attached them together, use some boards and weights to hold down flat, for at least a Hour.
Note might not have to leave them for a Hour
![vlcsnap-2023-03-30-08h30m42s751.png](/proxy/?url=https://content.instructables.com/FIH/MY1N/LFTZ77XK/FIHMY1NLFTZ77XK.png&filename=vlcsnap-2023-03-30-08h30m42s751.png)
![vlcsnap-2023-03-30-08h31m31s560.png](/proxy/?url=https://content.instructables.com/FA1/2EZO/LFTZ77XH/FA12EZOLFTZ77XH.png&filename=vlcsnap-2023-03-30-08h31m31s560.png)
![vlcsnap-2023-03-30-08h32m04s080.png](/proxy/?url=https://content.instructables.com/FE2/L1F2/LFTZ77XG/FE2L1F2LFTZ77XG.png&filename=vlcsnap-2023-03-30-08h32m04s080.png)
I then had to measure every socket, Ratchet and etc. I played with several layouts, but this is what I came up with.
Open Vectric Aspire, or other Cad program. In Vectric, this is the Layout that I came up with. Later after carving the first design, I did change the Layout some.
![vlcsnap-2023-03-30-08h29m04s276.png](/proxy/?url=https://content.instructables.com/FG0/Z61W/LFTZ77XO/FG0Z61WLFTZ77XO.png&filename=vlcsnap-2023-03-30-08h29m04s276.png)
![vlcsnap-2023-03-30-08h20m46s170.png](/proxy/?url=https://content.instructables.com/FM3/Q3Y8/LFV4LY33/FM3Q3Y8LFV4LY33.png&filename=vlcsnap-2023-03-30-08h20m46s170.png)
![vlcsnap-2023-03-30-08h29m56s523.png](/proxy/?url=https://content.instructables.com/F11/Z86R/LFTZ77XM/F11Z86RLFTZ77XM.png&filename=vlcsnap-2023-03-30-08h29m56s523.png)
![vlcsnap-2023-03-30-08h30m12s961.png](/proxy/?url=https://content.instructables.com/FAJ/1Z9Q/LFTZ77XL/FAJ1Z9QLFTZ77XL.png&filename=vlcsnap-2023-03-30-08h30m12s961.png)
![vlcsnap-2023-03-30-08h32m15s000.png](/proxy/?url=https://content.instructables.com/F7C/I259/LFTZ77XE/F7CI259LFTZ77XE.png&filename=vlcsnap-2023-03-30-08h32m15s000.png)

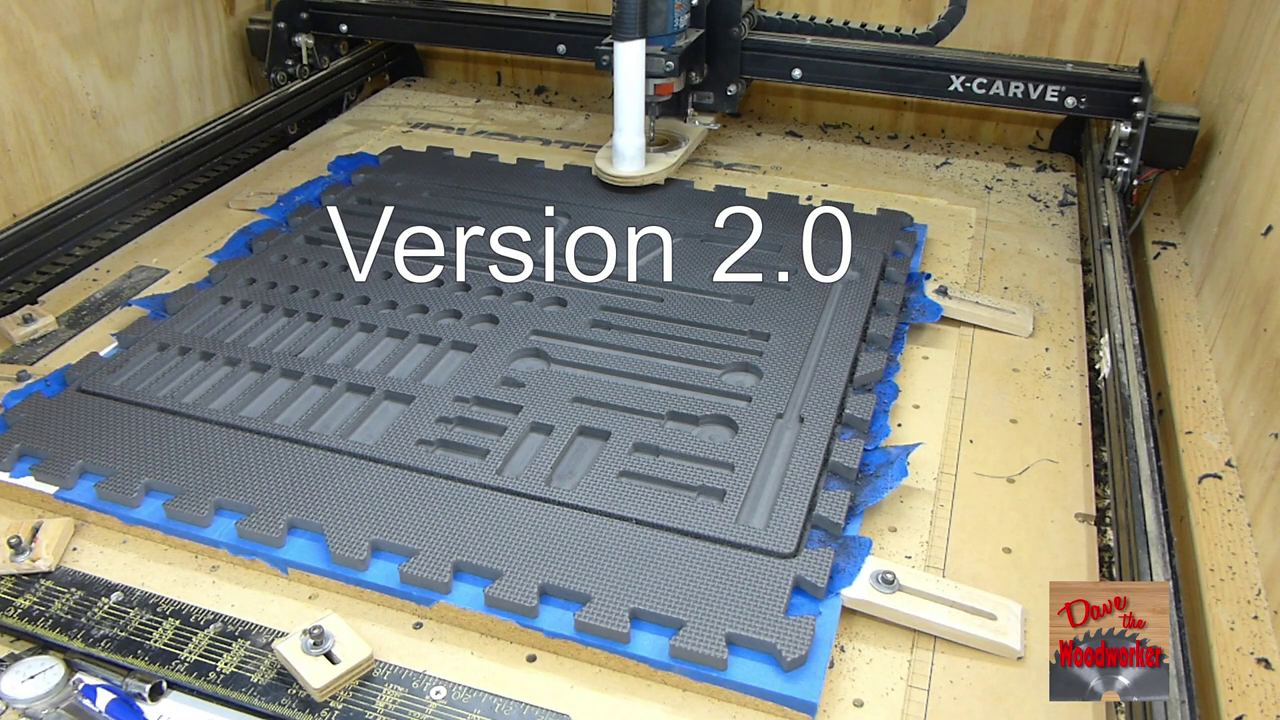

Then I took the Melamine board with the Foam attached, fasten in to my CNC table. I then installed a 1/4" Compression bit, and began carving. After carving the first one, I had to change a couple of things, one was the Speed Wrench, it was harder to draw, but then I decided to put my Ratchets closer up front. That's when I came out with version 2.0.
Pratice makes Perfect
![vlcsnap-2023-03-30-08h28m37s329.png](/proxy/?url=https://content.instructables.com/FZA/0K4L/LFTZ77XR/FZA0K4LLFTZ77XR.png&filename=vlcsnap-2023-03-30-08h28m37s329.png)
This is what it looked like after finding all my Sockets. Don't this look so Neat, Now I can find my sockets so easy. Thanks for checking out my Instructable.
