Soccer Ball Rebounder

by scanlonb925 in Workshop > Woodworking

7610 Views, 5 Favorites, 0 Comments

Soccer Ball Rebounder


The soccer rebounder sounds like what it is. If you do not have anyone to play with you can pass the ball to the rebounder and the ball bounces back to you. It is very quick and easy to make it took me around 1 hour to build.

Supplies

1. 36 by 38 in plywood

2. 2, 2 by 4 pieces of wood

3.carpenters square

4. skill saw

5. Wood screws

6. electric drill

7. Measuring tape/yardstick

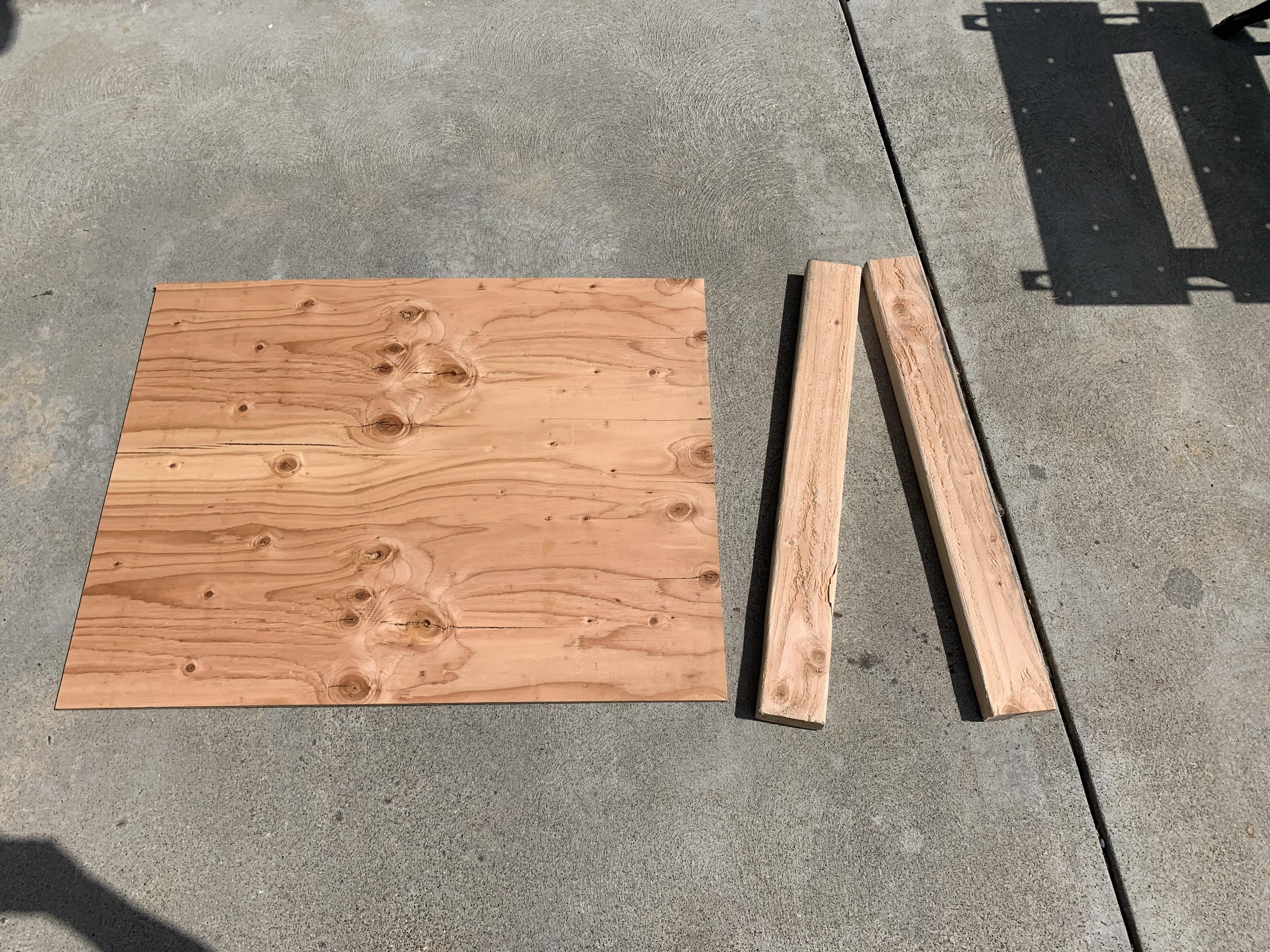

Step 1. Cut the Plywood and Bottom Legs


Cut the plywood with the skill saw. Cut it at 36in by 38in. Also, use the skill saw to cut 2, 26in legs out of the 2 by 4s.

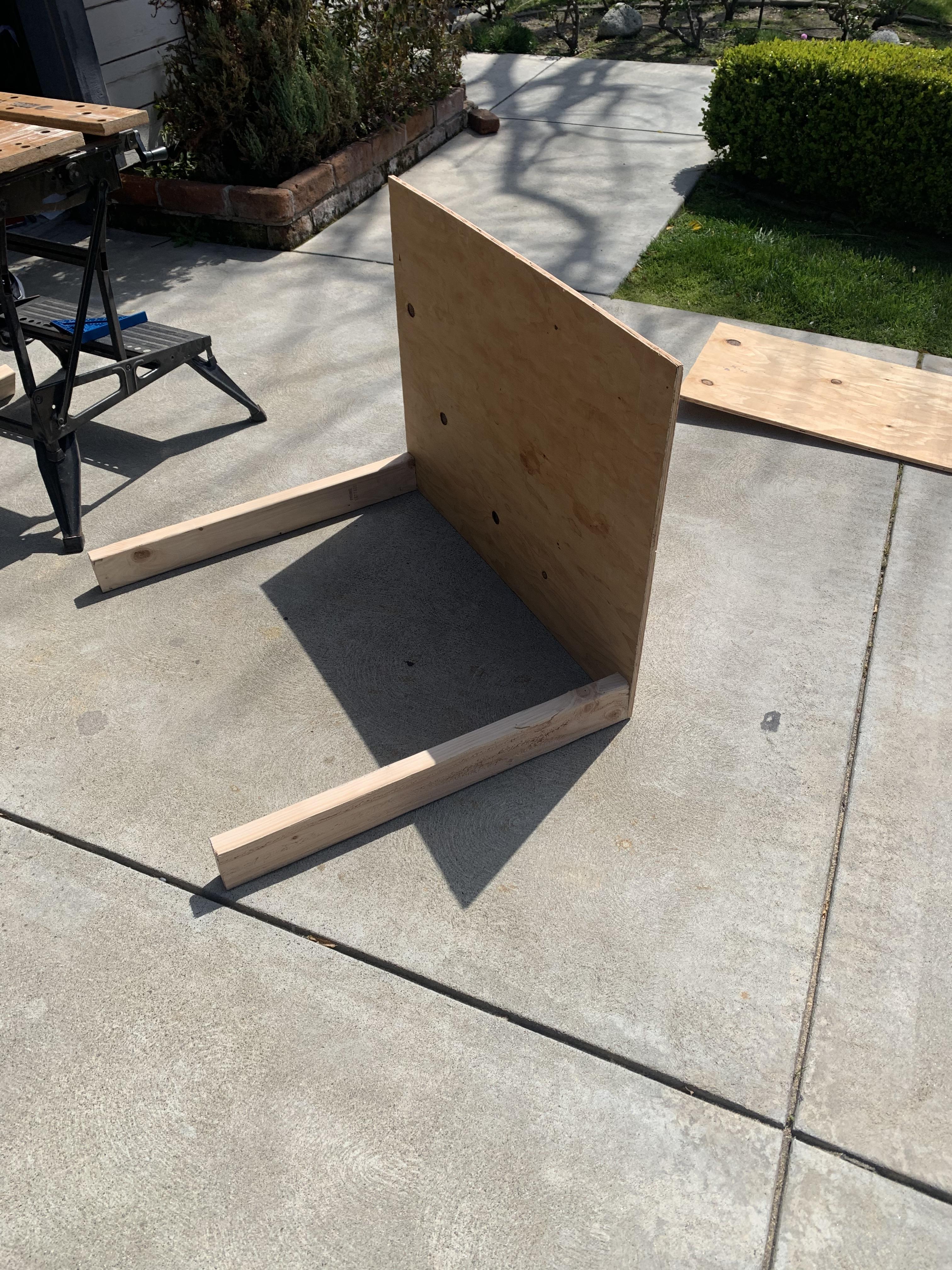

Step 2. Drill the Legs Onto the Plywood.


Use the screws and drill to drill the legs onto the edge of the width of the plywood. Make sure you use 2 screws for each leg.

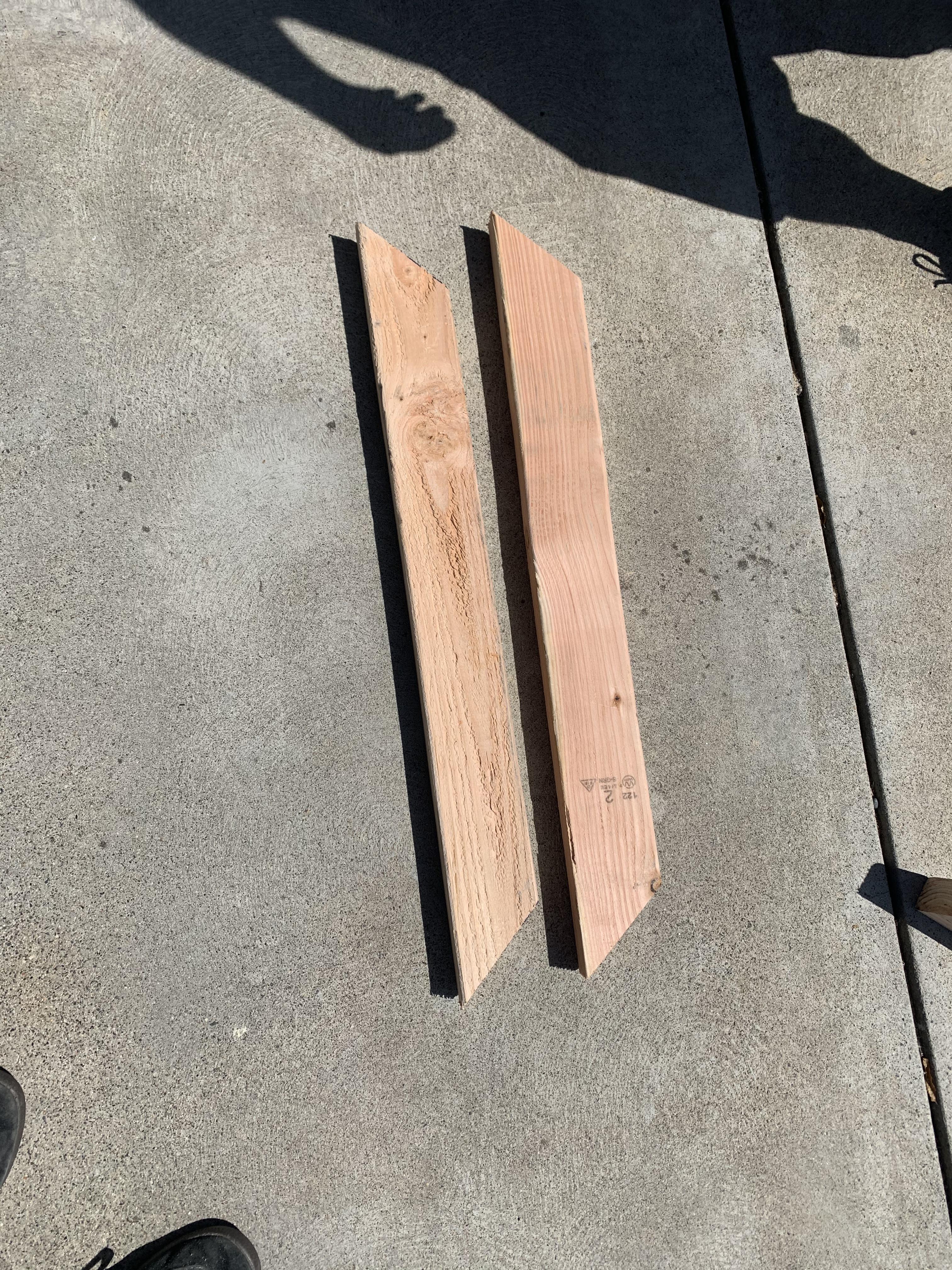

Step 3. Cut Supports for the Ply Wood.


Cut two 32in support legs out of the remaining 2by4s. When done cut one of the sides at a 45degree and the other square to the plywood. Do this for each of the supports.

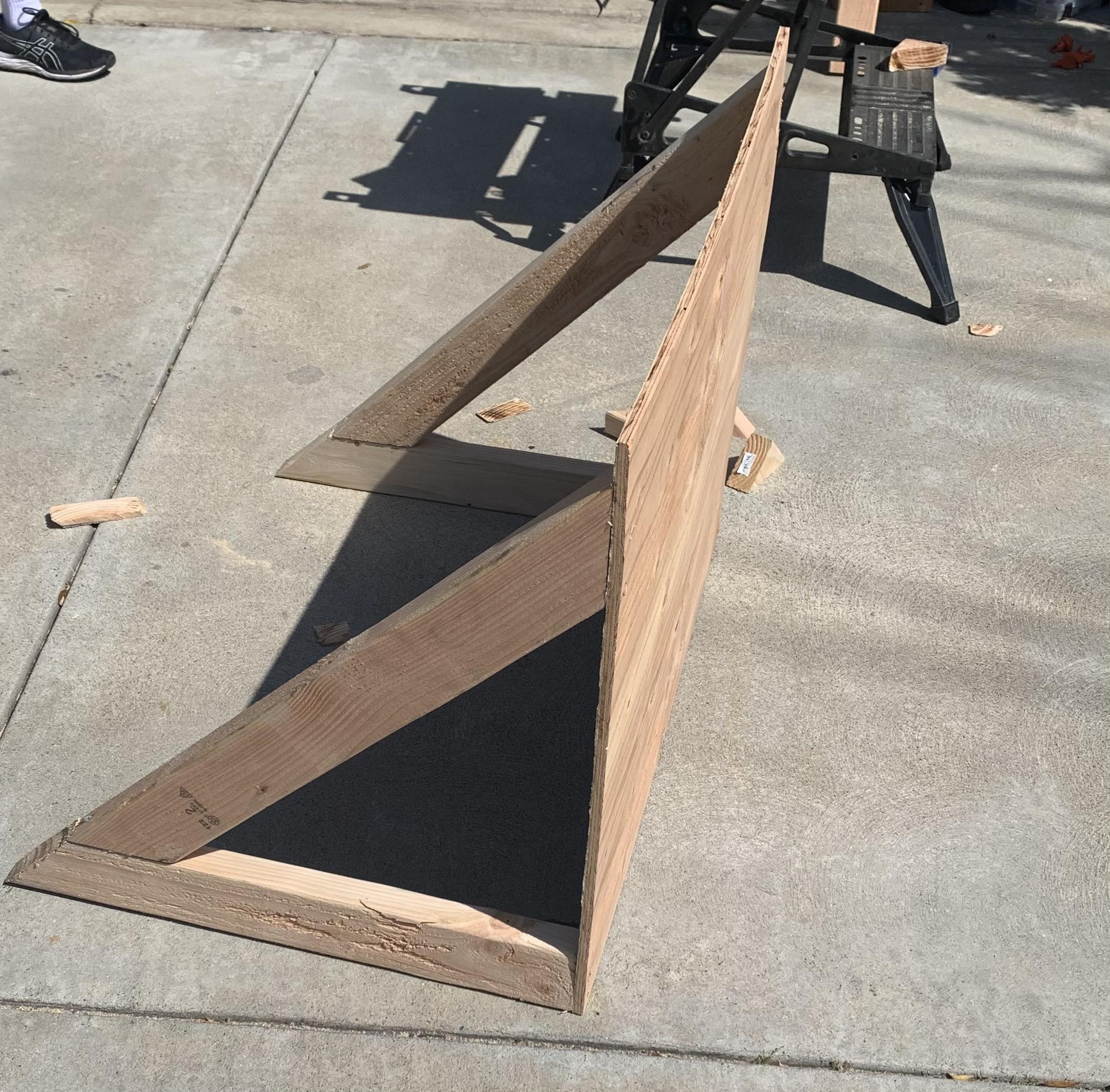

Step 4 Final Step. Screw on Supports


Place the supports on the legs and place them so the straight and 45 angles cleanly connect. Once you are happy with their placement screw 2 screws through the plywood and 2 more through the bottom legs. Do this on both sides.
