So You Want to Drill a Hole?
![IMG_5674_edit.jpg](/proxy/?url=https://content.instructables.com/FYK/4D70/IAS26DDO/FYK4D70IAS26DDO.jpg&filename=IMG_5674_edit.jpg)
Ok. Bear with me because this gets a bit complicated.
So you've found yourself in need of a hole. There's no need to be anxious. You may be relieved to know that there are literally millions of people with needs just like yours. This guide is for all of them and for all of you.
It seems you've been perceptive enough to note that a drill is a fine tool for making holes. We will make use of this knowledge later. But first things first.
Drilling of Holes: a Brief History
Drilling holes has a long and proud history. Let's have a look where it all began . . .
History - Using a Stick
![Evernote Snapshot 20150612 130742.jpg](/proxy/?url=https://content.instructables.com/FE1/5TT1/IAS268MY/FE15TT1IAS268MY.jpg&filename=Evernote Snapshot 20150612 130742.jpg)
Using a stick to dig a hole in the ground is not good for much really. Perhaps this technique is useful if you wish to trap small animals. Later advances in this technology were based on making the stick sharper.
History - Auger Bit and Brace
![Evernote Snapshot 20150612 130536.jpg](/proxy/?url=https://content.instructables.com/FPU/6R6S/IAS268O0/FPU6R6SIAS268O0.jpg&filename=Evernote Snapshot 20150612 130536.jpg)
Used for boring medium to large diameter holes in timber. This tool has a long and proud history. Much like steam locomotives.
History - Hand Twist Drill
![Evernote Snapshot 20150612 130407.jpg](/proxy/?url=https://content.instructables.com/F7M/6RHV/IAS268P5/F7M6RHVIAS268P5.jpg&filename=Evernote Snapshot 20150612 130407.jpg)
Very much like a modern cordless drill, it also has no cord. It was capable of drilling both wood and metals, but it relies on human power alone to turn the bit.
The Old and the New
As with a great many things, there's something to be said for doing things the old way.
That something is "The old way is rubbish."
Drilling holes is much faster, convenient and more accurate than ever.
Drilling Workflow
The drilling workflow is a vital tool and it will assist you to successfully execute your hole. When you read the following steps, PAY ATTENTION.
Decide Where to Drill
Deciding where to drill is a citical step and one that is often overlooked. I can't stress this enough. An in-depth knowledge of your hole's location is vital in the successful execution your hole.
Cast your gaze about the point where you wish to drill. There are some important items to consider that may seem a bit alien at first.
Accessibility
![20150612_045545047_iOS.jpg](/proxy/?url=https://content.instructables.com/FSH/WFK0/IAS26HKL/FSHWFK0IAS26HKL.jpg&filename=20150612_045545047_iOS.jpg)
Is the drilling location difficult to access? If the location is on a piece of wood on your bench then congratulations. You have selected an easy and relatively safe location for making your hole.
If your hole's location is on the underside of a car or at the very edge of your two-story home then you have a more difficult circumstance. You need to use your ingenuity to devise a way of making your hole more accessible.
If your location is inside an active volcano or perhaps in another universe it may be time to reconsider your need for this hole in the first place.
Danger
![Evernote Snapshot 20150612 130952.jpg](/proxy/?url=https://content.instructables.com/FI5/BD17/IAS268P7/FI5BD17IAS268P7.jpg&filename=Evernote Snapshot 20150612 130952.jpg)
Never locate a hole in close proximity to cats, unstable elements as they are.
Other things to watch out for are live electrical cables, explosive substances and high pressure gasses. Don't drill in close proximity to these either.
Any of these can put your hole in serious jeopardy.
Expensive
![Evernote Snapshot 20150612 131040.jpg](/proxy/?url=https://content.instructables.com/FBY/J4SS/IAS268QD/FBYJ4SSIAS268QD.jpg&filename=Evernote Snapshot 20150612 131040.jpg)
Is the item or material you're drilling into expensive? When you drop the drill and it falls, is the thing it will hit expensive?
Murphy's law applies to all situations where power tools are in use. Be prepared to deal with the financial consequences.
Boarder Issues
Serious students of this discipline will wish to study the knowledge of the hole's location itself and how this knowledge was acquired. Was it from a plan detetmined by a distant stranger? Was it a design that came to you in a vision? Can you be sure if the holes location is an absolute truth?
The epistemology of the location of the hole is a bit beyond the scope of this mere pamphlet but it is fascinating nonetheless.
[Authors note: I tried taking pictures of philosophical concepts at this point but I found it was difficult. So I gave up.]
Mark the Location
![Evernote Snapshot 20150612 131148.jpg](/proxy/?url=https://content.instructables.com/F54/N8EX/IAS268QE/F54N8EXIAS268QE.jpg&filename=Evernote Snapshot 20150612 131148.jpg)
Precisely mark your hole's location. There's no point in just making a hole anywhere. You need to mark where it needs to go. Select an appropriate instrument for marking out your hole. Some examples of marking tools are:
- Pencil
- Pen
- Punch
- Printed plans
In fact most things that are Pointy and start with P are good for Precisely Placing the Position of your Penetration. Yep, I'm talking about your hole.
For metals, you need to punch them. You know, to keep the hole in line. With a punch and a hammer even.
Tool Selection
The material into which you are driling has the greatest influence on the selection of appropriate tools. The materials in which holes are usually created fall into three broad categories:
- Soft materials - Wood and plastics
- Hard materials - Metals
- Brittle materials - Masonry
Soft Materials - Bits
![Evernote Snapshot 20150612 131354.jpg](/proxy/?url=https://content.instructables.com/FWS/KUXB/IAS268QF/FWSKUXBIAS268QF.jpg&filename=Evernote Snapshot 20150612 131354.jpg)

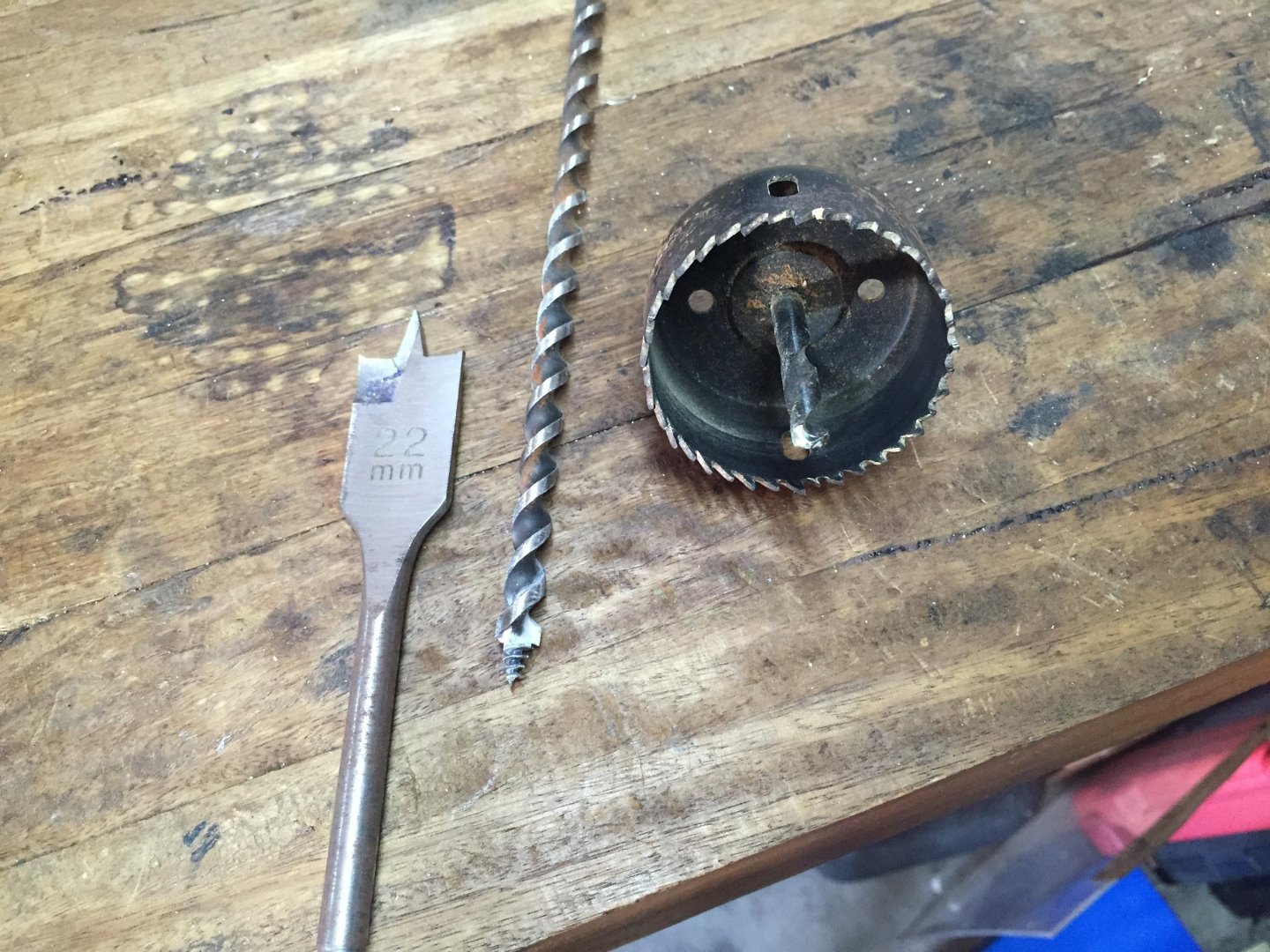

You're spoiled for choice here. There are many selections for types of bits and bobs that you can use to drill your hole. Simply select a bit that will create the diameter and depth hole that you require.
Soft Materials - Drills
![Evernote Camera Roll 20150612 132144.jpg](/proxy/?url=https://content.instructables.com/FKK/5M35/IAS268QG/FKK5M35IAS268QG.jpg&filename=Evernote Camera Roll 20150612 132144.jpg)
Almost any drill can be used for soft materials. The larger the hole the more torque you need. Start with a drill on the small end of available sizes.
How do you know when it's the right time to get a larger drill? The rule is: If the bit is not turning AND you are not turning, then get a drill with more torque. This rule has a natural upper limit for maximum torque. This is the point at which the drill bit is stationary and you start spinning.
Hard Materials - Drills
![Evernote Camera Roll 20150612 132202.jpg](/proxy/?url=https://content.instructables.com/FDE/MWUR/IAS268QH/FDEMWURIAS268QH.jpg&filename=Evernote Camera Roll 20150612 132202.jpg)
Harder materials need harder bits. Telling your bits to harden up is not the solution.
As the name implies, general purpose bits are generally OK.
Hard Materials - Drills
![Evernote Camera Roll 20150612 132212.jpg](/proxy/?url=https://content.instructables.com/FO4/72AD/IAS268RK/FO472ADIAS268RK.jpg&filename=Evernote Camera Roll 20150612 132212.jpg)
Most drills can be used to drill metals. As per soft materials, the larger the hole, the more torque you need.
With metals though, the speed is also critical. For large holes, big drills with low speed, high torque gearboxes are ideal. Please take care, though. In this case you are much more likely to encounter the natural upper limit for maximum torque.
Brittle Materials - Bits
![Evernote Snapshot 20150612 131518.jpg](/proxy/?url=https://content.instructables.com/FZF/QGVK/IAS268SM/FZFQGVKIAS268SM.jpg&filename=Evernote Snapshot 20150612 131518.jpg)
For brittle materials, use dedicated masonry bits. These bits are made for pounding their way through concrete like tiny, but still supremely noisy, jackhammers. Because of this, the diameter of your hole will be somewhat larger than the bit. Jackhammering is not the same sort of precision operation as, say, carpet bombing.
Because the holes are larger than the bits, when choosing the diameter of the bit, read the directions for the fasteners you are using. Yes, actually read them for a change. The directions will translate for you the diameter of the fastener to the diameter of bit you need.
Brittle Materials - Drills
![Evernote Camera Roll 20150612 132236.jpg](/proxy/?url=https://content.instructables.com/F3E/2NVZ/IAS268SO/F3E2NVZIAS268SO.jpg&filename=Evernote Camera Roll 20150612 132236.jpg)

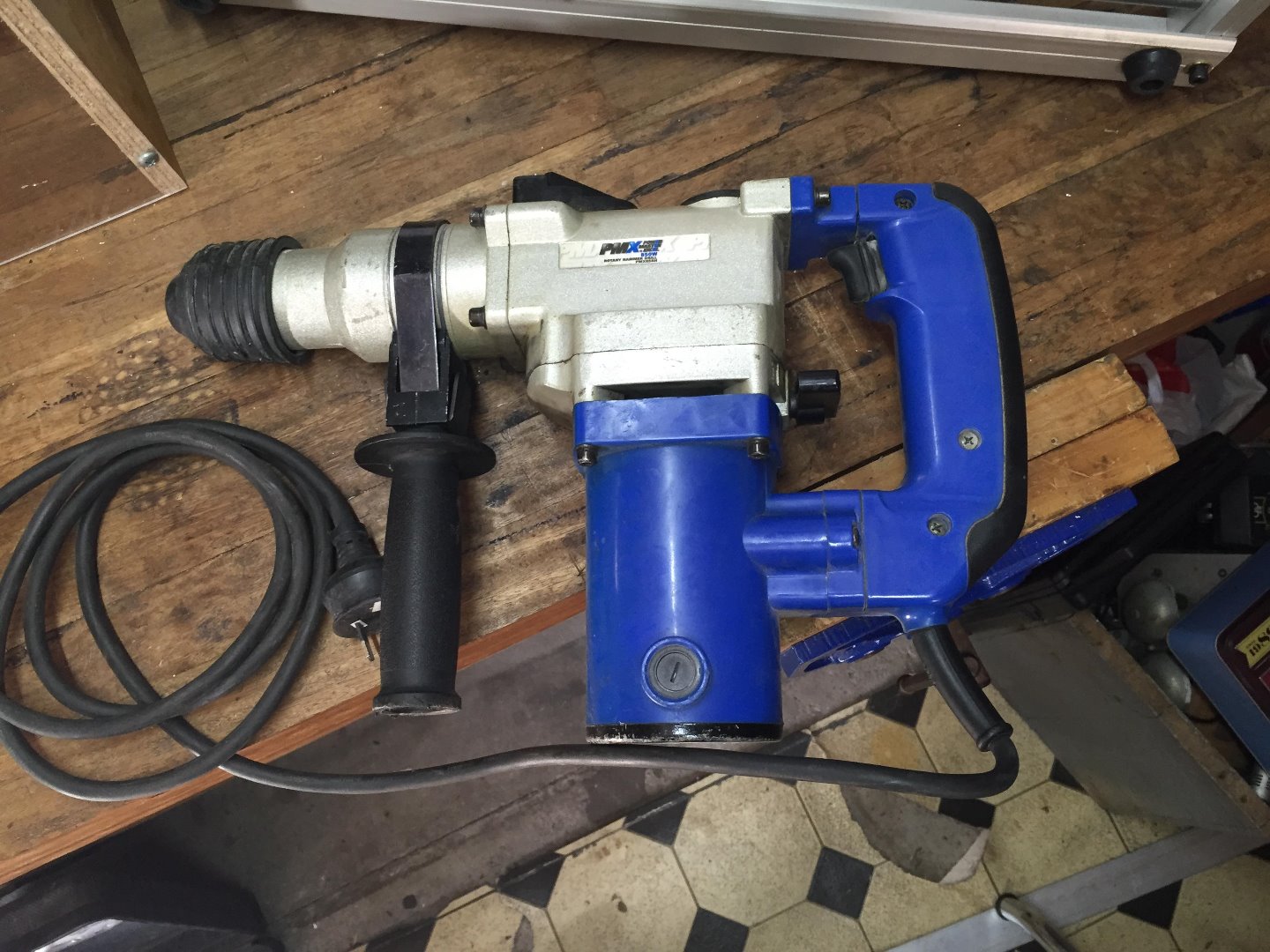

Drilling masonry requires a drill which can create the aforementioned jackhammer effect.
Just to confuse everybody, these drills are called masonry drills.
Safety - Eye Protection
![Evernote Camera Roll 20150612 133248.jpg](/proxy/?url=https://content.instructables.com/FQY/M6U3/IAS268TS/FQYM6U3IAS268TS.jpg&filename=Evernote Camera Roll 20150612 133248.jpg)
![Evernote Camera Roll 20150612 133257.jpg](/proxy/?url=https://content.instructables.com/FK2/FSB5/IAS268UV/FK2FSB5IAS268UV.jpg&filename=Evernote Camera Roll 20150612 133257.jpg)
Learn from my several trips to the emergency department. Eye protection is good. No joke.
However, what is funny is people thinking they're safe when they can't see through their eye protection. There's no end to the ways that you can accumulate dust, scratches and condensation. Call that safe? Funny!
Safety - Ear Protection
![Evernote Camera Roll 20150612 133307.jpg](/proxy/?url=https://content.instructables.com/FA5/JIIS/IAS268VY/FA5JIISIAS268VY.jpg&filename=Evernote Camera Roll 20150612 133307.jpg)
Particularly important for masonry drilling. It's the loudest form of drilling that you are likely to encounter. You don't want bits of flying masonry to end up in your ears.
A bonus is that the noise of flying masonry will also be kept out of your ears.
Body Location
There are several anthropometric and ergonomic considerations for drilling your hole.
- Comfortable position - Are you situated where you will gain maximum happiness from the hole drilling process?
- Loose limbs - A good one to watch out for is whether any part of your body is placed behind your hole. You may end up with one more hole in your body than is absolutely necessary.
- Standing securely - Sometimes the drill turns. No not the drill bit, the DRILL. Try to plan your hole drilling operation so that, when the drill turns, you will remain on the ladder / on top of the roof / away from sharp objects.
Securing the Material
![Evernote Camera Roll 20150612 133327.jpg](/proxy/?url=https://content.instructables.com/FBL/NEH3/IAS268X4/FBLNEH3IAS268X4.jpg&filename=Evernote Camera Roll 20150612 133327.jpg)
![Evernote Camera Roll 20150612 133339.jpg](/proxy/?url=https://content.instructables.com/FYN/BAET/IAS268X7/FYNBAETIAS268X7.jpg&filename=Evernote Camera Roll 20150612 133339.jpg)
![Evernote Camera Roll 20150612 133403.jpg](/proxy/?url=https://content.instructables.com/FKQ/9JR8/IAS2690D/FKQ9JR8IAS2690D.jpg&filename=Evernote Camera Roll 20150612 133403.jpg)
Adequately securing the material is critical to ensuring that the material doesn't end up as part of your body. With masonry, you're probably OK as the material us usually part of a building. With soft materials, they don't hurt as much when they hit you, so the precautions are generally alligned with the percieved toughness of the drill operator.
Things get a bit more serious with metal. Most, if not all, drill operators will fail to be impervious to flying metal. No mater how hard they try.
To secure your material:
- If it's attached to a solid object, then great: Your work here is done.
- If it's not solidly attached, try to work out a way of clamping your material with a sturdy clamp or two.
- If you can't clamp it with a clamp, then clamp it in a vise.
- If you can't clamp it in a vise, try to hold it with pliers or grips.
- If you can't hold it with pliers, wear thick gloves and hope for the best.
Mental Preparation
Are you mentally prepared to deal with the fact that your hole will not be as perfect as you had envisaged? That it isn't positioned as precisely or dimensionally exact as you wanted? That it has a broken drill bit half way down?
No?
It's OK. Most of us feel that way.
Drill a Pilot
![Evernote Camera Roll 20150612 133631.jpg](/proxy/?url=https://content.instructables.com/FBJ/8KTB/IAS2691G/FBJ8KTBIAS2691G.jpg&filename=Evernote Camera Roll 20150612 133631.jpg)
![Evernote Camera Roll 20150612 133639.jpg](/proxy/?url=https://content.instructables.com/FCH/KYGC/IAS2692K/FCHKYGCIAS2692K.jpg&filename=Evernote Camera Roll 20150612 133639.jpg)
We can all do without so much pressure in our lives, right? The same is true for your hole.
Moderate to large sized holes in hard materials and large sized holes in soft material require a pilot. A pilot is a small hole that is drilled in advance of the main hole. If you drill a pilot, you will "fly through" your main hole. Ha! Geez I make me laugh.
Personally, I keep a whole squadron of pilot bits.
Pilot bits are expendable. These are the ones most likely to get blunted, broken and lost. Sound like airplane pilots? Anyway, the pilot hole helps greatly to relieve pressure on your main drill bit. Whew.
Actually Drilling the Hole
![IMG_5675-Edit.jpg](/proxy/?url=https://content.instructables.com/FW7/UECV/IAS2693Q/FW7UECVIAS2693Q.jpg&filename=IMG_5675-Edit.jpg)
Grab your tools of choice. Position the bit over the marked hole location. Start the drill. Push with light to moderate pressure. Stop when the bit reaches the required depth. Your perfect hole is done.
Yep, it's that easy. To be more precise, it's that easy only AFTER you have done adequate preparation. The lazy path leads to broken tools, broken projects and broken parts of you. That's the real lesson in this Instructable.
Troubleshooting
Drilling proceeding too slowly - The drill is in reverse. Drilling in the forwards direction is not essential but it will make your job significantly faster.
Drilling requires enormous pressure - You have no pilot. Your hole has no sense of direction. Get a pilot hole so that your main hole can sit back, relax and enjoy the journey.
Long strings of swarf blocking drill bit - Intermittently relieve pressure from the drill bit. The swarf will break off and fly somewhere uncomfortable.
Smoke coming from the drill or the drill bit - Stop the drill. Take a step back to admire your handiwork. This is clearly a significant learning experience. One to cherish.
Terminology
Bit - The twisty thing on the end of the drill
Drill - The turny machine thing for drilling holes
Material - The stuff you want a hole in
Pilot - Holes that are too small
Swarf - Long curly bits of stuff flying out of the hole
