Smartphone Tripod Adapter
This instructable can be accessed at the author's website - http://www.neatinformation.com/. If you link to this instructable from another website, please include a link to the Neat Information website.
Materials –
A hard case designed specifically for your phone. Do not use a universal case which is designed to work with many different models. You need a snug fit.
A right angle bracket – preferably plastic but metal could also work. I repurposed a plastic piece from an old electronics box.
A 1/4"-20 free spinning washer nut.
Suitable adhesive (super glue, a high strength adhesive, etc.).
A C-Clamp.
Here’s a simple do-it-yourself tripod adapter for your smartphone.
Materials –
A hard case designed specifically for your phone. Do not use a universal case which is designed to work with many different models. You need a snug fit.
A right angle bracket – preferably plastic but metal could also work. I repurposed a plastic piece from an old electronics box.
A 1/4"-20 free spinning washer nut.
Suitable adhesive (super glue, a high strength adhesive, etc.).
A C-Clamp.

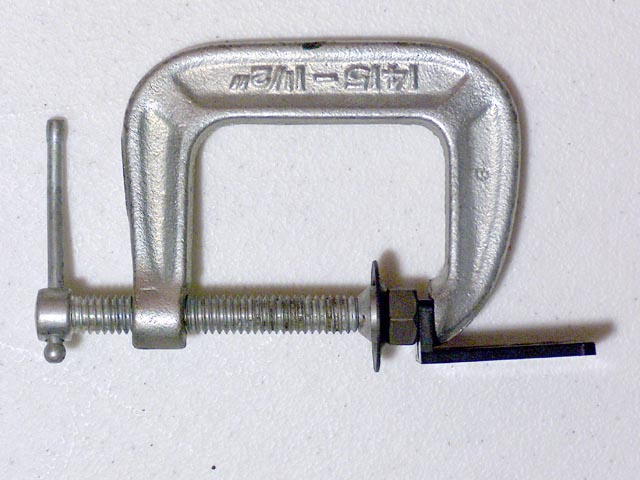

Glue the nut-side of the free spinning nut to the bottom of the right angle bracket (see photo). Make sure you’ve got extremely clean surfaces and use the proper adhesive, there isn’t much surface area but this has to hold the weight of your camera. Use a C-Clamp to hold the bracket firmly in place and let it dry overnight.

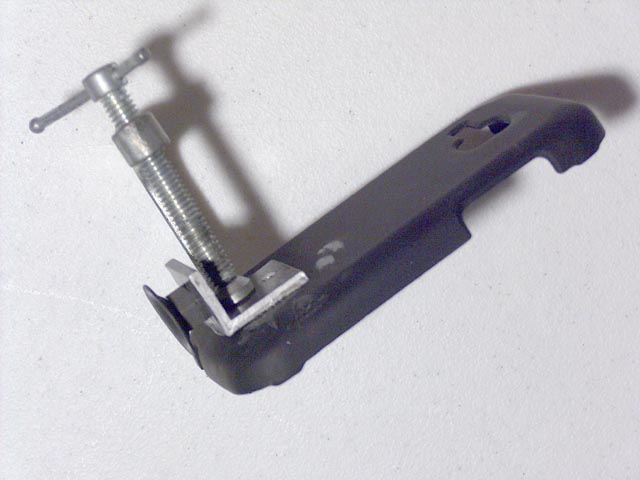

Glue the right angle bracket on to the case (see diagram for orientation). Use a C-Clamp to hold the bracket firmly in place and let it dry overnight.

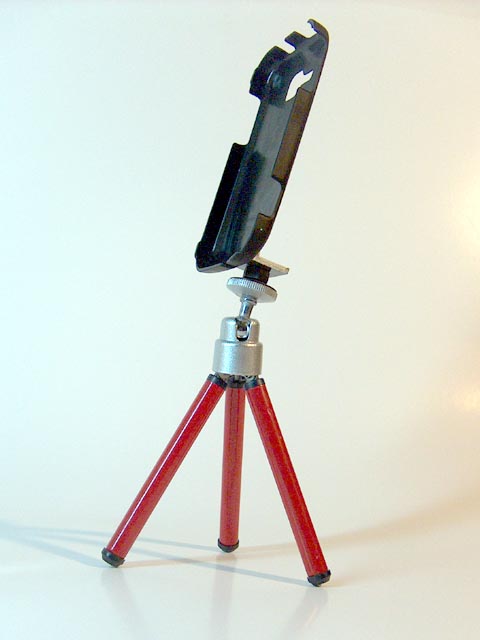

You’re done.
Conclusions –

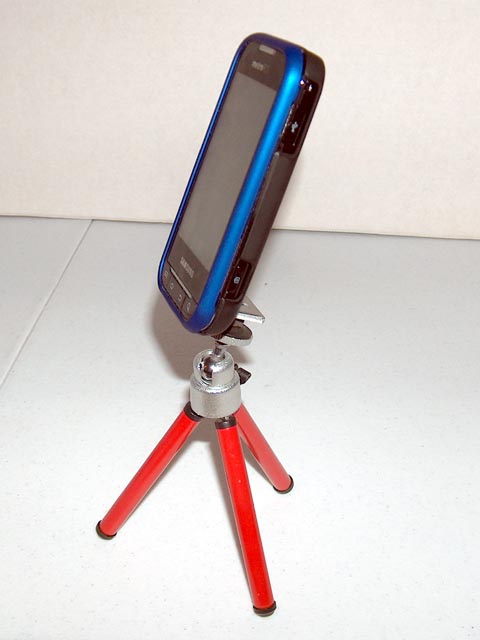

This tripod adapter is suitable for steadying your smartphone while taking pictures. Use common sense when using it and make sure that your phone won’t fall over or come out of its case. Do not use this as a stand for your phone.
Conclusions –
This tripod adapter is suitable for steadying your smartphone while taking pictures. Use common sense when using it and make sure that your phone won’t fall over or come out of its case. Do not use this as a stand for your phone.
