SMART WEARABLE

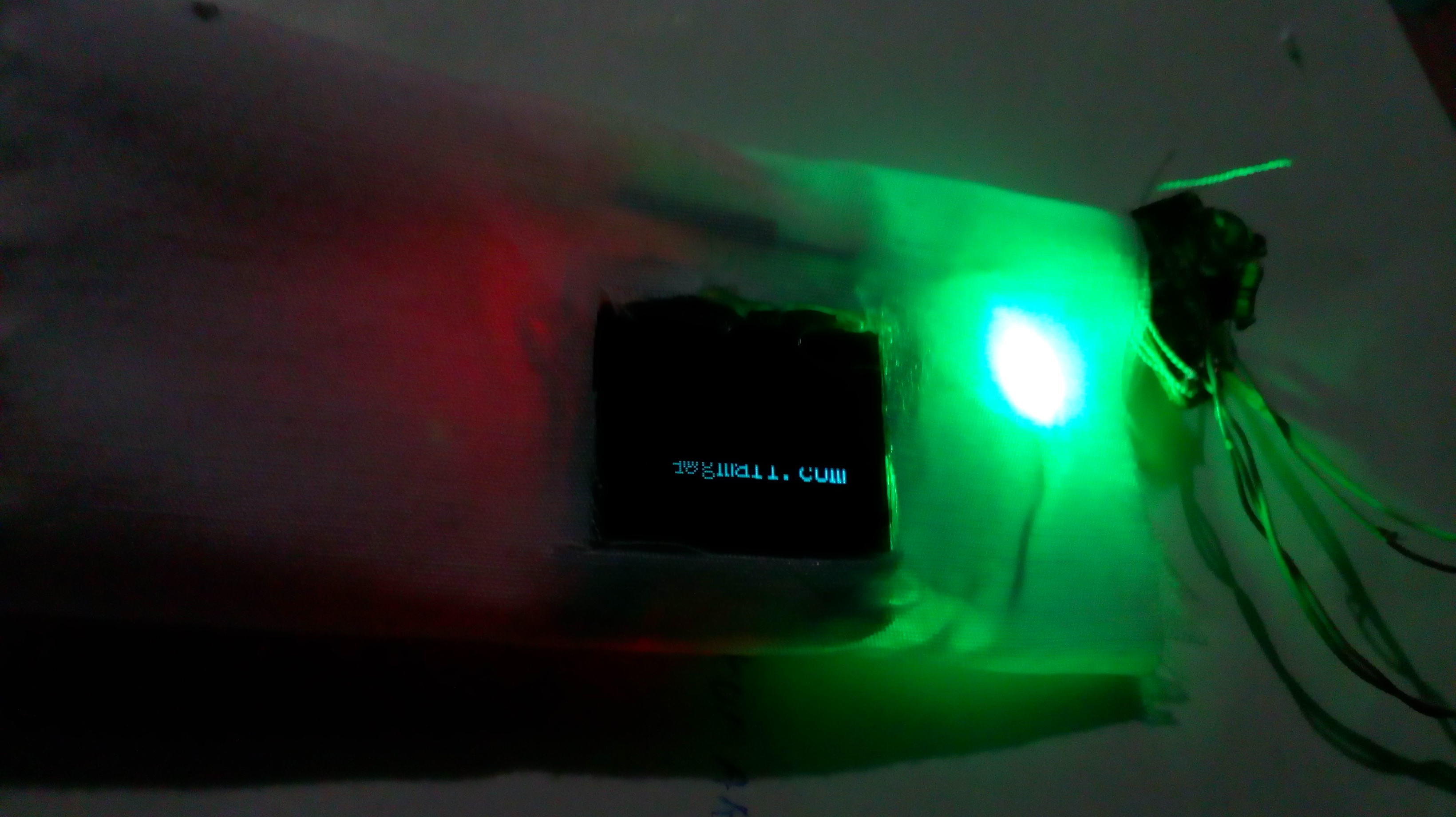

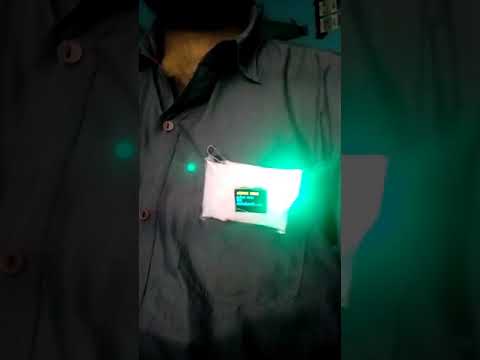

It is smart O.LED based wearable equipped with sensors that shows your heartbeat live and a led that glows according to your heartbeat it gives a new exiting experience to you you can actually moniter your heartbeat and see its working live on display and feel it by watching the led bulb.

You can also attach many other sensors like temperature sensor and sugar sensor and other sensor to it that helps you to track your body live in every moments of life.It might be helpful to people with heart problem.

SMART IDENTITY CARD

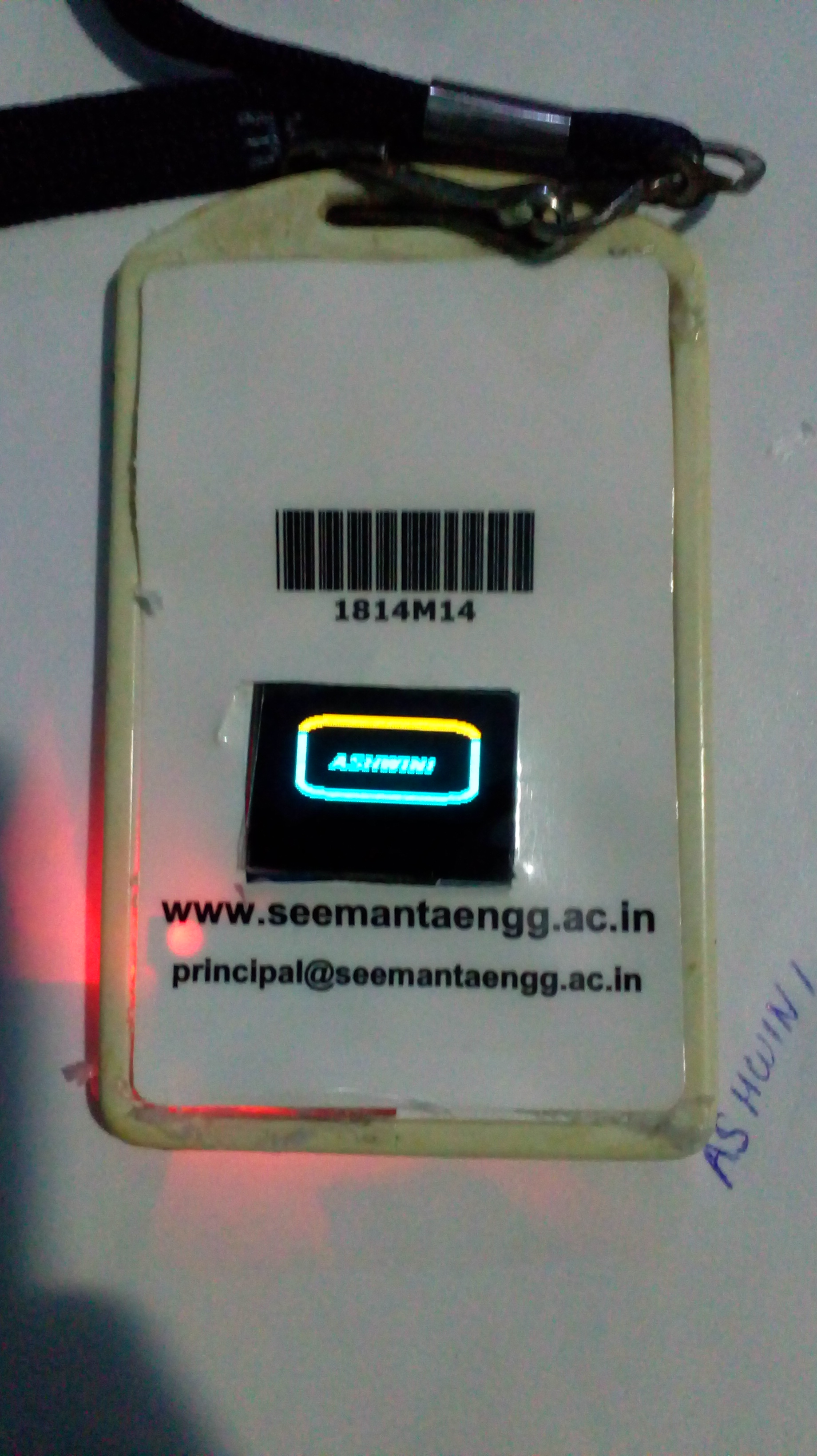

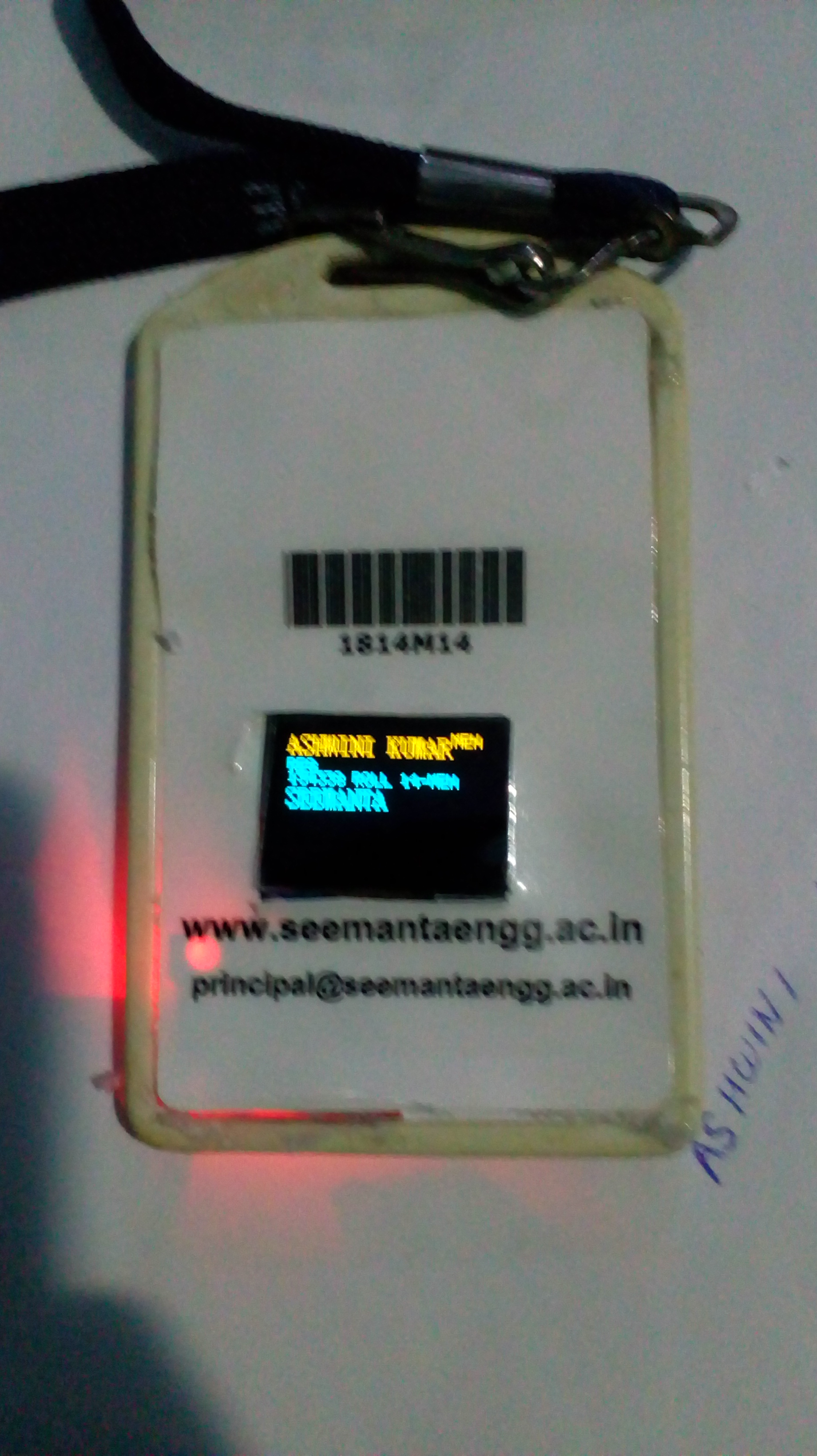

This is a smart O.LED based identity card that gives you a very new look and experience to you.IT shows the the identity and details like identity card but in very new way the O.LED in it actually display and animate the the texts in it and gives a unique look to you.You can also some sensors to it like heartbeat sensor that makes it more exciting and cool.

We are going to use hot glue and some sticking and sewing skills in it that makes it more exciting in making it .

• DIGISPARK ATTiny85
• Small rechargable battery
• O.Led display(ssd1306)
• A plastic Identity card sample (NOTE- we are going to cut it and change it so Don"t use original one that you use that might create a problem ,get a duplicate or old plastic Identity card sample )
• HEART rate sensor (some thing like this as in link


  https://www.amazon.in/Robo-India-Heart-Beat-Sensor...

EXTRA MATERIALS WE NEED

• Hot glue
• Duct tape or other simple tape
• Needle
• Thread
• Spare cloth

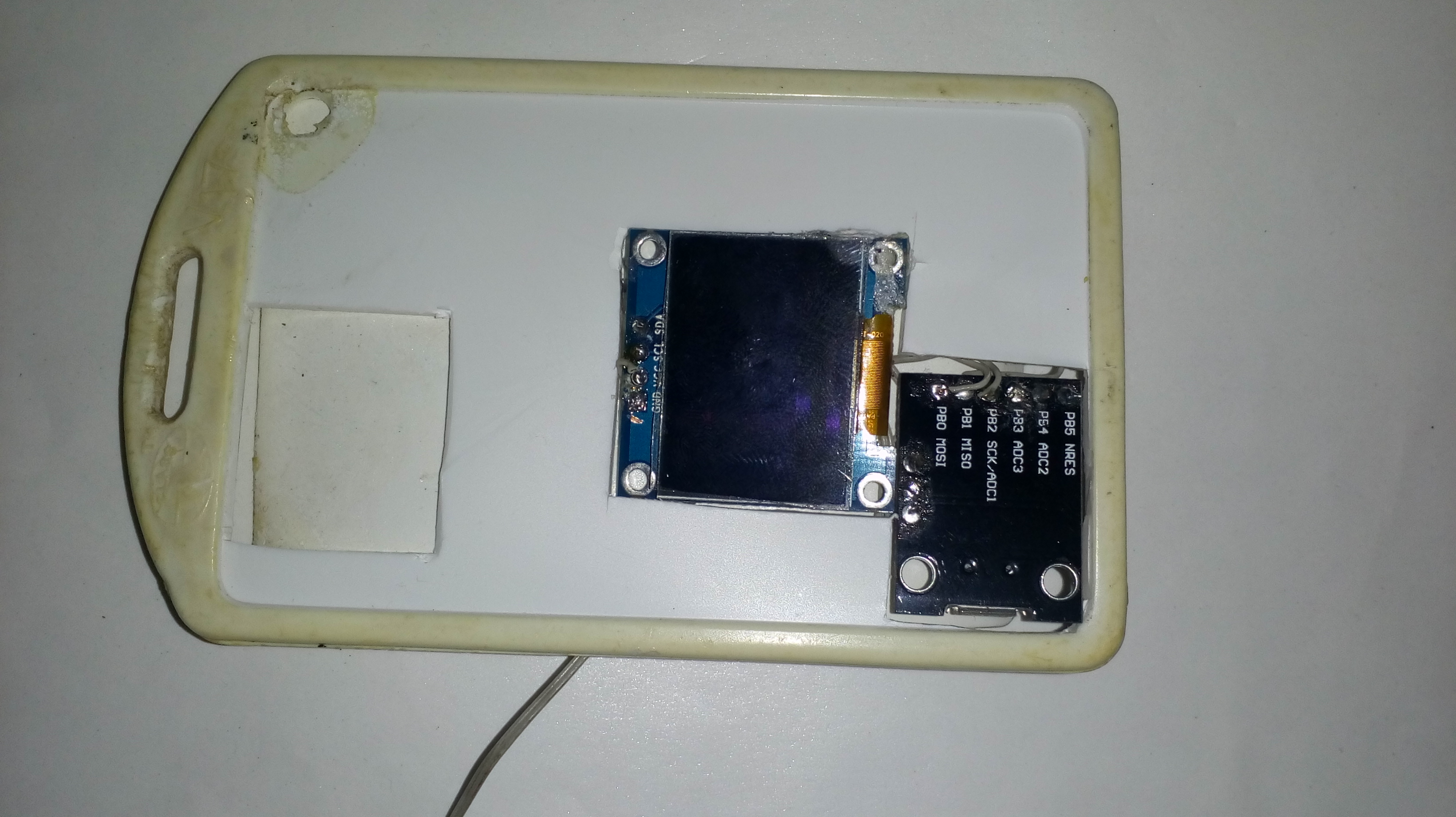

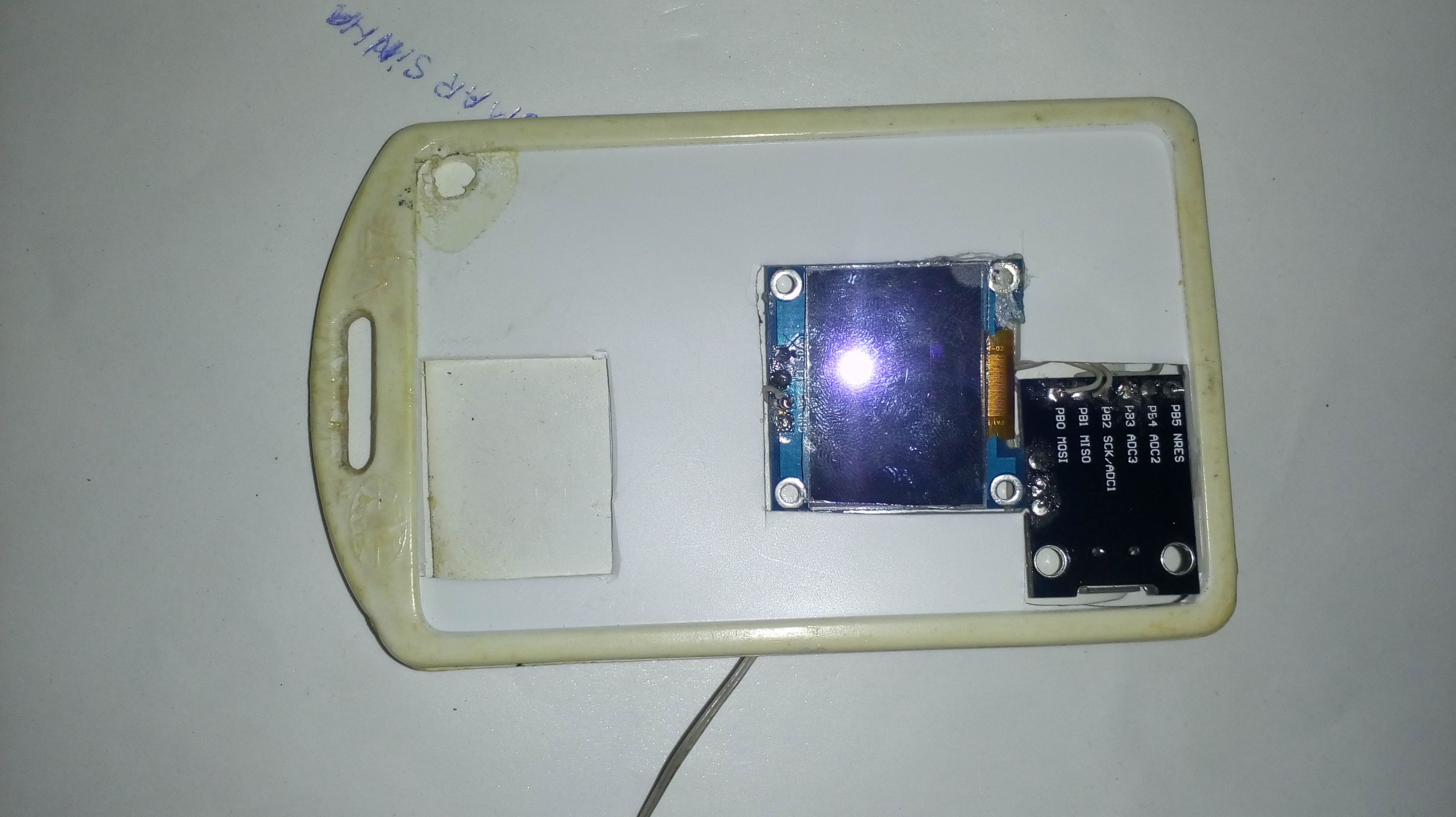

Remove the sticker of identity card and make a cut as illustrated in pic above for battery ,Attiny85 and O.LED display

you can also change it and make cut according to your own design and concept.

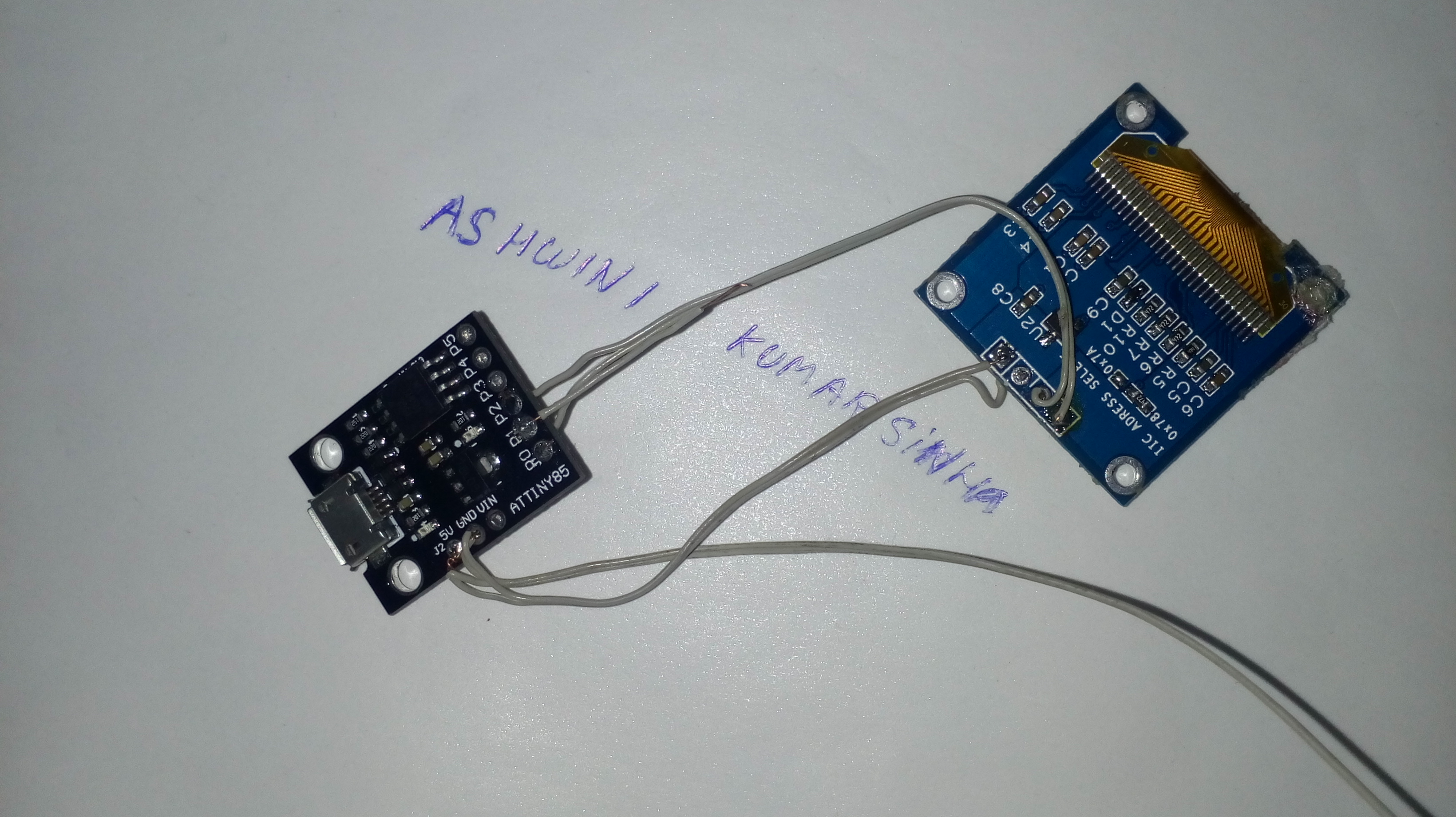

Now solder the wires as described below:-

DIGISPARK ATTINY85 ---------------------SSD1306 O.LED Display

Pin0----------------------------------------------->SDA Pin

pin2----------------------------------------------->SCL Pin

5V------------------------------------------------->VCC

GND---------------------------------------------->GND

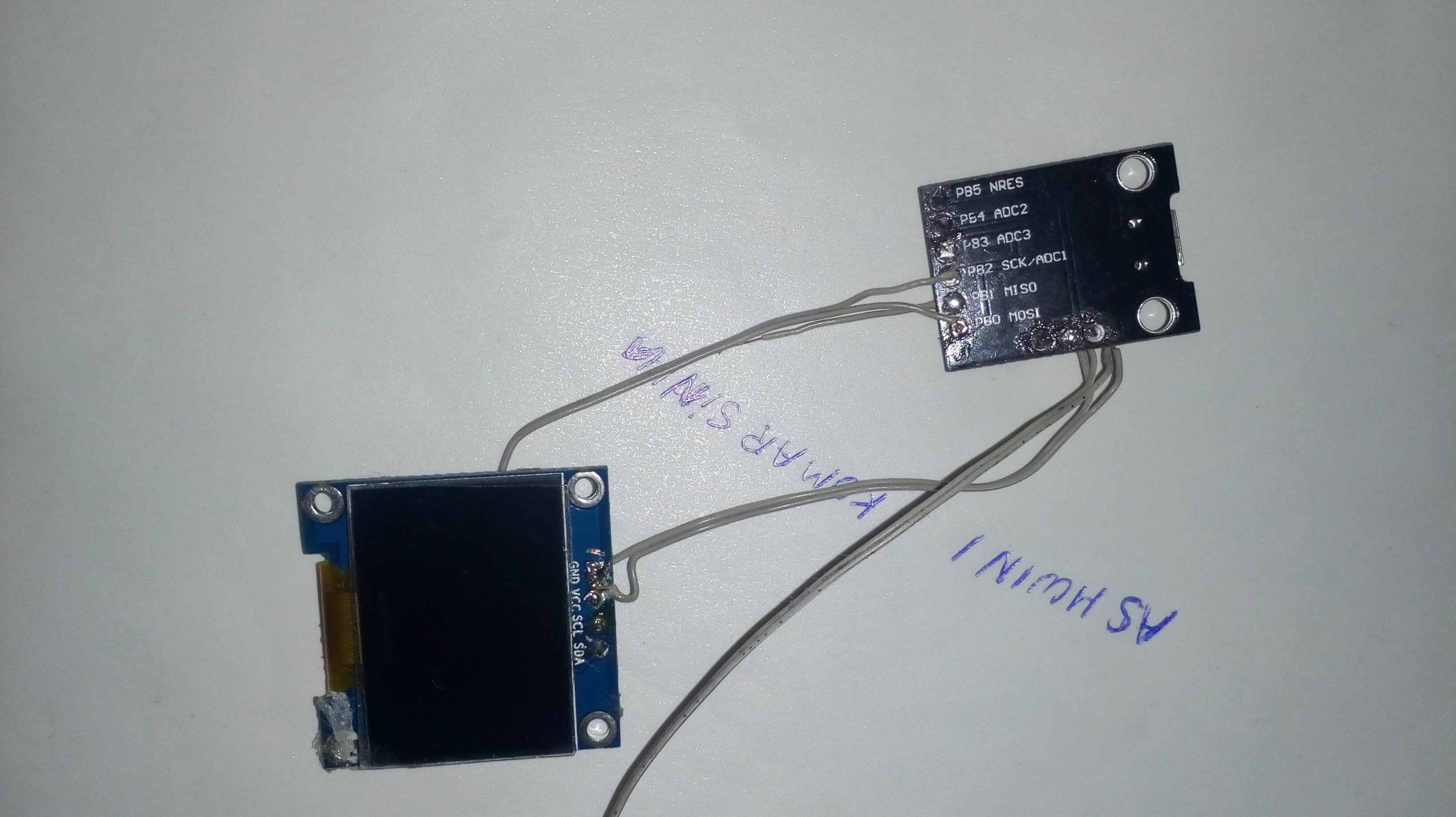

solder the wires according to above connections and as illustrated in pic above

Now open the Arduino IDE and upload the code below to DIGISPARK or you can Downlode the code from Link below

Identity card code downlode

To Know more about how to upload the code to Digispark you can take the help of google.

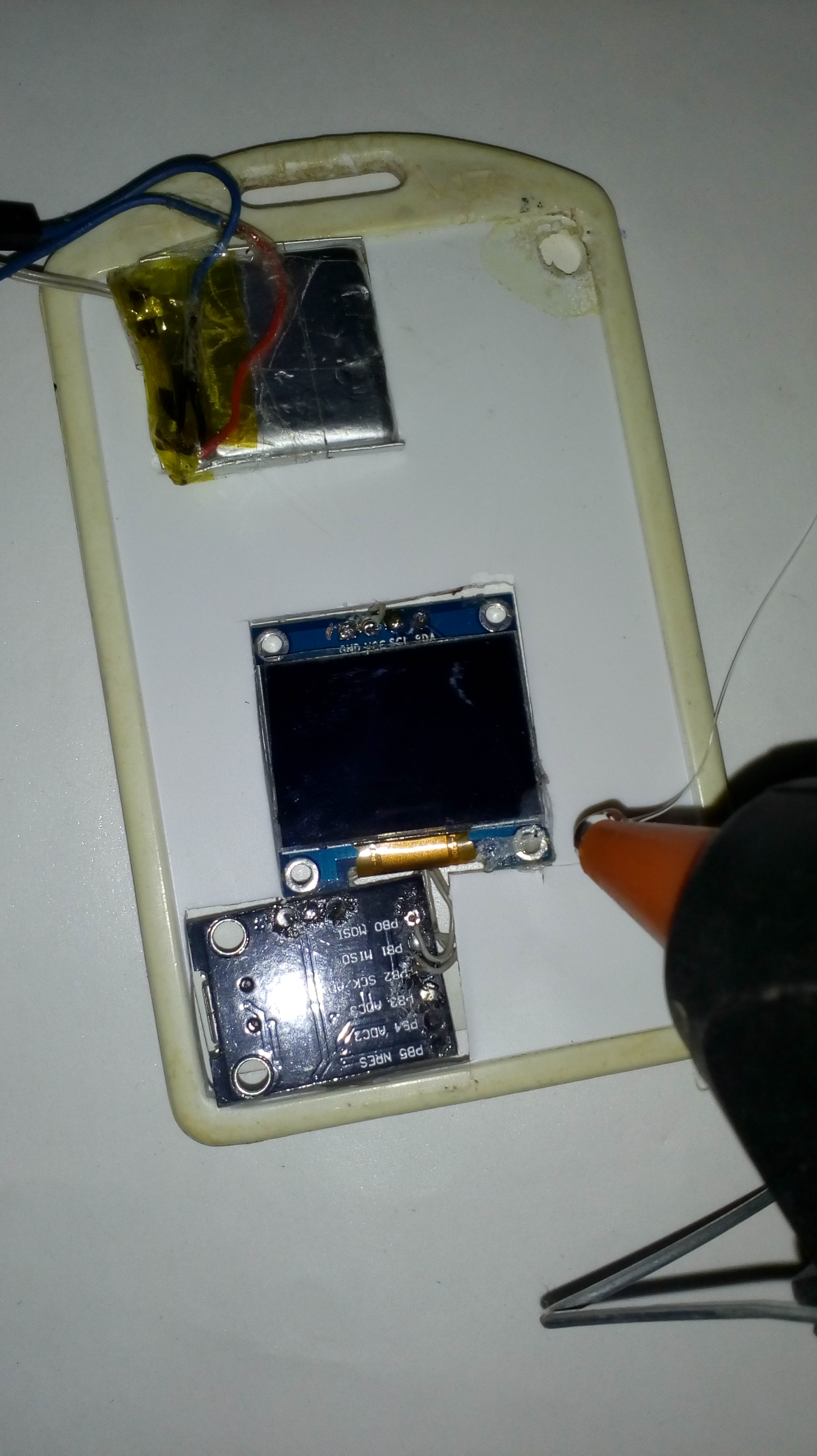

Now after uploading the code fix all the things with hot glue and duct tape and battery as illustrated in pics above..

Congratulations you have done Have fun with it amaze your friends wit such a unique Identity card

Make the connections between OLED and DIGISPARK ATTINY85 as below

DIGISPARK ATTINY85 ---------------------SSD1306 O.LED Display
Pin0----------------------------------------------->SDA Pin

pin2----------------------------------------------->SCL Pin

5V------------------------------------------------->VCC

GND---------------------------------------------->GND

Connect LED and HEARTBEAT Sensor as below

LED---------------------------------------------------DIGISPARK PIN 4

HEART SENSOR OUT ------------------------>DIGISPARK PIN 1

HEART SENSOR VCC------------------------->DIGISPARK 5v PIN

HEART SENSOR GND------------------------->DIGISPARK GND

NOTE :-must use original HEARTBEAT sensor available online for accurate reading and making things work ,as I don't have that sensor so I have make my own from a photo diode that do not show correct reading,So must use HEART SENSOR available online store like on amazon,ebay etc

Now uplode the below code from Arduino IDE.

downlode code

#include
#include

int senval=0;

void setup()

{

oled.begin();

}

void loop() {

senval=analogRead(1);

analogWrite(4, senval-600);//change it according to your sensor type

oled.clear();

oled.setCursor(0, 0);

oled.setFont(FONT8X16);

oled.print("your text"); //your text here

oled.setCursor(0, 2);

oled.println("Heart rate");

oled.setFont(FONT8X16);

oled.print(senval-600);//change it according to sensor

delay(2000);

oled.clear();

oled.setCursor(0, 0); //top left

oled.setFont(FONT8X16);

oled.print("ASHWINI KUMAR");

oled.setCursor(0, 2);

oled.setFont(FONT8X16);

oled.print("pulse rate");

oled.setCursor(0, 4);

oled.setFont(FONT8X16);

oled.print(senval);

oled.setCursor(0, 6);

oled.setFont(FONT8X16);

oled.print("yourtext@gmail.com");//your text here

delay(2000); }

After uploading the code fix all the things together with Hot Glue as illustrated in pics above then sew it to your shit as illustrated in pic above.
