Smart Water Controller

by phuoctri in Circuits > Remote Control

2156 Views, 3 Favorites, 0 Comments

Smart Water Controller

So Do Nguyen Ly.PNG

Hello, this is my first project on Instructables. Any question or suggestion, comments, please tell me.

I created an IOT node for my cold water tank on the roof. It gave me some information like:

1. Tank water level

2. Temperature, Barometric Pressure and Humidity

3. Motion Sensor

4. Light Lux

Base on Firmware ESP-EASY and hardware ESP8266 Nodemcu.

Because this IOT node need Wifi for working, I'm already re-configuration my Wifi network. Will sharing it with other project.

Necessary Tools

Chi Han.jpg
Dong Ho AN-8009.jpg
Nhua Thong Deo.jpg
Tram Han Hakko 907.jpg
Board Test.jpg
Kem Cat.jpg
Kep Han.jpg

List below are main Necessary Tools for my projects:

1. Welding station

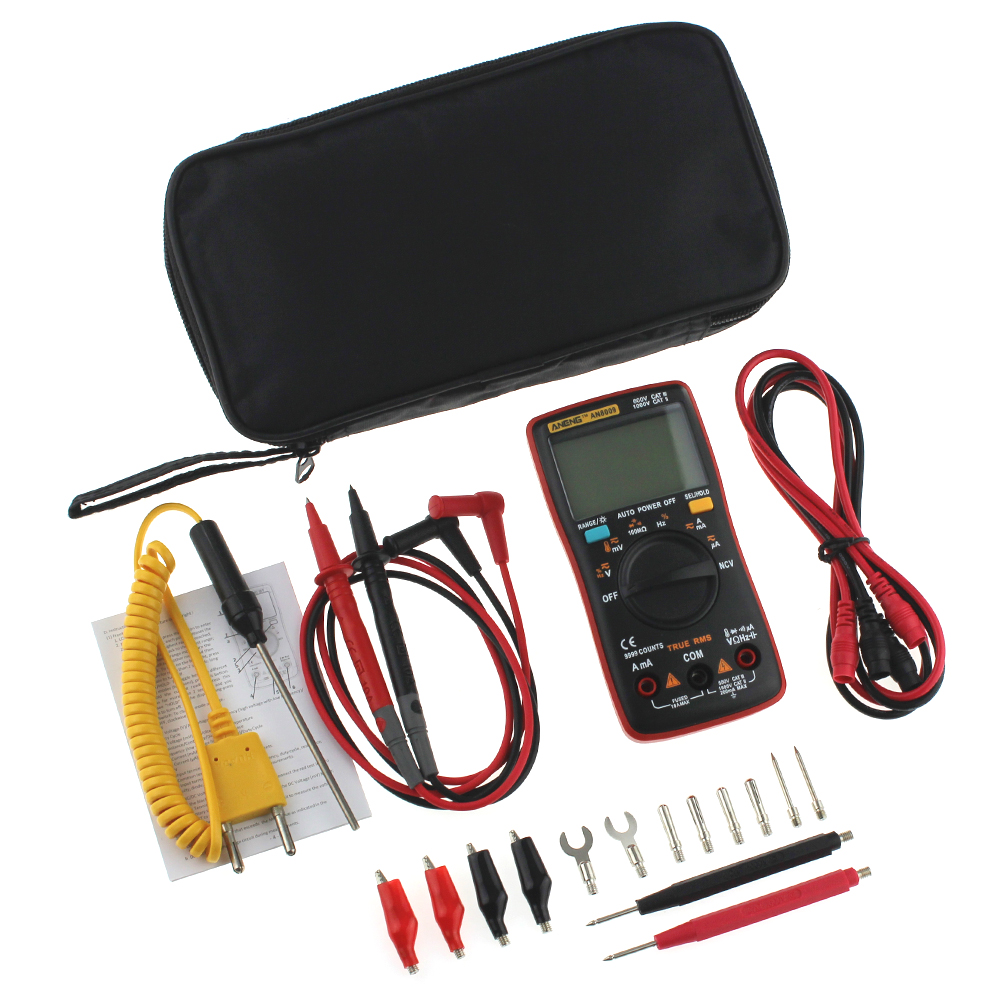

2. Digital Multimeter

3. Welding Tools & Materials

4. etc...

Be careful when using any device that is related to electricity.

Hardware With ESP8266

DS18B20 Waterproof.jpg

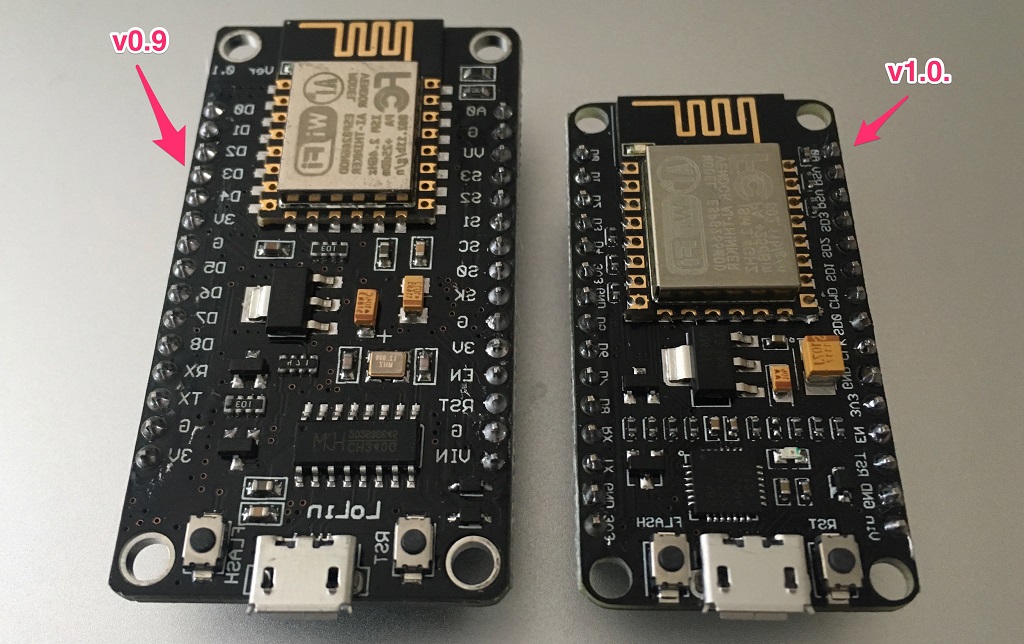

ESP8266 Dev Board.jpg

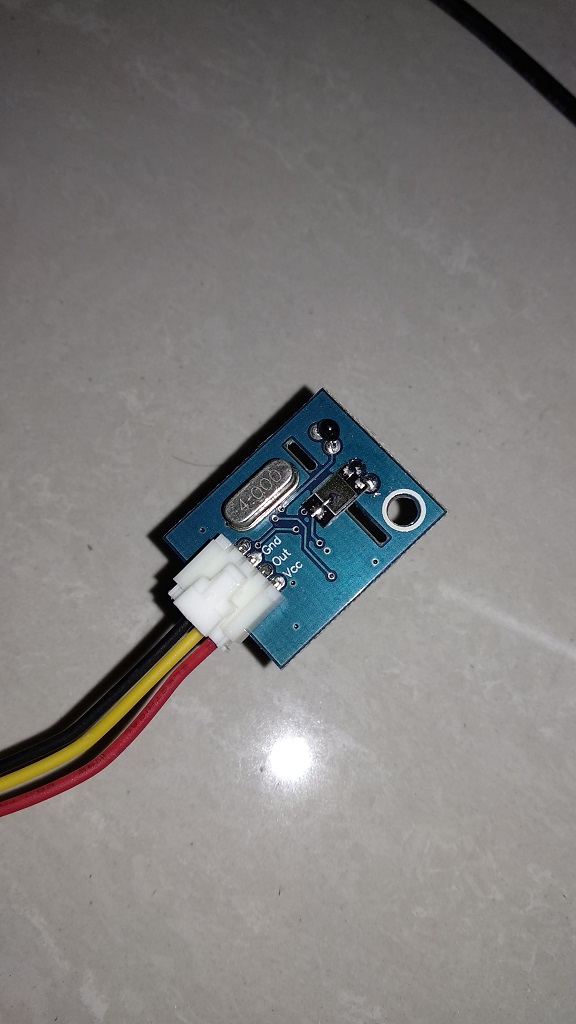

Because my cold water tank in the roof. So, I give some sensors for tracking enviroment (just for fun)

1. ESP8266 : any esp8266 but I recommend the NODEMCU - ESP8266, it is about 3$ - 4$

2. DS18b20 Waterproof : for water temperature

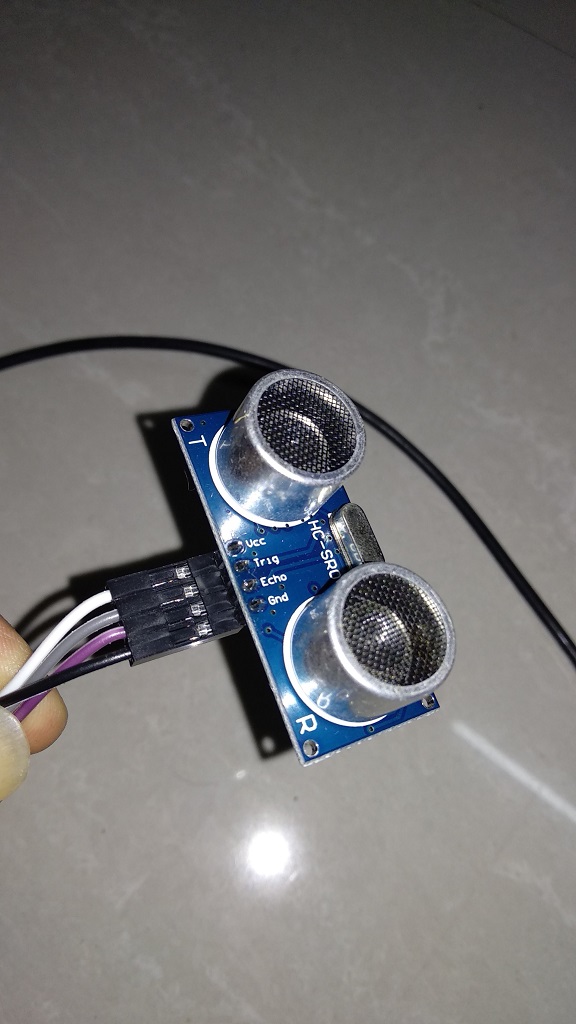

3. HC-SR04 : Ultrasonic Sensor for tank water level

DO NOT DIRECT CONNECT WITH ESP8266 (it is 5v signal and will kill your board)

4. DHT22 or DHT11 : Temperature and Humidity inside box

5. BMP180 : Barometric Pressure/Temperature/Altitude on roof

6. PIR HC-SR501 : Passive Infrared Motion Sensor, to detect someone or animal

7. BH1750FVI : Digital Light Sensor

8. Levelshifter: convert signal 5V from HC-SR04 to 3.3V.

Flash Firmware EspEasy


1. Download it on https://github.com/letscontrolit/ESPEasy/releases

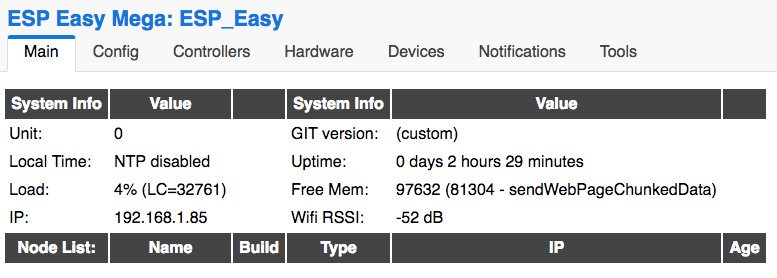

2. Using this firmware ESP_Easy_mega-yyyyMMdd_normal_ESP8266_4096.bin

3. Run FlashESP8266.exe for flash (in Windows only :D). Maybe you need flash.py to flash on Linux or Mac (try Google please)

4. First run please folow this guide https://www.letscontrolit.com/wiki/index.php/ESPEa...

Note : AP mode using this password to access : configesp

Wire System and Sensors

DS18B20 List.png

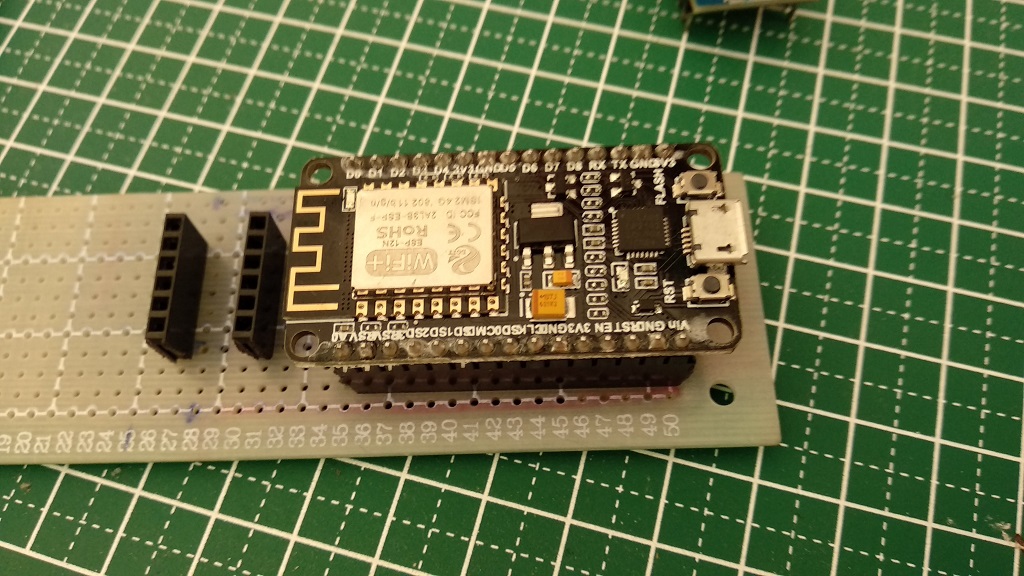

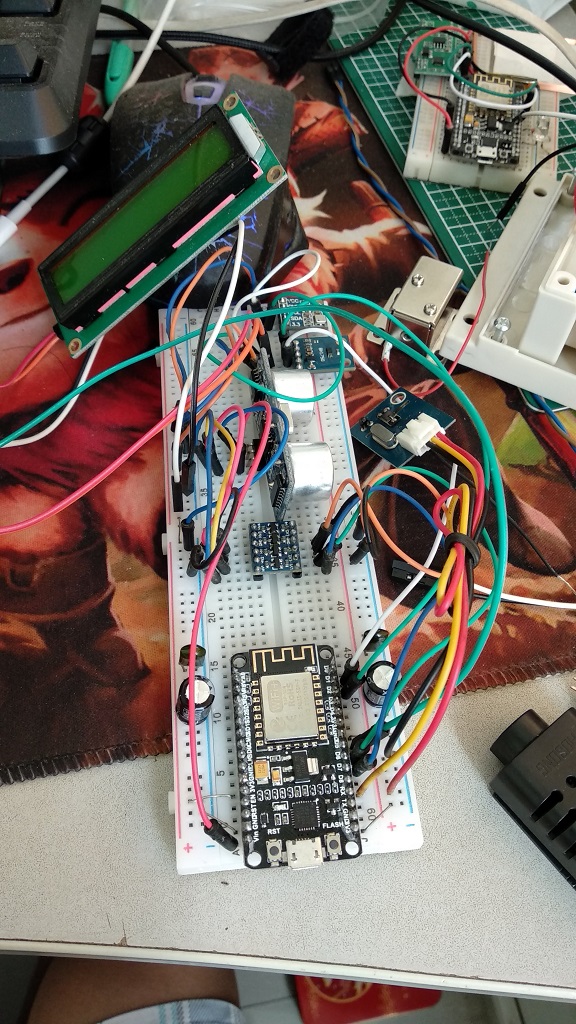

Please wire ESP8266 with Sensors like this:

- DHT11 => GPIO3

- DS18B20 => GPIO1 : need R4,7k with (+)

- BH1750 => I2C : GPIO4,5

- BMP180 => I2C : GPIO4,5

- PIR => GPIO14

- HC-SR04 : DO NOT DIRECT CONNECT WITH ESP8266 (it is 5v signal and will kill your board)

You need a Levelshifter https://www.letscontrolit.com/wiki/index.php/HC-SR...

=> connect Levelshifter with GPIO12, GPIO13

Config System

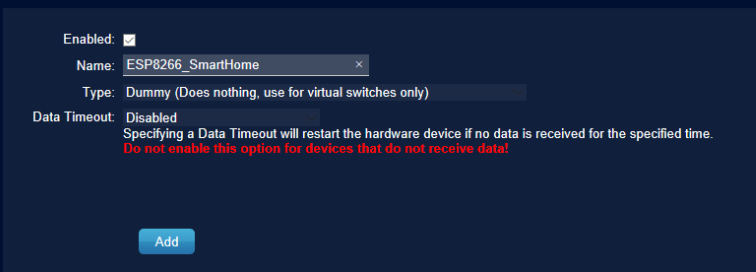

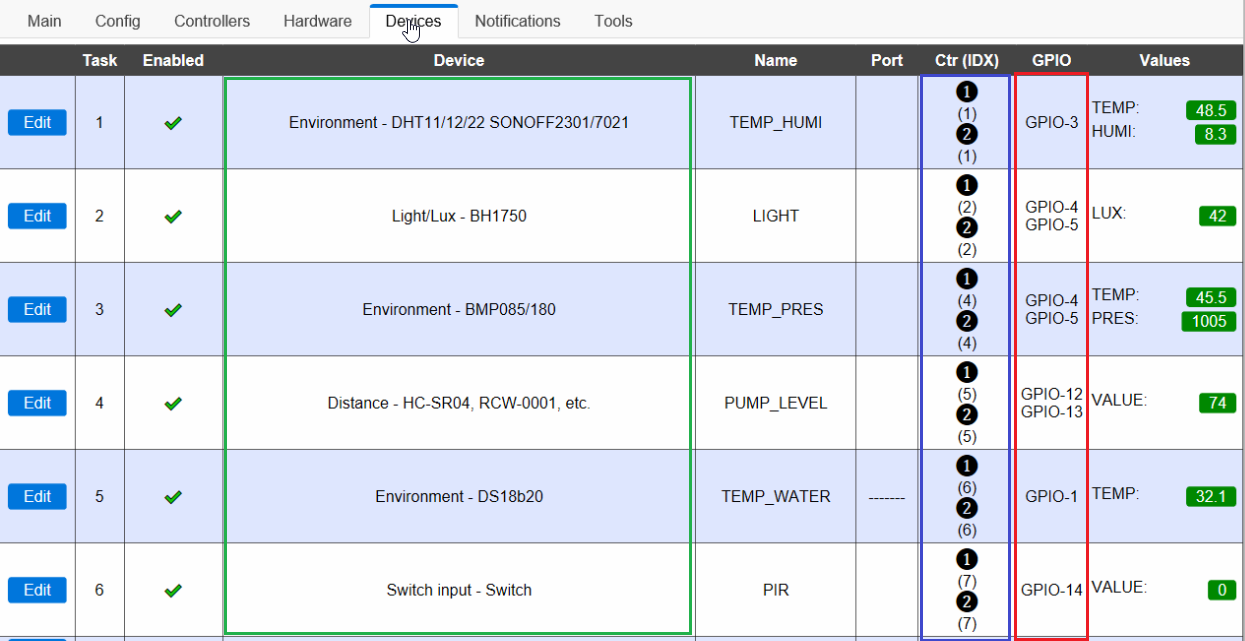

Config like this photo.

GPIO need match with previous step, you can change it.

But DO NOT use these GPIO:

- IO0, IO2 : need pull-up R

- IO15 : need pull-down R

- IO16 : sleep mode with RST

- IO7, IO8, IO9, IO10 : SD0..3

Using these GPIO will break down your Serial Monitor:

- IO1, IO3 : serial TX RX

Please make sure correct IDX on your Domoticz system.

https://www.letscontrolit.com/wiki/index.php/Tutor...

Control With Domoticz & ThingSpeak


1. Domoticz

Give it new hardware, setup devices and type the IDX on Domoticz in EspEasy

2. Thingspeak:

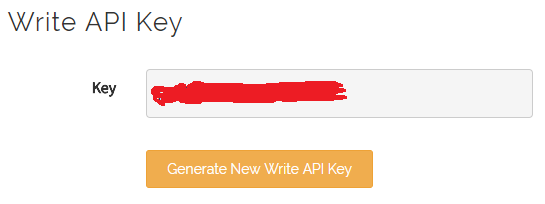

Get new chanel and give EspEasy the Write API Key

Box & Go-Live


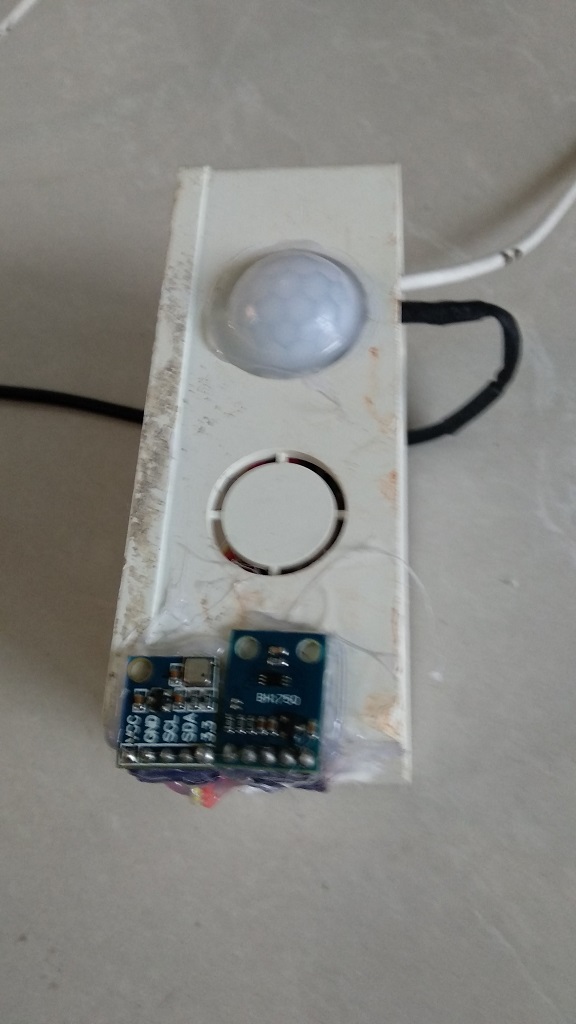

In box and test.

After that, setup with water tank.

Now : relax with beer :D

Note: please do not put it direct with the sun or rain. For inside only.

For mobile:

1. Android app : https://www.domoticz.com/wiki/Android

2. iOS app : https://www.domoticz.com/wiki/IOS

Next Upgrade Version


In next version, I will make other node to control pump.

And include this to my Smart Home using Home-assistant (https://www.home-assistant.io/) instead of Domoticz (http://www.domoticz.com/ ).

See you!

Regards.
