Smart Watch Winder
![DIY Smart Watch Winder with Arduino ESP8266EX](/proxy/?url=https://content.instructables.com/FA9/3PV1/KDYJL5KK/FA93PV1KDYJL5KK.jpg&filename=DIY Smart Watch Winder with Arduino ESP8266EX)
Smart watch winder for menchanical watches
Supplies
- Arduino C++ sketch running on an ESP8266EX D1 Mini from Lolin running @ 160MHz
- Raspberry + Home Assistant for Web GUI, automations and MQTT server
- ULN2003 BYJ48 Stepper motor

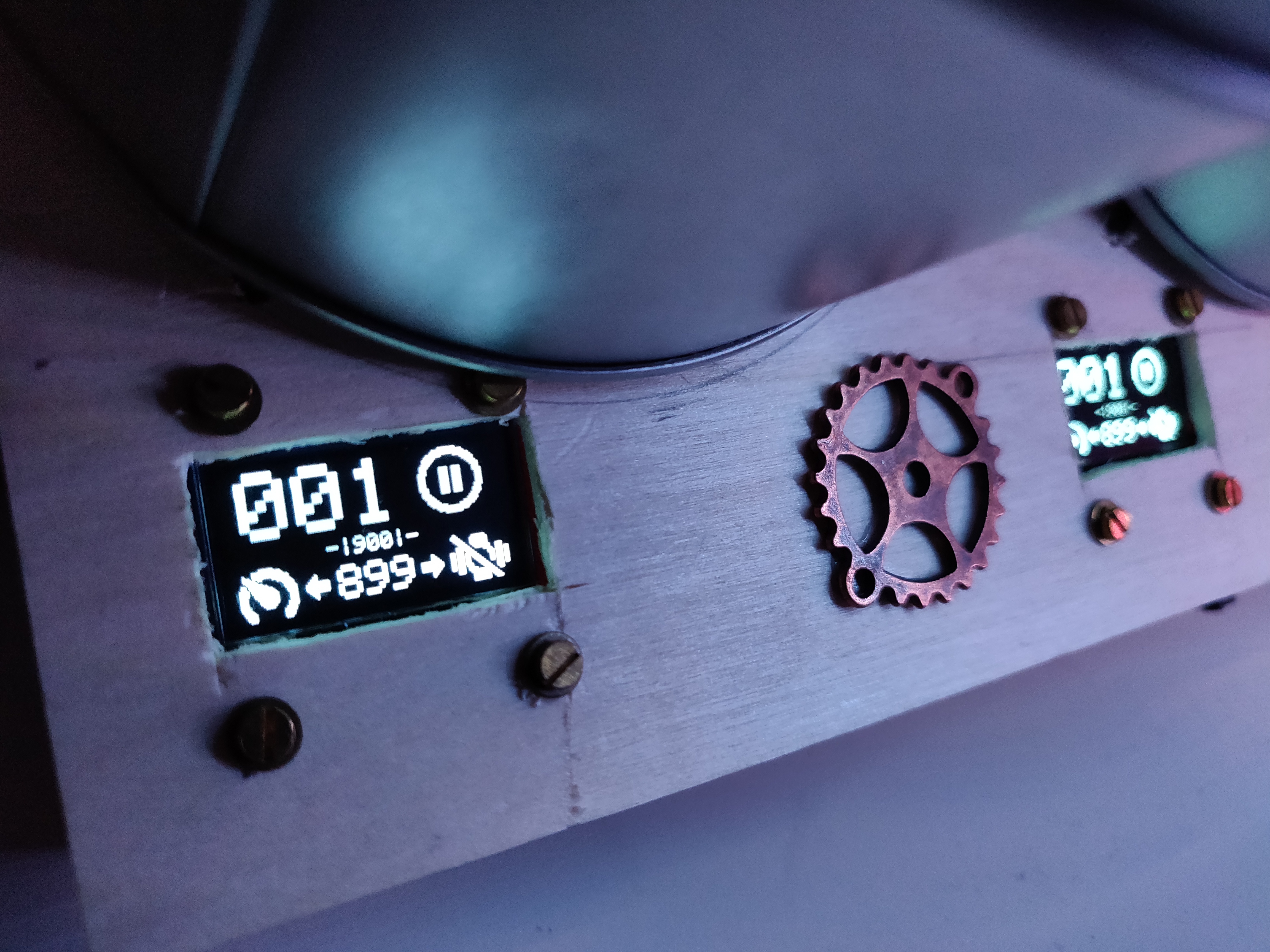

- SD1306 OLED 128x64 pixel 0.96"
- 1000uf capacitor for 5V power stabilization
- Google Home Mini for Voice Recognition
Schematic
![watchwinder_bb.jpg](/proxy/?url=https://content.instructables.com/F72/2SL0/KDYJL5PV/F722SL0KDYJL5PV.jpg&filename=watchwinder_bb.jpg)
Schematic speaks by it self.
Wooden Box
![1.jpg](/proxy/?url=https://content.instructables.com/F8L/B60Y/KDYJL5RG/F8LB60YKDYJL5RG.jpg&filename=1.jpg)
![4.jpg](/proxy/?url=https://content.instructables.com/FCN/6TMB/KDYJL5WK/FCN6TMBKDYJL5WK.jpg&filename=4.jpg)
![3.jpg](/proxy/?url=https://content.instructables.com/FPN/V8SO/KDYJL5RZ/FPNV8SOKDYJL5RZ.jpg&filename=3.jpg)
![ha5.jpg](/proxy/?url=https://content.instructables.com/FAY/9A41/KDYJL5TK/FAY9A41KDYJL5TK.jpg&filename=ha5.jpg)

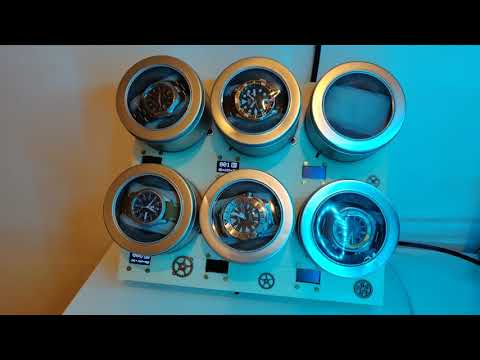

Six motors for six watches in one wooden box.
