SmartTAG Hardware Upgrade: LCD Backlight

The original SmartTAG (Malaysia) comes with a LCD without backlight, this is inconvenient to check the card balance under low ambiance light condition. I saw my friend BP Tan modified one unit to get the backlight on, he had happily taught me and gave me some LEDs for modification. See simple steps as below.

Tools / parts required:

• - T10 screw driver
• - Soldering iron
• - Super glue
• - LED x 2
• - Wire
• - Cutter
• - Double side tape (optional)

STEP 1:
Remove small screw cap and battery cover, then remove two T10 screws as indicated.

STEP 2:
- Lift up the LCD cover gently by using a stationary knife.

- Solder 2 LEDs in series together with a 470 ohm chip resistor. The resistor value can be tailored to get a desired brightness.

- Bound LEDs and chip resistor on left an right sides of LCD by using super glue.

STEP 4:
- Some foam and dark color marker pen can be used to mask out undesired light leaking.

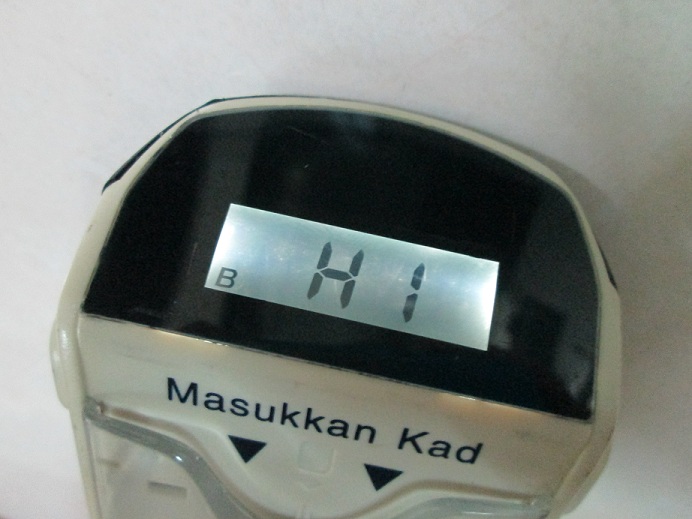

- Reassembly the unit, now the SmartTAG with backlight is ready to use.
- The elegance of this modification is the light will be automatically turned off in standby mode.
