Smart Street Light Using Ir Sensor With Arduino

By the way, subscribe to my YouTube channel for more projects like this. I also update my upcoming projects on Instagram.

buy me a coffee! ☕: Donate

This project is about Smart street light, street light will turn on while vehicle is passing through it.

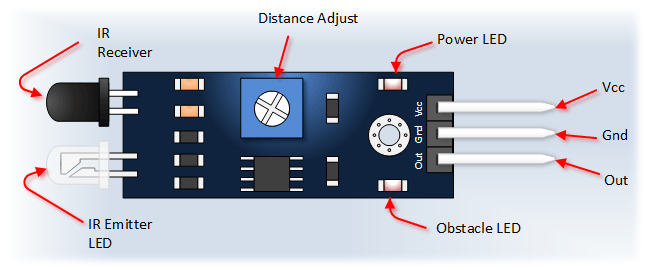

here we are using 4 IR sensors that senses the position of the vehicle,each IR sensor controls 3 LED's. When vehicle passes by a particular IR sensor it senses the position of vehicle and gives its signal to the arduino board and it will turn on the LED's.

ADVANTAGES:

If we uses this idea and implement to it in our society it will be helpful in saving enough amount of electricity and off-course money.

1. arduino uno
2. ir sensor (4)
3. 10mm LEDs (6)
4. connecting wire
5. foam board

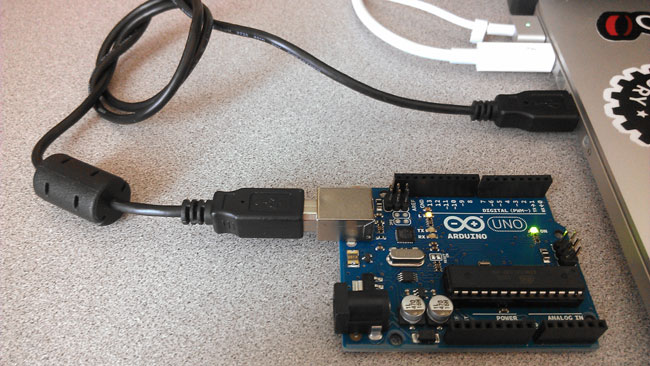

download and upload the program in arduino uno

Connect all the components as given in the circuit diagram.

ir sensor 1 ---> 2

ir sensor 2 ---> 3

ir sensor 3 ---> 4

ir sensor 4 ---> 5

connect all ir sensor's to +5v and ground.

the positive pin of leds are connected to these pins of arduino.

led 1 ------> 6

led 2 ------> 7

led 3 ------> 8
led 4 ------> 9

led 5 ------> 10

led 6 ------> 11

and finally all ground pins of led connect to the ground of arduino.

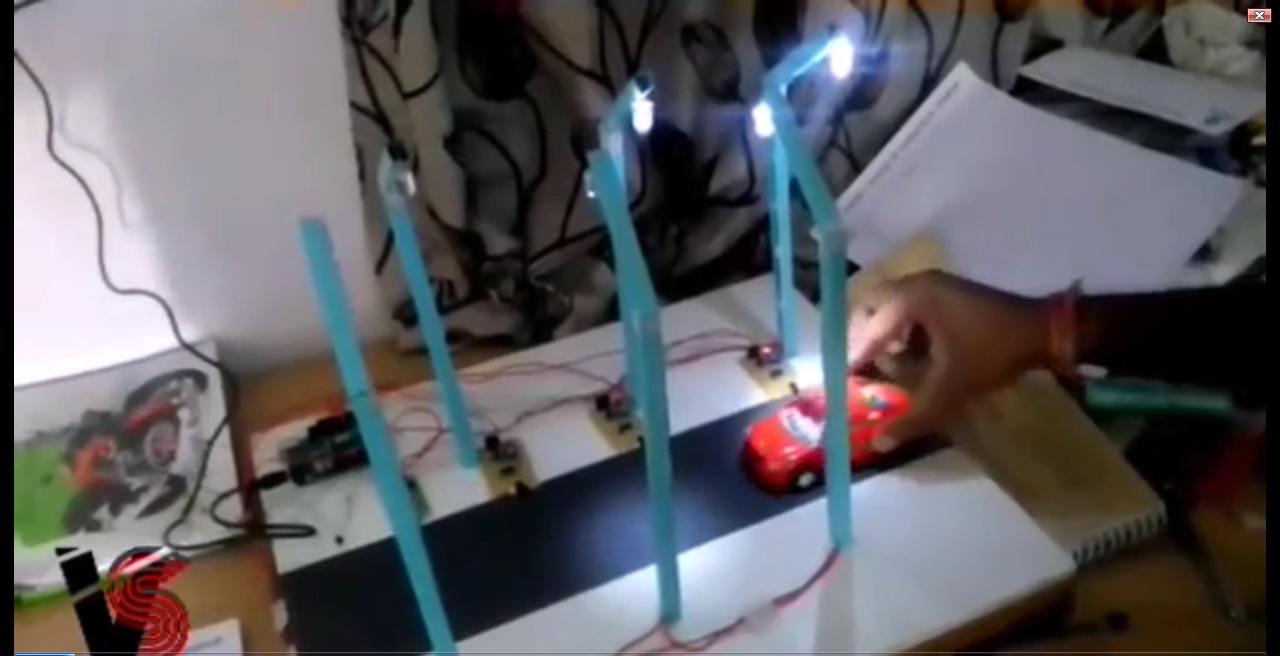

To make these poles as given in above picture, use foam board and glue.

and you may also use black chart to make a road and wooden board for the base of pole.
