Smart Staircase LED Lighting

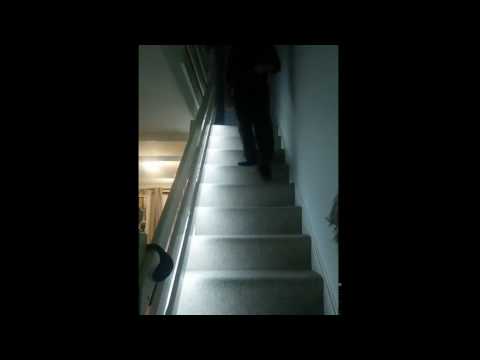

For a long time, we've been turning on the lights at the beginning the staircase, just to turn them off when we reach another floor.

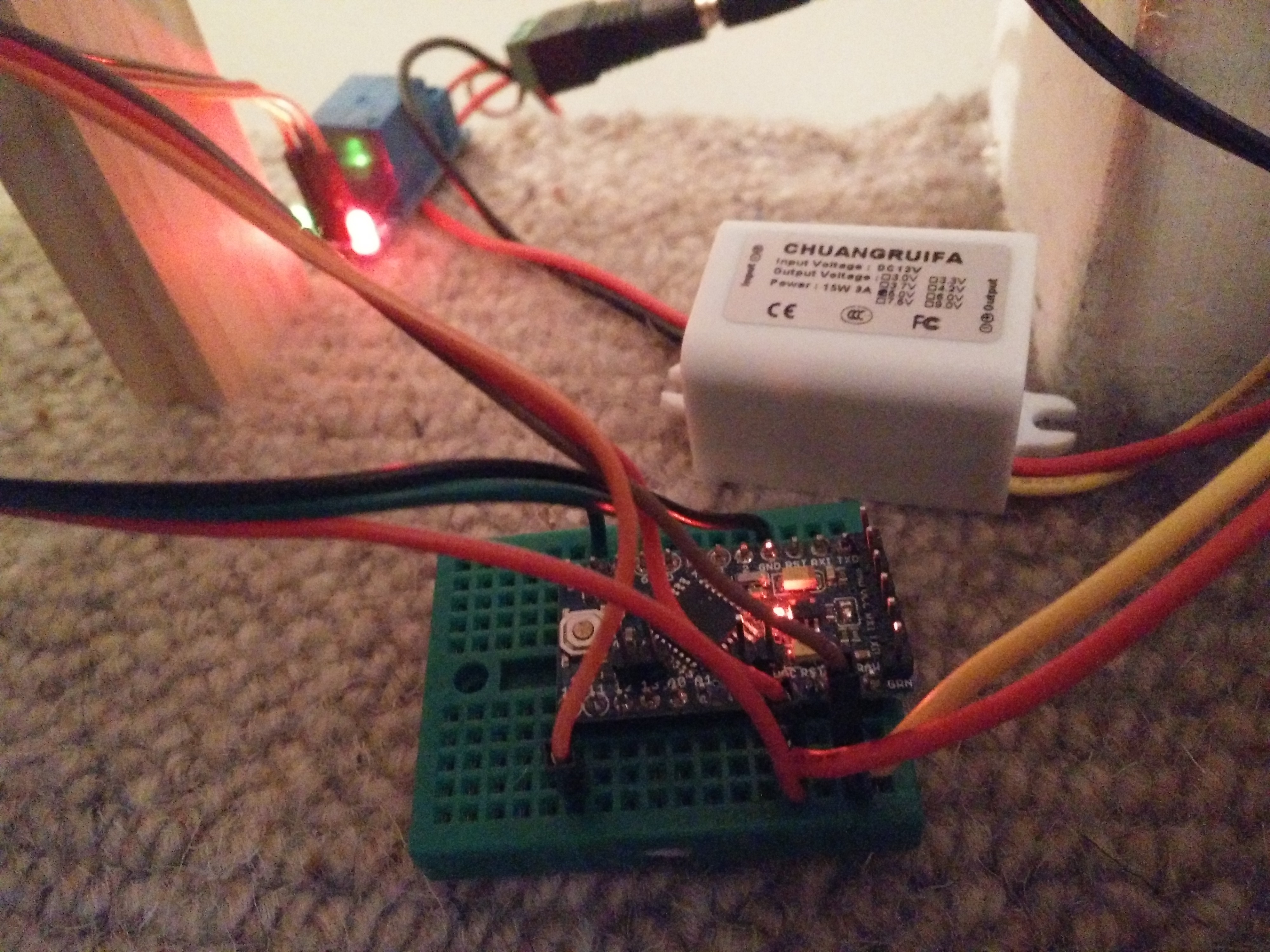

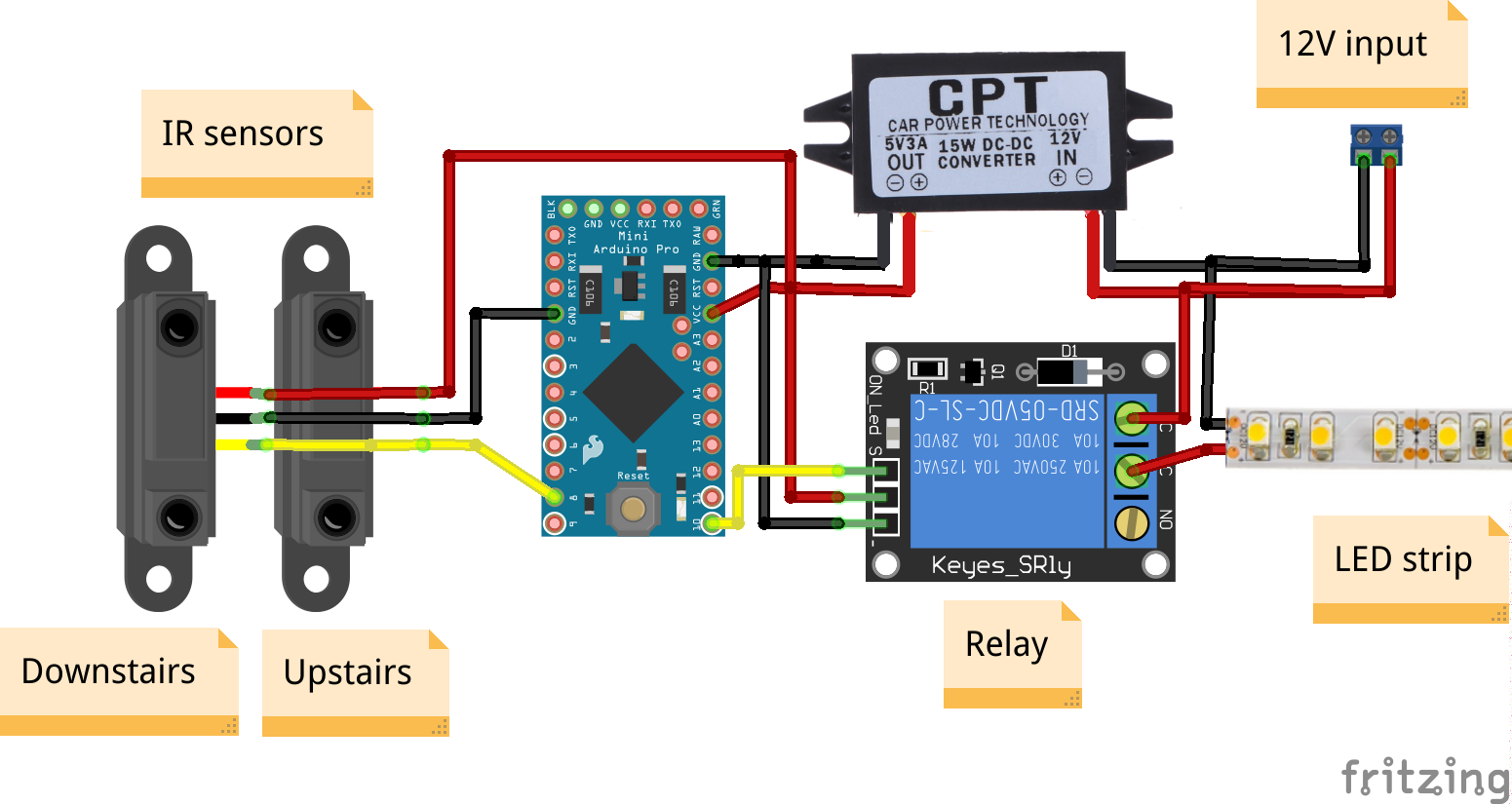

But instead, we built a simple system to turn them ON automatically when you are going upstairs or downstairs, just by using a couple of IR proximity sensors, a relay and an Arduino Pro Mini, to control the timing.

If you want to build your own, just follow our guide.

• IR proximity sensor
• Arduino Pro Mini
• Relay
• 5m LED strip

You can optionally use a power converter (from 12v to 5v) if you want to take advantage of the 12v input to power your Arduino and sensors.

• 12v to 5v converter

#define IR_RECEIVER 8
#define RELAY 10
void setup() {
  // initialize digital pin LED_BUILTIN as an output.
    pinMode(RELAY, OUTPUT);
  digitalWrite(RELAY, LOW);
}
// the loop function runs over and over again forever
void loop() {
  int sensorValue = digitalRead(IR_RECEIVER);
  // print out the value you read:
  delay(10);        // delay in between reads for stability
  if (sensorValue == 0 ) {
    digitalWrite(RELAY, HIGH);   // turn the LED on (HIGH is the voltage level)
    delay(5000);
  }
  else {
    digitalWrite(RELAY, LOW);
  }
}
