Smart Shoes (Auto-lacing and Generating Electricity)

I started this project for science fair and making this project I gained experience about arduino servo and many things.And I am sure you will enjoy making this project .

For Generating Electricity :-

1)Piezo disc

2)Diode (n4001)

3)Power Bank

4)Acrylic Sheet

5)Led

6)Switch

For Auto-Lacing :-

1)Shoes

2)Arduino pro mini 5v

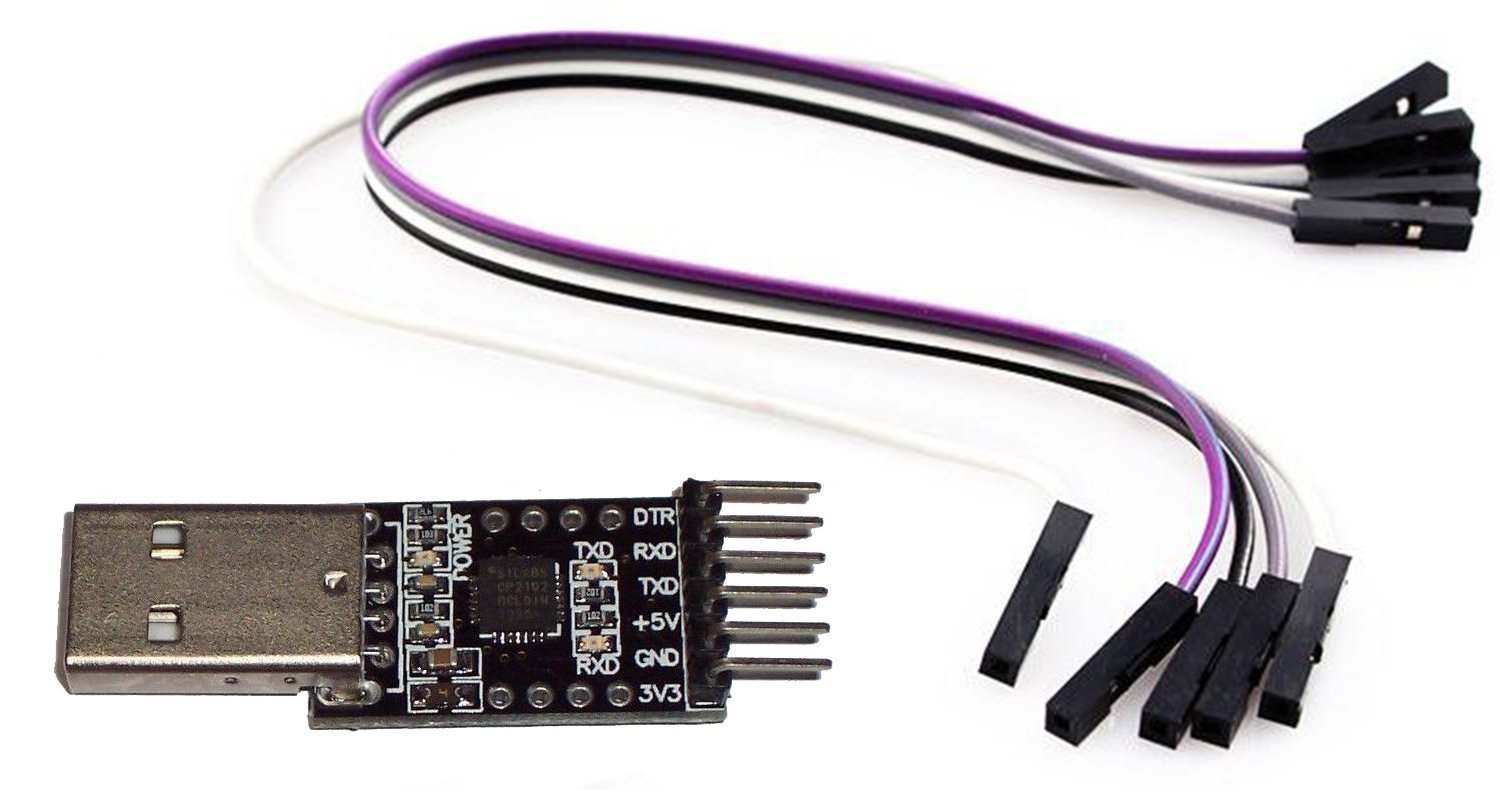

3)CP2102 USB 2.0 to TTL UART Serial Converter Module

4)Servo(more than 10 kg torque)

5)Ziptie

For Step Counter :-

1)Counter

2)Push Button

3)Wire

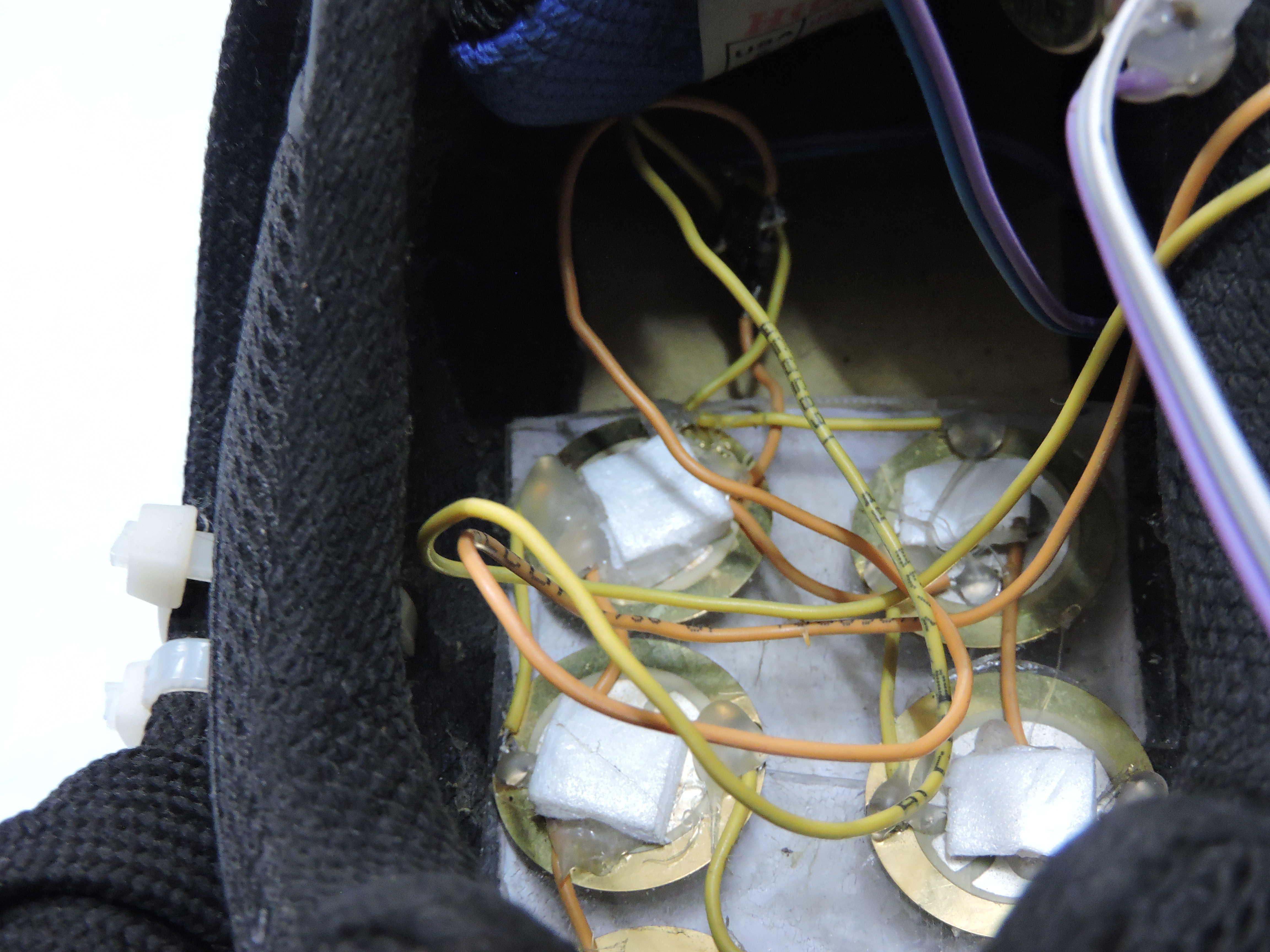

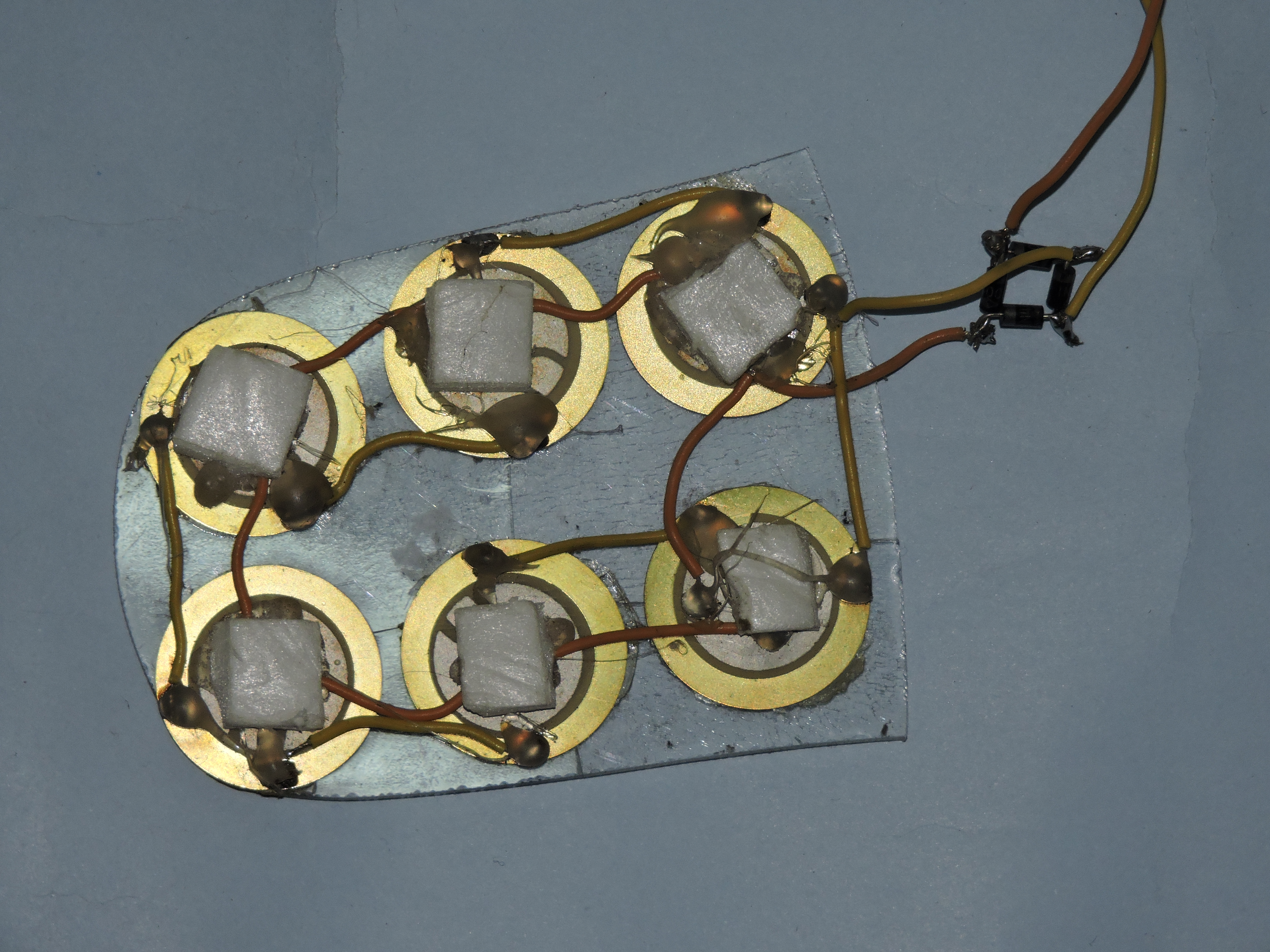

I made a acrylic base for piezo to stick on it and make sure to drill holes below every piezo else it won't generate electricity because piezo need tension and compression to generate electricity.And place piece of foam or some same type of material.

Connect all piezo elements together in parallel.

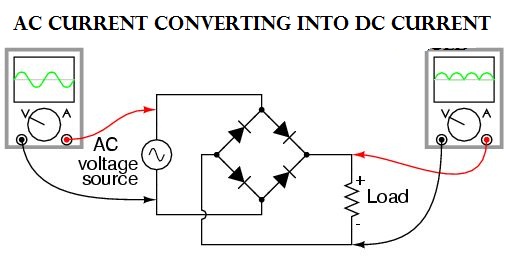

Rectifier is converting AC current into DC current.

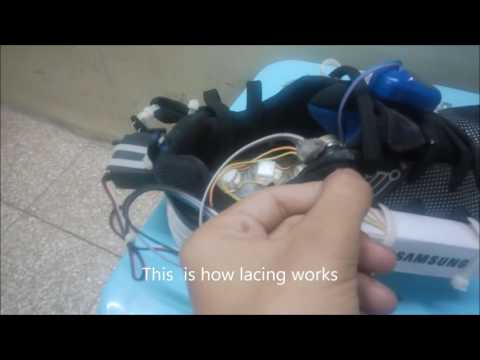

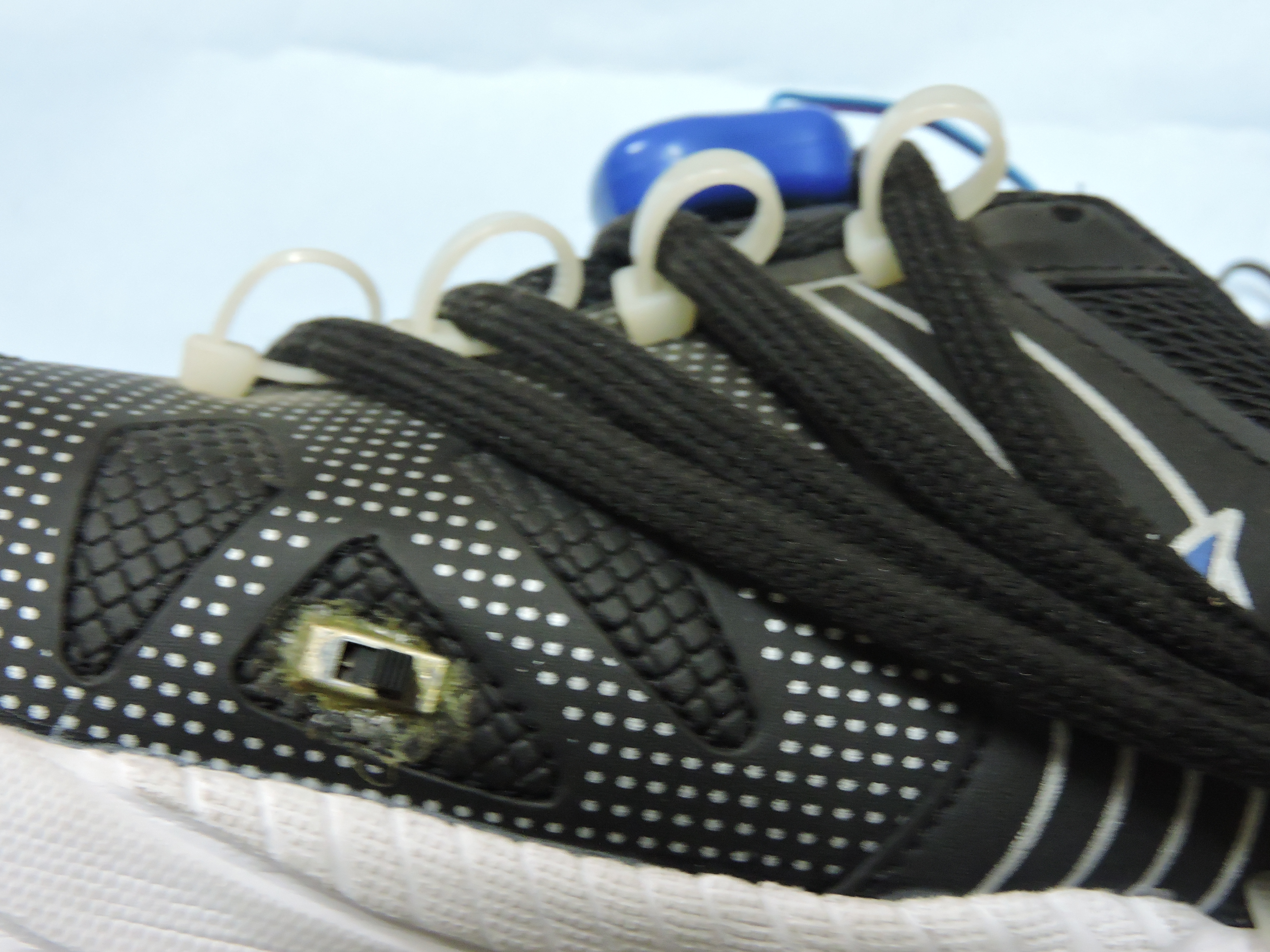

Used drill machine or dremel to make holes in the shoe. And zip ties to direct the laces towards the servo.

You can use different things to direct the laces but I couldn't find anything then the zip tie .

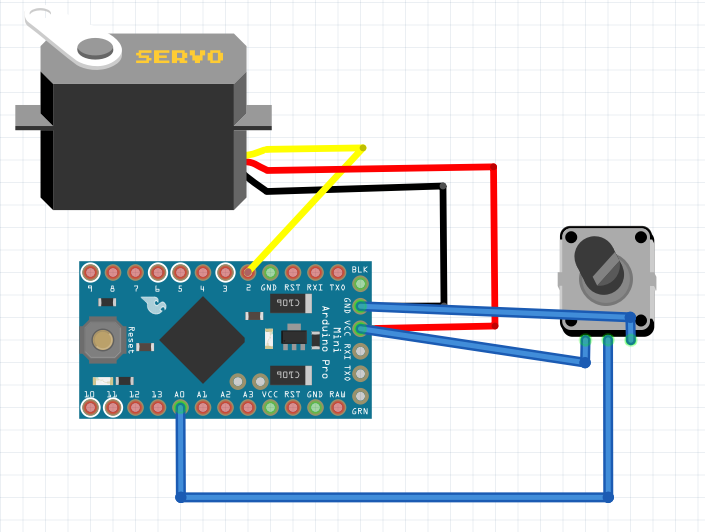

I used servo knob code you can also use different code to control servo.

You need to know the basics to code arduino pro mini or google it ; ).

I used the tally counter to count steps.When you open this type of tally counter you can attach two wire to the count button's two terminal and attach a push button (But this was only by one shoe). So you will require this app I made to enter the number on counter and your weight .And the app will count average cal burned ,distance (in km) and obviously the steps.

And I didn't take picture while I was making this project because I didn't knew about instructables.

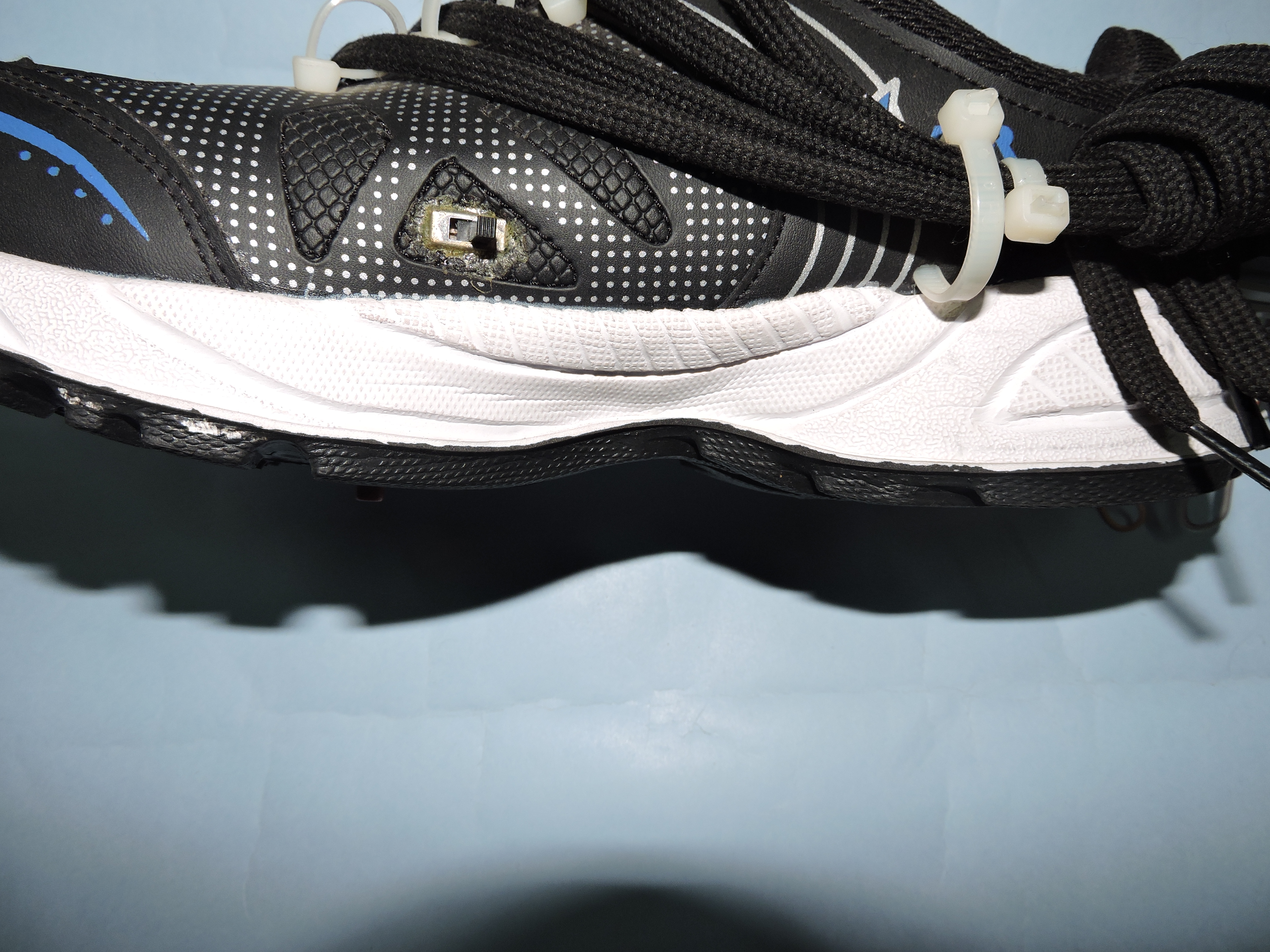

Here I added 3 led's in parallel with a switch and used the power bank to power it.

Pro's of smart shoes :-

1)It generates electricity so we can charge our phones.And that's very helpful while we go for trekking.

2)Auto lacing helps children who don't know how to lace and old people who have back problem.

3)Step counting helps runners and joggers.And people who are on diet too because the app shows cal burned.

4)And the light will be helpful to see in dark.

And you can always ask questions in comment section...

And if you appreciate my project and wish to sponsor more like it , you can vote for me and like the project

THANK YOU
