Smart Drive Wind Turbine

by benmurton in Workshop > Energy

25292 Views, 156 Favorites, 0 Comments

Smart Drive Wind Turbine

wind turbine 004.JPG
wind turbine 010.JPG
wind turbine 009.JPG
wind turbine 012.JPG
wind turbine 005.JPG

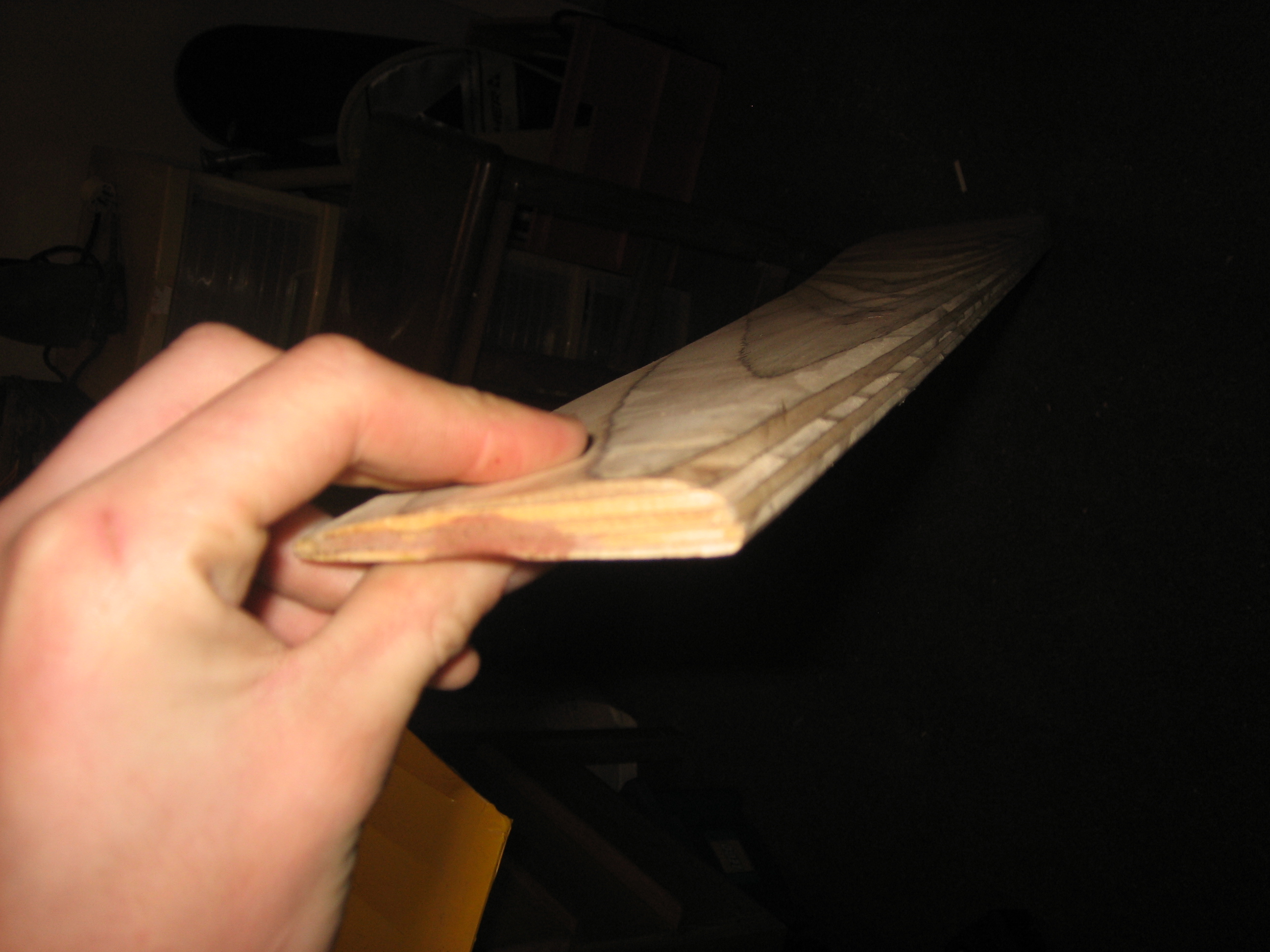

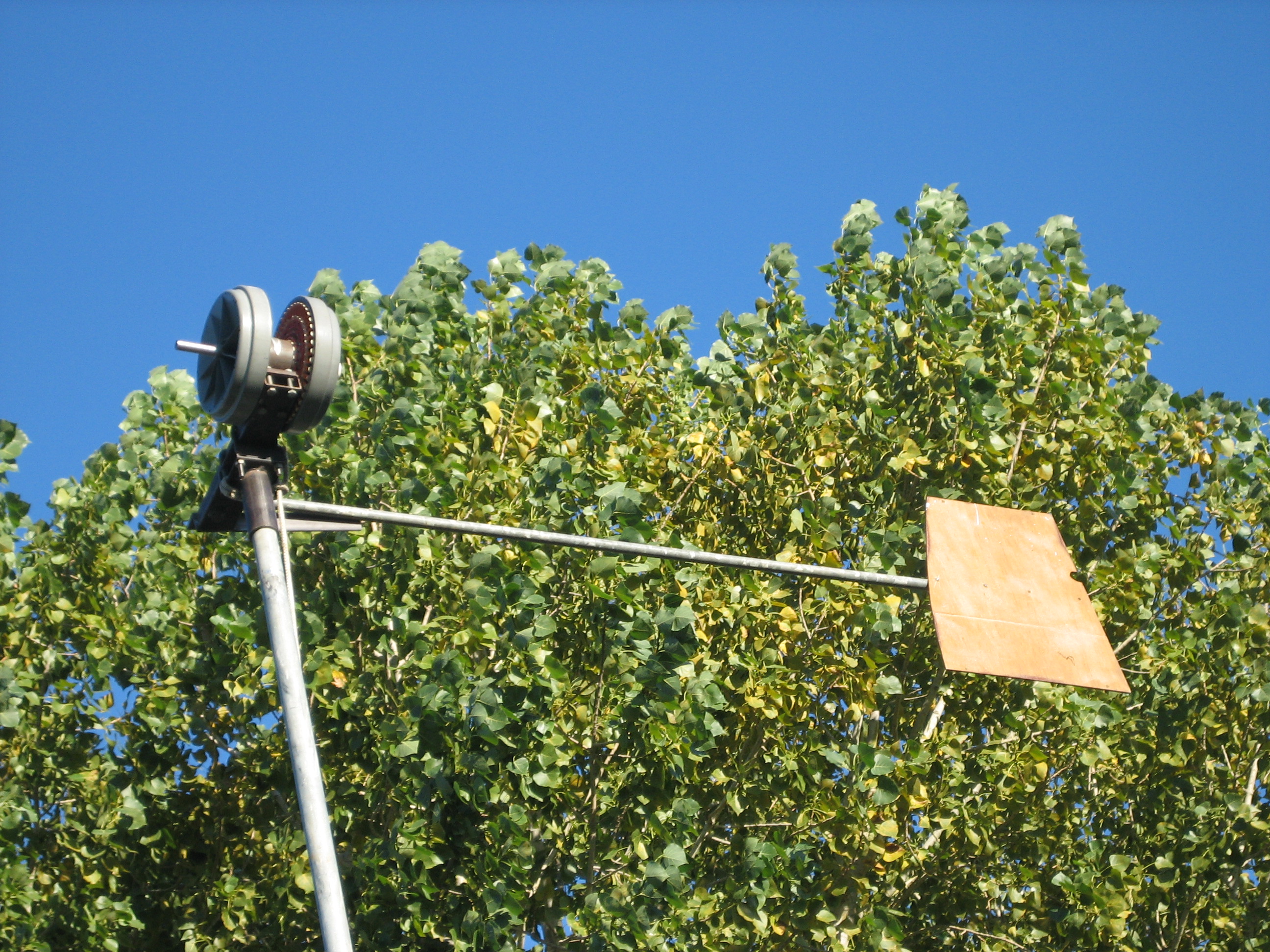

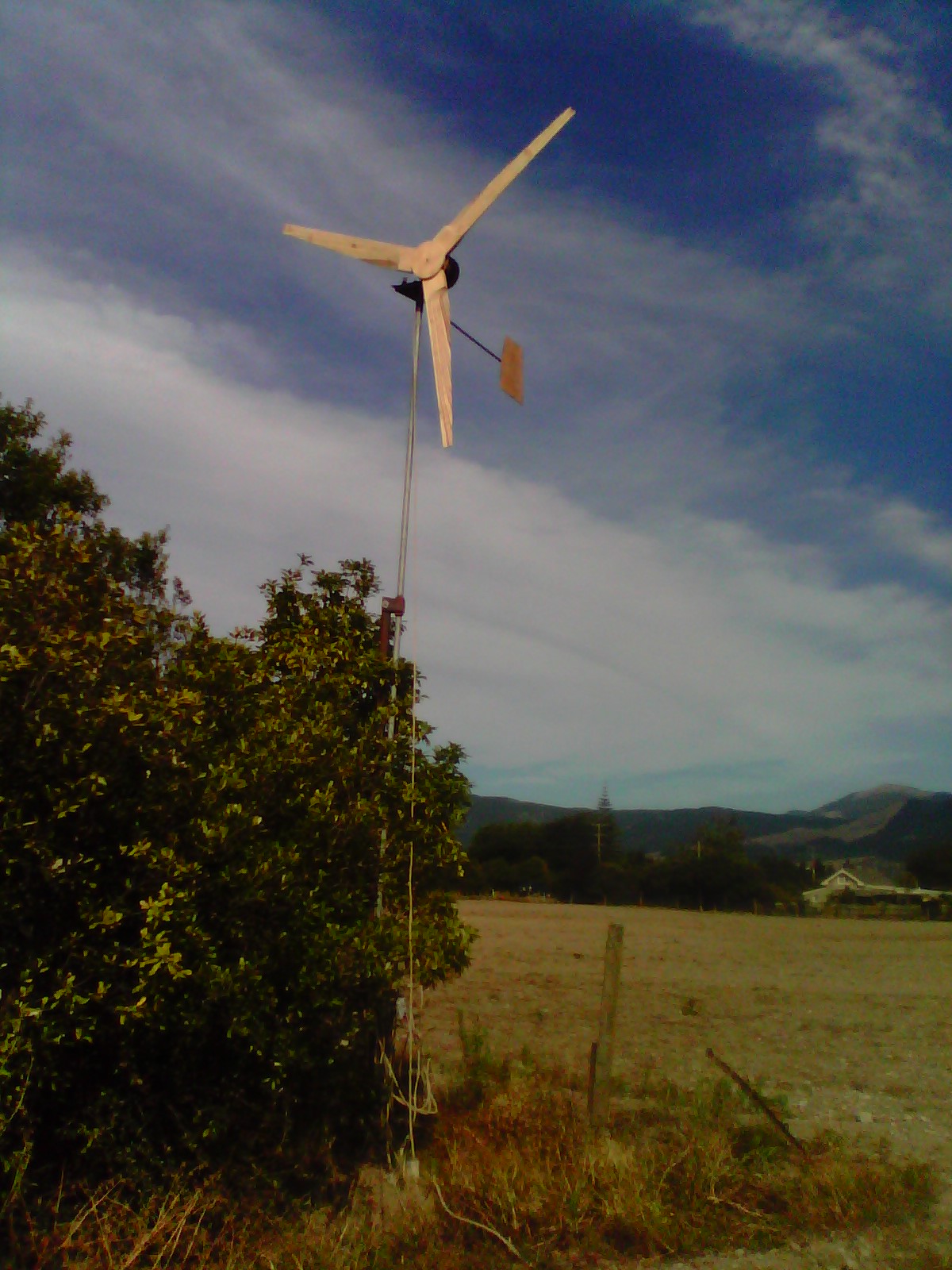

This is my smart drive wind turbine, its based round the smart drive alternators out of a smart drive washing machine. It is capable of producing a maximum of 1.6 kw's, most of the parts i found around my house and the blades are carved from wood. all the electronics i made myself so they are simple but effective. there is now a full step by step at https://www.instructables.com/id/Smart-Drive-Wind-Turbine-Tutorial/ This is perfect for off grid properties.
