Smart Disk Lamp

smart desk lamp

This desk lamp is different in these points …..

It lights when there is a person or motion and the light is weak or there is no lighting but if there is more lighting and motion it doesn’t work

I care about this idea because of some reasons;…..

first, this idea shows very simple and I like the simple idea and work about it to show very beautiful and very flexible

Second I need to make this idea to use it for my desk to use it when I study

My inspiration was my desk needed a desk lamp and I think that why I make this but more function I see this idea on the website but another function and this is the link to the website

https://all3dp.com/3d-printed-desk-lamp-voice-control/

List of Components

• 1 Arduino UNO
• 1 Breadboard
• Wires
• 1 ultrasonic
• 1 LDR
• 1 Relay
• 1 Bulb
• 1 Screw cap
• 2 potentiometer
• 2 servo motors
• 1 Electrical plug
• 1 adaptor (6 v)
• Spacers

Softwares

• Fusion 360 (CAD Software)
• Arduino programming
• Tinkercad

Tools

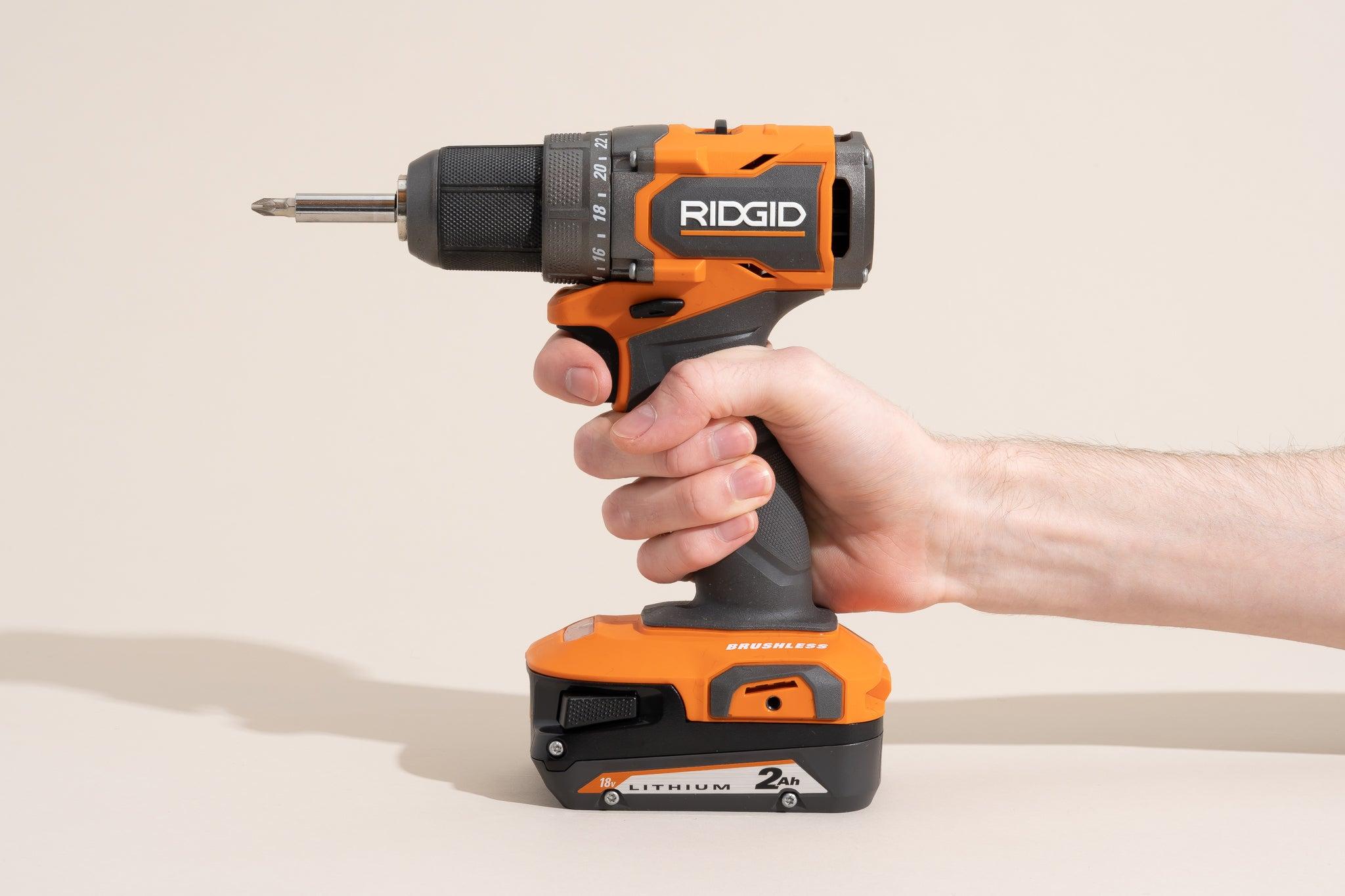

• Drill
• Laser Cutting Machine
• 3D Printer
• Screwdriver

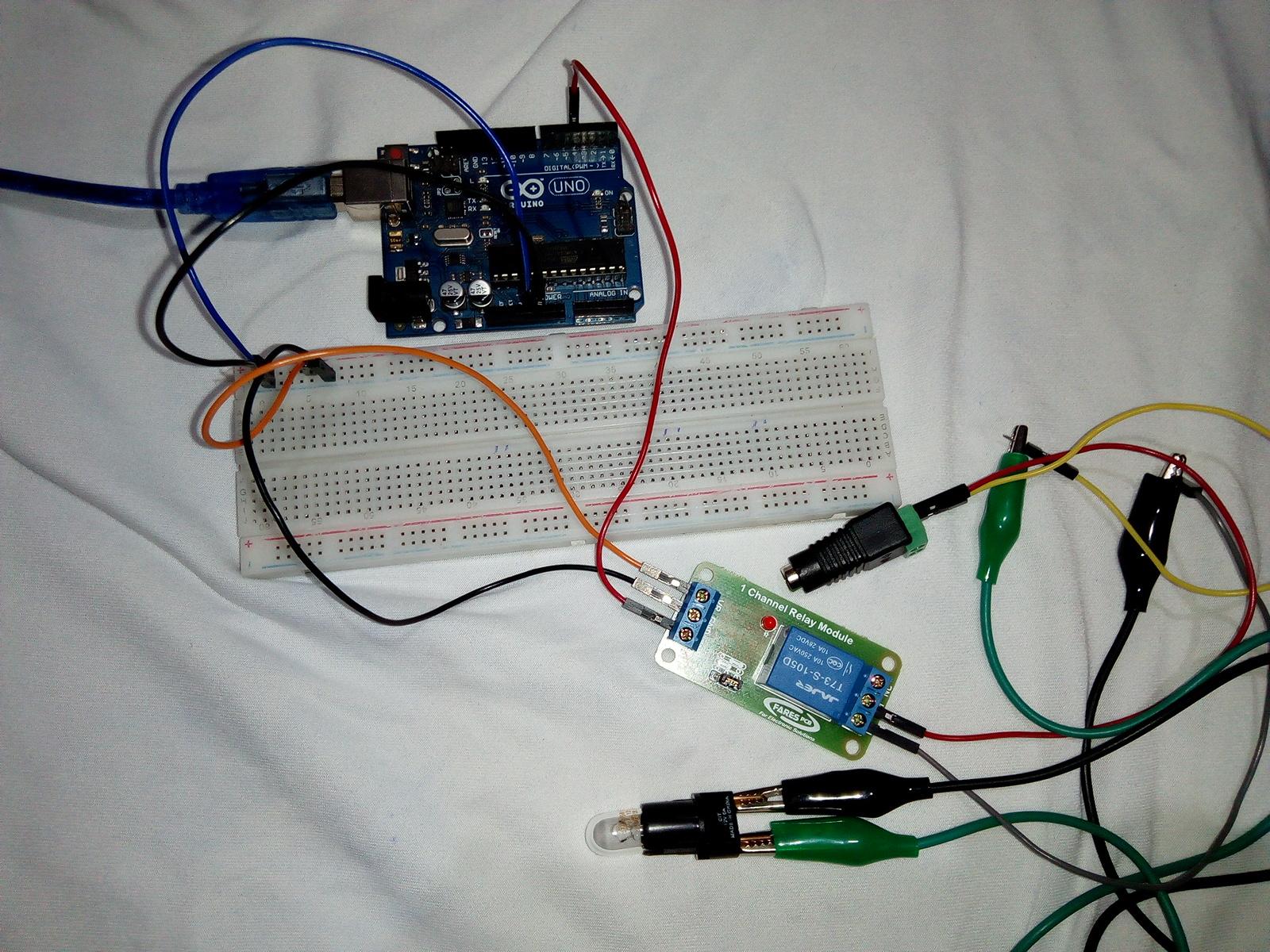

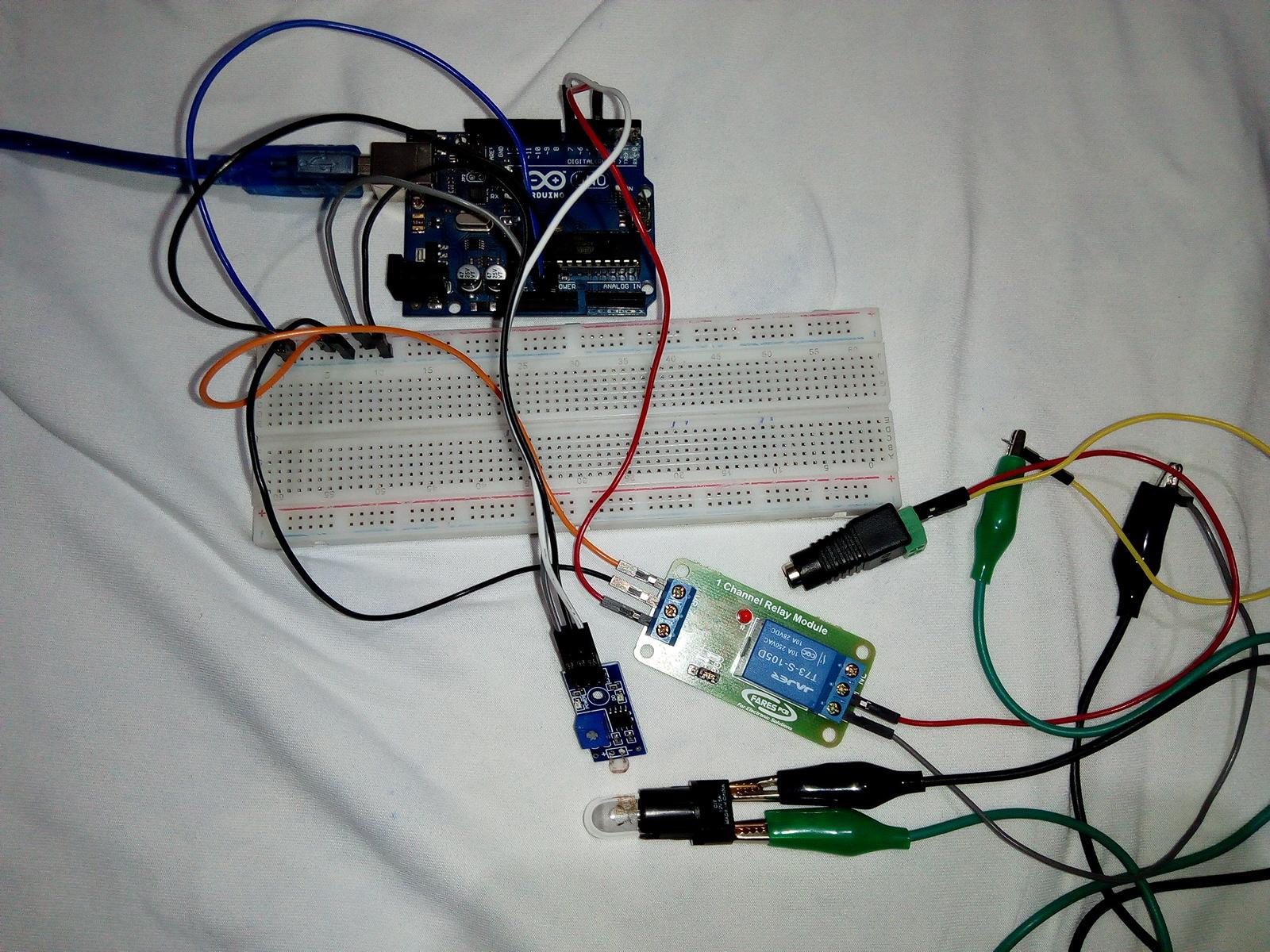

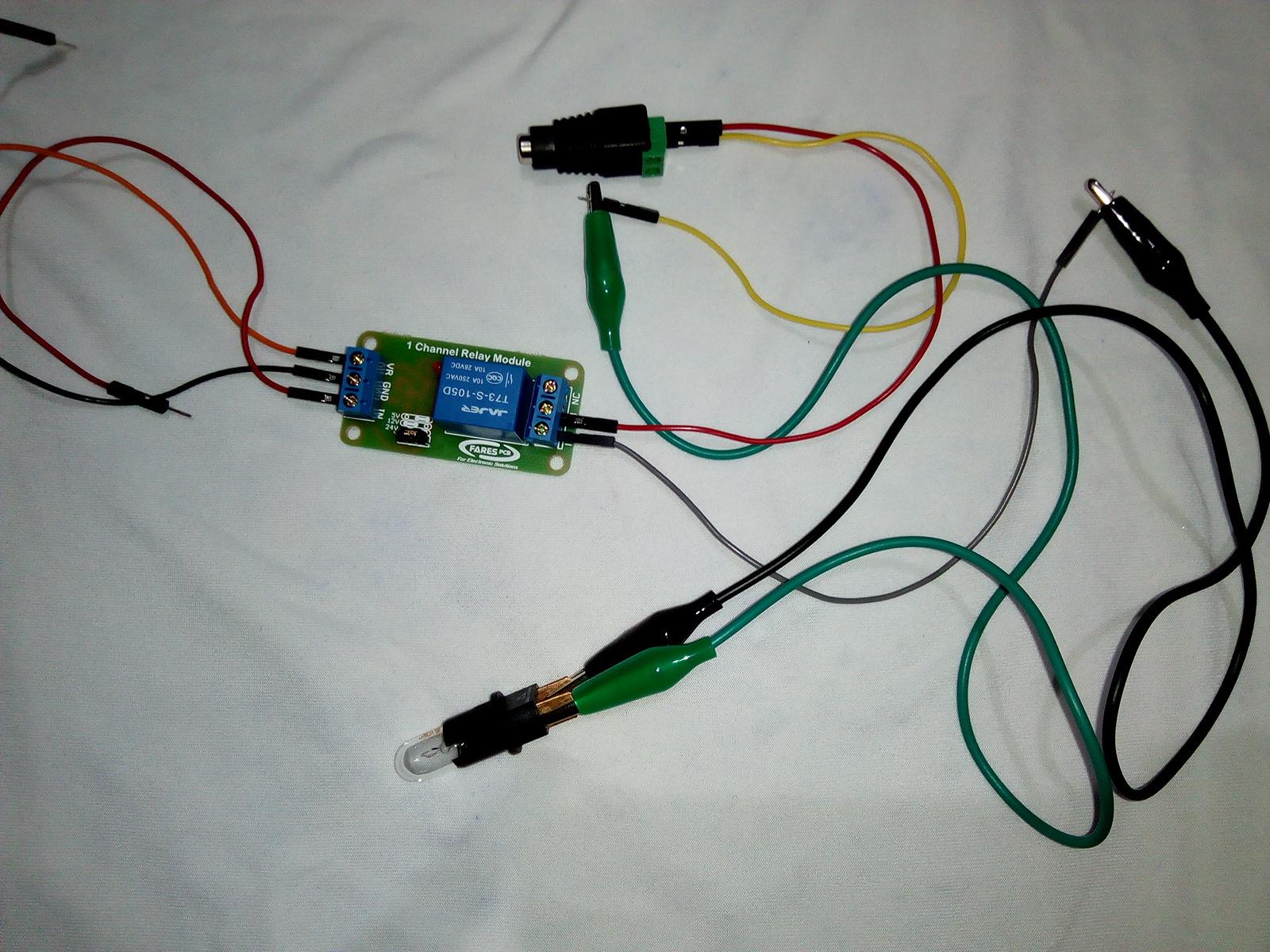

I write the code on Arduino programming and make the circuits by using these steps :

1. Connect the Arduino to the breadboard by putting the positive (5v) and negative (ground) pins on the (+) , and (-) on a breadboard

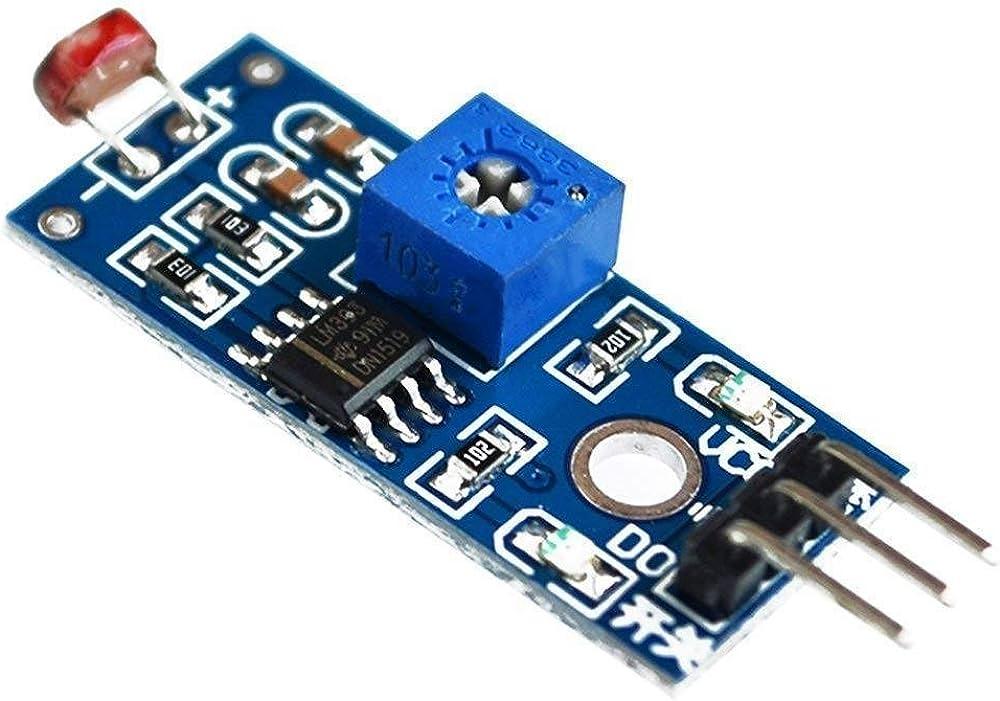

2. Put the LDR on the pin (4) on Arduino and (+) (-) on a breadboard
3. Put (ultrasonic ) (echo ) on pin (2) (trig ) on pin (5) on Arduino and (+) (-) on a breadboard
4. Put the potentiometer on one of them on the (A0) and the other on (A1) on the Arduino and (+),(-) on the breadboard
5. Put the servo motor on pin (11) on Arduino and the other on (9) and put the other weirs on (+), and (-) on the breadboard

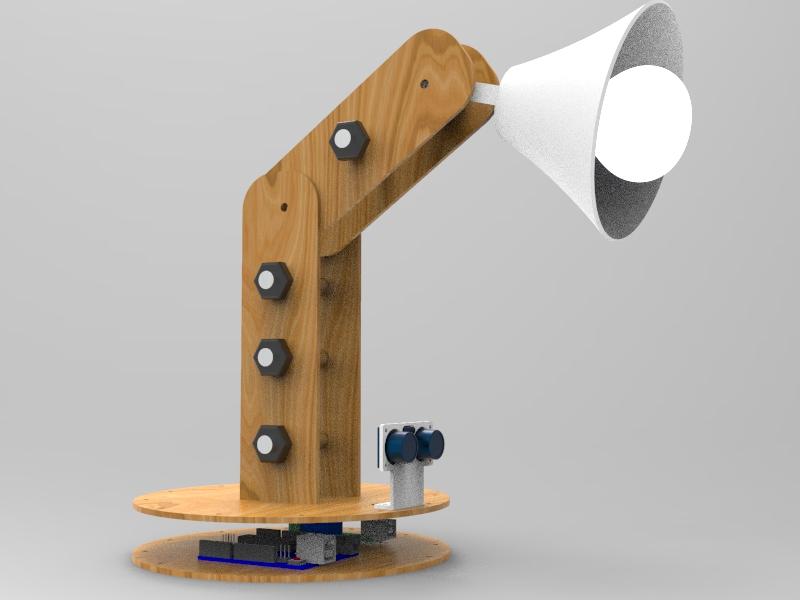

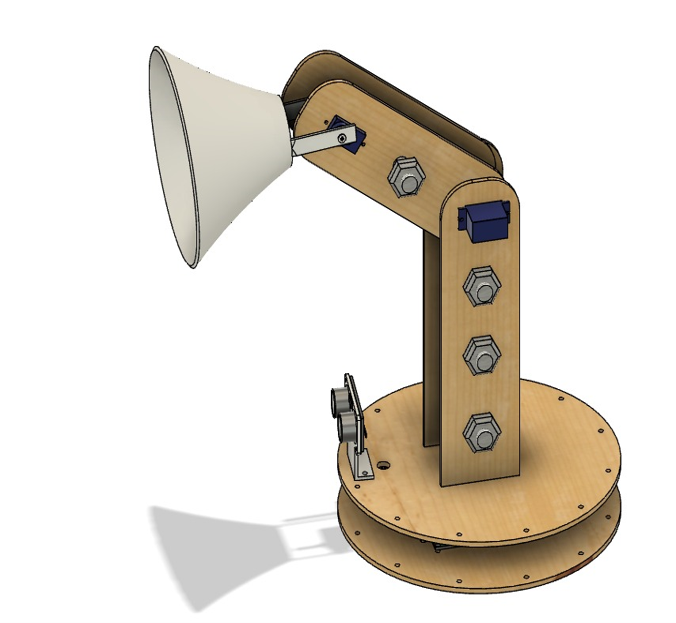

I used fusion software to design a smart desk lamp and I used some tools to design it like Sketch, offset, projection, Extrude, revolve Joints, and Filet

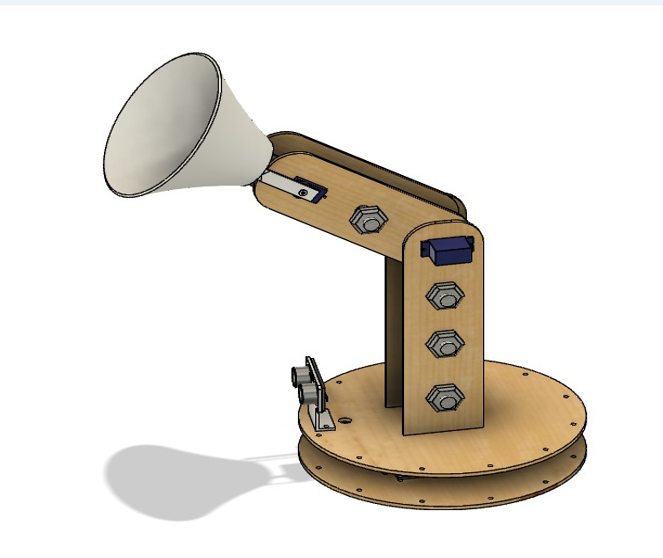

The CAD process of the project

1. I design a drawn circle to make the bases of the lamp by using offset and extrude.

2. make a rectangle to make the arms in this step by using the sketch and offset

3. use a joint tool to join the parts of the design and the part of the lamp I used to make it revolve, extrude, and filet

4. I port nuts and nails to make the hole in the arms

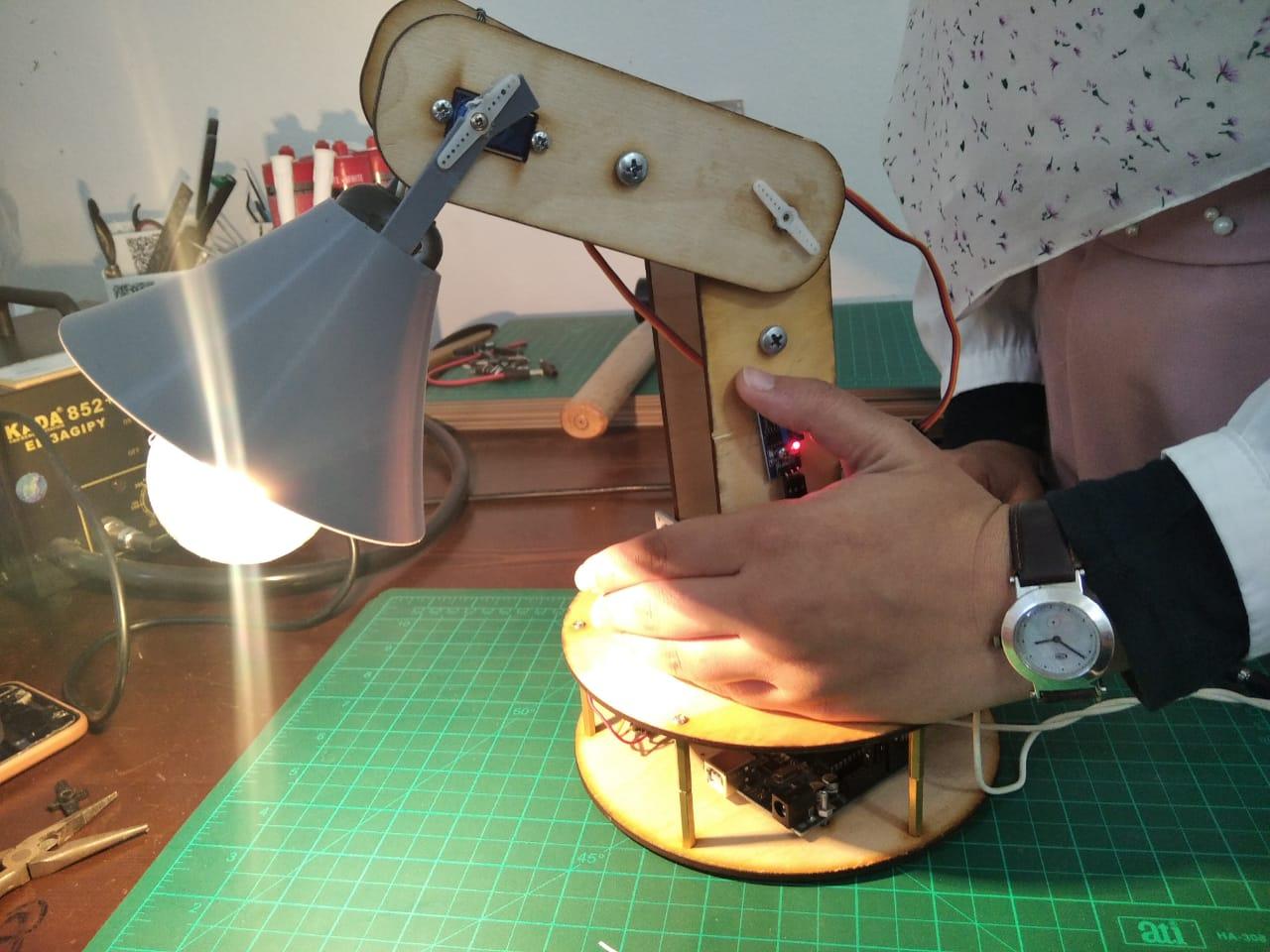

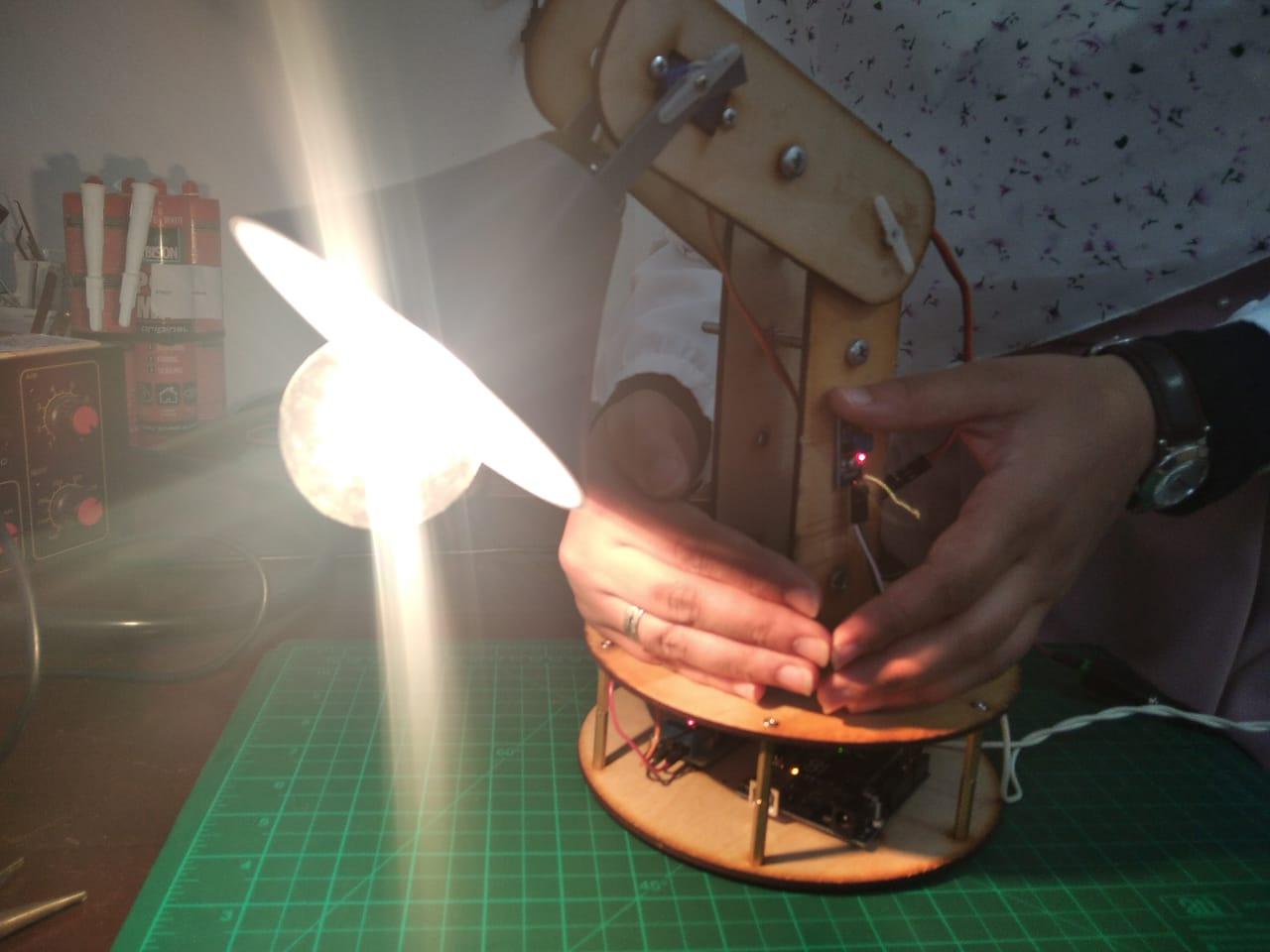

Put Arduino, relay, ultrasonic, and servo motors

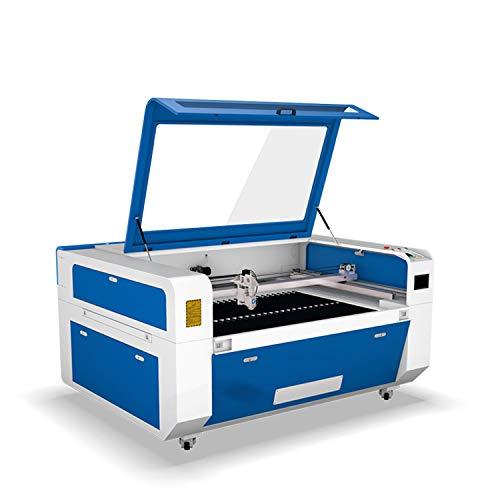

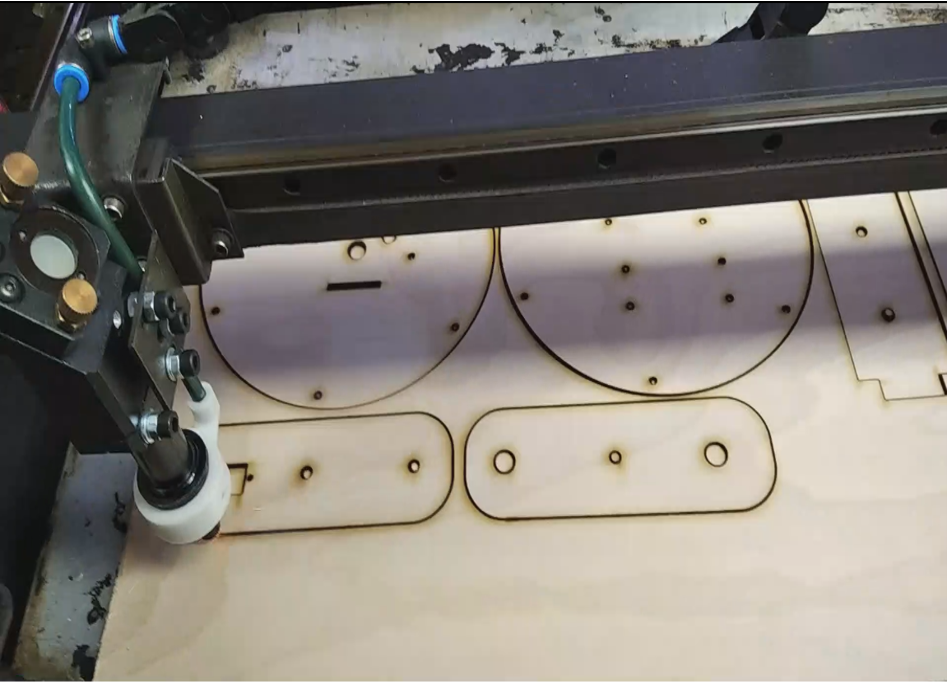

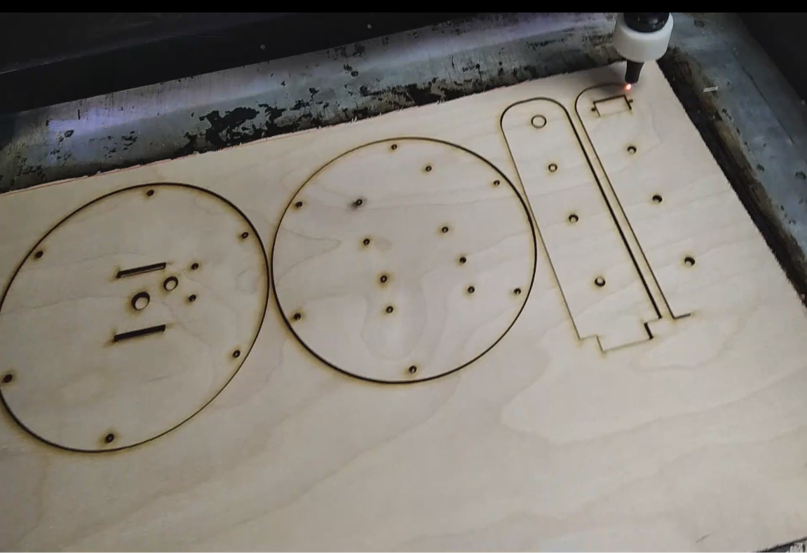

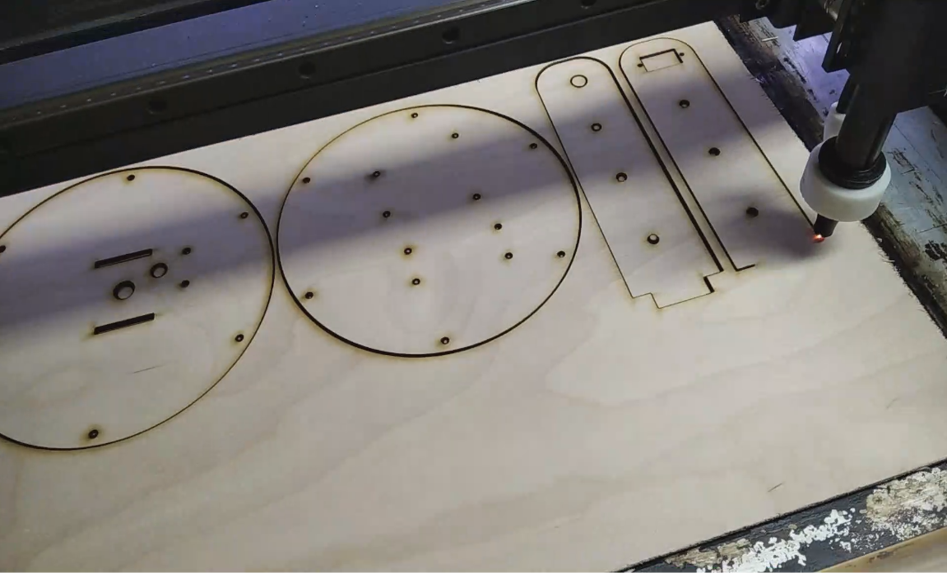

I designed the shape of the desk lamp on fusion and I used a laser cutting machine to cut the two bases            and the four arms

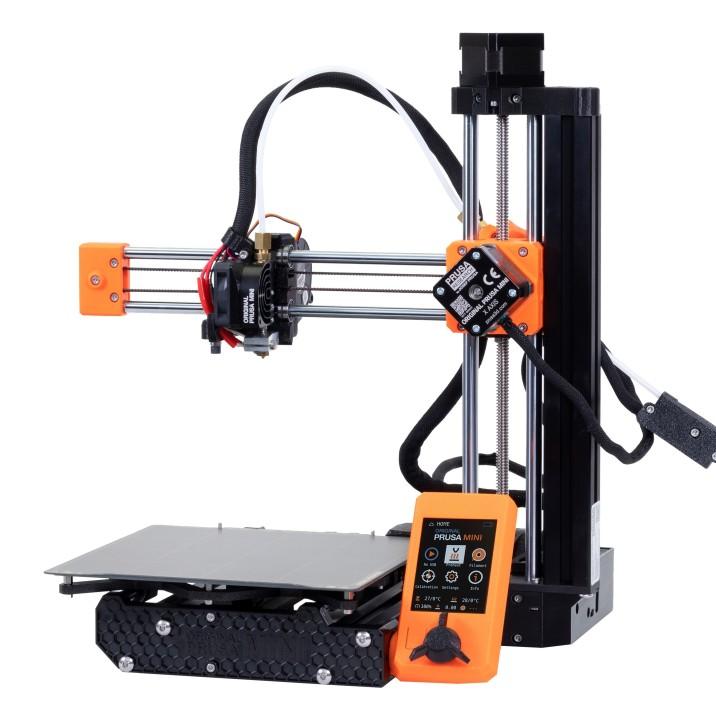

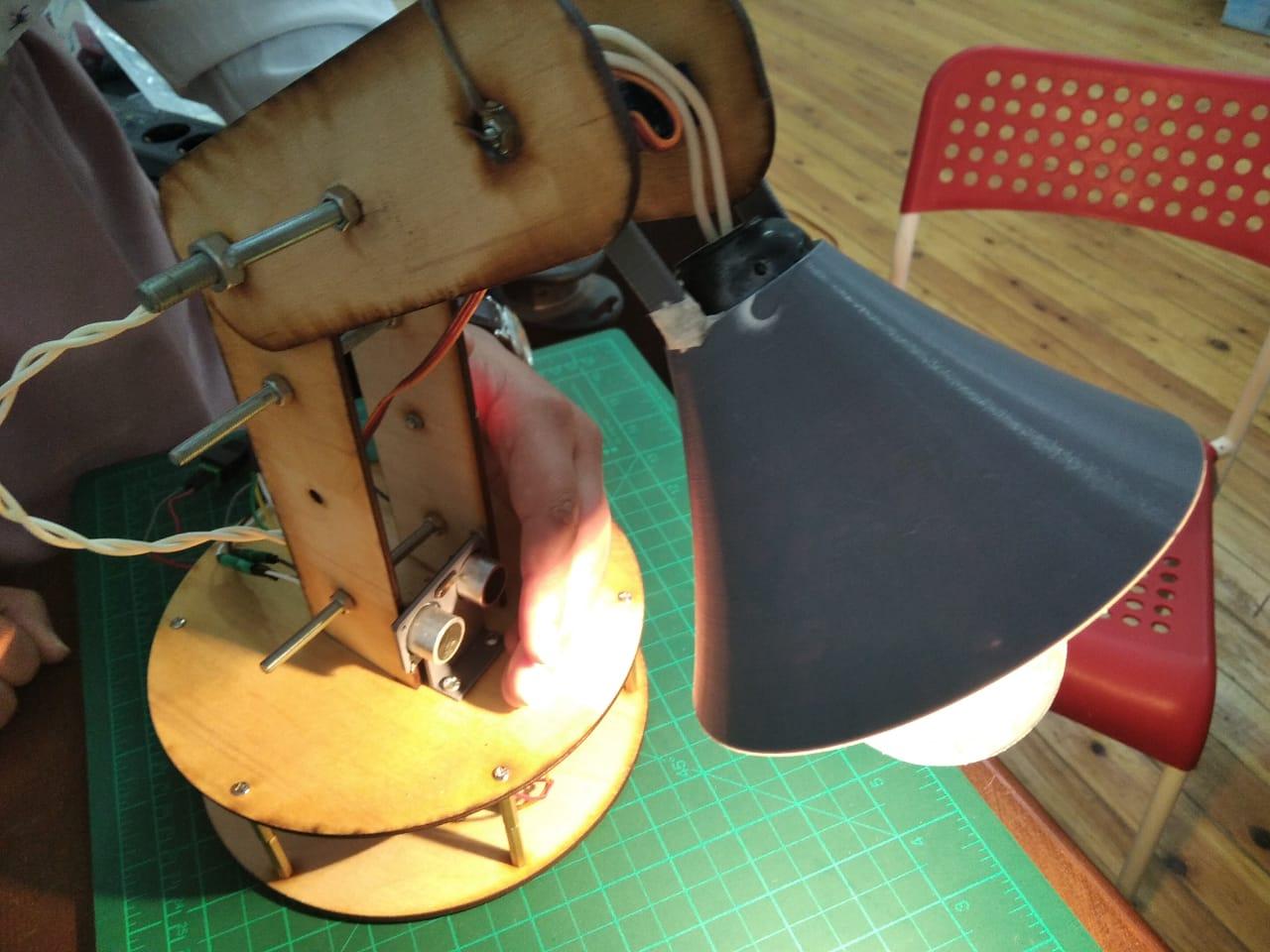

I used 3D printing to print the part of the lamp and the part of ultrasonic

I used the help of my EX to make this Project Actually, so I appreciate her help

#include <Servo.h>
Servo myservo2;

int potpin2 = 0;
int val2;

Servo myservo;

int potpin = 0;
int val;
int ldr = 4;
int bulb = 3;
int trig = 5;
int echo = 2;
void setup() {
  myservo2.attach(11);
  myservo.attach(9);
  pinMode (ldr, INPUT );
  pinMode (bulb, OUTPUT);
  pinMode (trig , OUTPUT);
  pinMode (echo ,INPUT );
  Serial.begin(9600);
}
void loop() {
  long duration, cm;
  digitalWrite(bulb, LOW);
  delayMicroseconds(echo);
  digitalWrite(bulb, HIGH);
  delayMicroseconds(trig);
  digitalWrite(bulb, LOW);
  duration = pulseIn(echo, HIGH);
  cm = duration/29/2;
  Serial.print(cm);
  Serial.print("cm");
  Serial.println();
  delay(100);
  int motion ;
  if (cm < 30) {
    motion =1 ;
  } else {
    motion =0;
  }
  int brightness = digitalRead (ldr);
  if (motion){
  if (brightness) {
    digitalWrite (bulb, HIGH);
  }
  else {
        digitalWrite (bulb, LOW);
  }
  Serial.print(brightness);
  Serial.print(",");

  }
  else {
    digitalWrite( bulb, LOW );
  }
  val = analogRead(potpin);
  Serial.println(map(val, 0, 1023, 0, 180) );
  val = map(val, 0, 1023, 0, 180);
  myservo.write(val);
  val2 = analogRead(potpin2);
  val2 = map(val2, 0, 1023, 0, 180);
  myservo2.write(val2);
  delay(15);


}
