Smart Coffee Table

Hi Makers,

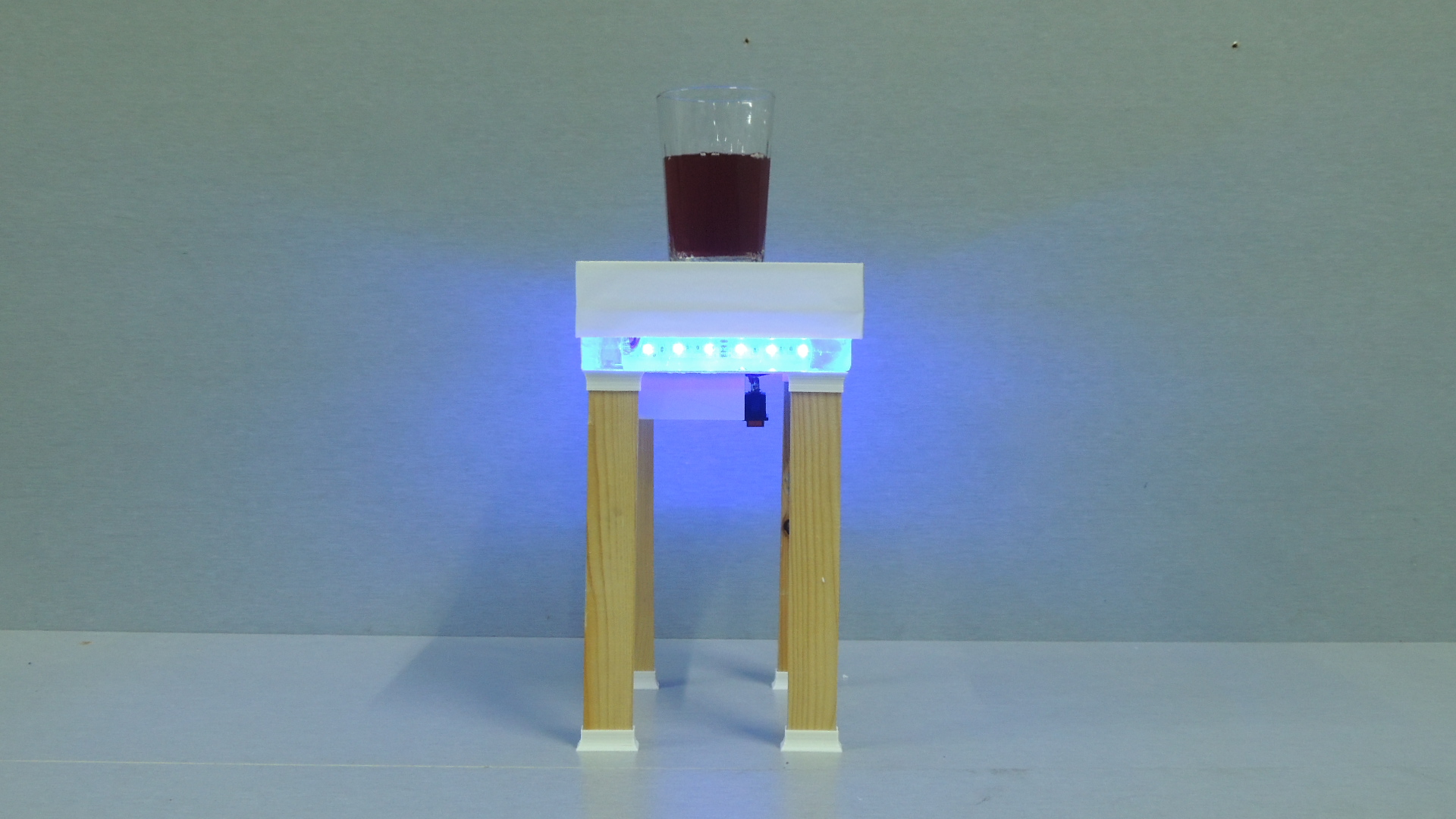

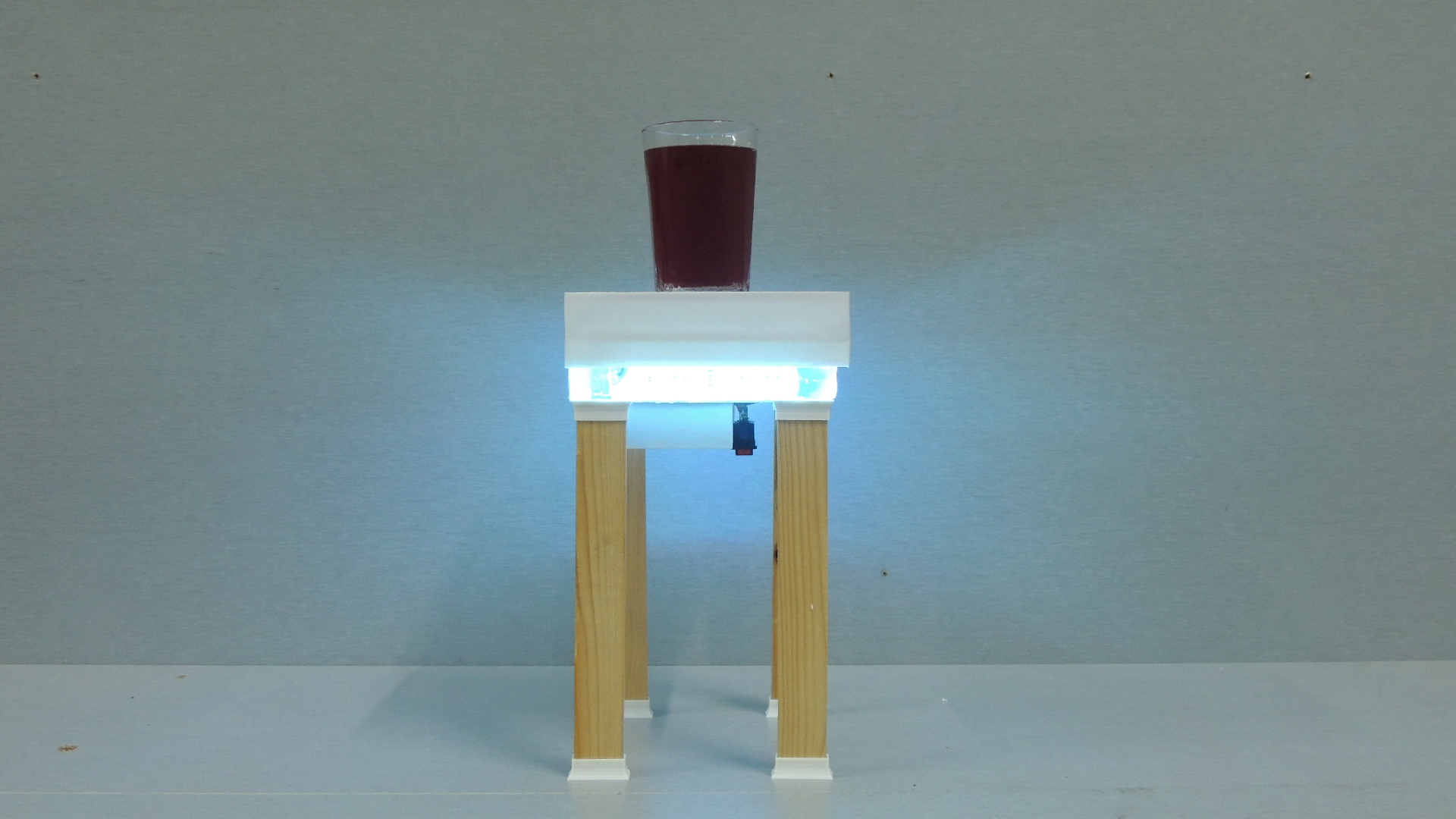

We are in the joy of making a project that has been in our mind for a long time and sharing with you. Smart Coffee Table. Because this table is really smart. It illuminates your environment according to the weight of your drink.

Summary

We are in the joy of making a project that has been in our mind for a long time and sharing with you. Smart Coffee Table. Because this table is really smart. It illuminates your environment according to the weight of your drink.

How Does? We have used a weight sensor on the smart coffee table. Thanks to this sensor, we can adjust the desired color to the desired weight to the RGB strip led that we have connected to the Arduino outputs.

If the cup is empty, the red color is lit.

Between 0-50 gr, the yellow color is lit.

Between 50-100 gr, the green color is lit.

Between 100-150 gr, the blue color is lit.

150 and higher, close to white color.

And we used epoxy again in this project. Thus, the lights from RGB are better spread to the environment.

Equipment & Materials

If you decided to make this project or you are wondering, have to have some materials and equipments.

We used 4 groups in this project ;

- Elektronics

- 3D Printed Parts,

- Epoxy Resin

- Others

Electronics

You will find below list:

- Arduino Nano

- HX711 Weight Sensor

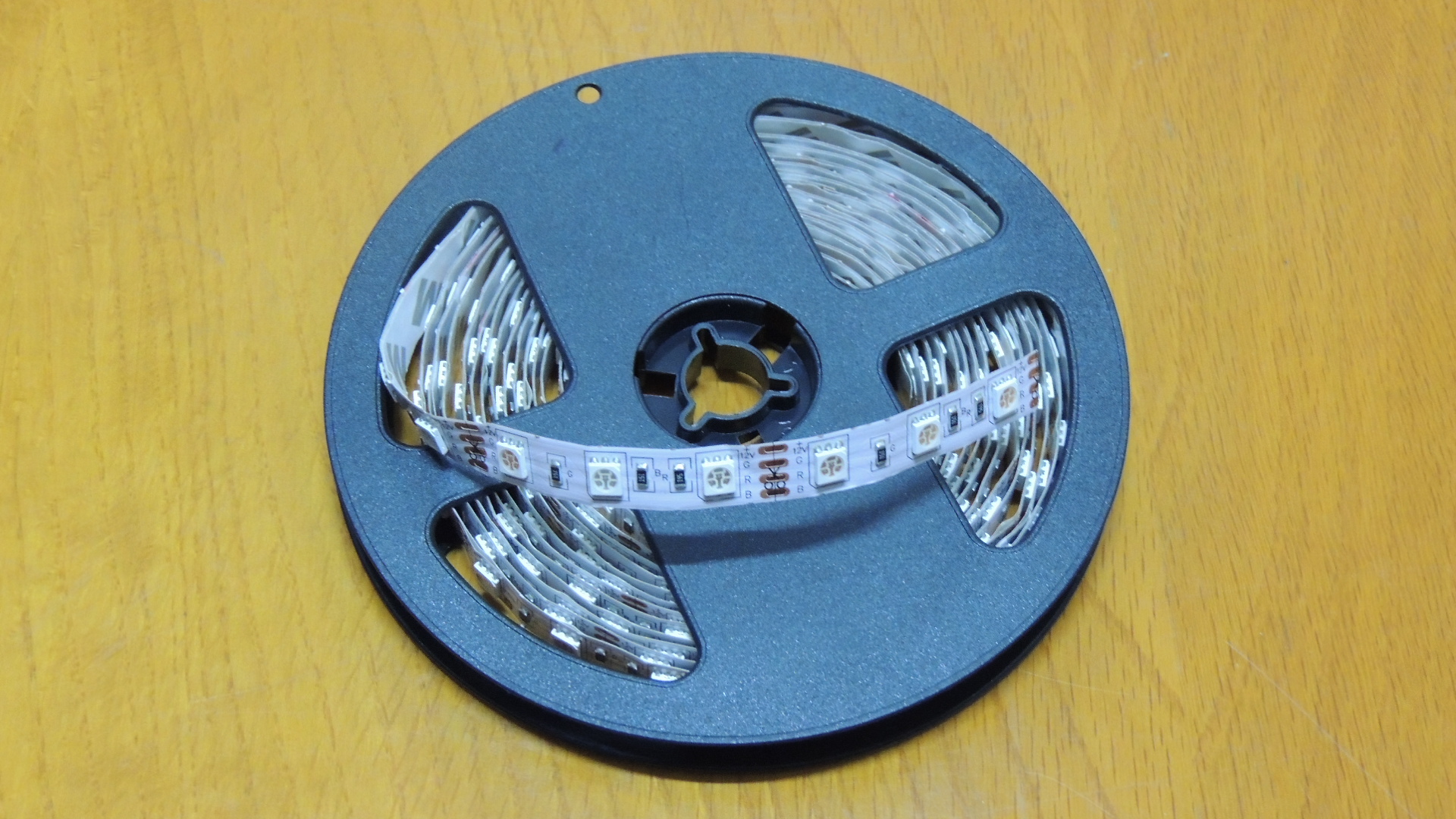

- RGB Led Strip

- BD135 ( * 3)

- 10K (* 3)

- On - Off Switch

3D Printed Parts

You will find list below;

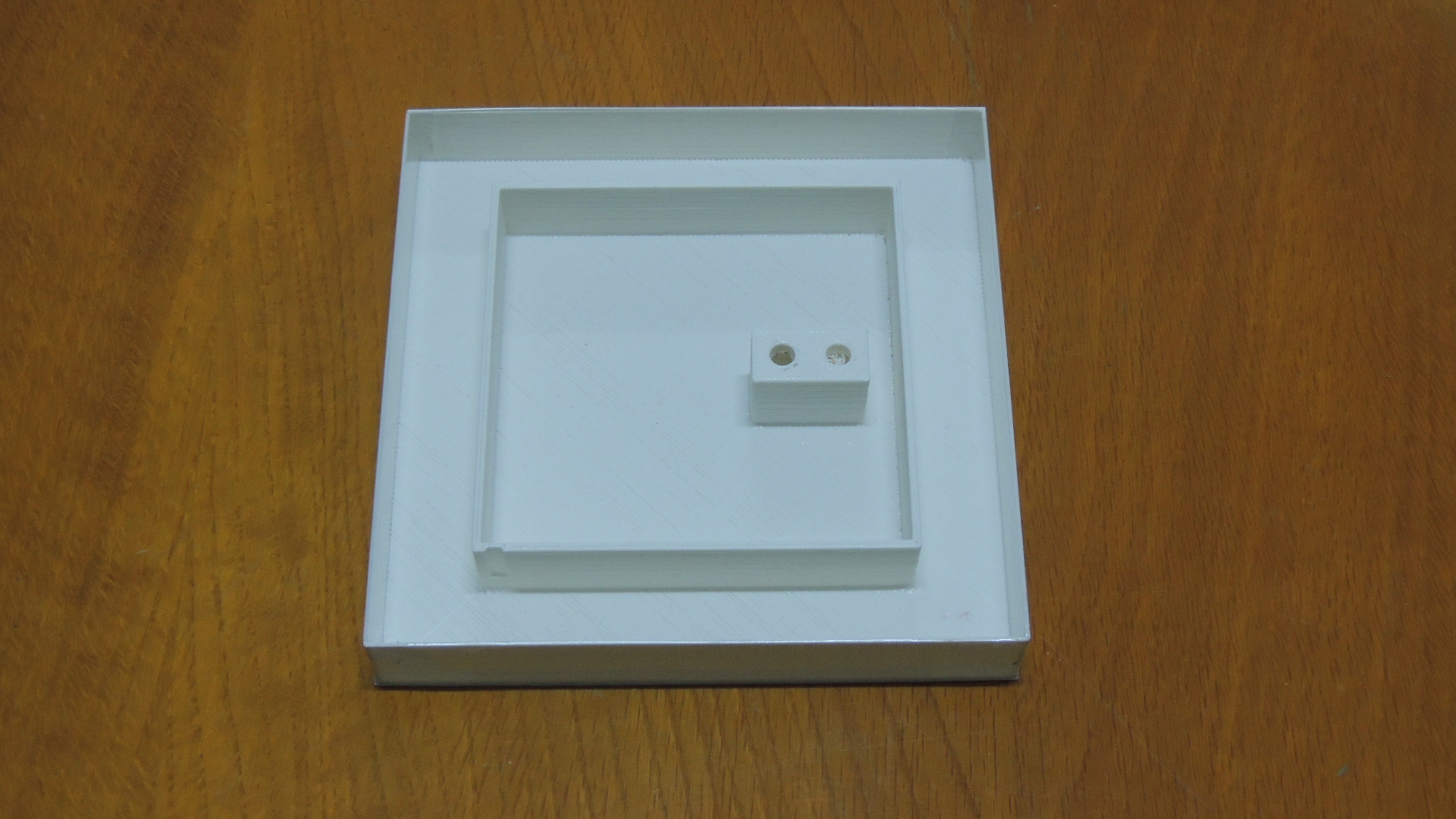

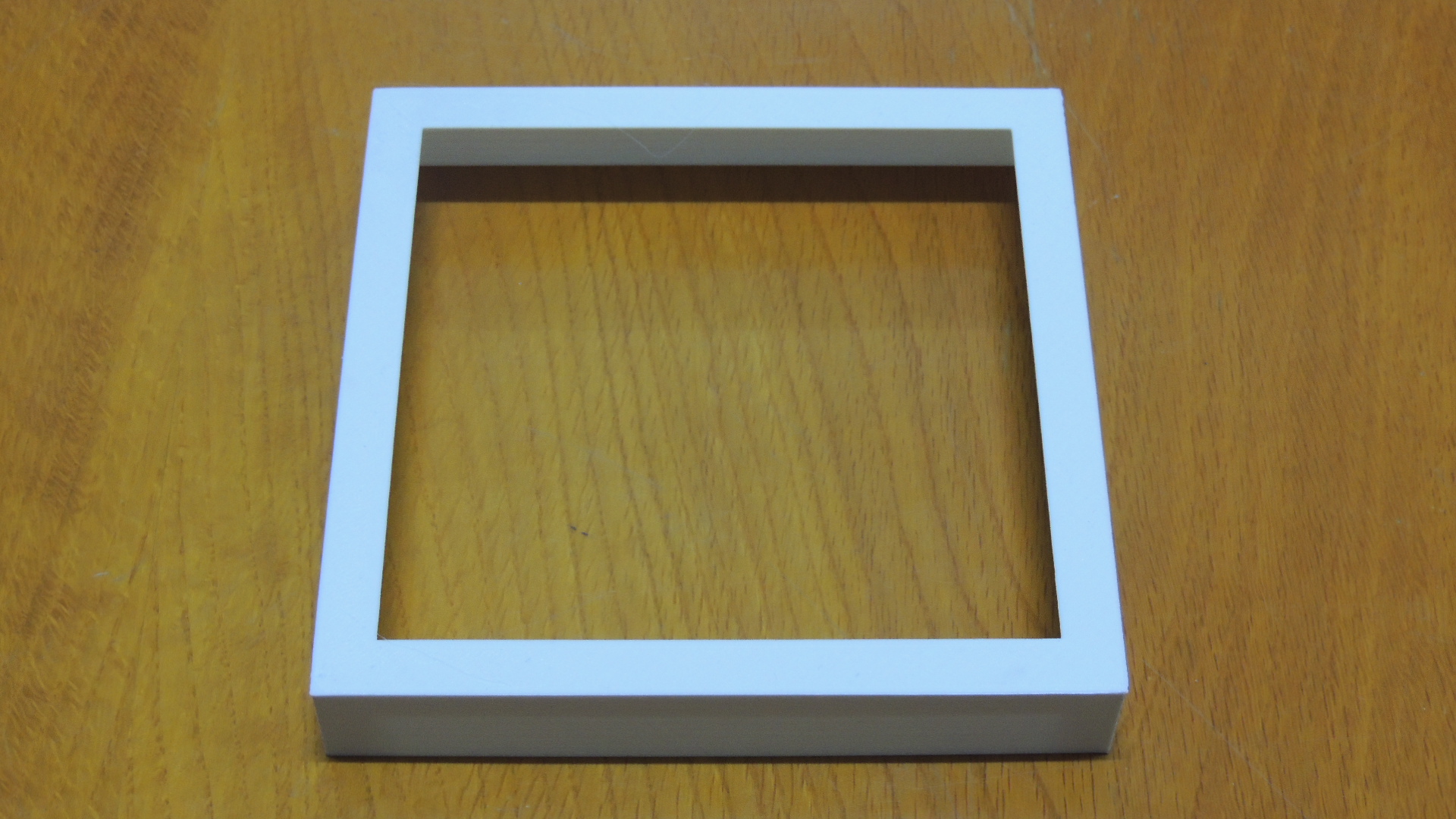

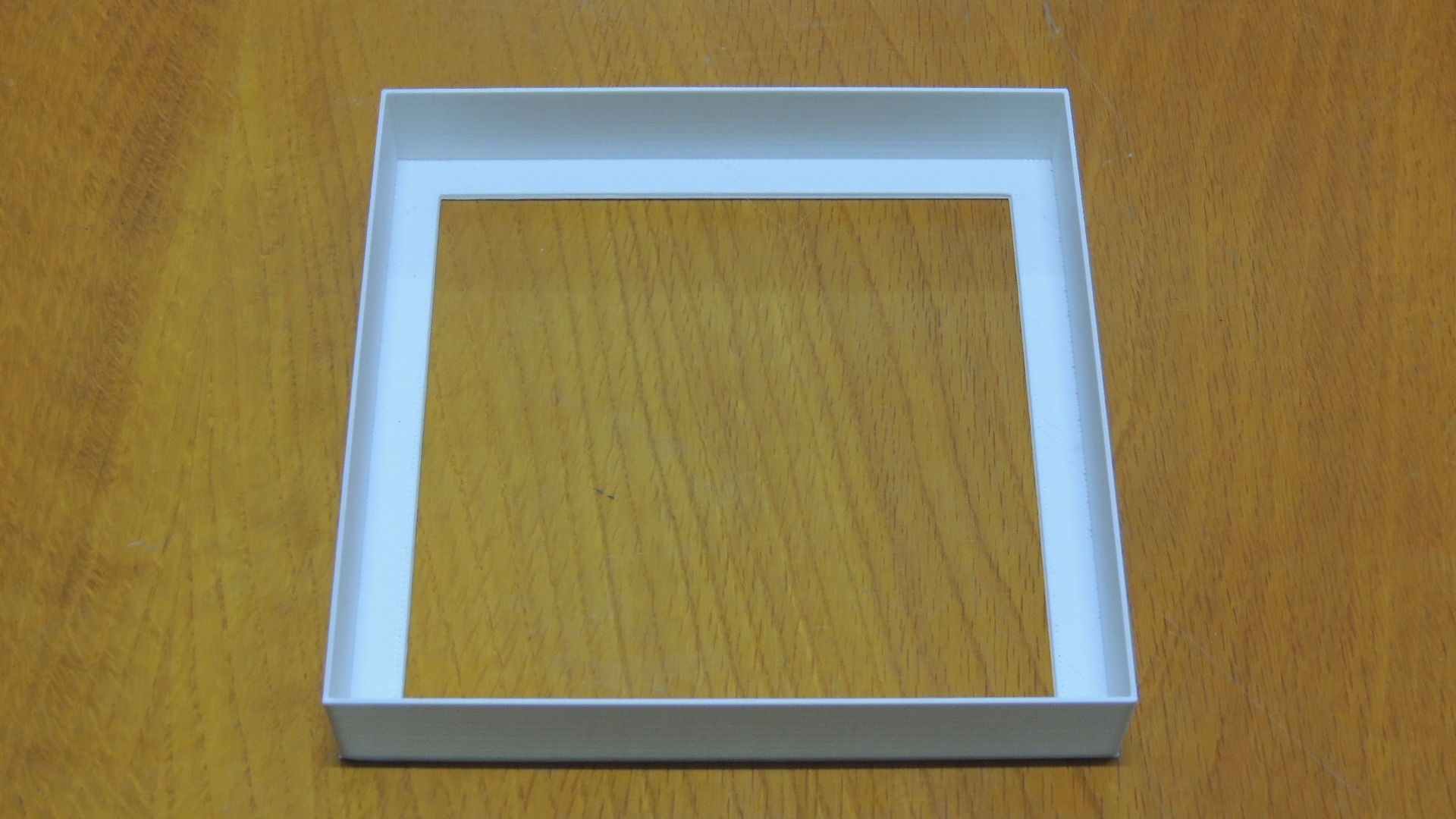

- Main Body

- Cup Holder

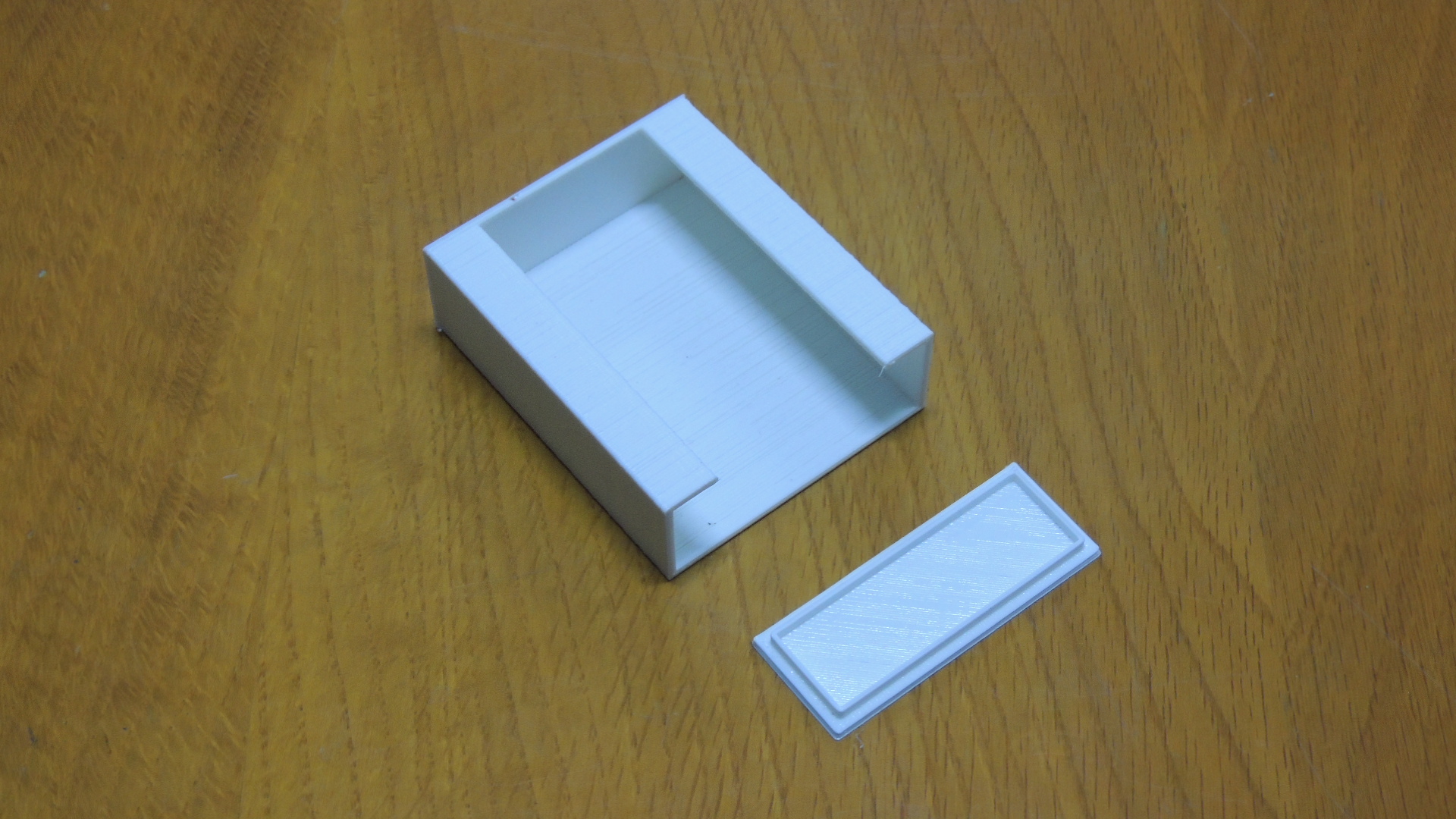

- Battery Case

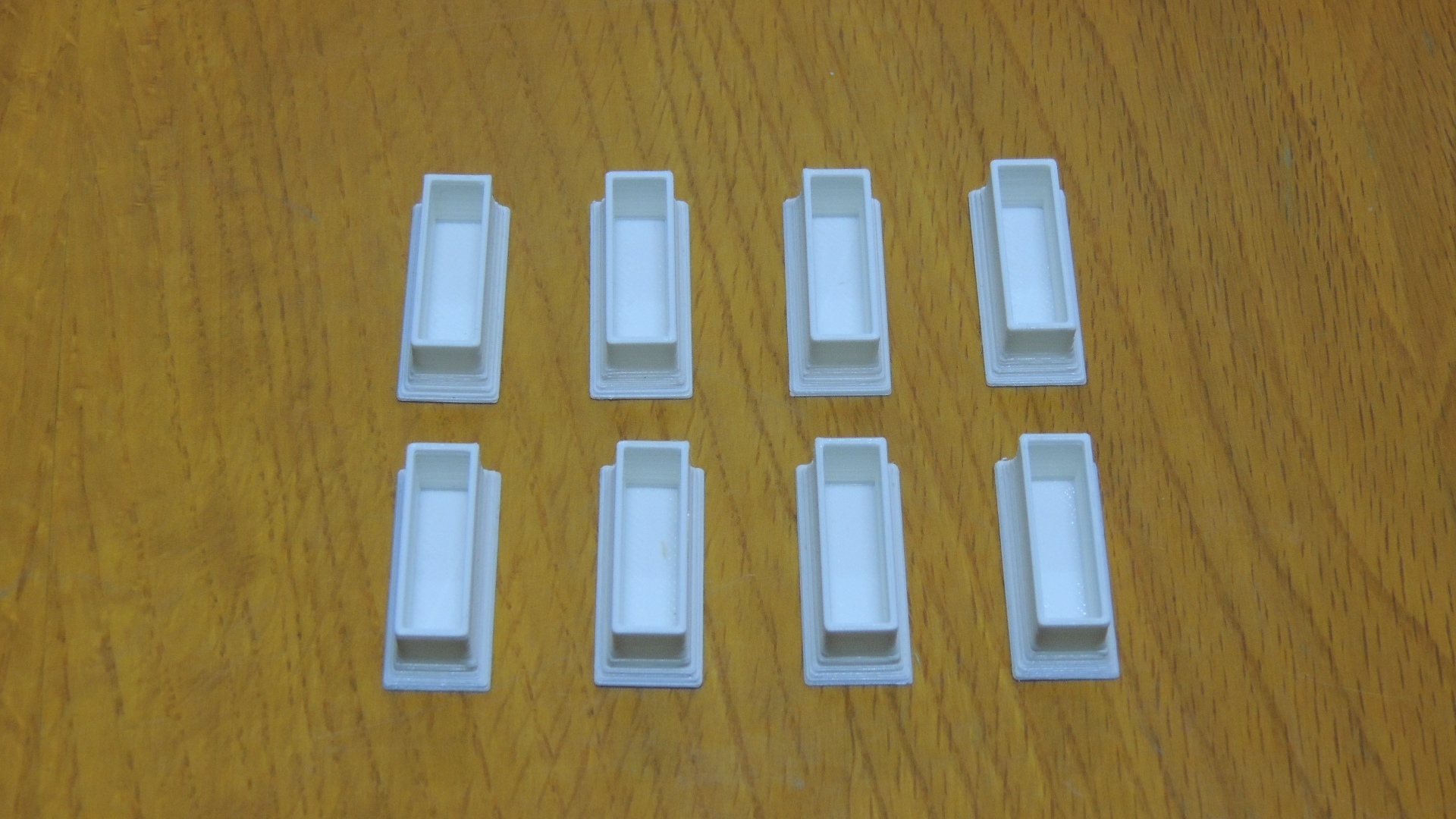

- Shoes (* 8)

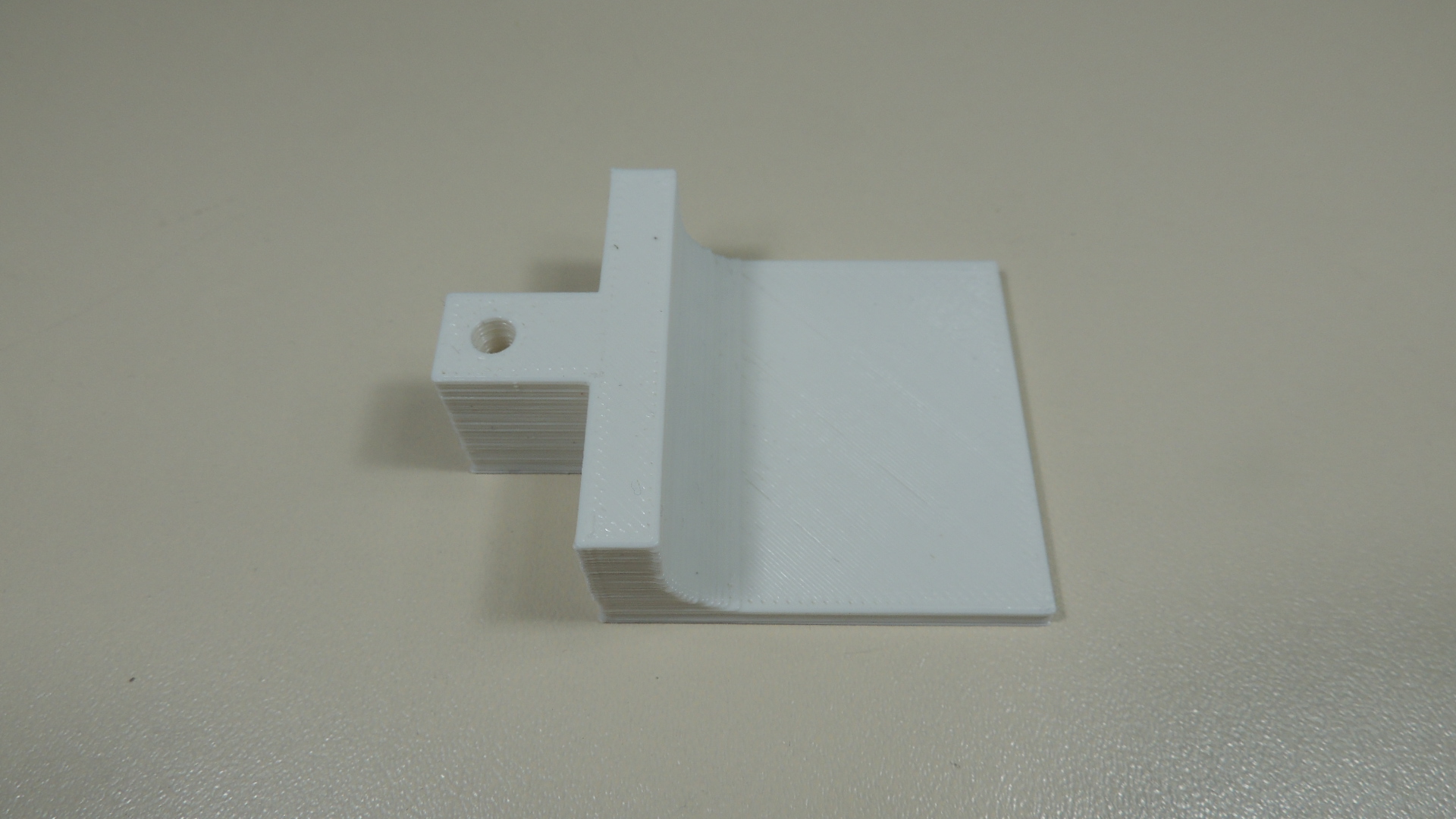

- Cup Holder Support

Epoxy Resin

We used epoxy resin in this project for good spreading.

Others

we used some materials too.

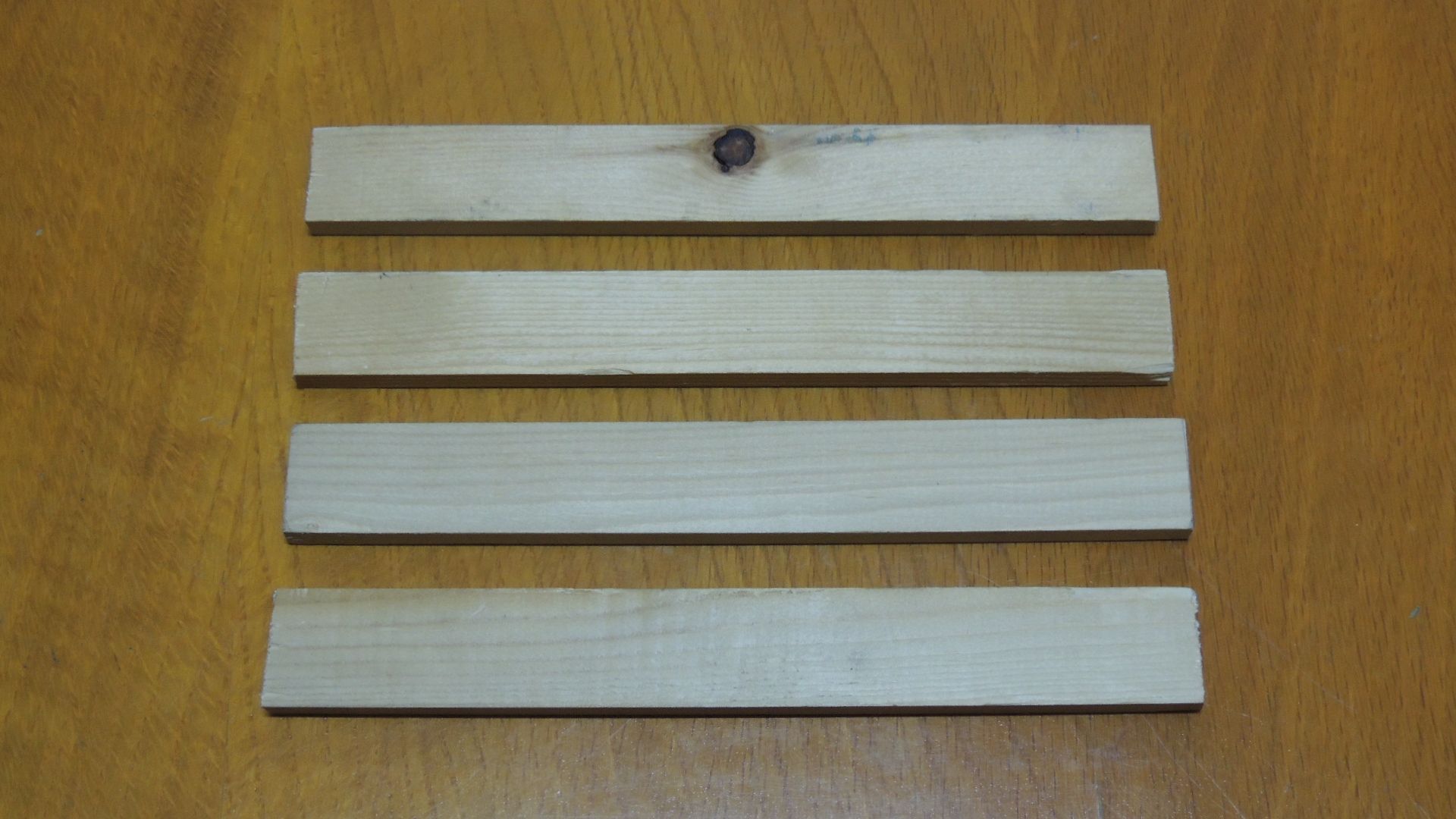

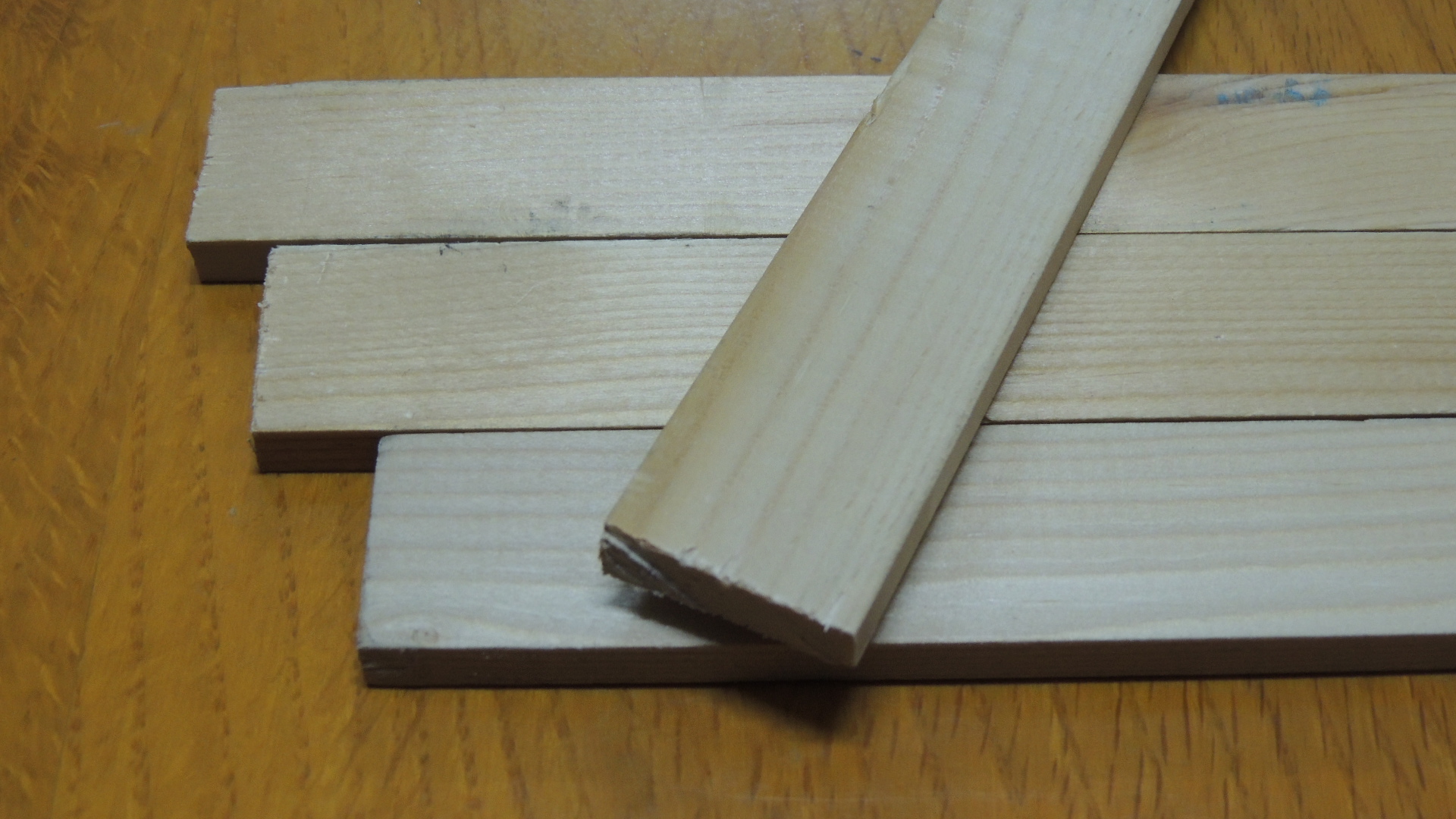

- Wooden (* 4)

- A glass

- Glue

RGB LED Assemble

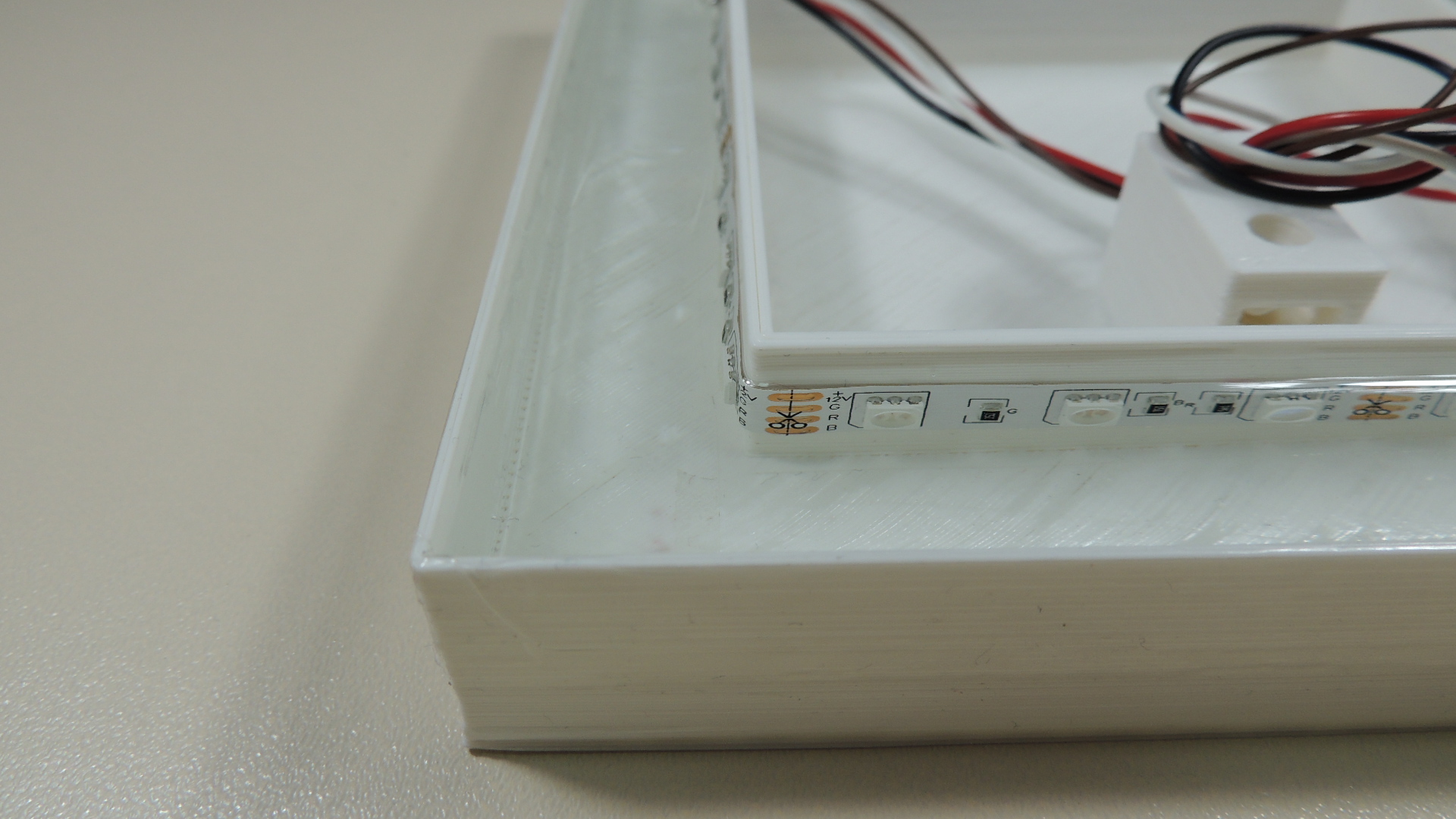

A RGB led have 4 inpusts. Red , Green , Blue and +12 V.

We added wires to this inputs. And than put it to 3d printed main body like that pictures.

Making Epoxy & Pouring

Epoxy resin is known for its strong adhesive qualities, making it a versatile product in many industries. It offers resistance to heat and chemical applications, making it an ideal product for anyone needing a strong hold under pressure. Epoxy resin is also a durable product which can be used with various materials, including: wood, fabric, glass, china or metal.

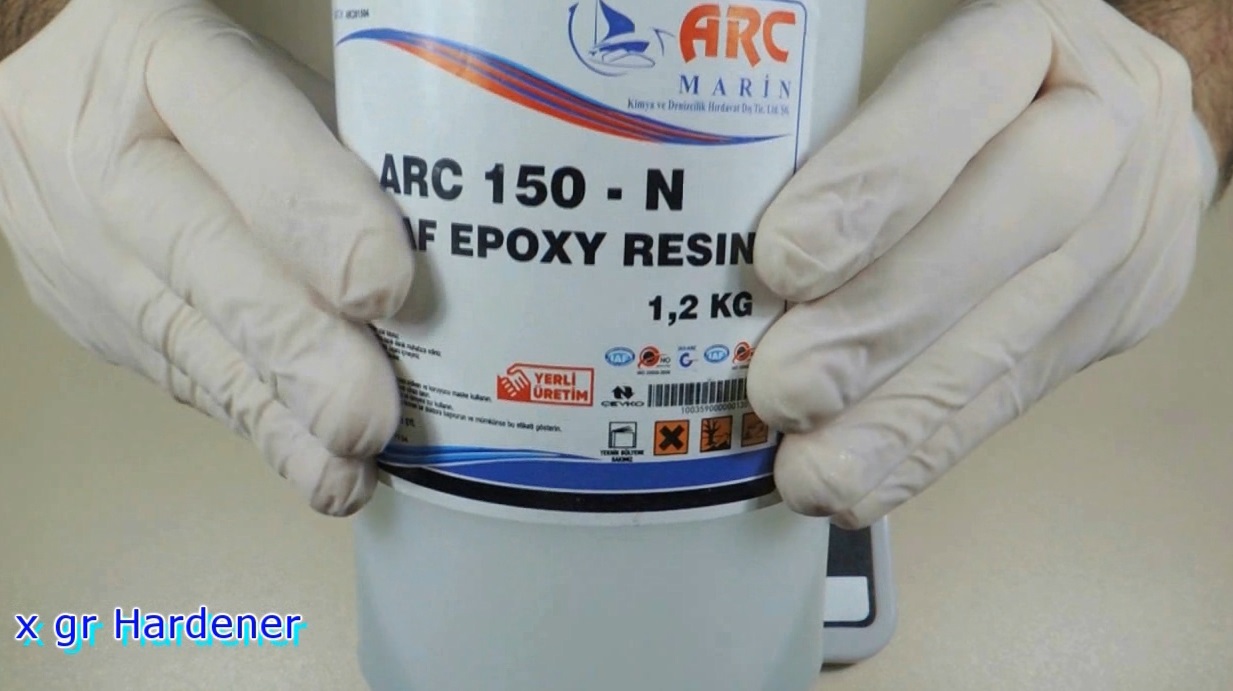

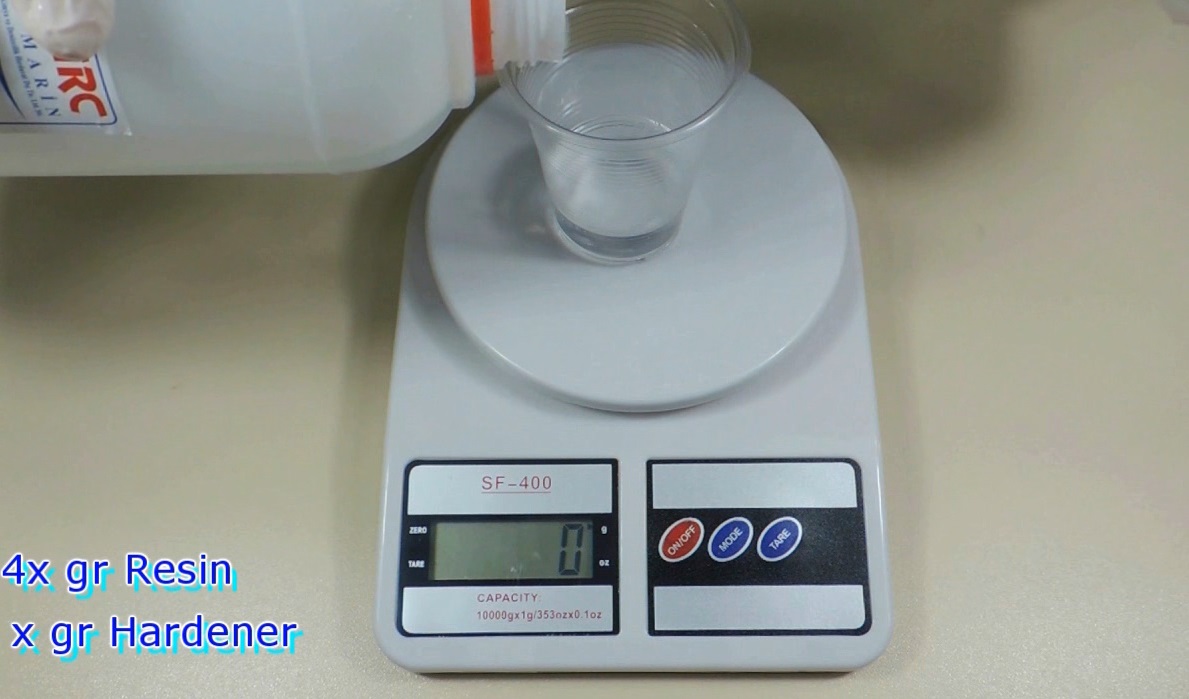

if you use X gr hardener, use 4X gr resin. this rate recommended.

mix them for 6-8 min. and will transparent.

If you have epoxy now, we will pour it to main body. As you can see in pictures, we are pouring slowly because it will be bubbles.

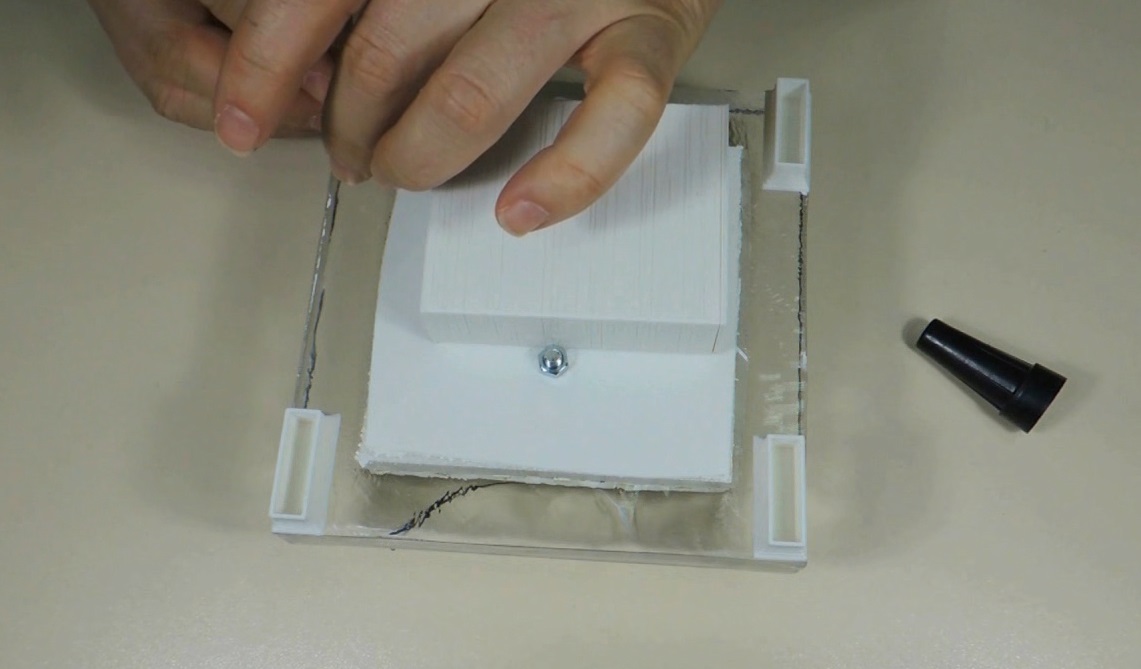

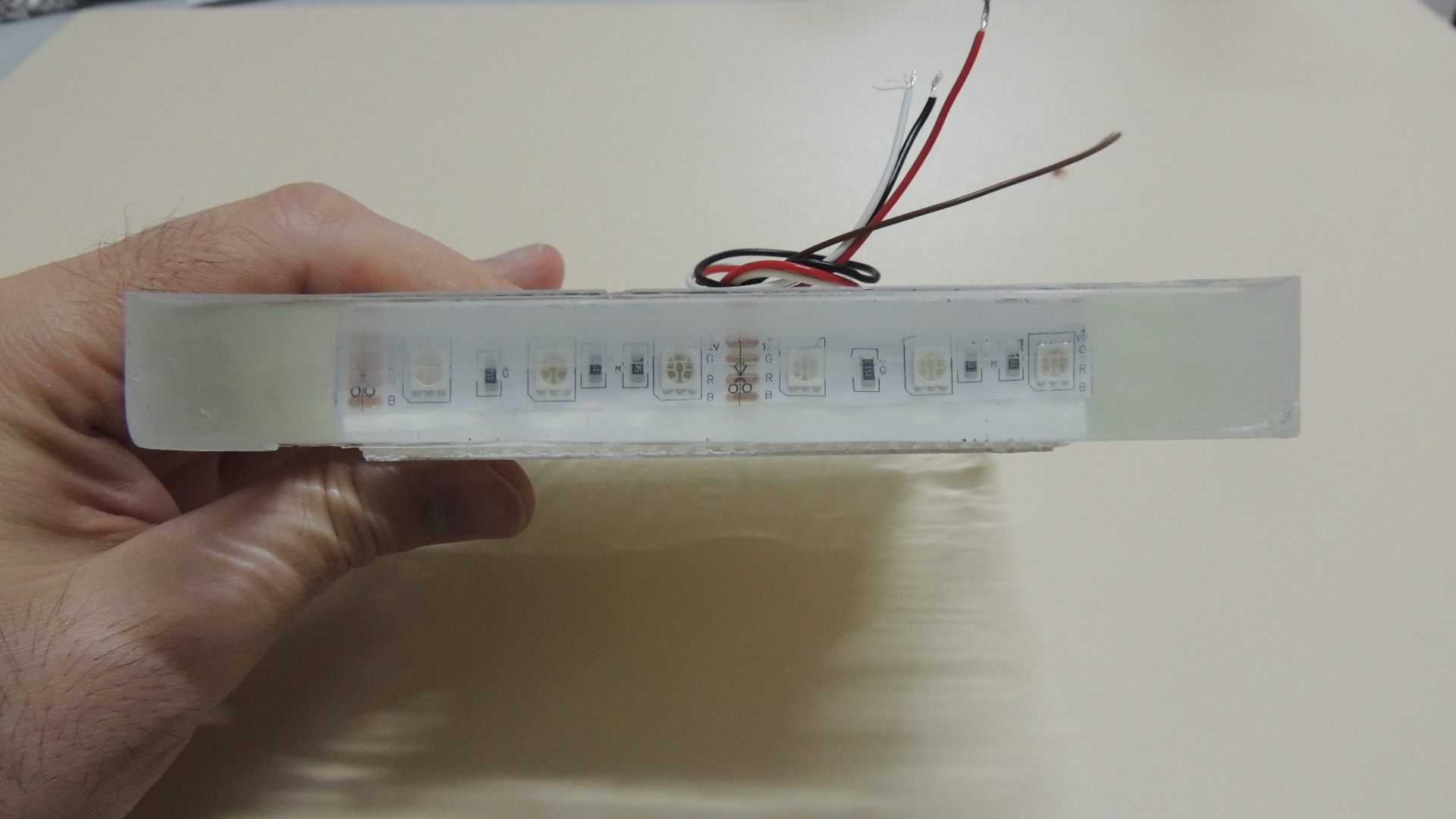

Please when you pour , wait 24-36 hours for drying. And than you have to broke some parts. And finaly you will see like pics a transparent view. and also you can sand ...

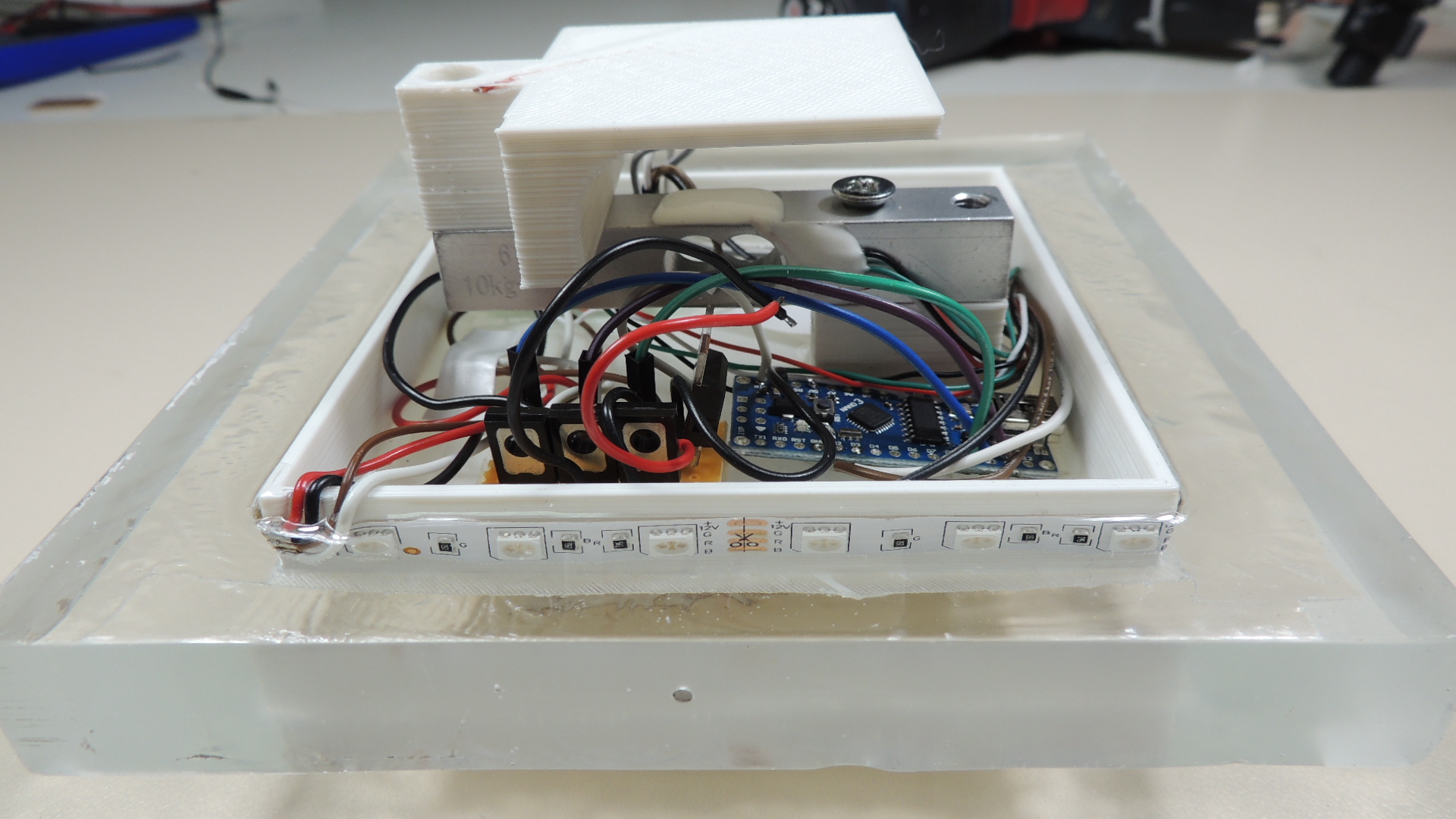

Circuit Assemble

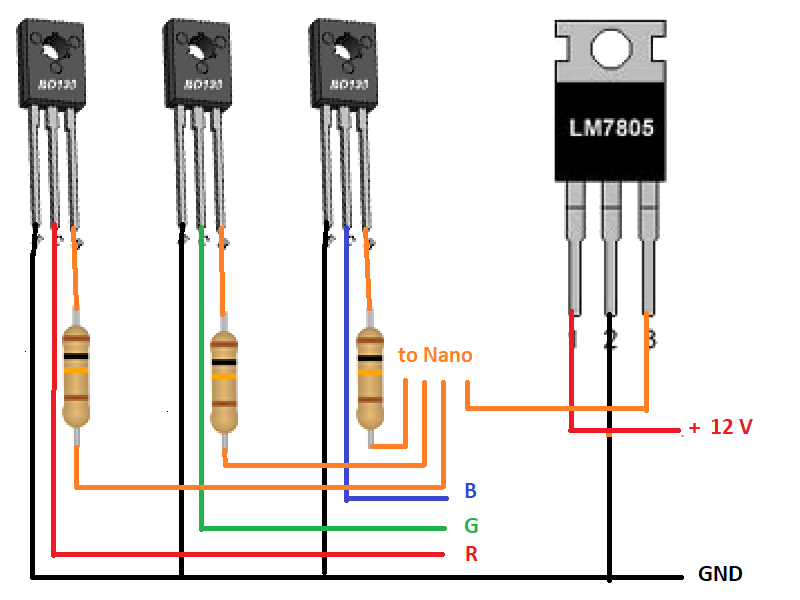

We assemle electronic equipments to a pertinax. We use BD135 and 10 K resistors for RGB LED drive outputs. And than we combined with Arduino nano and HX711 weight sensor module.

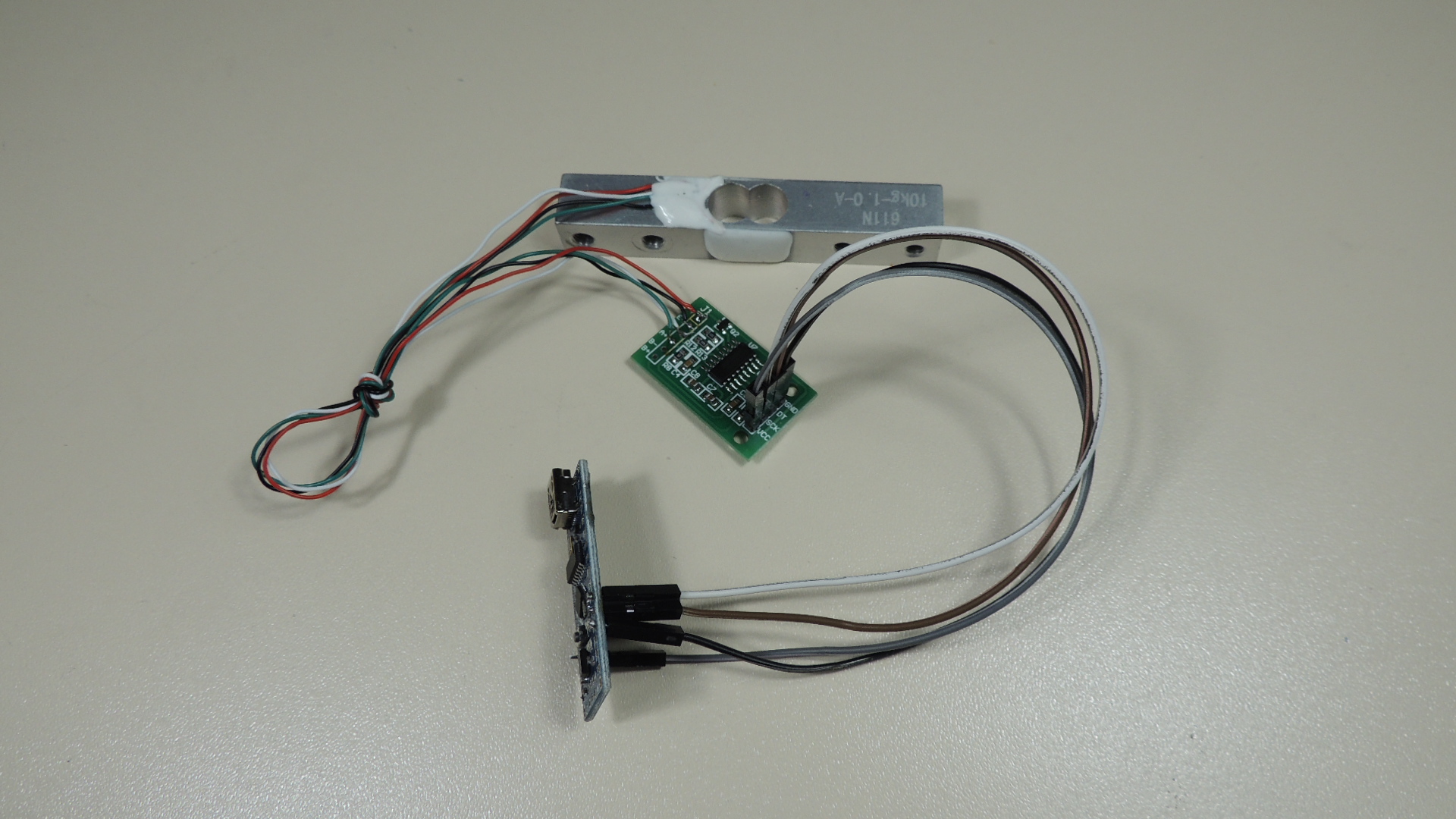

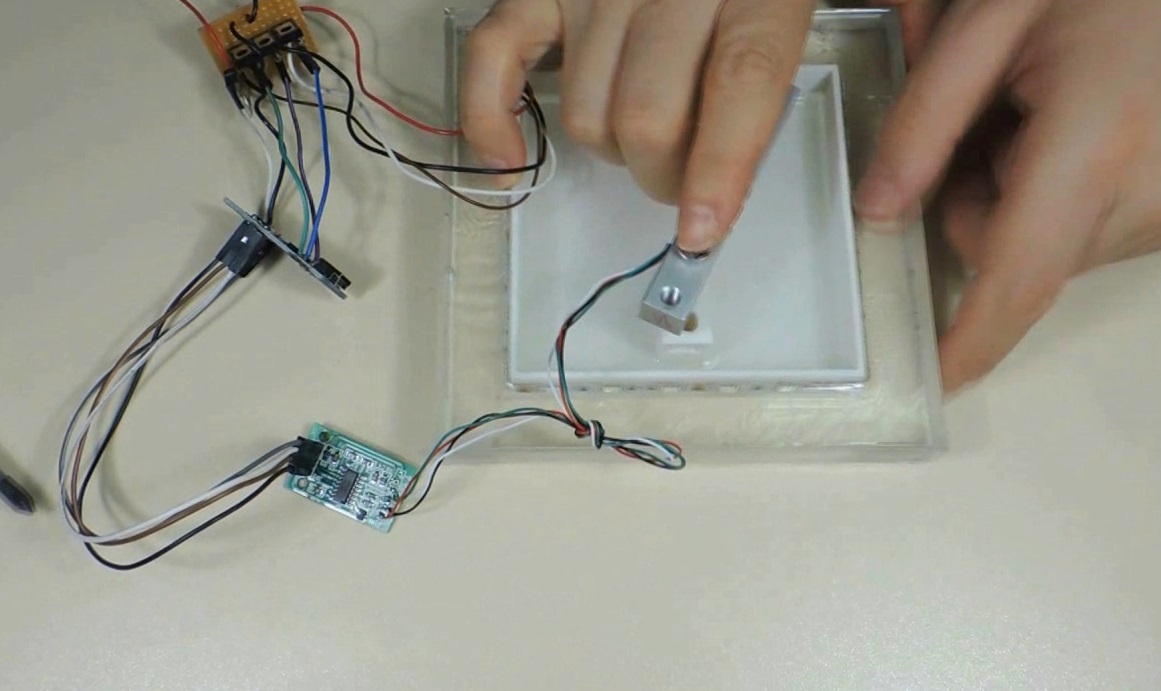

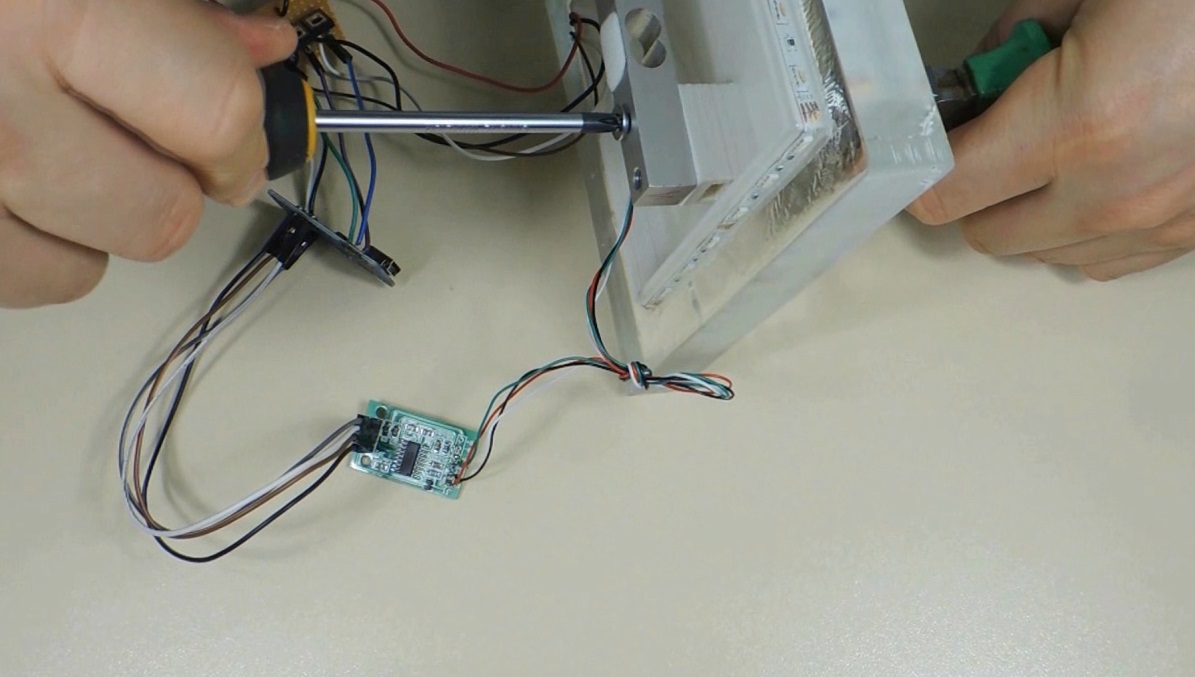

HX711 Weight Sensor Assemble

Based on Avia Semiconductor’s patented technology, HX711 is a precision 24-bit analogue to-digital converter (ADC) designed for weigh scales and industrial control applications to interface directly with a bridge sensor.

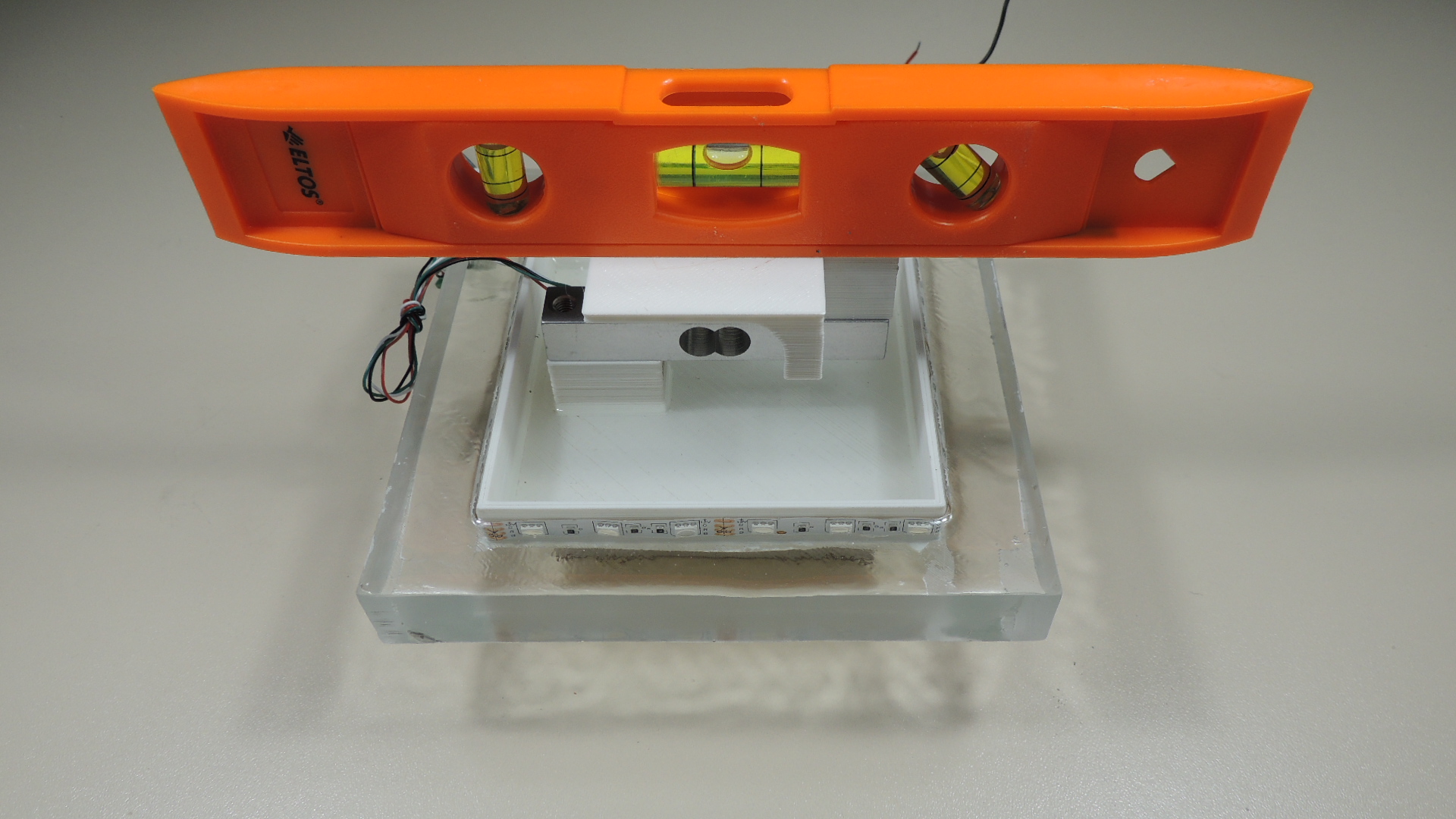

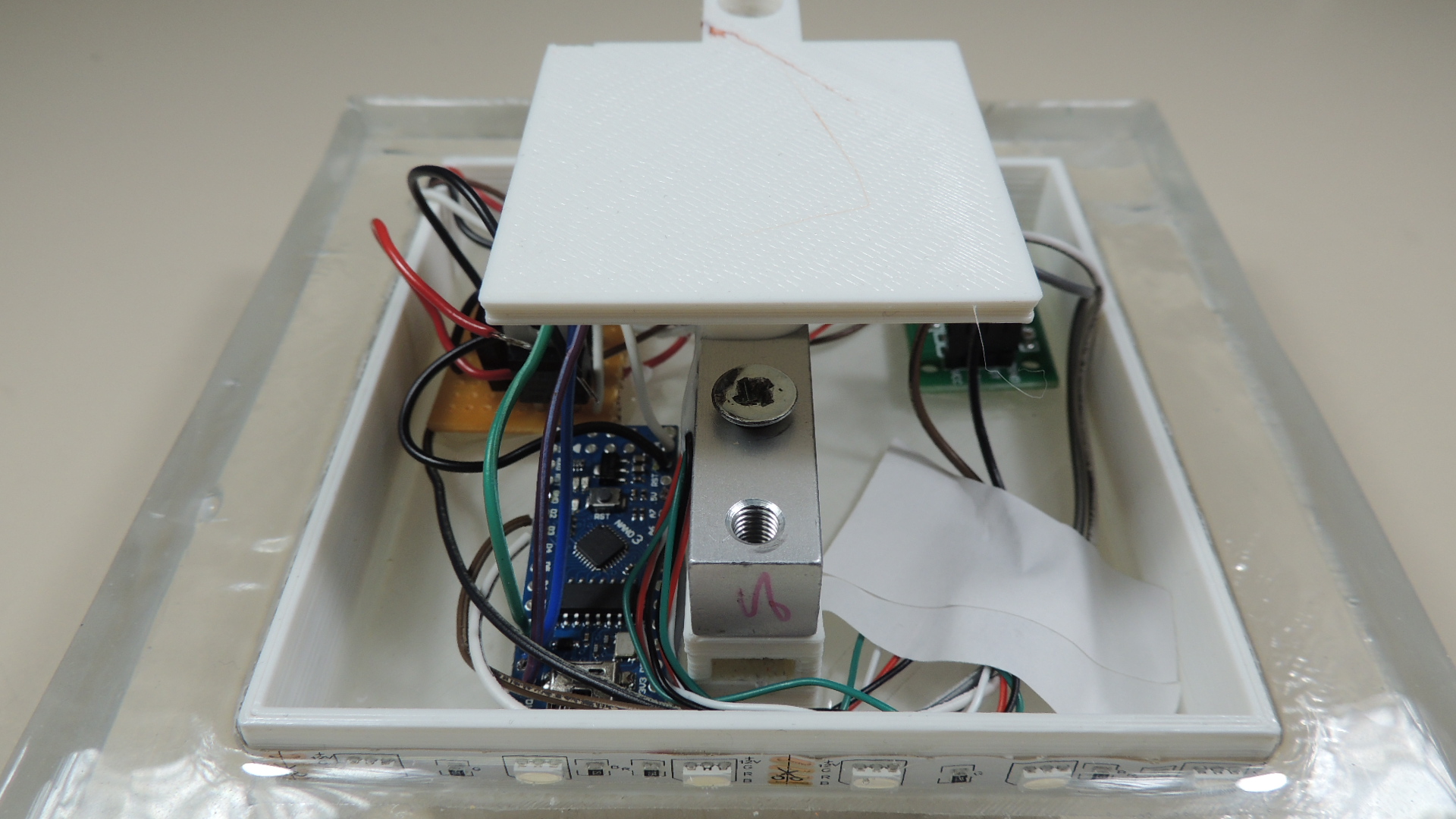

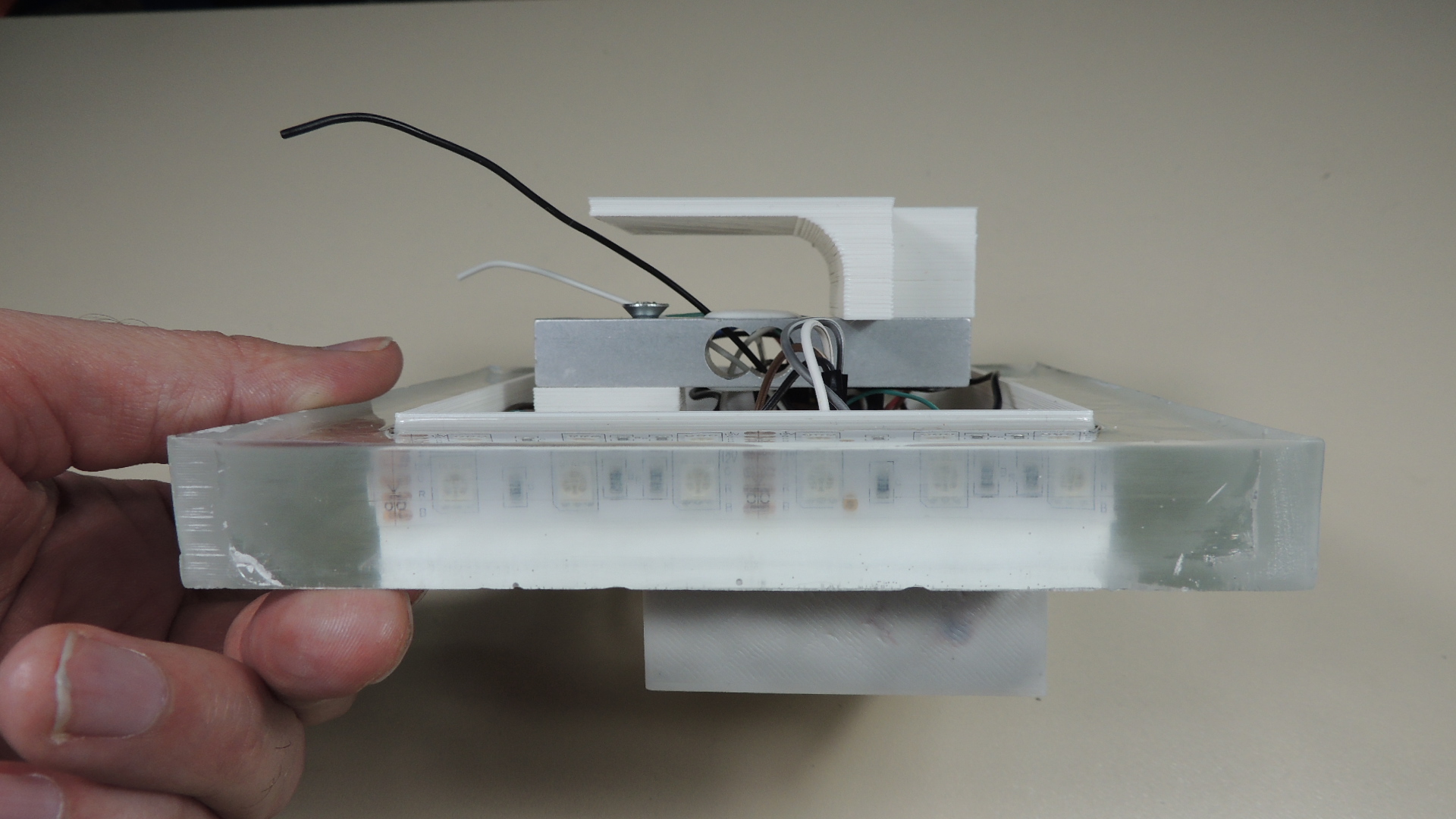

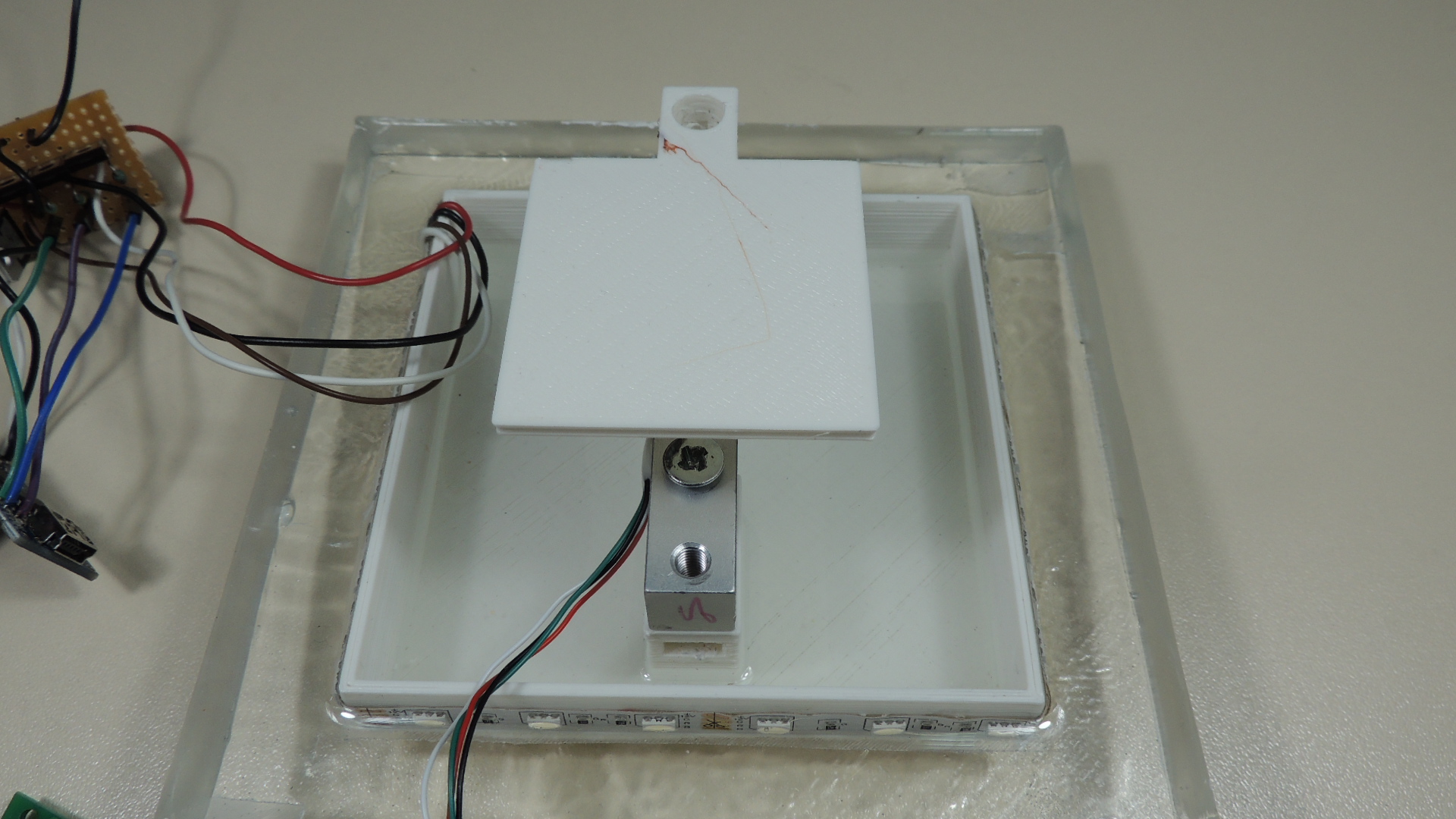

We added a support part for up lavel. We put on it a glass. As you can see in pics, balanced.
