Small Side Table

by Ms Wild in Workshop > Furniture

2609 Views, 30 Favorites, 0 Comments

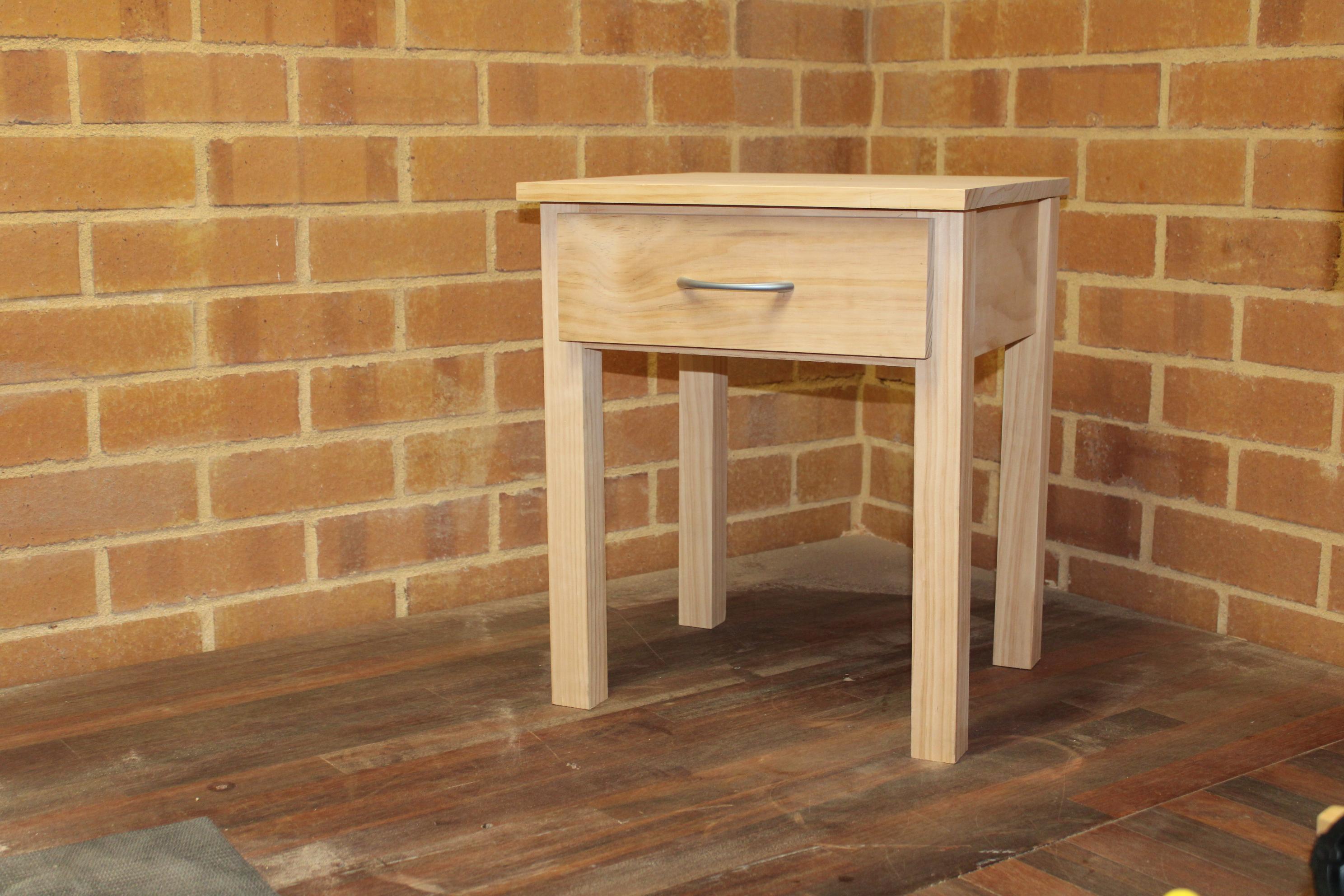

Small Side Table

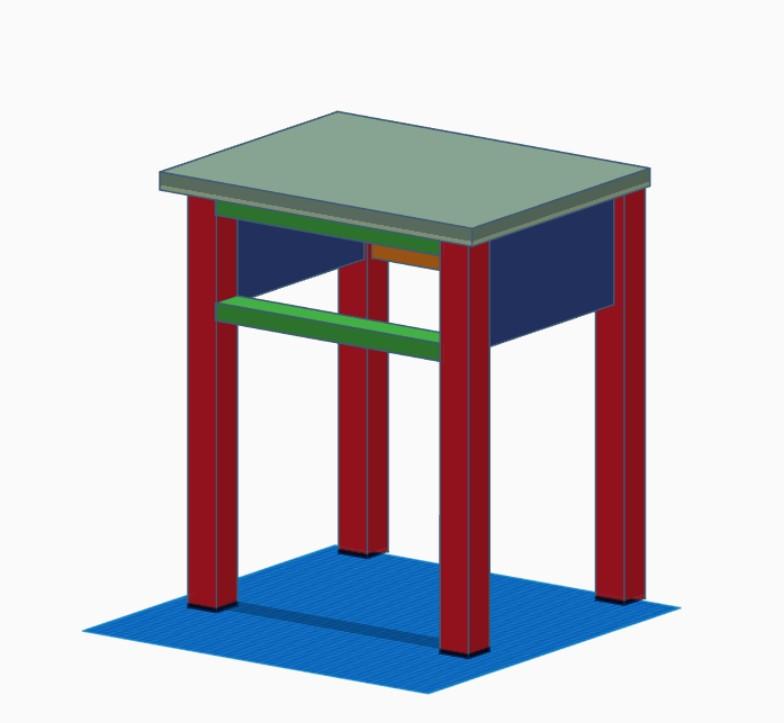

tinkercad .jpg

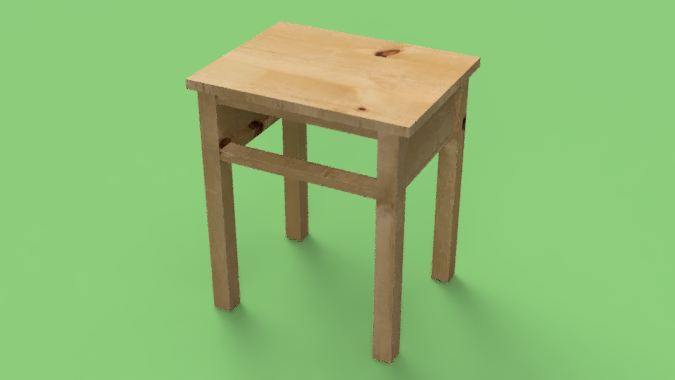

bedside_table_from_tinkercad.f3d_2022-Jul-13_10-02-00AM-000_CustomizedView3998167553.png

This small side table is designed to be a beginner project that can be managed by a high school student.

With minor changes to the shape or size of parts, this project can be easily personalized while still being successful.

based on a design from the book "Handmade Furniture: 21 Classic Woodworking Projects to Build for Your Home by RAFAEL NATHAN"

Supplies

Cutting list


Table

  • legs 40 x 40 x 500 x 4
  • side rails 20 x 140 x 265 x 2
  • back rail 20 x 140 x 330
  • front rails 20 x 40 x 330 x 2
  • table top material to make 450 x 365
  • draw support 20 x 40 x 285 x 2
  • draw guides 20 x 20 x 270 x 2

Drawer

  • sides 20 x 90 x 270 x 2
  • back & front 20 x 80 x 306 x 2
  • dress front 20 x 366 x 120
  • Base MDF 305 x 235

glue, brackets to attach top to frame, drawer handle

Cut Parts and Mark Out Joinery

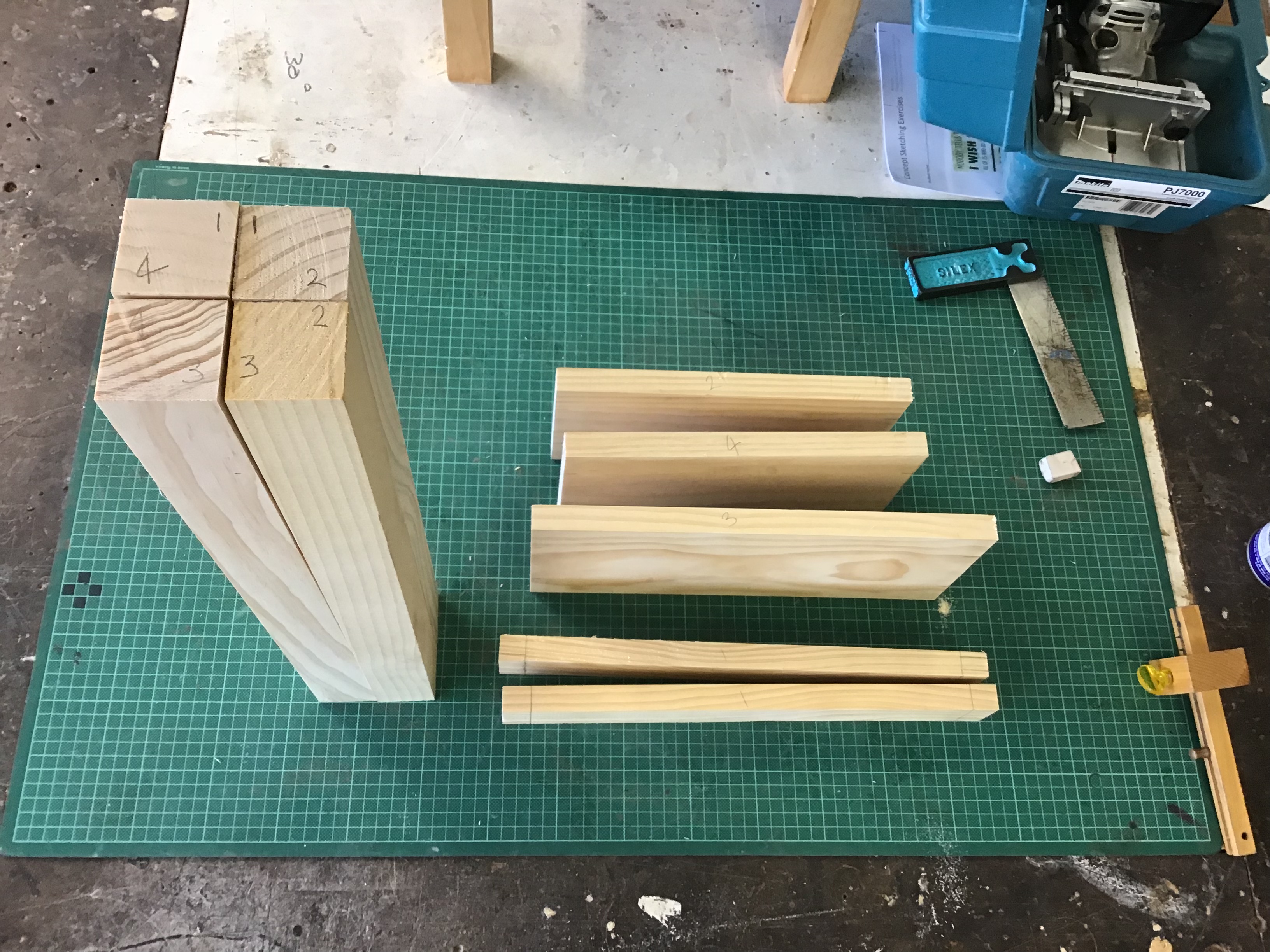

Number all the matching leg to rail joints on the top

Mark out your joinery

  • biscuits joints for side and back rails and dowel joints for front rails.

In some of the pictures, you will see dovetail joinery for the front rails, use dowel joints unless you want the challenge.

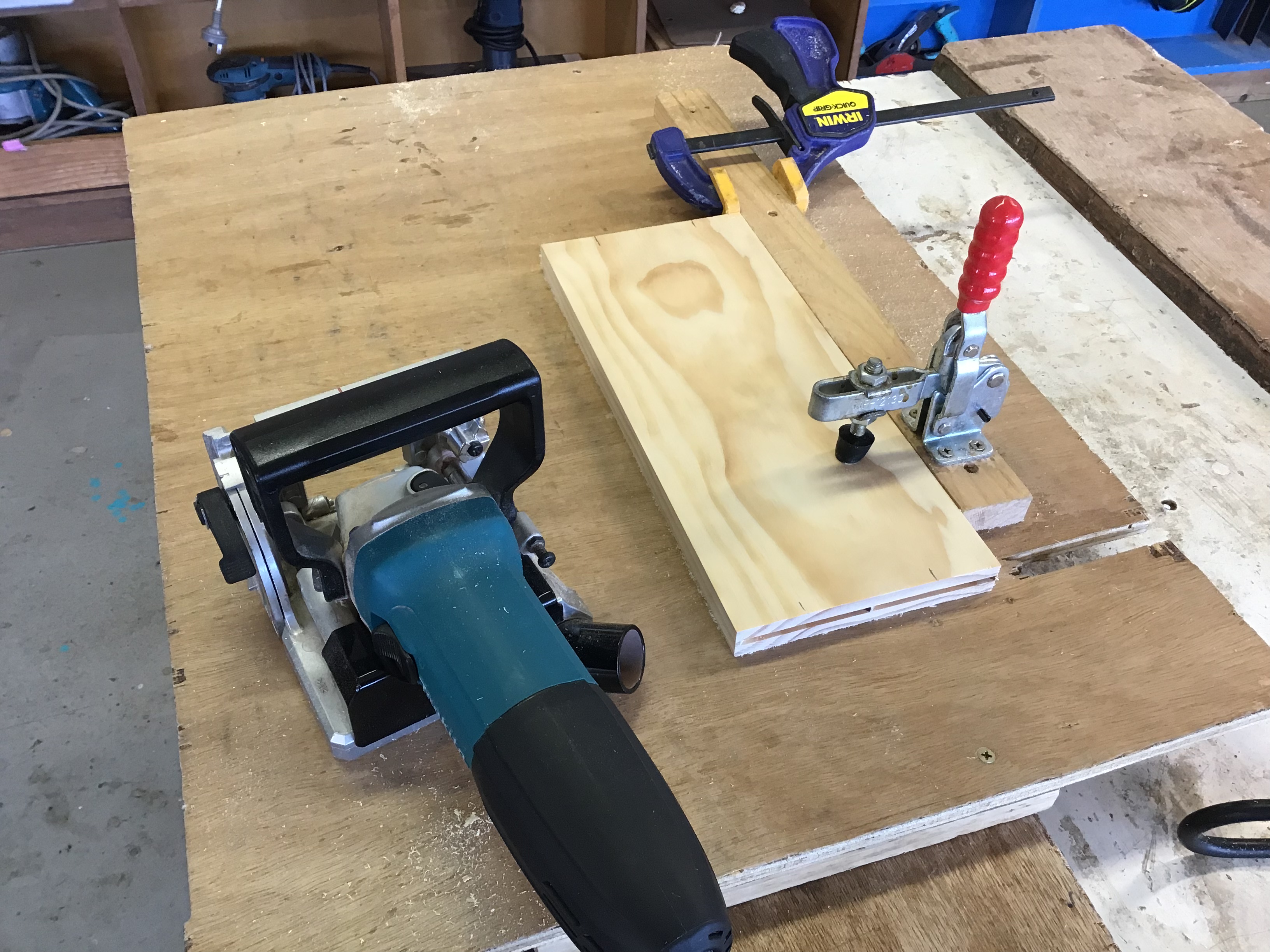

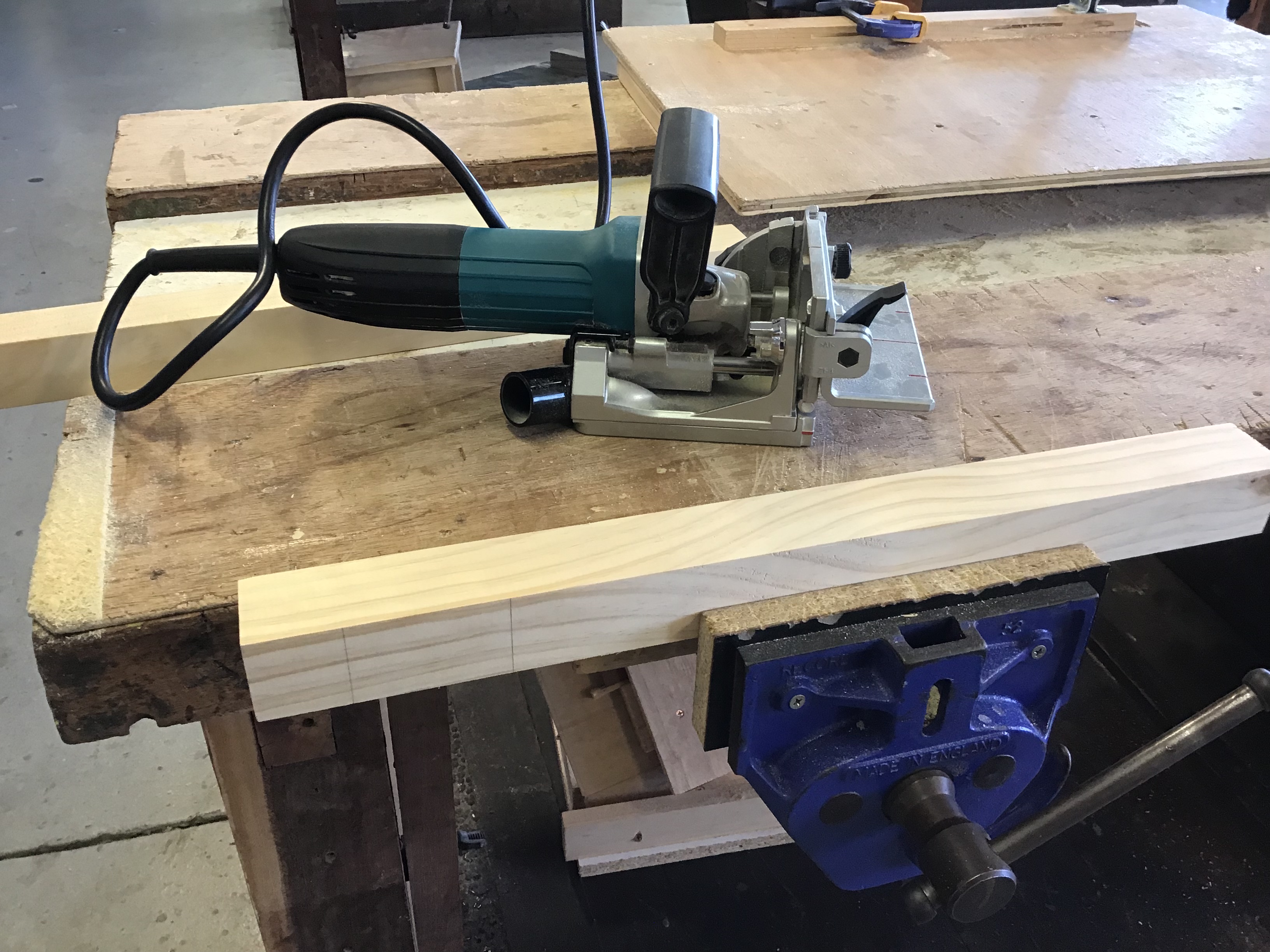

Biscuit Joinery

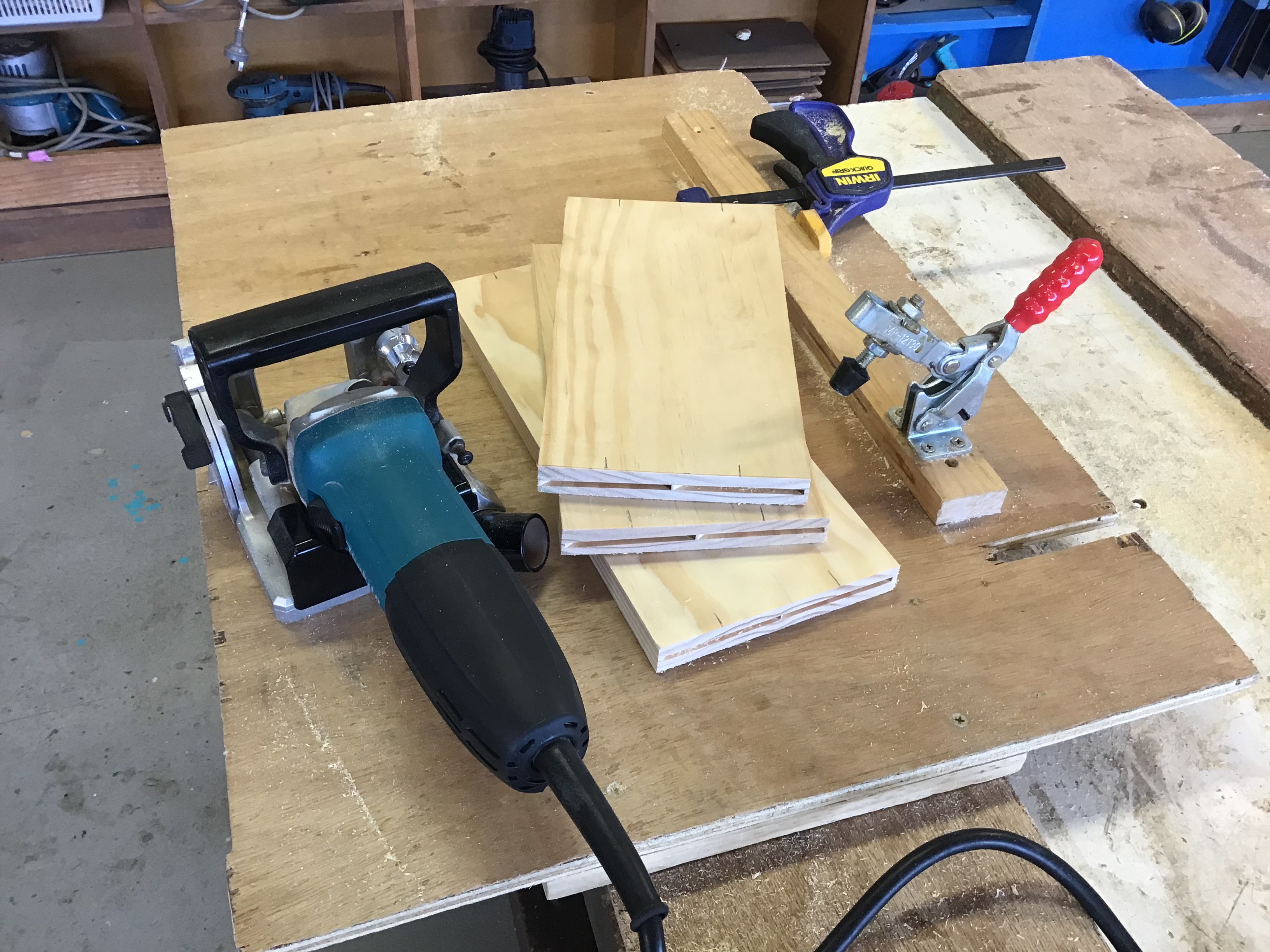

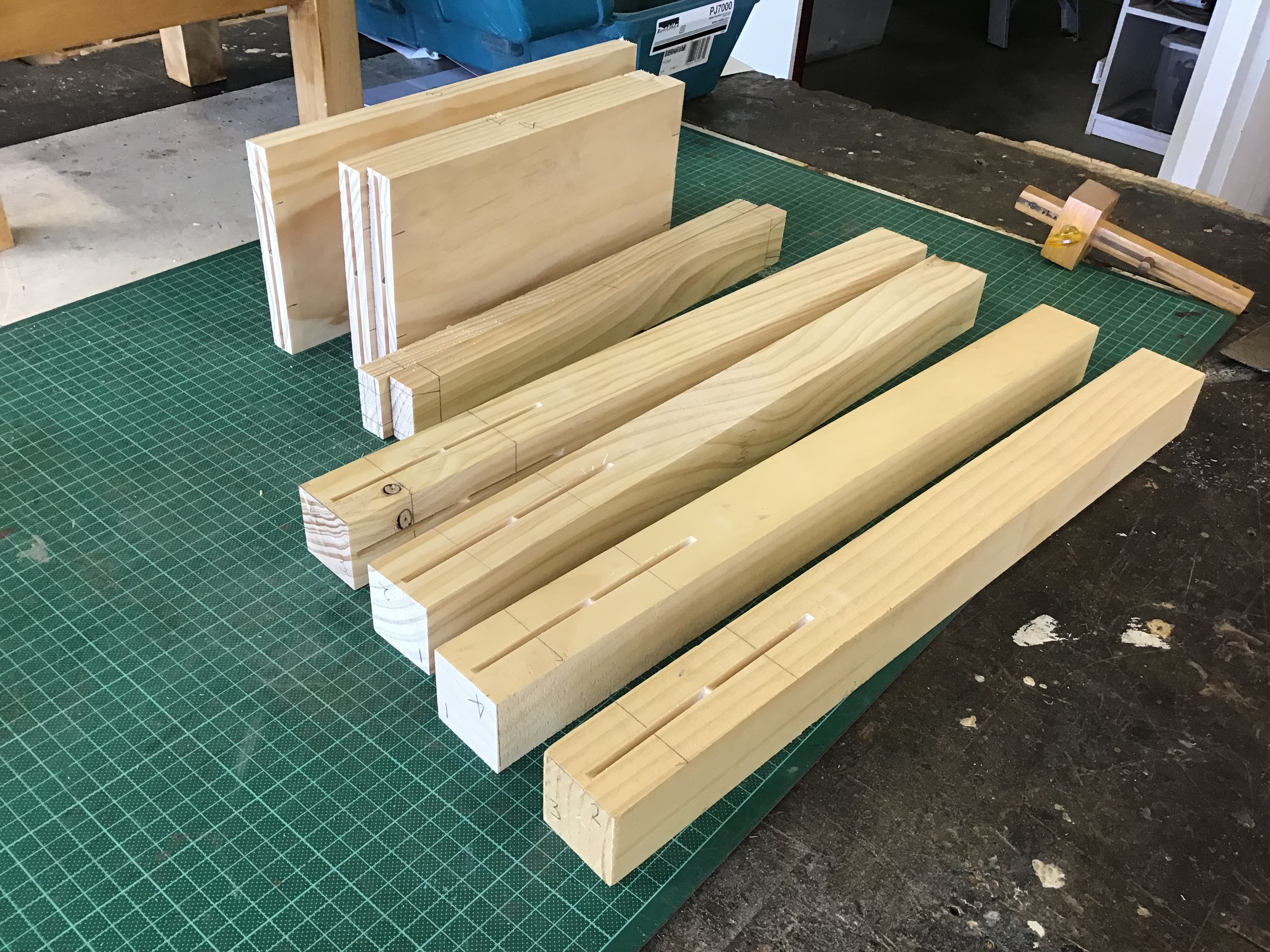

Cut biscuit joints


Assembly

Screenshot 2022-07-15 153007.jpg

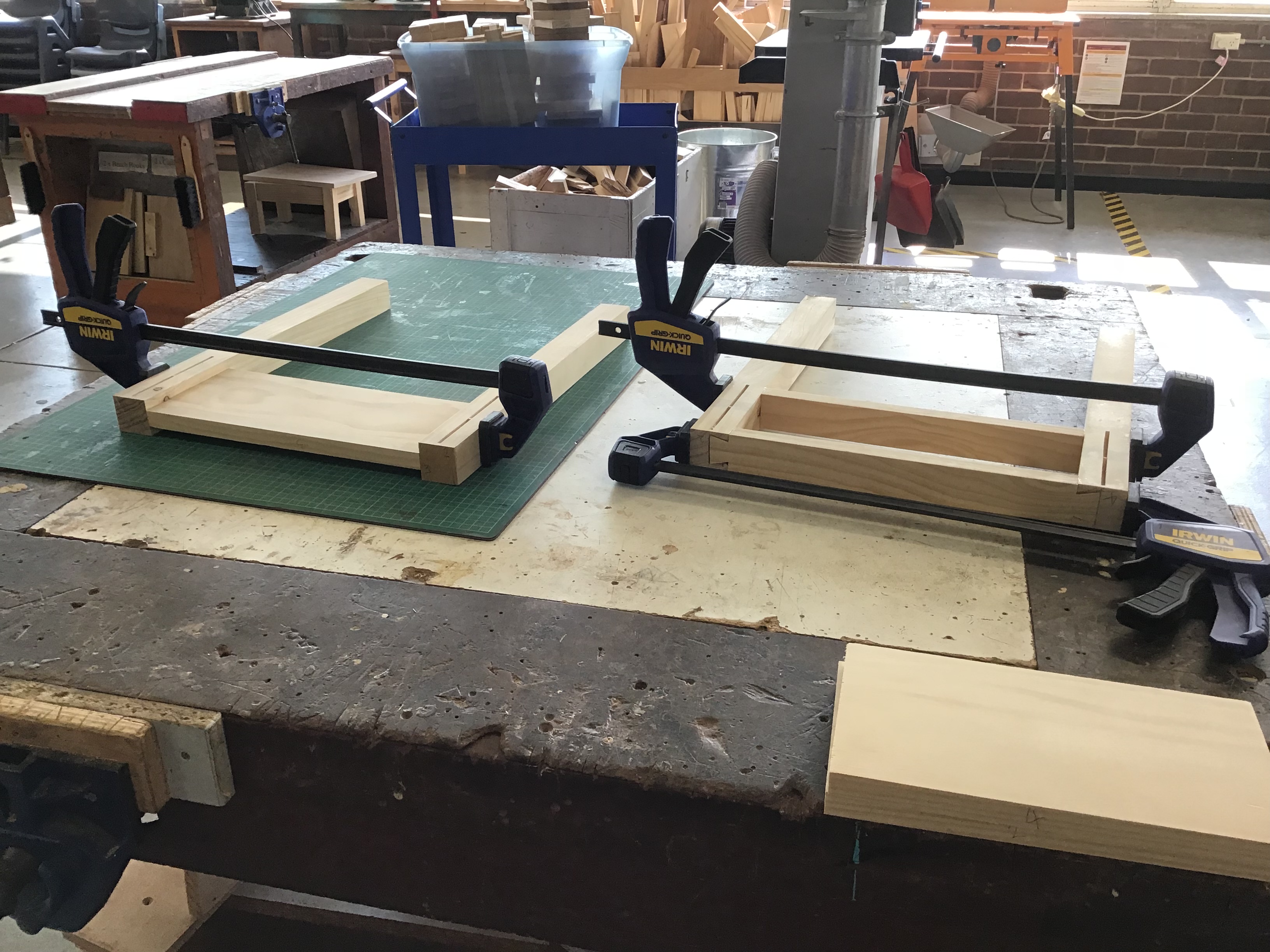

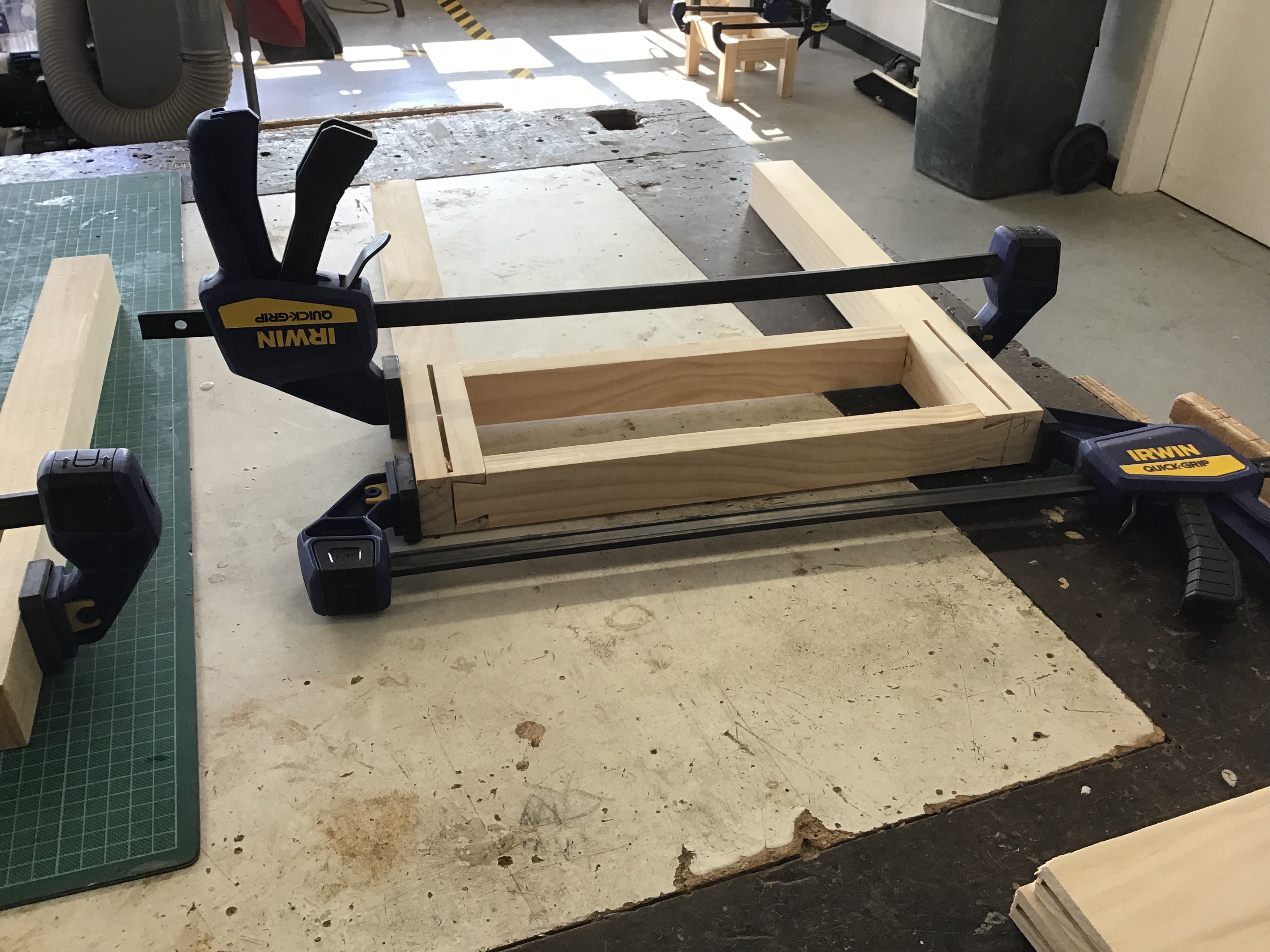

Assemble the two sides, glue, square, clamp, and leave to dry

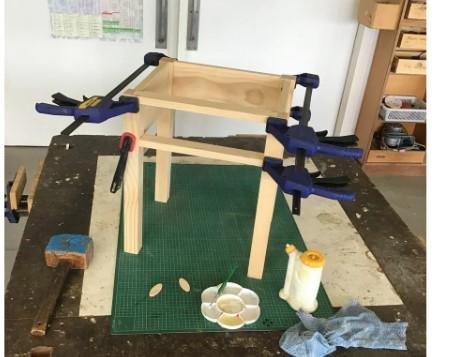

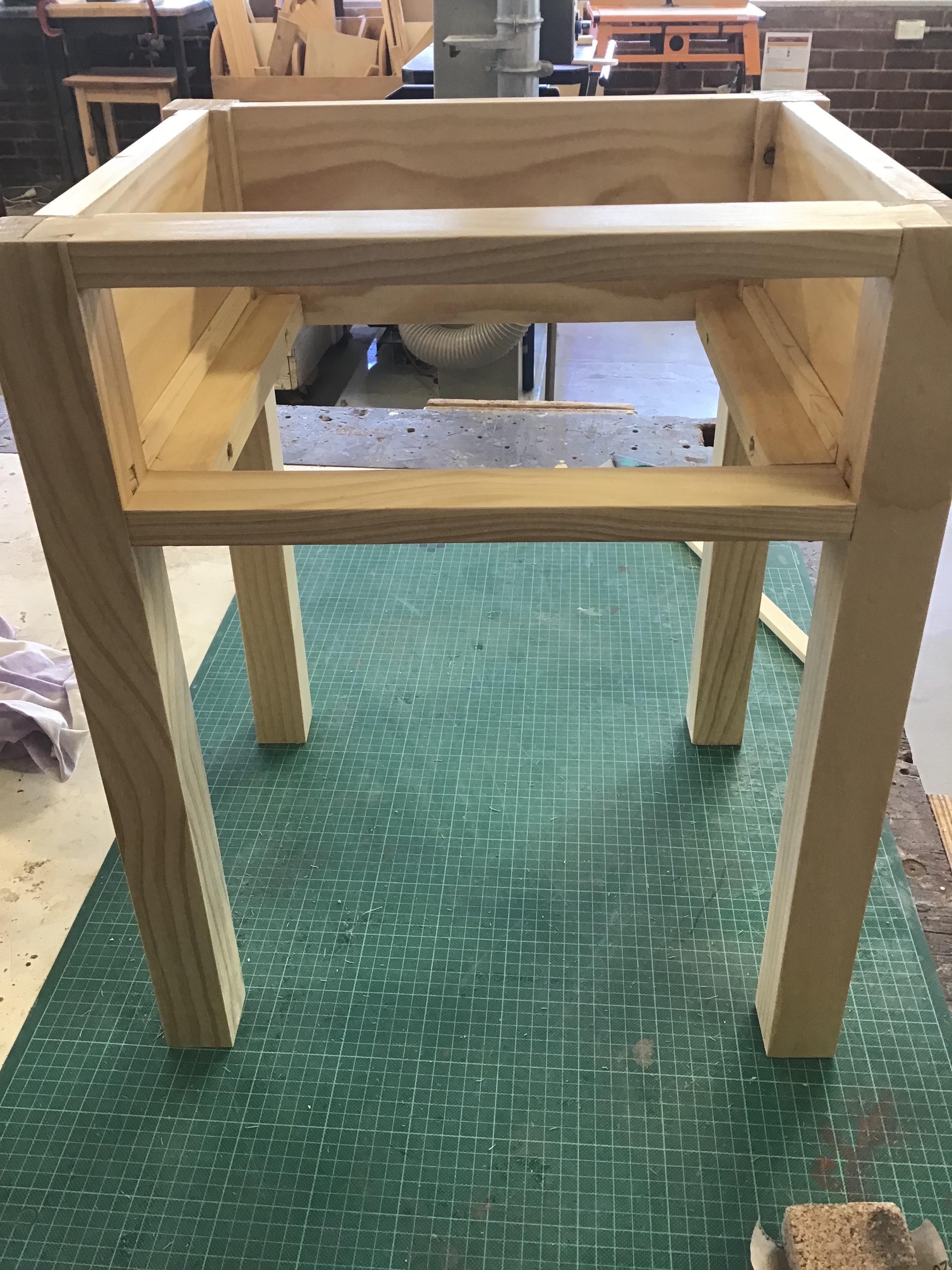

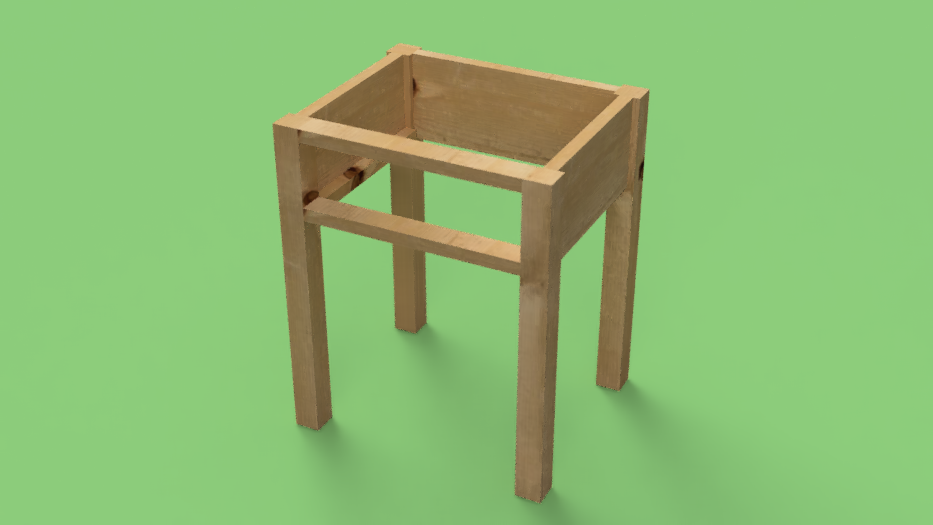

Assemble the whole frame by gluing the front and back rails in place, glue, square, clamp, and leave to dry

Note: I know you will want to glue it all together all at once, avoid this action, you will need to concentrate on getting the frame square and neat. If you try and put it all together at once and become rushed for time, this ensures a ticket to wonky town. Take your time, and enjoy your work.

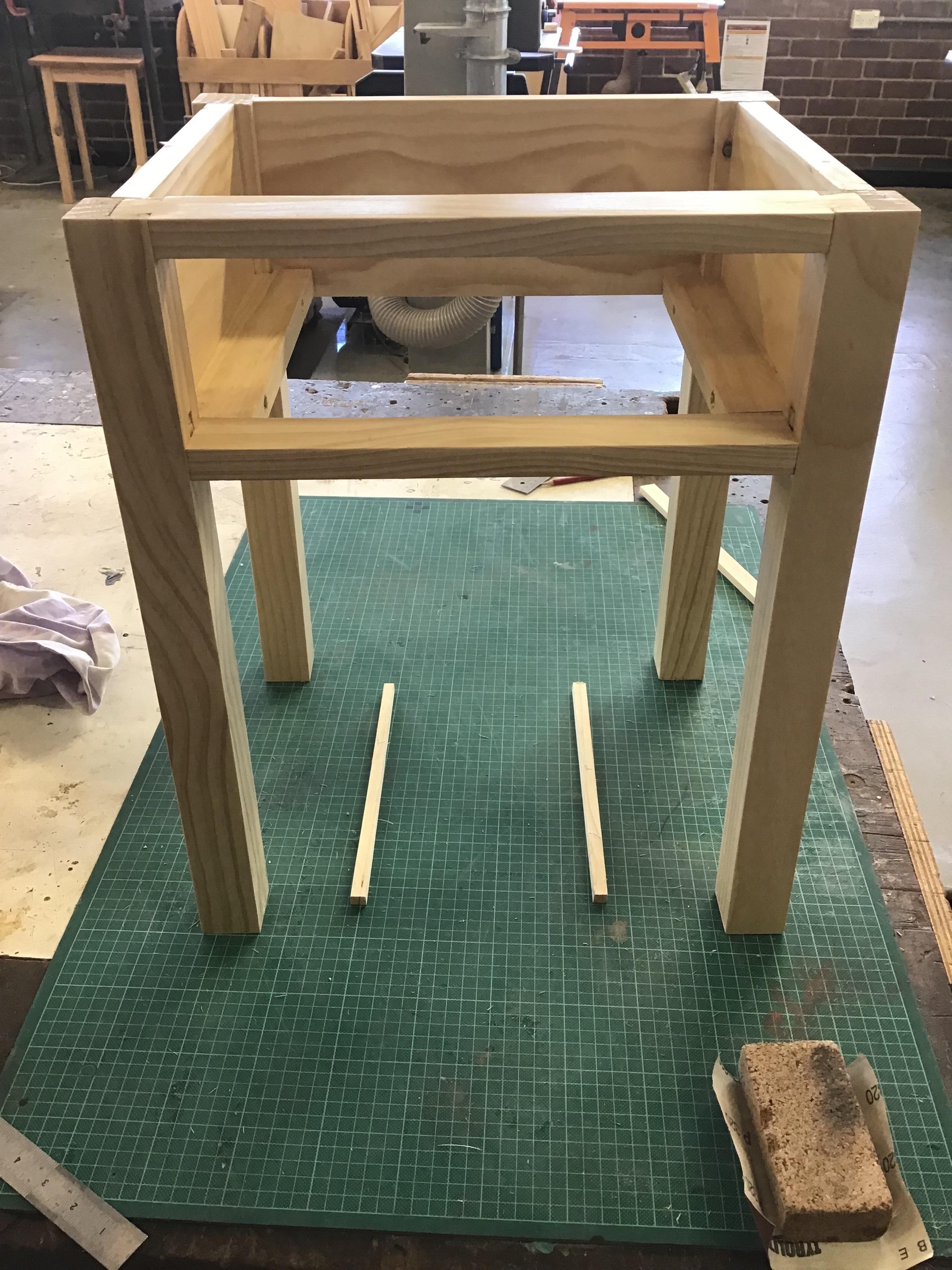

Drawer Runners and Supports

Screenshot 2022-07-15 153244.jpg

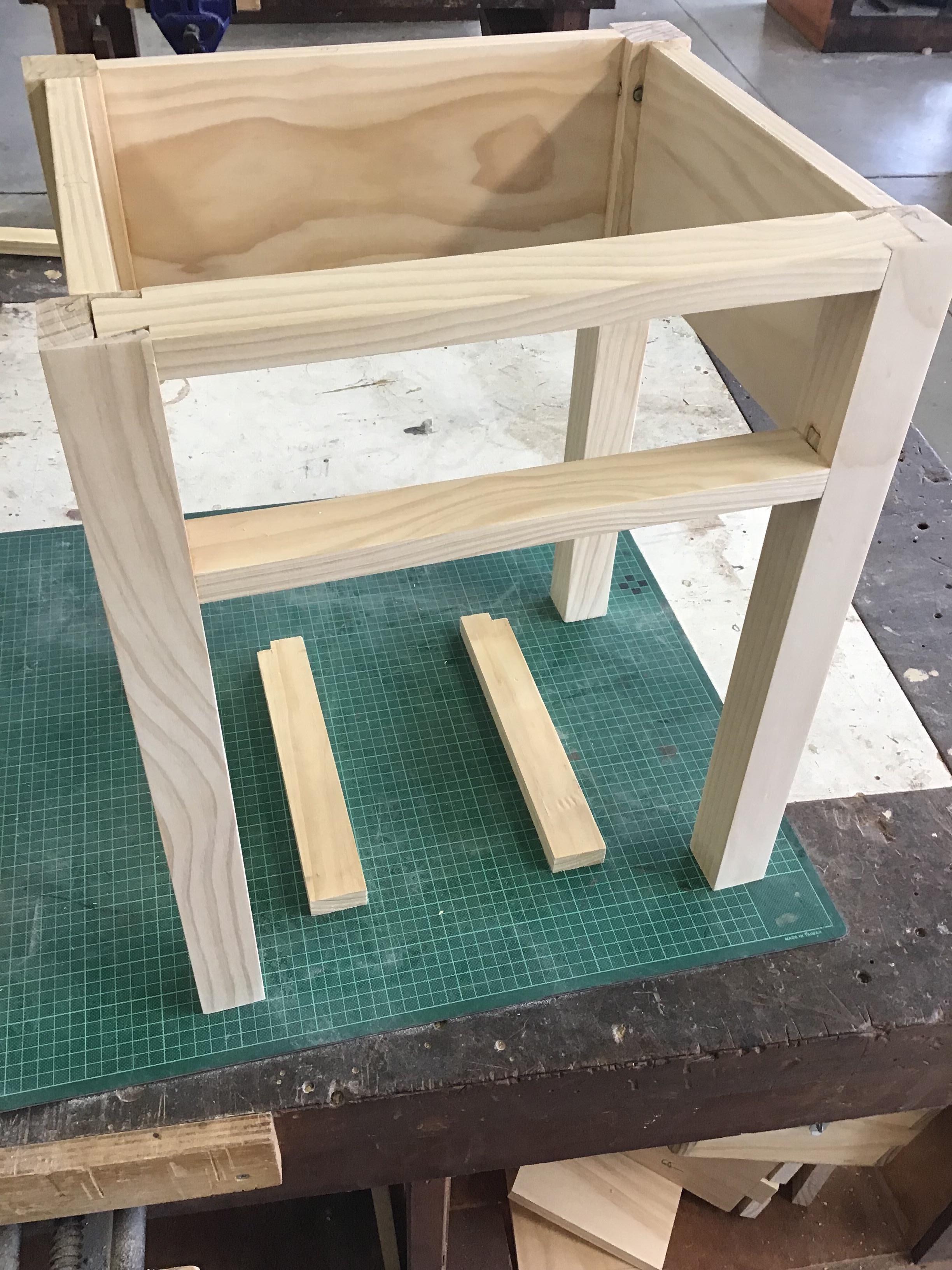

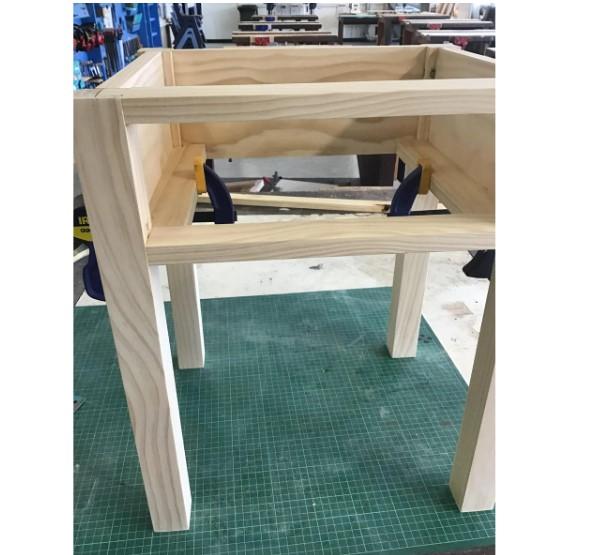

  • Glue and clamp drawer supports in place
  • Glue and clamp draw guides in place

Make Table Top


Glue and clamp your tabletop material together

Cut to size

Sand

Complete any router edge treatments

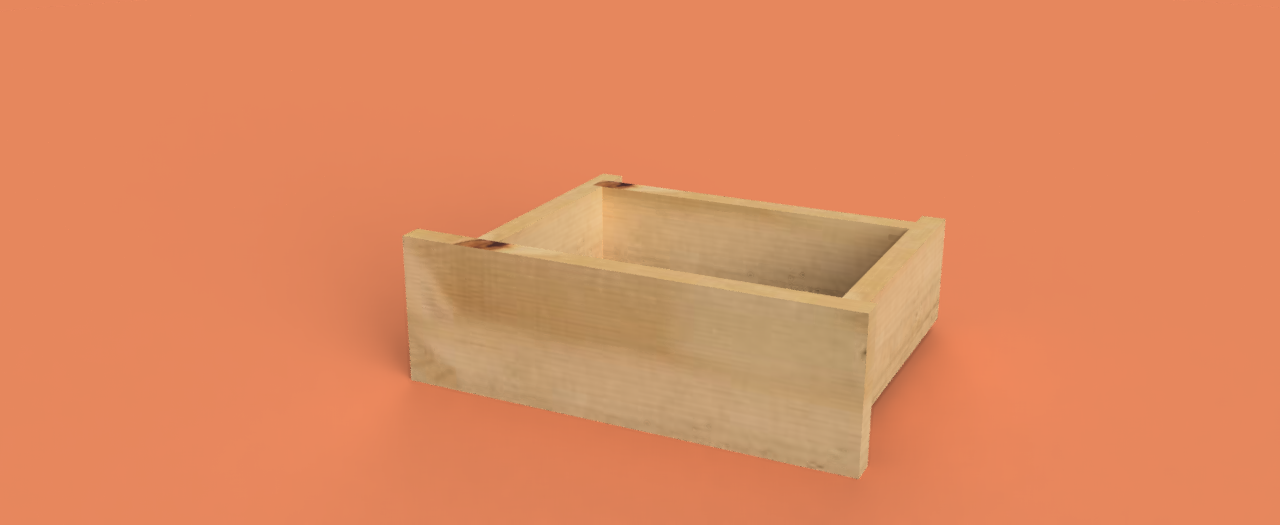

Drawer

  • Router out the housing trenches for drawer front and back
  • Glue and clamp parts together ensuring the back is above the trench
  • Check the drawer is square
  • Cut the base material to fit, the approx size given.
  • Cut the drawer front and screw it in place from inside the drawer
  • Attach the drawer handle
