Small Mold Design and Cell Phone Holder
by nicole_diaz3 in Craft > Digital Graphics
128 Views, 1 Favorites, 0 Comments
Small Mold Design and Cell Phone Holder

 04_06_2021 20_07_06.png)
We will do a small mold desing and cell phone holder with the program Autodesk Fusion 360.


We start with the cell phone support. First select create sketch on the plane X and Y.
We'll do it from right to left.
We will create 4 lines, two on the right and two on the left, all must have a slope of 63.4ยบ with a separation of 11.18mm between the two on the right and between the left fingers.
Between the lines of the right and left will be separated with a measure of 40mm.


In the two intersections that appear and use Fillet (MODIFY) with 20mm above and 10mm below. At the end of that part, continue with the left part with the measurements found in the image.and don't forget to set the curves. We finally finished sketch.



We extrude the figure at 90 mm.

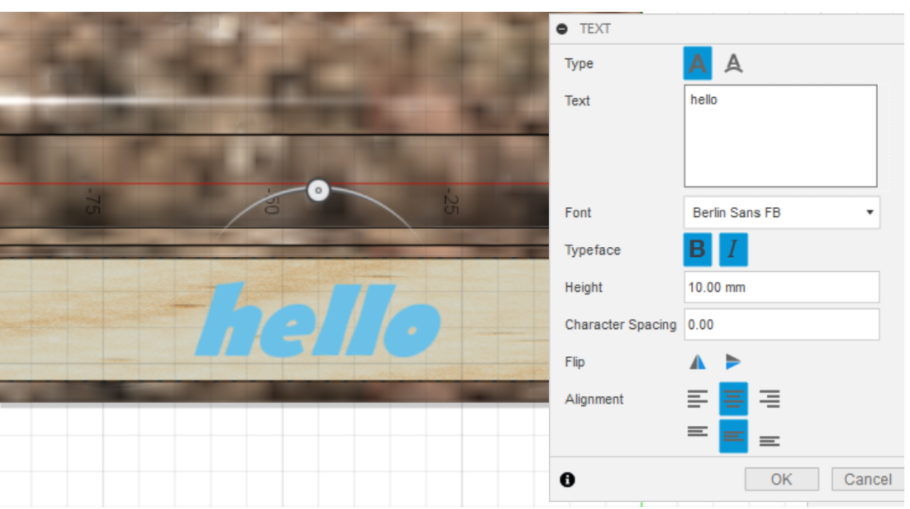

To place the letters we select where they will go and select again create sketch. Click text (create) and select where the letters will go.


We place the letters we want and then extrude the letters to 1mm.


Then we change the appearance with Appearance (Modify) as you like.

We continue the following work that would be the mold with design. Will make a 58 x 58 mm square to extrude at 2 mm.


Place the desired image using Canvas (INSERT) above the picture done. Use Fit Point Spline (CREATE) and trace the image. Extrude it at 2mm or -4mm depending on how we have placed the image, placing NEW BOdy in OPERATION.

.png)

We create a new sketch and use the function Proyect (CREATE), select the sides of the face where the image is located, apart we make a 62 x 62mm square at 2 x 2mm from the corner of the face where we are working.

 04_06_2021 20_07_06.png)
Extrude the edge with Extrude(CREATE) at 18mm up and 2mm down and you are done the mold.
