Small Joule Thief

by bananagirl in Circuits > Electronics

12187 Views, 47 Favorites, 0 Comments

Small Joule Thief

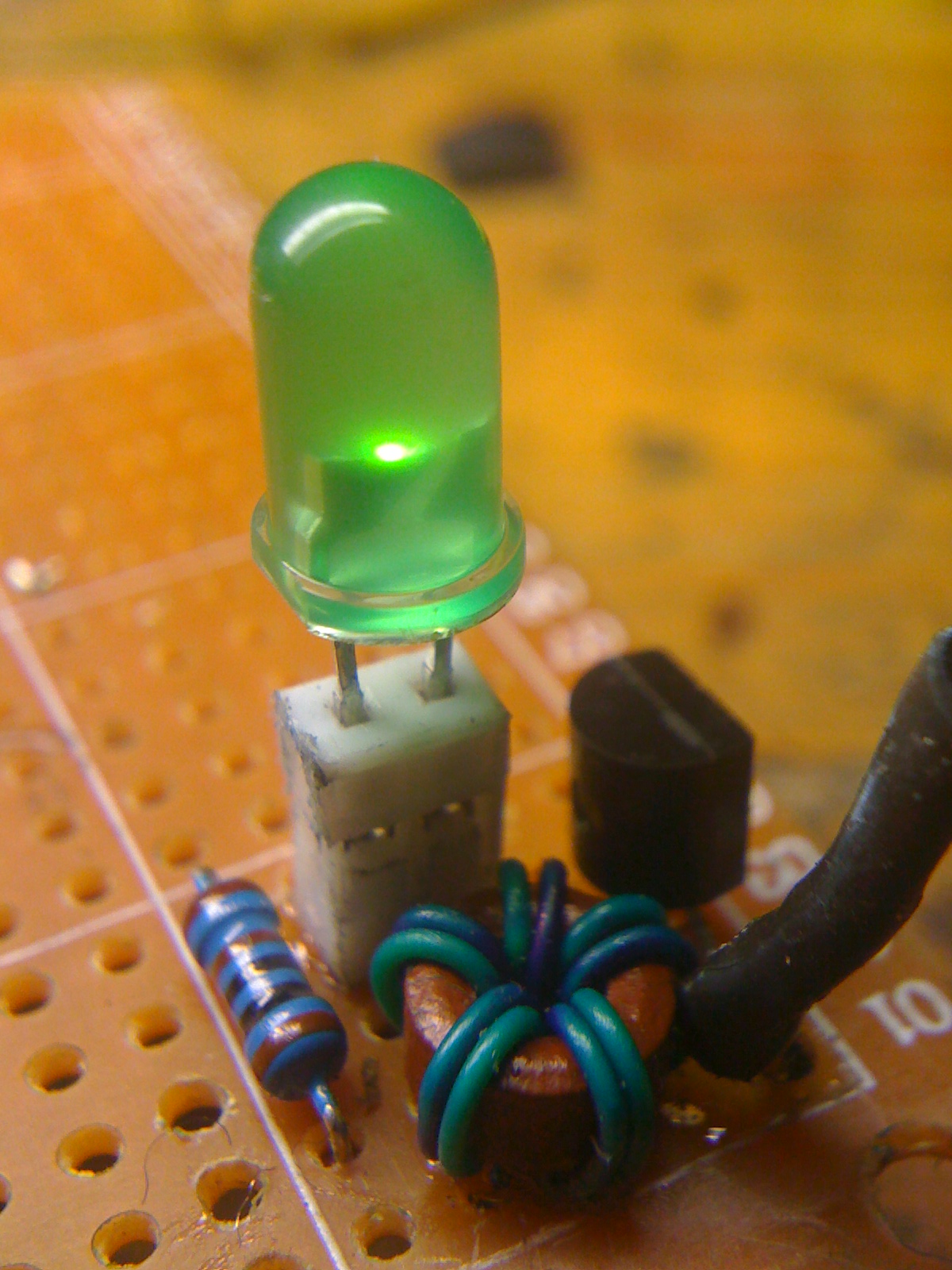

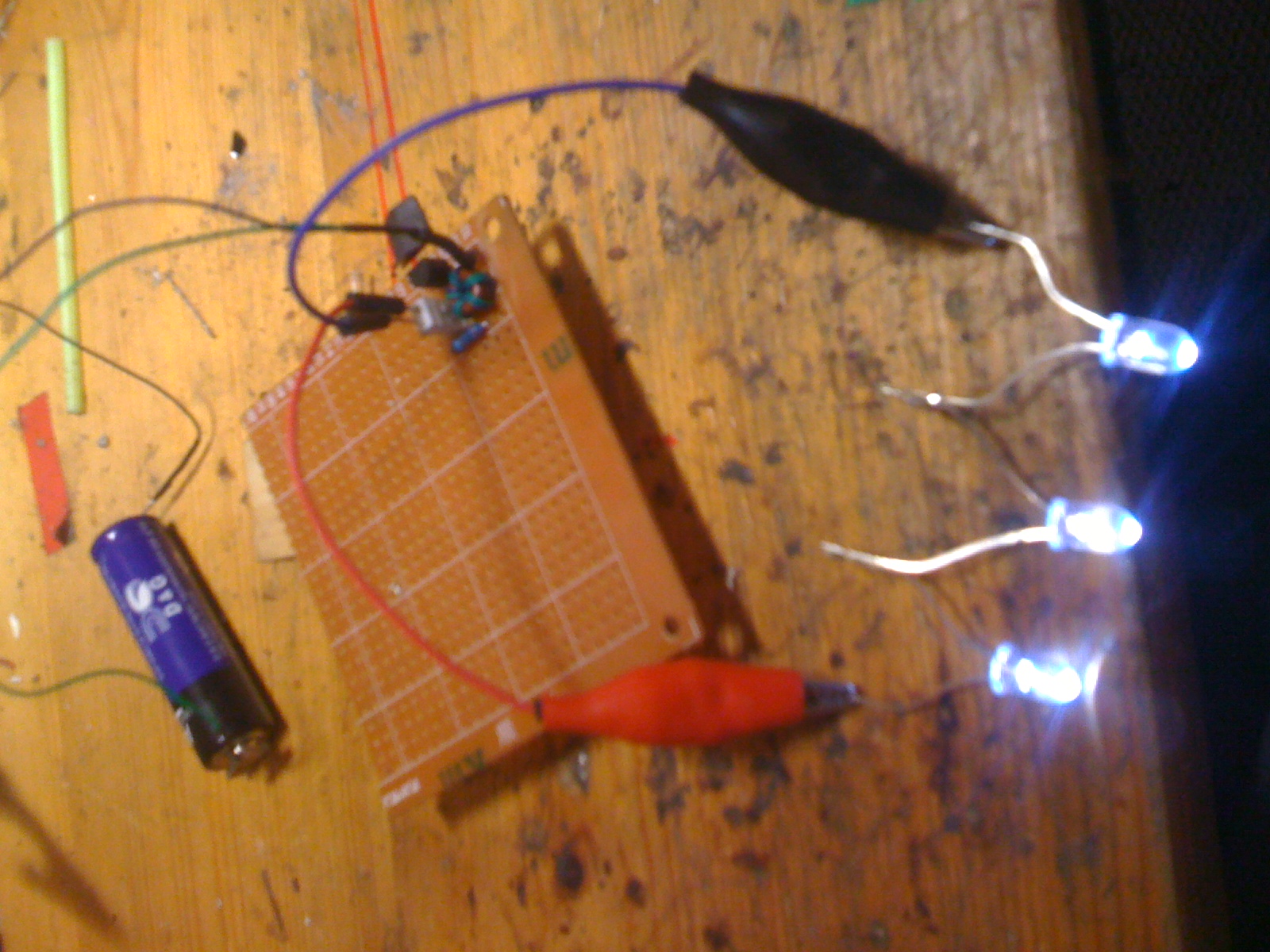

I saw a tiny joule thief here: http://www.bigclive.com/joule.htm.  I wanted to replicate the size, but leave the application open for use in different projects.  By following this excellent instructable: https://www.instructables.com/id/Make-a-Joule-Thief/ I was able to fit my circuit inside a 5x5 square of perfboard. It happily powers 3 leds in parallel.
