Small Backyard Makeover With Diy Pergola to Create Outdoor Living Room

Consider the overall size of the pergola, including the shade canopy/overhang. Also, determine the outside dimensions and the height. We decided the perfect size for our space would be 9 ft. by 12 ft. pergola. It should fit well over the furniture we chose.

The height of our pergola is 8-foot tall. The rafters on top will eventually add another 4 inches to the height. Keep in mind when determining the height of the pergola the method of mounting the structural post you will use. If you are mounting it with the concrete footing or using mounting brackets. If you are using concrete footing you will need an additional 2 to 3 feet of length for your post which will be in the ground.

Tools required

measuring tape, circular saw, Chop saw, Clamps, caulk gun, Mallet, drill, hammer, carpenter’s square, 4′ level, Quick square.

Materials needed

6 – 2x8X10 pressure-treated wood, 2″, 3″ galvanized drive screws, 10 – 2X6X12 pressure treated wood for the rafters, 4 galvanized steel post, brackets, Stain, Wood filler

Prepare the support beams and rafters for installation. The support beams attach to the posts and carry the load of the structure.

Screwed the post brackets into the pavers. Placed the 6×6 post in the brackets and screwed the post onto the brackets. Remember to check that the post is plumb using a four-foot level as you go.

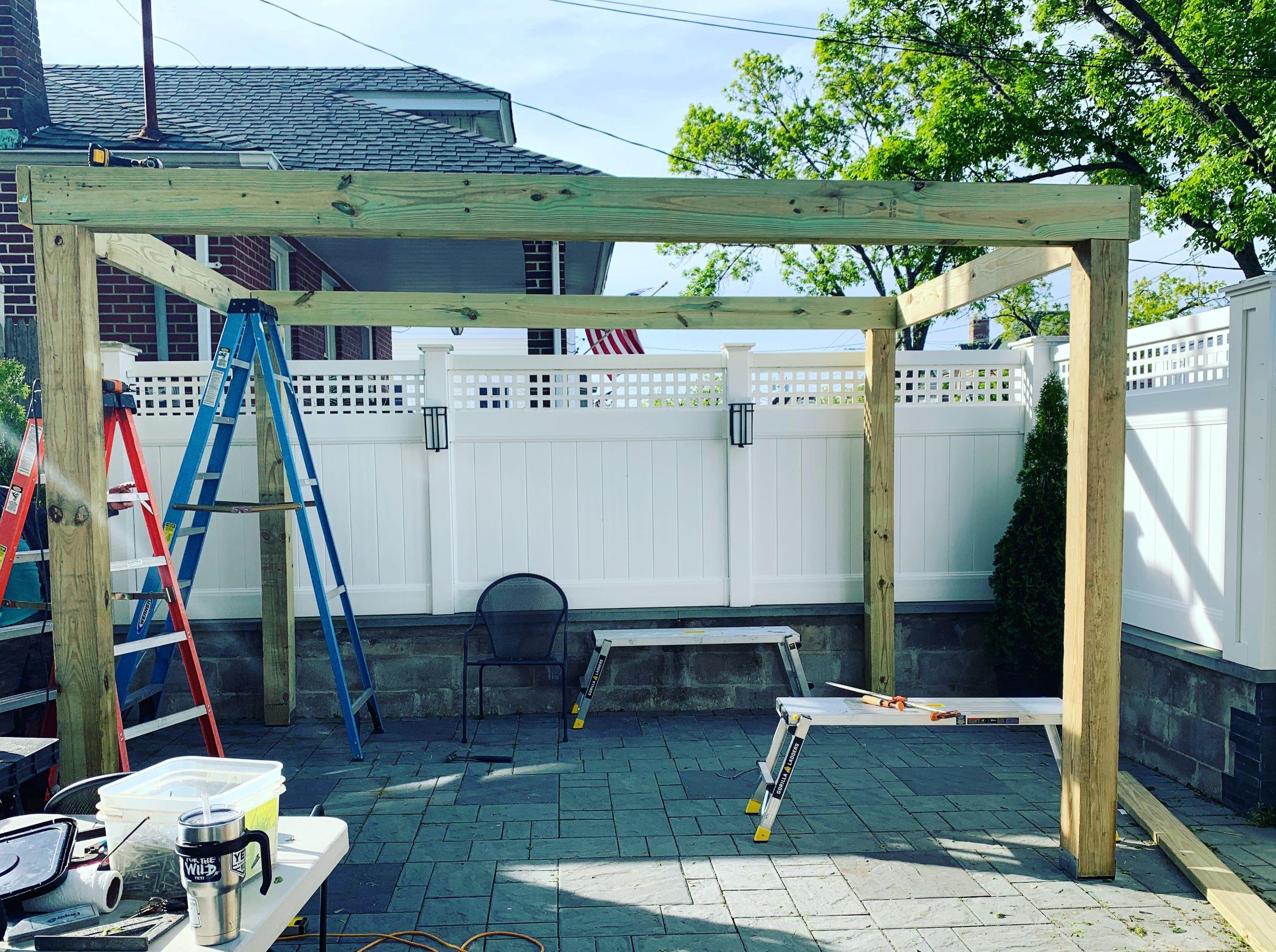

We installed the 2 x 8 beams by placing them within the notches of the 6 x 6 post. Then fastened the beams together on either side of the post – an inner and outer beam.

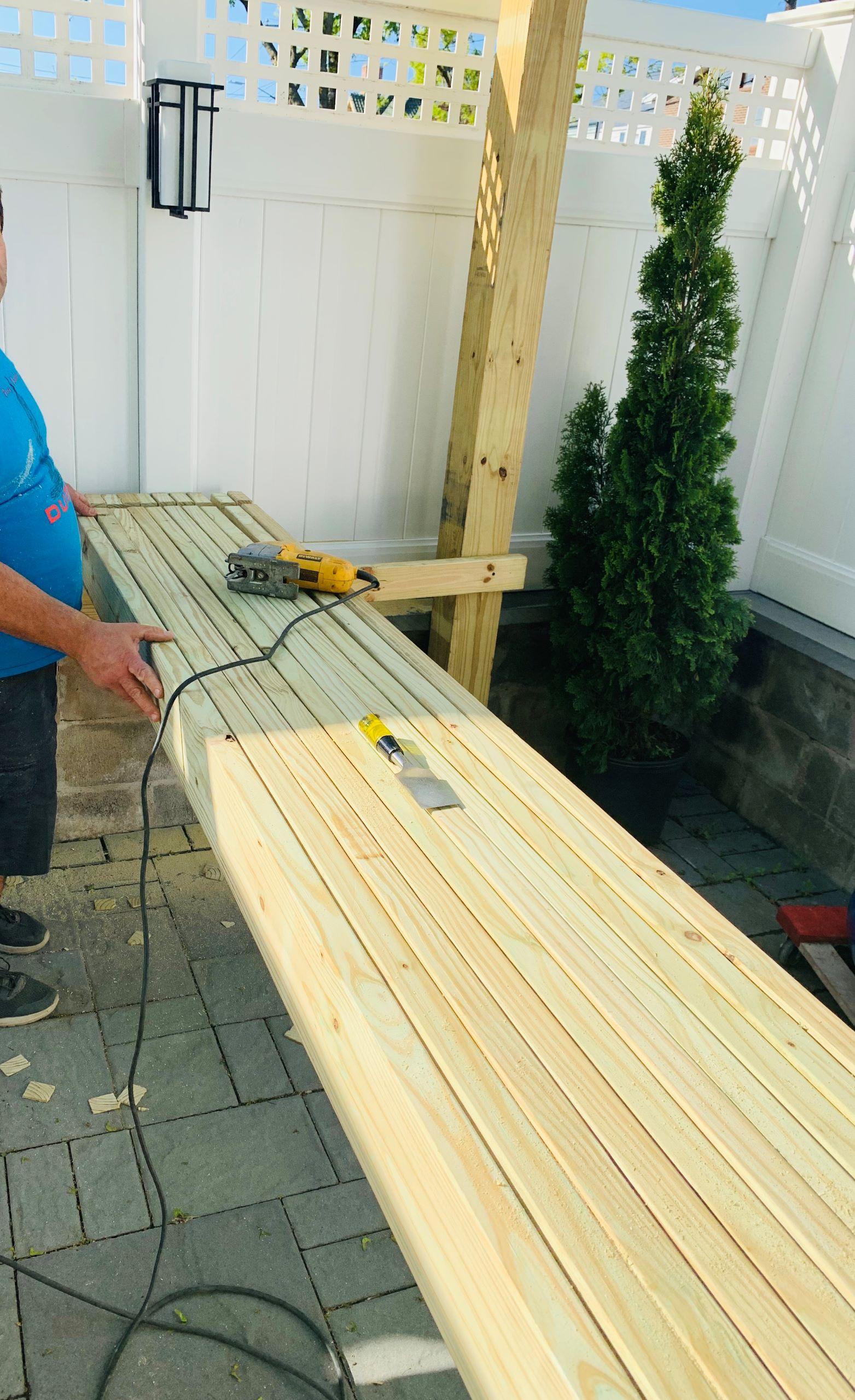

Instead of screwing the rafter atop of the beams, notch out the rafters for them to securely wedge between the beams. First, sandwich all the 2 X 6 rafters, and using a circular saw make several cuts across and notch out the wood.

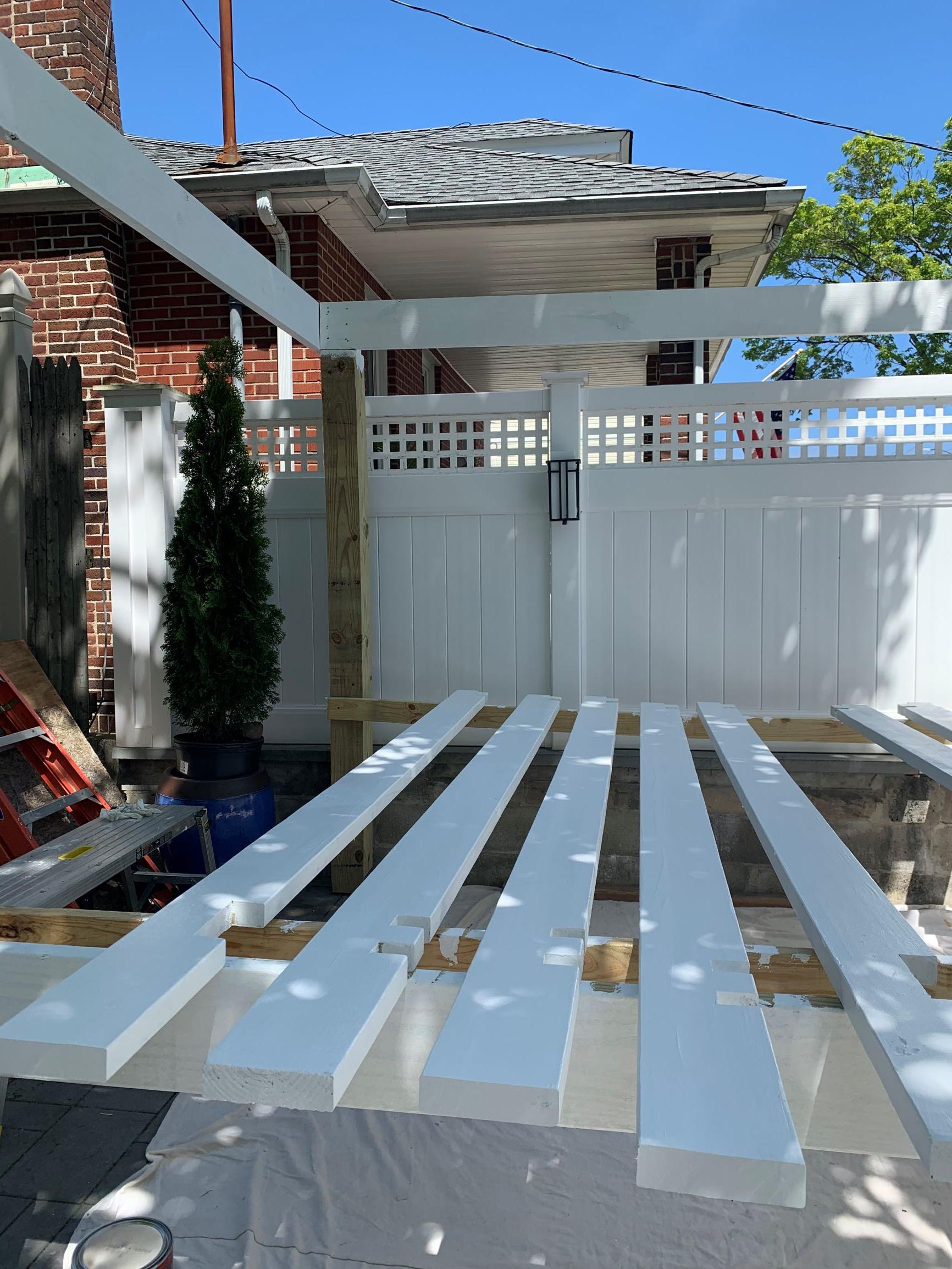

Placed the rafters snug into place and fastened with 4″ screws for added stability. Also, this will also keep all the rafter aligned. You can use a rubber mallet to pound into place.

We used white stain instead of paint for more durability.

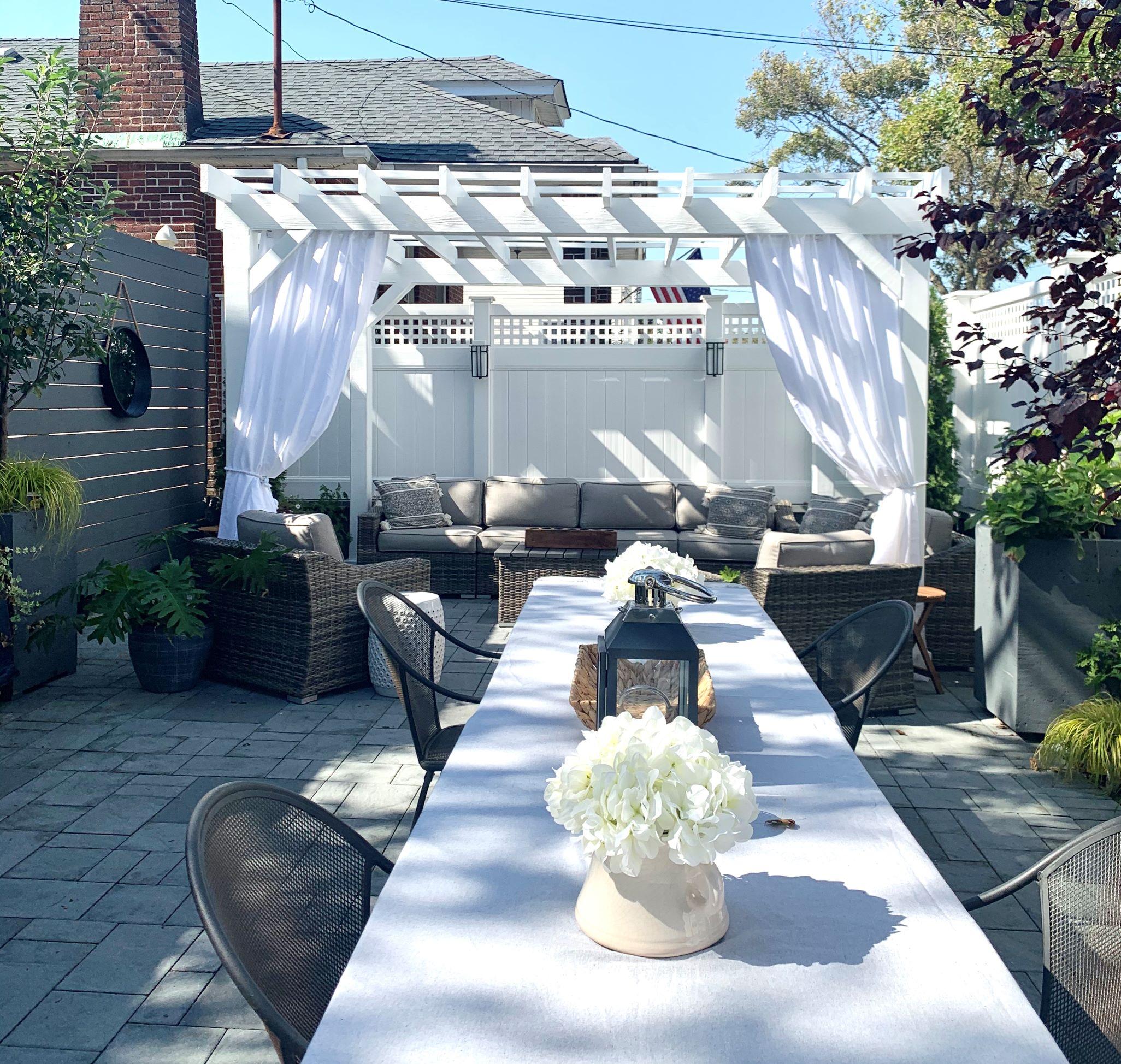

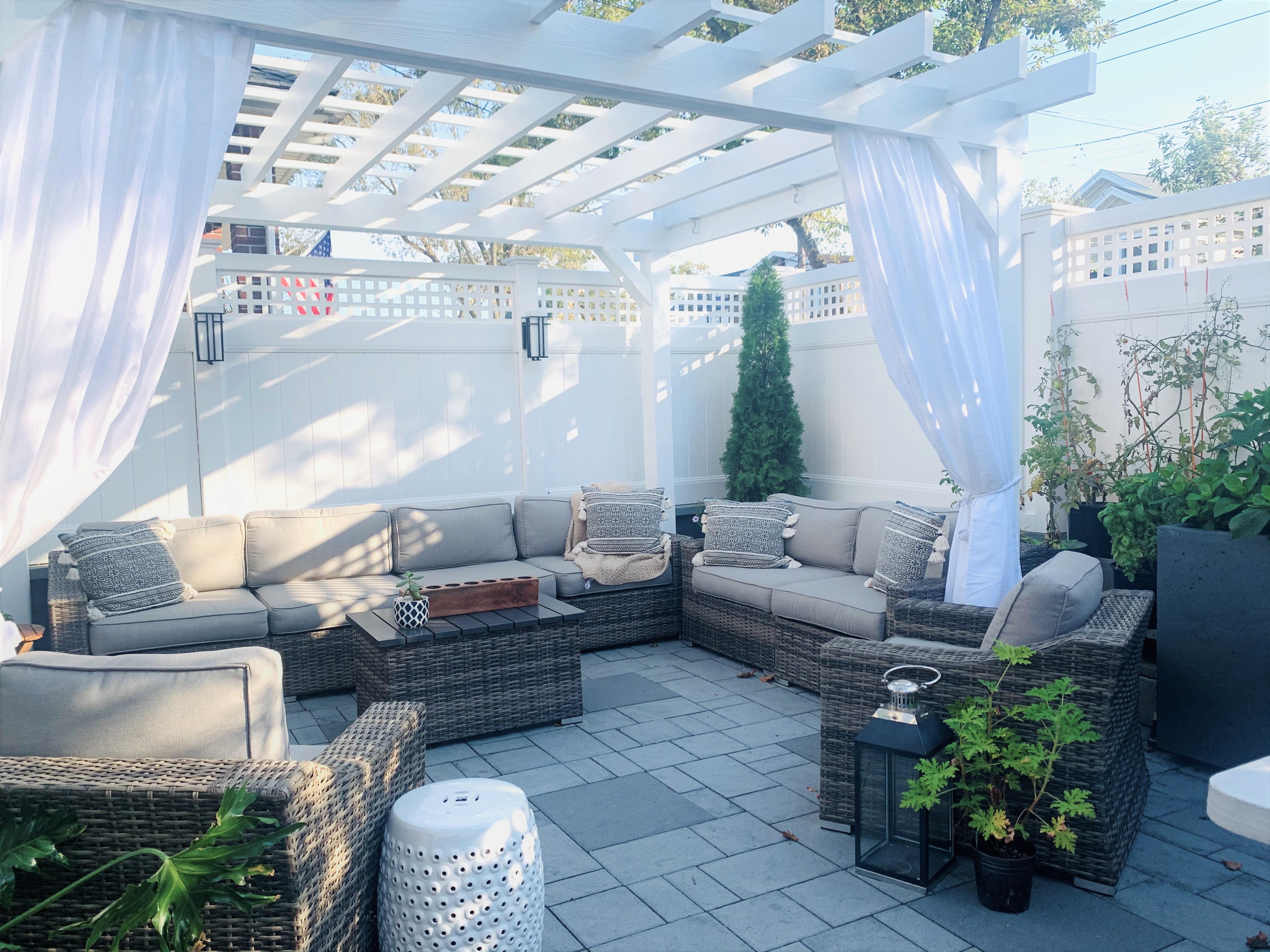

Pergolas are the perfect solution for creating a cozy and inviting backyard space.

Either way, pergolas will help you regardless of the season by adding style and shelter from the elements. Add your own style to make it your own!
