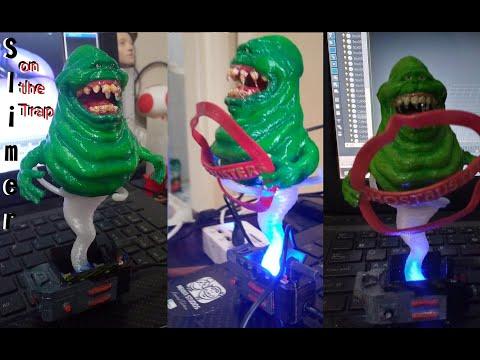

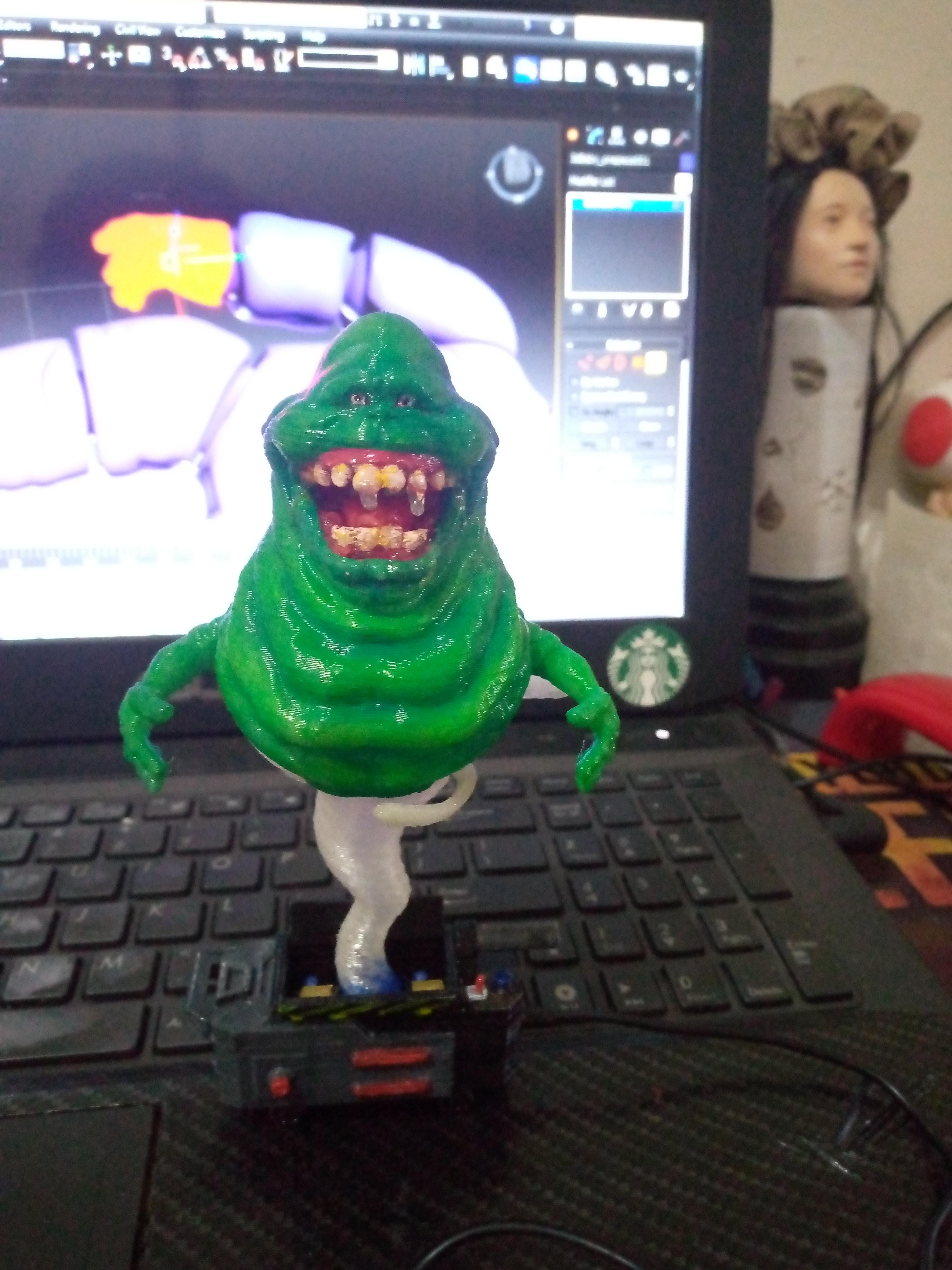

Slimer on the Trap With Led Effect

Make your decoration Halloween table with Slimer Figure trap on Ghosbuster device with blue led light effect.

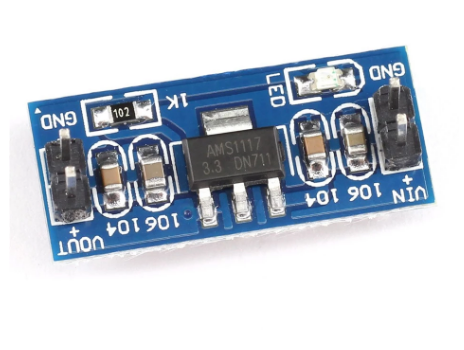

• AMS1117 power model https://www.amazon.com/DOITOOL-AMS1117-Converters-Voltage-Regulator/dp/B08R55PGWX
• 3d printer
• Filament Pla+ tansparant, green (use glow in the dark is better)
• STL file Here
• the file stl for slimer download at my thingiverse because the size file more than 25Mb so can uploading in this page : https://www.thingiverse.com/thing:5037901

#Drawing 3d models or custom

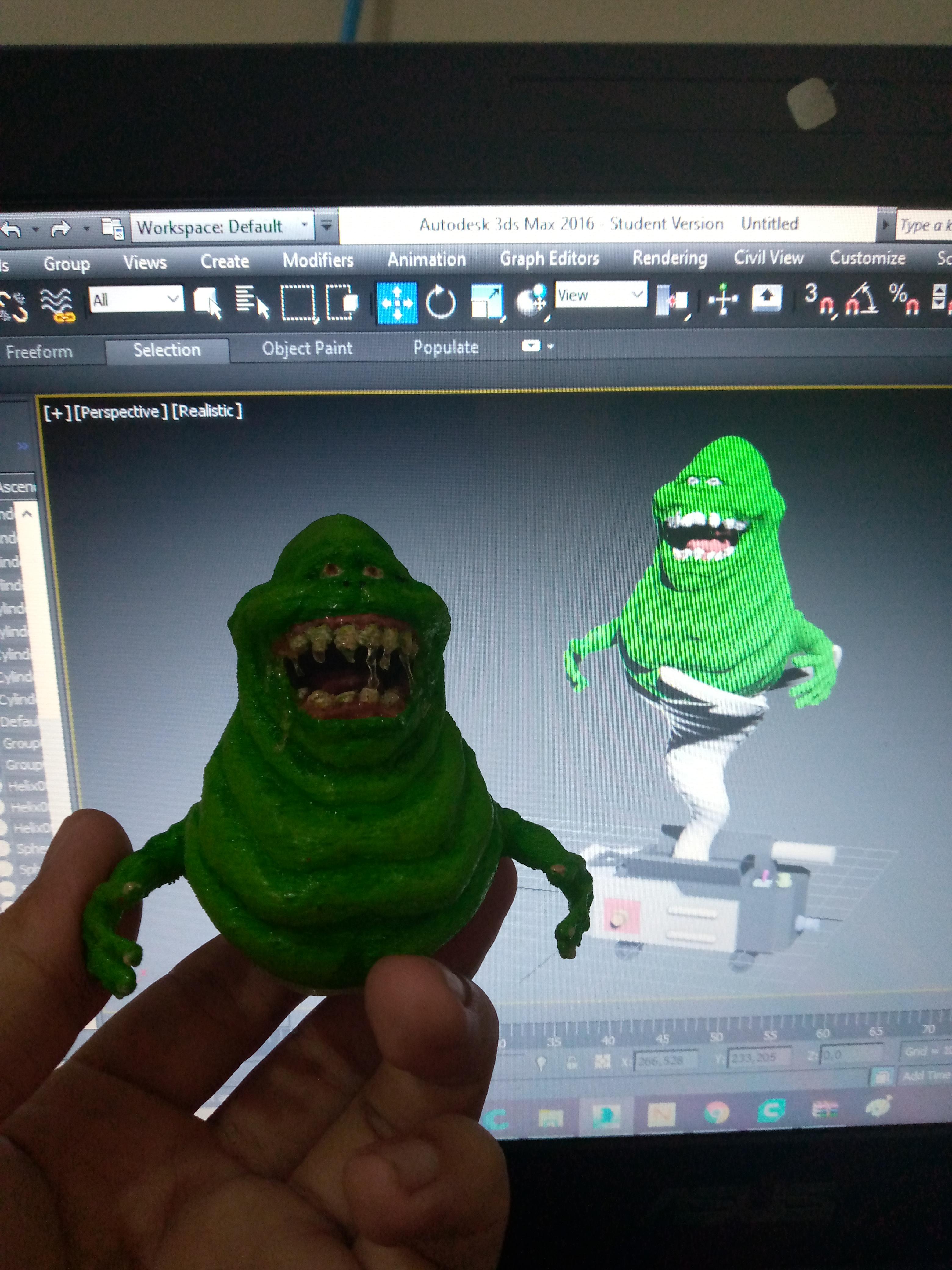

• First, we make 3d model you can use any 3d aplication from autodesk, i use a 3ds max is a great 3d aplication, simple and easy to use for beginer or professional.
• i will make a Slimer Figur who traped on Ghostbuster device trap with light effect use a simple electronic with usb powered.

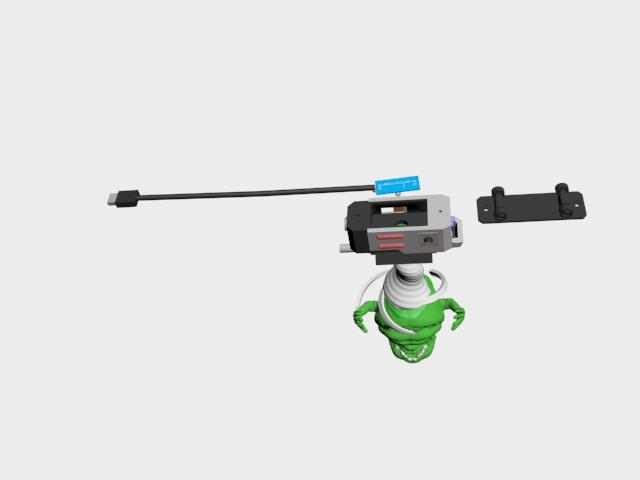

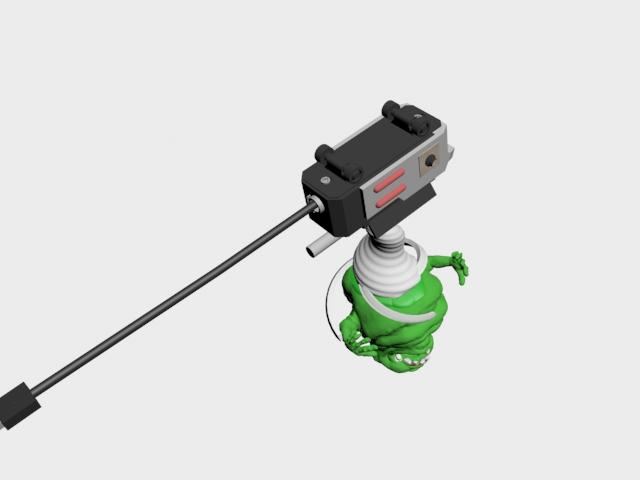

• drawing main Character, base and accesories. the file has ready you can download and print all, use transparant filament for tornado look like on the picture is making the light come show up. for charakter the bast use a green glow in the dark and any color for another part.

#Print all part

• download all stl file and print in u can use FDM 3d printer or Sla 3d printer

#Painting

• paint the 3d print result, you can use Acrylic paint can be manual brush or using airbrush
• Paint them with right color except the part that looks like a tornado let it transprent

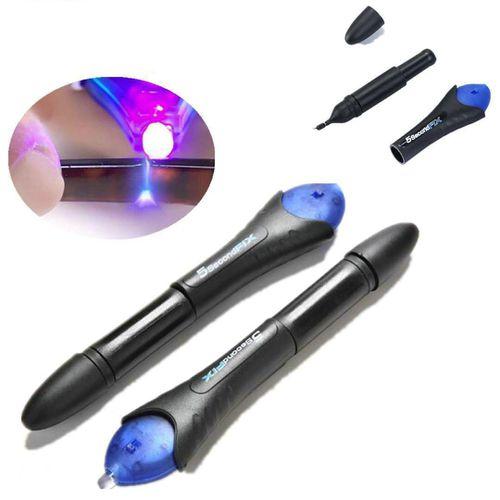

• add transparent resin glue to the teeth of the slimer and let it melt a little, it will add a nice wet disgusting effect.

#Install Led

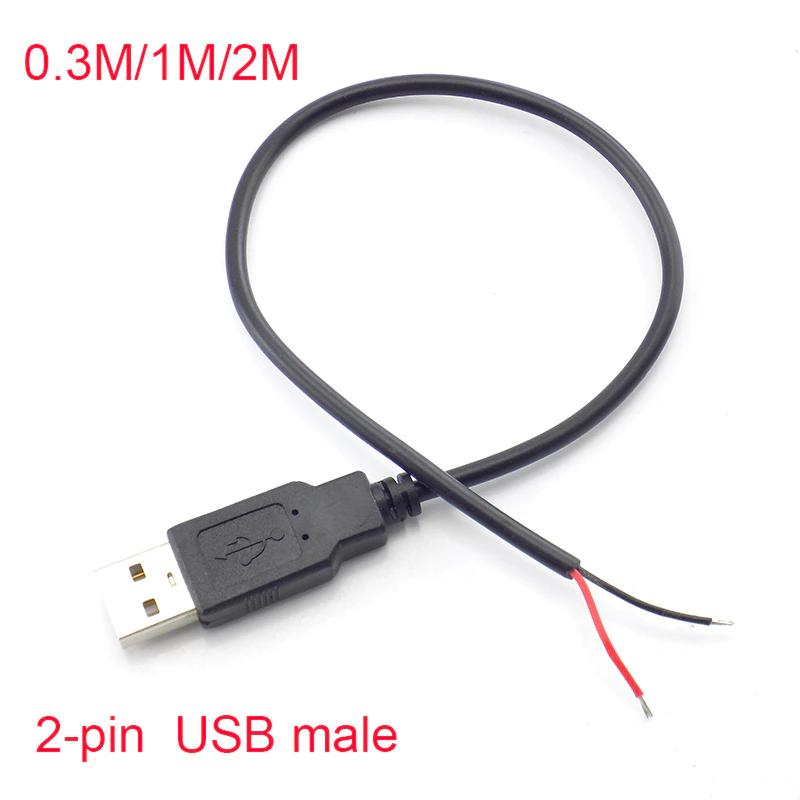

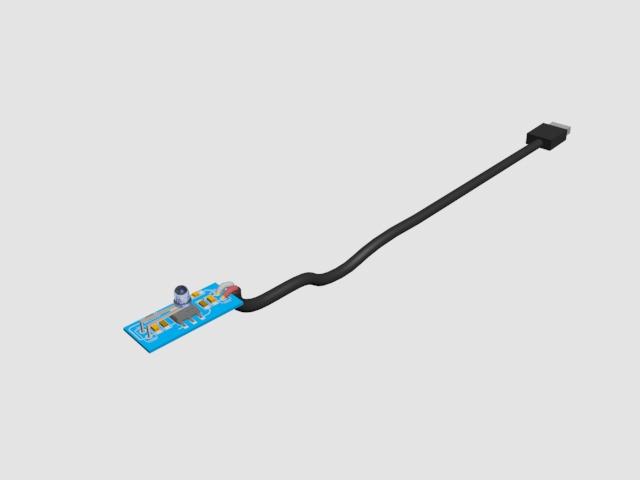

• prepare the ams 1117 modul, 3mm blue LED bright light and usb cable if the cable havw 4 wire pick the red little wire as Acc and little black as ground.
• plug the positive lead into the ams1117 module output pin and the negative lead into the ams module negative output pin, use solder.
• plug the red wire on usb cable to acc input ams modul and black to gnd ams modul.
• install the AMS module and led into the trap box provided then close the trap box with the lid that has been made.

#All Done

• plug the Usb to the phone charger or your laptop and the led light will light up giving effect to the light tornado.

Thankyou , Eric Dirgahayu
