Sliding Wood Crate Storage

In this Instructable I'll show you how to make Sliding Wood Crate Storage. It's a perfect addition to any small or narrow closet to gain some extra space. And you don't need many tools to make it either!

Be sure to watch the video above, and if you like it please subscribe to my YouTube channel!

And if you think the project is cool I'd appreciate a vote up in the top right. Thanks!

Tools

• Miter saw
• Random Orbital Sander
• Cordless Drill
• 4' level
• Tape Measure
• Spray Paint Trigger Handle

Materials/Supplies

• (3) 18" Full Extension Drawer Slides
• (4) Large Wood Crates
• (1) Half Wood Crate
• (2) Small Wood Crates
• (2) 8' 1x4 pine furring strips
• Chalkboard Stickers
• 1-5/8 Wood Screws
• Wall Anchors

Affiliate links are provided for your convenience. Purchasing through these links helps support my site AT NO COST TO YOU and lets me share more projects and plans!

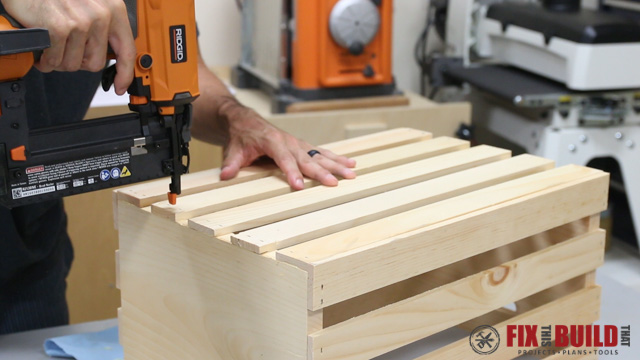

I started by strengthening the crates. I pried the bottom slats away then put glue on them for added strength. I put an extra brad nail in each slat to help it stat put and dry.

Next i cut 2 18" pieces from a 1x4 for each crate. I screwed them to the top and bottom of the right sides of the crate with 1-5/8" screws.

I painted the crates to give the closet some color. This trigger handle is an awesome addition to make spray cans perform better.

I cut 2 39-1/2" cleats from a 1x4 and mounted them in the closet.

I mounted the back one right in the corner with 2-1/2" screws. The front cleat went 18-1/2" from the back wall (to the front of cleat) and I attached it with wall anchors since I couldn't hit a stud.

I cut a space that was 6" by 18-1/2" and used it to mark the location for the slides on the crates. I drew a line on the top of the bottom of the spacer which gave me exactly parallel and spaced mounting lines.

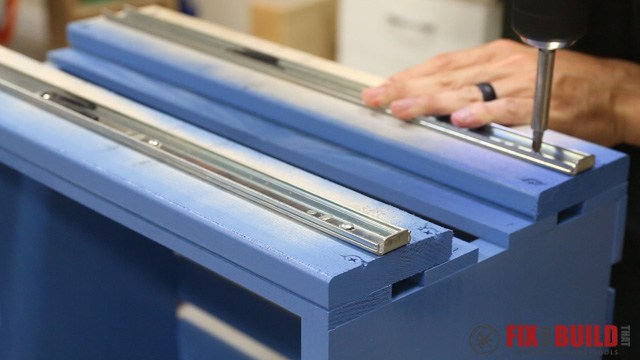

I separated the slides and installed the extension piece on the crates using the lines to center the slides.

Using the same spacer I marked the position for the drawer slides on the cleats. This means the slides will be lined up exactly with the crate-side slide parts when I install them.

I spaced the second and third set of slides 6" below the slide above it.

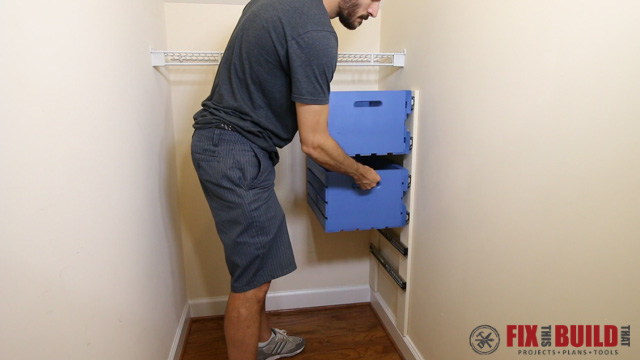

With all the slides mounted now I simply slide the crates into the mating slides on the wall.

I loaded them up and installed some labels on them for organization. It's worked out great and each crate can hold at least 20lbs. I did a weight test in the video if you'd like to see it here:

https://youtu.be/Kc-zof6oa6k

And if you want to see more great projects you can subscribe to my YouTube channel!
