Slide Puzzle

by Logan Bass in Workshop > 3D Printing

252 Views, 0 Favorites, 0 Comments

Slide Puzzle

Screen Shot 2021-09-14 at 2.43.10 PM.png

This is the Instructable that I made for Tinker and Play. The goal of this puzzle is to fit the numbers from 1-8 in order. You have to slide around the pieces and there is an open spot to do so. When you're done. Take out the pieces and shuffle it again. Endless fun that also has a lot of mind engaging. The next steps will show you how to make it.

Make a Base!

Screen Shot 2021-09-14 at 2.53.28 PM.png

Make a box 100mm by 100mm base and 9mm for height.

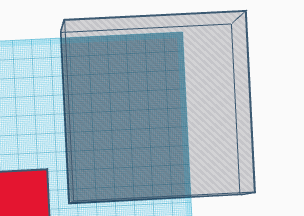

Make a Hole Inside the Base.

Screen Shot 2021-09-14 at 2.55.40 PM.png

Make the hole 90mm by 90mm and 8 mm for the height.

Align and Group.

Screen Shot 2021-09-14 at 2.58.22 PM.png
Screen Shot 2021-09-14 at 2.59.04 PM.png
Screen Shot 2021-09-14 at 2.59.13 PM.png

Align both of the base and hole together, as shown in the photo. Then, after aligned, raise the hole by 1mm at the top. After that, group them together.

Making the Puzzle Pieces

Screen Shot 2021-09-14 at 2.43.10 PM.png

Create a new box and make it 3mm by 3mm and 6mm in height. Then, copy and paste it until you have 8 boxes. Then add numbers from 1 to 8 and make the numbers 4mm above the boxes. Align, group each box until they are all finished. Spread them out and print, you're finished!
