Slats Toy Chest

by Troubah in Workshop > Furniture

3720 Views, 40 Favorites, 0 Comments

Slats Toy Chest

Coffre fini.jpg

When I became an uncle I decided to offer something special to my nephew. Something that he could keep for years and that he could still use even though he's growing up. Making such a gift when you have no money is tricky so I decided to build a chest made of slats I could find (for free) in the streets.

Almost everything I needed for this project was gleaned on the street (I just bought the glue, paint and varnish). The tools are pretty standard so I guess everybody could build this kind of chest.

It was the first time I had to build something like this. I had doubts about how it would look like considering the lack of experience, the lack of space and the tools I used. But I tried it anyway and I'm very pleased with how it turned out.

What You'll Need

FOR THE CHEST

  • Bed slats
  • Planks (the thickness depends on how big you want the chest to be)

FOR THE COVER

  • Plywood
  • Wooden strips
  • Hinges
  • Brackets

ALL OF THIS ASSEMBLED WITH

  • Wood glue
  • Screws

USING

  • Saw (really bad hand saw for me)
  • Drill
  • Screwdriver
  • Clamps (pretty big ones)

Gather and Cut the Slats

lattes rue.jpg
Lattes coupées.jpg

First, I drew every faces of the chest. Once the pattern choice was made, it was easy to know how many slats and what kind of pieces I would need later. This also gave me the size of the chest : 50cm x 35cm x 35cm.

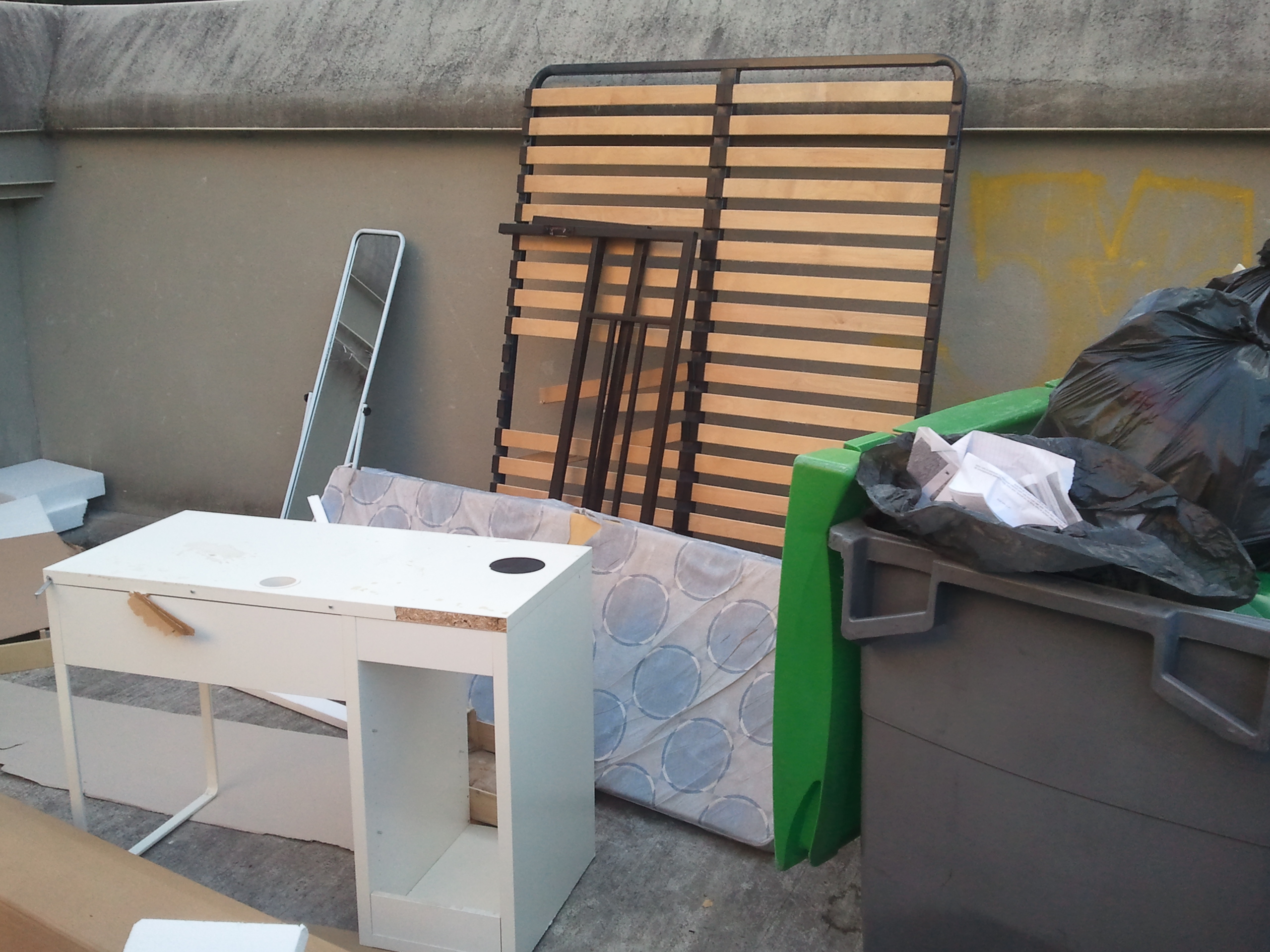

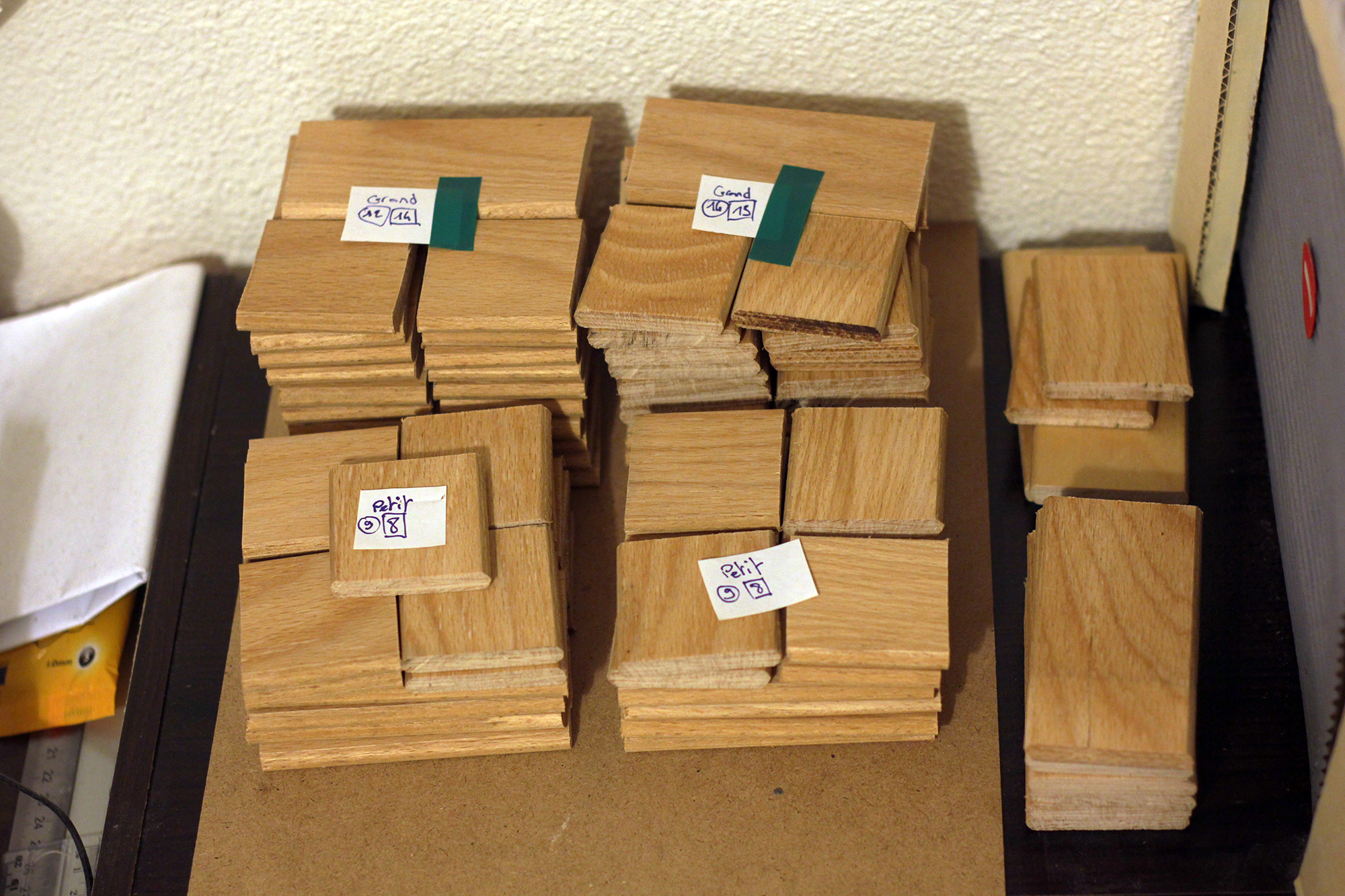

As I said, a lot of stuff was found on the streets. Slats are a common item, I even had the luxury to pick the pretty ones ! Then, all I had to do was cutting the slats and organizing them in little piles.

Make the Base

Base coffre.jpg

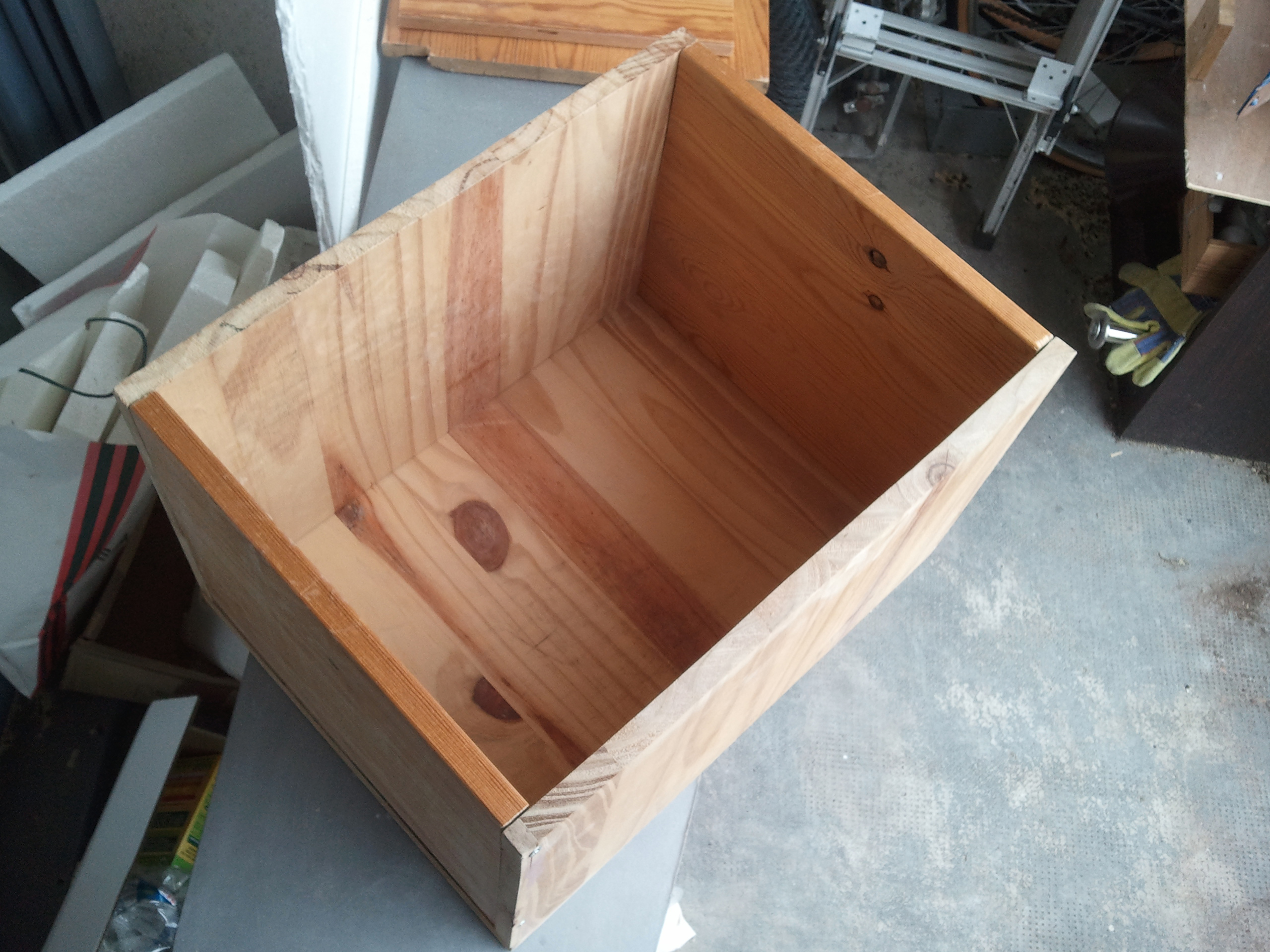

I mesured the planks and cut them. I then screwed them together to create the base of the chest on which to glue the slats later.

**Assemble the planks the way you want but make sure the surface is even so the slats will be leveled.**

Add the Slats to the Base


Once the base was done, I applied glue on one face then positioned the slats of one pile (according to my drawing, remmember "Step 1"?).

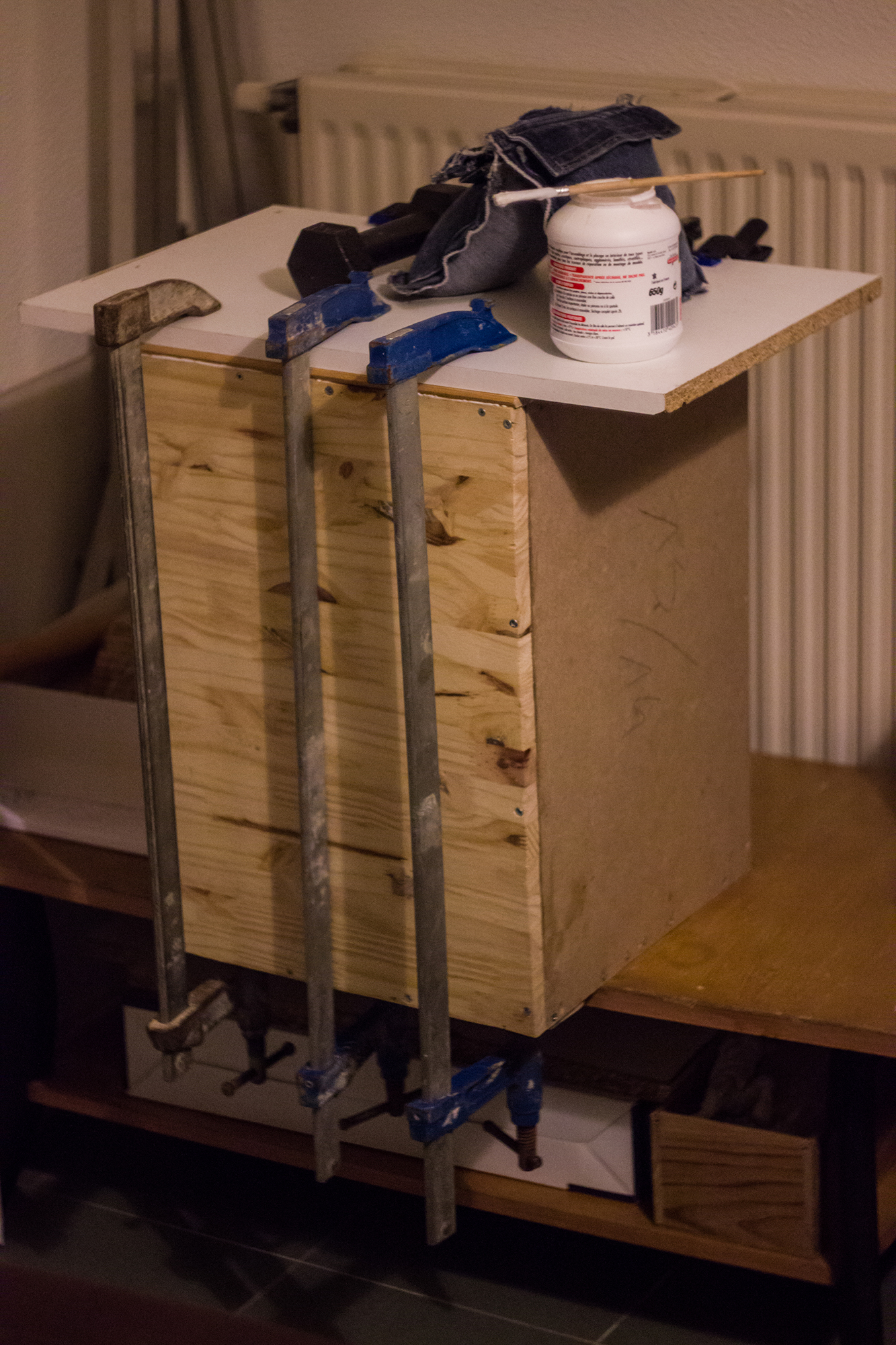

When I was certain the pattern was good I placed a plank on top of it and clamped it firmly. This way the pressure was the same for all the pieces of wood.

Time to dry !

**I usually let it dry overnight to make sure everything is secured.**

And the next day I had to repeated the process until all the faces were completed.

Build the Top Cover

couvercle 01.jpg
couvercle 02.jpg

For the cover, I made a frame with wooden slips on which I screwed a plywood plank. I used brackets on each corner but screws or even nails may be enough.

Then I placed and glued the uncut slats on the plywood plank and let it dry overnight.

When the ensemble was strong enough, I was able to cut the excess on each side.

Finish, Paint and Varnish

enduit coffre.jpg

I've been using different kind of woods and planks and wanted to harmonize the look so I applied some wood filler on the inside of the chest. I did the same for the inside of the cover and also add white paint on the sides.

Then I applied several coats of varnish to enhance the wood veins.

Coffre fini (dos).jpg
Coffre fini.jpg
Coffre fini (int).jpg

The last step was to screw the hinges, and I was finally done !

Filling the chest with all the toys laying around and now you can see your carpet again! Nice!
