Skull Sporran
![IMG_20160611_110512305.jpg](/proxy/?url=https://content.instructables.com/FWF/HJ8J/IPCUG9BC/FWFHJ8JIPCUG9BC.jpg&filename=IMG_20160611_110512305.jpg)
A few months back I decided I wanted to try making a custom Sporran to wear with my Kilts, and stumbled across this video:
Now, I don't know how to do any Metal Working like he did in this video, but I loved the idea and decided to make a Sporran from a Resin Skull.
I searched all over and found this decent Resin Skull on Amazon:
http://smile.amazon.com/Maymii-Anatomical-Medical-...
I had no clue how I was going to accomplish making a Sporran out the Skull, but I was determined to make it work!!!
Follow along as I created my new favorite Sporran...
Gathering Supplies
![IMG_20160606_223031347.jpg](/proxy/?url=https://content.instructables.com/F1Y/3SWS/IP739175/F1Y3SWSIP739175.jpg&filename=IMG_20160606_223031347.jpg)
![IMG_20160422_175522360_HDR.jpg](/proxy/?url=https://content.instructables.com/F1Y/A172/IP7390XI/F1YA172IP7390XI.jpg&filename=IMG_20160422_175522360_HDR.jpg)
First thing I needed to do after I found and ordered the Skull was to figure what other supplies i needed.
Skull: (http://smile.amazon.com/Maymii-Anatomical-Medical-...
In total I used the following items for the Build aside from the Skull:
- 1/8" Tempered Hardboard (Masonite)
- Black Suede Leather
- Silver D-Rings
- Silver Rivets (Double Cap)
- Contact Cement
- S-Biner: Micro Lock
- Silver Twisted Link Chain
- Large Snap
- Small Spike Rivet
I had the Tempered Hardboard and Black Suede on hand from a past project I worked on. The D-rings, Rivets, Snap, and Contact Cement I had in my Leather Working supplies.
I purchased the Silver Twisted Link Chain and S-Biner Micro Lock (pictured above) from a local Home Improvement Store.
Time for Assembly...
Splitting the Skull!
![IMG_20160422_180433647.jpg](/proxy/?url=https://content.instructables.com/F74/YV98/IP7390XQ/F74YV98IP7390XQ.jpg&filename=IMG_20160422_180433647.jpg)
![5759bc834936d4ea0f000463.jpeg](/proxy/?url=https://content.instructables.com/FFH/RI0R/IP739678/FFHRI0RIP739678.jpg&filename=5759bc834936d4ea0f000463.jpeg)
![IMG_20160423_134542704.jpg](/proxy/?url=https://content.instructables.com/F7Z/COMO/IP7390Y5/F7ZCOMOIP7390Y5.jpg&filename=IMG_20160423_134542704.jpg)

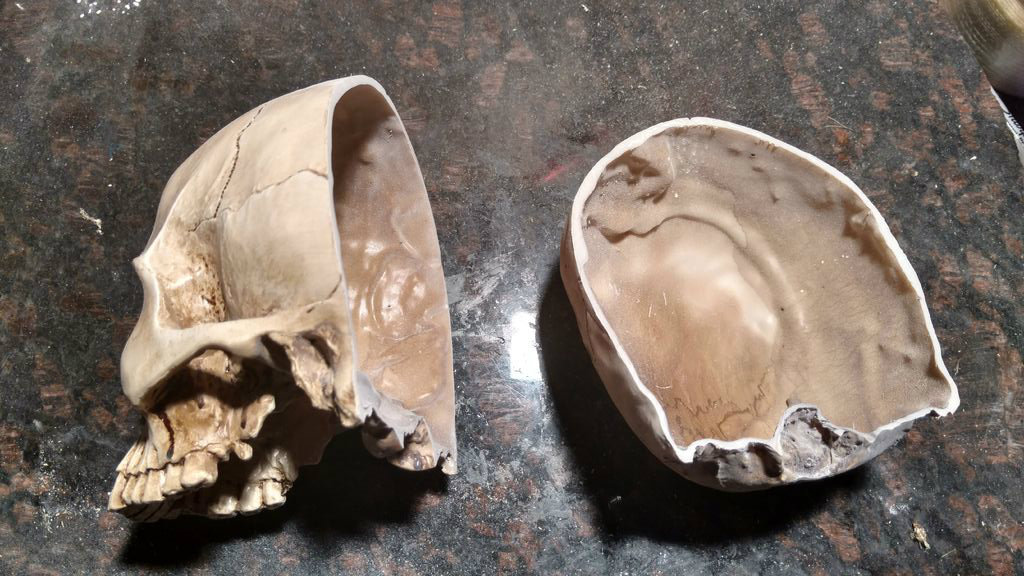

First thing I had to do was decide where I wanted to Split the Skull in half.
I wanted a large holding capacity, but also didn't want the Skull to protrude too far in front of me.
I decided to split the Skull right behind where the "cheek-bone" re-attached to the main Skull.
I used my Rotary Tool with a Cutting-Disk on a low RPM to slowly cut through the skull.
(it almost seemed like I was dissecting an actual skull and was both creepy and cool :) )
Creating the Backing
![IMG_20160423_134832584.jpg](/proxy/?url=https://content.instructables.com/F6I/R0W0/IP7390YE/F6IR0W0IP7390YE.jpg&filename=IMG_20160423_134832584.jpg)
![IMG_20160423_134842030.jpg](/proxy/?url=https://content.instructables.com/FTW/VQZ4/IP7390YG/FTWVQZ4IP7390YG.jpg&filename=IMG_20160423_134842030.jpg)
![IMG_20160423_135447864_HDR.jpg](/proxy/?url=https://content.instructables.com/FBS/DD6J/IP7390YK/FBSDD6JIP7390YK.jpg&filename=IMG_20160423_135447864_HDR.jpg)
![IMG_20160423_140042832_HDR.jpg](/proxy/?url=https://content.instructables.com/FKP/06CU/IP7390YL/FKP06CUIP7390YL.jpg&filename=IMG_20160423_140042832_HDR.jpg)
I knew that I would need a fairly firm back for the Sporran and decided to use 1/8" Tempered Hardboard (Masonite) for the backing.
First I placed the Skull on the Hardboard and traced it out. I then cut out the basic shape leaving a little buffer in case I needed to adjust something.
After the rough shape was cut, I sanded as needed to get the exact shape I wanted.
Attaching Backing
![IMG_20160501_173150960.jpg](/proxy/?url=https://content.instructables.com/FID/6A3H/IP7390Z7/FID6A3HIP7390Z7.jpg&filename=IMG_20160501_173150960.jpg)
![IMG_20160501_174041564_HDR.jpg](/proxy/?url=https://content.instructables.com/F9N/JRUM/IP73911X/F9NJRUMIP73911X.jpg&filename=IMG_20160501_174041564_HDR.jpg)
![IMG_20160507_110239864_HDR.jpg](/proxy/?url=https://content.instructables.com/F3F/IA42/IP739120/F3FIA42IP739120.jpg&filename=IMG_20160507_110239864_HDR.jpg)
![IMG_20160507_110740088_HDR.jpg](/proxy/?url=https://content.instructables.com/F0L/OPK3/IP739125/F0LOPK3IP739125.jpg&filename=IMG_20160507_110740088_HDR.jpg)
![IMG_20160507_110959715.jpg](/proxy/?url=https://content.instructables.com/FT9/R19Q/IP73912T/FT9R19QIP73912T.jpg&filename=IMG_20160507_110959715.jpg)
After I got the Hardboard Cut I started to run into my first of many challenges I had not thought of...
Challenge 1: With the Thickness of the Suede backing, when I wrap it, the back will be bigger than the Skull.
Solution 1: Shave a bit of the Hardboard off to accommodate the thickness off the Suede.
I used Contact Cement to attach the Suede to the Hardboard, and after a night of drying it was on for good!
I then Wrapped the Suede around the sides of the Hardboard to give it a nice clean look. After this was complete I ran into my second challenge...
Challenge 2: How to get the back to pivot open without creating gabs for items to fall through in the bottom.
Solution 2: Trim all of the uneven 'points' off of the bottom of the hardboard to have a clean Pivot Point and I can use the bottom Suede as a 'hinge'.
As you can see in the 4th Picture when I tried to peel the Suede off of the Hardboard, they would not separate, and instead removed a layer of the Hardboard.
I did a Test-Fit and everything seemed as though it was working.
Sporran Chain Attachment
![IMG_20160605_152951102.jpg](/proxy/?url=https://content.instructables.com/F6Y/MEFQ/IP73913T/F6YMEFQIP73913T.jpg&filename=IMG_20160605_152951102.jpg)
![IMG_20160605_155735968.jpg](/proxy/?url=https://content.instructables.com/FEP/NBY4/IP739140/FEPNBY4IP739140.jpg&filename=IMG_20160605_155735968.jpg)
![IMG_20160605_160020821.jpg](/proxy/?url=https://content.instructables.com/FJ5/XWLC/IP739144/FJ5XWLCIP739144.jpg&filename=IMG_20160605_160020821.jpg)
I realized that after I got all of the backing items ironed out and was about to move forward again, that I had forgotten to attach the 'loop' for the Sporran Chain to the suede before I glued it to the Hardboard.
Challenge 3: Attaching the 'loop' to the Backing now that it is already glued to the hardboard.
Solution 3: Use Double-Cap Rivets to attach it.
I placed 6 evenly spaced holes into the leather 'loop' and then used a drill to make the same holes in the hardboard backing.
Once this was complete, I attached the upper Rivets, placed the leather strap with D-Rings that I had made under the 'loop', then attached the lower Rivets.
Everything was now secure, and I could create the Belt/Chain...
Creating the Belt / Chain
![5759c39d4936d4ea0f000484.jpeg](/proxy/?url=https://content.instructables.com/FSP/ORS0/IP739ADC/FSPORS0IP739ADC.jpg&filename=5759c39d4936d4ea0f000484.jpeg)
![5759c3bf4936d43f51000be2.jpeg](/proxy/?url=https://content.instructables.com/FC6/EZA8/IP739ADN/FC6EZA8IP739ADN.jpg&filename=5759c3bf4936d43f51000be2.jpeg)
![IMG_20160607_164300227.jpg](/proxy/?url=https://content.instructables.com/FF1/83CM/IP739192/FF183CMIP739192.jpg&filename=IMG_20160607_164300227.jpg)

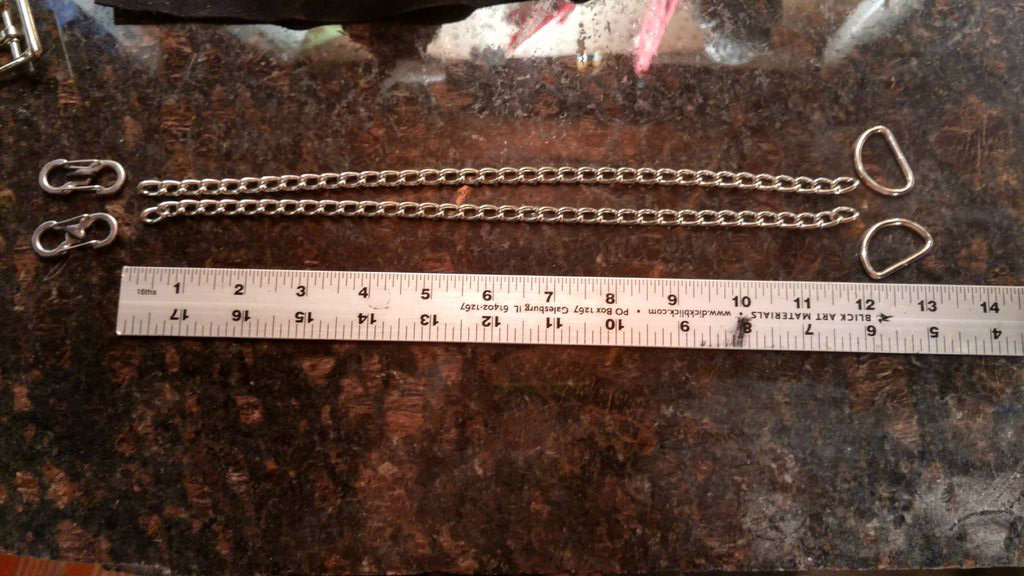

I cut two sections of chain just shy of 1'-0" long knowing that there would be a D-Ring on one side and the Micro-Lock Clips on the other.

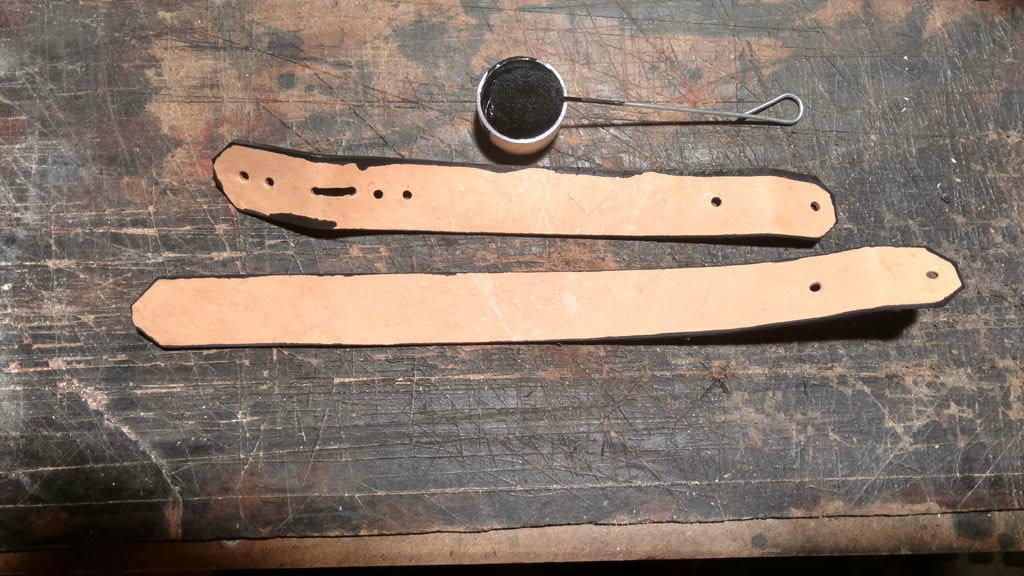

I then cut, punched all of the holes, and dyed two leather pieces to use as the back 'Belt'.
After assembly I checked the length against another Sporran Chain/Belt I have to make sure the length was correct.
Attaching the Back
![IMG_20160605_200700092_HDR.jpg](/proxy/?url=https://content.instructables.com/FYF/JOV7/IP73914V/FYFJOV7IP73914V.jpg&filename=IMG_20160605_200700092_HDR.jpg)
![IMG_20160605_200922833.jpg](/proxy/?url=https://content.instructables.com/FQ1/2UEK/IP73915T/FQ12UEKIP73915T.jpg&filename=IMG_20160605_200922833.jpg)
![IMG_20160606_161935072_HDR.jpg](/proxy/?url=https://content.instructables.com/F7T/JLFU/IP73916L/F7TJLFUIP73916L.jpg&filename=IMG_20160606_161935072_HDR.jpg)
![IMG_20160606_162508870_HDR.jpg](/proxy/?url=https://content.instructables.com/FQG/JJ7S/IP73916M/FQGJJ7SIP73916M.jpg&filename=IMG_20160606_162508870_HDR.jpg)
Knowing that the Suede was very flexible, I knew that I would be able to press it into all of the nooks and crevices.
I used Contact Cement to attach the Suede at the bottom of the backing into the Skull to act as a 'hinge'.
Once it was dry, it worked even better than I had hoped!
Closing It Up!
![IMG_20160606_162948639_HDR.jpg](/proxy/?url=https://content.instructables.com/FV6/DY3E/IP73916W/FV6DY3EIP73916W.jpg&filename=IMG_20160606_162948639_HDR.jpg)
![IMG_20160607_171236221.jpg](/proxy/?url=https://content.instructables.com/FZB/Z8QX/IP739196/FZBZ8QXIP739196.jpg&filename=IMG_20160607_171236221.jpg)
![IMG_20160607_221749042_HDR.jpg](/proxy/?url=https://content.instructables.com/FLY/16UK/IP7391CI/FLY16UKIP7391CI.jpg&filename=IMG_20160607_221749042_HDR.jpg)
![IMG_20160607_214817552.jpg](/proxy/?url=https://content.instructables.com/FNZ/QHW4/IP7391BD/FNZQHW4IP7391BD.jpg&filename=IMG_20160607_214817552.jpg)
![IMG_20160608_161312119.jpg](/proxy/?url=https://content.instructables.com/FGJ/1U0T/IP7391FW/FGJ1U0TIP7391FW.jpg&filename=IMG_20160608_161312119.jpg)
I decided to use a long strip of Suede about 3" wide to cover part of the back and use as 'sides' when the Sporran is opened (to limit the amount it will open).
I attached that with Contact Cement like all the rest and then got to work on a closure for the backing.
Challenge 4: How to attach a closure device to the Skull and Backing.
Solution 4: Use a decorative small 'spike' rivet for the skull, and a snap on the Backing.
I used a small scrap of Suede that I cut to act as a strap for the closure and to connect the spike-rivet to the snap.
Challenge 5: The stud for the snap was too short to go through the Hardboard backing and still make the attachment.
Solution 5: Use a Rivet Setter and Aluminum Construction Rivet.
Once everything was in place, I was able to close and open the backing with no problem.
I then used Contact Cement again to attach the sides inside the Skull as well as a small piece to cover up the last of the inside of the backing.
Finished Product / Final Thoughts
![IMG_20160609_164450092.jpg](/proxy/?url=https://content.instructables.com/FZQ/CM7A/IP91RV0I/FZQCM7AIP91RV0I.jpg&filename=IMG_20160609_164450092.jpg)
![IMG_20160611_110512305.jpg](/proxy/?url=https://content.instructables.com/FAE/7I1Y/IPCUG9M8/FAE7I1YIPCUG9M8.jpg&filename=IMG_20160611_110512305.jpg)

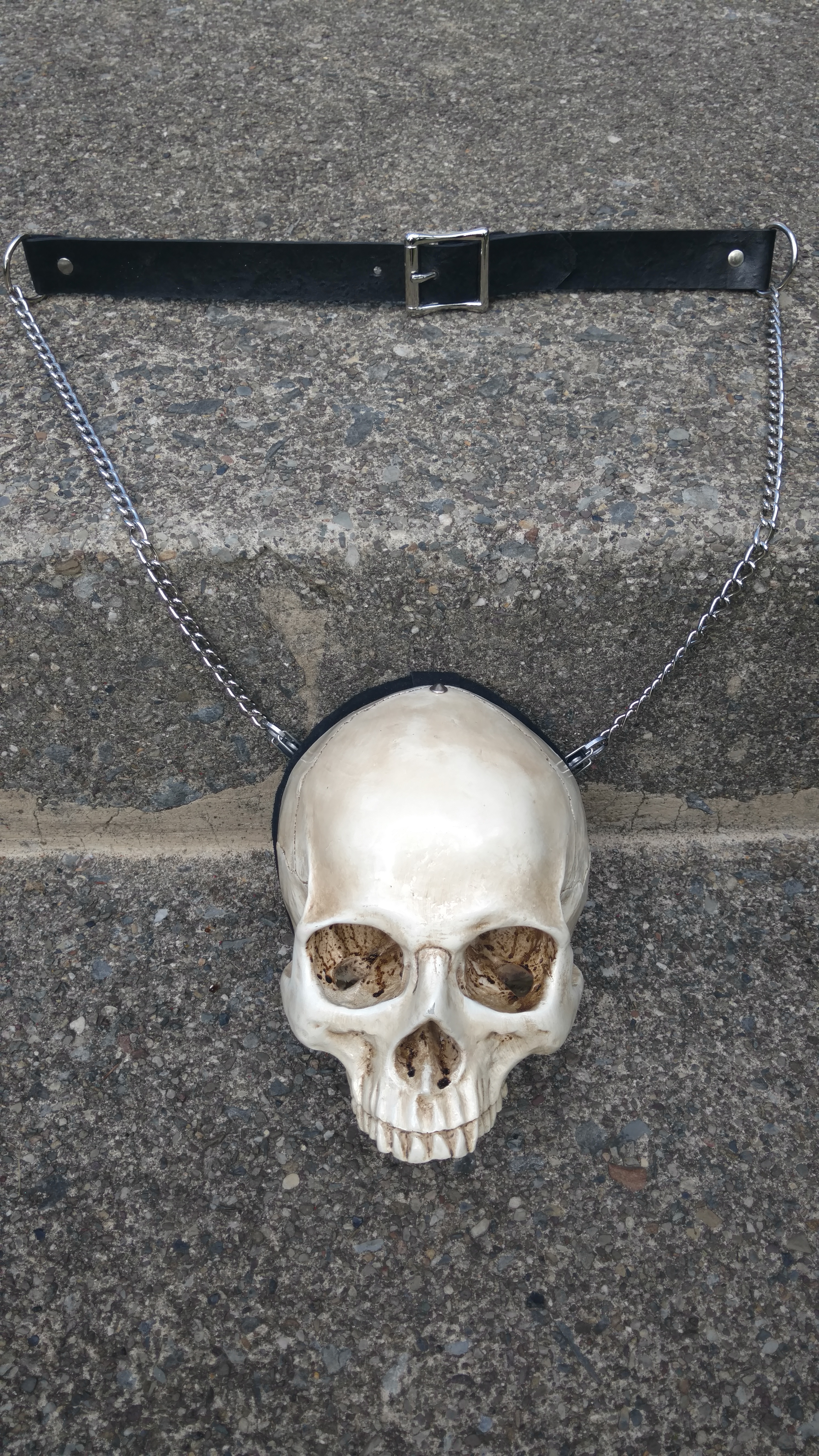

I am very happy with the way this awesome new Skull Sporran turned out!
Three days after I finished the build I attended a Beer Tasting Fundraiser for the National Finals for the US Highland Games:
Celtic Classic (http://celticfest.org/ )
I wore my new Skull Sporran with my Jolly Roger Kilt and got a lot of compliments and it worked great!
Final Thoughts:
- I would sew the 'loop' on the back if I make another.
- I would make the inside cover/sides one piece opposed to the two pieces I used.
- Possibly find another way of keeping the Sporran Closed.
