Skeleton Horse Halloween Display


A static halloween display made out of PVC pipe, 3/4 trim board and spray foam.

Skeleton Horse


After deciding on the size and pose of the horse, I cut all the flat pieces for the pelvis, shoulder blades and backbone out of PVC trim board.


I used various sizes of PVC pipe for all the leg pieces. Each bone was heated with a heat gun in order to bend and Shape them. The legs all have a PVC pipe in the center for stability with larger pipes placed on it. The ribs are PVC pipe cut length wise into four pieces.


The ends of each pipe was filled and shaped with PVC board and spray foam. Then the joins where wrapped with resin casting tape.

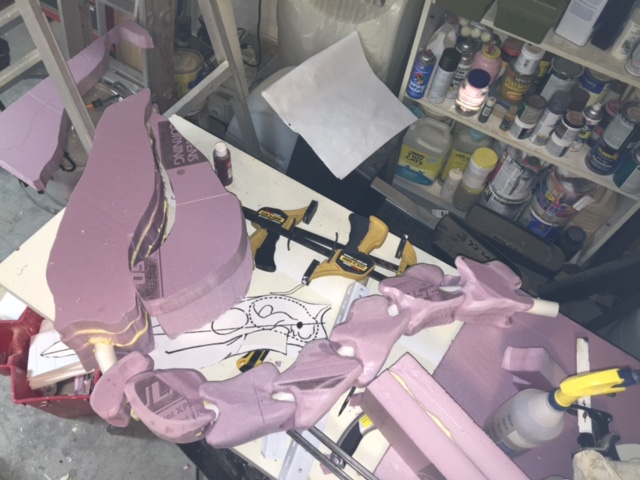

I carved the skull and vertebrae out of extruded styrofoam and glued them on a PVC pipe.

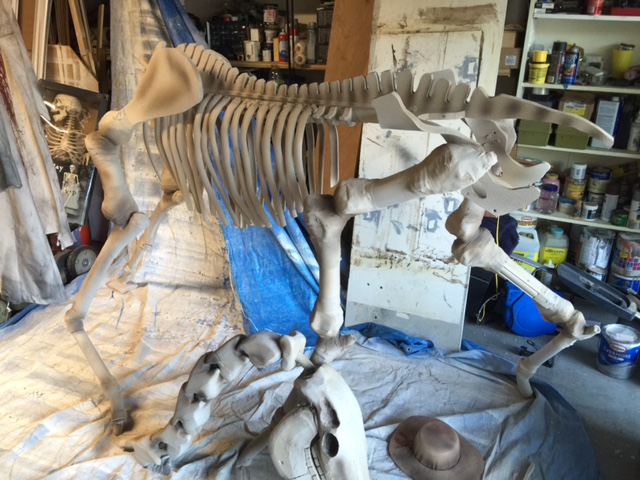

Then the whole thing was painted and the legs and ribs where screwed back on for the finished horse.
