Skate Board Rack

by bradyb559 in Workshop > Woodworking

189 Views, 0 Favorites, 0 Comments

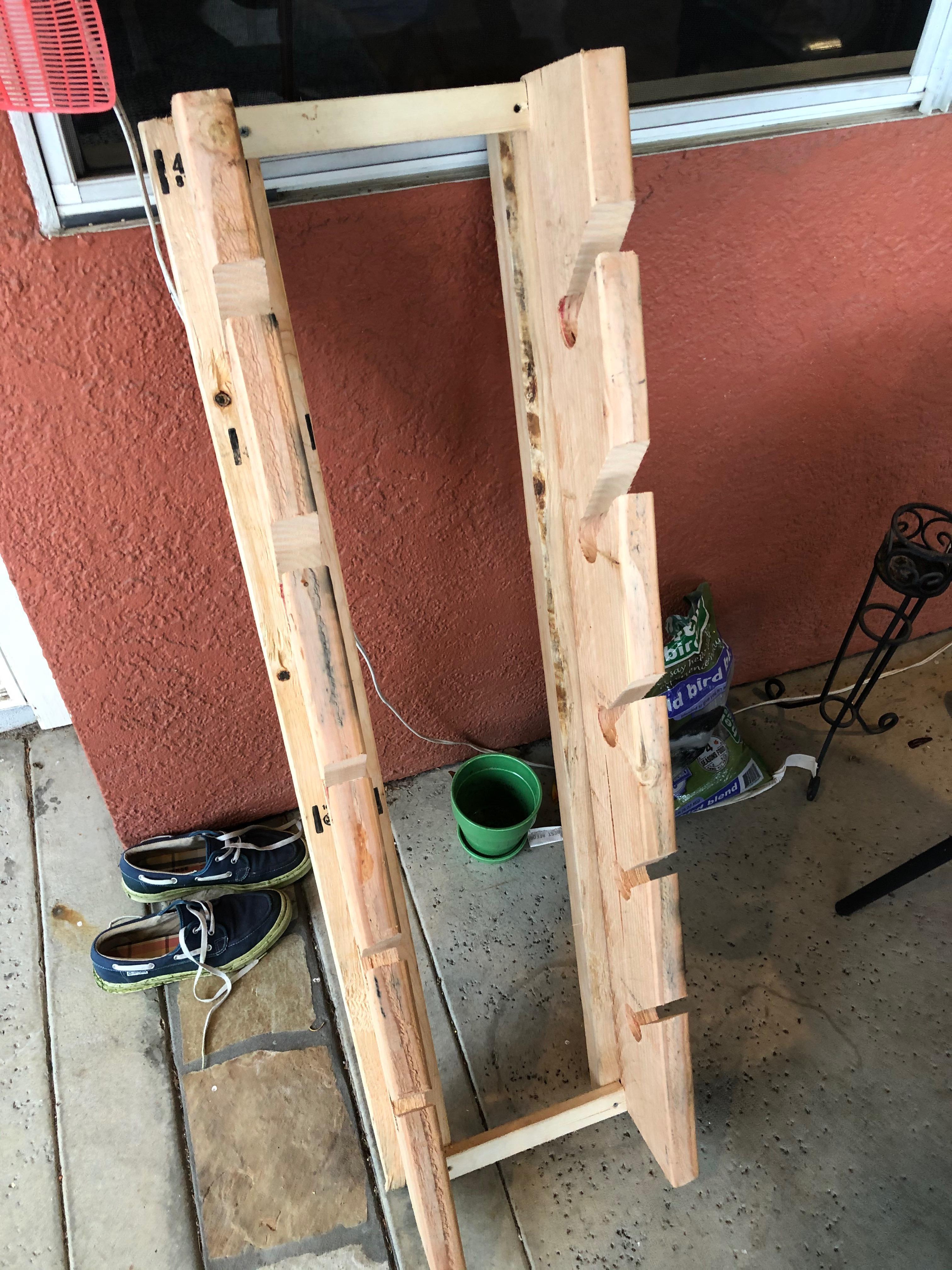

Skate Board Rack


materials-

2x4x8 2x6x8 1x3x8 deck nails(more than 4") Tools required Power drill -1/8" drill bit -hole saw bit piece -3/4" hole saw -Philips head screw bit Jig Saw

Cuts Needed


1. Every 8 inches cut a 3/4 hole with the hole saw

2. with the jigsaw cut the slots for the boards

3.The scrap 1x3 to needed length(varies)

-should be the length from truck base to truck base

Building...


1. Drill pilot holes for your screws on the 2x4x4s

2. screw the 2x4 to the 2x6 shown above

3. screw the scrap 1x3 at the ends for support

4. try and hang it on your wall, because your done!
