Six Piece Burr From a Single Dowel

by Sythe101 in Workshop > Woodworking

1851 Views, 19 Favorites, 0 Comments

Six Piece Burr From a Single Dowel

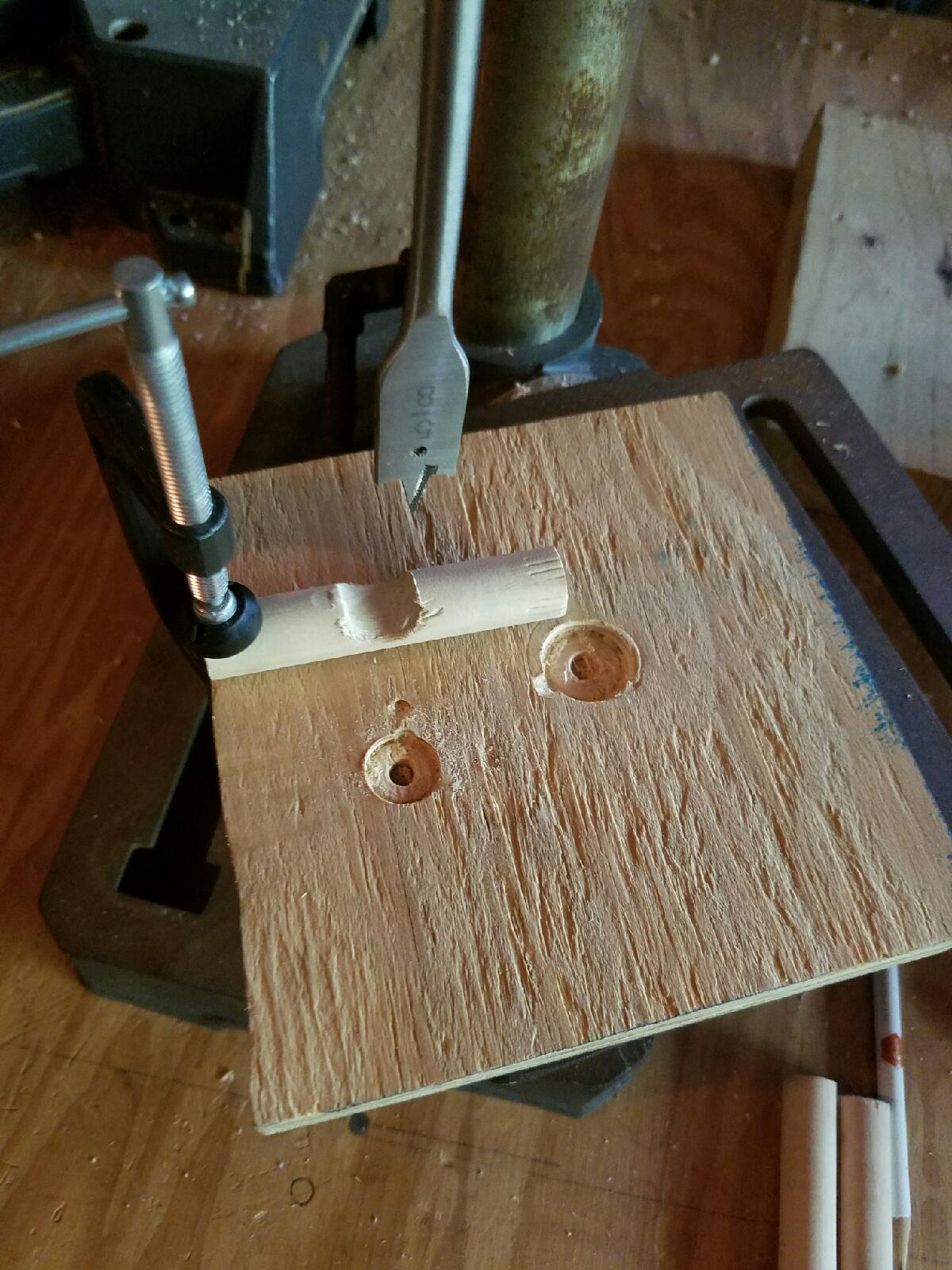

Here's another puzzle you can make! For such a small and relatively simple design this was actually pretty difficult to do. A vice is strongly suggested and be careful! I came close to getting my hand caught in my drill press several times before i went out and bought a vice.

Materials


Saw+Drill (Drill Press is strong advised, hand drill strays too much

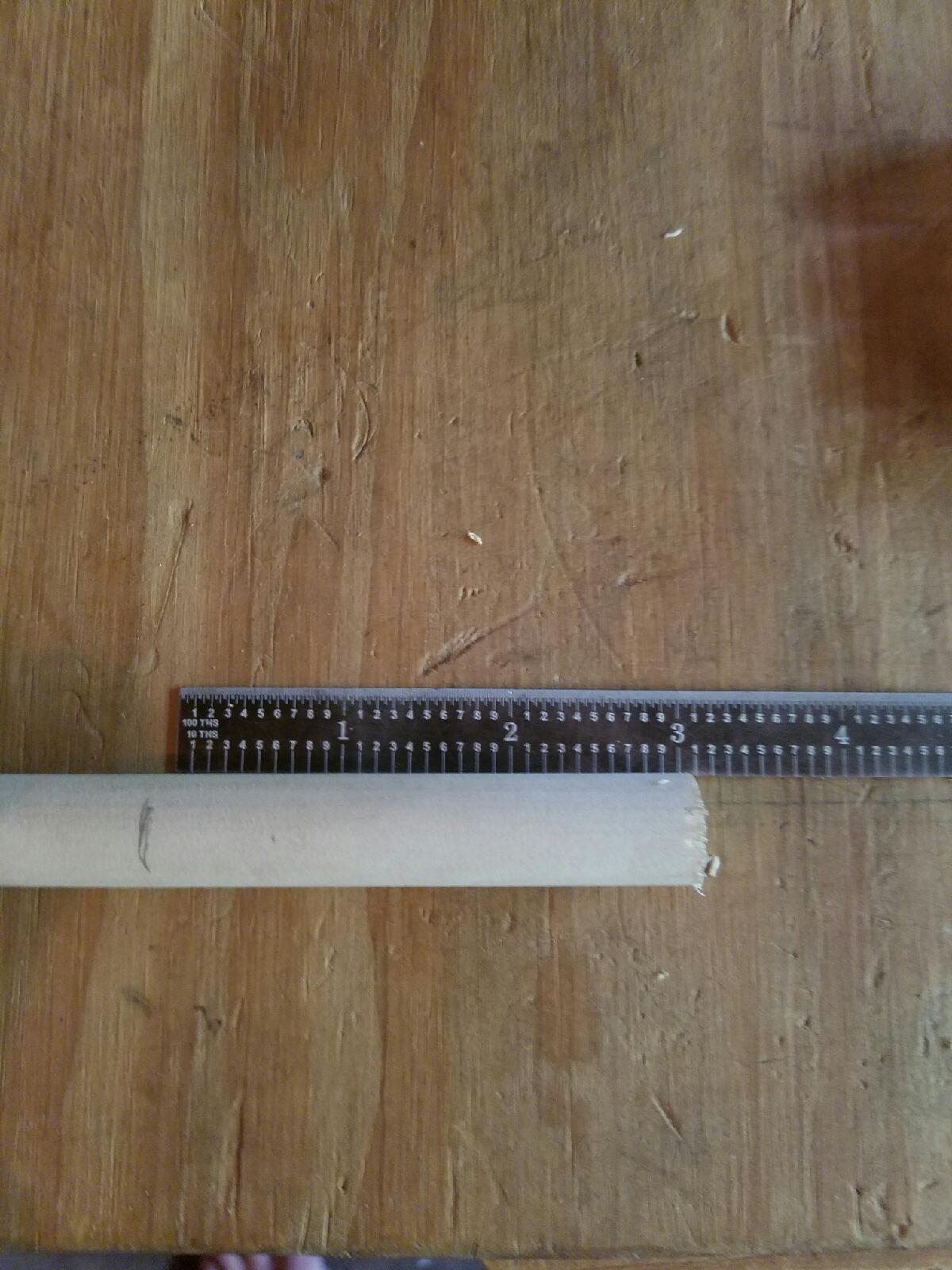

5/8 diameter dowel 20 inches long

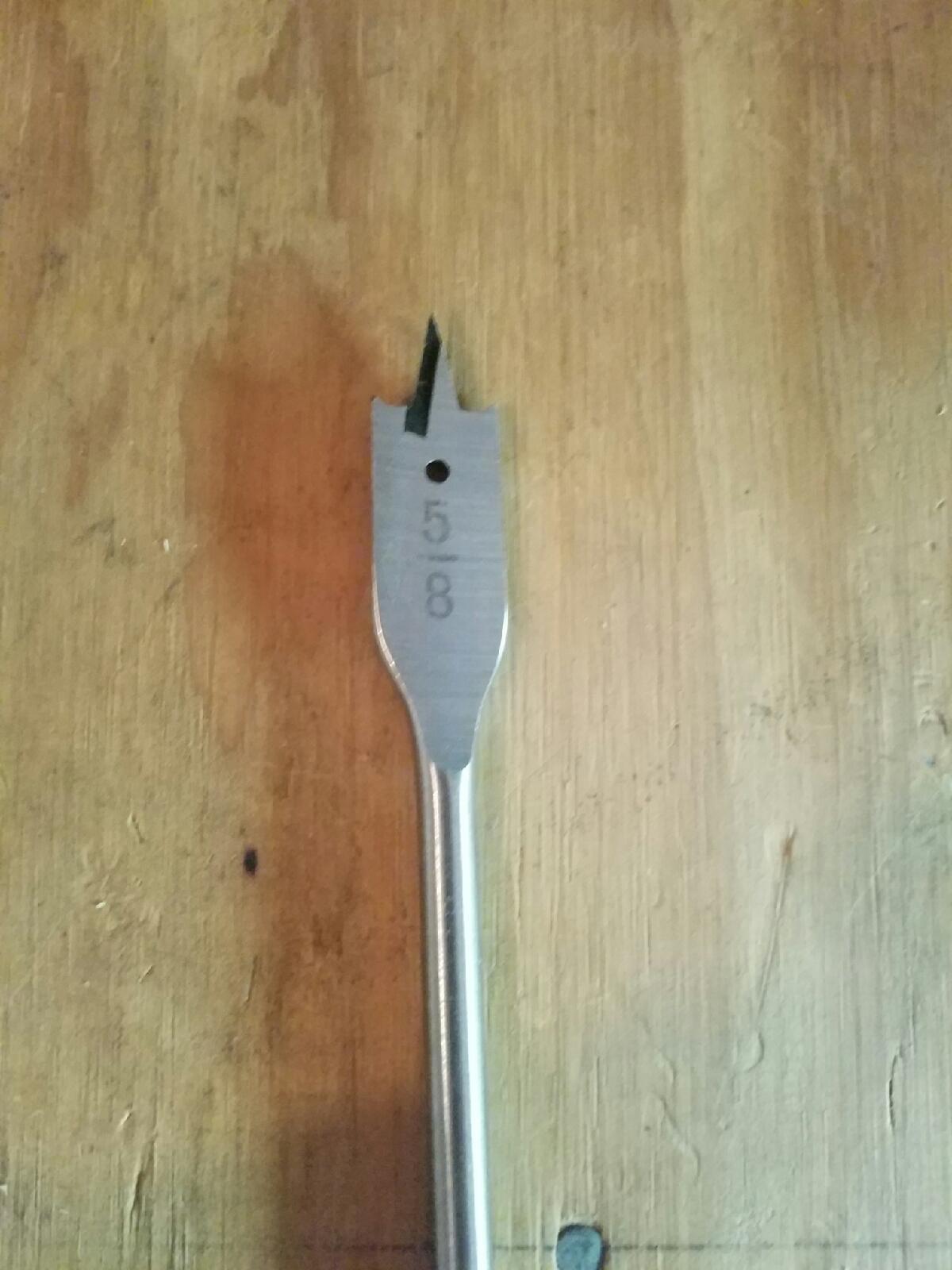

5/8 spade bit

Vice

Sandpaper/Knife

Measurements

Dowel Puzzle Pieces.jpg

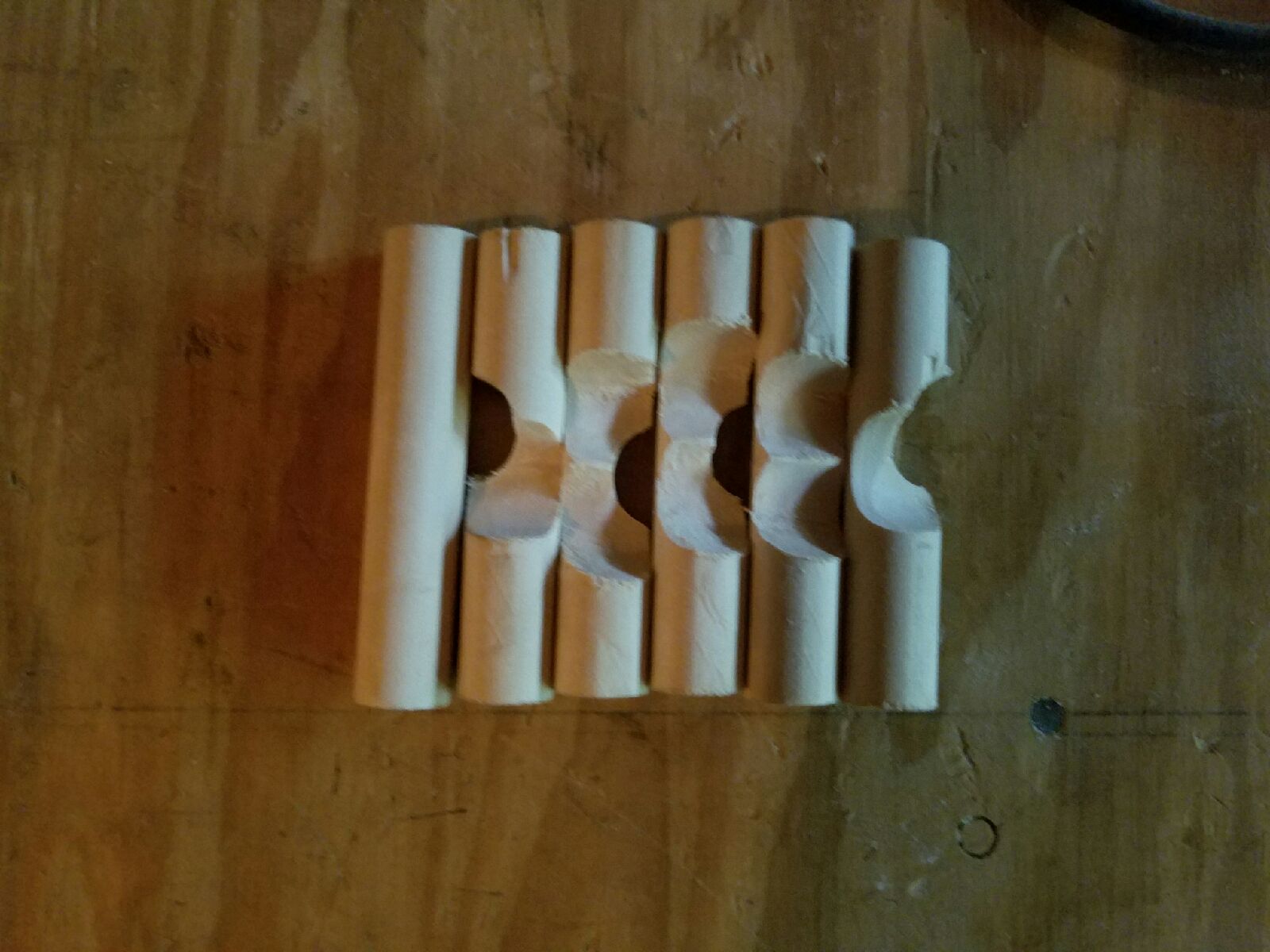

For this project there are 6 puzzle pieces, each puzzle piece is 3 inches and 3/8 diameter. The measurements are based off the picture in black and white. I started off with the center pieces cutting out semi-holes in the middle of four the pieces and based the other cuts off that. BE VERY CAREFUL CUTTING!!!

Putting It Together

Dowel Puzzle.jpg

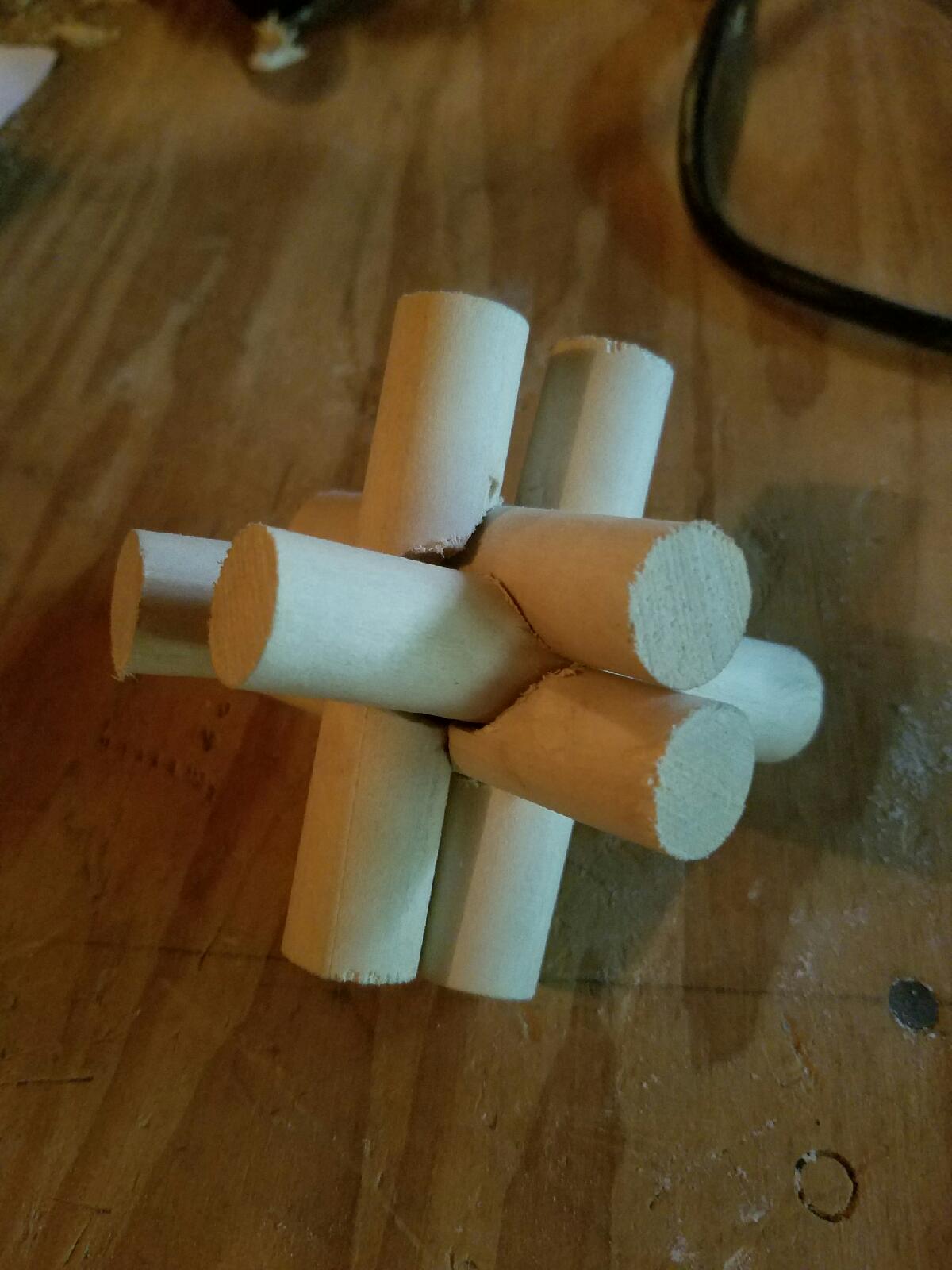

The picture above shows which piece goes where. Once all the holes are cut, try and piece it together, if it is too tight sand the cuts to make it work better. Hope you enjoy!
