An attractive way to cover a ring or other closed object

ringbolt 1 001.JPG

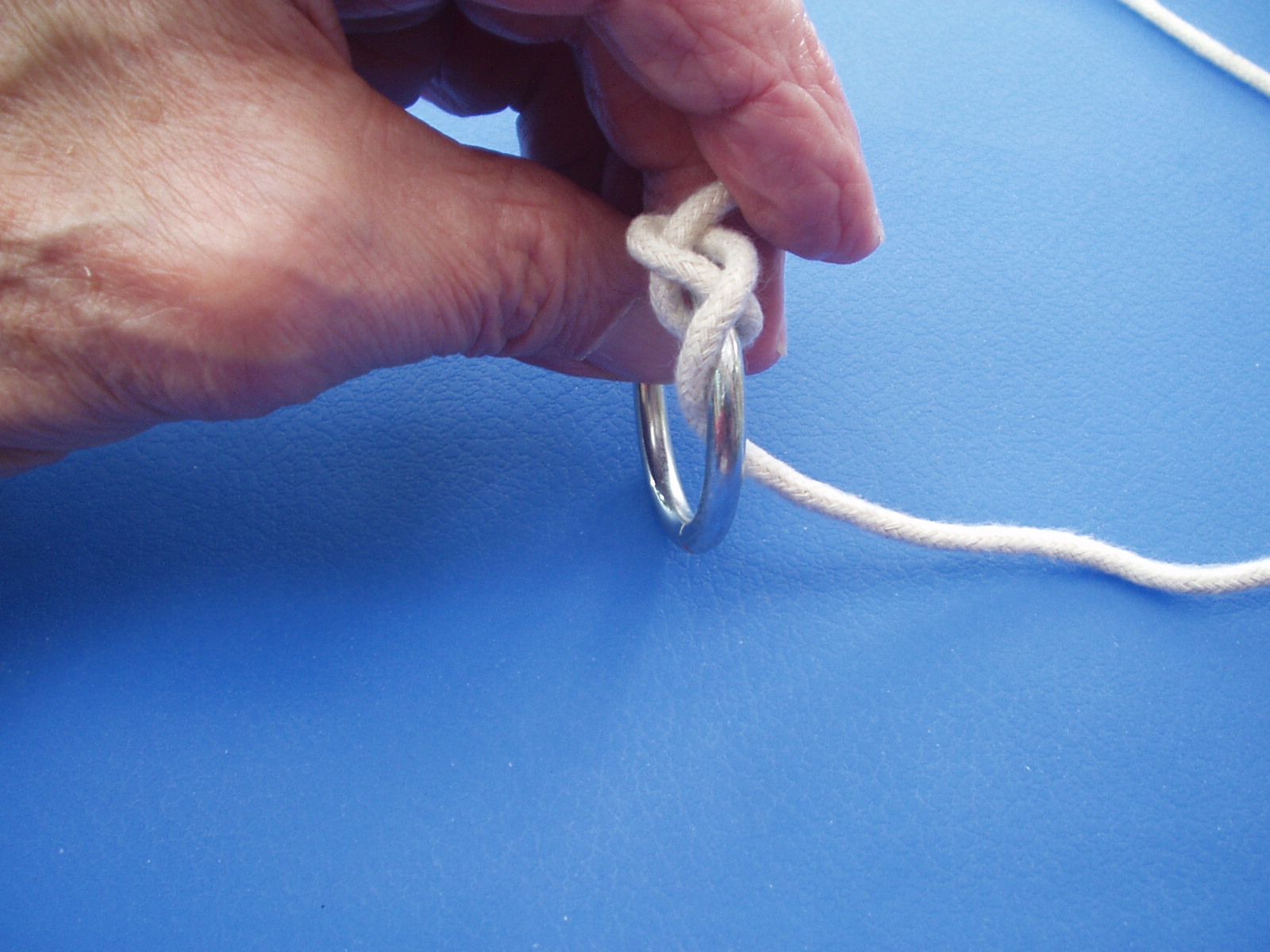

I used a 1 1/2" O.D. iron ring in this project. I used 7' of 3/16" cotton sash cord. I left about 16" of cord Standing End which will be used after the ring is covered. I took the Working End from left to right through the ring and made a clockwise path around the Standing End

ringbolt 1 002.JPG

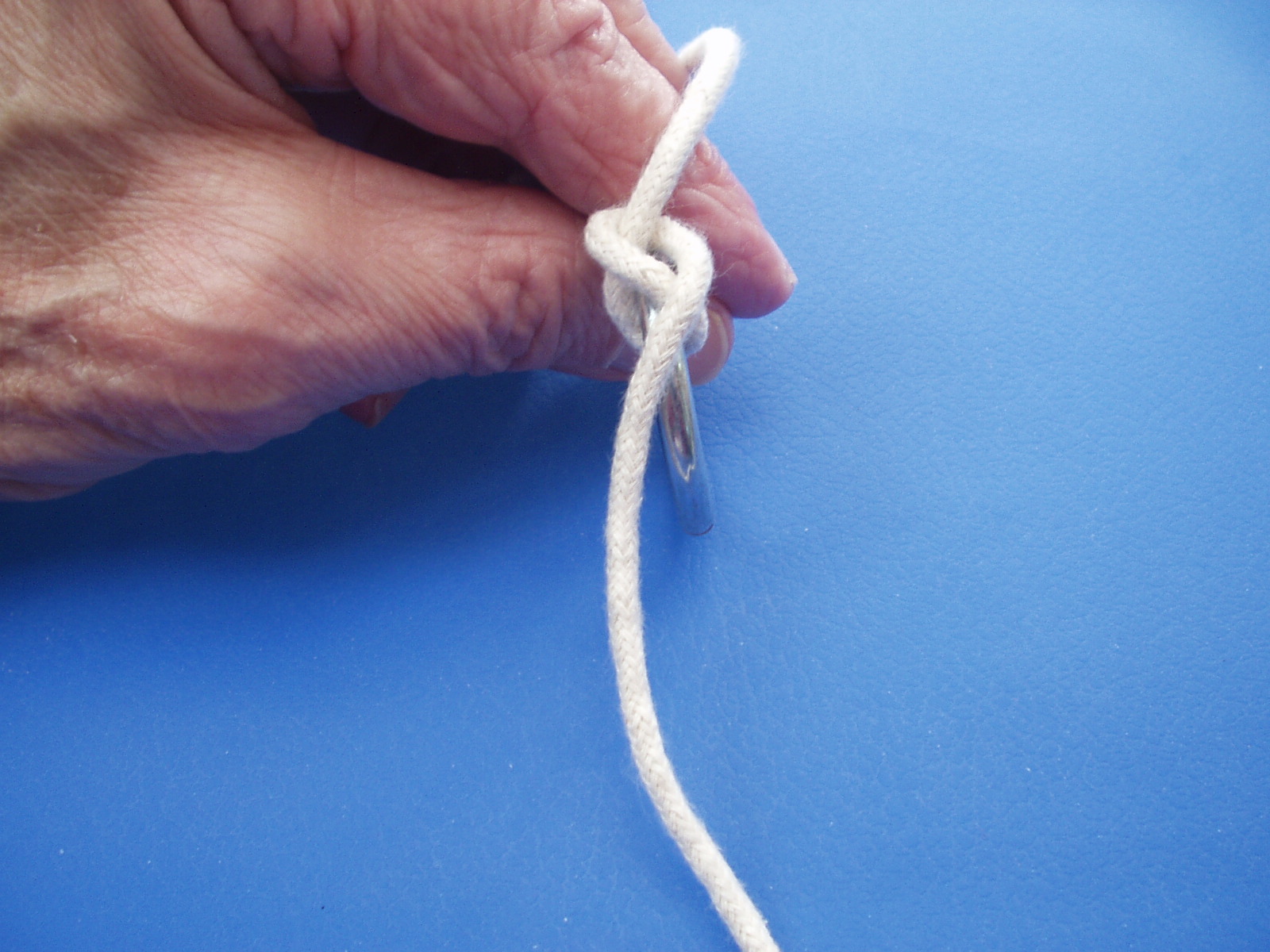

Bring WE through the ring from left to right and . . . . .

ringbolt 1 003.JPG
ringbolt 1 004.JPG

. . . underneath the two strands of the crossing you made in step one. Keep tightening the knot as you go along.

ringbolt 1.png

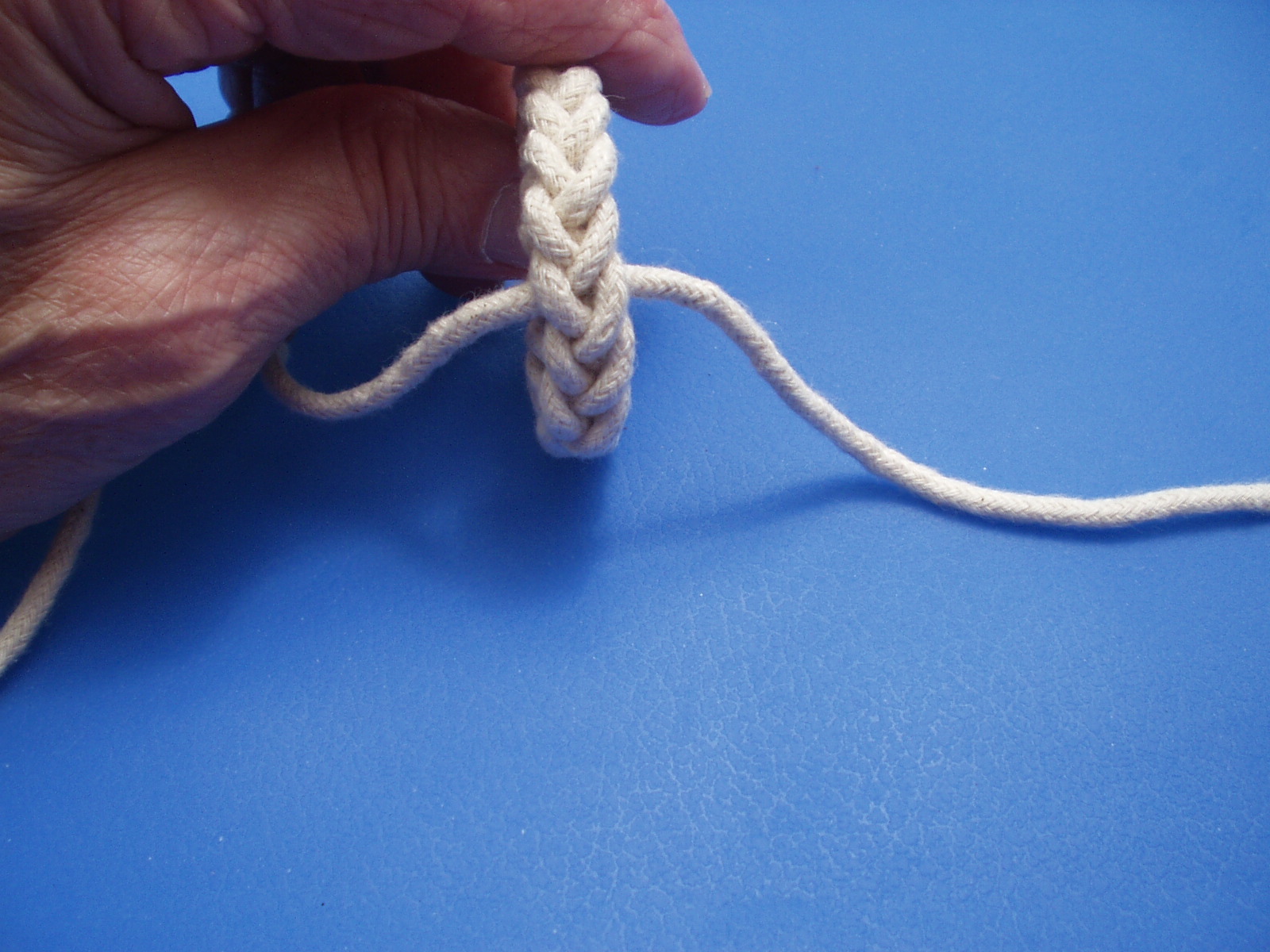

Repeat steps two and three until the ring is covered.

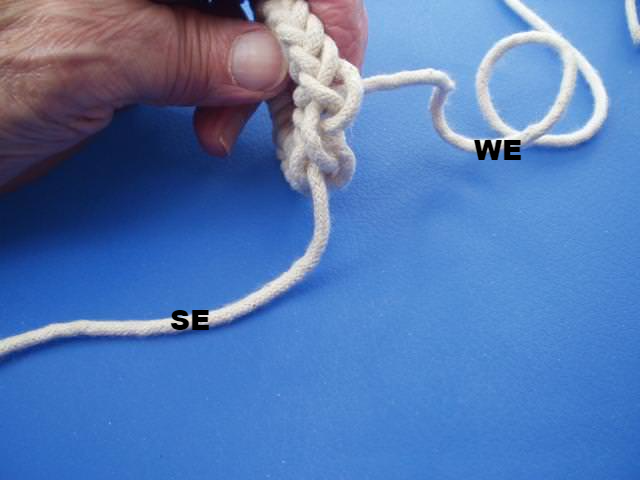

Bring the WE through the ring from left to right.

Pull slightly on the bight "A" that the SE goes through to slightly enlarge it

ringbolt 2.png

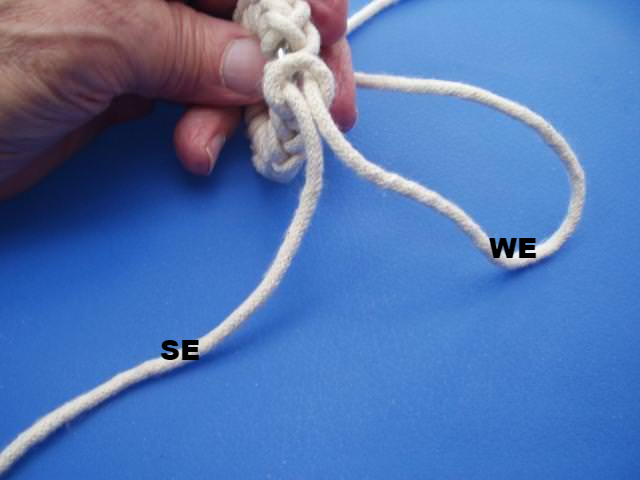

Bring the WE up through that bight

ringbolt 3.png

Bring the WE under the two strands of the last crossing point

ringbolt 4.png

And down through the bight

ringbolt 5.png

Take the SE to the right out of its bight

ringbolt 1 010.JPG

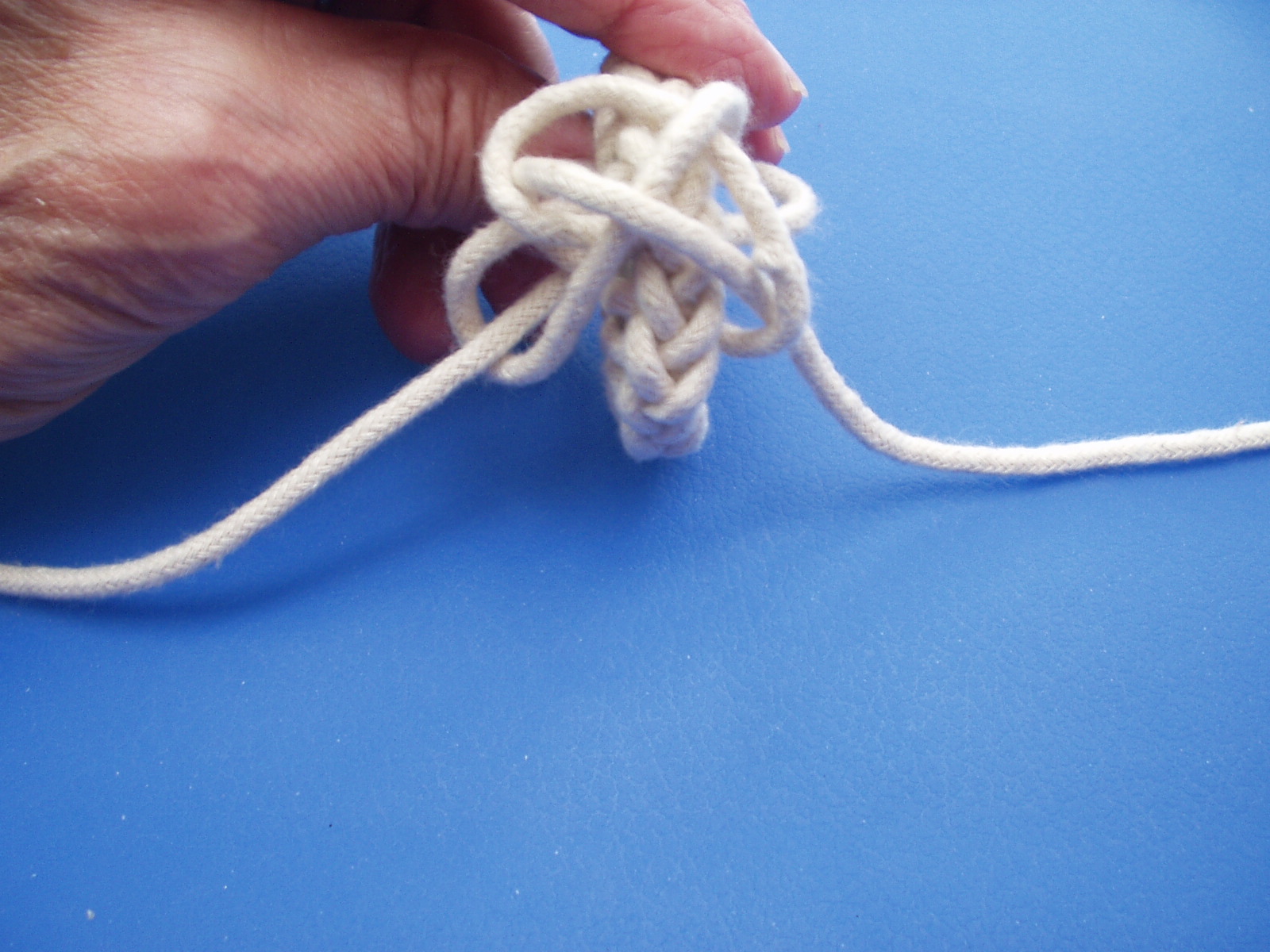

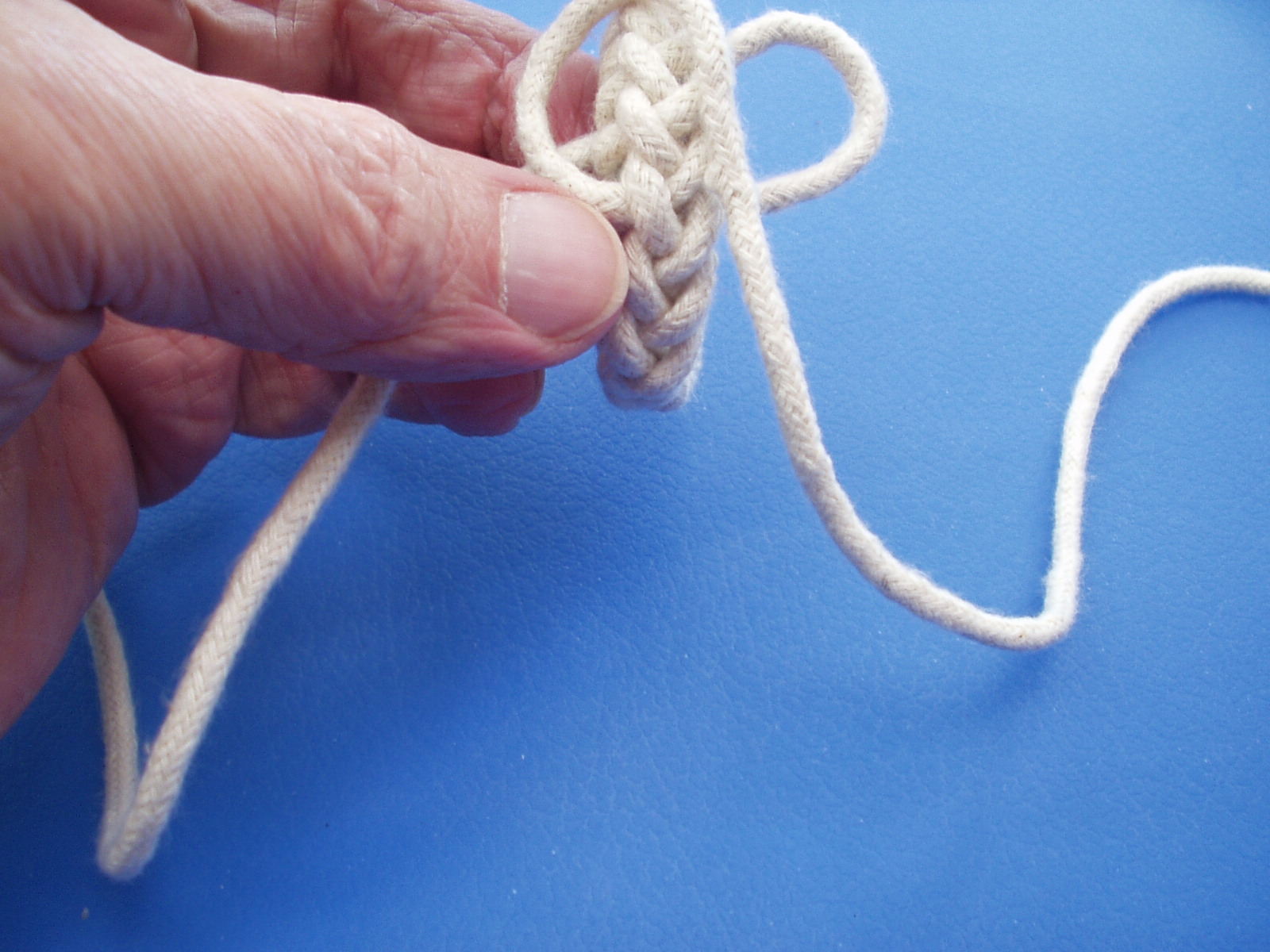

Pull on the SE To tighten the bight. Pull on the SE to complete the knot.

ringbolt 1 011.JPG

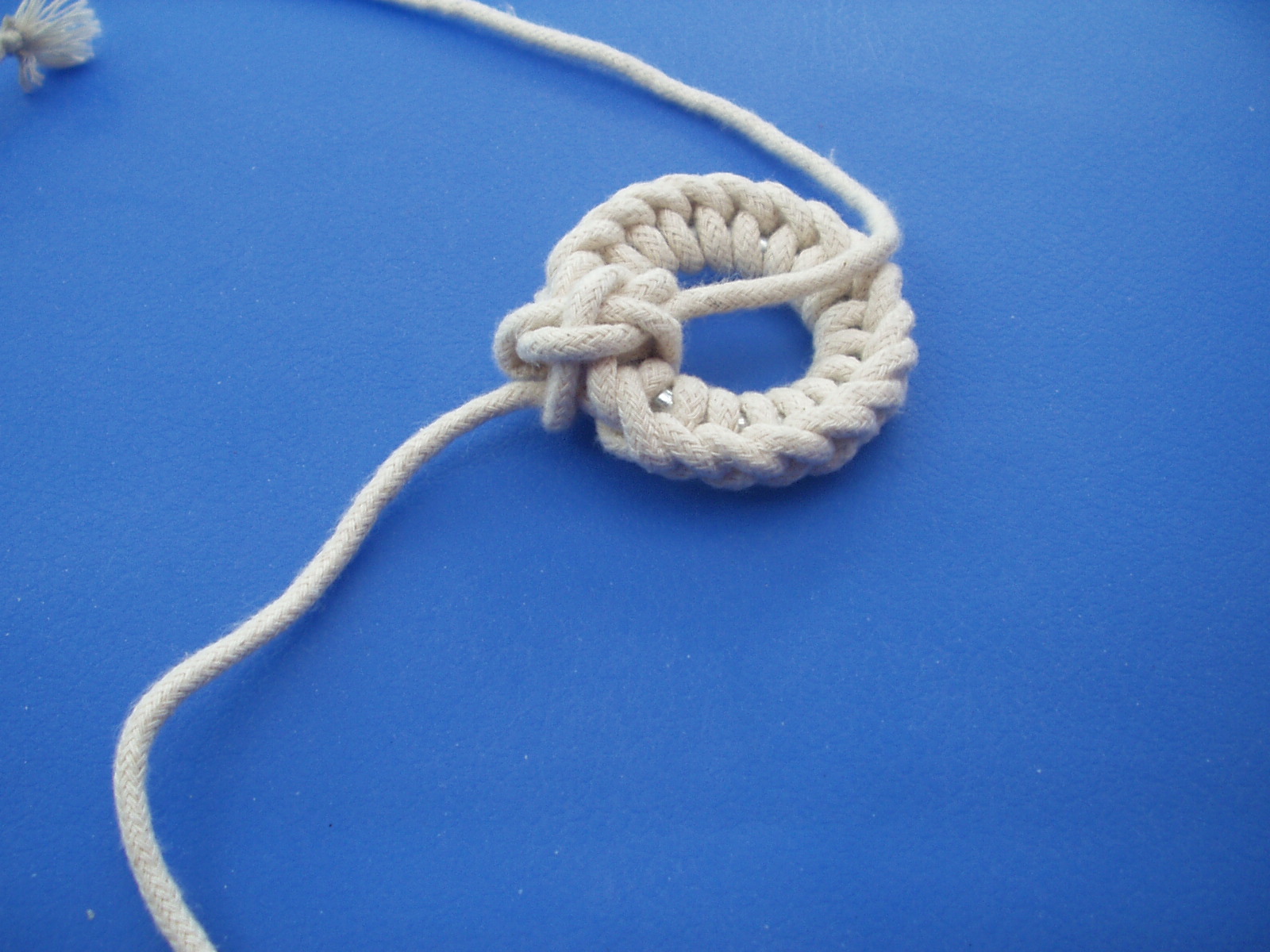

At this point the knot is complete.

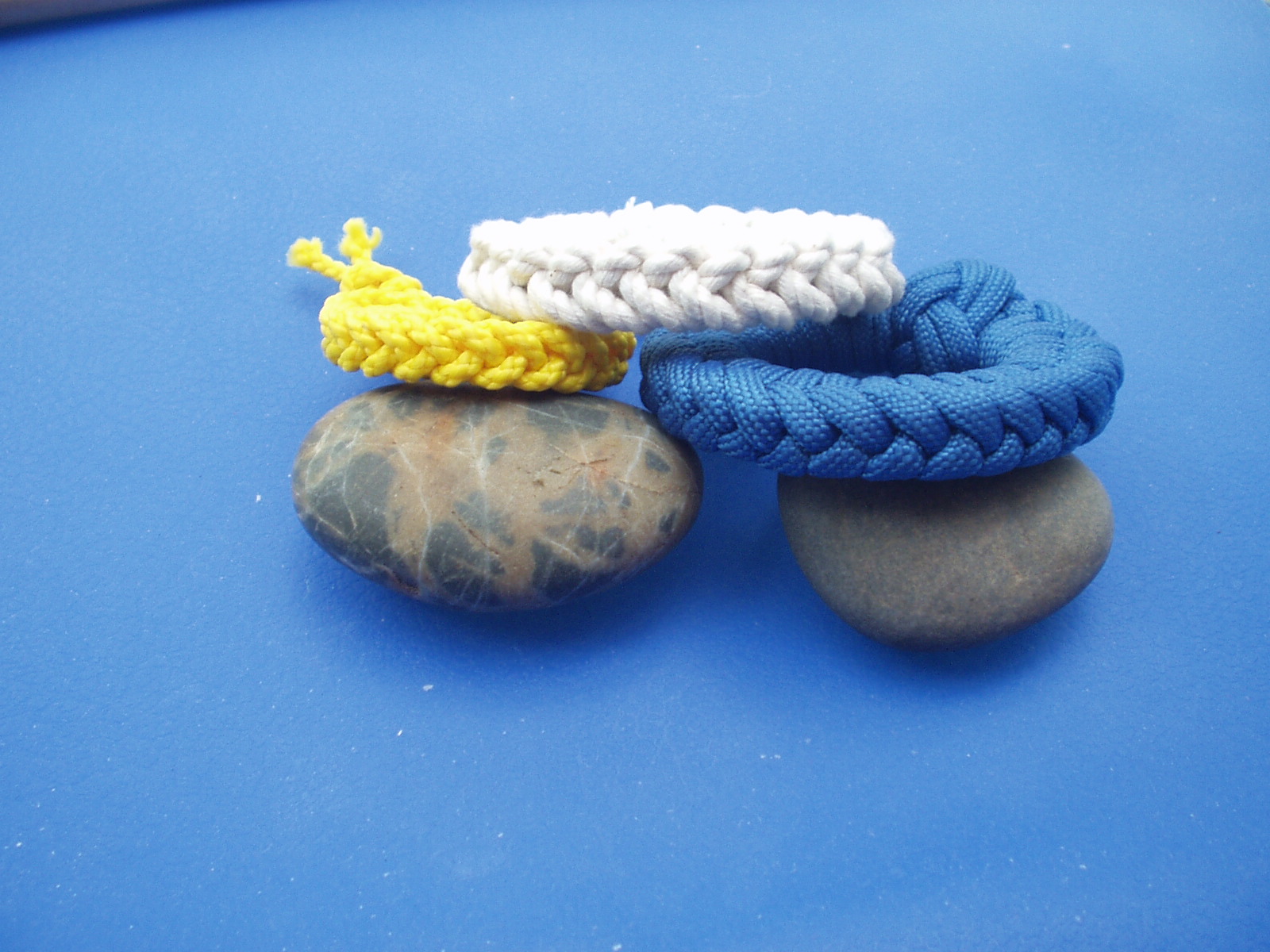

You can cut the ends close as in the white cotton example. (you can see the end a little to the right of 6:30. A dab of clear glue will prevent the ends from undoing. Melt the ends with a flame if you use synthetic cord.

You can also finish by using the two strand closing knot of your choice. The diamond knot is a good choice. In the yellow example I used the crown and diamond

https://www.instructables.com/id/Crown-and-Diamond-Zipper-Pull/

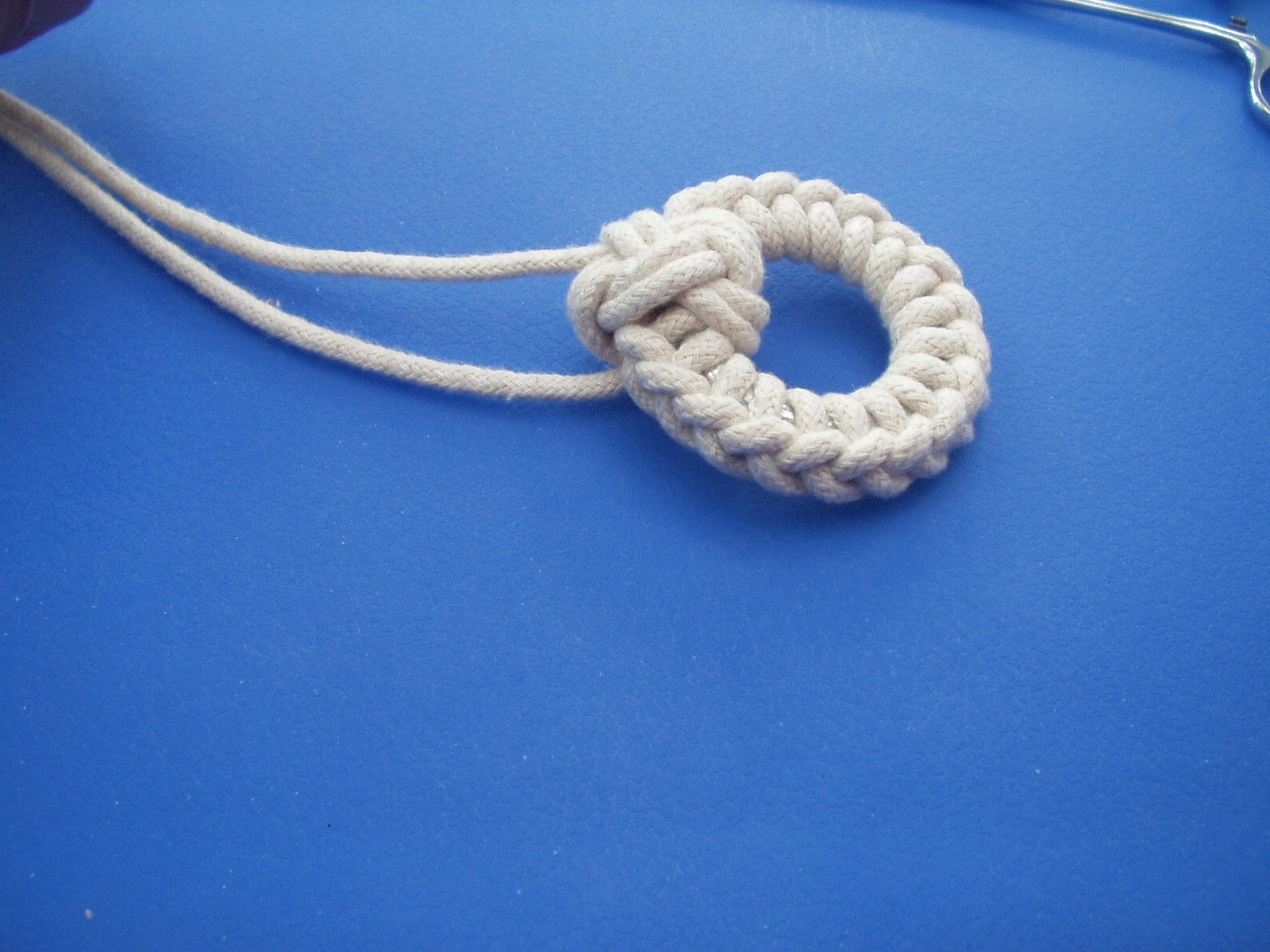

In the blue example I made what appears top be a 4 Bight, three lead Turks head knot . . . . . . .

ringbolt 1 012.JPG
ringbolt 1 013.JPG
ringbolt 1 014.JPG
ringbolt 1 015.JPG
ringbolt 1 016.JPG

I covered step by step how to do this in the Instructable,

https://www.instructables.com/id/Single-Strand-Lanyard/

The above synopsis shows how to use it in this situation
