ArOZ System for Raspberry Pi Web Server


Have you ever want to share musics or video to your friends while there is no or slow internet access? You can use Bluetooth or NFC, but here comes another solution, the ArOZ Online, an opensource simple to use and install web platform for video and music streaming on any mobile devices. I have written this for nearly two weeks and now it is the time to publish this amazing system.

  • NO DATABASE NEEDED
  • CAN BE RUN OFFLINE
  • MULTI-LANGUAGES FILENAME SUPPORT

What is ArOZ

ArOZ is the short form of "Autolinked Real-time Operator Zipped System", which is an AI like system that help me monitor my server and perform simple fixing task if something goes wrong. However, when this project was in development, something went wrong and it became a cute desktop pet that can talk and interact with user. And the system "ArOZ Online" was a byproduct of the main ArOZ System as media streaming with C# , which I use for creating ArOZ System, was a too painful job.

Interface and How It Works

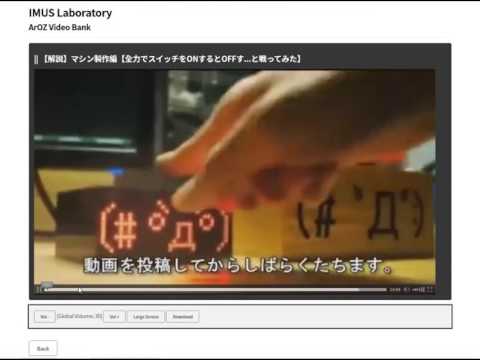

ArOZ Online Demo

As seen in the video, which was a Alpha development version, you can simply enter the system with an url, get to the tab that you want to play, select the music and done! You are streaming videos from your raspberry pi with no database needed!

If you haven't set up your raspberry pi web server and set it as a Wifi Access Point, please have a look over the link below:

Tutorial

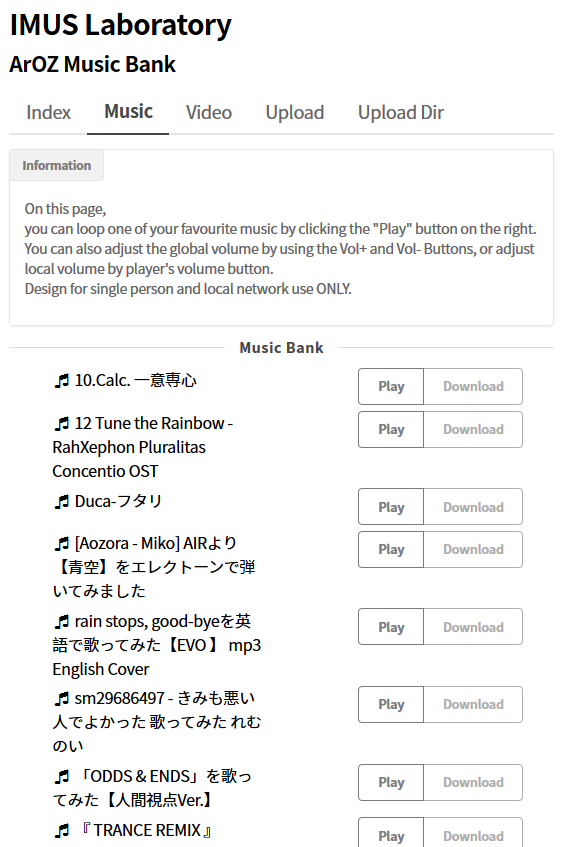

Mobile and PC Interface


Using javascript and css, the interface for mobile access and PC access will show slightly different.

Installation

  1. Download the ArOZ Online zip file
  2. Unzip it to your web server's root folder
  3. Enter your server's ip address in the web browser to access the system
  4. Upload your music via the "Upload" tab on the right hand side of the menu
  5. Select the files and destination folder to upload (Music Bank / Video Bank)
  6. Refresh and your music or video are ready for streaming or download.

Downloads

Tips When Running Offline

When you bring your system out for, like camping, there is no internet access for the system to get its css from the external website. Hence, if you want to get your raspberry pi offline, powered with battery and share videos and musics during camping or traveling, you have to download the css and place it inside the root folder of your web server. The css I am using in ArOZ System was "TOCAS UI", you can check that out with the following link: https://tocas-ui.com/

IMUS Laboratory

Logo V4 black.png

The "ArOZ Online" was part of the ArOZ system that is still in development. There maybe further update of this system in the future. Thus, the update of this system should be release with the ArOZ Desktop Pet System later. If you encounter any difficulties or problem while running this on your raspberry pi web server, feel free to comment below. I will try my best to solve your problem as soon as it is related to the ArOZ Online System.

Beware that this system is design for local network ONLY. I do not recommend this to be running on a public domain or web server that every one on the internet can access. I might add in a login system to the upload page later.

System developed by IMUS Laboratory, for non commercial and personal use only.
