Simple Soldering Iron Cleaning Box

by Djandco in Circuits > Soldering

4747 Views, 12 Favorites, 0 Comments

Simple Soldering Iron Cleaning Box

2012-10-16 21.01.37.jpg
2012-10-16 20.41.28.jpg
2012-10-16 20.41.46.jpg
I keep buying the cleaning pads for my soldering iron and when I have to clean the work bench up I put them somewhere safe, then I have to buy a new one!
So, I thought I would make a quick and above all cheap cleaning solution.

Parts required are simple:
A box

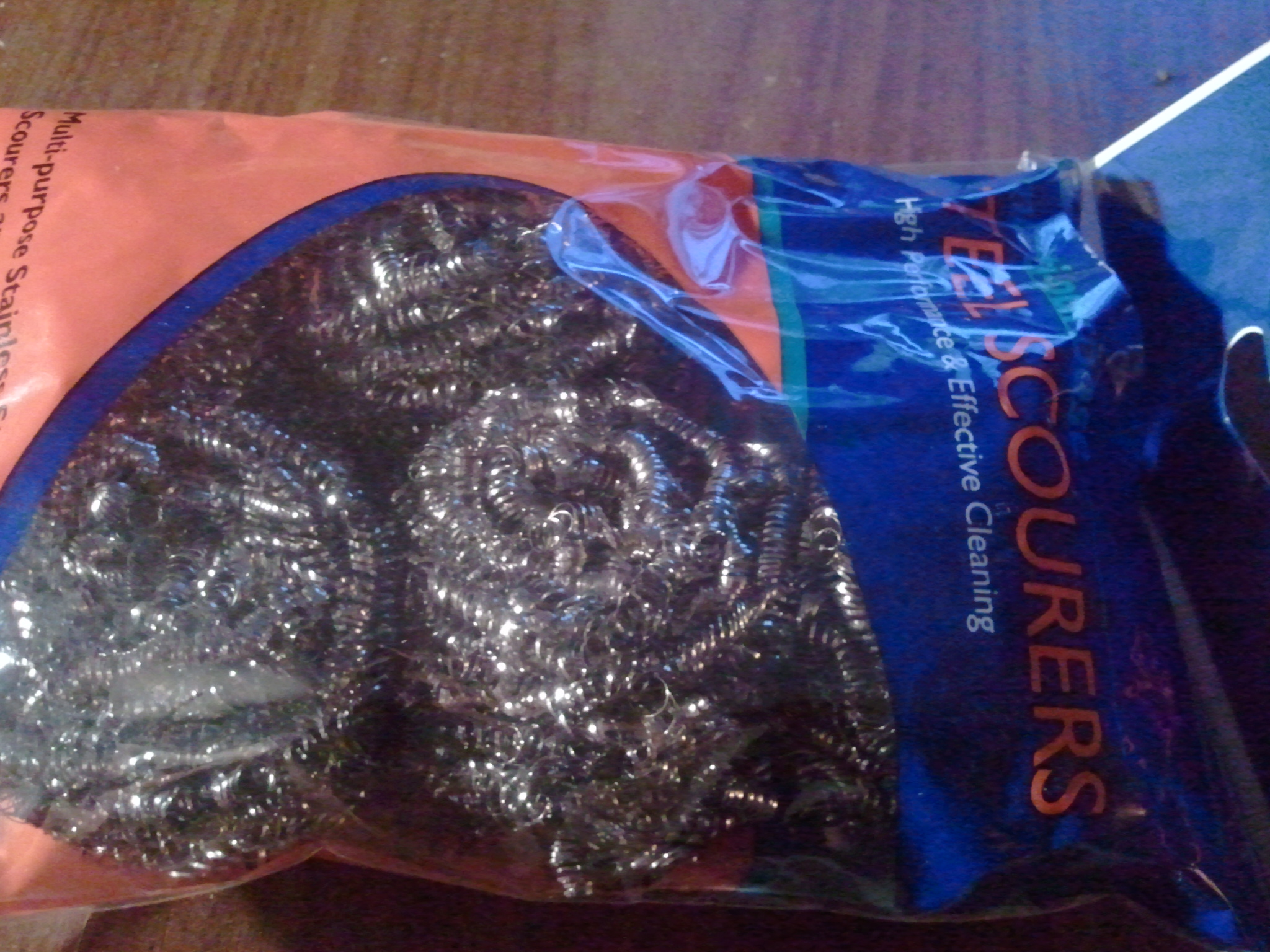

some metal scouring pads
Tape
A knife of sorts
A pen for detailing
Counter weights

Total cost was 59p

Prepare the Box

2012-10-16 20.46.39.jpg
2012-10-16 20.47.18.jpg
2012-10-16 20.54.41.jpg
2012-10-16 20.58.11.jpg
Once you have emptied the box cut ALL tape and plastic away from where you are going to make the hole.

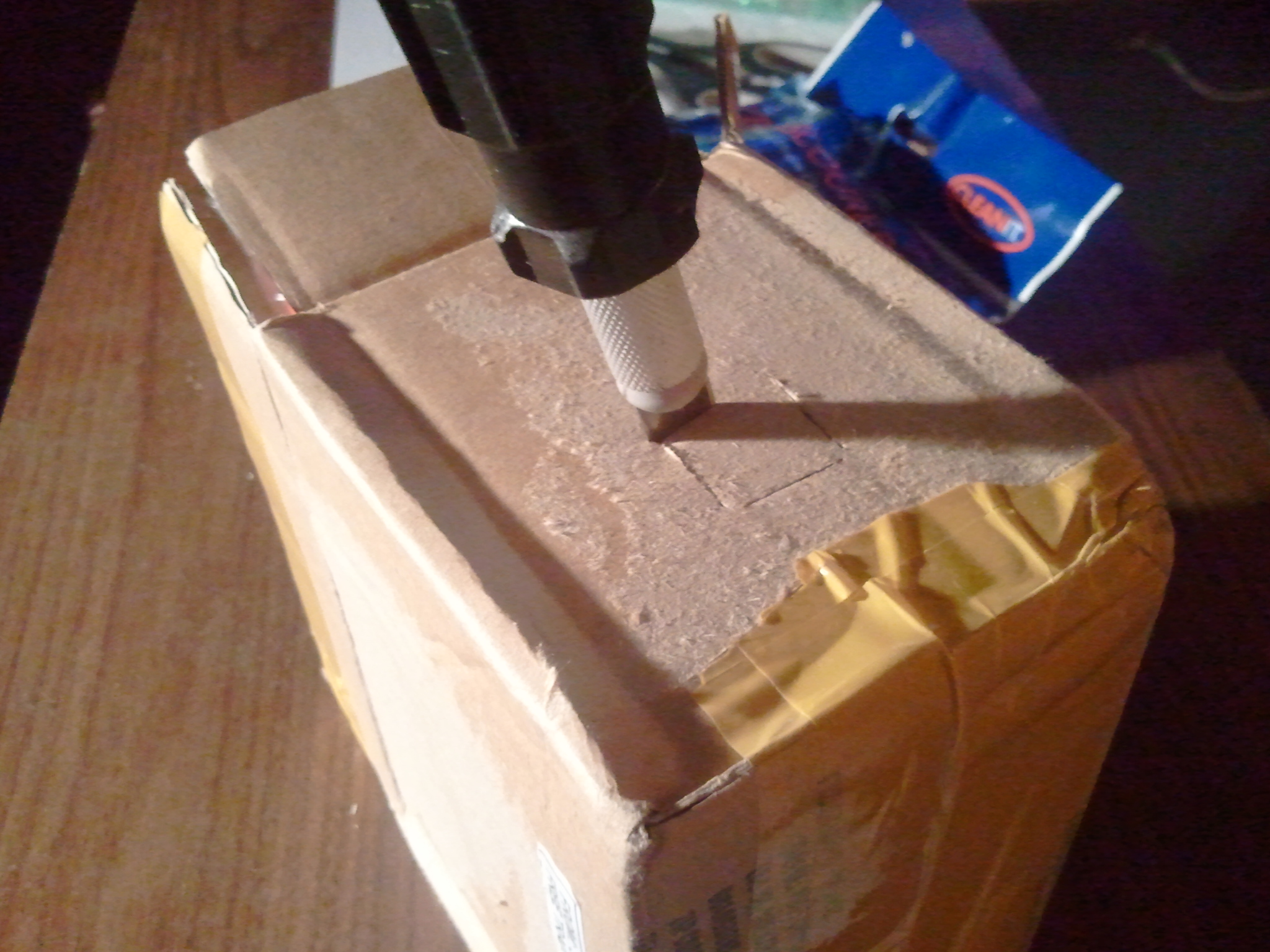

Then make a hole!
Simple.
Mind your fingers ;-)

You have a couple of choices here, put a counter weight in the bottom of the box to allow hands free scrubbing or as I did simply pack away.
Put the scrubbing pads in the end nearest the hole and pack out any space with cardboard. Just try and avoid using anything that will melt.

Tape up the box and decorate if you feel the need.

Cleaning

2012-10-16 21.00.53.jpg
2012-10-16 21.01.08.jpg
2012-10-16 21.01.37.jpg
Once you have finished the complex build heat up the soldering iron.

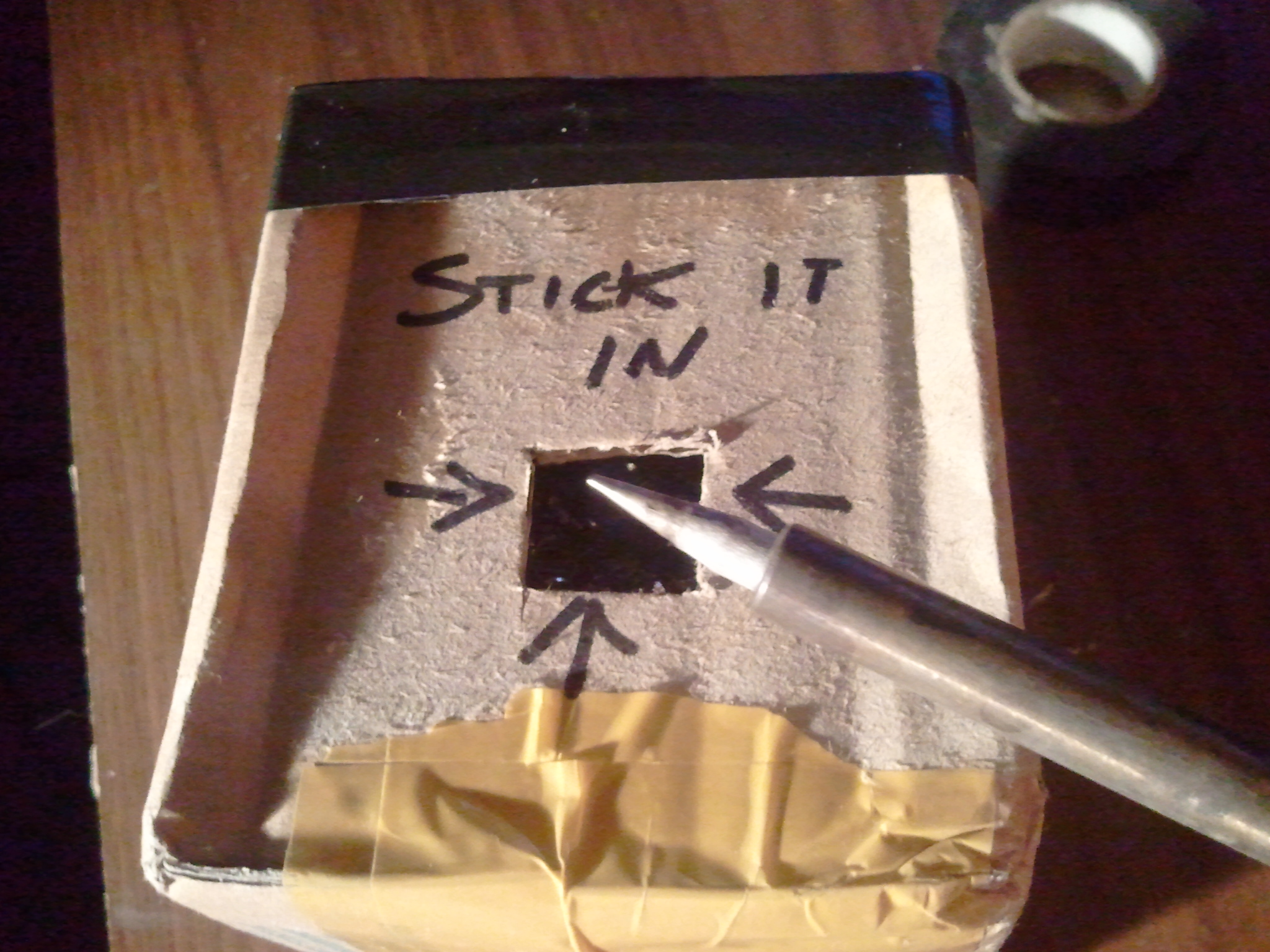

Stick it in the hole and give it a good scrubbing.
The good news is that you won't burn your hands and you end up with a shiny tip ready for action.

Have fun :-)
