Simple Small Soldering Iron Cooling Fan

by Chauhan Vivek R in Circuits > Gadgets

733 Views, 2 Favorites, 0 Comments

Simple Small Soldering Iron Cooling Fan

for cooling soldering iron...

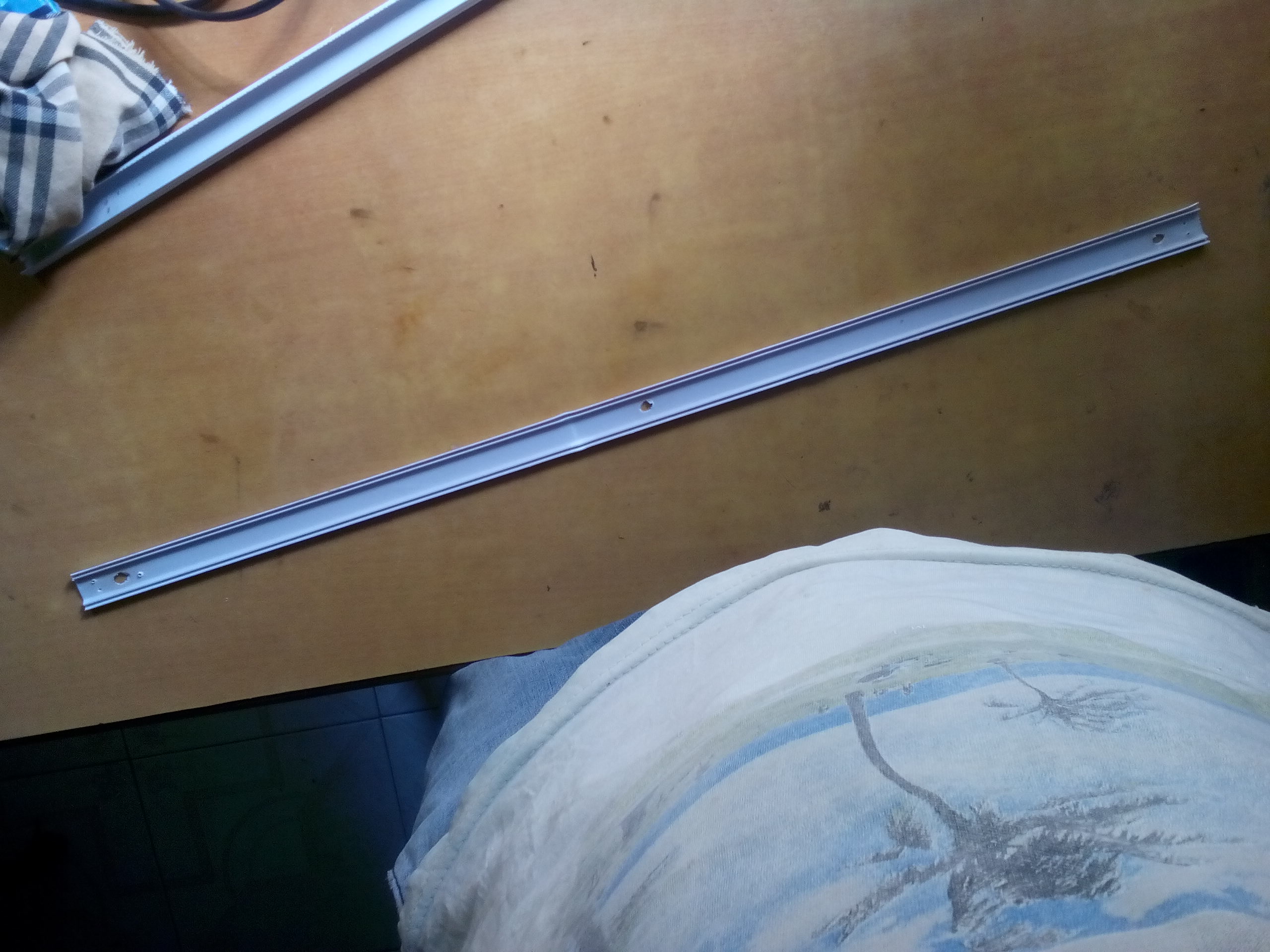

Take One Container Box and Casing Caping

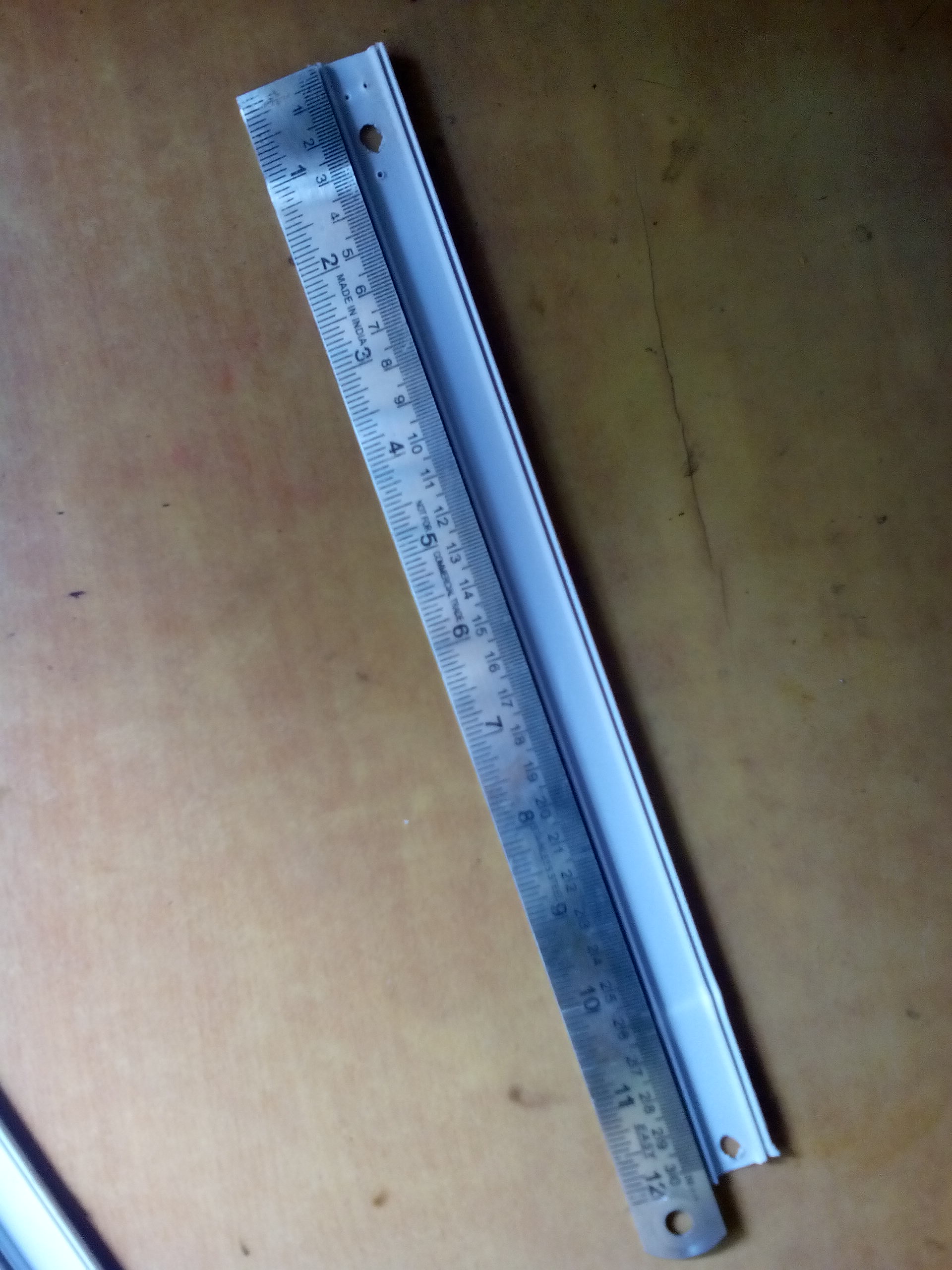

cut the casing caping 30cm ..and cut the container box as photo...

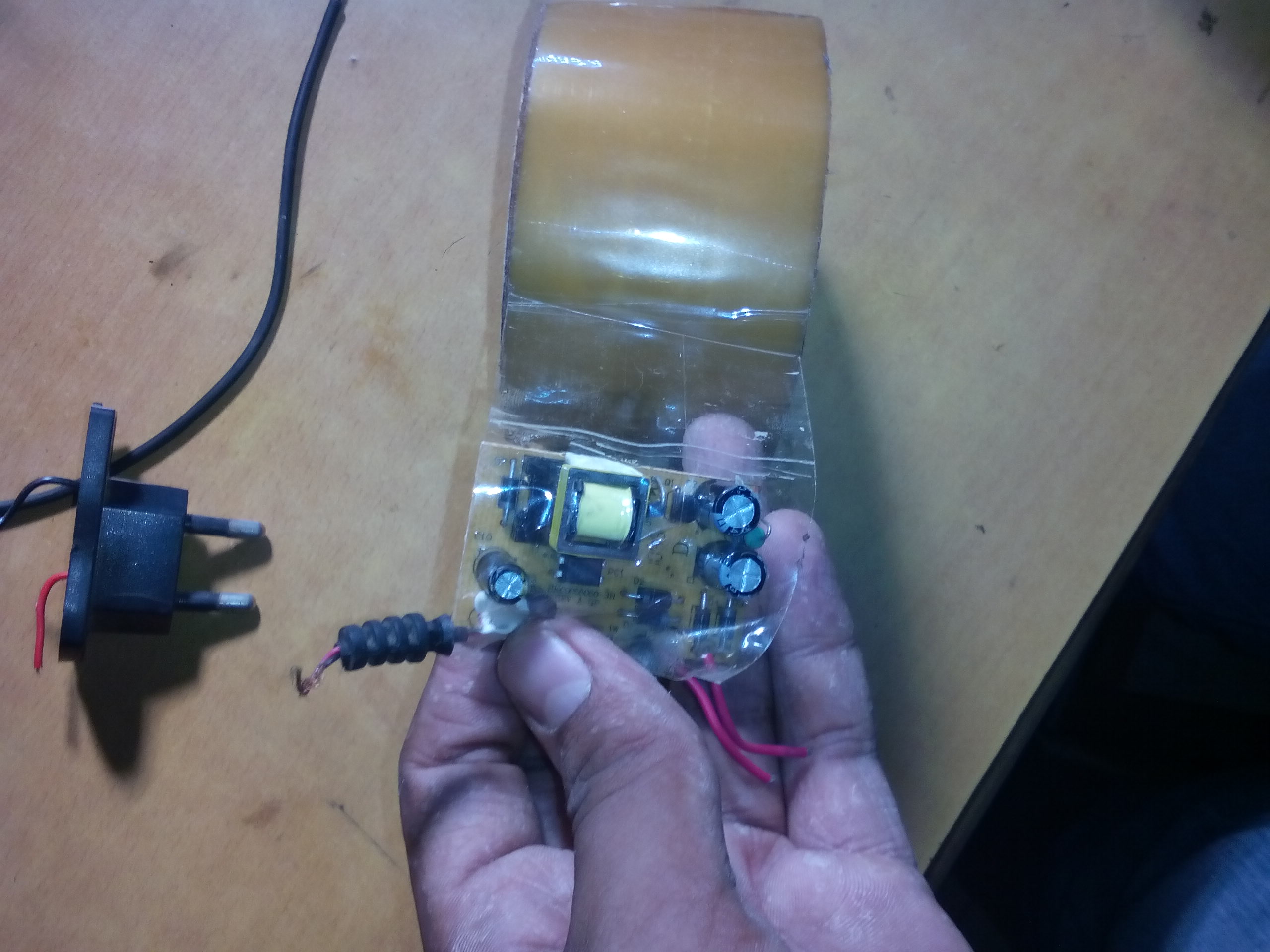

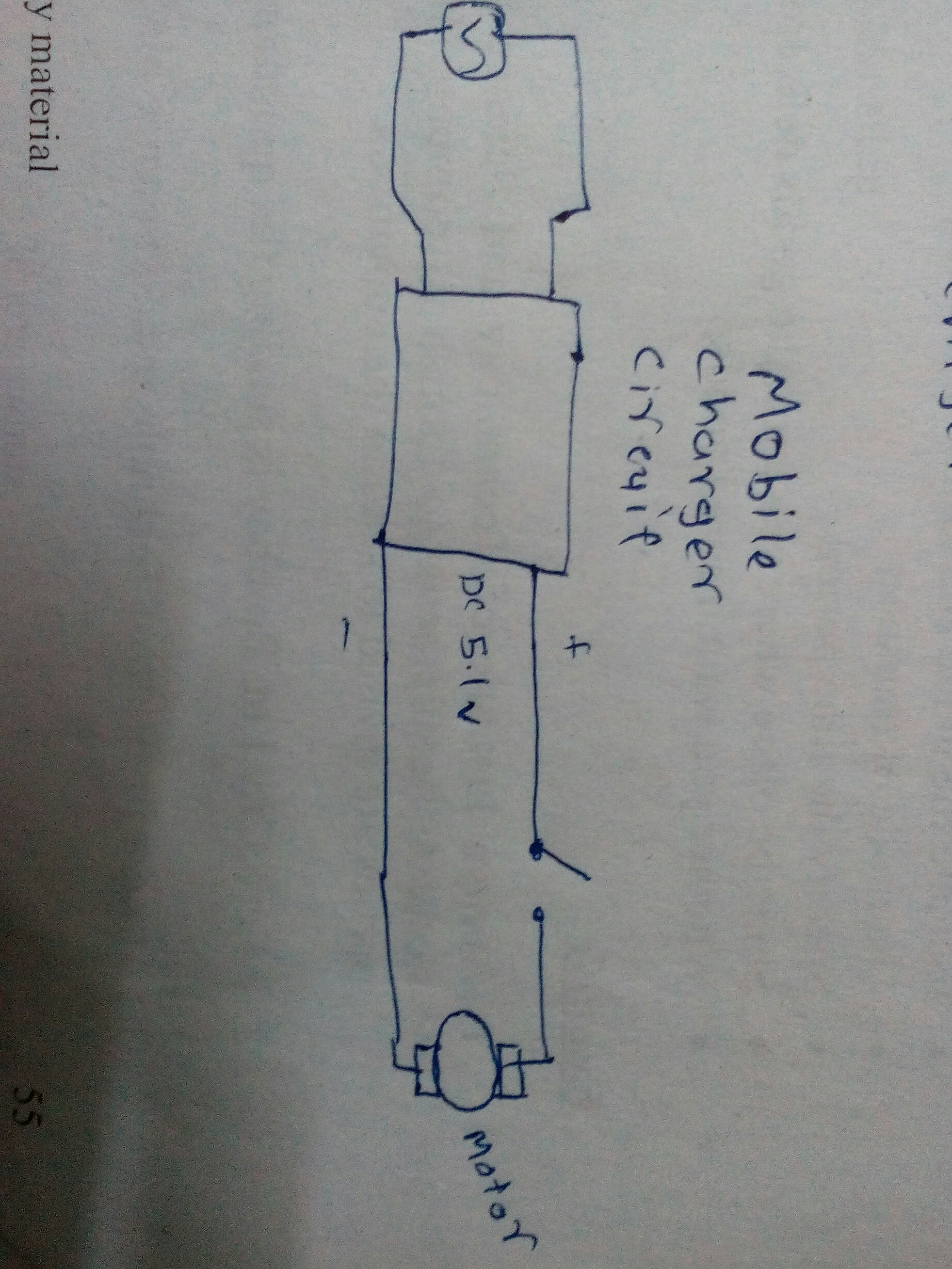

Take the Mobile Charger and Break It.

break it and take out the circuit.

insulate the circuit for safety..

Take the Casing Caping..

take the casing caping and create hole in size of motor. and fix the motor..

Take the Container

take the container box and fix the circuit.. make the hole in container box for wire. and cut it for switch.

Then

take the casing caping and tuck it into the hole. and join any type of Wight for Balance..

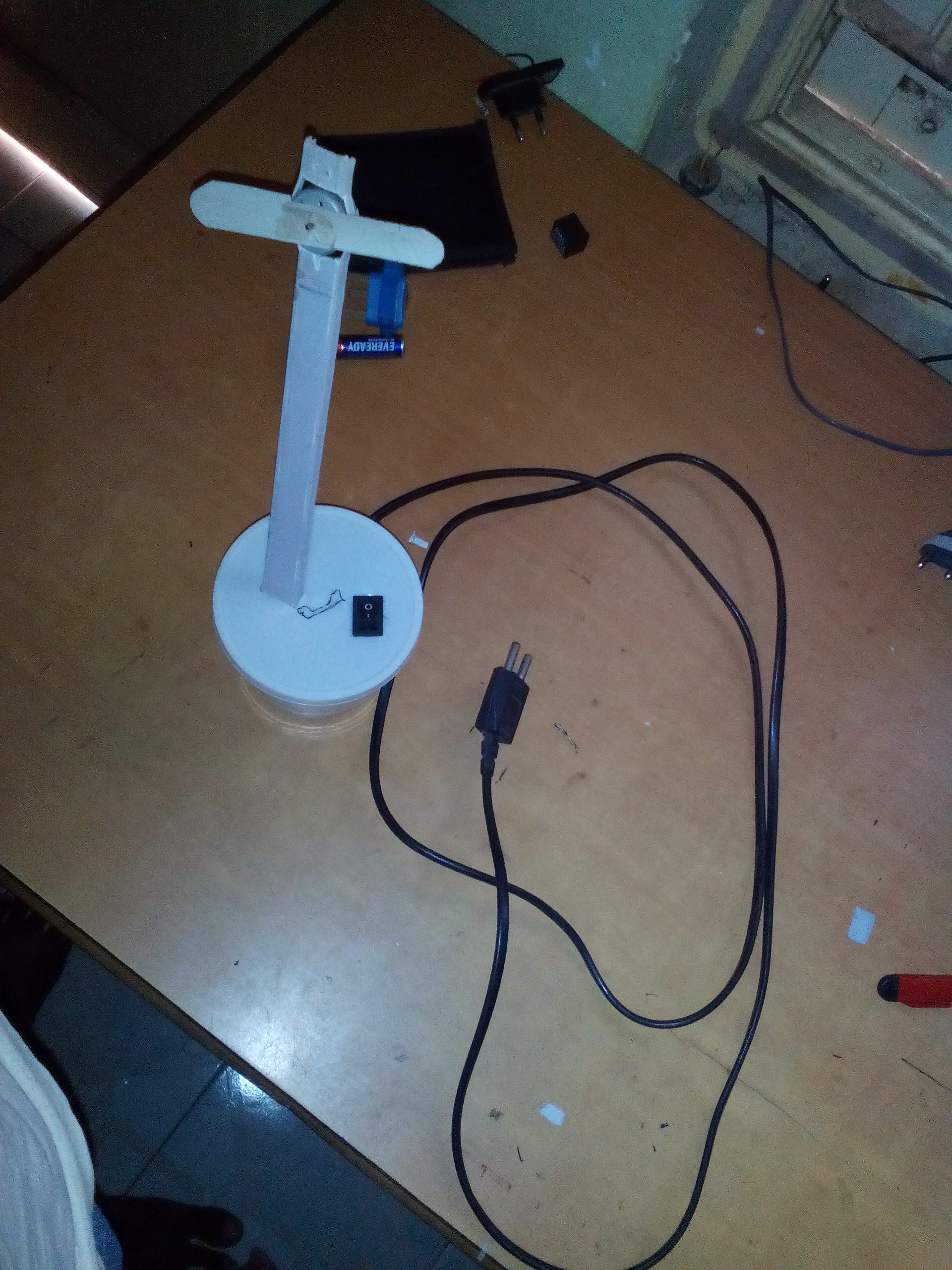

Close the Container Box.
