Simple and Cheap Water Leak Alarm Sound and Light
by Funin in Living > Life Hacks
195 Views, 2 Favorites, 0 Comments
Simple and Cheap Water Leak Alarm Sound and Light
![DIY Water Leak Sensor (Flooding Alarm)](/proxy/?url=https://content.instructables.com/FGC/DEK0/KS4HDG5E/FGCDEK0KS4HDG5E.jpg&filename=DIY Water Leak Sensor (Flooding Alarm))
Water Leak is a problem that can happen in almost every home. I made a simple alarm Circuit for water leak warning. I hope it works for you too.
Supplies
• Mini plastic container (I've used a toothpick box)
• 2N2222, 2N3904 or any other NPN transistor
• 5mm Animated LED (You can get from a cheap ugly battery powered candle.) This Ugly Things
• 12mm Piezo Buzzer for Annoying Alarm (You can get from broken UPS or cheapp door alarm)
• M3x10 Bolts&Nuts
• Fork Terminal Cable Lug
• scrap cable
• 9V Battery
• 680R 1/4W Resistor
• 1K Resistor
Prepare Container
![1.jpg](/proxy/?url=https://content.instructables.com/F4Q/I29F/KS4HDGG0/F4QI29FKS4HDGG0.jpg&filename=1.jpg)
![2.jpg](/proxy/?url=https://content.instructables.com/FE7/1IE1/KS4HDGGL/FE71IE1KS4HDGGL.jpg&filename=2.jpg)
![3.jpg](/proxy/?url=https://content.instructables.com/F8L/LFK4/KS4HDGGO/F8LLFK4KS4HDGGO.jpg&filename=3.jpg)
![5.jpg](/proxy/?url=https://content.instructables.com/FLG/0CV5/KS4HDGMY/FLG0CV5KS4HDGMY.jpg&filename=5.jpg)
Drill 3 hole bottom of the plastic container. Mount nuts and bolts together with cable lugs for water contact terminal. Solder cable to lugs for connect the circuit board.
Solder the Circuit
![schematics.png](/proxy/?url=https://content.instructables.com/FXC/VVPQ/KS4HDGIL/FXCVVPQKS4HDGIL.png&filename=schematics.png)
![4.jpg](/proxy/?url=https://content.instructables.com/FIQ/0ZVM/KS4HDGIO/FIQ0ZVMKS4HDGIO.jpg&filename=4.jpg)

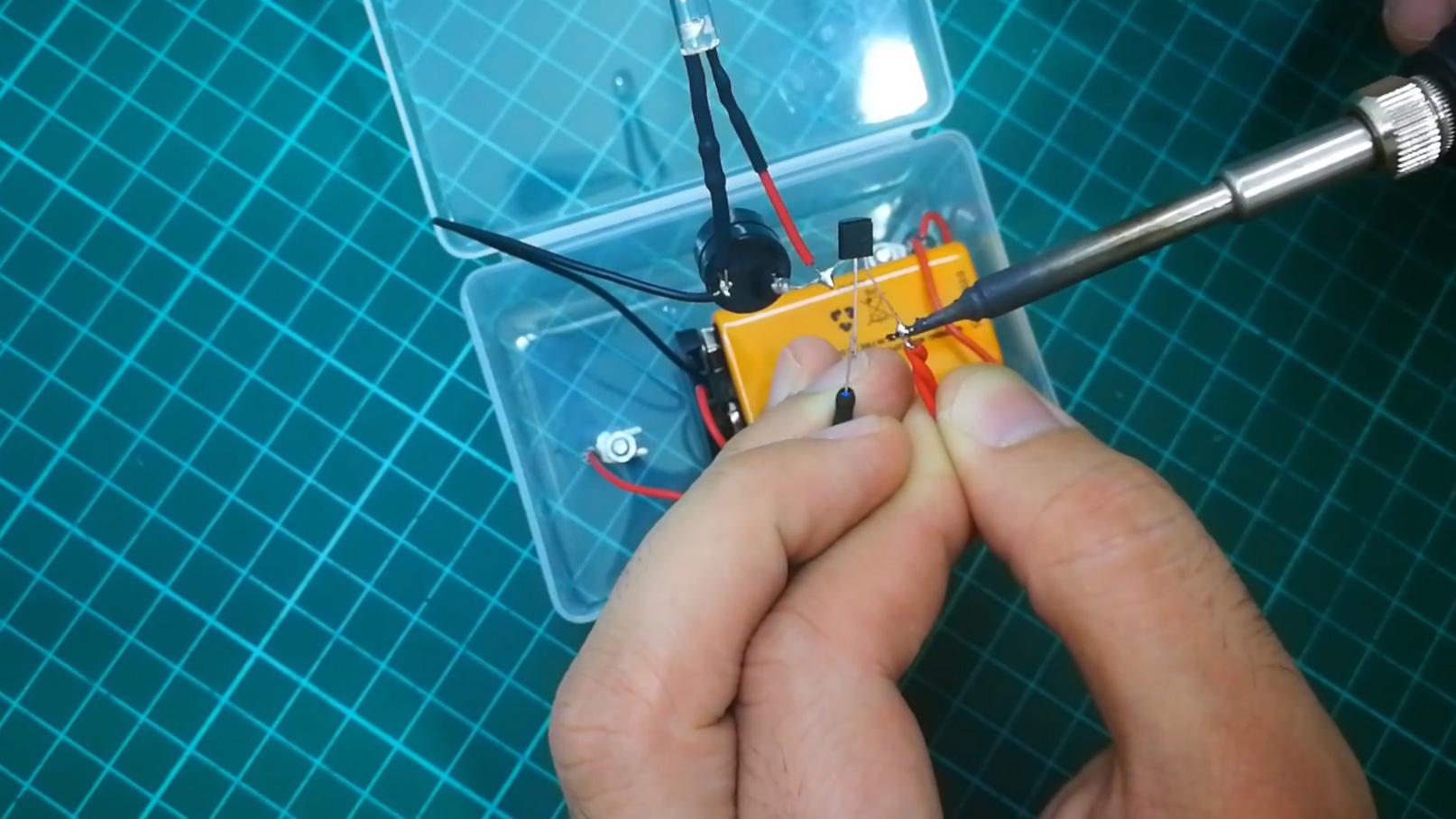

Solder the parts according to schematics. After that install battery and the circuit board inside the box.
You've Done. Test It
![6.jpg](/proxy/?url=https://content.instructables.com/FYF/7QER/KS4HDGP0/FYF7QERKS4HDGP0.jpg&filename=6.jpg)
![test.jpg](/proxy/?url=https://content.instructables.com/FGN/EBAP/KS4HDGQW/FGNEBAPKS4HDGQW.jpg&filename=test.jpg)
![DIY Water Leak Sensor (Flooding Alarm)](/proxy/?url=https://content.instructables.com/FRM/XIPV/KS4HDGR7/FRMXIPVKS4HDGR7.jpg&filename=DIY Water Leak Sensor (Flooding Alarm))
Test inside the sink. You don't need a Flooding ;)
