Last week, someone stole milk packets outside my flat. We spoke to different staff and other residents but had no luck.
So decided to place a CCTV outside my flat. I started researching and found a few options
Options
- DVR / NVR Based CCTV: Expensive
- Fake Camera: may work to scare people
- Wifi Camera for outdoor: expensive
- Wifi Camera for indoors: Cheap, but no stand and I had one
- ESP32 CAM: I had one ut could not fix the "camera not detected" error
I had a very common V380 wifi camera.. not sure why I bought it a few years ago.
Since Using this meant that I do not have to spend much, I decided to go with it
I have made improvements to the camera, please click here to view
Supplies
![IMG_20220228_140451.jpg](/proxy/?url=https://content.instructables.com/FQ2/IZU3/L05AE39C/FQ2IZU3L05AE39C.jpg&filename=IMG_20220228_140451.jpg)
- Wifi V380 Camera
- 5V mobile charger
- Small USB cable to power camera
- SD card
- Copper wire and Electric socket
- Double Side Tape

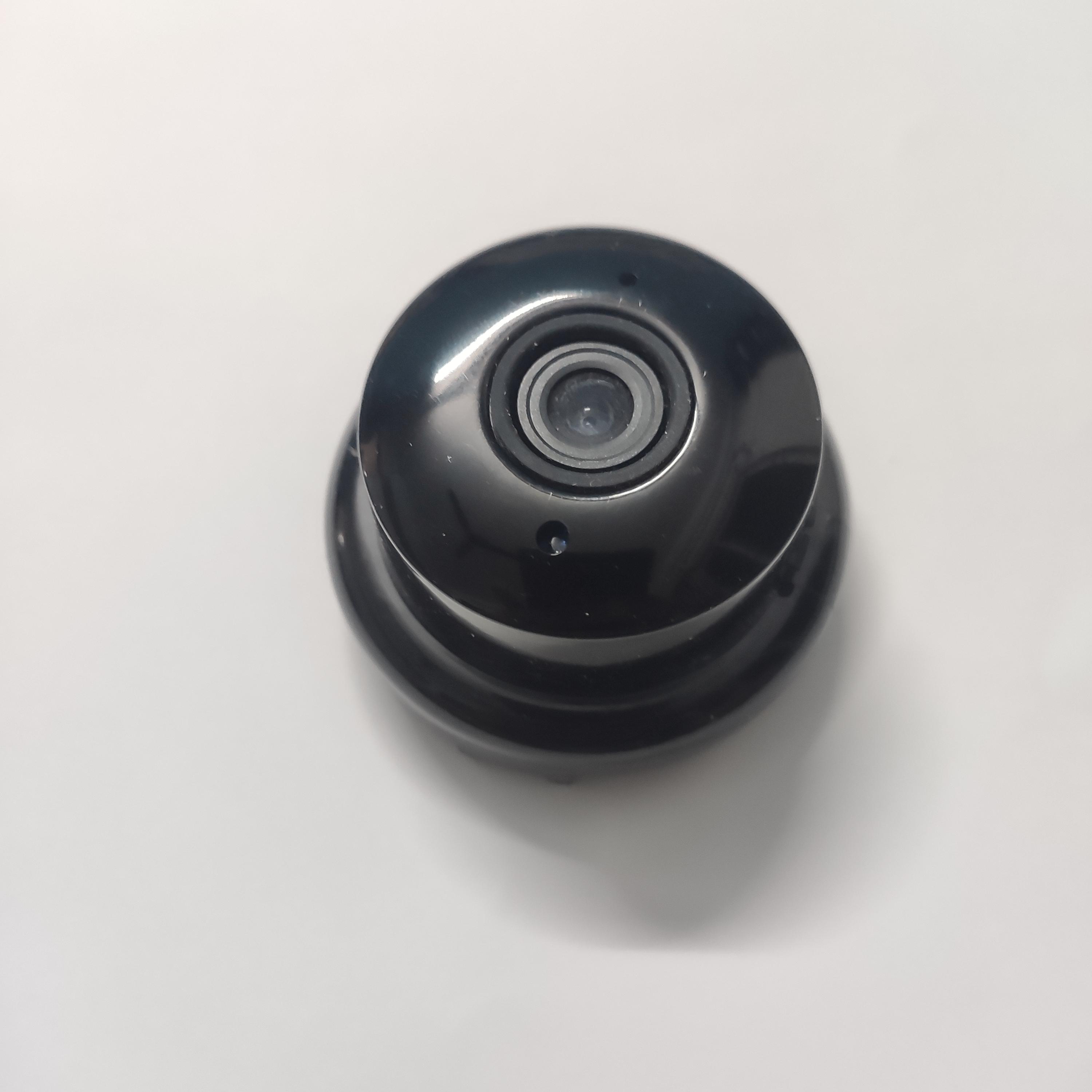

Preparing Camera
![IMG_20220227_203958.jpg](/proxy/?url=https://content.instructables.com/F9C/7YWU/L05AE35U/F9C7YWUL05AE35U.jpg&filename=IMG_20220227_203958.jpg)
Before we start making anything, we need to make sure that the camera is working
- Power the camera and reset by pressing a pin at the back of the camera
- Download Camera app from Google Play Store ( I am using an Android phone)
- Set up the camera and configure to what one needs
- Alarm between 20:00 PM to 8:00 AM
- Record on Event
- Record in SD
- Disconnect the camera from the power and connect it to a power bank
- Let it boot and connect to wifi
- Now place the camera in different positions and angles to get the desired view
- I realized that there are blind spots and one cannot avoid them.
- We could increase the number of cameras to get better coverage

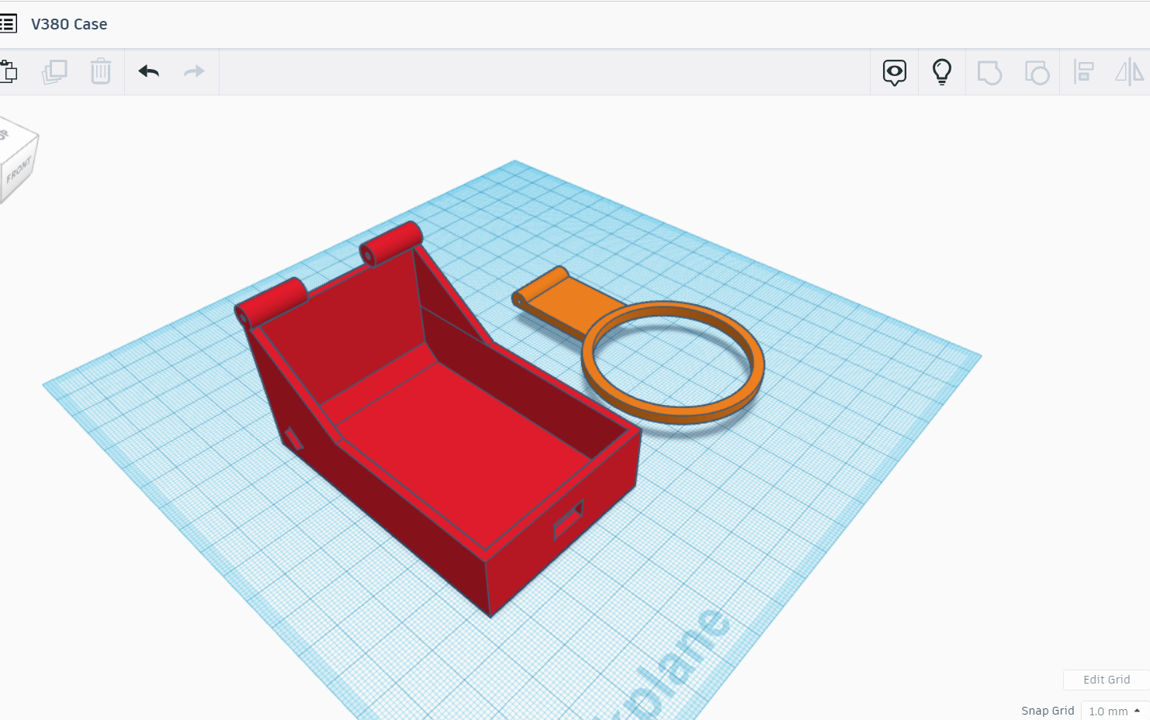

Tinkercad
![v380.png](/proxy/?url=https://content.instructables.com/FKN/3OL8/L05AFZLS/FKN3OL8L05AFZLS.png&filename=v380.png)
Before we start with TinkerCad, we need to measure all our constrains
- Camera
- Inner Diameter: 46 mm
- Outer diameter: 63mm
- Overall depth: 35mm
- Power adaptor : 35 x 15 x 25
- Holes for wall mount: 6mm diameter
- Hole for micro USB:10mm
- Hole for AC power: 6mm
- To change the angle of the camera we need a hinge
I drew all of this on a paper first, then in Tinkercad

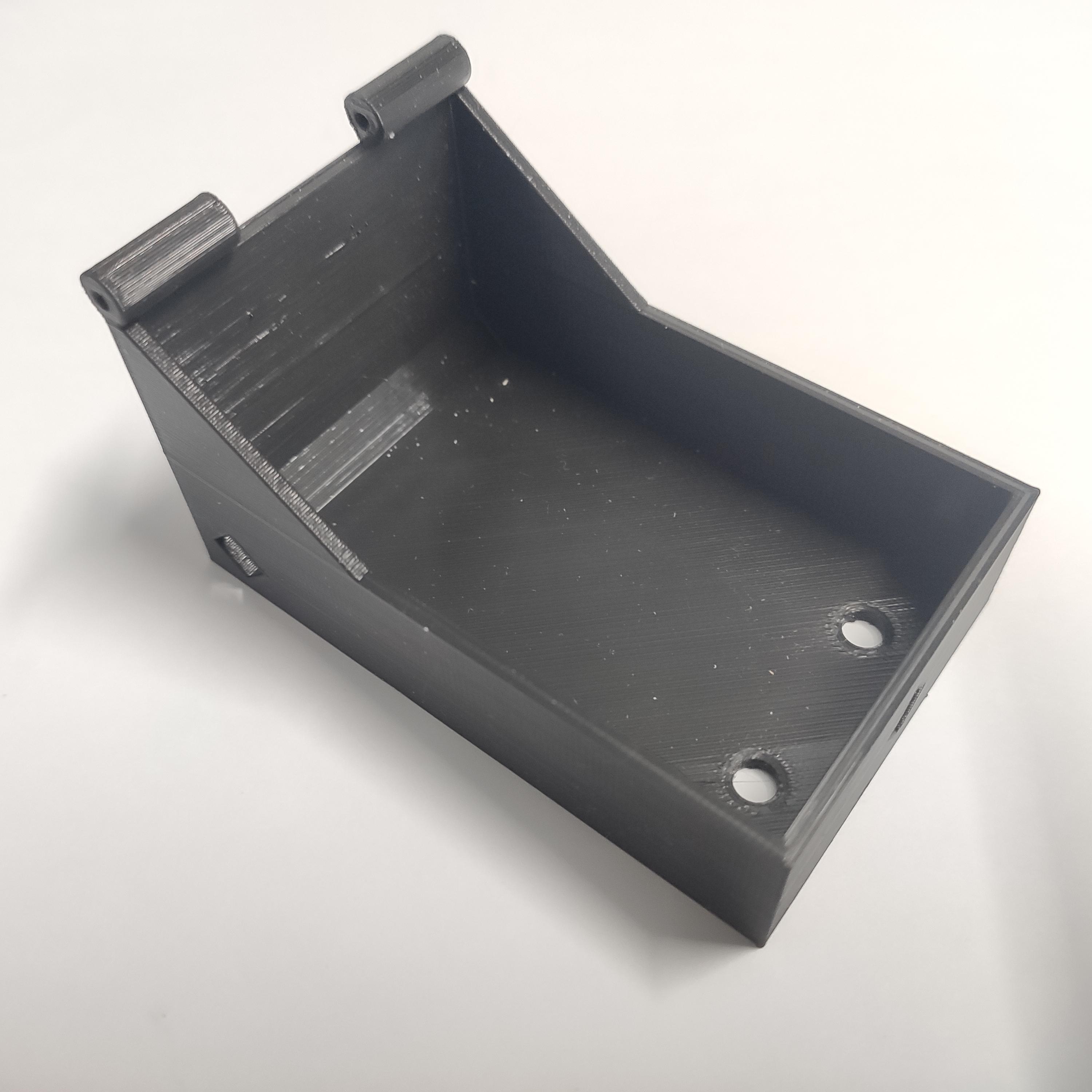

3D Print
![IMG_20220227_204220.jpg](/proxy/?url=https://content.instructables.com/FXS/FZMG/L05AE35X/FXSFZMGL05AE35X.jpg&filename=IMG_20220227_204220.jpg)
![IMG_20220227_204204.jpg](/proxy/?url=https://content.instructables.com/F96/PDSN/L05AE36O/F96PDSNL05AE36O.jpg&filename=IMG_20220227_204204.jpg)
![IMG_20220227_204309.jpg](/proxy/?url=https://content.instructables.com/FTV/W1GI/L05AE37H/FTVW1GIL05AE37H.jpg&filename=IMG_20220227_204309.jpg)
![IMG_20220227_204625.jpg](/proxy/?url=https://content.instructables.com/FT3/KULG/L05AE38H/FT3KULGL05AE38H.jpg&filename=IMG_20220227_204625.jpg)
![IMG_20220227_204841.jpg](/proxy/?url=https://content.instructables.com/F1O/M48N/L05AE38A/F1OM48NL05AE38A.jpg&filename=IMG_20220227_204841.jpg)
- Files can be downloaded from Cults3d (free)
- I printed them on my Ender 3
- Support: None
- Resolution : 0.2mm
- Infill: 20%

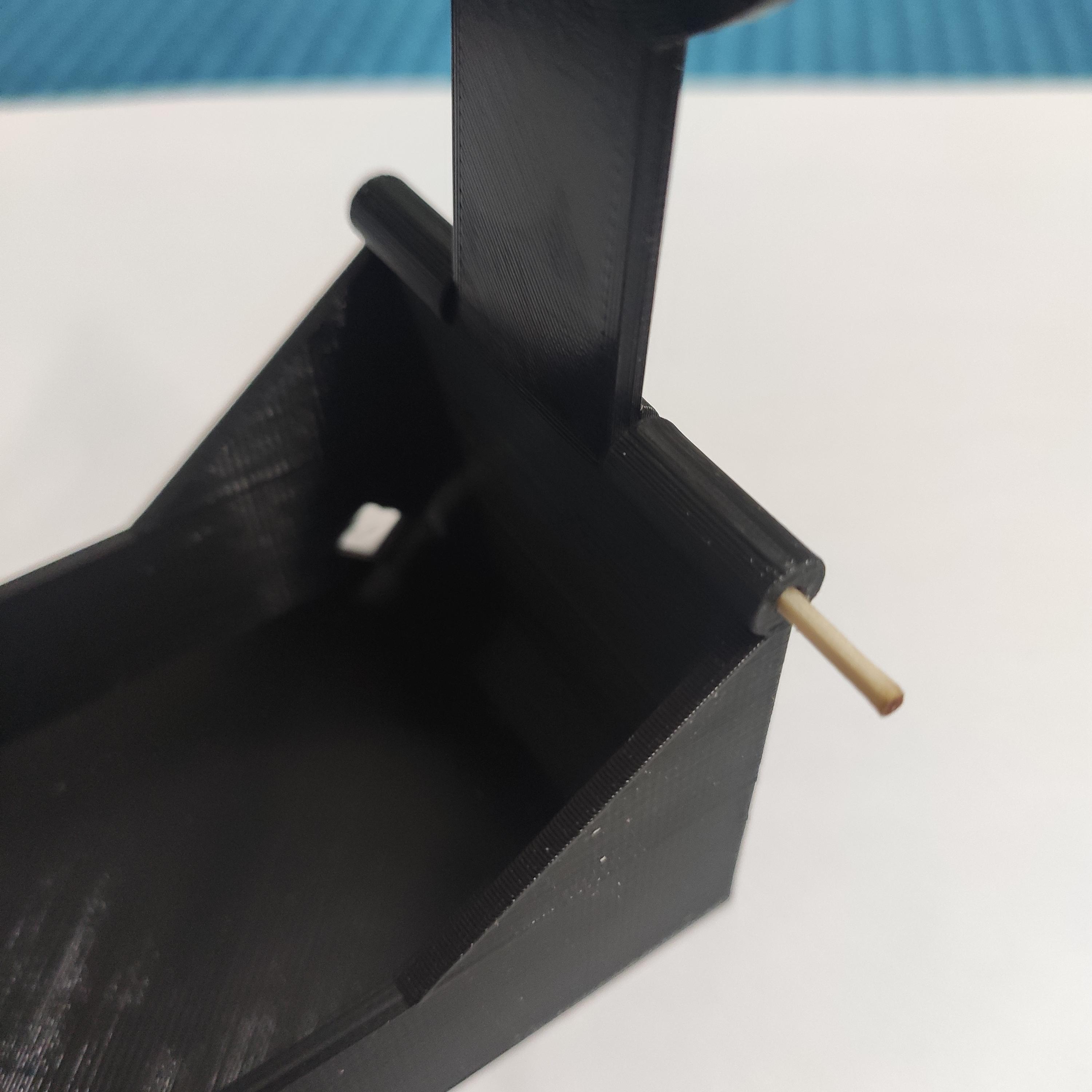

- Using a match stick, fix the hinge
- Test the camera fits the ring mount
- Design issue:
- I noticed that the hinge is too smooth and will not hold the camera in position.
- Could be slimmer
- Back plate to hide electronics can be added
Assembly
![IMG_20220228_140504_1.jpg](/proxy/?url=https://content.instructables.com/FTG/NCYF/L05AE3A9/FTGNCYFL05AE3A9.jpg&filename=IMG_20220228_140504_1.jpg)
![IMG_20220228_141013.jpg](/proxy/?url=https://content.instructables.com/FZD/ZOTR/L05AE3AJ/FZDZOTRL05AE3AJ.jpg&filename=IMG_20220228_141013.jpg)
![IMG_20220228_141138.jpg](/proxy/?url=https://content.instructables.com/FSS/XCVO/L05AE3C5/FSSXCVOL05AE3C5.jpg&filename=IMG_20220228_141138.jpg)
![IMG_20220228_141449.jpg](/proxy/?url=https://content.instructables.com/FPF/KHI2/L05AE3D4/FPFKHI2L05AE3D4.jpg&filename=IMG_20220228_141449.jpg)
![IMG_20220228_141527.jpg](/proxy/?url=https://content.instructables.com/FM1/G2QC/L05AE3ET/FM1G2QCL05AE3ET.jpg&filename=IMG_20220228_141527.jpg)
- There is enough space to fit any regular sized mobile charger
- Still, I broke open the charger's cover
- Solder to wires to the AC input of the charger and connect to a power connector
- Using hot glue or double side tape, fix the charger inside the camera mount
- Connect the USB cable as shown
- Connect the micro usb cable to the camera and we are done

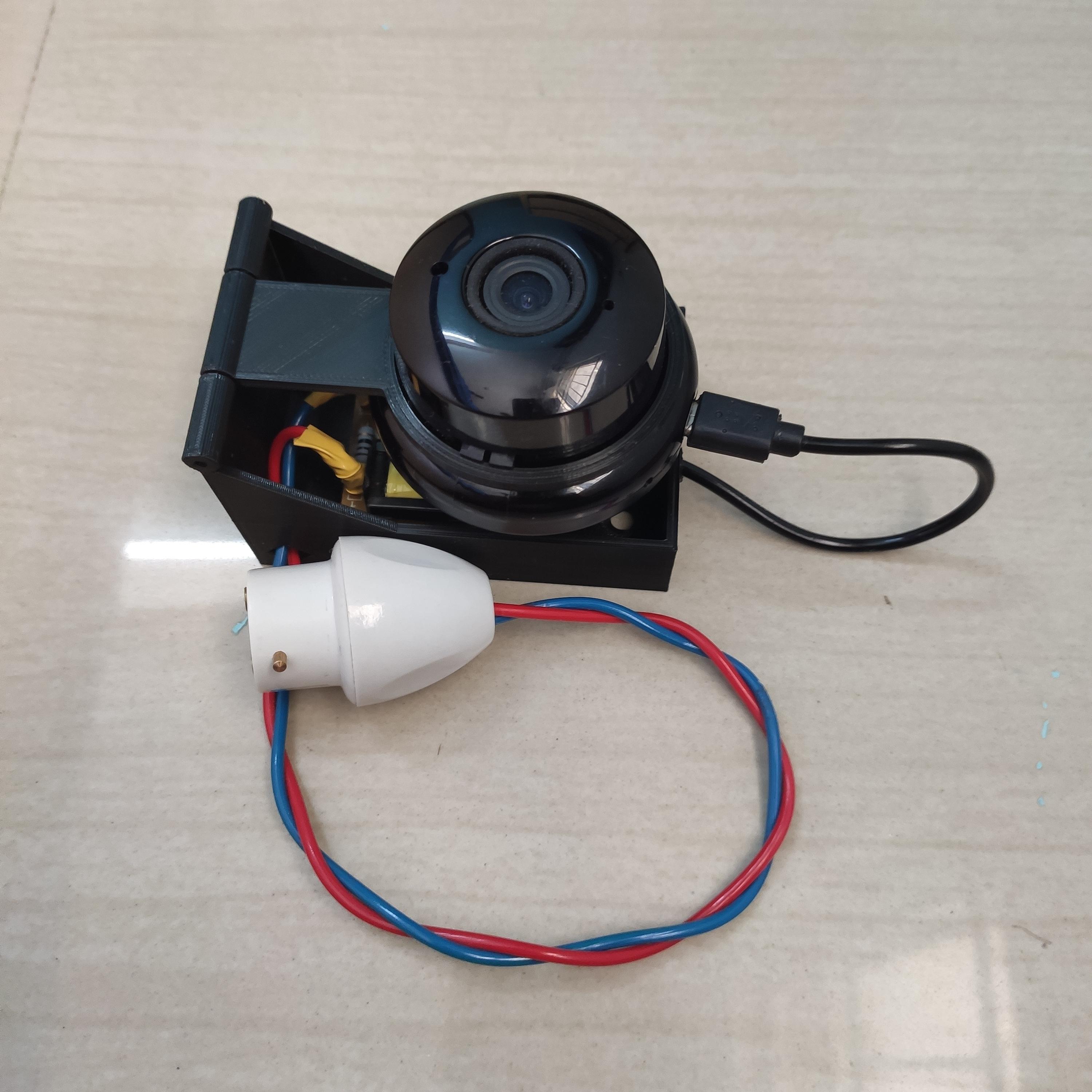

Final
![IMG_20220228_141541.jpg](/proxy/?url=https://content.instructables.com/F1M/D5ER/L05AE3F7/F1MD5ERL05AE3F7.jpg&filename=IMG_20220228_141541.jpg)
![IMG_20220228_142424.jpg](/proxy/?url=https://content.instructables.com/F8M/B6VB/L05AE3G9/F8MB6VBL05AE3G9.jpg&filename=IMG_20220228_142424.jpg)

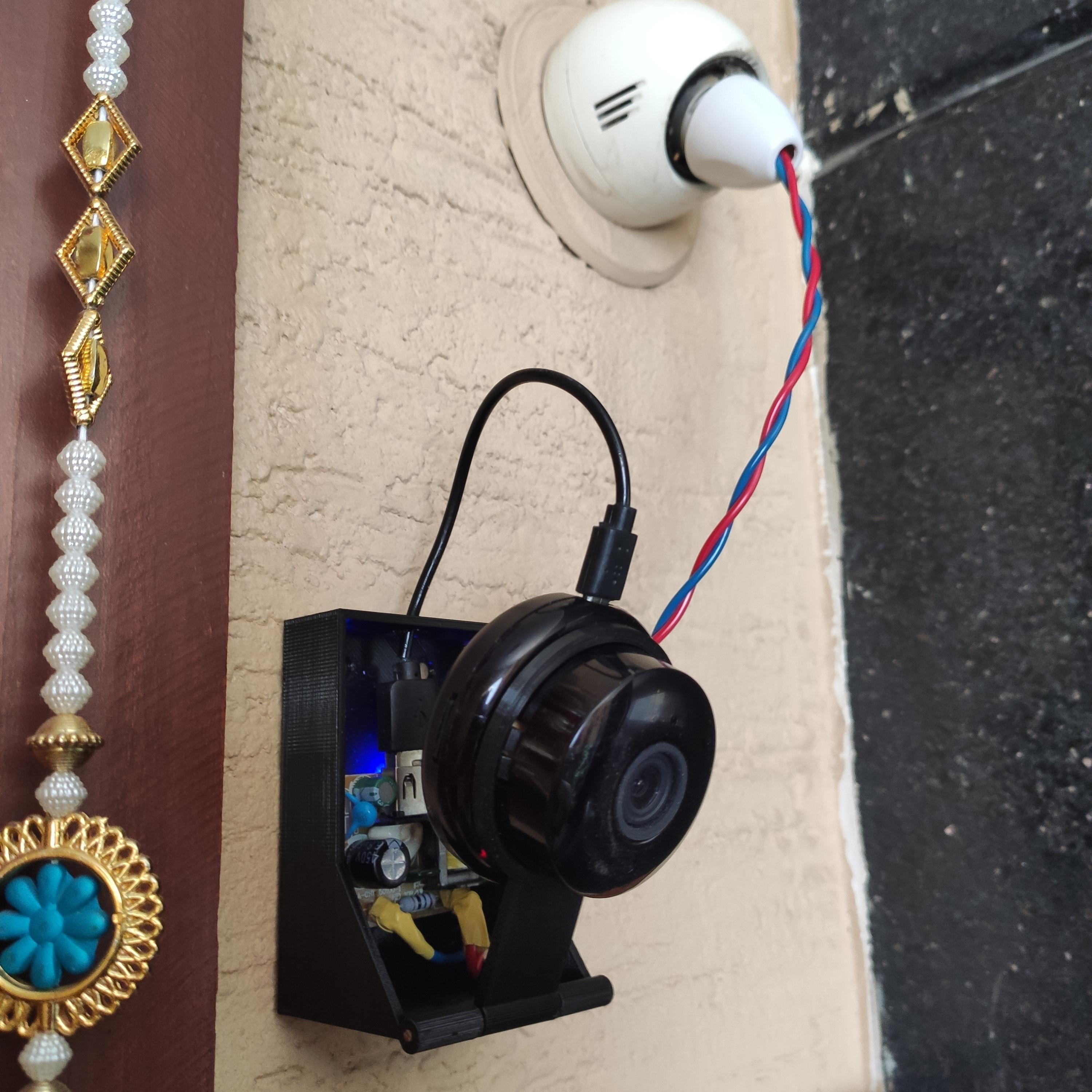

- Test the wifi camera in different positions and angles using double side tape
- Once happy, drill final holes for mounting the camera on a wall
- Power on the camera and start monitoring
There are a few design improvements that I will fix in the future. For a first attempt, it has come out very well
Hope you like this. Please share our comments and suggestions
