Simple Water Electrolysis System
by How-to-make it in Workshop > Energy
7725 Views, 32 Favorites, 0 Comments
Simple Water Electrolysis System
![Untitled.png](/proxy/?url=https://content.instructables.com/FFM/WSG7/J16P2XZP/FFMWSG7J16P2XZP.png&filename=Untitled.png)
![Thu khí Hidro hoặc khí Oxi đơn giản bằng điện phân và đẩy nước](/proxy/?url=https://content.instructables.com/F0L/G4CN/J16P2XSR/F0LG4CNJ16P2XSR.jpg&filename=Thu khí Hidro hoặc khí Oxi đơn giản bằng điện phân và đẩy nước)
Collecting Hydrogen and Oxigen using only tap water, salt and two laptop charger
Take a Little Bowl
![Step 1.png](/proxy/?url=https://content.instructables.com/F46/TFTW/J16P2WEL/F46TFTWJ16P2WEL.png&filename=Step 1.png)
Take a little plastic bowl and fill with salt solution
Take Two Big Screw
![step 2.png](/proxy/?url=https://content.instructables.com/FSA/FX31/J16P2WHL/FSAFX31J16P2WHL.png&filename=step 2.png)
Using two big screw as electrode. One as Anode and one as Cathode
Prepair the Power Supply
![step 3.png](/proxy/?url=https://content.instructables.com/FBL/H0R8/J16P2WQC/FBLH0R8J16P2WQC.png&filename=step 3.png)
The electric flows must be Direct Current (DC) remember, must be DC, AC current won't work. I use two 24v DC Adapter from computer charger connected in serial to gain the voltage to 48v with the current flow about 6 amps.
Make the Bubbler
![step 4.png](/proxy/?url=https://content.instructables.com/FS3/CCEY/J16P2WWU/FS3CCEYJ16P2WWU.png&filename=step 4.png)
Using water bottle

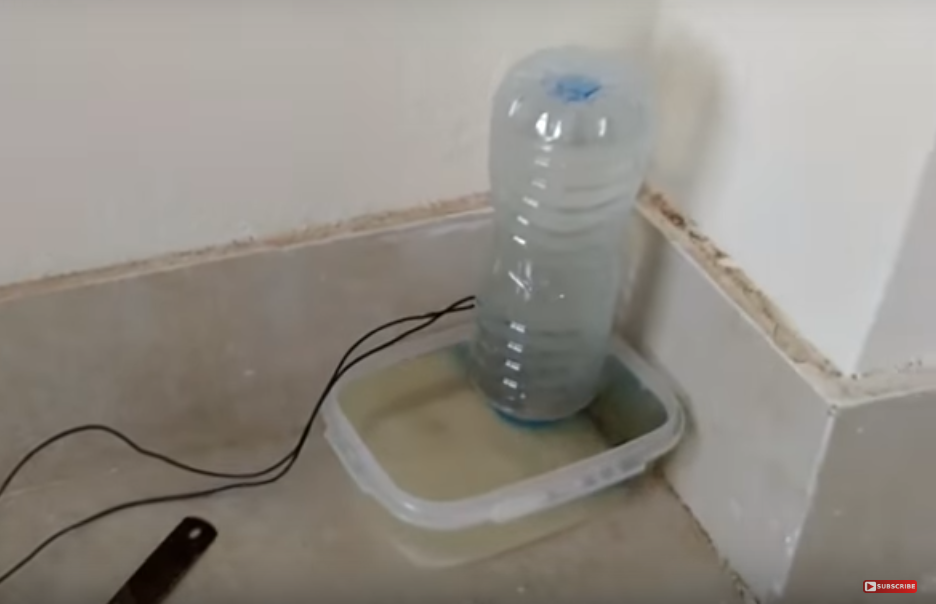

Collecting Hydrogen and Oxigen
![step 5.png](/proxy/?url=https://content.instructables.com/F77/2FZP/J16P2X47/F772FZPJ16P2X47.png&filename=step 5.png)
The Electrode with more bubble is Hydrogen . Choose what you want to collect and then flip the bubbler over the electrode
Test
![Đốt thử khí Hidro trong chai : NỔ](/proxy/?url=https://content.instructables.com/FDU/KSGJ/J16YFK9L/FDUKSGJJ16YFK9L.jpg&filename=Đốt thử khí Hidro trong chai : NỔ)
For Hydrogen: Using lighter to test. But remember : Pure Hydrogen is flamable, but Hydrogen with Oxigen is highly explosive, the amount of hydrogen and oxigen with the ratio of 2:1 in a big bottle can blow you up, so be careful
