Simple Vu Meter Using Arduino
by EDISON SCIENCE CORNER in Circuits > Arduino
1017 Views, 2 Favorites, 0 Comments
Simple Vu Meter Using Arduino

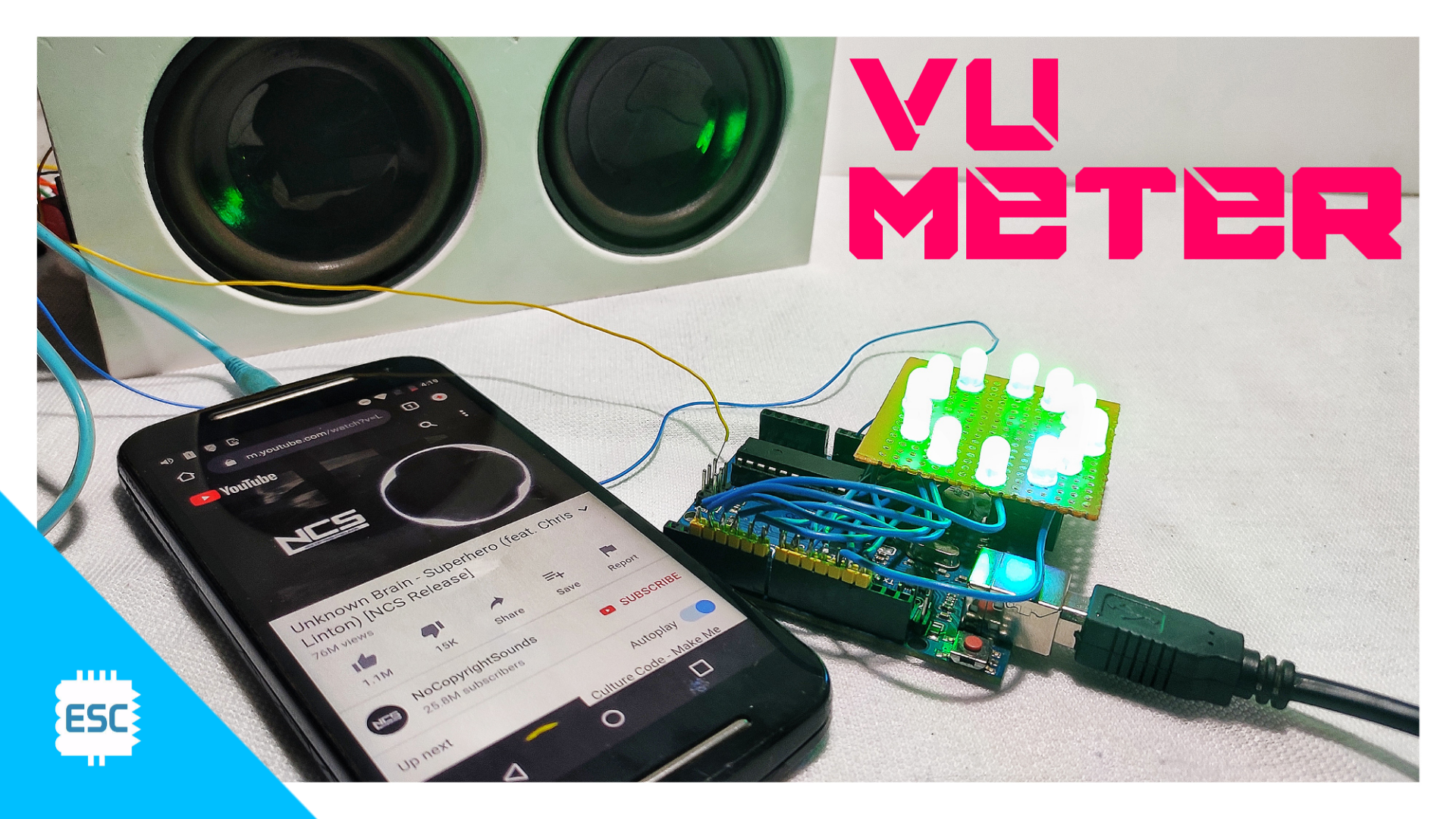

![Simple VU meter using arduno](/proxy/?url=https://content.instructables.com/FXS/WPZ5/K9UD7D2M/FXSWPZ5K9UD7D2M.jpg&filename=Simple VU meter using arduno)

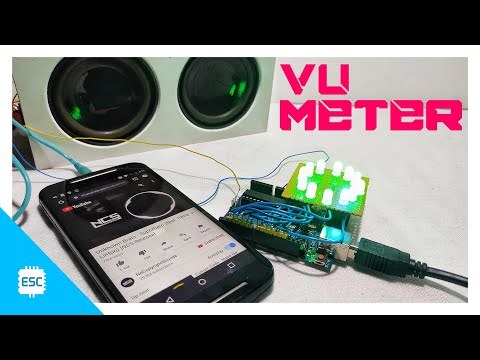

![20200505_191015.png](/proxy/?url=https://content.instructables.com/F2B/0BVR/K9UD7D0M/F2B0BVRK9UD7D0M.png&filename=20200505_191015.png)
A volume unit (VU) meter or standard volume indicator (SVI) is a device displaying a representation of the signal level in audio equipment.so in this tutorial lets build a VU meter using Arduino
Things Needed
![IMG_20200427_112621.jpg](/proxy/?url=https://content.instructables.com/FUP/40QZ/K9G9JHOW/FUP40QZK9G9JHOW.jpg&filename=IMG_20200427_112621.jpg)
![IMG_20200427_112630.jpg](/proxy/?url=https://content.instructables.com/FLB/PITB/K9G9JHOZ/FLBPITBK9G9JHOZ.jpg&filename=IMG_20200427_112630.jpg)
![IMG_20200427_112925.jpg](/proxy/?url=https://content.instructables.com/F4U/DDF4/K9G9JHP8/F4UDDF4K9G9JHP8.jpg&filename=IMG_20200427_112925.jpg)
- Arduino
- led
- aux cable
- jumper wire
- breadboard
Circuit Diagram
![chaser_bb.png](/proxy/?url=https://content.instructables.com/F9J/AFKF/K9UD7AMY/F9JAFKFK9UD7AMY.png&filename=chaser_bb.png)
just add an aux cable to pin a0
Connections
![IMG_20200427_113157.jpg](/proxy/?url=https://content.instructables.com/F09/OJV3/K9G9JHPF/F09OJV3K9G9JHPF.jpg&filename=IMG_20200427_113157.jpg)
connect anodes of less to pin 2-13
connect cathodes together and connect to ground
connect aux cable a0 and ground
SOLDERING ON a DOT PCB
![IMG_20200504_151717-01.jpeg](/proxy/?url=https://content.instructables.com/FYV/27SK/K9UD7ANW/FYV27SKK9UD7ANW.jpg&filename=IMG_20200504_151717-01.jpeg)
![IMG_20200504_155049-01.jpeg](/proxy/?url=https://content.instructables.com/FOJ/9FG3/K9UD7AP5/FOJ9FG3K9UD7AP5.jpg&filename=IMG_20200504_155049-01.jpeg)
![IMG_20200504_151706-01.jpeg](/proxy/?url=https://content.instructables.com/FN0/BS8N/K9UD7ANE/FN0BS8NK9UD7ANE.jpg&filename=IMG_20200504_151706-01.jpeg)
![IMG_20200504_152139-01.jpeg](/proxy/?url=https://content.instructables.com/F6G/177K/K9UD7AOD/F6G177KK9UD7AOD.jpg&filename=IMG_20200504_152139-01.jpeg)
![IMG_20200504_152629-01.jpeg](/proxy/?url=https://content.instructables.com/F9S/S5UG/K9UD7AP3/F9SS5UGK9UD7AP3.jpg&filename=IMG_20200504_152629-01.jpeg)
![IMG_20200504_154428-01.jpeg](/proxy/?url=https://content.instructables.com/FZ9/TKGT/K9UD7AP4/FZ9TKGTK9UD7AP4.jpg&filename=IMG_20200504_154428-01.jpeg)

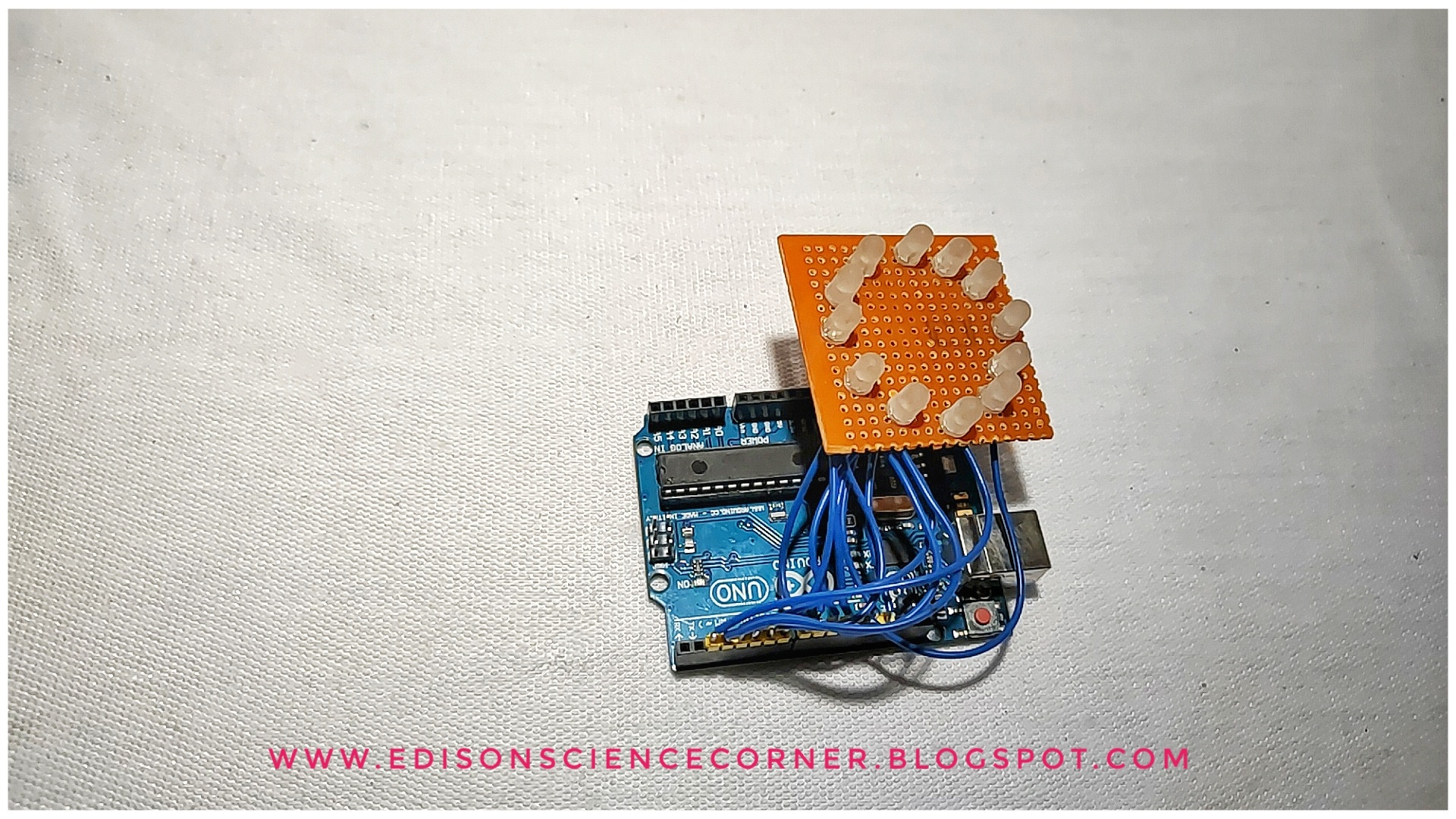

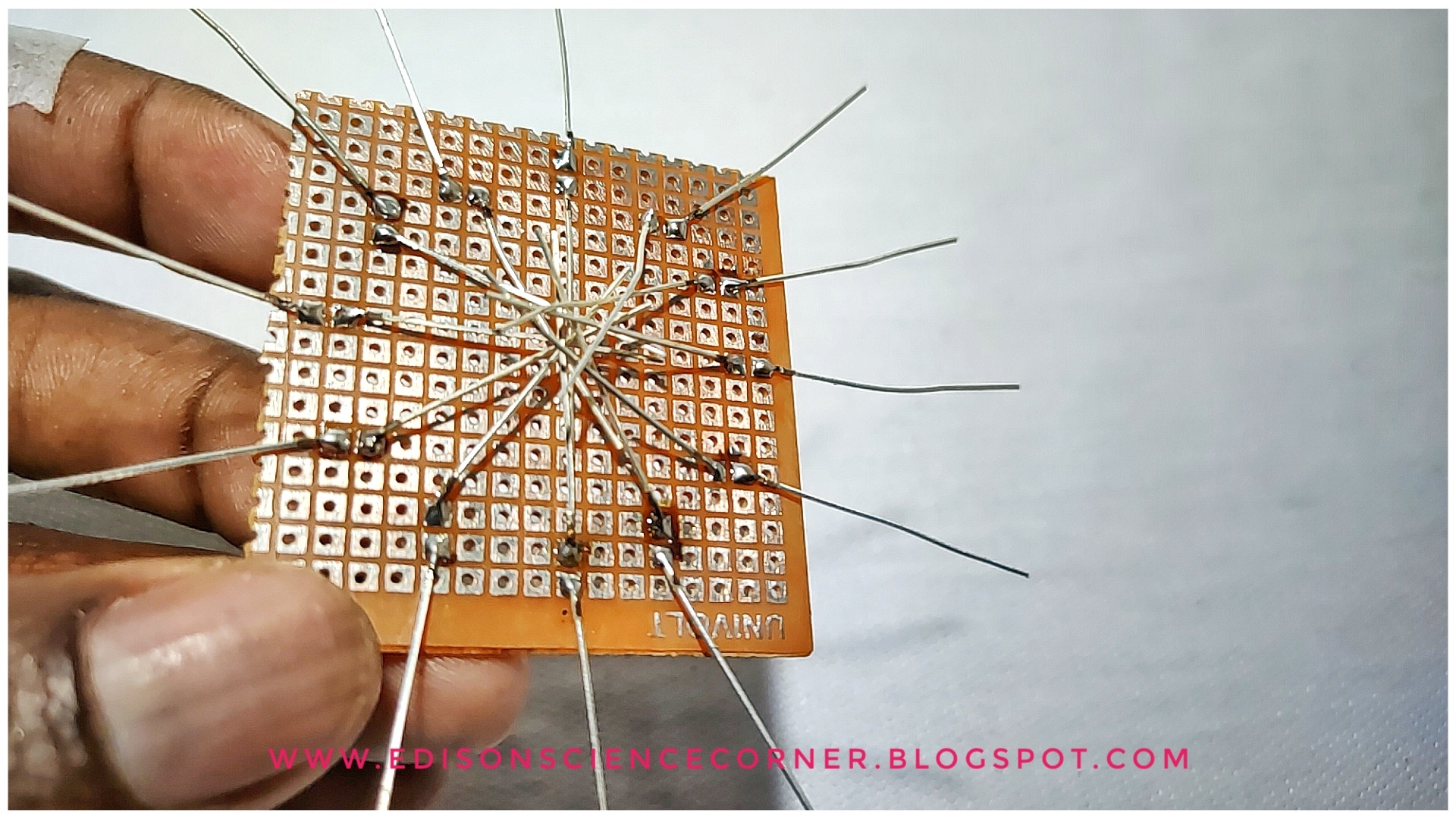

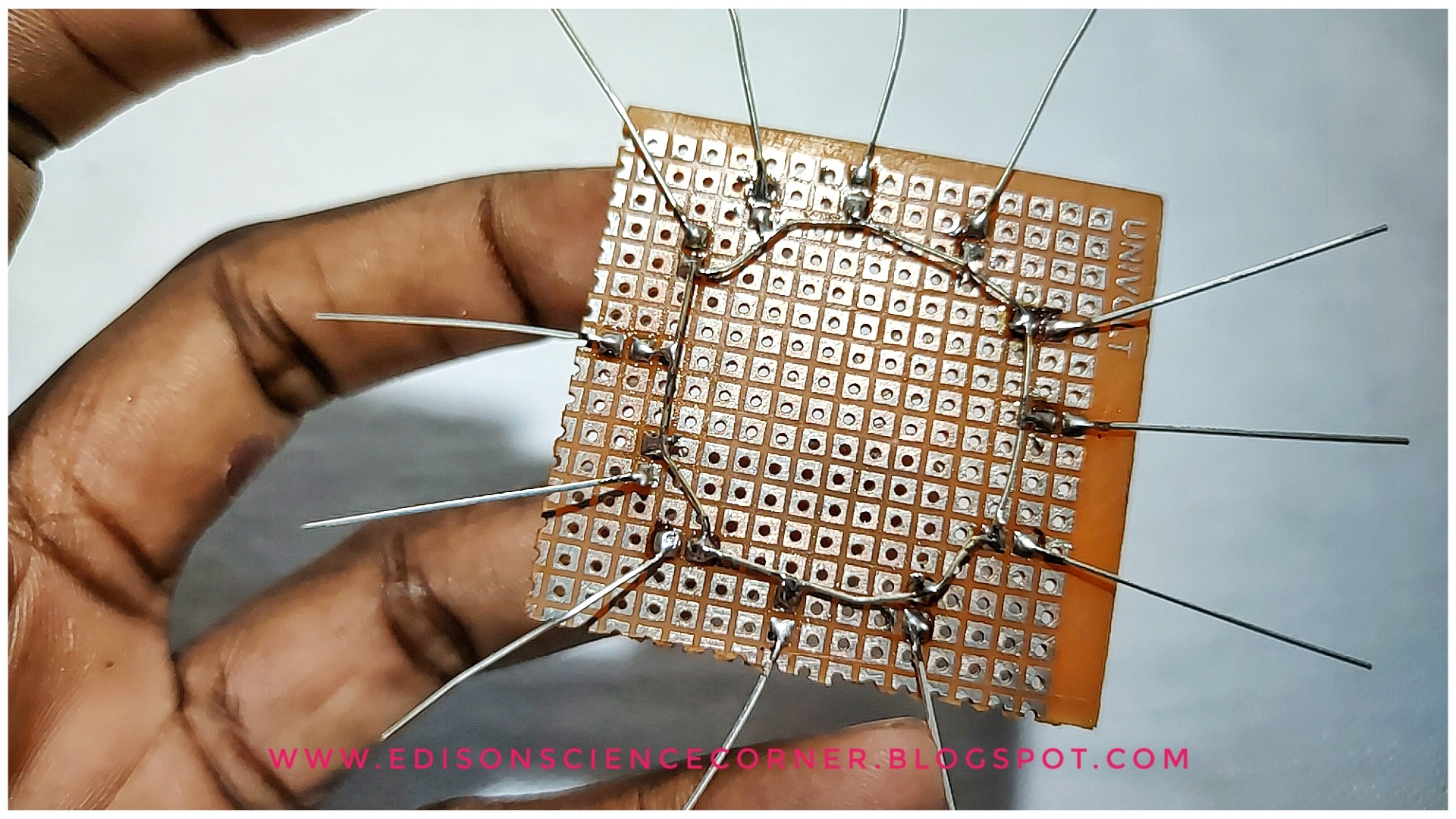

arrange in a round shape and solder
Code
Happy Making
![IMG_20200504_161920-01.jpeg](/proxy/?url=https://content.instructables.com/FWG/O3D8/K9UD7AT1/FWGO3D8K9UD7AT1.jpg&filename=IMG_20200504_161920-01.jpeg)
![IMG_20200504_160525-01.jpeg](/proxy/?url=https://content.instructables.com/FRK/J6MI/K9UD7AS1/FRKJ6MIK9UD7AS1.jpg&filename=IMG_20200504_160525-01.jpeg)
if you have any doubt, please let me know.
