Simple Teardrop Camper
![316C0BB1-81FA-4321-8CB9-E5EEEB15714B.jpeg](/proxy/?url=https://content.instructables.com/FS8/25ZB/JK2UGXD6/FS825ZBJK2UGXD6.jpg&filename=316C0BB1-81FA-4321-8CB9-E5EEEB15714B.jpeg)
![92853377-6639-4659-BDD3-2EF7CEB8B33D.jpeg](/proxy/?url=https://content.instructables.com/F5J/YGMF/JK2UGX7G/F5JYGMFJK2UGX7G.jpg&filename=92853377-6639-4659-BDD3-2EF7CEB8B33D.jpeg)
Here’s my teardrop camper build. Enjoy!
Finding a Trailer!
![A6FF4C3C-F4FB-4A93-B397-7F162C3498EC.jpeg](/proxy/?url=https://content.instructables.com/FKL/UAT4/JK2UI9UJ/FKLUAT4JK2UI9UJ.jpg&filename=A6FF4C3C-F4FB-4A93-B397-7F162C3498EC.jpeg)
First off, deciding to build a camper is a relatively easy project If you have patience, a little bit of money, and a lot of extra time.
I decided to go with a trailer from harbor freight that is roughly 4’x8’, and has a 1200 pound load capacity. If I remember correctly I paid about 250$ for the trailer brand new.
The trailer comes in a box and you have to assemble it yourself.
An electric impact and socket set will save a lot of time here!
I decided to go with a trailer from harbor freight that is roughly 4’x8’, and has a 1200 pound load capacity. If I remember correctly I paid about 250$ for the trailer brand new.
The trailer comes in a box and you have to assemble it yourself.
An electric impact and socket set will save a lot of time here!
Installing Floor on Trailer.
![800DFD09-6709-4C97-A6BB-59266CF41DC1.jpeg](/proxy/?url=https://content.instructables.com/FTU/GR4X/JK2UI9R4/FTUGR4XJK2UI9R4.jpg&filename=800DFD09-6709-4C97-A6BB-59266CF41DC1.jpeg)
Although I did not get photo evidence of the underside of the plywood, I bought a regular sheet of 3/4” plywood and some 2”x2” boards and raises it off of the trailer so I could install cheap insulation board underneath. I also had some “roll on” tar left over from another project and gave it a good coat to prevent water damage.
Building Walls
![4E593490-1D9F-48DF-9FD7-8BC4FDF49059.jpeg](/proxy/?url=https://content.instructables.com/F6L/BMDB/JK2UI5QB/F6LBMDBJK2UI5QB.jpg&filename=4E593490-1D9F-48DF-9FD7-8BC4FDF49059.jpeg)
![26A2CDCF-B69D-4E3F-ABDD-940B1395EE4F.jpeg](/proxy/?url=https://content.instructables.com/FQ5/A7RY/JK2UI5RB/FQ5A7RYJK2UI5RB.jpg&filename=26A2CDCF-B69D-4E3F-ABDD-940B1395EE4F.jpeg)
![4FF51B6B-08F8-4364-8ED7-E6DEC021105B.jpeg](/proxy/?url=https://content.instructables.com/FQX/HMO4/JK2UI5ST/FQXHMO4JK2UI5ST.jpg&filename=4FF51B6B-08F8-4364-8ED7-E6DEC021105B.jpeg)
Okay so for this part I used 4’x8’ sheets of plywood for both side walls of the camper. I tried to design the build using nominal sized lumber to help cut cost.
Also I found on Craigslist a local guy selling used RV parts and found two windows for 40$ together.
I based my “rough in” window dimensions off of the windows I already purchased (so not to run into issues later).

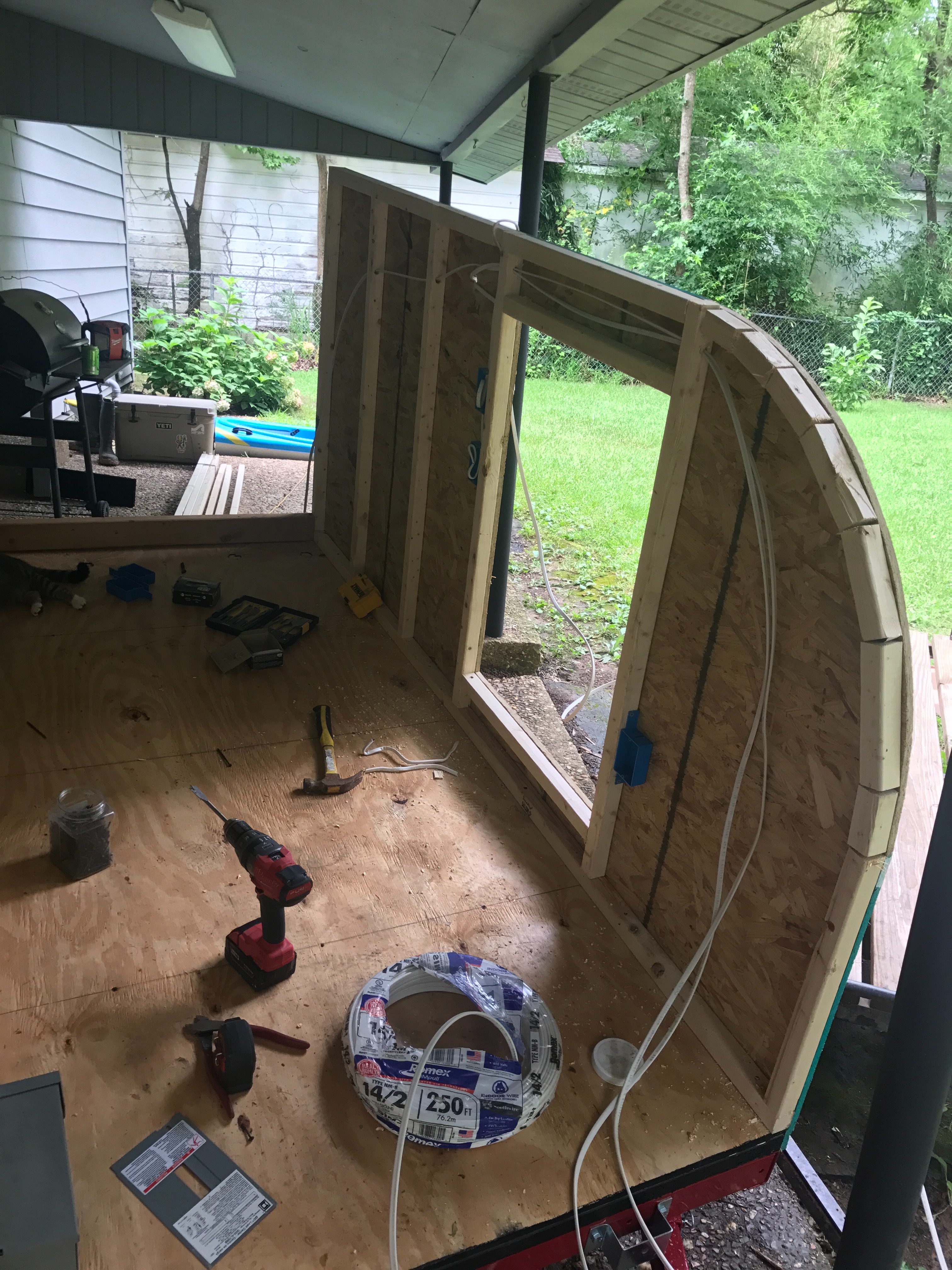

Then cut the 2”x2” boards to sort of frame in the camper so I can insulate and run electrical wires.
Your local hardware store should also sell shallow electrical boxes that will fit perfectly in the thin walls.
Also I found on Craigslist a local guy selling used RV parts and found two windows for 40$ together.
I based my “rough in” window dimensions off of the windows I already purchased (so not to run into issues later).
Then cut the 2”x2” boards to sort of frame in the camper so I can insulate and run electrical wires.
Your local hardware store should also sell shallow electrical boxes that will fit perfectly in the thin walls.
Insulation and Interior Wall Coverings
![67052265-C2D7-4F9B-A35A-93416021B7AD.jpeg](/proxy/?url=https://content.instructables.com/FJV/LD62/JK2UI6SB/FJVLD62JK2UI6SB.jpg&filename=67052265-C2D7-4F9B-A35A-93416021B7AD.jpeg)
![CE681210-6B5F-453C-B2E0-A1BD35324779.jpeg](/proxy/?url=https://content.instructables.com/FYJ/PPXH/JK2UI6TZ/FYJPPXHJK2UI6TZ.jpg&filename=CE681210-6B5F-453C-B2E0-A1BD35324779.jpeg)
![72B11623-68FF-4703-AB2F-95679981659A.jpeg](/proxy/?url=https://content.instructables.com/FH8/YW50/JK2UI6VA/FH8YW50JK2UI6VA.jpg&filename=72B11623-68FF-4703-AB2F-95679981659A.jpeg)
Next I bought foam insulation board and cut it to fit in between studs.
Also bought 1/8” brown plywood for the interior wall coverings. The thickness will cut down on weight and if I remember right the paneling was super cheap.( about 8$ per sheet)
I decided to build my own door and cut dimensions for door and used the windows purchased as a reference to cut out the holes. One in door and one on passenger side.
I roughed in electrical for an exterior light and one interior light, as well as several receptacles for convenience and for window unit and TV.
** on a side note I did not want to wire this camper up for a 12volt system. I already had a generator and planned on using this camper for deer camp. So everything I wired is 120volt and bought wire for a standard 30amp camper receptacle.
We can camp at any regular camp ground!
Also bought 1/8” brown plywood for the interior wall coverings. The thickness will cut down on weight and if I remember right the paneling was super cheap.( about 8$ per sheet)
I decided to build my own door and cut dimensions for door and used the windows purchased as a reference to cut out the holes. One in door and one on passenger side.
I roughed in electrical for an exterior light and one interior light, as well as several receptacles for convenience and for window unit and TV.
** on a side note I did not want to wire this camper up for a 12volt system. I already had a generator and planned on using this camper for deer camp. So everything I wired is 120volt and bought wire for a standard 30amp camper receptacle.
We can camp at any regular camp ground!
Closing Her in
![CE010D5C-C245-4B88-BC3D-642DD1F53DB7.jpeg](/proxy/?url=https://content.instructables.com/F9M/T2BF/JK2UI9NN/F9MT2BFJK2UI9NN.jpg&filename=CE010D5C-C245-4B88-BC3D-642DD1F53DB7.jpeg)
![92DC4674-C798-40D9-85D4-184E2619F99B.jpeg](/proxy/?url=https://content.instructables.com/FNH/2MQM/JK2UI9NX/FNH2MQMJK2UI9NX.jpg&filename=92DC4674-C798-40D9-85D4-184E2619F99B.jpeg)
![15AE0167-0D88-476B-A1D4-C49D28F3812B.jpeg](/proxy/?url=https://content.instructables.com/FA1/UNFF/JK2UI9OE/FA1UNFFJK2UI9OE.jpg&filename=15AE0167-0D88-476B-A1D4-C49D28F3812B.jpeg)
![D109701D-6217-4BC4-A639-4D5569AA8F9D.png](/proxy/?url=https://content.instructables.com/FKH/QCR1/JK2UI52Y/FKHQCR1JK2UI52Y.png&filename=D109701D-6217-4BC4-A639-4D5569AA8F9D.png)
![66E54CEB-A8BC-4BE7-98B8-6D56123A919D.jpeg](/proxy/?url=https://content.instructables.com/F04/REZD/JK2UI9PR/F04REZDJK2UI9PR.jpg&filename=66E54CEB-A8BC-4BE7-98B8-6D56123A919D.jpeg)
![2F2BE577-452F-4528-8216-75BCF99EAA5B.jpeg](/proxy/?url=https://content.instructables.com/F4C/PXRP/JK2UI9PB/F4CPXRPJK2UI9PB.jpg&filename=2F2BE577-452F-4528-8216-75BCF99EAA5B.jpeg)
So I finished enclosing the roof of the trailer by cutting small slivers of plywood to form the radius, then used more of the 1/8” plywood to fold over it to make a smooth finish.
The exterior of the side walls are thin gauge metal used for metal trim on houses.
I trimmed the exterior edges with 1”x4” pieces of board then painted and sealed everything with good exterior paintable caulk.
I found some “roll on rubber” at Home Depot and it’s advertised for camper roof repair. It worked as advertised even on a new installation.
Finally I installed the rain guards above the door, window, and A/C unit. I also installed all of the door lock hardware and handles. It’s been roughly 8 months since completion and it still has had no issues with leaking!!
As for sleeping, I purchased an air mattress that fit perfectly in the cab.
Road ready!
I am already building another camper, just much larger! I will be taking many more photos to better explain my process.
The exterior of the side walls are thin gauge metal used for metal trim on houses.
I trimmed the exterior edges with 1”x4” pieces of board then painted and sealed everything with good exterior paintable caulk.
I found some “roll on rubber” at Home Depot and it’s advertised for camper roof repair. It worked as advertised even on a new installation.
Finally I installed the rain guards above the door, window, and A/C unit. I also installed all of the door lock hardware and handles. It’s been roughly 8 months since completion and it still has had no issues with leaking!!
As for sleeping, I purchased an air mattress that fit perfectly in the cab.
Road ready!
I am already building another camper, just much larger! I will be taking many more photos to better explain my process.
