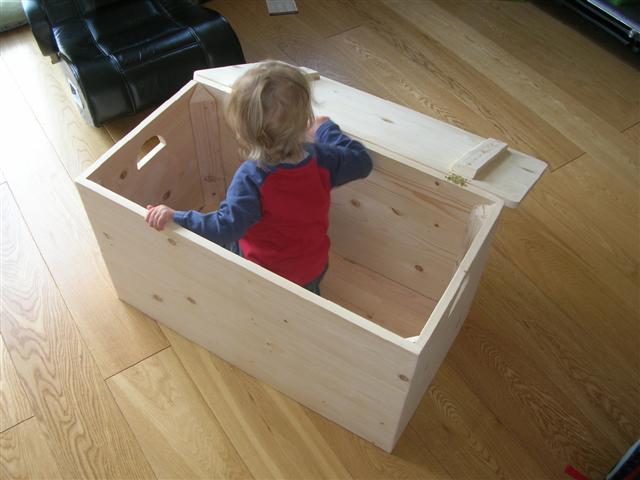

I made this simple storage box for my baby's toys. It's an easy one day project and you can improve or add your own design to it.

Material you will need:
  • Your choice of wood.
  • Mitre saw, skill saw or hand saw.
  • Jigsaw (use special blade for cutting angles)
  • Biscuit jointer and biscuits no10.
  • Hand sander. different grit levels.
  • Cordless drill ( for screws and pilot holes)
  • PVA Glue, glue roller, tape, pencil, screws, pins,  2 hinges, clamps, set square, ratchet straps or long clamps.


Safety : When using electric tools use ears and eye protection.
Keep body parts away from sharp blades. WORK SAFE!

Choose Box Material

DSCN1295 (Small).JPG
DSCN1296 (Small).JPG
DSCN1297 (Small).jpg
You can make the box from a few cheap materials such as soft wood, plywood, mdf board and more. After deciding what material you are using think about the pratical size of the box and what will be its purpose. I made my box size Length=800mm x Width=380mm x Height=450 that is a good size for keeping all my baby toys tidy in one box. I chose to use soft wood 19mmx144mm.

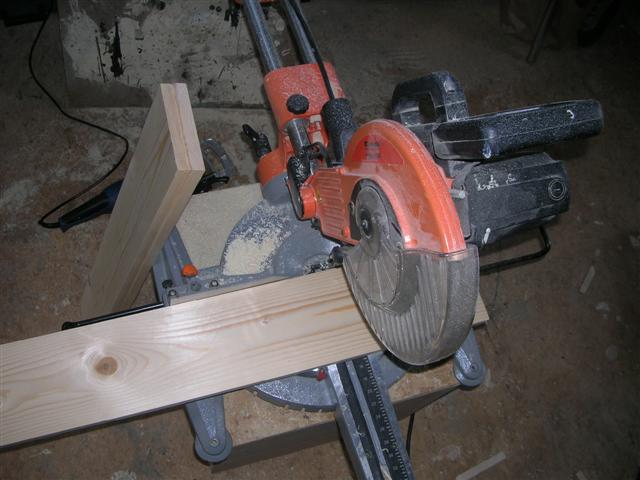

  • Start  by cutting your length and width size using a mitre saw or hand saw.
  • Don't  forget to subtract the thickness of the material x 2 from your width to achieve your box width design.
  • Use a long set square to mark the lines between the joints, those lines will guide you when using your biscuit jointer.

Using a Biscuit Jointer

DSCN1300 (Small).JPG
DSCN1302 (Small).jpg
DSCN1305 (Small).JPG
DSCN1308 (Small).JPG
DSCN1324 (Small).JPG

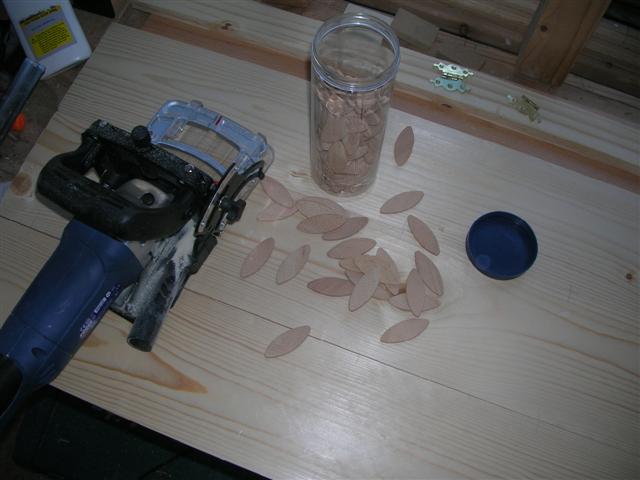

  • Choose your biscuits (don't eat them!!! ) I used no 10. Set your jointer height so the blade will be in the center of the timber and set the depth of the blade to be in the center of  your biscuit.

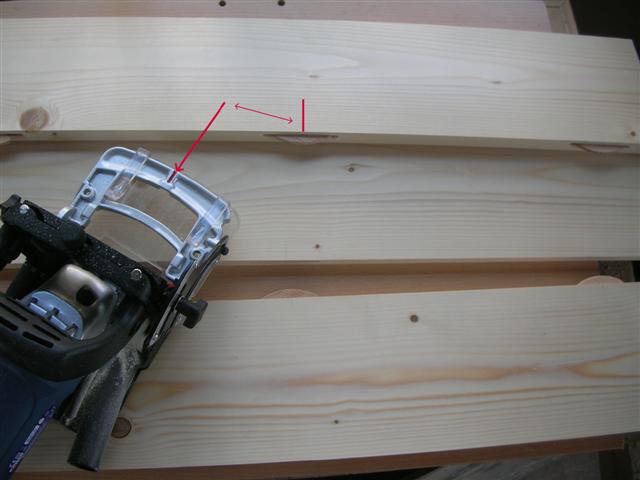

  • Most important: work on a SUPER FLAT surface or  your joints will not match. Hold the jointer using the red guide line against your pencil mark on the timber, turn jointer on and push it into the timber moving about 5mm left and right to create a wider joint in case you miss the mark.
  • After all joints are ready make a dry assembly to see if  it all fits nicely together.
  • Use PVA wood glue, don't be shy make sure you get good glue coverage in all joints, use a glue roller  to spread it all evenly.
  • Attach all parts to each other and wipe excess glue with damp cloth.
  • On a flat surface use clamps to pull parts together, what will happen is the timber will lift up like a banana so use 2 thick lengths of timber and clamp them pushing the work piece downwards.
                                       On this video I'm showing you how to use a biscuit jointer:


Cut Support Angles

DSCN1311 (Small).jpg
DSCN1312 (Small).JPG
DSCN1315 (Small).JPG
DSCN1319 (Small).JPG

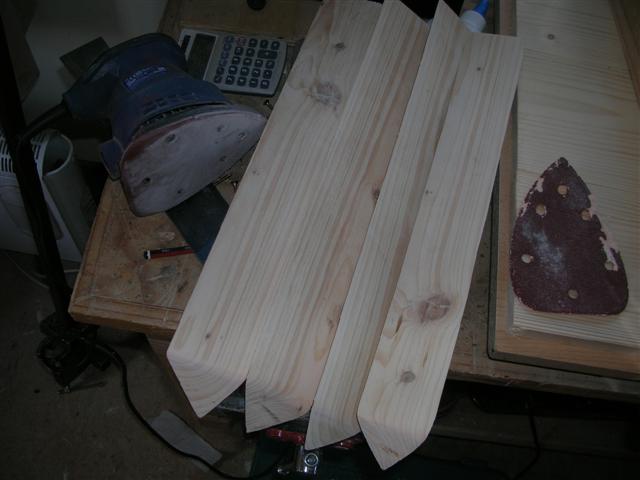

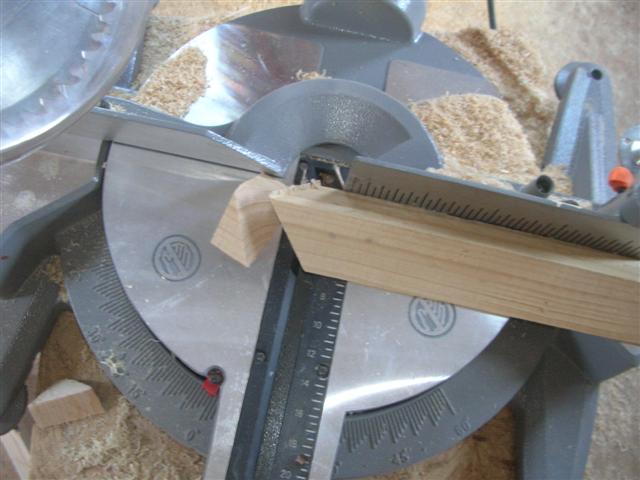

Here I used 2*2 timber cut in the center with my mitre saw  to create the support angles for the inner box.

  • Screw 2 screws in an angle to support the timber.  keep the screws away from the path of the blade.
  • The support  timber is for your own safety, keep your hands AWAY from the blade.
  • The corner of  the 2*2 should by aligned with saw blade.
  • When cutting make a few passes on the  2*2 don't force the blade in one go.
  • Cut angle end (for decorative purpose).
  • Sand the 4 angles.

Box-Lid

DSCN1327 (Small).JPG
DSCN1326 (Small).JPG
Same again using a biscuits to join lid parts. Try adding a few extra biscuits making the joints closer to each other since the lid will be opend and closed many times.

Check Box Is Square and Make the Box Base

DSCN1329 (Small).JPG
DSCN1331 (Small).JPG
DSCN1334 (Small).JPG
DSCN1330 (Small).JPG
DSCN1335 (Small).JPG

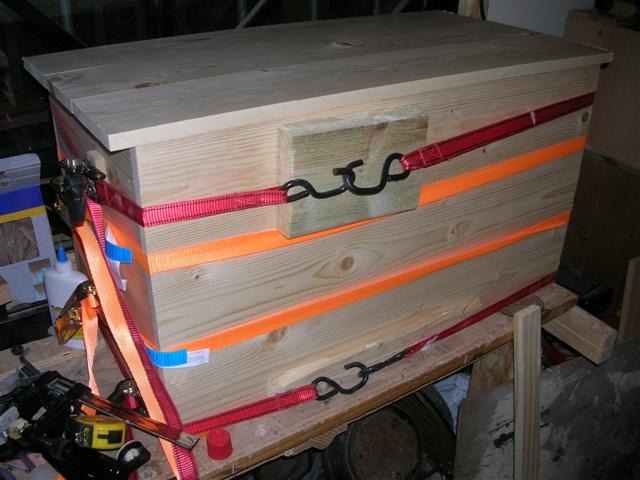

I ran out of big clamps so I took my emergency ratchet straps and used them to secure the box after gluing all sides.
If you want you can use screws or nails for the sides.
  • After securing the ratchet straps check your box is square by mesuring from one diagonal corner to the other.
  • When tightening the straps don't forget to place small blocks under the ratchet metal part as they will mark the soft wood when pressed against it .
  • Use your mitre saw and cut 20-30mm strips to support the base of the box.
  • Glue support strips, small pin-nails or screws are optional.
  • Glue box base. I made the base of the box from left overs of my wooden floor.
  • After the glue is dry use a small sander and sand all box parts starting from low grit to high grit (fine) .


Enjoy Your Storage Box

DSCN1337 (Small).JPG
DSCN1339 (Small).JPG
DSCN1342 (Small).JPG
DSCN1343 (Small).JPG
DSCN1344 (Small).JPG
DSCN1346 (Small).JPG
lid stay.jpg
DSCN1348 (Small).JPG

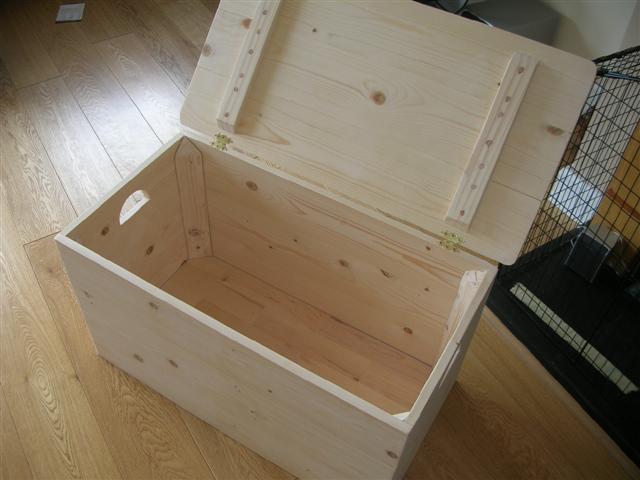

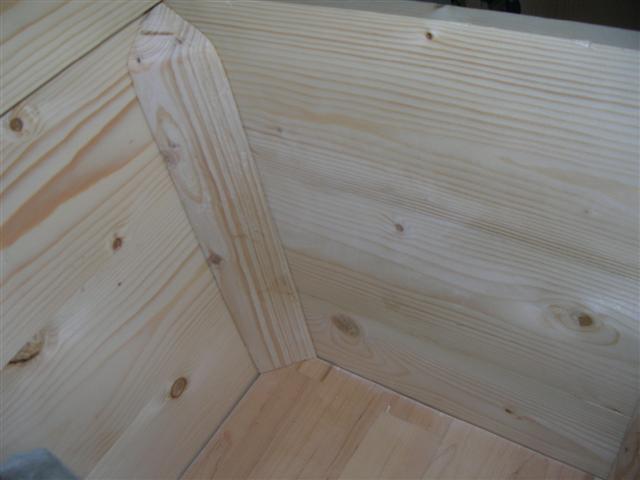

  • Glue the support corners in.
  • Attach small hinges.
  • Round lid corners with jigsaw.
  • Make 2 segments / arcs on the sides of the box for lifting. when using the jigsaw use special blade for cutting angles.
  • Attach 2 straps to the inner box lid as support, glue, screw and close with hard wood plugs. You can paint this simple box, add mouldings or use electric router to create a few shapes or writings on the box.

  • Be creative my baby sure is.

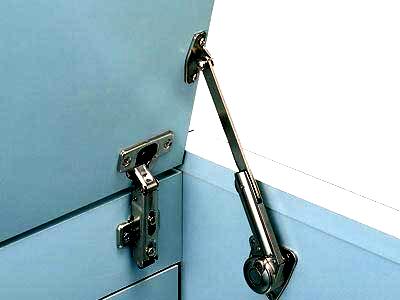

Lid Stay.

lid stay.jpg
lid stay.jpg

I add this step after comments regarding lid stay for child safety.
I am not going to promote products and  brand names any one can Google "lid stay" will find many different  lid stay devices all over the net.
I attached a few images for safety devices and where to attach it on the box.
Regarding the danger of suffocation it will not happen if you cut vent holes (like the arc for handles on the sides of the box).
