I made this simple Instructable as a gift for a friend.

I saw that he asked on a Woodworking's Facebook Group (that by chance I was a member in), if someone can create such horizontal stand for him, with charge of course...

So while having a lot of free time during the Coronavirus lockdown, I immediatelly sent him a private message - "Don't worry, I making the stand for you" (free of course...)

He needed the stand for putting a tool related to smoking (the one you can see at the picture) and gave me the dimensions.

Of course that you can make this stand for other different purposes, that you want to put on your desk, like a pen, or other decorative items...

I took some scrap wood / leftovers and started this quick project.

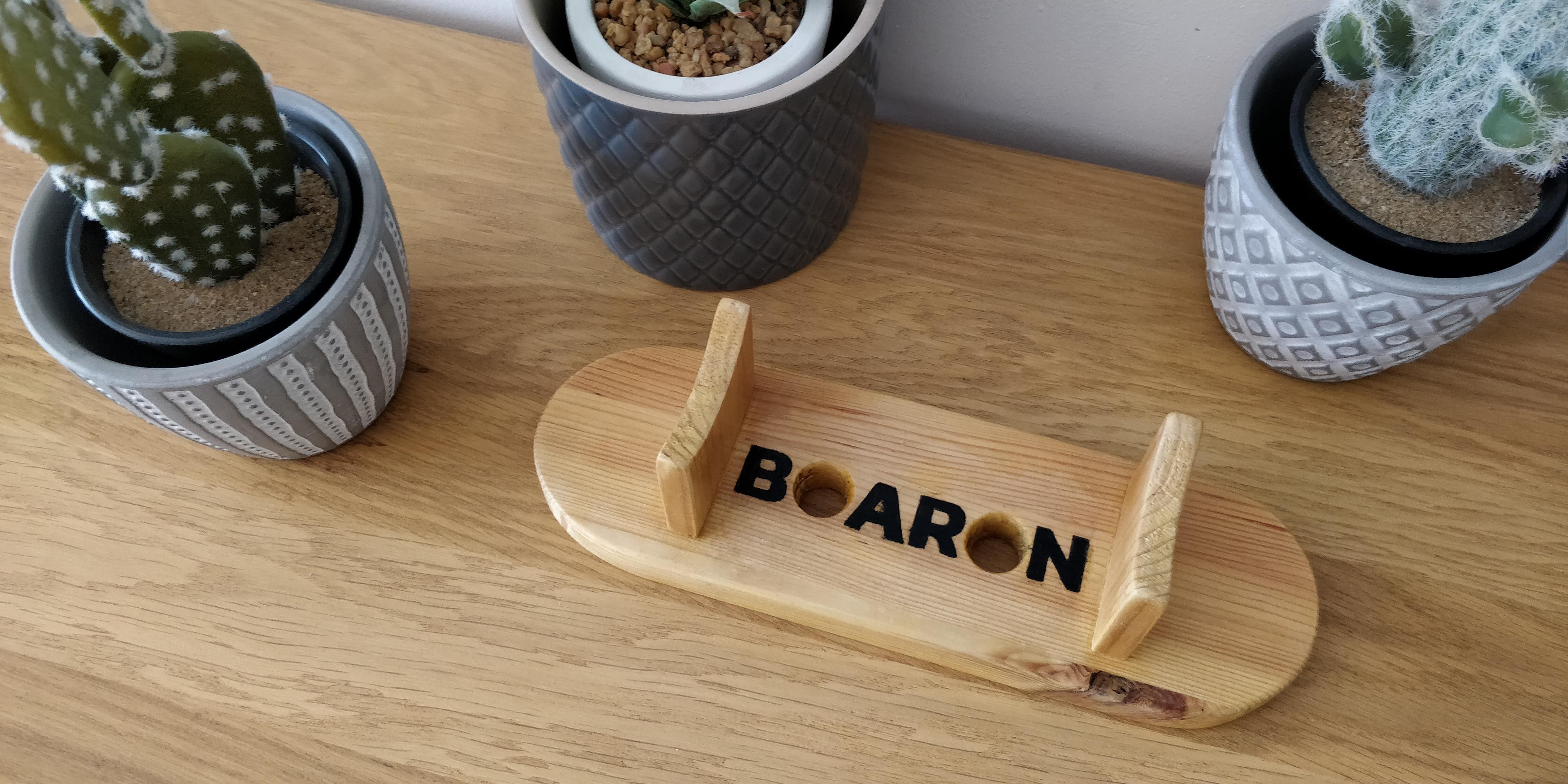

The last name of the friend is BOARON, so I decided to surprise him and combine his name in the stand. He liked it a lot :)

------------------

You're welcome to visit my YouTube Channel, subscribe, and also watch my additional projects. Don't forget to click the 'bell' button in order to get new videos notification.

Thank you! :)

General List of tools I'm using - https://www.itzikdiy.com/tools-list?m=1

Tools in this Instructable:

• Miter saw or other saw
• Measuring tape.
• For the rounded cuts I used my dremel with the following tools:
• Dremel & Line & Circle Cutter (678) Accessory - UK - https://amzn.to/36NxASj - US https://amzn.to/32Z6EOj
• Dremel 561 Multipurpose Cutting Bit - UK - https://amzn.to/3nC0kEp US - https://amzn.to/3nC0kEp
• Kreg KHCCC 90° Corner Clamp: UK - https://amzn.to/3lW9jzC US - https://amzn.to/3lW9jzC
• Drill & Wood drill bits.

Materials:

• Scrap wood
• Screws.
• Wood glue.
• Foto Transfer Potch (Optional)
• Clear protective topcoat

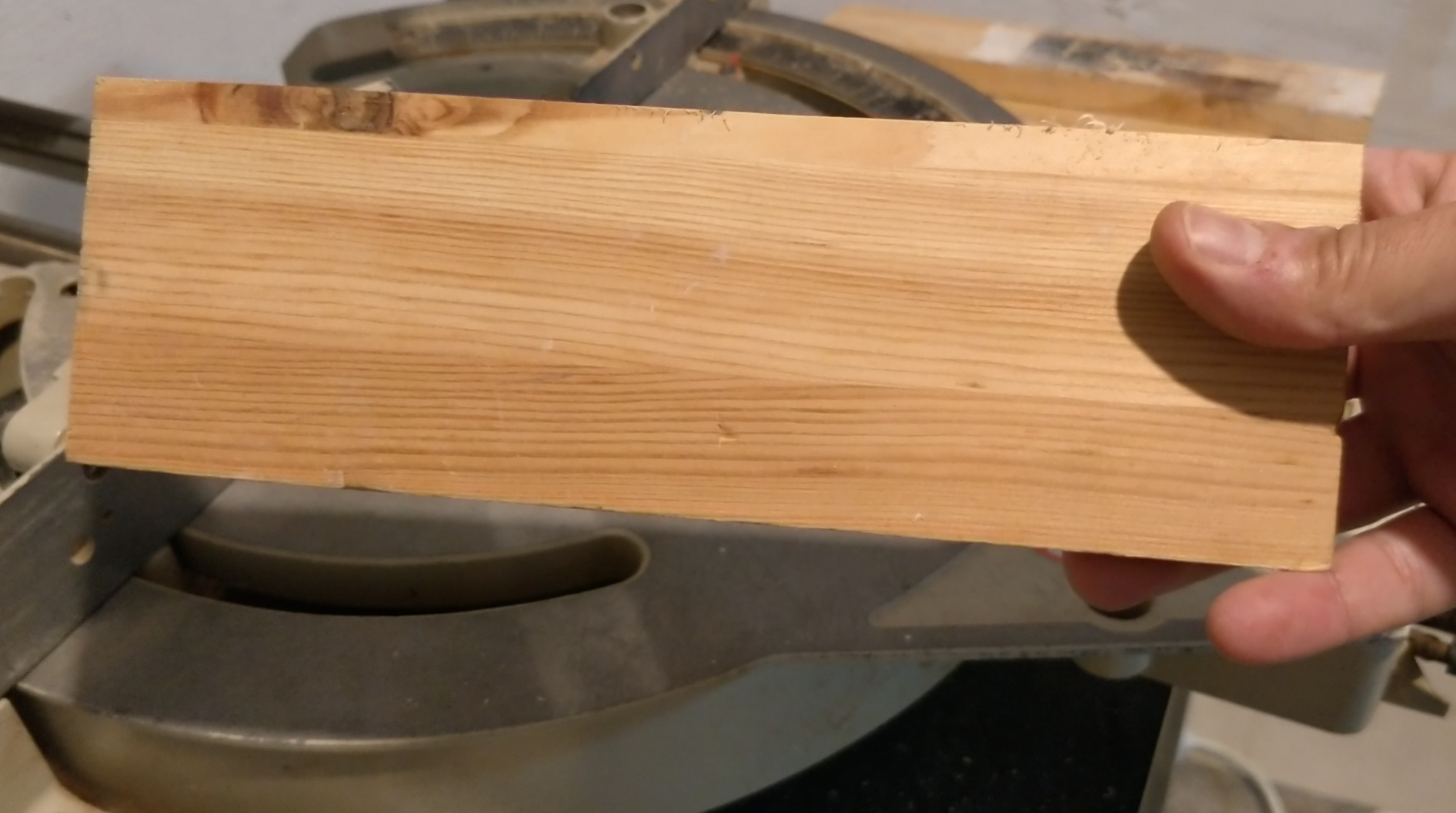

I started by cutting a 18mm pine board to the required dimensions (~22cm*7cm), using the miter saw.

I prepare my Dremel 4000 & the Line & Circle Cutter Accessory (678), to cut the rounded shapes.

Finally I found a use for this Dremel accessory :)

You can use a Jigsaw as well, but it's less accurate to make the rounded shapes manually...

This accessory uses a special cutting bit (Dremel 561 Multipurpose Cutting Bit).

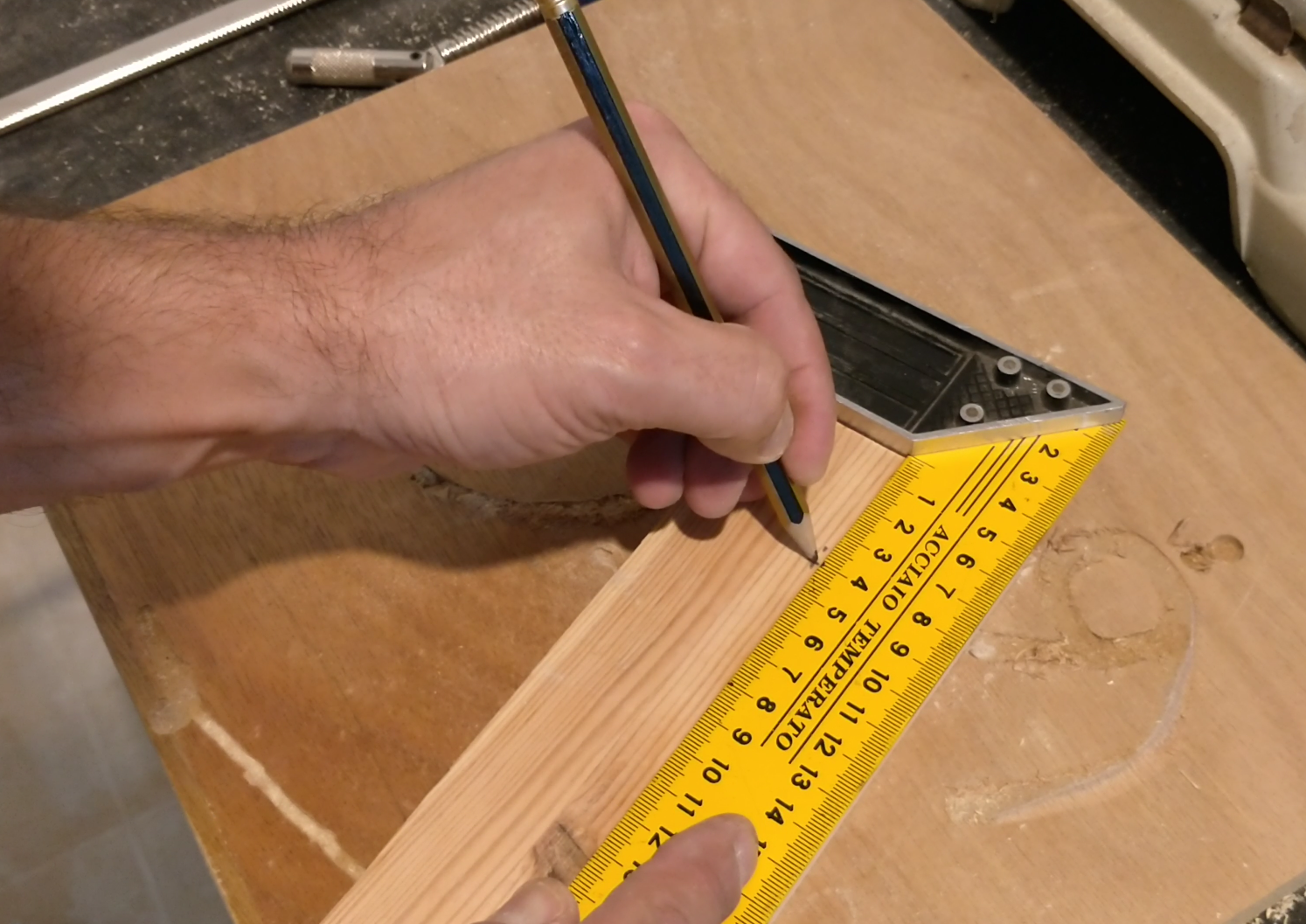

I marked the center of the wood from all edges of the rectangle sides.

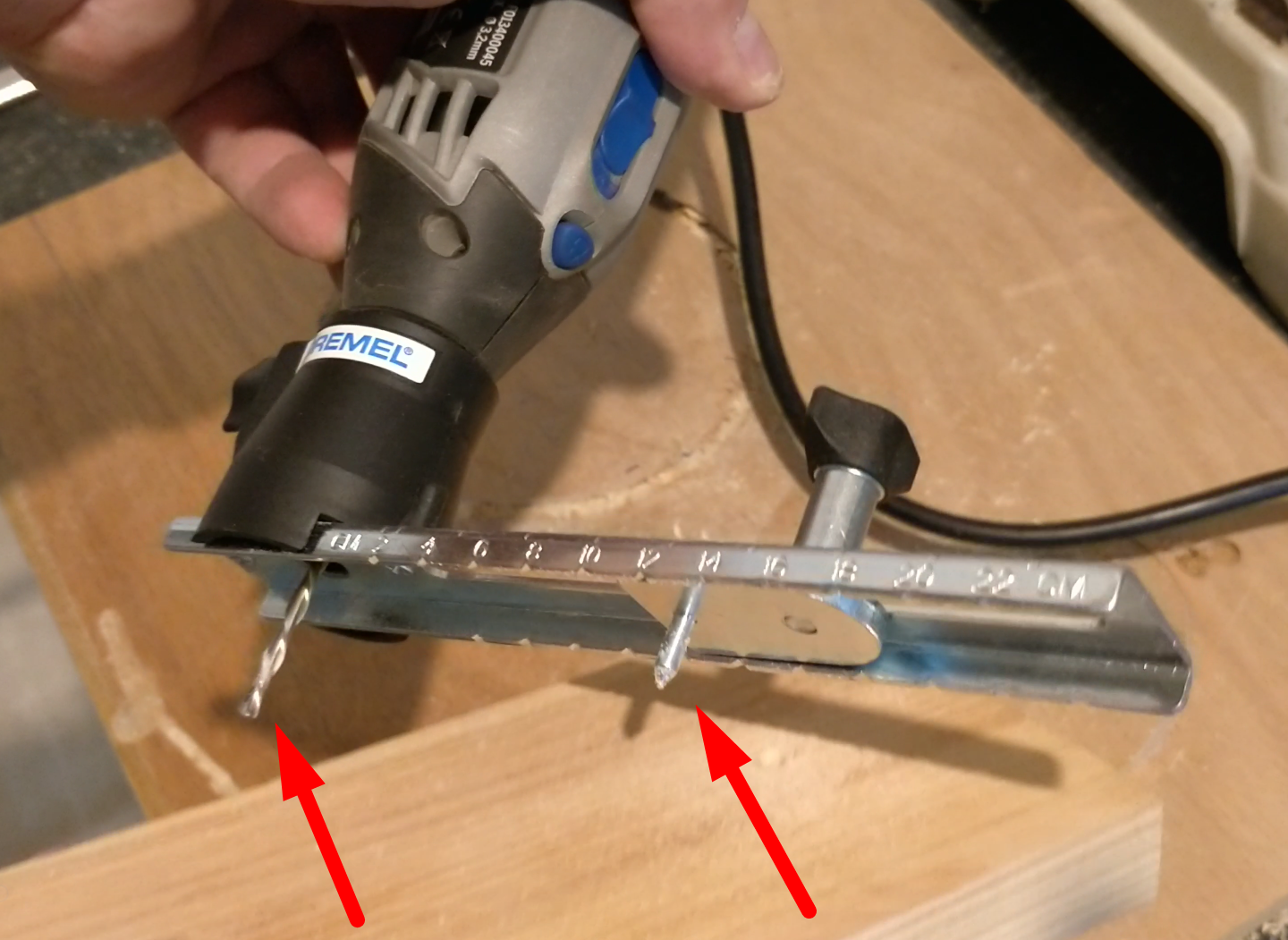

The Dremel circular cutter has a nail which should be placed in the center of the circle, as an axis. The cutting bit turns arround the axis for cutting accurate circles. This accessory is great!

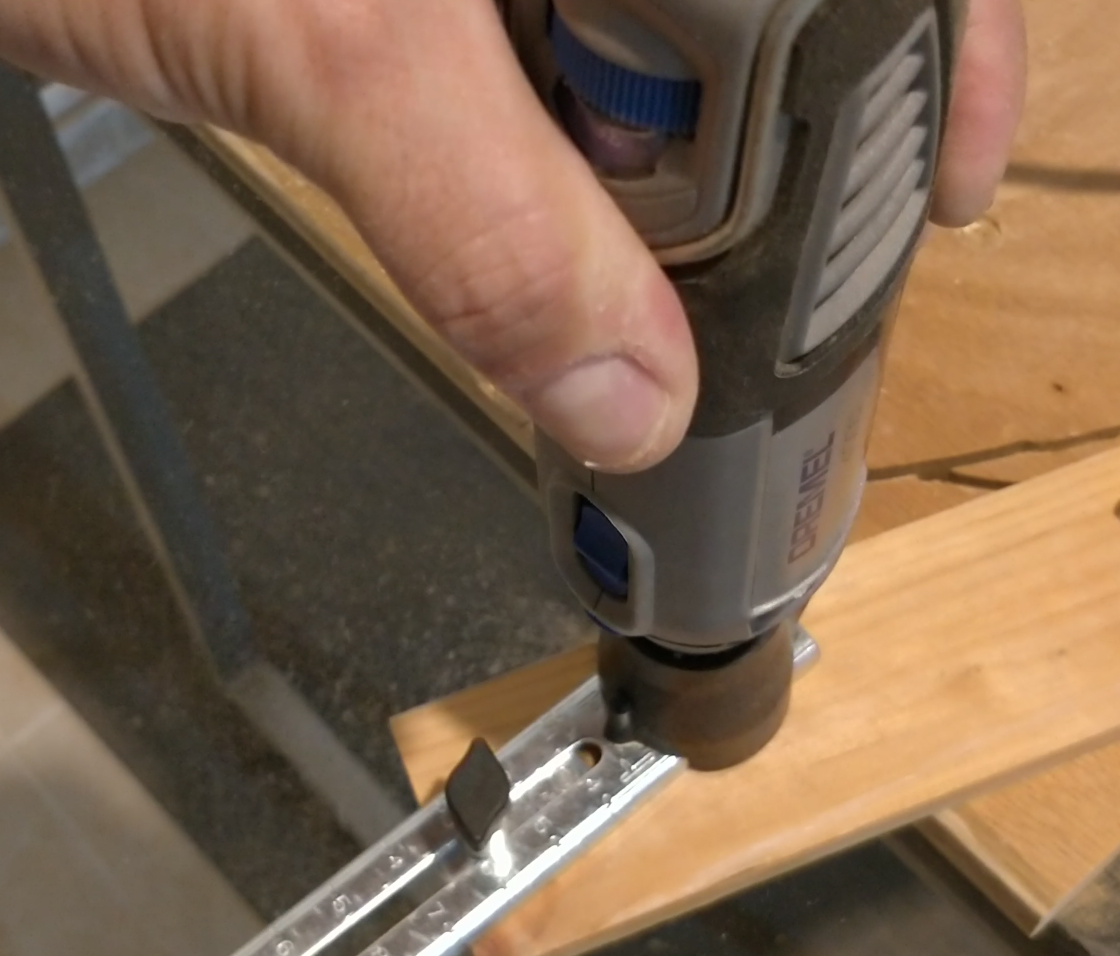

Cutting the circle.

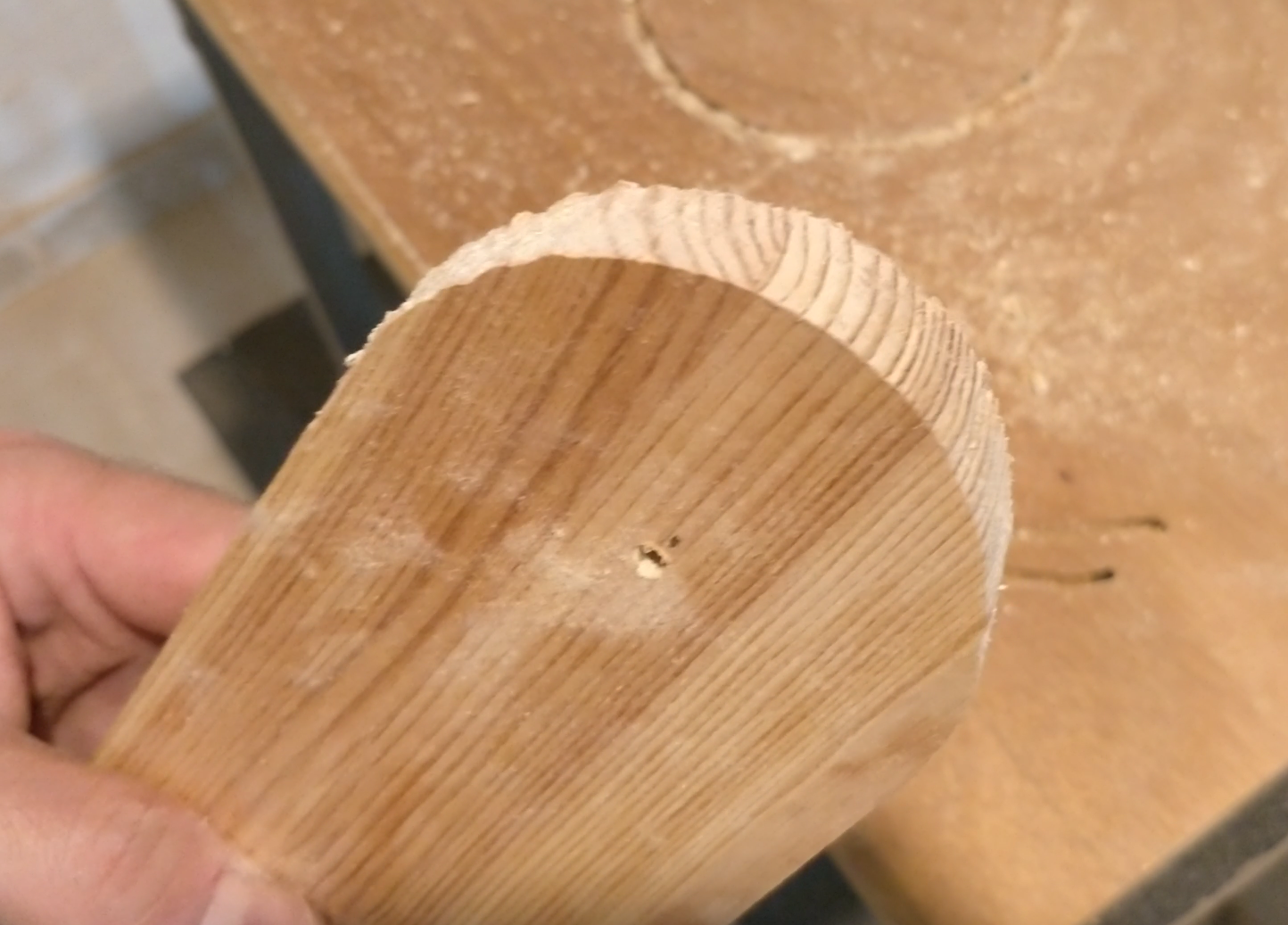

Note that you put the center axis at the side of the wood that isn't visible later, so you won't see the axis hole :)

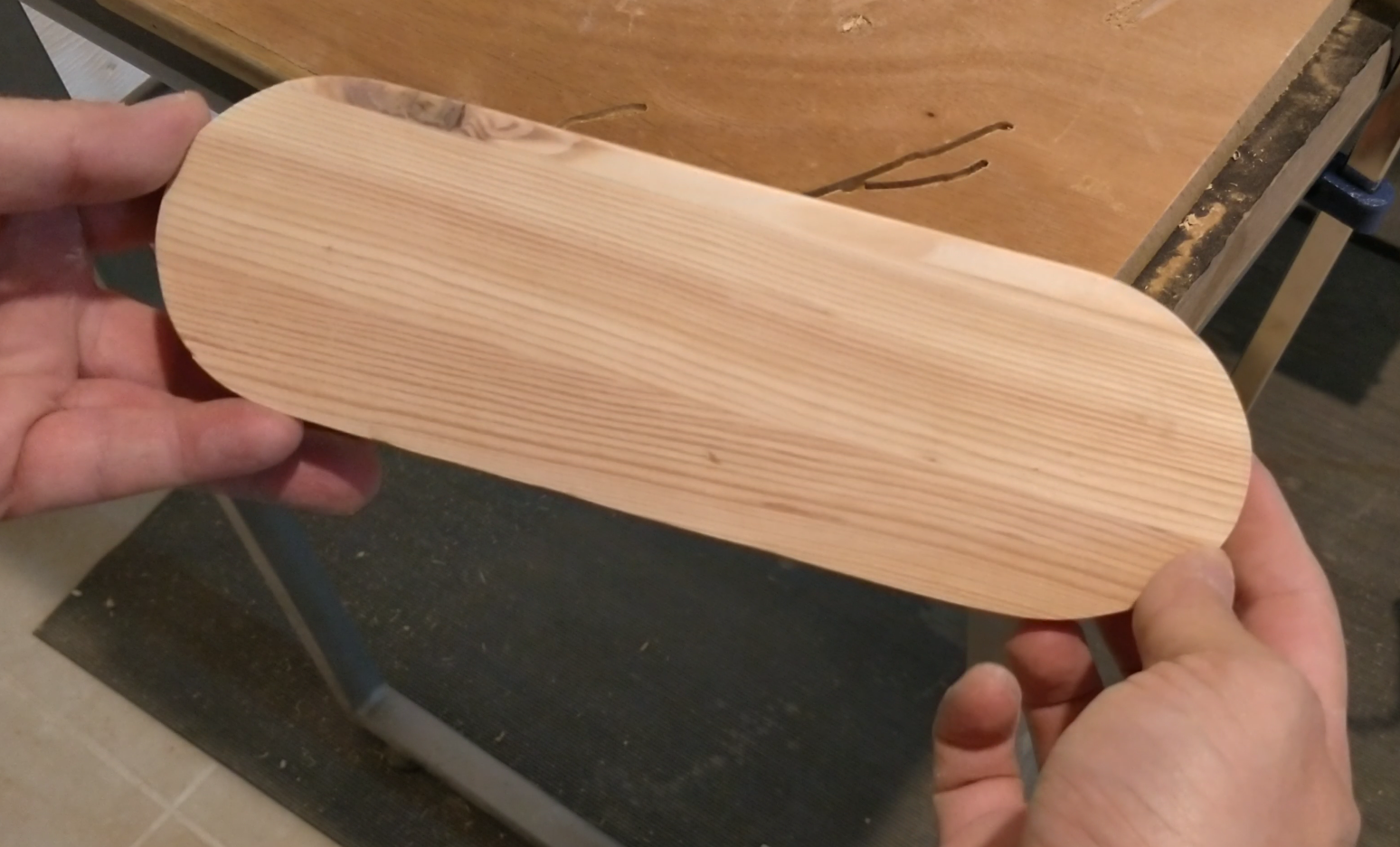

I sanded the base using a Sanding paper / Sander.

As I wrote at the intro, I wanted to put a text in the middle, between the vertical pieces of the stand, so I measured and marked the positions.

The vertical pieces position is ~12cm from each other.

The last name of my friend is BOARON.

Since the name has 2 Symmetrical "O" letters, I decided to make it more special, and drill the "O" letters.

So, I put the printed text to see the position, and marked the "O" positions.

I took a drill bit which matches to the size of the letters in the printed text.

I drilled the 2 "O" letter holes on the base.

I sanded the 2 "O" letter holes, using a dremel sanding attachment.

After finishing with the base, I started preparing the vertical pieces of the stand.

I used the same method described for the base, to cut a rounded shape for the top of the vertical pieces.

I cut the 2 pieces with the rounded shape. About 5cm long.

I sanded the 2 pieces using a sanding paper, for removing the sharp edges of the circle.

I put glue on each piece of wood and attached to the base.

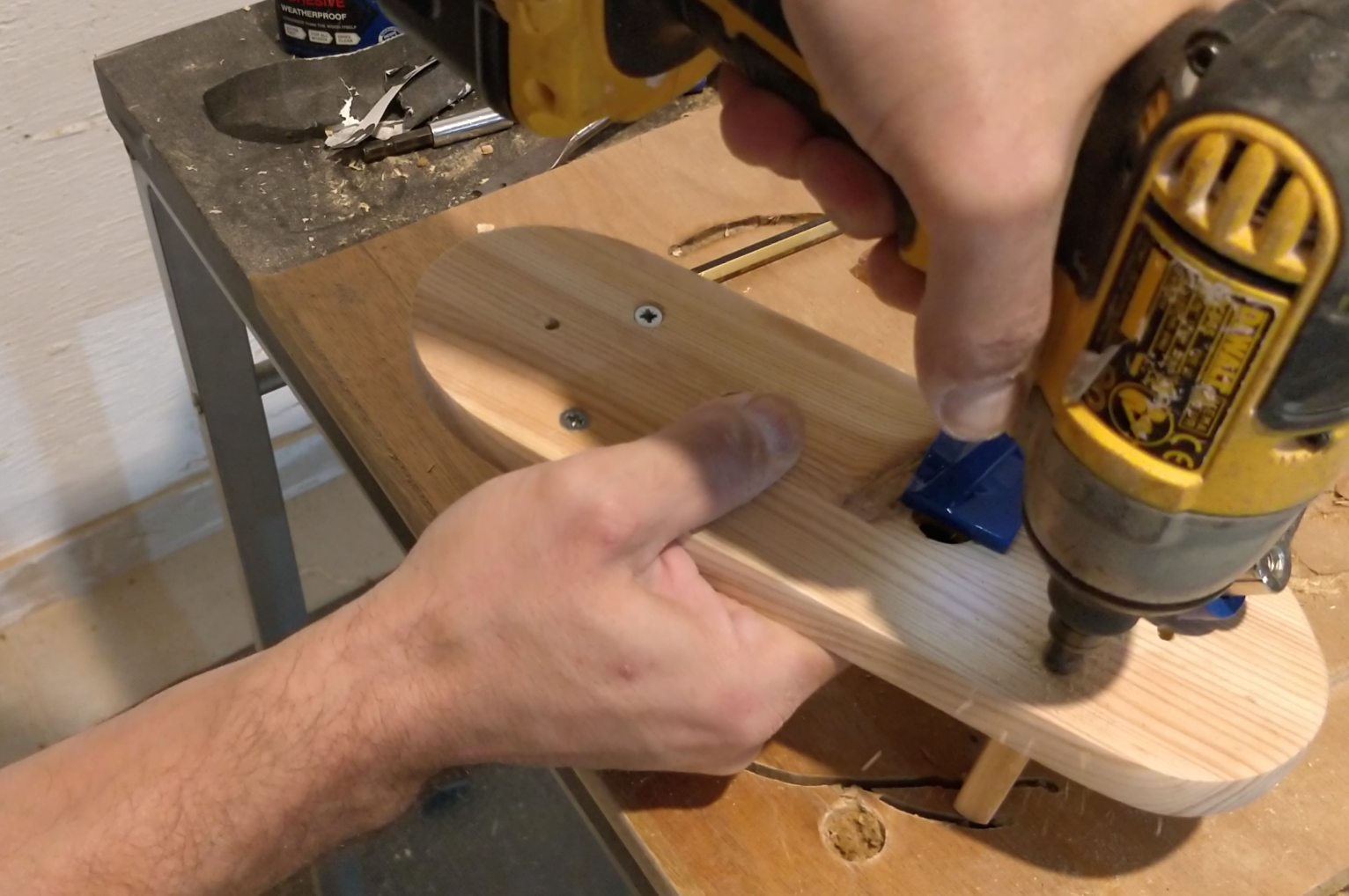

In order to easily connect the pieces to the base with screws, I used my Kreg 90° Corner Clamp. (Great tool!)

After finishing with the woodworking part, I started with the photo transfer process.

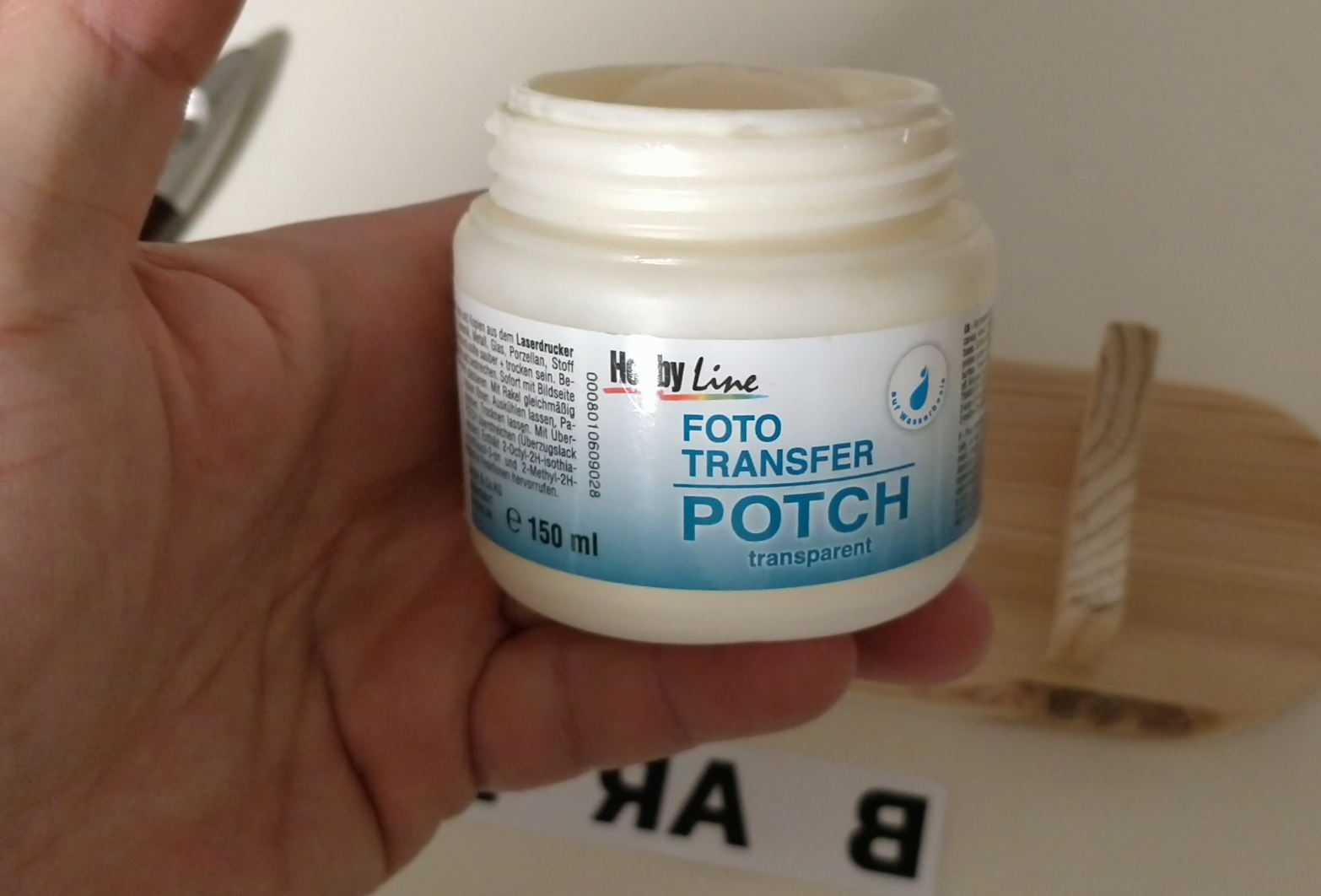

In this case I used a Foto Transfer Potch' material.

I spreaded the material on both the paper and wood.

I have another Instructable explaining different photo transfer methods & materials in detail, if you like to read -
2 Ways to Transfer Logo / Photo Onto Wood With Inkjet or Laser Printer DIY

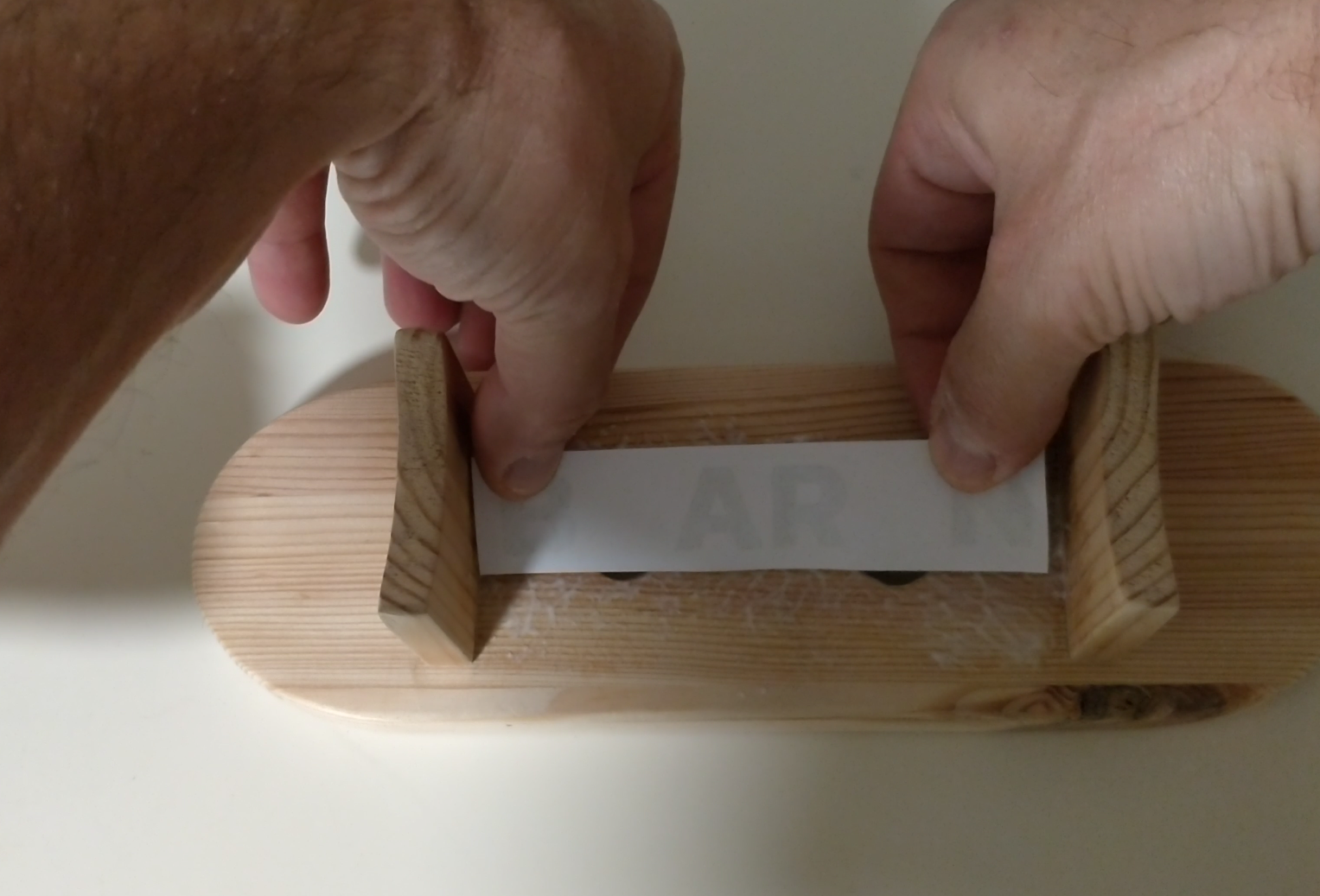

I placed the coated printed text side down on the wood.

After drying, I removed the paper using a wet mop.

As you can see, this transfer failed! :(

I was using an Inkjet printer, while a Laser printed is recommeded... But in other transfers I made it successfully also with an Inkjet printer.

In case that you transfer a black printed image / text (as in this project) and the transfer failed, sometimes it's possible to fix the text using a black pen / marker pen.

I did it in this case and I'm happy with the result.

Finally, I painted the stand with a protective topcoat.

That's it...

What do you think of the result?

What else do you think this stand can be used for?

Let me know in the comments...

You can watched the video for the full process described in this instructable.
