Simple Rubber Band Gun Using Laser Cutter
by jandemunck in Living > Toys & Games
2589 Views, 3 Favorites, 0 Comments
Simple Rubber Band Gun Using Laser Cutter
![IMG_20190608_122311.jpg](/proxy/?url=https://content.instructables.com/FNG/SMS1/JWQNWO0O/FNGSMS1JWQNWO0O.jpg&filename=IMG_20190608_122311.jpg)
Supplies
Apart from a laser cutter, supplies needed are limited:
- 4mm thick plywood
- round tooth picks
- sand paper
- glue
- sharp knife
- clamps
- and if course rubber bands!
Cutting the Gun
![IMG_20190608_094151.jpg](/proxy/?url=https://content.instructables.com/FHJ/TV1B/JWQNWFNX/FHJTV1BJWQNWFNX.jpg&filename=IMG_20190608_094151.jpg)
- prepare a 30x30 cm piece of plywood and put it in the laser cutter.
- Use the SVG file provided to cut the gun components.Thin red lines should be cut, black areas engraved.
Downloads
Grind the Trigger Part
![IMG_20190608_100551.jpg](/proxy/?url=https://content.instructables.com/FXQ/IXBB/JWQNWH8E/FXQIXBBJWQNWH8E.jpg&filename=IMG_20190608_100551.jpg)
Using sand paper, thin and smooth the trigger part to ensure smooth operation.
Assemble the Gun
![IMG_20190608_095601.jpg](/proxy/?url=https://content.instructables.com/FXA/44SL/JWQNWLBW/FXA44SLJWQNWLBW.jpg&filename=IMG_20190608_095601.jpg)
![IMG_20190608_101710.jpg](/proxy/?url=https://content.instructables.com/FKX/QANL/JWQNWLE0/FKXQANLJWQNWLE0.jpg&filename=IMG_20190608_101710.jpg)
![IMG_20190608_102146.jpg](/proxy/?url=https://content.instructables.com/FXN/SAJ8/JWQNWLG9/FXNSAJ8JWQNWLG9.jpg&filename=IMG_20190608_102146.jpg)
- Cut some tooth picks in half and use the holes in the design to align all components.
- Start from one side and slide all components over the toothpicks with some glue in between.
- Do not forget to position the trigger in the middle.
- Be careful not too put too much glue close to the trigger; if it can not move afterwards it will be useless!
- Use some clamps while the glue is setting.
Shave Off Some Edges, Add Rubber Bands and Start Shooting!
![IMG_20190612_083611.jpg](/proxy/?url=https://content.instructables.com/FLE/EFU2/JWQO1MA8/FLEEFU2JWQO1MA8.jpg&filename=IMG_20190612_083611.jpg)

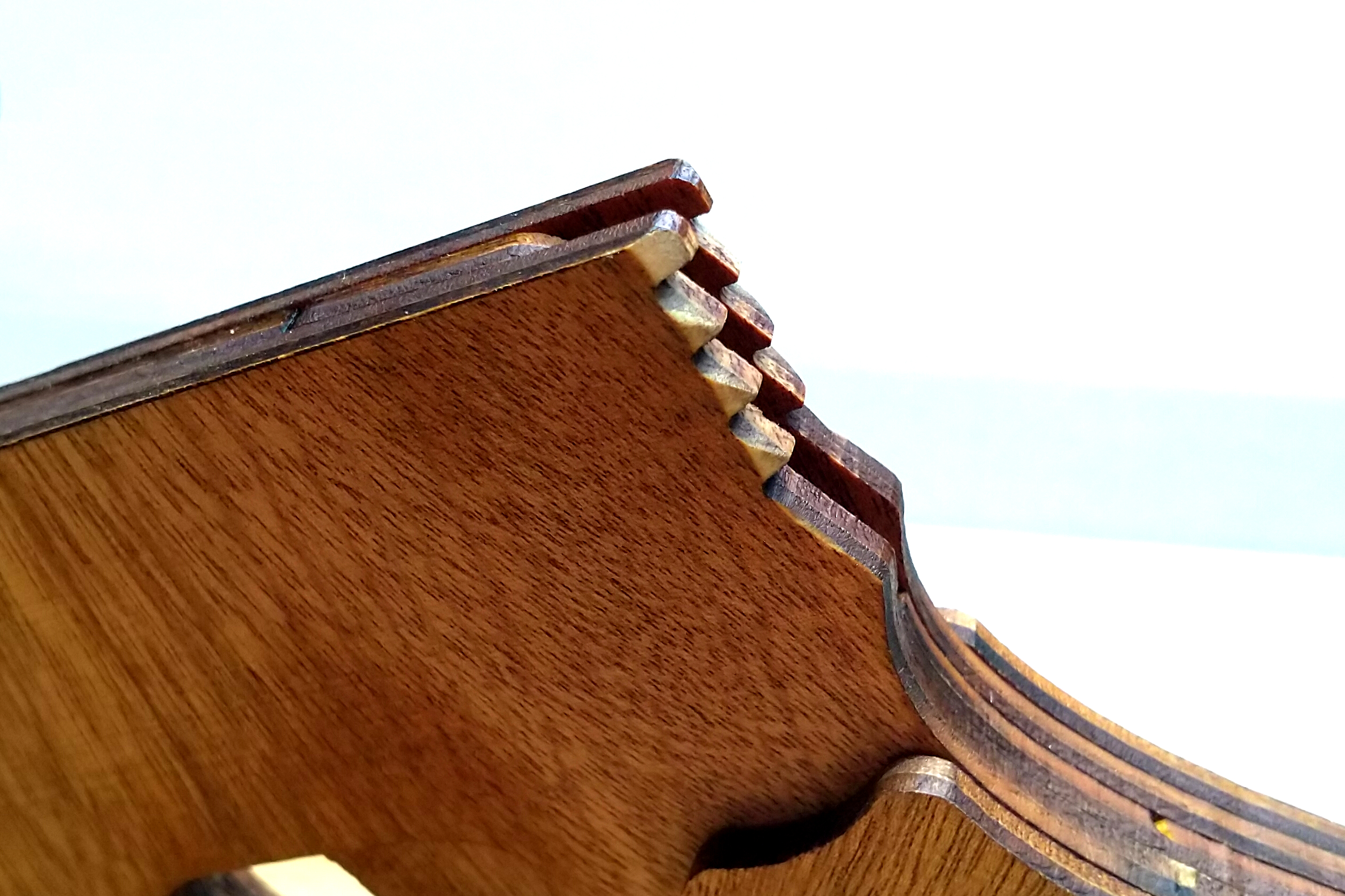

Using sand paper remove the outer edges of the teeth holding the rubber bands and cut away the extending tooth picks; they served their purpose well .Now it's ready to shoot.
Keep it safe, these bands might hurt!.
Suggested improvements:
- Change the name & date of my son's birthday!
- The supports for the rubber band to pull back the trigger should be enlarged somewhat for increased strength.
- The teeth that hold the rubber bands in place should be on a little more oblique surface. Now some type of rubber bands get stuck (other work very fine though).
