Simple Round Table

This project was built with a round top from a broken table and two 2x4’s. The top in this project is 30 inches in diameter. However, the designed can be scaled up or down based on your top diameter and/or desired table height. See drawing and video for build instructions.

Drawing: https://drive.google.com/file/d/0B21TbB8gGNQbeG96QVdsNGNKZHc/edit?usp=sharing

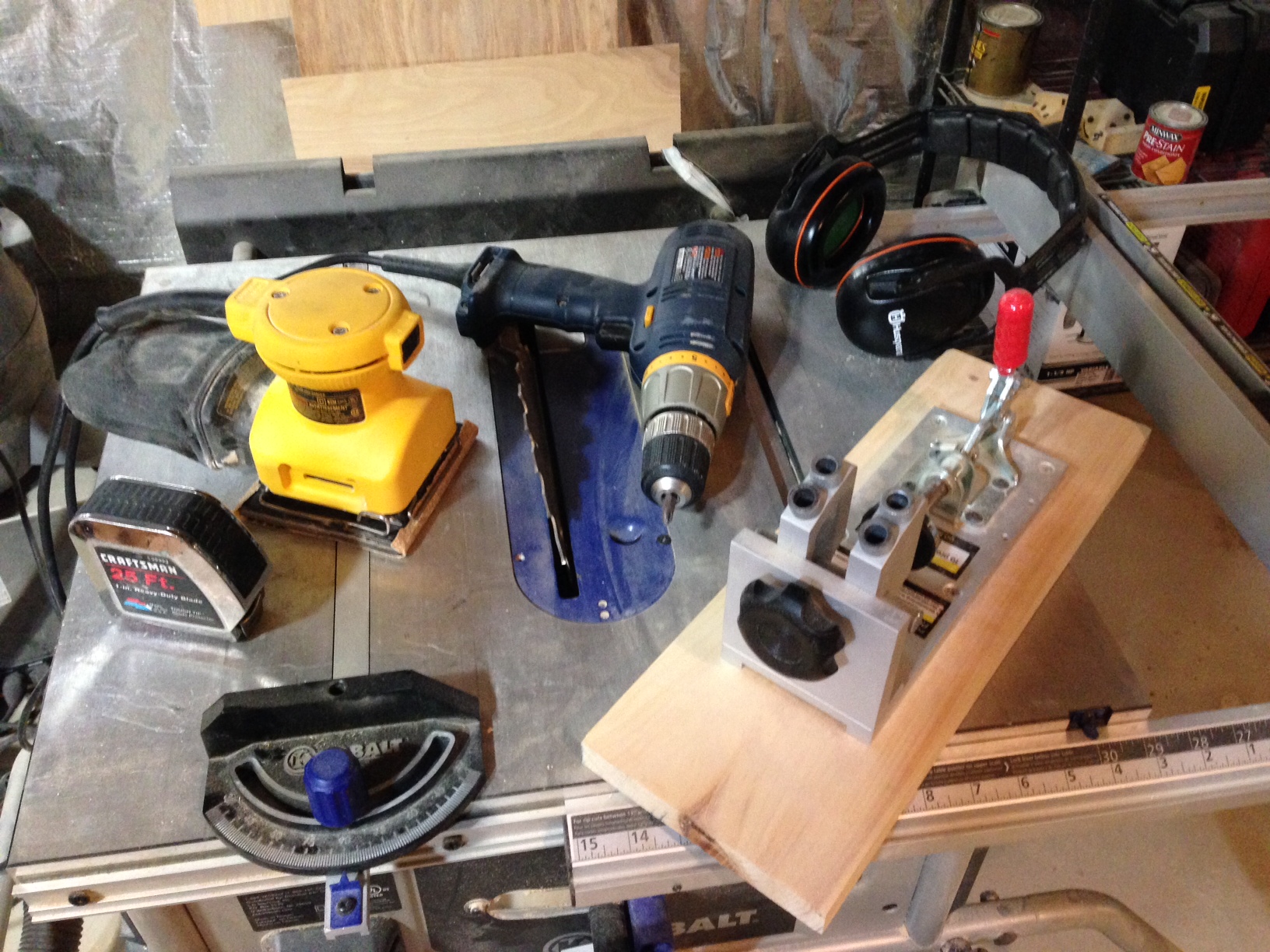

Tools:

• Saw
• Drill and bits
• Pocket-hole jig (optional)
• Sander
• Tape measure

Materials:

• Round table top (30” diameter used for this project)
• Two 8 foot long 2x4s
• Screws or Nails
• Glue
• Paint

Find, buy or make a table top. This top was taken from a 1970’s round table. It took a little bit of sanding to remove the blemishes.

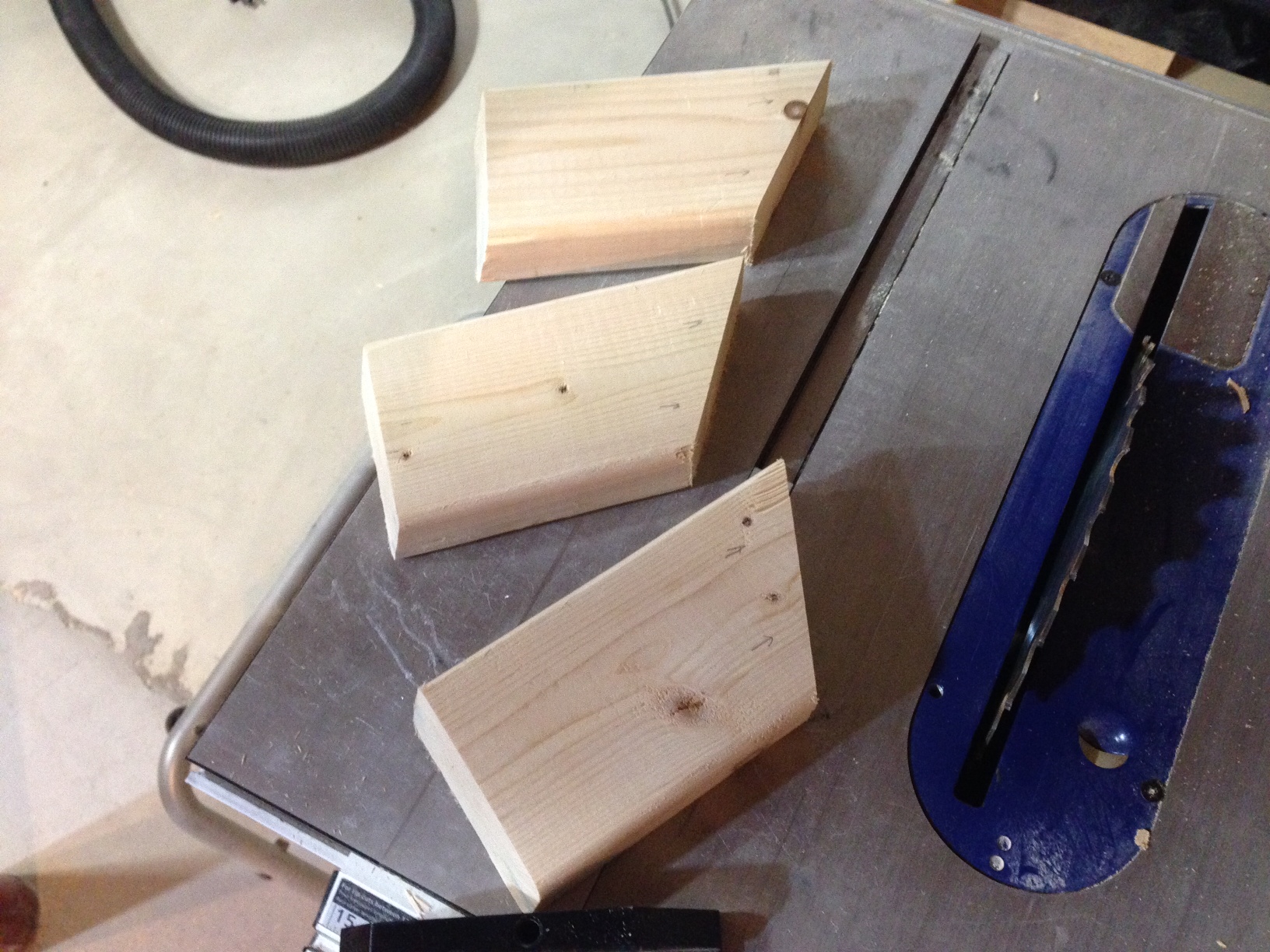

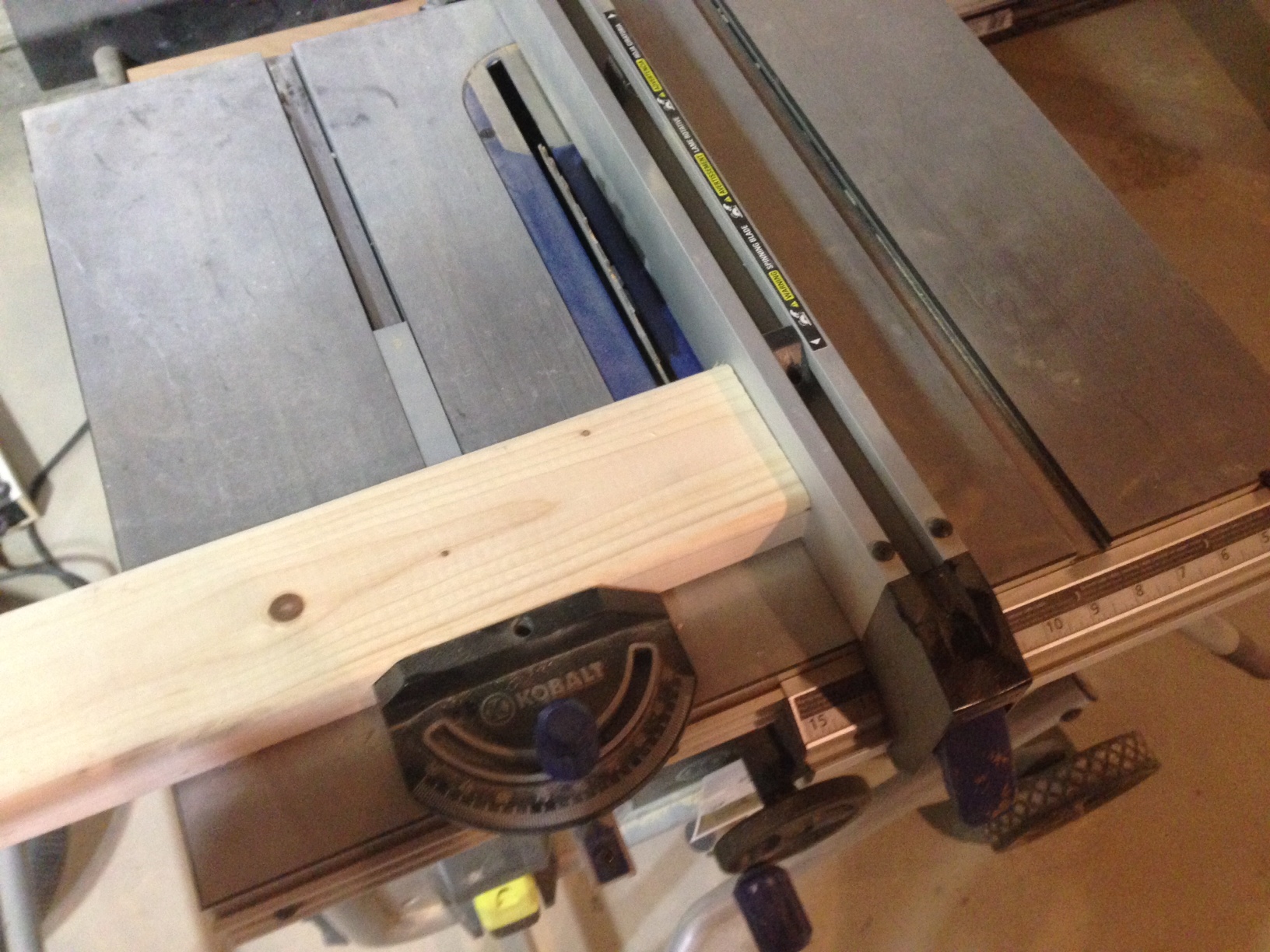

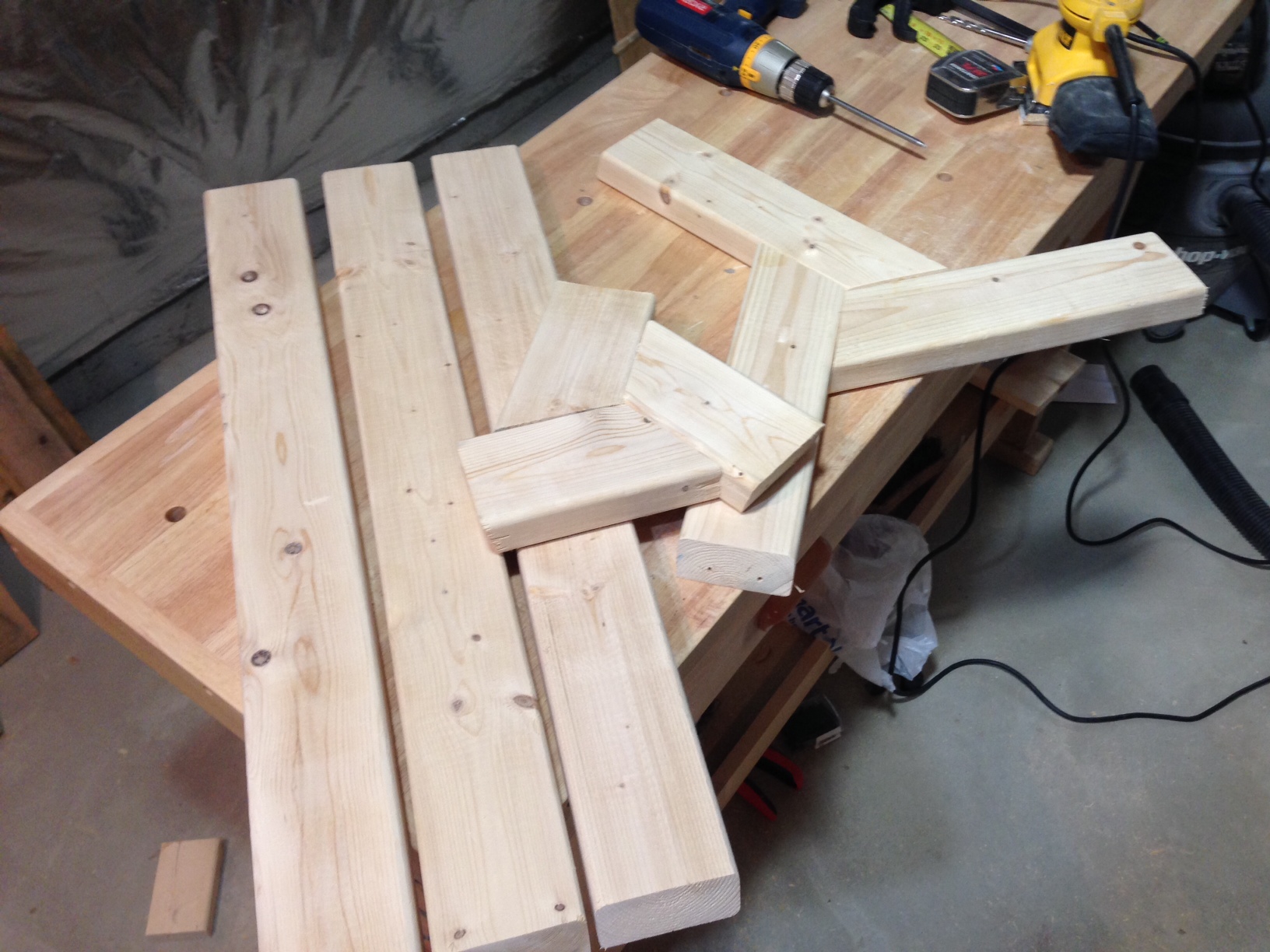

Cut the lower attachment pieces to 14.5” long. Chamfer the width dimension to a 60 degree angle. Chamfer the thickness dimension to 15 degrees. Cut the upper attachment pieces to 7” long. Chamfer the width dimension to a 60 degree angle. Chamfer the thickness dimension to 15 degrees – see pictures.

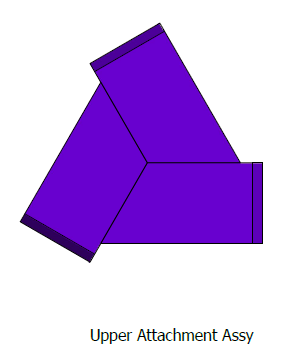

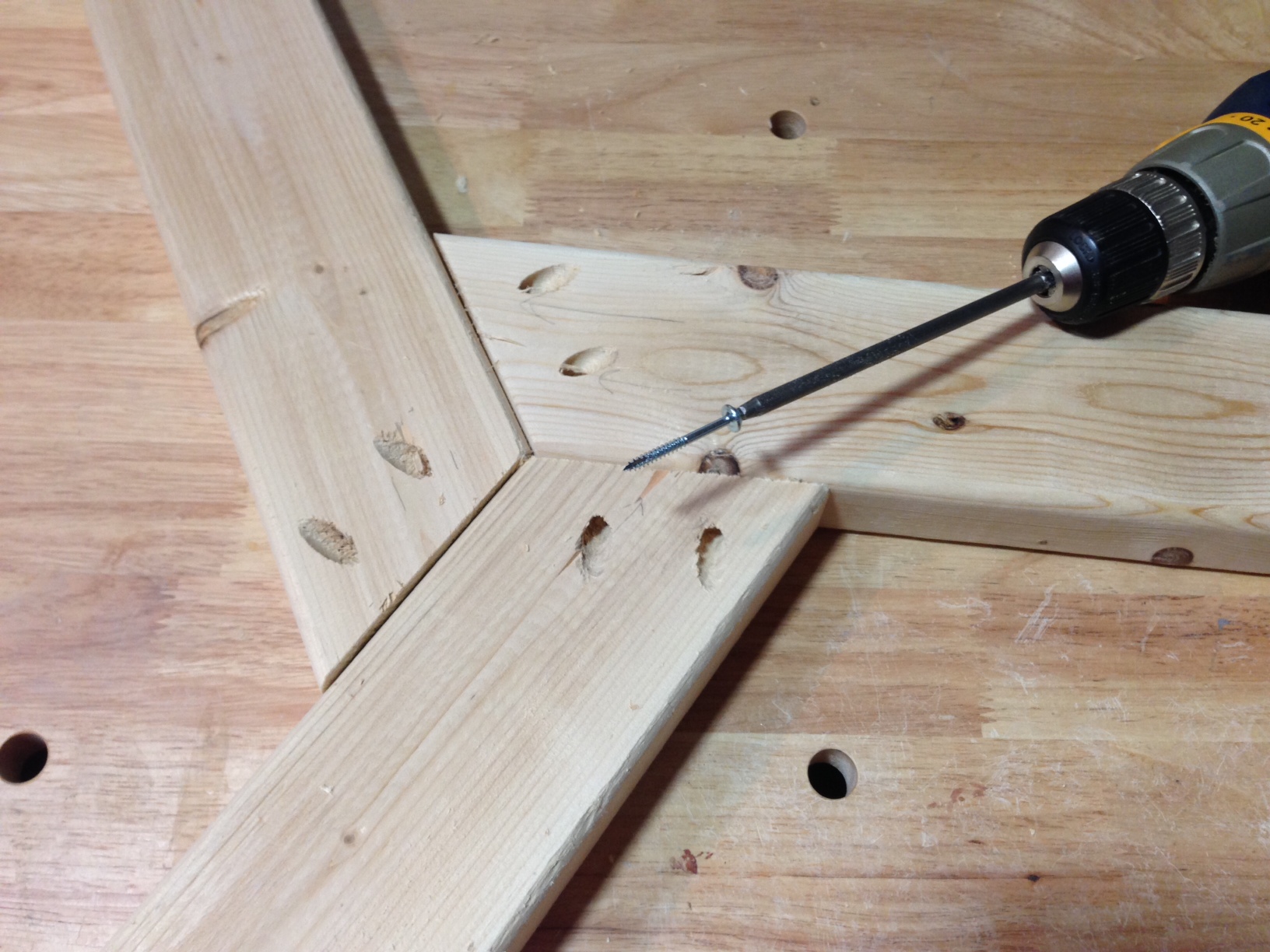

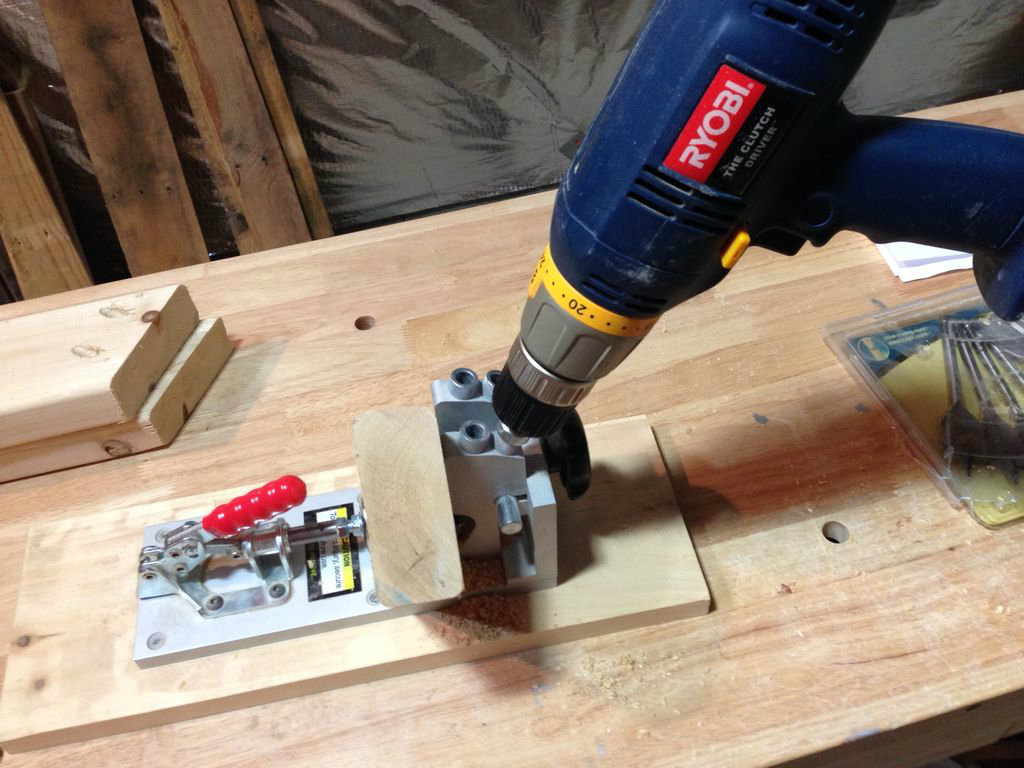

Attach the lower and upper attachment sections together as shown. I used a pocket-hole jig to drill the connection holes. Think ahead at this point to make sure the holes are on the bottom (floor) and under the table top. Add glue to the joint before screwing together.

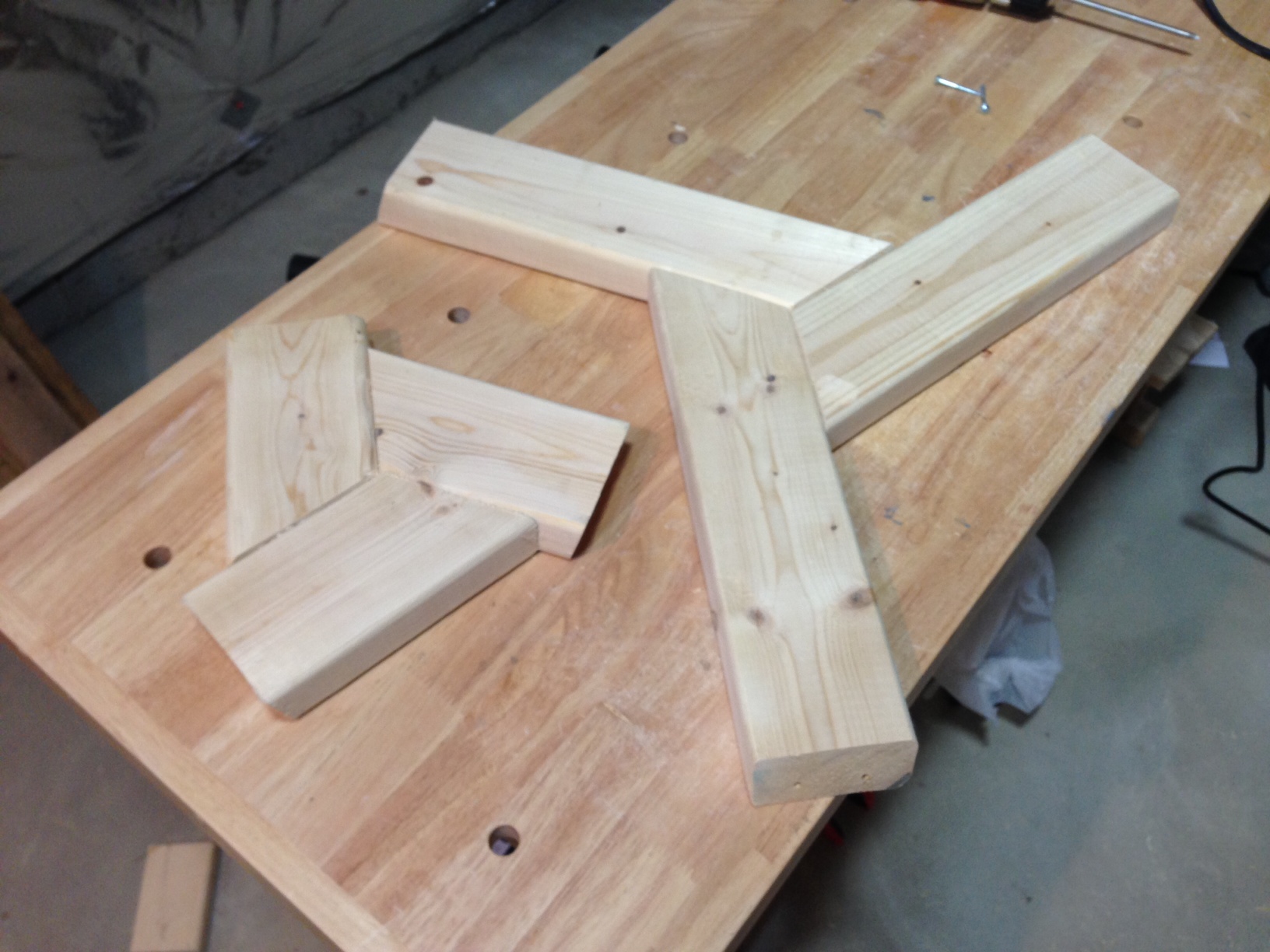

Once complete, you should have two attachment assemblies

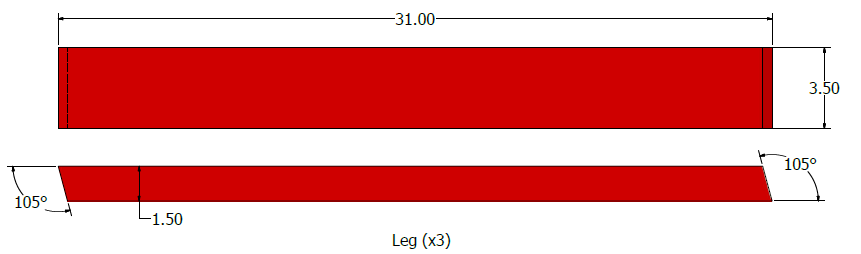

Cut the legs to 31” long. Chamfer the thickness dimension on both ends to 15 degrees – see picture.

Add legs to the upper attachment assembly. I tried using the pocket-hole jig for these connections but the connection didn’t feel secure enough. I scrapped that idea and used deck screws from the sides. If you implement this method, use a countersink bit so you can fill the hole later.

Attach lower attachment assembly to the upper attachment / leg assembly. Again, I used deck screws and glue.

Use wood filler to cover the screw holes and any gaps in the wood. Sand to remove wood filler and clean up the joint lines.

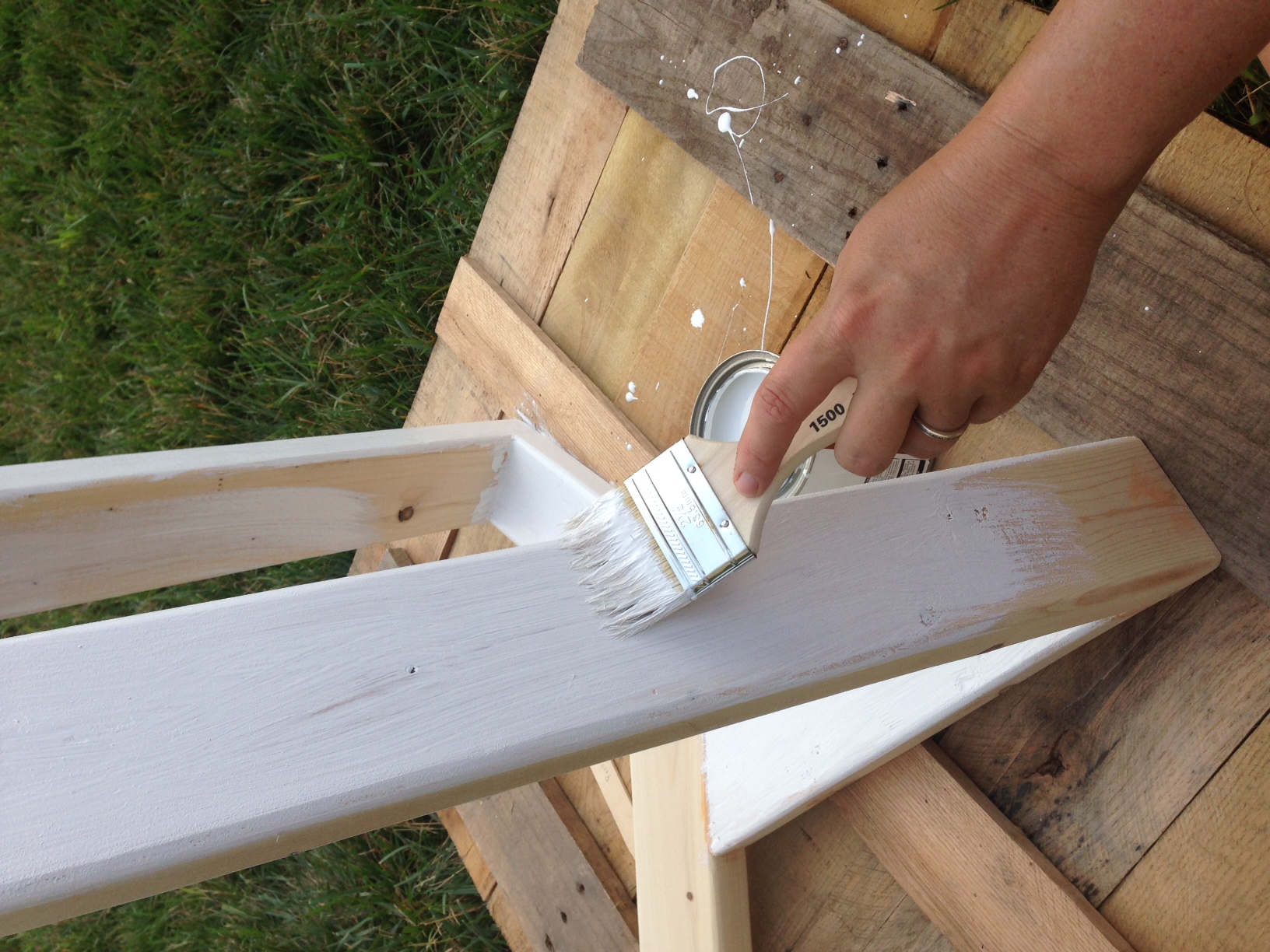

Paint or stain the legs and top to your desired color. I used white for the legs and green for the top.

Drill a small hole at the intersection of the upper attachment assembly. This will be the center location for the round top.

Find center of round top. Measure the diameter. Use a string or tape measure set to the radius and draw a light arc. Move the string to another point on the edge of the table and draw another arc. The intersection of these two arcs is the center. Try a third arc to verify. Drill a hole at the intersection.

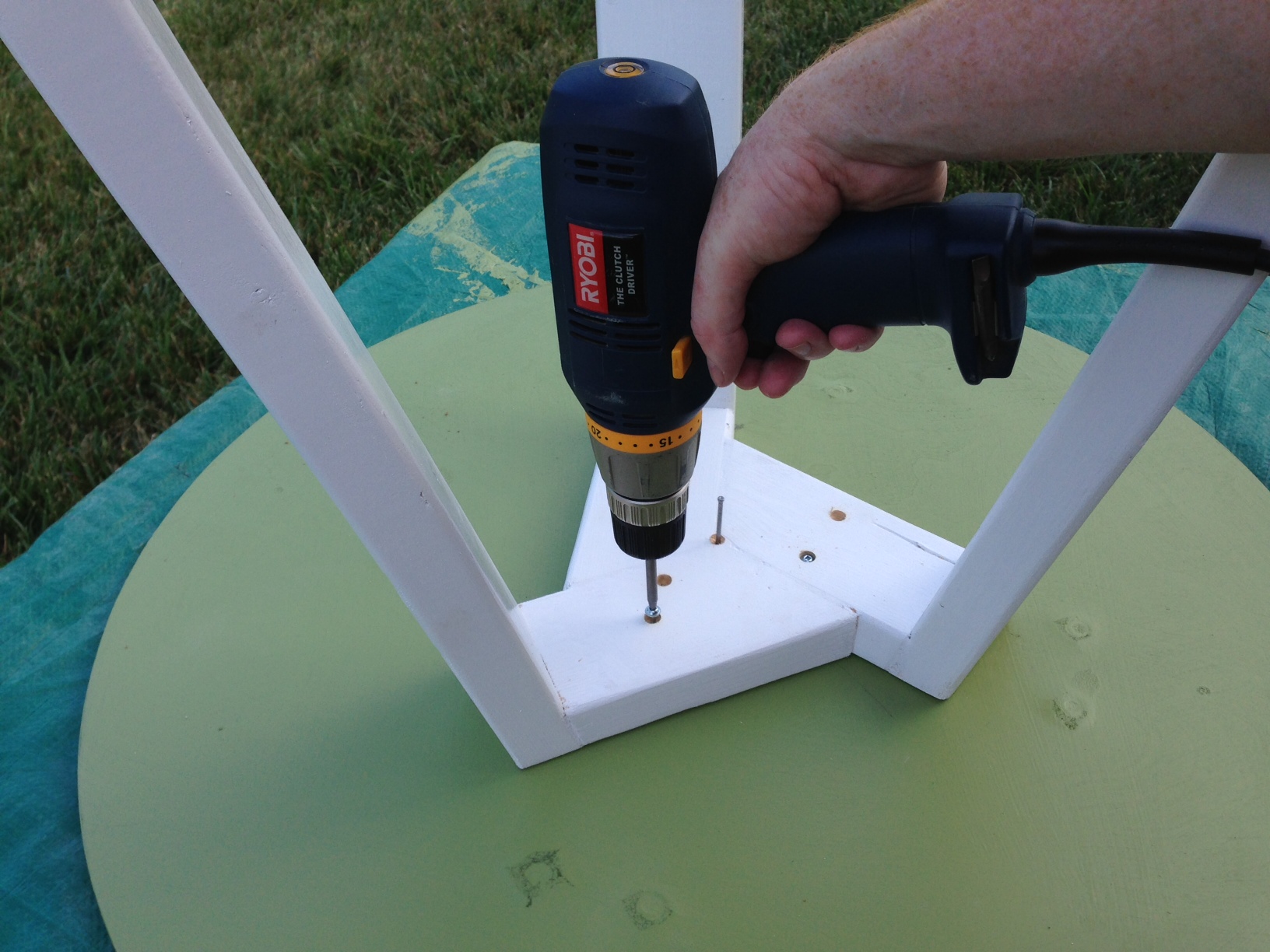

Use a nail or rod to line up the hole in the leg assembly to the hole in the round top. This will keep the top centered on the leg assembly. Drill pilot holes through the upper attachment assembly. Use wood screws to attach the leg assembly to the top. Make sure the screws don’t protrude through the top.
