Simple Robot
This is a simple robot made using the TinkerCad simulation. In this project our virtual. Circuit is made to make the motor turn with the help of battery . You can also add a switch to it also.
Items Needed
THE FOLLOWING ITEMS ARE NEEDED.
- 9v BATTERY x1

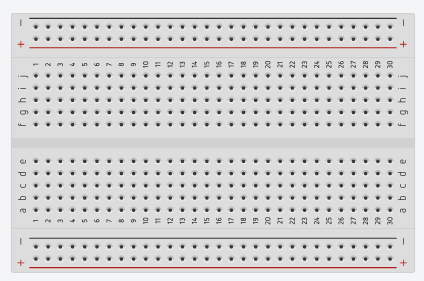

- BREADBORD x1
- 5v VOLTAGE REGULATER x1
- L293D
- DC MOTOR x2
CONNECTIONS

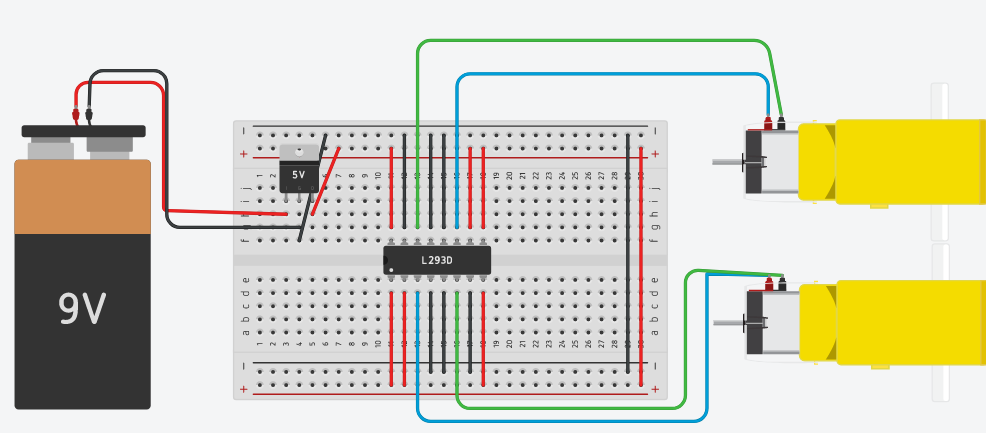

Connect the Circuit as shown in the picture.
