Simple Rain Detection Alarm Using Custom Rain Sensor

by Technoesolution2020 in Circuits > Electronics

769 Views, 2 Favorites, 0 Comments

Simple Rain Detection Alarm Using Custom Rain Sensor

Featured Image.jpg

Hello freinds welcome back to "Techno-E-solution" In this article I'll show you how to make a "Simple Rain Detection Alarm Using Custom Rain Sensor." In this project we need to make a rain sensor Plate using Marker & Single side copper clad board. I also make a PCB for whole project file link also provided.

Working Principle :-

Here is basic principle are used to make this system. I used a BC 547 transistor & diy rain sensor plate when rain drops falls on plate the voltage through plate triggers transistor & buzzer starts to buzz.

Follow Me On :-
| YOUTUBE | INSTAGRAM | FACEBOOK | INSTRUCTABLES | DAILYMOTION | HACKSTER |

If you like this project subscribe us on Youtube, So without wasting time Let's get started..............

MATERIAL REQUIRED

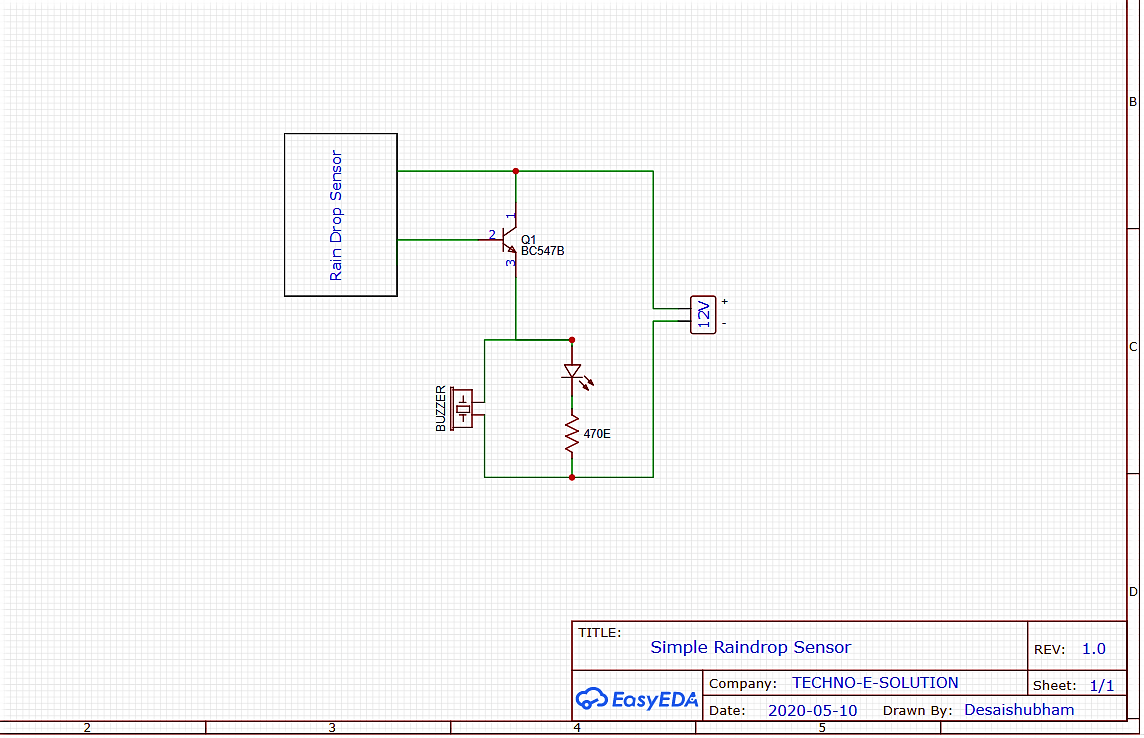

CIRCUIT DIAGRAM

Circuit Diagram.PNG

Follow the circuit diagram to make connections.

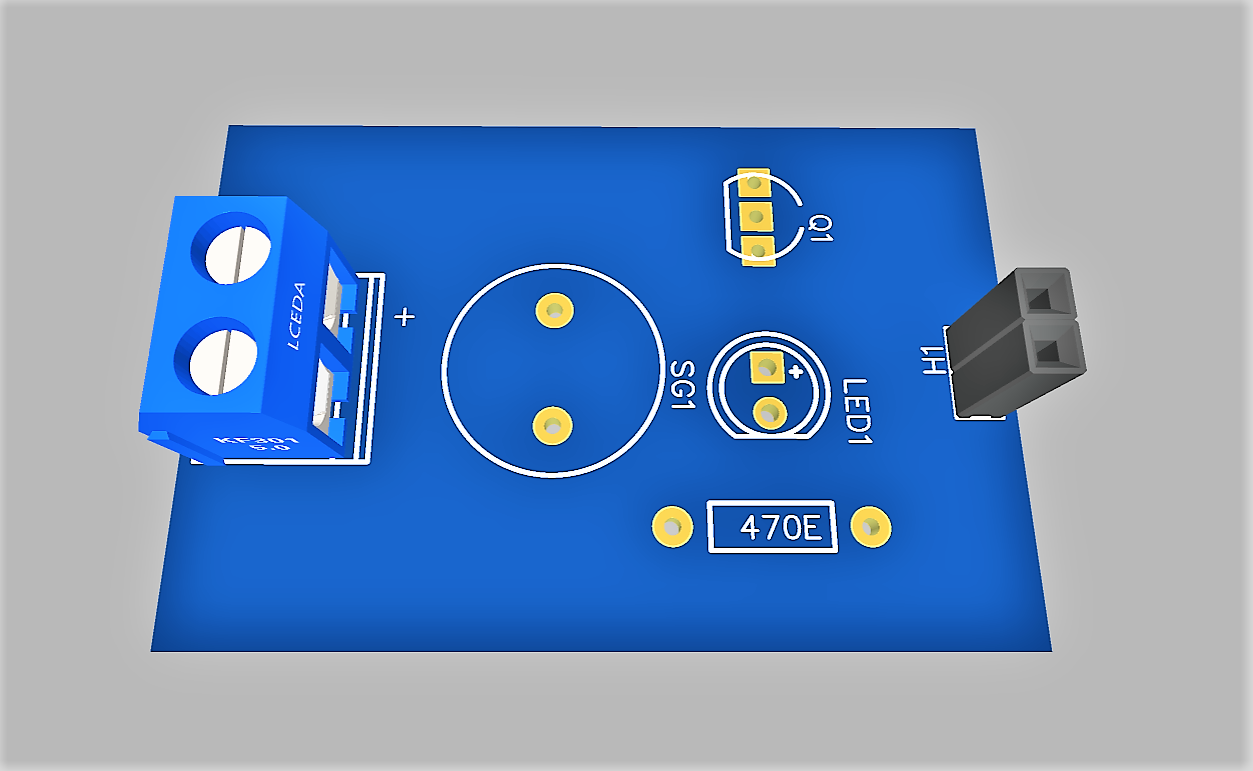

LET'S MAKE PCB

IMG20200501093032 (2).jpg

Follow the following steps to make PCB using "Tonner transfer Technic"

  1. Cut PCB as per your choice.
  2. Draw using marker as shown in above image.
  3. take a 2-3 spoon of ferric chloride in water.
  4. Place PCB in the solution for 5-10 min.
  5. Clean the PCB with the help of PCB Cleaner.
  6. Drill the PCB using drill machine.
  7. Now your PCB Completed.

Next PCB

NextPCB is a high-quality PCB Manufacturer. With professional PCB manufacturing capabilities, our PCB engineers with more than 10 years of experience will double-check your engineering files.

NextPCB is certified by IATF16949, ISO9001, ISO14001, UL, CQC, RoHS and REACH; more importantly, we handle the whole process including the PCB prototype, PCB manufacturing, PCB assembly, testing, and final shipment. We are capable of assembling BGA, Micro-BGA, QFN, and other leadless package parts. We also have an online parts shop, you can choose any parts you need.

If you want a Printed circuit board go through the NEXT PCB

Downloads

DEMO & TESTING
