Simple Panoramic Rig

Below are directions for a simple rig for panoramic video. It was built with free pallet wood and the temporary use of my mountain bike rim. The project took about 5 minutes to put it together.

Tools:

• Saw
• Drill
• Measuring tape

Materials:

• Bicycle Rim/Tire (26” used for this project)
• Wood – I used pallets

  • 16” x 3.5”
  • 38” x 5.5”
  • 32” x 4” (x2)

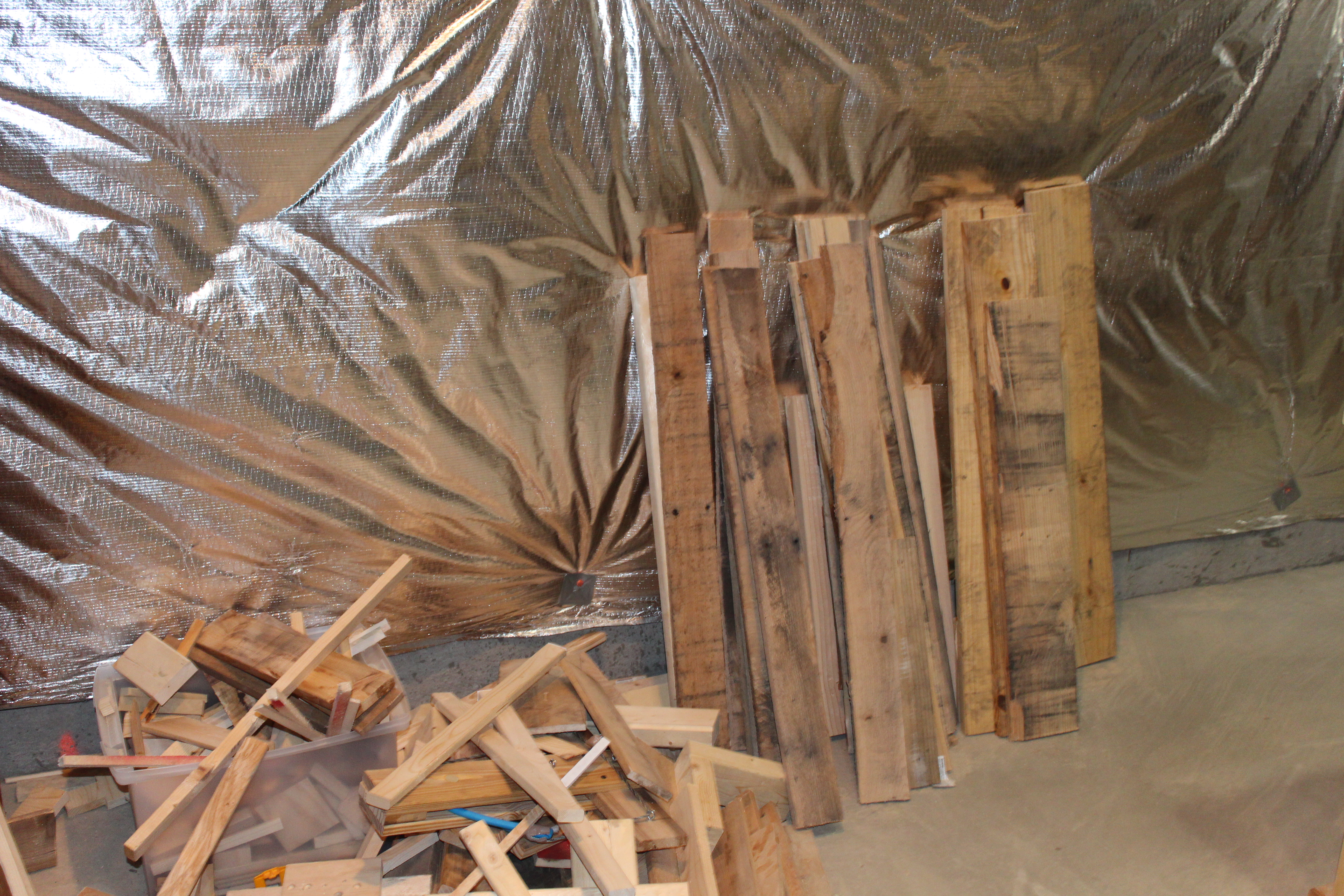

Find any wood. I used pallets from a previous project. Cut to approximate lengths shown above.

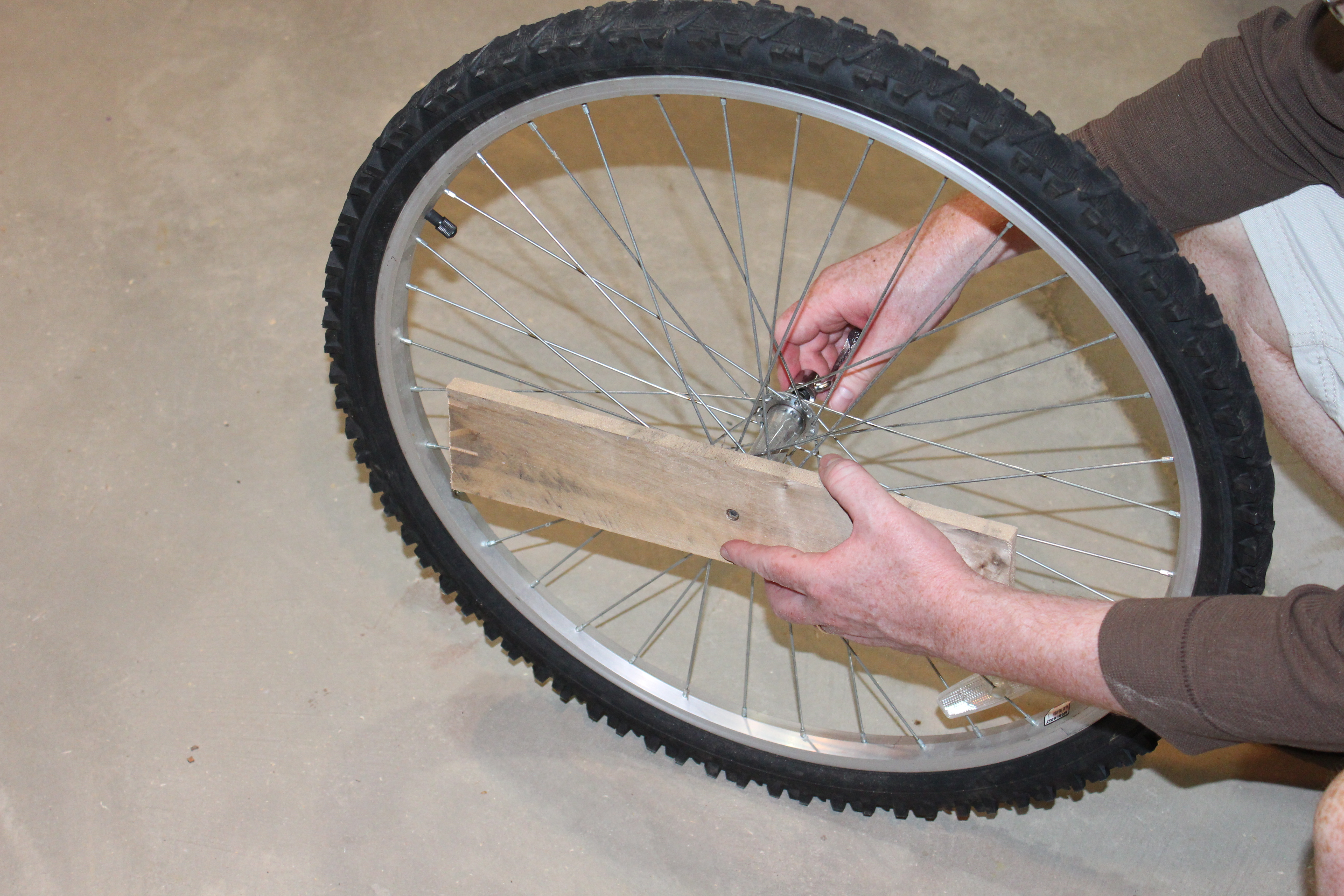

Drill hole in small board to match axle diameter. Mount tire to board – use nut from bike.

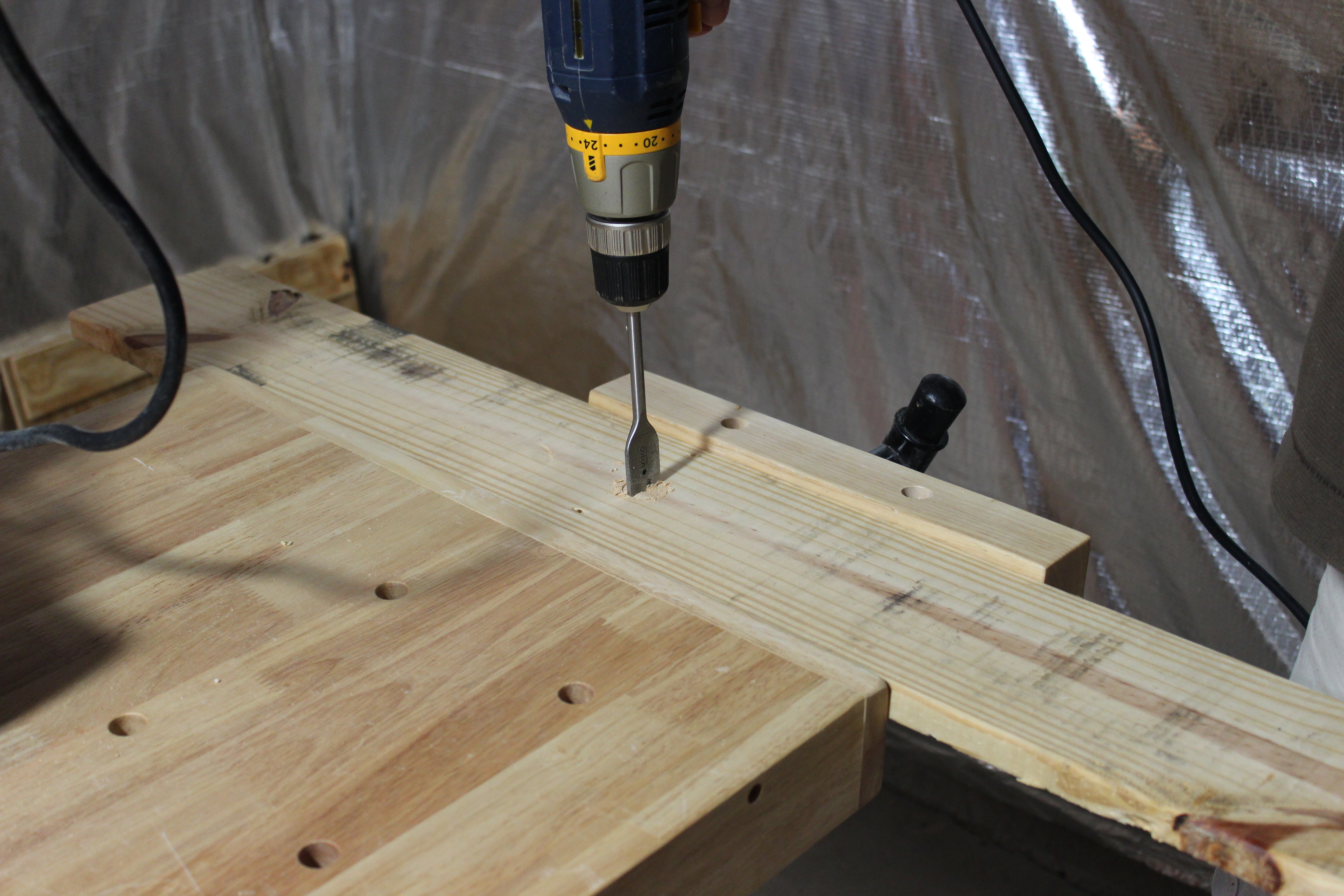

Drill a clearance hole in the center support.

Attach small board to center support.

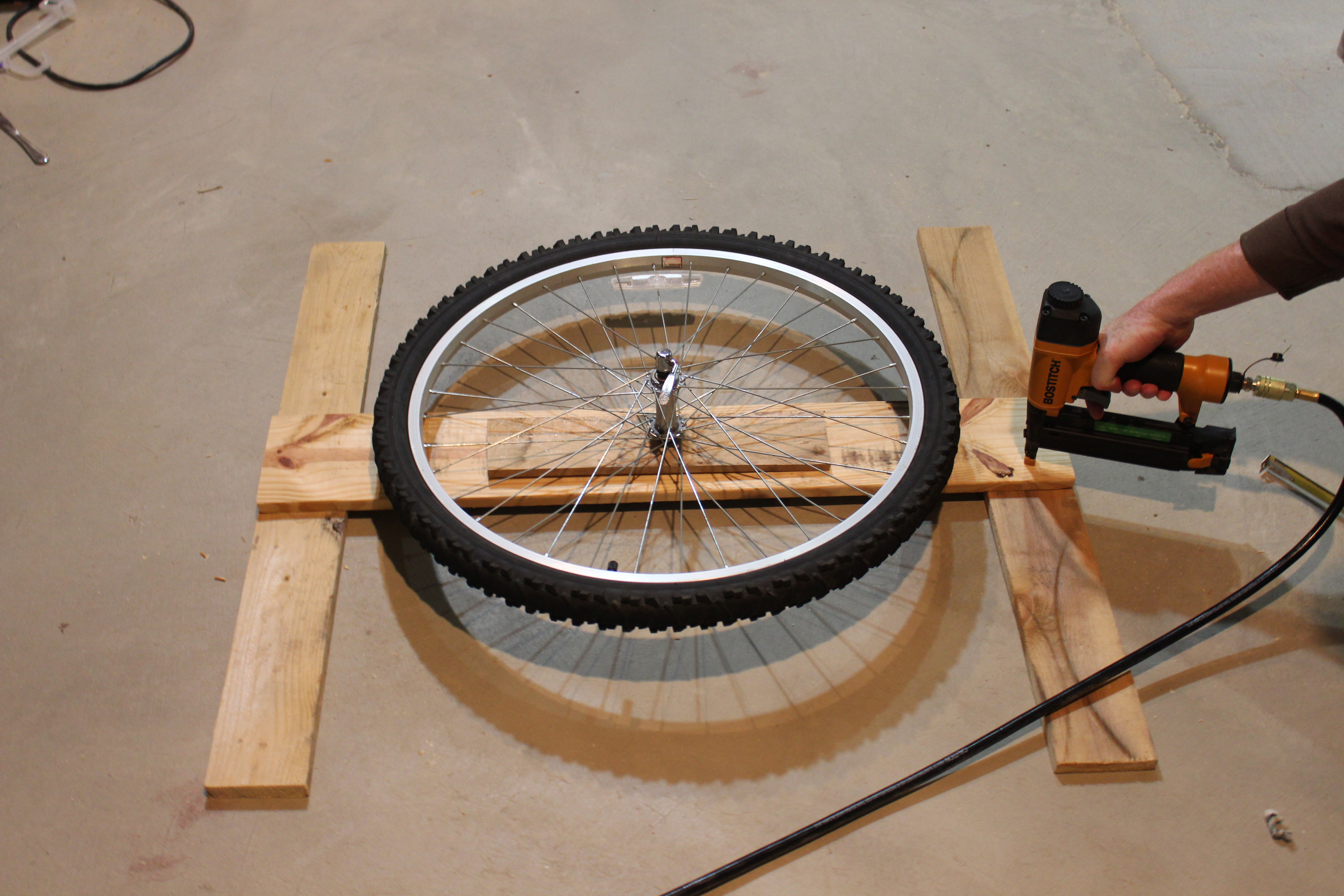

Add stabilization legs.

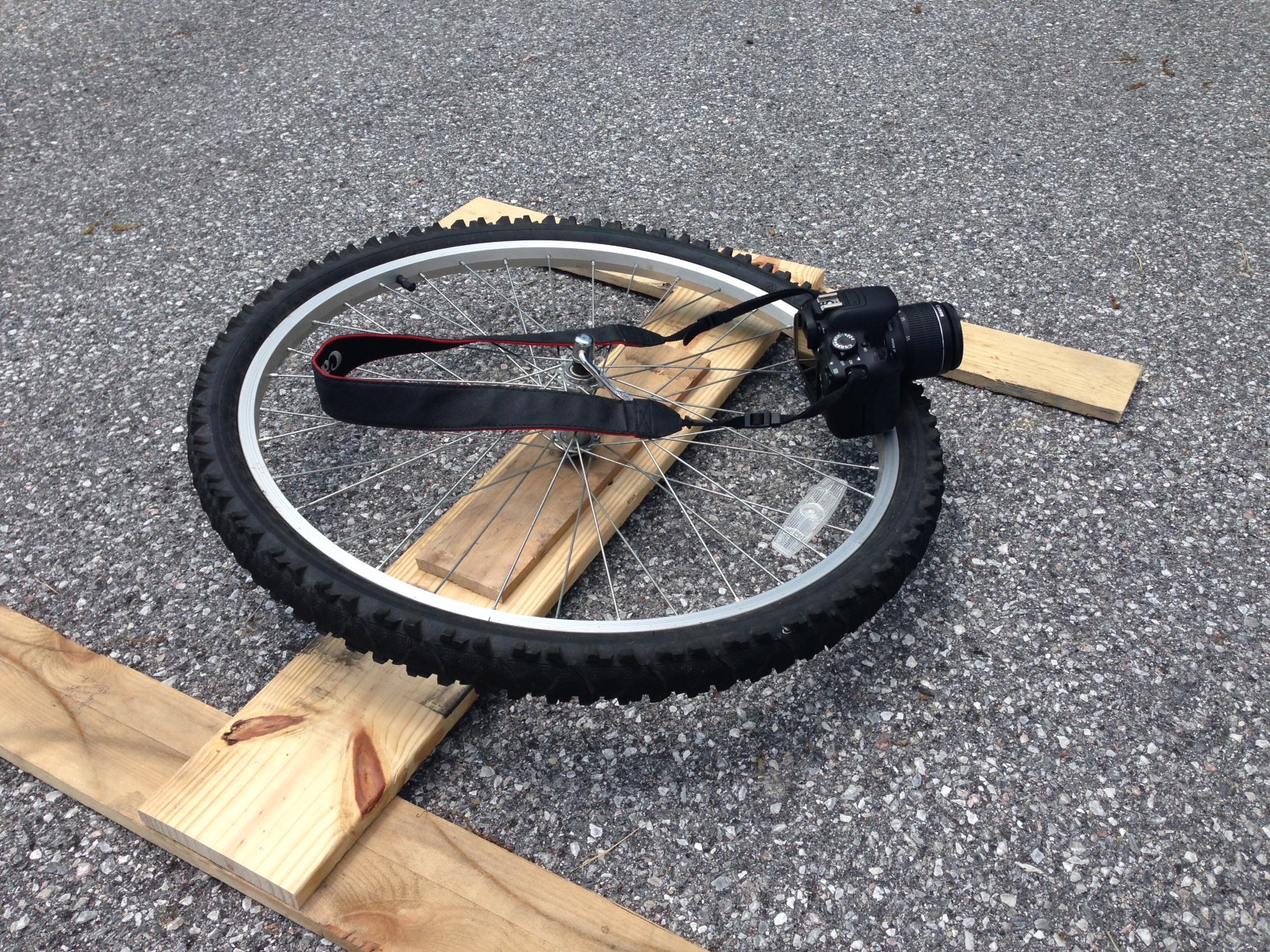

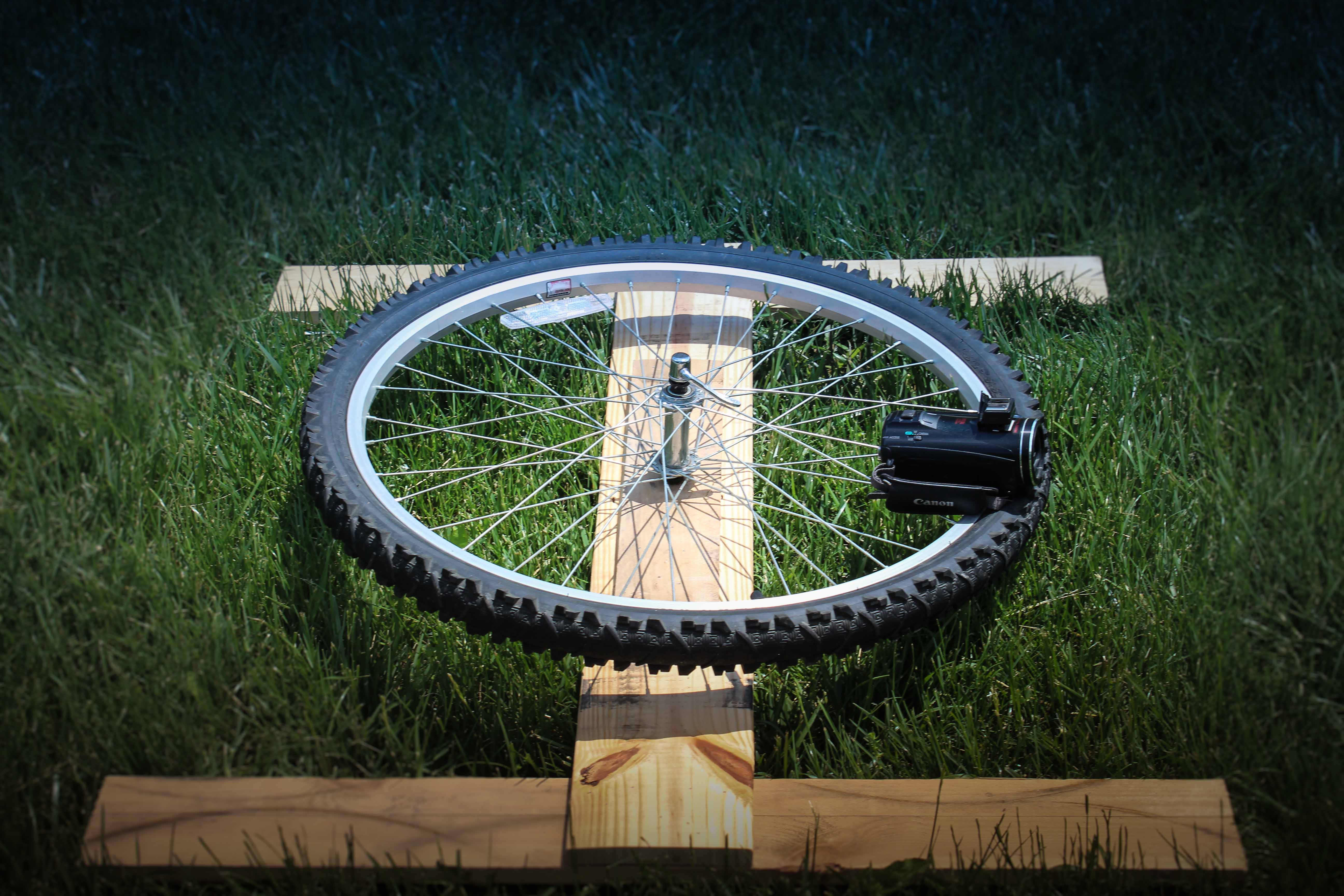

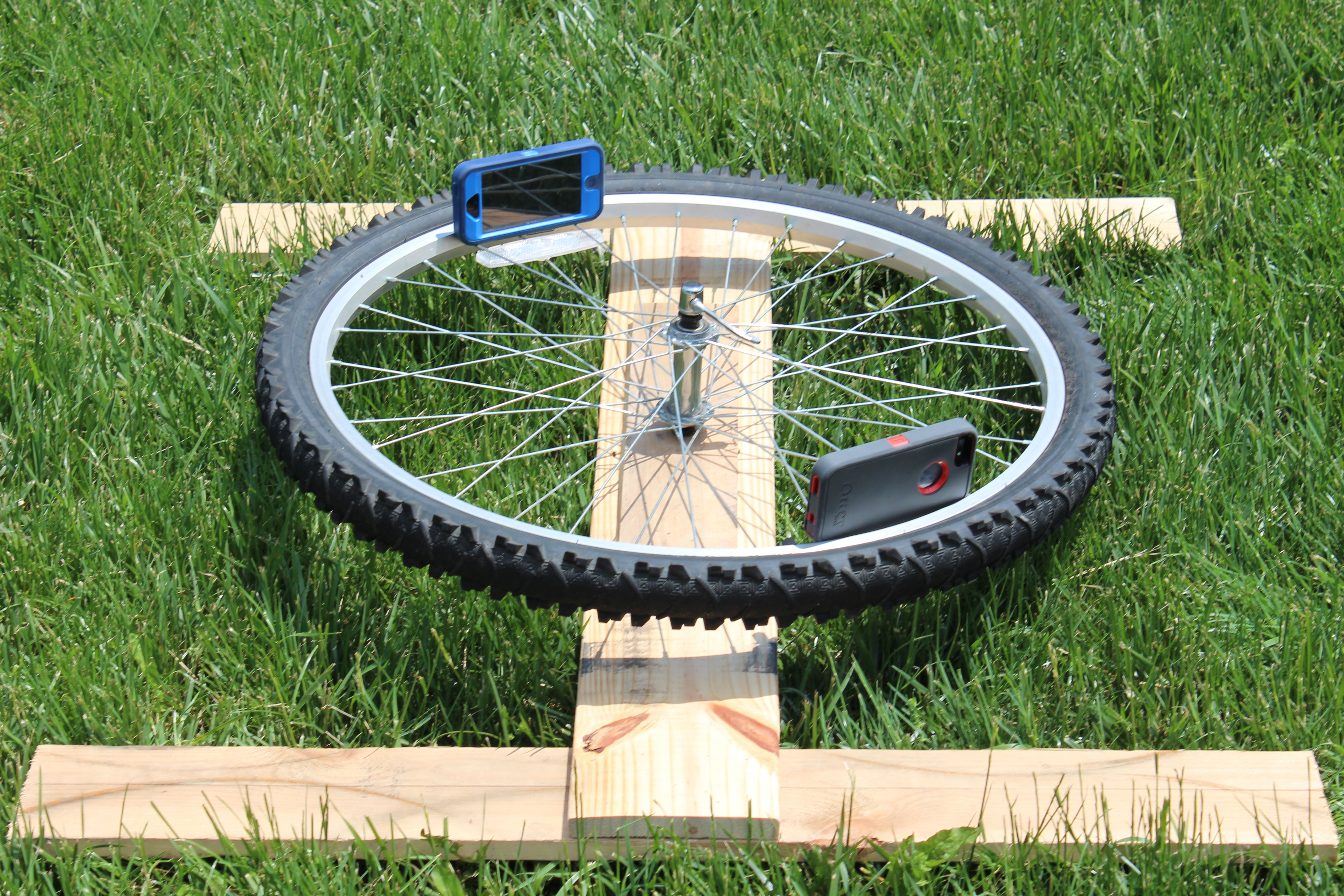

Place camcorder/camera on edge of wheel.

Spin and record. See link for video.
