Simple Nerf Modulus Mod

by nerfanator135 in Outside > Launchers

29487 Views, 5 Favorites, 0 Comments

Simple Nerf Modulus Mod

16, 5:23 PM.jpg
In this 'structible I will be showing a simple mod for the Nerf N-Strike Modulus ecs-10. This mod will help to fix any jamming problems you may have on any flywheel blaster.
PLEASE NOTE: I am not responsible for any damage or harm done to your nerf blaster.

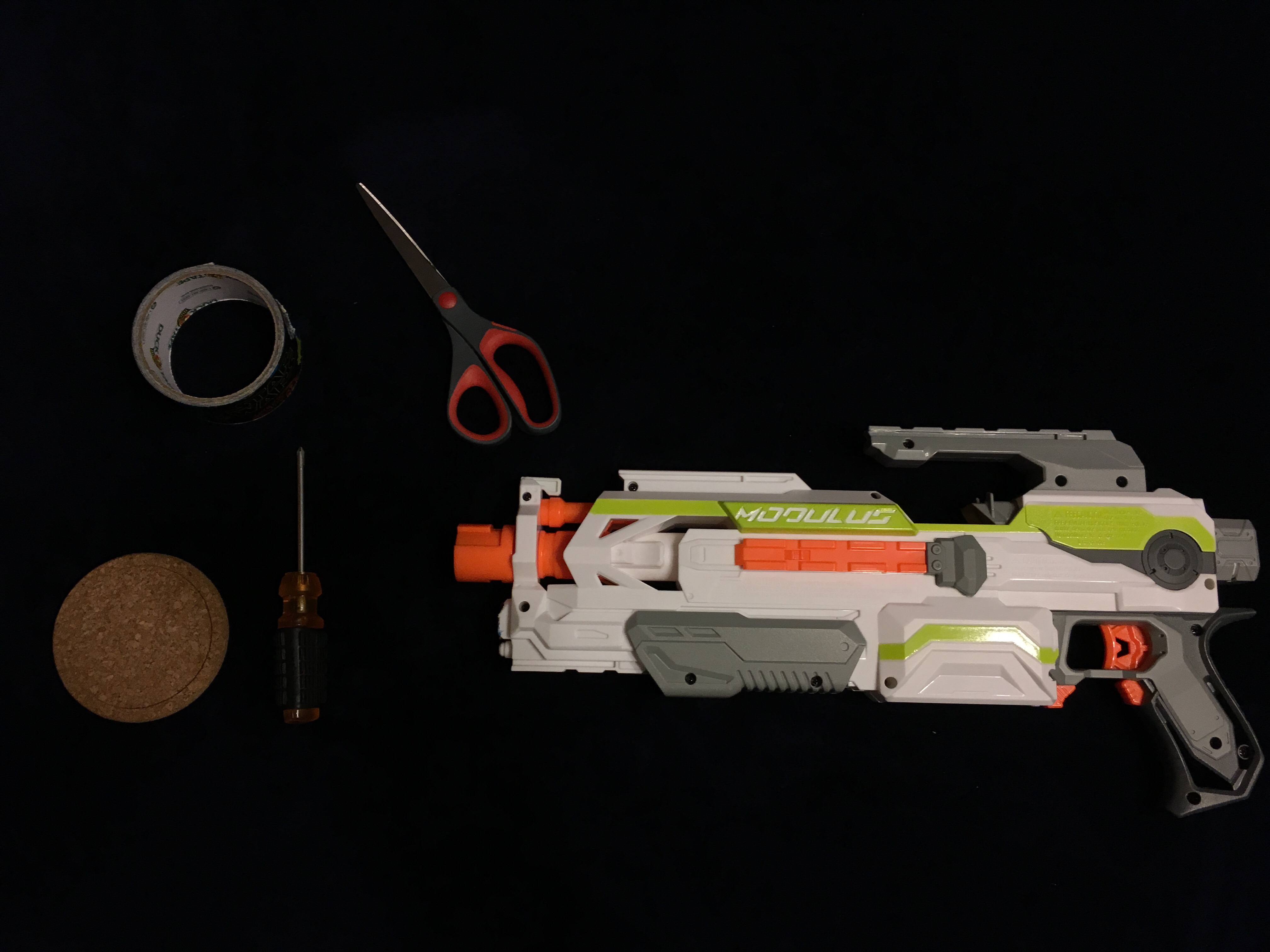

What You Will Need

16, 5:23 PM.jpg
• a roll of duct tape (any color)

• scissors

• nerf modulus blaster

• small tray or something to hold screws

• Philips head screwdriver

Take Off the Stock Attachment Point

16, 5:23 PM.jpg
This is pretty simple, just unscrew the two screws an take it off.

Open Up the Blaster

16, 5:23 PM.jpg
Next, unscrew all of the screws on the blaster. You will also need to unscrew the three on the gray rail. Then take the top half of the blaster off.

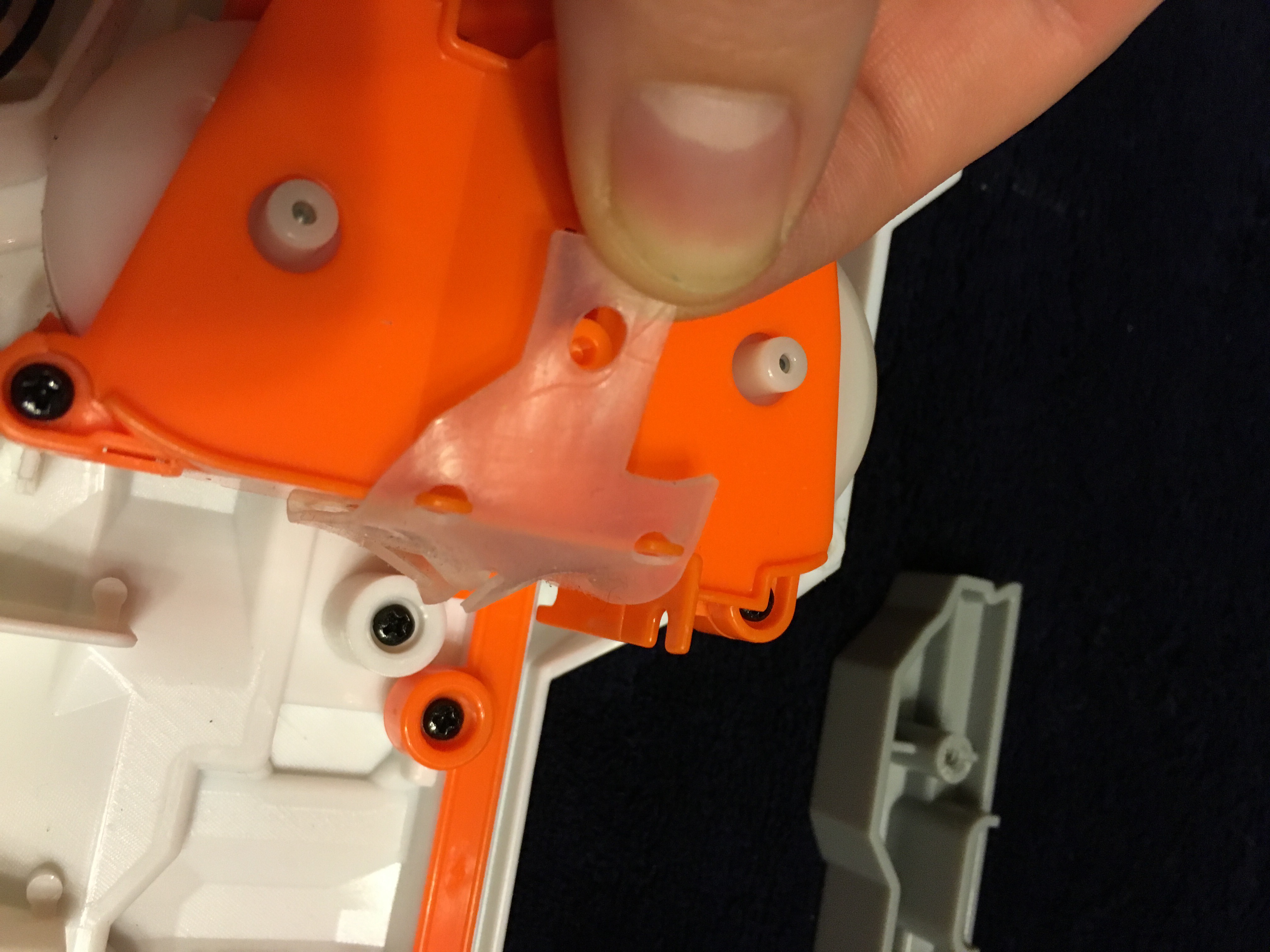

Detach the Rubber Flywheel Protector

16, 5:23 PM.jpg
16, 5:23 PM.jpg
16, 5:23 PM.jpg
16, 5:23 PM.jpg

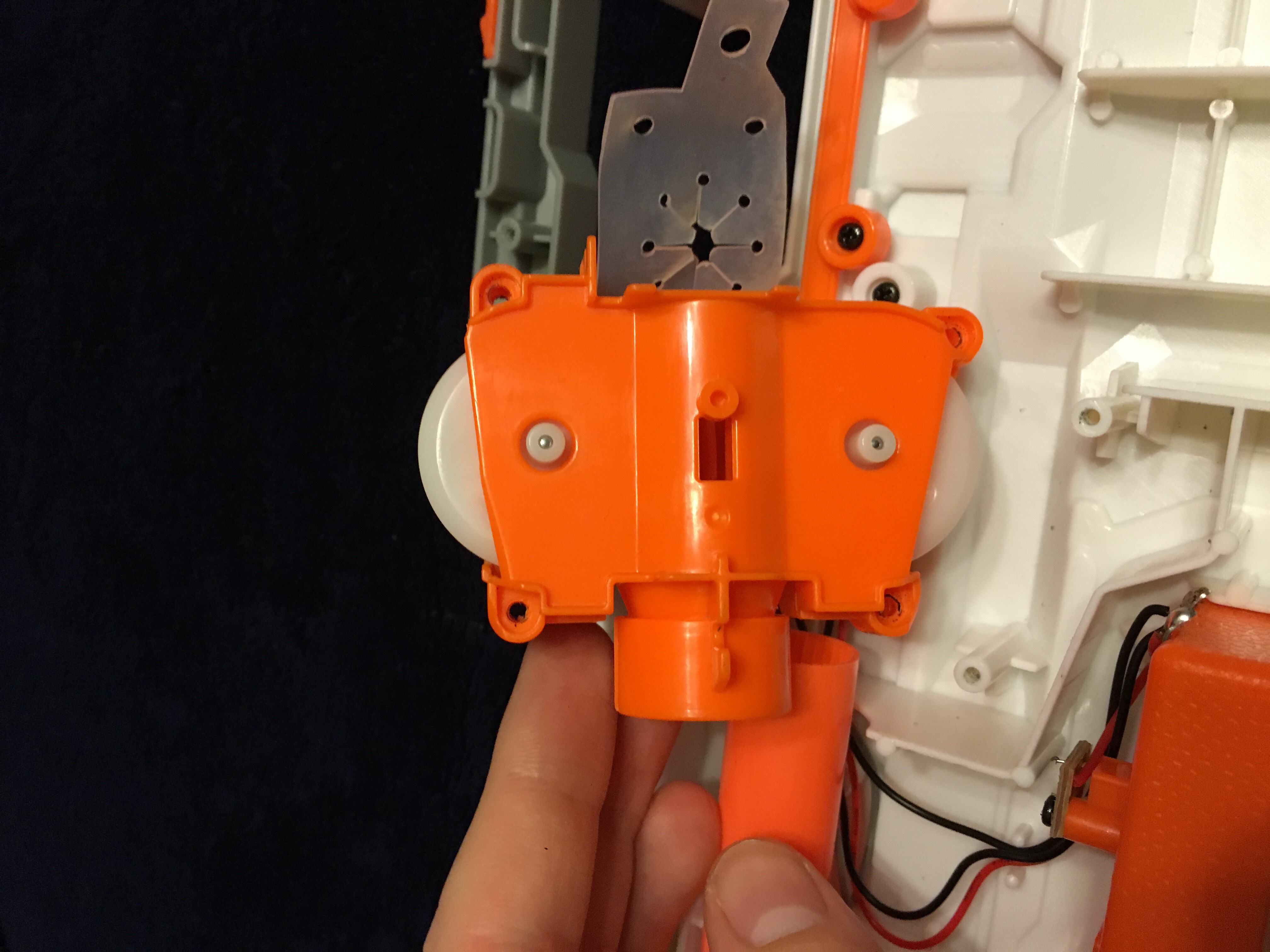

After you unhook the rubber protector, unscrew the four screws on the flywheel cage.

Finish It

16, 5:24 PM.jpg
16, 5:23 PM.jpg
16, 5:23 PM.jpg
Flip the flywheel cage over and use the scissors to cut the flywheel protector off.

Put the Blaster Back Together

16, 5:23 PM.jpg
After you've finished putting the blaster back together, cut two small squares of duct tape about the size of a penny and stick them here.
(See picture)
This will help the tactical (tacticool) barrels fit better.

You're Finished!

16, 5:23 PM.jpg
Thank you all for viewing, and I hope that this instructible helps!
