Simple Metal Spatula - Entry Level Project

This is a step by step guide, paired with a video on how to make a simple aluminium spatula.

This would make a great first metalwork project for kids at home or students in a technology classroom.

Step 1

Screen Shot 2019-05-09 at 9.46.31 AM.png

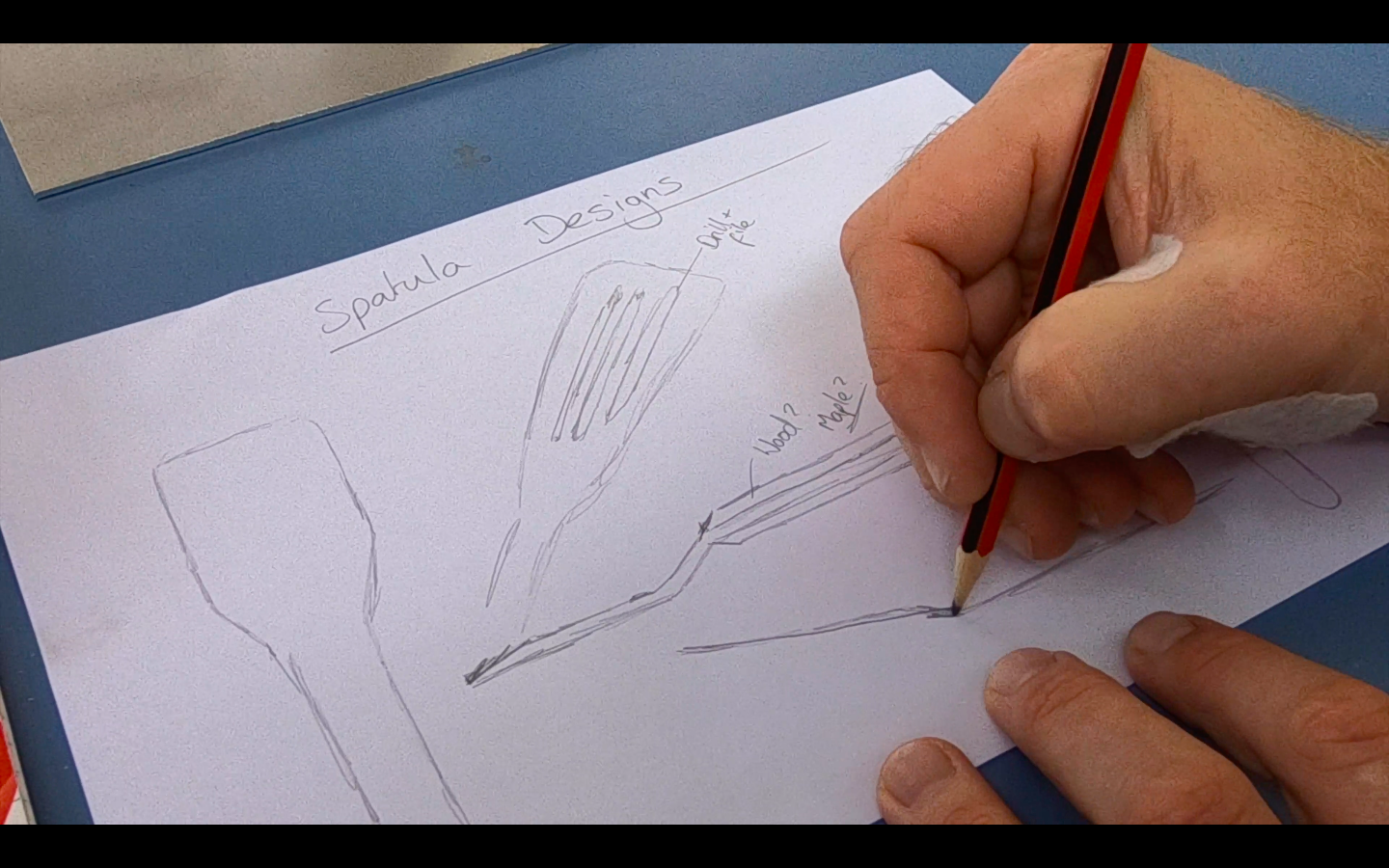

Design your spatula

Think about the shape and what material(s) you want to use for your handle. Do you want twists, a wooden/alu handle or an alu/acrylic handle?

Step 2

Screen Shot 2019-05-09 at 9.47.36 AM.png

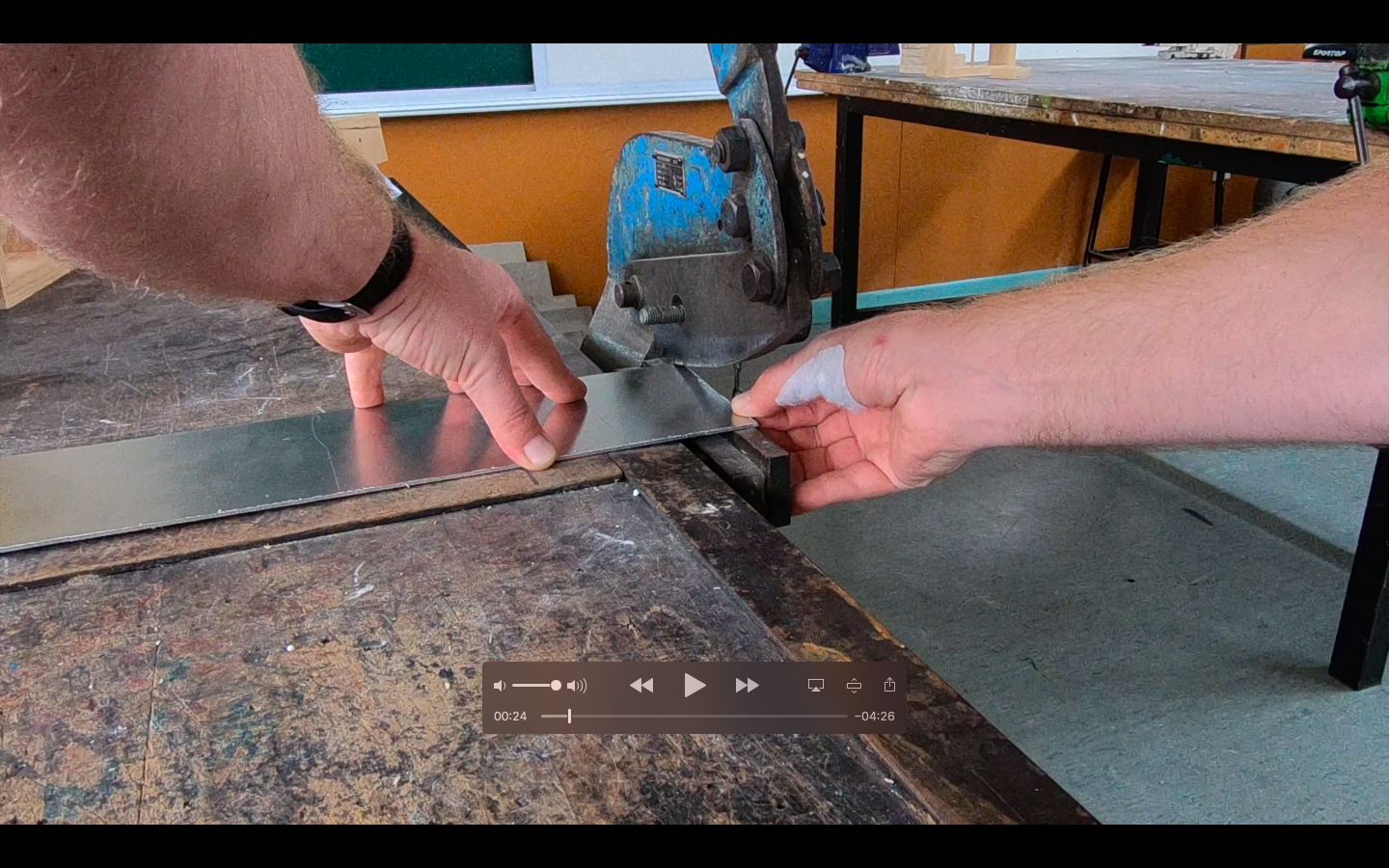

Cut out your aluminium for the flipper part of the spatula.

Use the metal shear. Check the material is lined up before cutting.

Step 3

Screen Shot 2019-05-09 at 9.48.21 AM.png

Screen Shot 2019-05-09 at 9.49.07 AM.png

Screen Shot 2019-05-09 at 9.47.02 AM.png

Screen Shot 2019-05-09 at 9.47.40 AM.png

Screen Shot 2019-05-09 at 9.48.12 AM.png

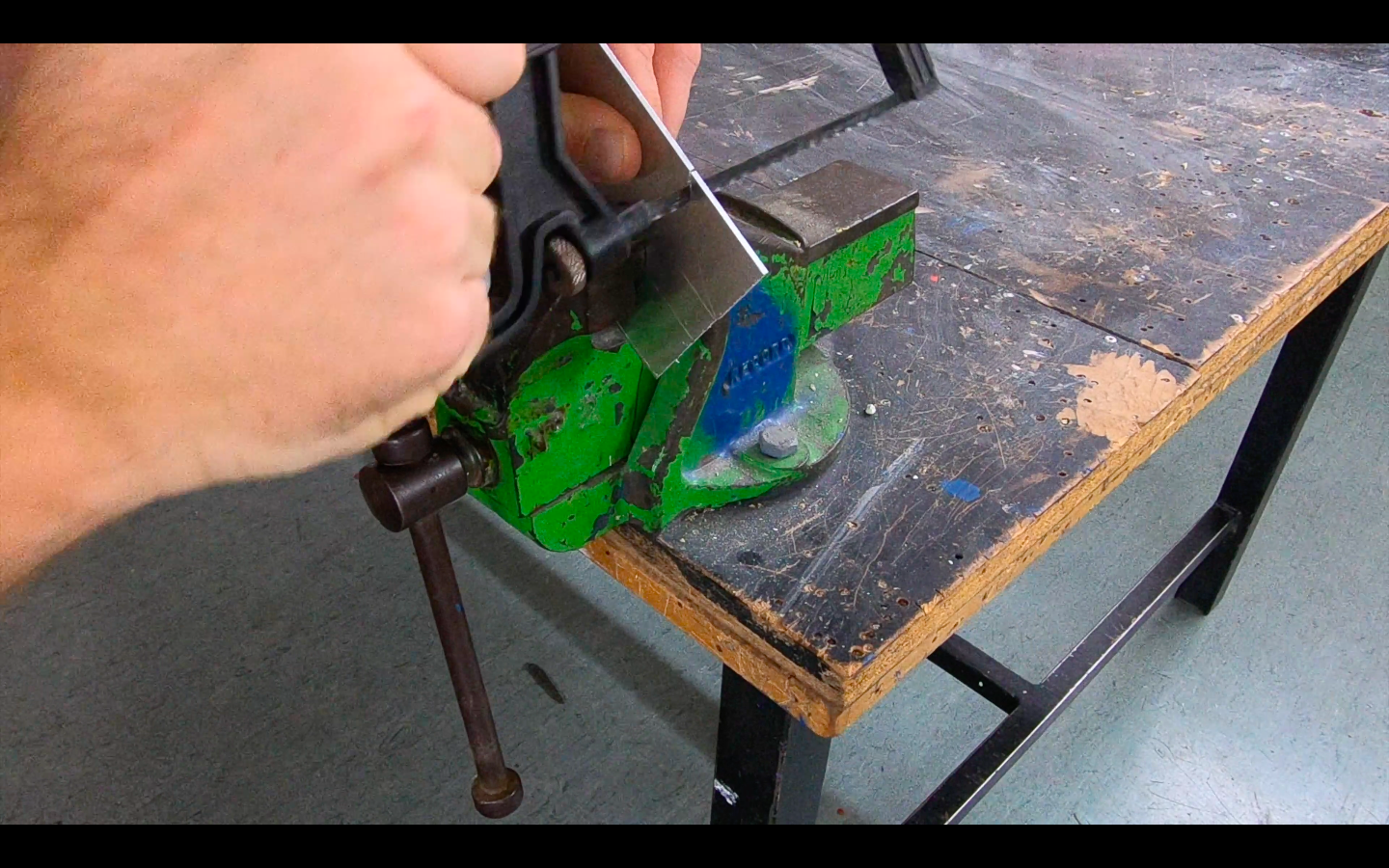

If you need to cut your flipper piece, use a junior hacksaw to cut your aluminium.

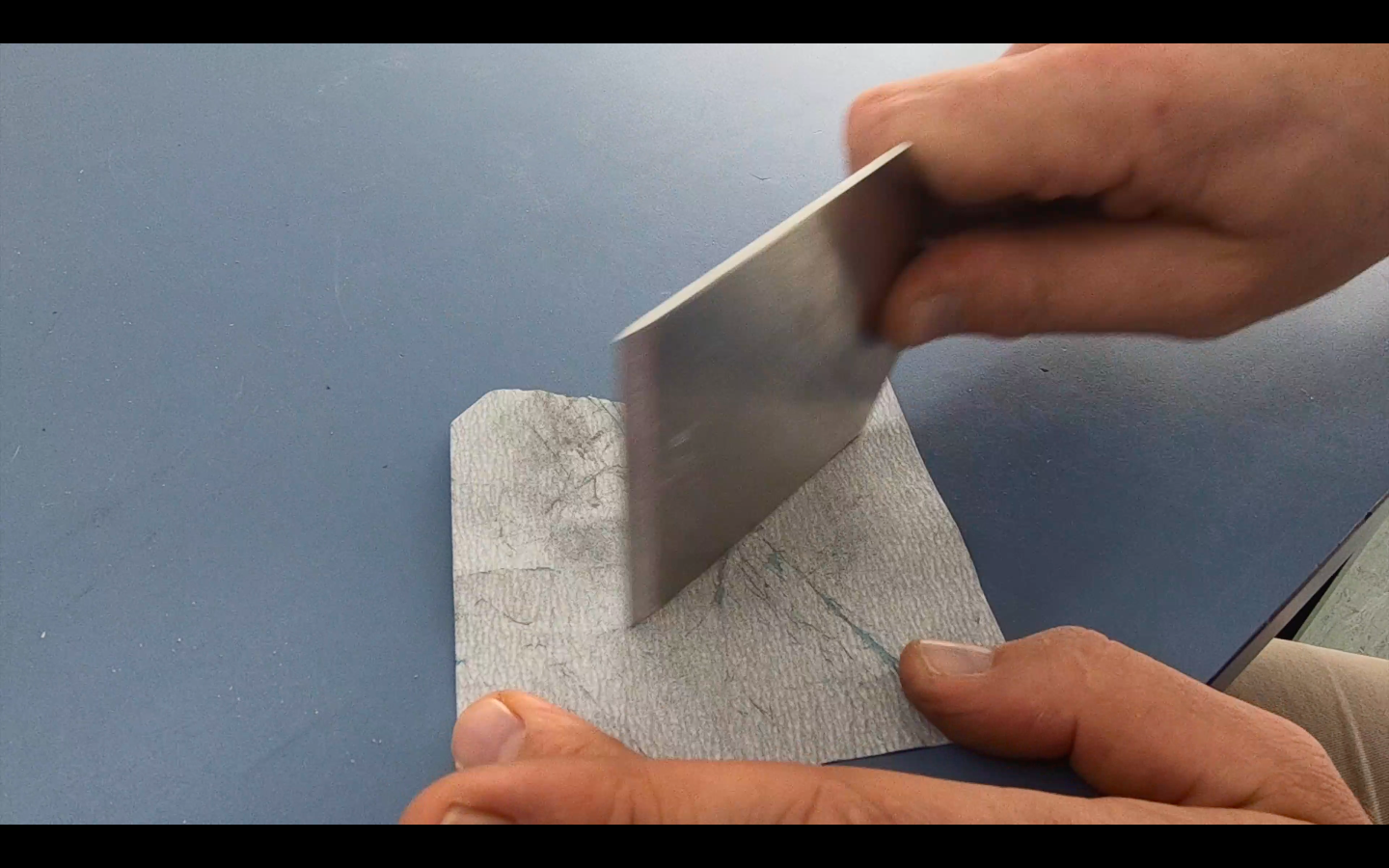

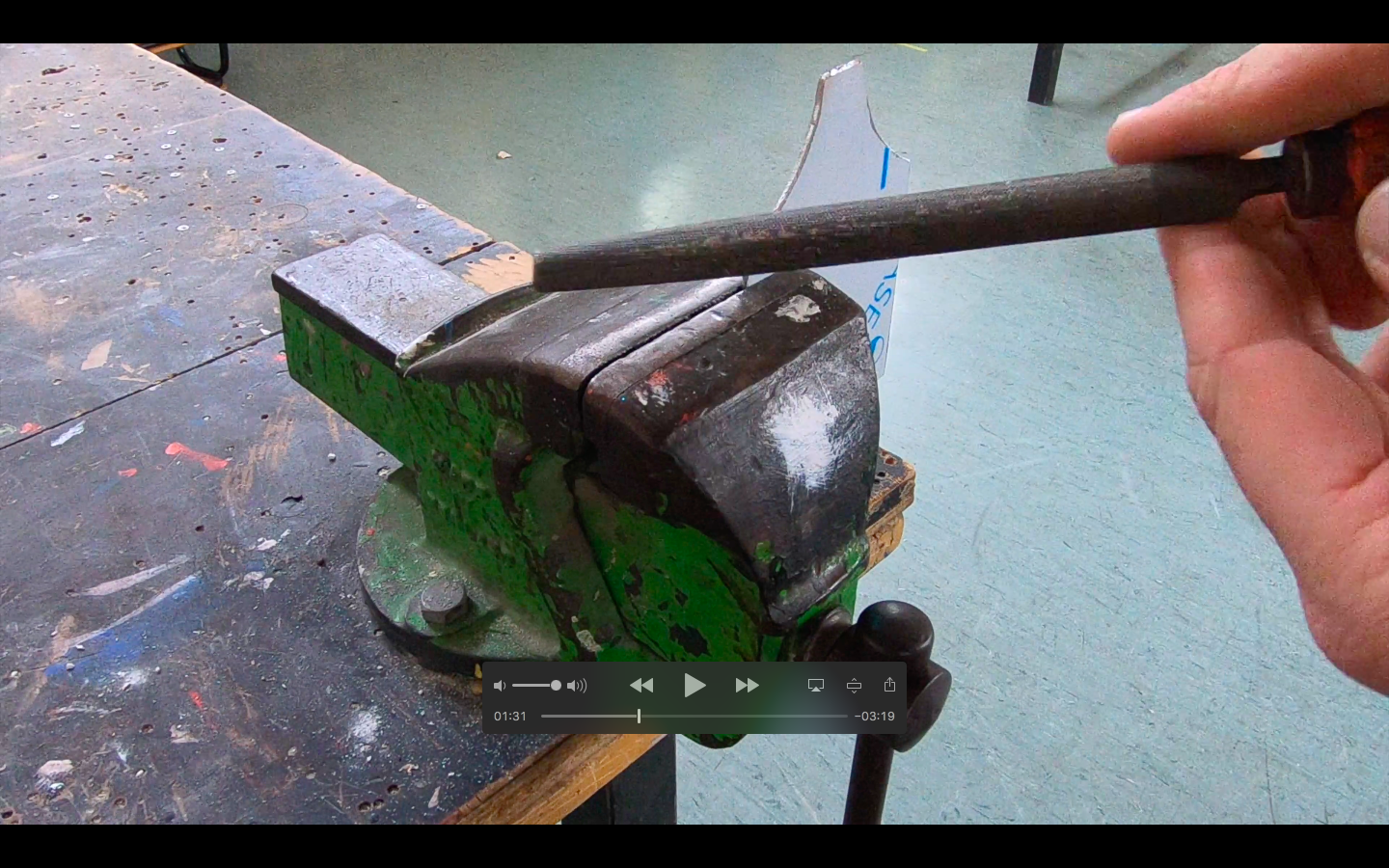

Use a file to smooth and round the edges of your shape.
There should be no sharp edges.

Step 4

Screen Shot 2019-05-09 at 9.48.48 AM.png

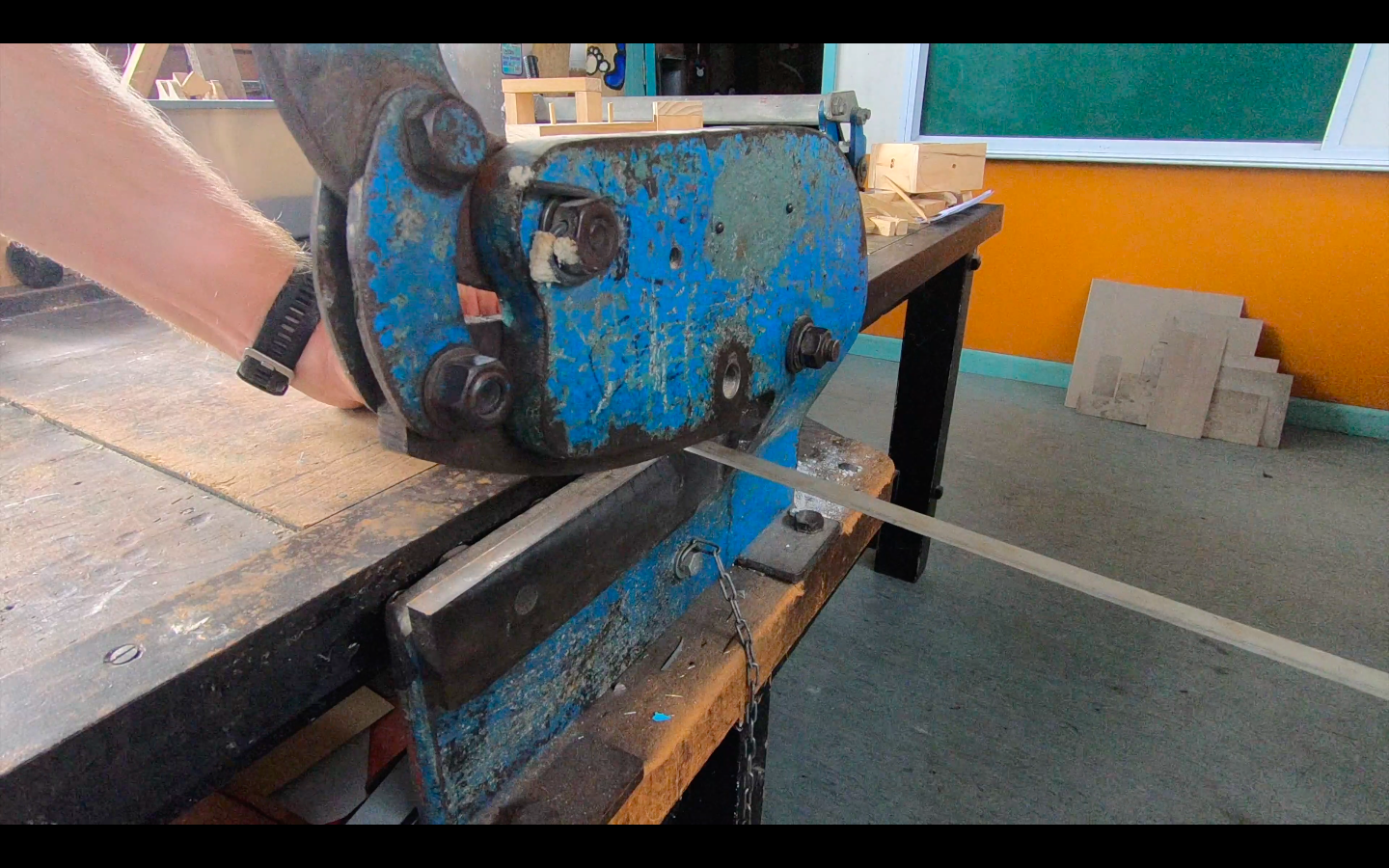

Cut your handle using a hacksaw or the metal shear.

Step 5

Screen Shot 2019-05-09 at 9.49.27 AM.png

Measure your flipper and find the middle so you can line up the handle.

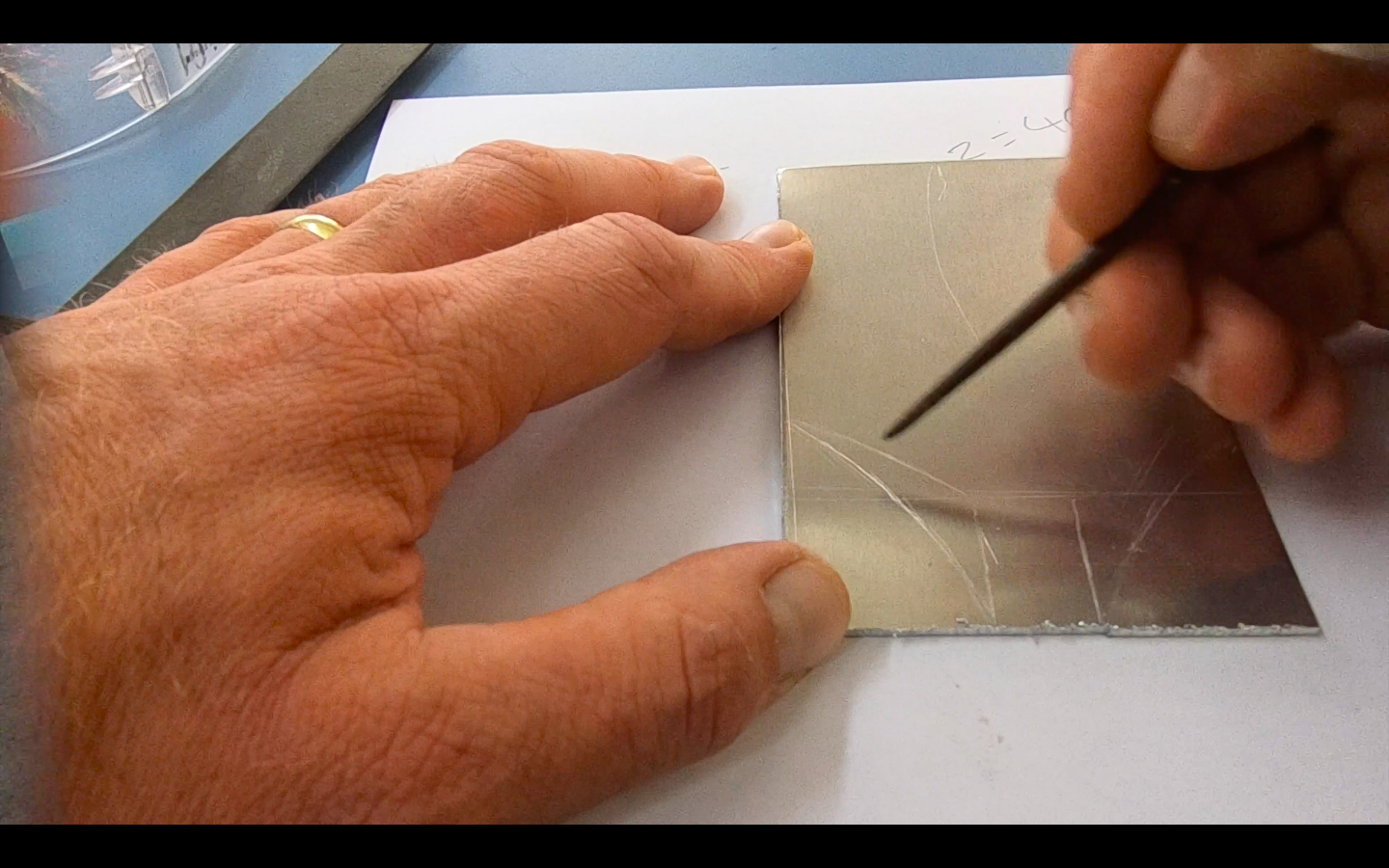

Line up and mark out your holes on the handle metal. Use a punch to create a guide for your drill bit so it doesn’t drift.

Step 6

Screen Shot 2019-05-09 at 9.49.54 AM.png

Screen Shot 2019-05-09 at 9.49.38 AM.png

Screen Shot 2019-05-09 at 9.51.04 AM.png

Drill 5mm holes through the handle and flipper. Use a file to take all the rough edges.

Step 7

Screen Shot 2019-05-09 at 9.50.39 AM.png

If you want to stamp your name or a slogan on your handle do it now.

Use the letter punches with a hammer. Make sure you have a metal block under your handle. Do each letter with one hard strike, NOT repeated strikes...

Step 8

Screen Shot 2019-05-09 at 9.50.21 AM.png

If you want a twist on your handle put the handle material in a metal vice.

Attach a vice grip to the top making sure its tight and rotate it until you have your desired twists.

Step 9

If you want a curved end put your metal handle in the vice and bend down. Bend the rest round by tapping it round with a hammer.

Step 10

Screen Shot 2019-05-09 at 9.50.50 AM.png

Screen Shot 2019-05-09 at 9.50.57 AM.png

Next we need to bend the flipper on the metal bending machine.

If you want holes or grooves in your flipper now is the time to do it. They will need to be filed after drilling.

Step 11

Screen Shot 2019-05-09 at 9.51.34 AM.png

Next we need to rivet the handle to the flipper. Make sure your rivets line up with holes and rivet together. Squeeze from the end of the handle for more leverage.

Step 12

Screen Shot 2019-05-09 at 9.52.31 AM.png

Screen Shot 2019-05-09 at 9.52.57 AM.png

File down the back of the rivets where they come through, and any other sections that need smoothing.

Step 13

Screen Shot 2019-05-09 at 9.53.09 AM.png

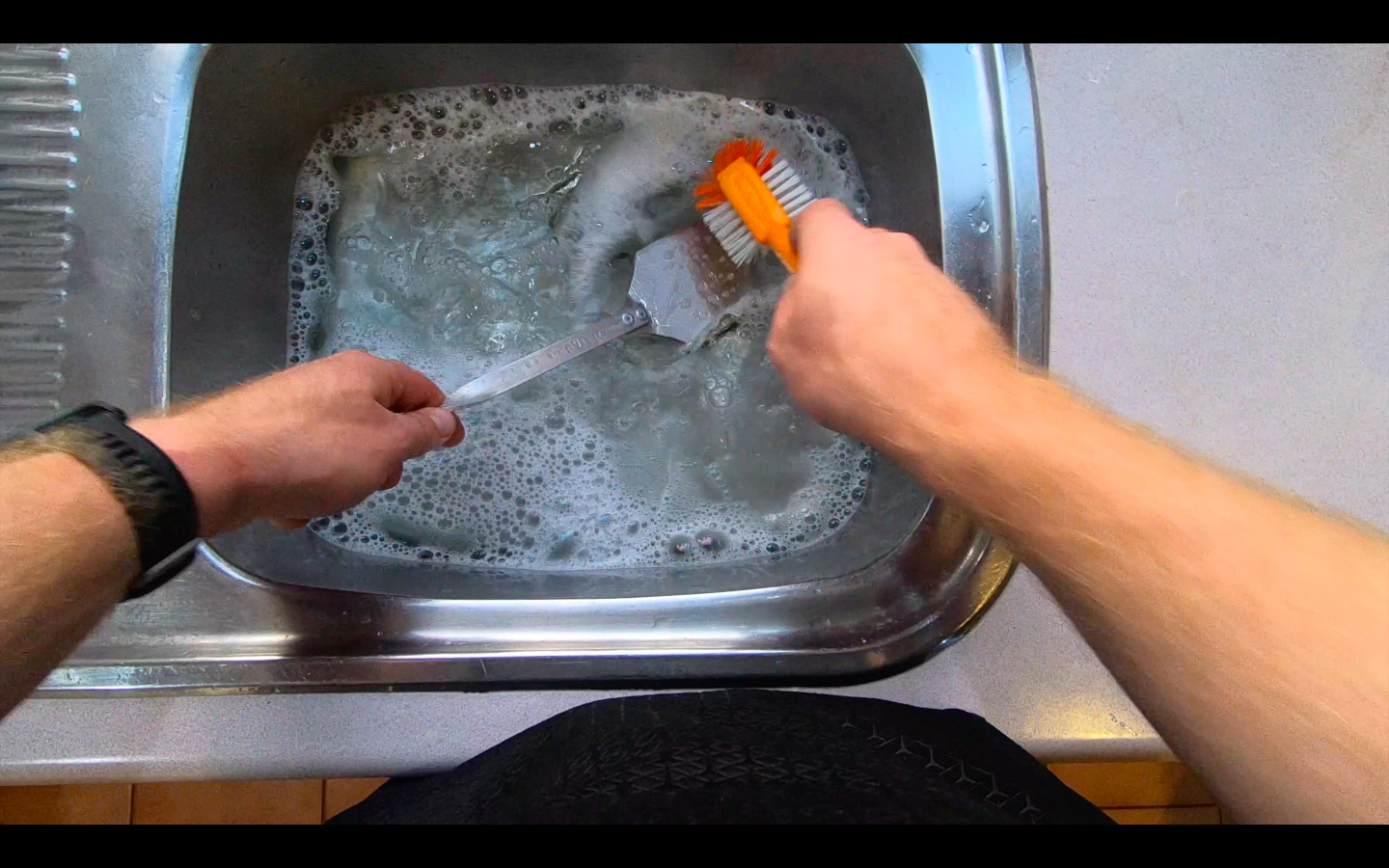

Clean off using some soapy water.

Step 14

Screen Shot 2019-05-09 at 9.53.33 AM.png

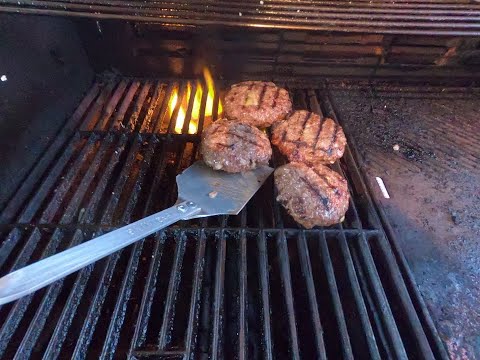

TEST IT OUT
