Simple Magnetic Tool Rack

Here's a quick and easy way to sort all your small tools into more convenient racks. It's likely you already have everything you need to make this - so it's very cheap.

The majority of tools are ferrous (i.e. magnetic) and so can be easily suspended with very small neodymium magnets.

All you will need:

►Any ferrous* tool

►Small neodymium magnets** (5mm diameter, ~3mm thickness)

►Wood strip, as long as you like

►Small wood screws

*If you want to use non-ferrous tools, you will have to install a magnet within the tool itself as well (check polarity).

**If you want to make this for bigger tools, use larger diameter magnets. HDD magnets will also work, though may crack with hard impacts.

Mark out the holes for the magnets. I recommend placing your tools on the wood to check the spacing. Since I was making this for a set of identical tools, I just gauged the space and repeated this 4 more times. Do make sure the magnets are strong enough to hold that tool first.

Next, use a 5mm forstner bit to drill into the wood. If you do not have one, you can just use a standard 5mm drill bit but this will not work as well. Keep stopping to check the depth; the magnet must not protrude when fitted. If you go to deep, don't worry - this can be corrected later.

Now you can glue the magnets using hot glue or epoxy (for more strength). I recommend hot glue because you can easily correct any depth issues: simply put a bit more underneath. When dry, check they are secure by attaching the tools and taking them off.

Finally, use some suitable wood screws to mount your rack wherever you want, just make sure you don't split the wood.

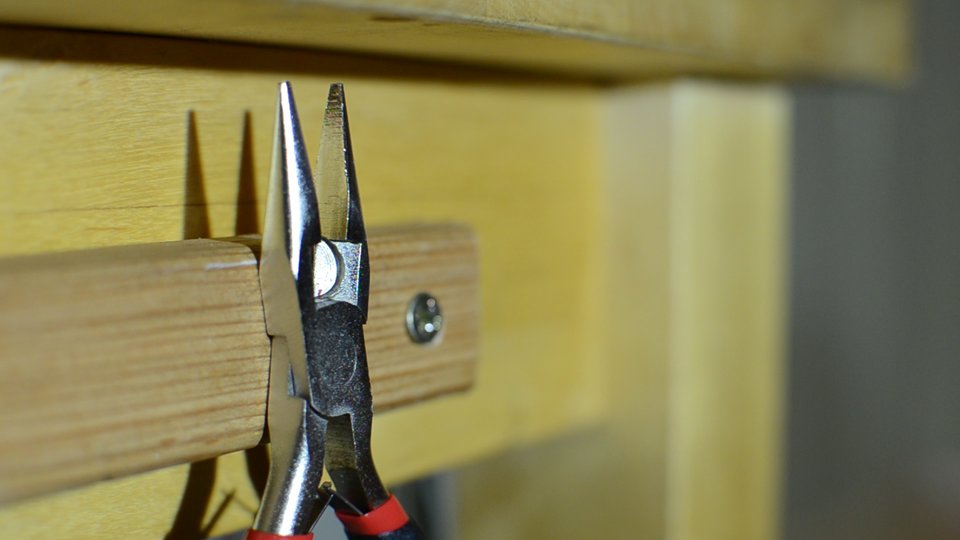

You've now made a cheap and easy tool rack.
